解析上传的 .har 文件,提取出京东商品的 skuId、skuName、skuImg 和 jdPrice,并将提取的结果显示在网页表格中。以下是通俗易懂的代码分解:**
- HTML 结构
主要内容
标题:显示页面标题“京东新品上线查询工具”。
按钮和文件上传:
用户可以点击按钮选择一个 .har 文件。
选择完成后,点击“解析文件”按钮触发解析操作。
表格:
用来展示解析后的商品数据,包括:
序号(#)
商品 ID(skuId)
商品名称(skuName)
商品图片(skuImg)
商品价格(jdPrice) - 解析逻辑 (JavaScript)
函数:parseHarFile()
这个函数负责读取用户上传的 HAR 文件,并提取其中的商品数据:
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>京东新品查询工具</title>
<style>
body {
font-family: Arial, sans-serif;
margin: 20px;
background-color: #f5f5f5;
}
h1 {
color: #4CAF50;
text-align: center;
}
.buttons {
display: flex;
justify-content: center;
margin: 20px;
gap: 10px;
}
button, input[type="file"] + label {
padding: 10px 20px;
background-color: #4CAF50;
color: white;
border: none;
border-radius: 5px;
cursor: pointer;
font-size: 16px;
}
button:hover, input[type="file"] + label:hover {
background-color: #45a049;
}
input[type="file"] {
display: none;
}
table {
width: 100%;
margin: 20px auto;
border-collapse: collapse;
background-color: #fff;
}
th, td {
padding: 10px;
border: 1px solid #ddd;
text-align: left;
}
th {
background-color: #f2f2f2;
}
td img {
max-width: 100px;
max-height: 100px;
}
</style>
</head>
<body>
<h1>京东新品上线查询工具-</h1>
<div class="buttons">
<input type="file" id="fileInput" accept=".har">
<label for="fileInput">选择 执行文件</label>
<button onclick="parseHarFile()">解析文件</button>
</div>
<table id="resultTable">
<thead>
<tr>
<th>#</th>
<th>SkuId</th>
<th>SkuName</th>
<th>SkuImg</th>
<th>Price</th>
</tr>
</thead>
<tbody>
</tbody>
</table>
<script>
function parseHarFile() {
const fileInput = document.getElementById('fileInput');
const file = fileInput.files[0];
if (!file) {
alert('请选择一个 HAR 文件。');
return;
}
const reader = new FileReader();
reader.onload = function (event) {
try {
const harData = JSON.parse(event.target.result);
const parsedData = [];
const entries = harData.log.entries;
// Recursively extract SKU data
function extractSkus(jsonObject, results) {
if (typeof jsonObject === 'object' && jsonObject !== null) {
// Check for SKU fields
if (
jsonObject.skuId &&
jsonObject.skuName &&
jsonObject.skuImg &&
jsonObject.jdPrice
) {
results.push({
skuId: jsonObject.skuId,
skuName: jsonObject.skuName,
skuImg: jsonObject.skuImg,
price: jsonObject.jdPrice,
});
}
// Recursively check objects and arrays
Object.values(jsonObject).forEach((value) =>
extractSkus(value, results)
);
}
}
// Process each entry in the HAR file
entries.forEach((entry) => {
const responseText =
entry.response?.content?.text || '';
if (responseText) {
try {
const jsonResponse = JSON.parse(responseText);
extractSkus(jsonResponse, parsedData);
} catch (e) {
console.error('解析 JSON 出错:', e);
}
}
});
// Display the extracted results
displayResults(parsedData);
} catch (error) {
alert('解析文件出错:' + error.message);
}
};
reader.readAsText(file);
}
function displayResults(data) {
const tableBody = document.querySelector('#resultTable tbody');
tableBody.innerHTML = '';
data.forEach((item, index) => {
const row = document.createElement('tr');
// Add sequence number
const seqCell = document.createElement('td');
seqCell.textContent = index + 1;
row.appendChild(seqCell);
const skuIdCell = document.createElement('td');
skuIdCell.textContent = item.skuId;
row.appendChild(skuIdCell);
const skuNameCell = document.createElement('td');
skuNameCell.textContent = item.skuName;
row.appendChild(skuNameCell);
const skuImgCell = document.createElement('td');
if (item.skuImg) {
const imgElement = document.createElement('img');
imgElement.src = item.skuImg;
imgElement.alt = "SKU Image";
skuImgCell.appendChild(imgElement);
}
row.appendChild(skuImgCell);
const priceCell = document.createElement('td');
priceCell.textContent = item.price;
row.appendChild(priceCell);
tableBody.appendChild(row);
});
}
</script>
</body>
</html>
读取文件:
获取用户上传的文件 (fileInput.files[0])。
用 FileReader 将文件读取为文本。
解析数据:
将文件内容解析为 JSON 对象。
遍历 HAR 文件的每个 entry 条目。
从每个条目的 response.content.text 提取 JSON 数据。
递归提取商品数据:
使用 extractSkus 函数递归解析 JSON 数据:
如果对象中包含 skuId、skuName、skuImg 和 jdPrice,将其存入结果数组。
遍历嵌套的对象和数组,确保不会遗漏任何商品数据。
展示结果:
调用 displayResults 函数将提取的商品数据以表格形式展示。
函数:extractSkus(jsonObject, results)
这是一个递归函数,用来从复杂嵌套的 JSON 数据中提取商品信息:
如果对象中存在 skuId、skuName、skuImg 和 jdPrice,保存这些数据。
如果对象或数组中嵌套了其他数据,递归继续解析,确保不会遗漏。
函数:displayResults(data)
这个函数负责将提取的商品数据展示在 HTML 表格中:
清空表格的旧数据。
遍历商品数据,将每条记录生成一行表格内容:
序号列:显示每条记录的编号。
skuId、skuName 列:直接显示文本内容。
skuImg 列:显示商品图片。
jdPrice 列:显示商品价格。
3. 核心功能点
文件上传:
用户上传 .har 文件(浏览器支持的网络请求记录文件)。
递归解析 JSON:
通过递归提取商品数据,确保无论嵌套层级多深,数据都能被提取。
表格展示:
数据通过 HTML 表格清晰地展示出来,支持显示商品图片和其他信息。
4. 用户体验流程
打开网页,点击“选择执行文件”按钮,上传一个 .har 文件。
点击“解析文件”按钮,解析文件中的网络请求。

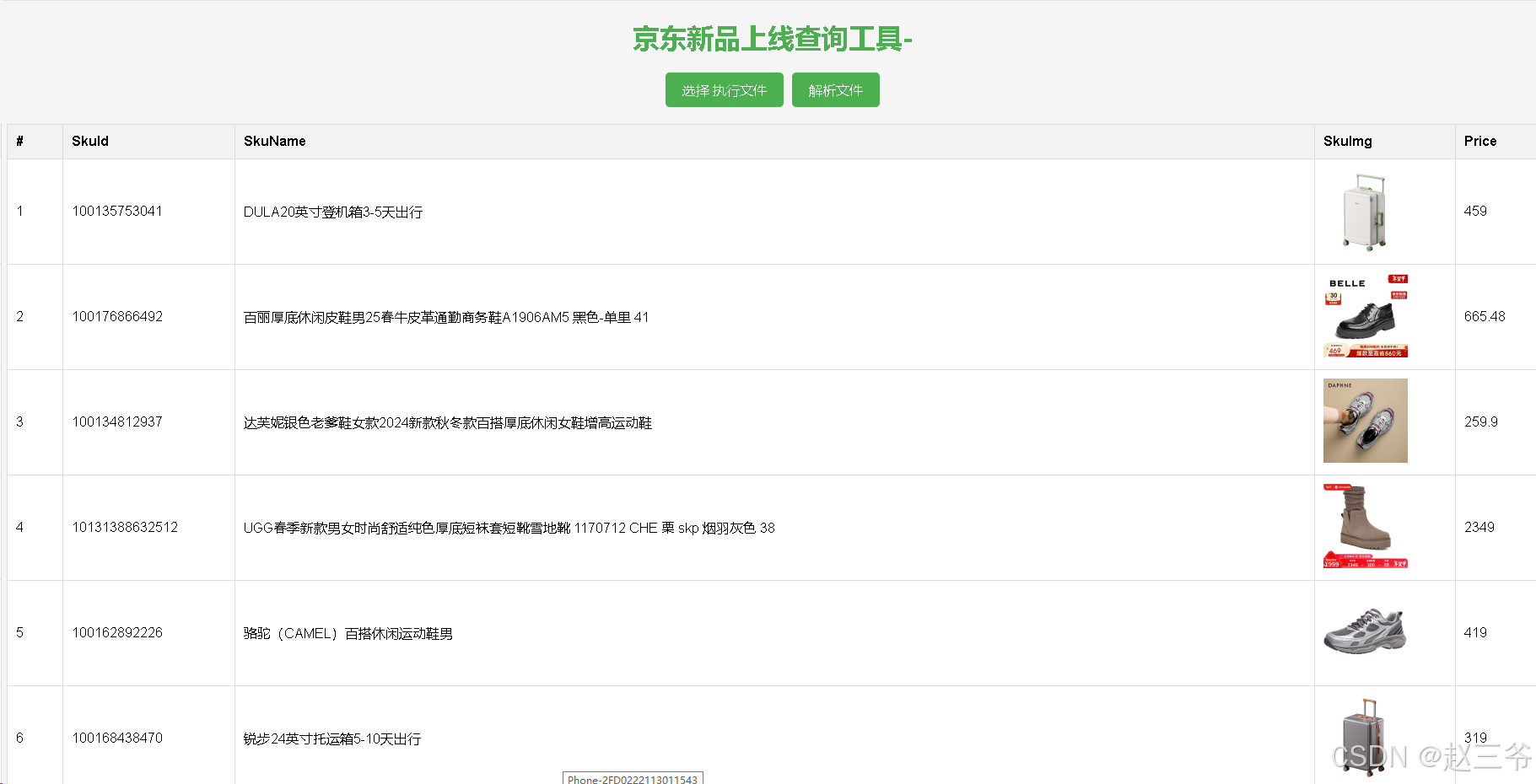

页面会展示商品数据表格,包括商品图片、名称、价格等信息。
5. 适合的场景
如果您需要从京东等电商平台的 HAR 文件中快速提取商品信息并分析,这个工具非常适用。
适合用户对商品信息进行整理、对比和分析。
