verilog入门 之 串口发送器

`timescale 1ns/10ps

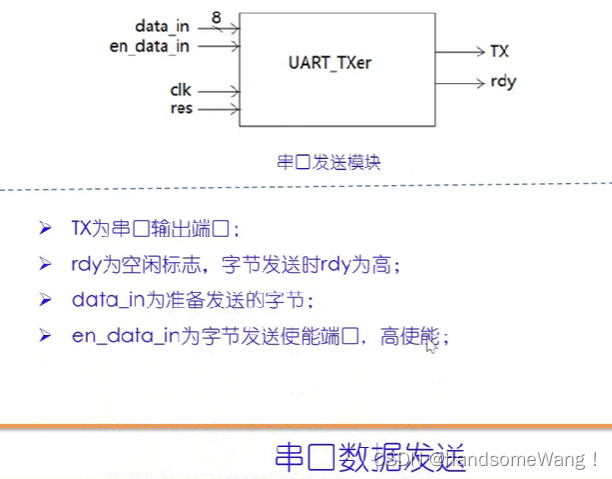

module uart_txer(
	clk,
	res,
	data_in,
	en_data_in,
	TX,
	rdy
);

	input clk,res;
	input[7:0] data_in;
	input en_data_in;
	output TX;
	output rdy; //读使能

	reg rdy;
	reg[3:0] state;//状态位
	reg[9:0] send_buf;

	reg[9:0] send_flag;
	reg[12:0] con;//数据间隔计数器

	assign TX=send_buf[0];//发送位

	always@(posedge clk or negedge res) begin
		if(~res) begin//复位
			state<=0;
			send_buf<=1;
			con<=0;
			send_flag<=10'b10_0000_0000;
			rdy<=0;
		end
		else begin
			case(state)

				0: begin//状态0，初始状态
					if(en_data_in) begin
						send_buf<={1'b1,data_in,1'b0};
						send_flag<=10'b10_0000_0000;
						rdy<=1;
						state<=1;
					end

				end

				1: begin//状态2，循环八次将，将send_buf中的数据法中出去
					if(con==5000-1) begin
						con<=0;
					end
					else begin
						con<=con+1;
					end

					if(con==5000-1) begin
						send_buf[8:0]<=send_buf[9:1];//sned_buf与send_flag同步循环
						send_flag[8:0]<=send_flag[9:1];
					end

					if(send_flag[0]) begin//send_flag第0位为1，此时说明send_buf数据按位循环结束
						state<=0;
						rdy<=0;
					end

				end

			endcase
		end
	end

endmodule

测试平台

module uart_rxer_tb;

	reg clk,res;
	reg[7:0] data_in;
	reg en_data_in;
	wire TX;
	wire rdy;

	uart_txer uart_txer(
		clk,
		res,
		data_in,
		en_data_in,
		TX,
		rdy
	);

	initial begin
		clk<=0;res<=0;data_in<=8'haa;en_data_in<=0;//初始化数据
		#17 res<=1;
		#30 en_data_in<=1;//开启一下使能位
		#10 en_data_in<=0;

		#80000 $stop;
	end

	always #5 clk<=~clk;

endmodule

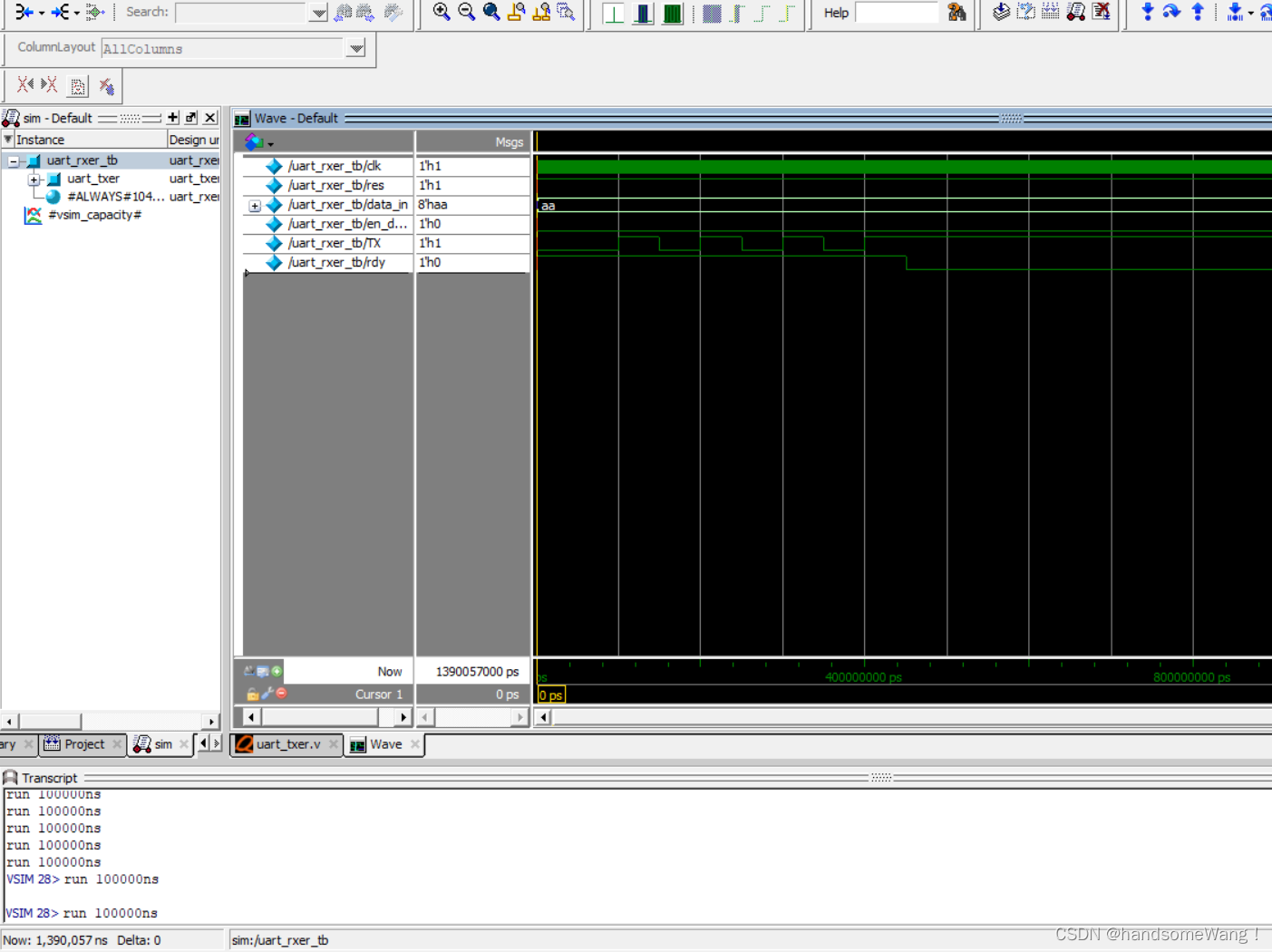

仿真结果:(多跑一些时间)
