基于树莓派4B的OpenCV安装

1、下载 opencv-python库

https://www.piwheels.org/project/opencv-python/https://www.piwheels.org/project/opencv-python/下载到PC

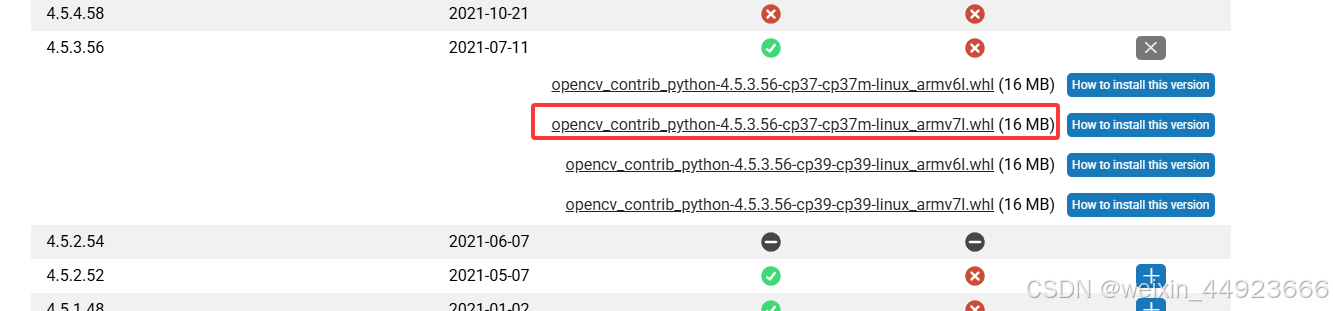

2、下载 opencv-contrib-python库

piwheels - opencv-contrib-pythonhttps://www.piwheels.org/project/opencv-contrib-python/

下载到PC

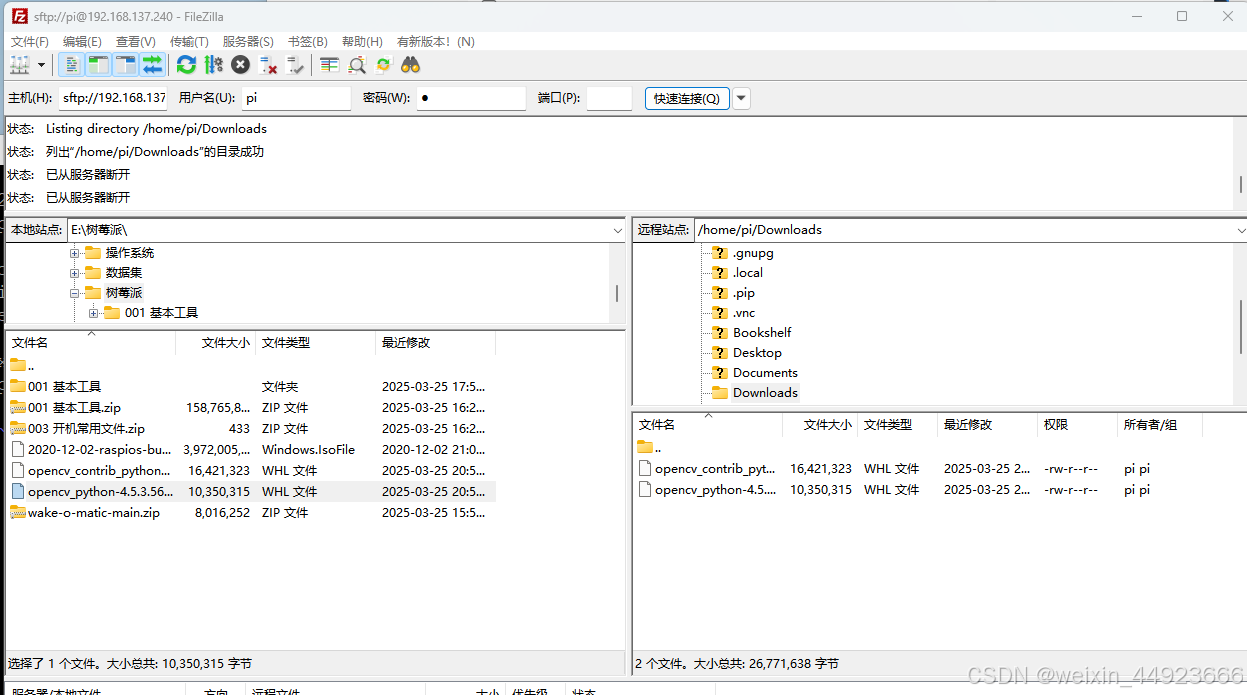

在PC端下载好whl包之后通过FileZilla软件传输到树莓派的Download目录下

3、安装whl包

cd Download

pip3 install opencv-py（Tab键补全）
pip3 install opencv-con（Tab键补全）

4、安装opencv依赖的其他库

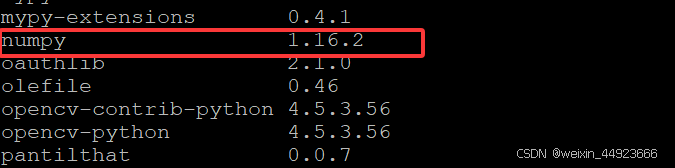

pip3 list 显示 numpy版本太低

卸载系统自带的 NumPy

sudo apt remove python3-numpy

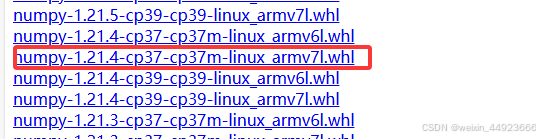

 下载numpy版本

piwheels - Links for numpyhttps://www.piwheels.org/simple/numpy/

下载好whl包之后通过FileZilla软件传输到树莓派的Download目录下

cd Download
pip3 install numpy （Tab键补全）

opencv依赖的其他库安装

sudo apt-get install libhdf5-dev
sudo apt-get install libatlas-base-dev
sudo apt-get install libjasper-dev
sudo apt-get install libqt4-test
sudo apt-get install libqtgui4
sudo apt-get update

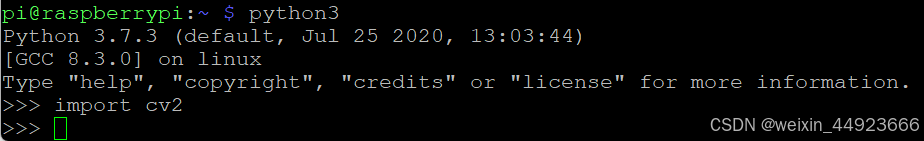

测试是否安装成功

python3
import cv2 # 检查导入成功

OpenCV应用

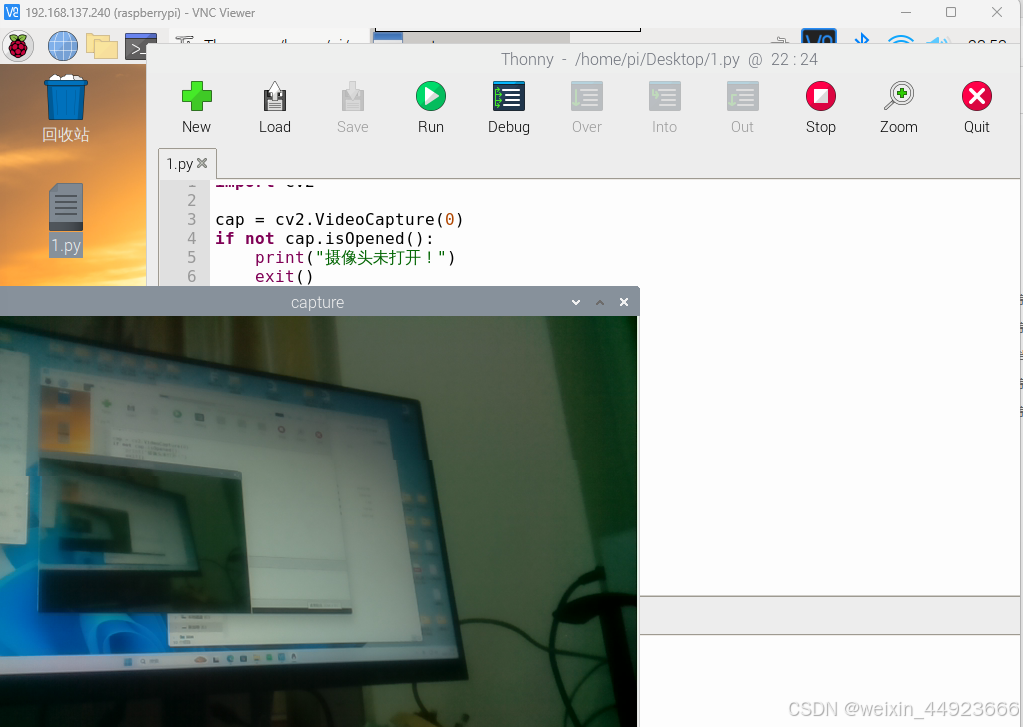

测试代码

import cv2

cap = cv2.VideoCapture(0)
print("摄像头是否打开:", cap.isOpened())

ret, frame = cap.read()
print("帧是否有效:", ret)
print("帧数据类型:", type(frame) if frame is not None else "空帧")

cap.release()

 Run

 q退出
