本文介绍了如何使机器人识别并自动跟随绿色小球。首先，通过图像预处理、HSV颜色空间转换、腐蚀与膨胀等步骤提取小球轮廓，然后使用轮廓检测确定小球位置。接着，根据小球相对于相机中心的位置和大小，判断机器人的前进、后退、左右移动速度。最后，通过调整无人机遥控器的杆量控制其运动，实现对绿色小球的精确跟随。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

如何让机器人识别面前的绿色小球并且进行自动跟随？

先把问题拆成两个子问题。第一，识别绿色小球；第二，自动跟随。

目标识别

目标识别分为三步：

图像预处理（定义结构元素，HSV 转换，腐蚀与膨胀）
轮廓检测
矩形绘制

图像预处理

# 定义结构化元素
    kernel = cv2.getStructuringElement(cv2.MORPH_RECT,(5,5))

我们使用cv2.getStructuringElement函数生成结构化元素。
该函数需要两个参数。第一个参数，控制元素的形状。第二个参数，控制元素的大小。
详细用法指路——> opencv-python结构化元素cv2.getStructuringElement()

 # 设定颜色HSV数值范围
    sensity = 10
    green_lower = np.array([50-sensity,43,46])
    green_upper = np.array([60+sensity,255,255])
    # 将图像转成HSV颜色空间
    hsv_frame = cv2.cvtColor(img, cv2.COLOR_BGR2HSV)
    # 基于颜色的物体提取
    mask = cv2.inRange(hsv_frame, green_lower,green_upper)
    mask2 = cv2.morphologyEx(mask, cv2.MORPH_OPEN, kernel)
    mask3 = cv2.morphologyEx(mask2, cv2.MORPH_CLOSE, kernel)
    # 缝隙填充
    mask4 = FillHole(mask3)
    mask5 = cv_erodedAndDilated(mask4)
    # 轮廓检测
    cnt,heridency = cv2.findContours(mask5,
                                     cv2.RETR_EXTERNAL,
                                     cv2.CHAIN_APPROX_SIMPLE)
  	# 使用面积最大区域
    maxArea = 0
    maxIndex = 0
    for i, j in enumerate(cnt):
        area = cv2.contourArea(j)
        if area > maxArea:
            maxArea = area
            maxIndex = i
    cv2.drawContours(img,cnt,maxIndex,(255,0,255),10)
    # x，y是矩阵左上点的坐标，w，h是矩阵的宽和高
    x, y, w, h = cv2.boundingRect(np.array(cnt[maxIndex]))
    cv2.rectangle(img, (x, y), (x+w, y+h), (0, 255, 0), 2)

使用cv2.boundingRect函数报错的解决方法——>python报错error: (-215:Assertion failed) npoints ＞= 0 && (depth == CV_32F || depth == CV_32S) in function boundingRect

运动控制

运动控制分为四步：

定义标准位置与大小
方位判断
速度控制

定义标准位置与大小

把标准位置定义在相机中心，标准大小可以自行设置需要的像素点。

# 定义标准位置
height,width,layer = img.shape
center_x = height/2
center_y = width/2
# 定义标准距离下目标物体大小
# 960*720 = 691200
size = 6000
area = w*h
robot_x = x+w/2
robot_y = y+h/2

方位判断

在无人机的飞行过程中，通过不断比较目标位置与标准位置，来判断无人机的方位。

# 定义方向变量
left_sign = 0
right_sign = 0
forward_sign = 0
up_sign = 0
down_sign = 0
# 判断前后速度
if area < size and area > size-2000:
    forward_sign = 1
elif area > size-4000 and area <= size-2000:
    forward_sign = 2
elif area <= size-4000 and size > 0:
    forward_sign = 3
if area >= size and area < size+100000:
    forward_sign = -1
elif area >= size+100000 and area < size+300000:
    forward_sign = -2
elif area > size+300000:
    forward_sign = -3
# 判断左侧横向速度
if robot_x < center_x and robot_x > center_x-120:
    left_sign = 1
elif robot_x <= center_x-120 and robot_x >= center_x-240:
    left_sign = 2
elif robot_x < center_x-240:
    left_sign =3
# 判断右侧横向速度
if robot_x > center_x and robot_x < center_x+120:
    right_sign = 1
elif robot_x >= center_x+120 and robot_x <= center_x+240:
    right_sign = 2
elif robot_x > center_x+240:
    right_sign =3

速度控制

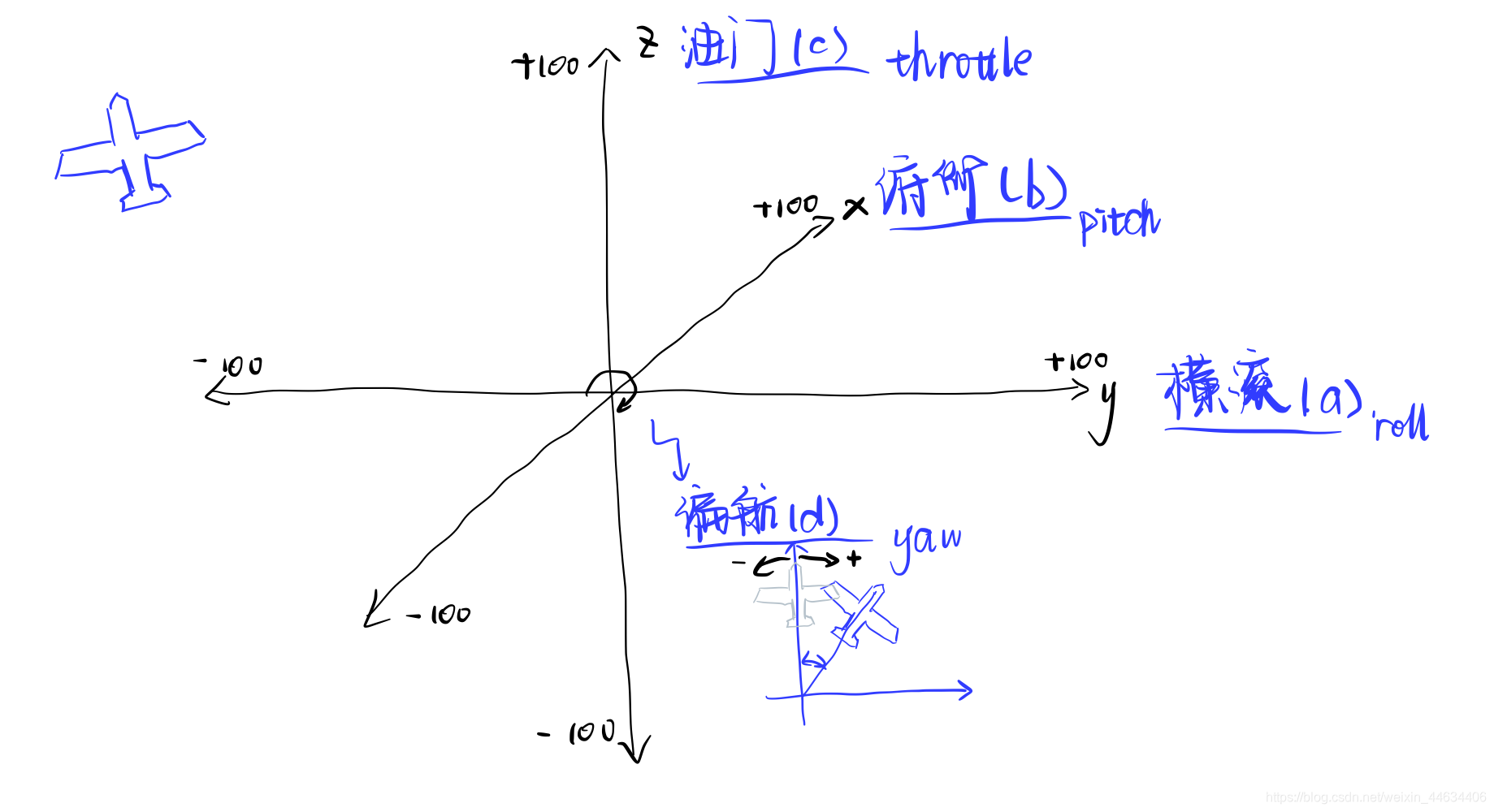

无人机遥控有四个杆量，横滚、俯仰、油门、偏航。这四个杆量表示飞机运动的四个自由度。
在这里插入图片描述

横滚，控制无人机左右移动；
俯仰，控制无人机前后移动；
油门，控制无人机高度；
偏航，控制无人机水平方向的角度；

 """
            控制飞机遥控器的四个杆量
            参数:
            a – float:[-100, 100] 横滚
            b – float:[-100, 100] 俯仰
            c – float:[-100, 100] 油门
            d – float:[-100, 100] 偏航
            """
            # 设定杆量参数集
            a_level = [25,35,45]
            b_level_forward = [15,25,40]
            b_level_backward = [-30,-45,-60]
            # # 控制前后进
            if forward == 1:
                tl_flight.rc(b=b_level_forward[0])
            elif forward == 2:
                tl_flight.rc(b=b_level_forward[1])
            elif forward == 3:
                tl_flight.rc(b=b_level_forward[2])
            elif forward == 0:
                tl_flight.rc(b=0)
            elif forward == -1:
                tl_flight.rc(b=b_level_backward[0])
            elif forward == -2:
                tl_flight.rc(b=b_level_backward[1])
            elif forward == -3:
                tl_flight.rc(b=b_level_backward[2])
            # 控制左右向
            if left == 1:
                tl_flight.rc(a=-a_level[0])
            elif left == 2:
                tl_flight.rc(a=-a_level[1])
            elif left == 3:
                tl_flight.rc(a=-a_level[2])
            elif right == 1:
                tl_flight.rc(a=a_level[0])
            elif right == 2:
                tl_flight.rc(a=a_level[1])
            elif right == 3:
                tl_flight.rc(a=a_level[2])
            elif right == 0 and left == 0:
                tl_flight.rc(a=0)

代码汇总

# -*- coding: utf-8 -*-
import time
from robomaster import robot,battery
from robomaster import camera
import cv2
import numpy as np
import sys
sys.path.append(r'P:\Python\cv2') # 这里是我的路径，你的路径会不一样
from string_recognise_self import cv_show,FillHole,cv_drawContours,cv_center,cv_erodedAndDilated

"""碎片填充"""
def FillHole(img,SavePath='img_fillhole.jpg'):
    img_in = img
    # 复制 im_in 图像
    img_floodfill = img_in.copy()
    # Mask 用于 floodFill，官方要求长宽+2
    h, w = img_in.shape[:2]
    mask = np.zeros((h+2, w+2), np.uint8)
    # floodFill函数中的seedPoint必须是背景
    isbreak = False
    for i in range(img_floodfill.shape[0]):
        for j in range(img_floodfill.shape[1]):
            if(img_floodfill[i][j]==0):
                seedPoint=(i,j)
                isbreak = True
                break
        if(isbreak):
            break
    # 得到im_floodfill
    cv2.floodFill(img_floodfill, mask, seedPoint, 255);
    # 得到im_floodfill的逆im_floodfill_inv
    img_floodfill_inv = cv2.bitwise_not(img_floodfill)
    img_out = img_in | img_floodfill_inv
    cv2.imwrite(SavePath, img_out)
    return img_out

"""腐蚀与膨胀"""
def cv_erodedAndDilated(img):
    # 定义结构化元素
    size = 20
    kernel = cv2.getStructuringElement(cv2.MORPH_RECT,(size,size))
    # 腐蚀图像
    eroded = cv2.erode(img, kernel)
    # 膨胀图像
    img_dilated = cv2.dilate(eroded, kernel)
    return img_dilated

"""小球位置识别"""
def cv_center(img):
    # 定义结构化元素
    kernel = cv2.getStructuringElement(cv2.MORPH_RECT,(5,5))
    # 定义标准位置
    height,width,layer = img.shape
    center_x = height/2
    center_y = width/2
    # 设定颜色HSV数值范围
    sensity = 10
    green_lower = np.array([50-sensity,43,46])
    green_upper = np.array([60+sensity,255,255])
    # 将图像转成HSV颜色空间
    hsv_frame = cv2.cvtColor(img, cv2.COLOR_BGR2HSV)
    # 基于颜色的物体提取
    mask = cv2.inRange(hsv_frame, green_lower,green_upper)
    mask2 = cv2.morphologyEx(mask, cv2.MORPH_OPEN, kernel)
    mask3 = cv2.morphologyEx(mask2, cv2.MORPH_CLOSE, kernel)
    # 缝隙填充
    mask4 = FillHole(mask3)
    mask5 = cv_erodedAndDilated(mask4)
    # 轮廓检测
    cnt,heridency = cv2.findContours(mask5,
                                     cv2.RETR_EXTERNAL,
                                     cv2.CHAIN_APPROX_SIMPLE)
    if cnt == []:
        continue
    # 找出面积最大区域
    maxArea = 0
    maxIndex = 0
    for i, j in enumerate(cnt):
        area = cv2.contourArea(j)
        if area > maxArea:
            maxArea = area
            maxIndex = i
    cv2.drawContours(img,cnt,maxIndex,(255,0,255),10)
    # x，y是矩阵左上点的坐标，w，h是矩阵的宽和高
    x, y, w, h = cv2.boundingRect(np.array(cnt[maxIndex]))
    cv2.rectangle(img, (x, y), (x+w, y+h), (0, 255, 0), 2)
    # 定义标准距离下目标物体大小
    # 960*720 = 691200
    size = 6000
    area = w*h
    robot_x = x+w/2
    robot_y = y+h/2
    # 定义方向变量
    left_sign = 0
    right_sign = 0
    forward_sign = 0
    up_sign = 0
    down_sign = 0
    # 判断前后速度
    if area < size and area > size-2000:
        forward_sign = 1
    elif area > size-4000 and area <= size-2000:
        forward_sign = 2
    elif area <= size-4000 and size > 0:
        forward_sign = 3
    if area >= size and area < size+100000:
        forward_sign = -1
    elif area >= size+100000 and area < size+300000:
        forward_sign = -2
    elif area > size+300000:
        forward_sign = -3
    # 判断左侧横向速度
    if robot_x < center_x and robot_x > center_x-120:
        left_sign = 1
    elif robot_x <= center_x-120 and robot_x >= center_x-240:
        left_sign = 2
    elif robot_x < center_x-240:
        left_sign =3
    # 判断右侧横向速度
    if robot_x > center_x and robot_x < center_x+120:
        right_sign = 1
    elif robot_x >= center_x+120 and robot_x <= center_x+240:
        right_sign = 2
    elif robot_x > center_x+240:
        right_sign =3
    # 判断飞机飞行高度
    # 没有必要，因为小球的高度是固定
    # 如果想要进行高度判断，这其实是一个难点。因为目标物在前后和上下两个维度上的移动
    # 都会导致y坐标的变化。y坐标变化的因素有两个，需要把这两个因素综合考虑。
    return forward_sign,left_sign,right_sign

if __name__ == '__main__':
    tl_drone = robot.Drone()
    # 指定连接方式为AP 直连模式
    tl_drone.initialize()
    tl_flight = tl_drone.flight
    tl_camera = tl_drone.camera
    tl_battery = tl_drone.battery
    # 获取飞机电量信息
    print('battery=\t'+str(tl_battery.get_battery())+'%')
    cnt = []
    # 获取飞机机身温度
    print(tl_drone.get_temp())
    # 控制飞机起飞
    tl_flight.takeoff().wait_for_completed()
    # 控制飞机飞行，单位cm
    # 设置飞机帧率
    tl_camera.set_fps(fps='high')
    # 设置飞机码率
    tl_camera.set_bitrate(bitrate=6)
    # 设置飞机分辨率
    tl_camera.set_resolution(resolution='high')
    # 获取视频流
    tl_camera.start_video_stream(display=False)
    try:
        while True:
            img = tl_camera.read_cv2_image(strategy='newest')
            forward,left,right = cv_center(img)
            """
            控制飞机遥控器的四个杆量
            参数:
            a – float:[-100, 100] 横滚
            b – float:[-100, 100] 俯仰
            c – float:[-100, 100] 油门
            d – float:[-100, 100] 偏航
            """
            # 设定杆量参数集
            a_level = [25,35,45]
            b_level_forward = [15,25,40]
            b_level_backward = [-30,-45,-60]
            # # 控制前后进
            if forward == 1:
                tl_flight.rc(b=b_level_forward[0])
            elif forward == 2:
                tl_flight.rc(b=b_level_forward[1])
            elif forward == 3:
                tl_flight.rc(b=b_level_forward[2])
            elif forward == 0:
                tl_flight.rc(b=0)
            elif forward == -1:
                tl_flight.rc(b=b_level_backward[0])
            elif forward == -2:
                tl_flight.rc(b=b_level_backward[1])
            elif forward == -3:
                tl_flight.rc(b=b_level_backward[2])
            # 控制左右向
            if left == 1:
                tl_flight.rc(a=-a_level[0])
            elif left == 2:
                tl_flight.rc(a=-a_level[1])
            elif left == 3:
                tl_flight.rc(a=-a_level[2])
            elif right == 1:
                tl_flight.rc(a=a_level[0])
            elif right == 2:
                tl_flight.rc(a=a_level[1])
            elif right == 3:
                tl_flight.rc(a=a_level[2])
            elif right == 0 and left == 0:
                tl_flight.rc(a=0)
            time.sleep(0.08)
            cv2.namedWindow('Drone', 0)
            cv2.imshow("Drone", img)
            cv2.waitKey(10)
            tl_flight.rc(a=0,b=0,c=0,d=0)
    except KeyboardInterrupt:
        pass
    cv2.destroyAllWindows()
    tl_camera.stop_video_stream()
    # 控制飞机降落
    tl_flight.land().wait_for_completed()
    # 关闭无人机对象
    tl_drone.close()
