利用cocos creator认识向量在游戏中的作用
题目
1.利用cocos creator的graphics组件画一个圆(不使用circle方法)。
2.以此圆的圆心为原点制作一个60°的扇形。
3.假设圆心的原点为敌人，步骤二所制作的扇形为敌人的技能攻击范围。以鼠标在游戏内的坐标点为玩家所在位置，求任意时刻鼠标是否处在敌人攻击范围内(通过扇形颜色区分)
思考
1.首先我们以(0,0)点为原点，以r为半径，每隔1°画一个点，之后将这些点连接，便组成一个圆。
2.以(0,0)点为原点，以r为半径±30°画两个点，之后连接两个点便组成一个扇形。
3.首先获取鼠标当前坐标点并转换为游戏节点内坐标，其次根据向量的叉积以及当前点与原点距离判断点是否在扇形内。
实践
1.首先我们以(0,0)点为原点，以r为半径，每隔1°画一个点，之后将这些点连接，便组成一个圆。
drawCircle () {
let line = this.circle;
//设置线条宽度
line.lineWidth = 1;
//设置线条颜色
line.strokeColor = cc.Color.GREEN;
let lastPos;
for (let i = 0; i <= 360; i += 1) {
let pos = this.createPoint(i);
if (i === 0) {
//创建线条起始点
line.moveTo(pos.x, pos.y);
}
else {
//与前一段线条相连
line.lineTo(lastPos.x, lastPos.y);
}
lastPos = pos
}
line.stroke();
},
createPoint (angle) {
//将x转换为弧度
// let result = this.amplitude * Math.sin(this.cycle * x * Math.PI / 180 + this.offsetX) + this.offsetY;
let x = this.pointO.x + this.redium * Math.cos(angle * Math.PI / 180);
let y = this.pointO.y + this.redium * Math.sin(angle * Math.PI / 180);
let pos = cc.v2(x, y);
return pos;
},

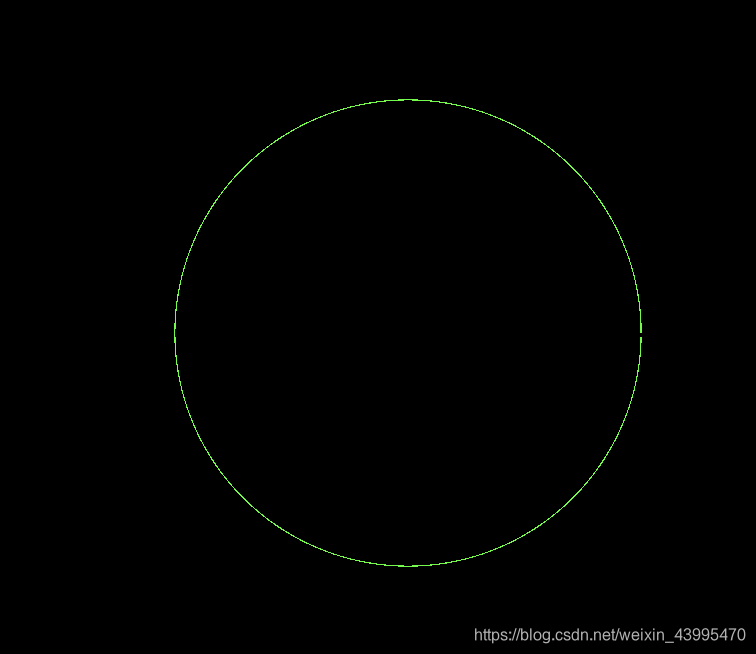

效果:
2.以(0,0)点为原点，以r为半径±30°画两个点，之后连接两个点便组成一个扇形。
//根据angle的范围从圆心画两条直线
drawLine () {
let line = this.tip;
line.lineWidth = 1;
line.strokeColor = cc.Color.RED;
this.pos1 = this.createPoint(this.angle);
this.pos2 = this.createPoint(-this.angle);
line.moveTo(0, 0);
line.lineTo(this.pos1.x, this.pos1.y);
line.stroke();
line.moveTo(0, 0);
line.lineTo(this.pos2.x, this.pos2.y);
line.stroke();
},

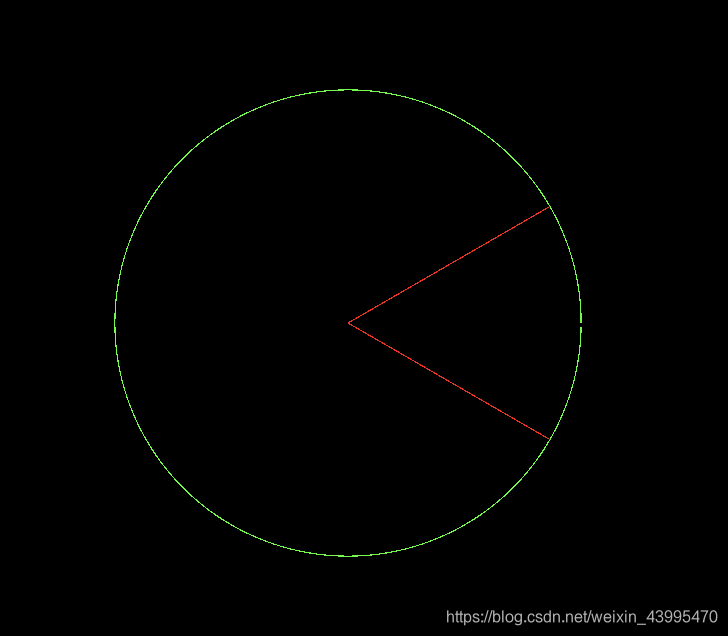

效果
3.首先获取鼠标当前坐标点并转换为游戏节点内坐标，其次根据向量的叉积以及当前点与原点距离判断点是否在扇形内。
onLoad () {
this.node.on('touchstart', function (event) {
//转换为本地坐标
this.target.position = this.node.convertToNodeSpaceAR(event.getLocation());
//判断鼠标是否在扇形范围内
this.judgeTargetIsFront();
}, this);
},
judgeTargetIsFront () {
if (!this.target) {
return;
}
this.tip.clear();
//判断当前目标与扇形圆心的方向向量
//在-angle点处的顺时针方向 在angle点处的逆时针方向
if ((this.pos1.sub(this.pointO).cross(this.target.position.sub(this.pointO)) * this.pos2.sub(this.pointO).cross(this.target.position.sub(this.pointO))) <= 0 && this.checkPointInCircle()) {
let line = this.tip;
//设置线条宽度
line.lineWidth = 1;
//设置线条颜色
line.strokeColor = cc.Color.YELLOW;
for (let i = -this.angle; i <= this.angle; i += 1) {
let pos = this.createPoint(i);
//创建线条起始点
line.moveTo(this.pointO.x, this.pointO.y);
//与前一段线条相连
line.lineTo(pos.x, pos.y);
}
line.stroke();
}
else {
let line = this.lineNode.getComponent(cc.Graphics);
//设置线条宽度
line.lineWidth = 1;
//设置线条颜色
line.strokeColor = cc.Color.GRAY;
for (let i = -this.angle; i <= this.angle; i += 1) {
let pos = this.createPoint(i);
//创建线条起始点
line.moveTo(this.pointO.x, this.pointO.y);
//与前一段线条相连
line.lineTo(pos.x, pos.y);
}
line.stroke();
}
},
checkPointInCircle () {
if (this.pointO.sub(this.target.position).mag() <= this.redium) {
return true;
}
return false;
},

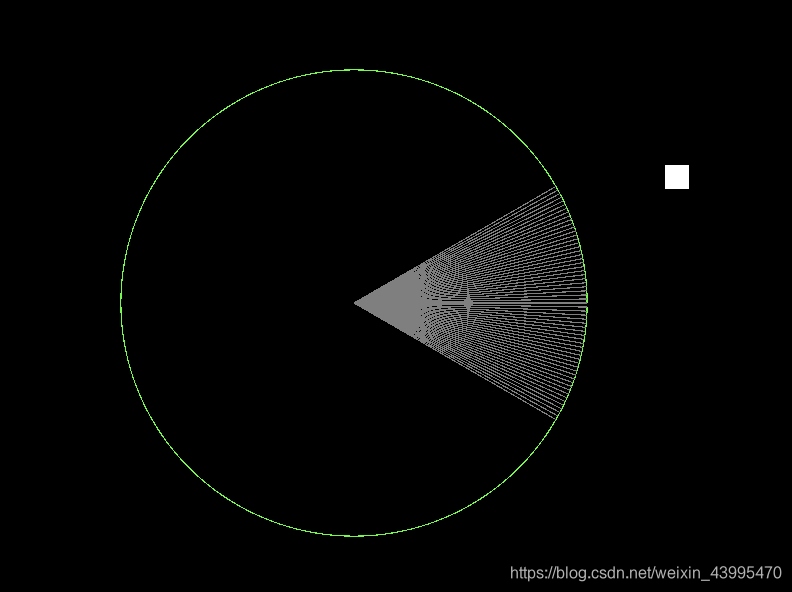

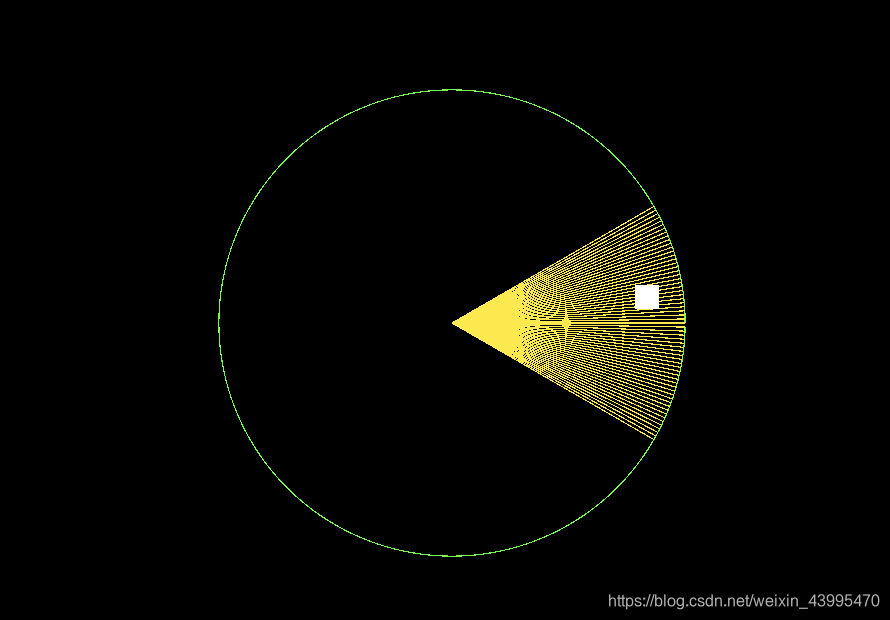

效果:
完整代码:
cc.Class({
extends: cc.Component,
properties: {
lineNode: cc.Node,
redium: 0,
angle: 0,
pointO: cc.Vec2,
target: cc.Node,
tip: cc.Graphics,
line: cc.Graphics,
circle: cc.Graphics,
},
// LIFE-CYCLE CALLBACKS:
onLoad () {
this.drawCircle();
//通过画线分解成扇形 (攻击范围)
this.drawLine();
this.node.on('touchstart', function (event) {
this.target.position = this.node.convertToNodeSpaceAR(event.getLocation());
this.judgeTargetIsFront();
}, this);
},
judgeTargetIsFront () {
if (!this.target) {
return;
}
this.tip.clear();
//判断当前目标与扇形圆心的方向向量
//在-angle点处的顺时针方向 在angle点处的逆时针方向
if ((this.pos1.sub(this.pointO).cross(this.target.position.sub(this.pointO)) * this.pos2.sub(this.pointO).cross(this.target.position.sub(this.pointO))) <= 0 && this.checkPointInCircle()) {
let line = this.tip;
//设置线条宽度
line.lineWidth = 1;
//设置线条颜色
line.strokeColor = cc.Color.YELLOW;
for (let i = -this.angle; i <= this.angle; i += 1) {
let pos = this.createPoint(i);
//创建线条起始点
line.moveTo(this.pointO.x, this.pointO.y);
//与前一段线条相连
line.lineTo(pos.x, pos.y);
}
line.stroke();
}
else {
let line = this.lineNode.getComponent(cc.Graphics);
//设置线条宽度
line.lineWidth = 1;
//设置线条颜色
line.strokeColor = cc.Color.GRAY;
for (let i = -this.angle; i <= this.angle; i += 1) {
let pos = this.createPoint(i);
//创建线条起始点
line.moveTo(this.pointO.x, this.pointO.y);
//与前一段线条相连
line.lineTo(pos.x, pos.y);
}
line.stroke();
}
},
//根据angle的范围从圆心画两条直线
drawLine () {
let line = this.tip;
line.lineWidth = 1;
line.strokeColor = cc.Color.RED;
this.pos1 = this.createPoint(this.angle);
this.pos2 = this.createPoint(-this.angle);
line.moveTo(0, 0);
line.lineTo(this.pos1.x, this.pos1.y);
line.stroke();
line.moveTo(0, 0);
line.lineTo(this.pos2.x, this.pos2.y);
line.stroke();
},
drawCircle () {
let line = this.circle;
//设置线条宽度
line.lineWidth = 1;
//设置线条颜色
line.strokeColor = cc.Color.GREEN;
let lastPos;
for (let i = 0; i <= 360; i += 1) {
let pos = this.createPoint(i);
if (i === 0) {
//创建线条起始点
line.moveTo(pos.x, pos.y);
}
else {
//与前一段线条相连
line.lineTo(lastPos.x, lastPos.y);
}
lastPos = pos
}
line.stroke();
},
createPoint (angle) {
//将x转换为弧度
// let result = this.amplitude * Math.sin(this.cycle * x * Math.PI / 180 + this.offsetX) + this.offsetY;
let x = this.pointO.x + this.redium * Math.cos(angle * Math.PI / 180);
let y = this.pointO.y + this.redium * Math.sin(angle * Math.PI / 180);
let pos = cc.v2(x, y);
return pos;
},
checkPointInCircle () {
if (this.pointO.sub(this.target.position).mag() <= this.redium) {
return true;
}
return false;
},
start () {
},
update (dt) {
},
});

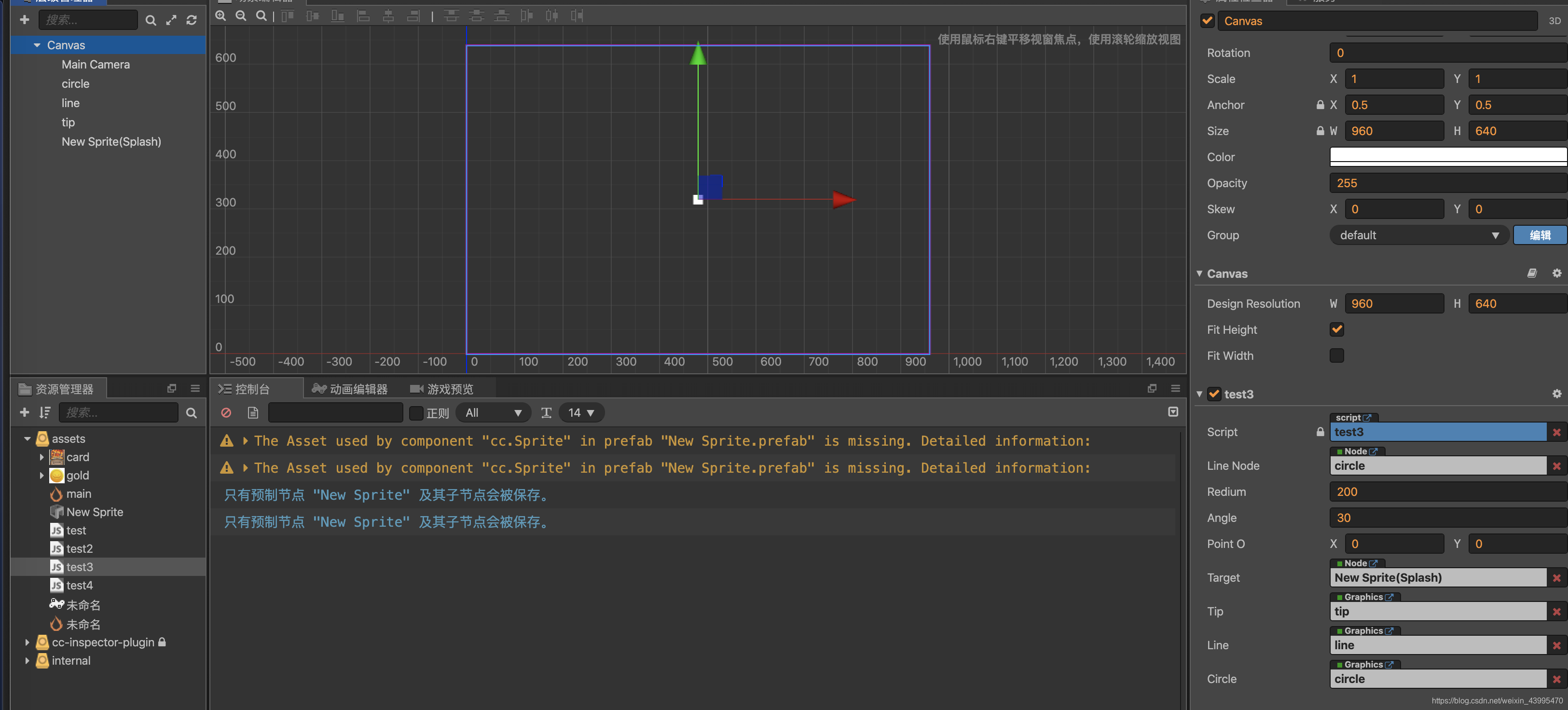

节点摆放
其中circle tip line上均挂一个graphics组件。
