C#源码分析—LinkedList

LinkedList为双向循环链表，链表的定义请自行百度；先贴一下节点类：

    // Note following class is not serializable since we customized the serialization of LinkedList.
    [System.Runtime.InteropServices.ComVisible(false)]
    public sealed class LinkedListNode<T> {
        /// <summary>
        /// 自身所属的链表
        /// </summary>
        internal LinkedList<T> list;

        /// <summary>
        /// 后继节点
        /// </summary>
        internal LinkedListNode<T> next;

        /// <summary>
        /// 前驱节点
        /// </summary>
        internal LinkedListNode<T> prev;

        /// <summary>
        /// 自身储存的数据
        /// </summary>
        internal T item;

        public LinkedListNode( T value) {
            this.item = value;
        }

        internal LinkedListNode(LinkedList<T> list, T value) {
            this.list = list;
            this.item = value;
        }

        public LinkedList<T> List {
            get { return list;}
        }

        public LinkedListNode<T> Next {
            //当后继节点为空或自身的后继节点为链表头节点时
            get { return next == null || next == list.head? null: next;}
        }

        public LinkedListNode<T> Previous {
            //当前驱节点为空或者自身为链表头节点时
            get { return prev == null || this == list.head? null: prev;}
        }

        public T Value {
            get { return item;}
            set { item = value;}
        }

        internal void Invalidate() {
            list = null;
            next = null;
            prev = null;
        }
    }

LinkedListNode类内部保存有前驱节点prev和后继节点next以及自身存储数据item，且持有自身属于的链表list。

字段：

        // This LinkedList is a doubly-Linked circular list.
        internal LinkedListNode<T> head;    //头结点
        internal int count;                 //链表元素数量
        internal int version;
        private Object _syncRoot;

#if !SILVERLIGHT
        private SerializationInfo siInfo; //A temporary variable which we need during deserialization.
#endif

        // names for serialization
        const String VersionName = "Version";
        const String CountName = "Count";
        const String ValuesName = "Data";

属性：

        /// <summary>
        /// 获取链表数量
        /// </summary>
        public int Count {
            get { return count;}
        }

        /// <summary>
        /// 获取头节点
        /// </summary>
        public LinkedListNode<T> First {
            get { return head;}
        }

        /// <summary>
        /// 获取尾节点
        /// </summary>
        public LinkedListNode<T> Last {
            get { return head == null? null: head.prev;}
        }

        bool ICollection<T>.IsReadOnly {
            get { return false; }
        }

AddAfter函数和AddBefore函数：

        /// <summary>
        /// 插入到指定的节点后
        /// </summary>
        /// <param name="node">指定的节点</param>
        /// <param name="value">待插入的数据</param>
        /// <returns></returns>
        public LinkedListNode<T> AddAfter(LinkedListNode<T> node, T value) {
            ValidateNode(node);
            LinkedListNode<T> result = new LinkedListNode<T>(node.list, value);
            InternalInsertNodeBefore(node.next, result);
            return result;
        }

        /// <summary>
        /// 插入到指定的节点后
        /// </summary>
        /// <param name="node">指定的节点</param>
        /// <param name="newNode">待插入的节点</param>
        public void AddAfter(LinkedListNode<T> node, LinkedListNode<T> newNode) {
            ValidateNode(node);
            ValidateNewNode(newNode);
            InternalInsertNodeBefore(node.next, newNode);
            newNode.list = this;
        }

        /// <summary>
        /// 插入到指定的节点前
        /// </summary>
        /// <param name="node">指定的节点</param>
        /// <param name="value">待插入的数据</param>
        /// <returns></returns>
        public LinkedListNode<T> AddBefore(LinkedListNode<T> node, T value) {
            ValidateNode(node);
            LinkedListNode<T> result = new LinkedListNode<T>(node.list, value);
            InternalInsertNodeBefore(node, result);
            if ( node == head) {
                head = result;
            }
            return result;
        }

        /// <summary>
        /// 插入到指定的节点前
        /// </summary>
        /// <param name="node">指定的节点</param>
        /// <param name="newNode">待插入的节点</param>
        public void AddBefore(LinkedListNode<T> node, LinkedListNode<T> newNode) {
            ValidateNode(node);
            ValidateNewNode(newNode);
            InternalInsertNodeBefore(node, newNode);
            newNode.list = this;
            if ( node == head) {
                head = newNode;
            }
        }

本质上调用了InternalInsertNodeBefore函数，ValidateNode函数和ValidateNewNode均为检查节点函数;其函数分别实现如下：

        /// <summary>
        /// 检查新节点
        /// </summary>
        /// <param name="node"></param>
        internal void ValidateNewNode(LinkedListNode<T> node) {
            if (node == null) {
                throw new ArgumentNullException("node");
            }

            if ( node.list != null) {
                throw new InvalidOperationException(SR.GetString(SR.LinkedListNodeIsAttached));
            }
        }

        /// <summary>
        /// 检查节点
        /// </summary>
        /// <param name="node">待检查的节点</param>
        internal void ValidateNode(LinkedListNode<T> node) {
            if (node == null) {
                throw new ArgumentNullException("node");
            }

            if ( node.list != this) {
                throw new InvalidOperationException(SR.GetString(SR.ExternalLinkedListNode));
            }
        }

InternalInsertNodeBefore函数实现如下：

        /// <summary>
        /// 将指定的节点插入待指定的节点前
        /// </summary>
        /// <param name="node">指定的节点</param>
        /// <param name="newNode">待插入的节点</param>
        private void InternalInsertNodeBefore(LinkedListNode<T> node, LinkedListNode<T> newNode) {
            //新节点的后继节点指向指定的节点
            newNode.next = node;
            //新节点的前驱节点指定指定的节点的前驱节点
            newNode.prev = node.prev;
            //指定的节点前驱节点的后继节点执行新节点
            node.prev.next = newNode;
            //指定的节点的前驱节点指向新节点
            node.prev = newNode;
            version++;
            count++;
        }

AddFirst函数和AddLast函数：

        /// <summary>
        /// 添加数据为头部
        /// </summary>
        /// <param name="value">待添加的数据</param>
        /// <returns></returns>
        public LinkedListNode<T> AddFirst(T value) {
            LinkedListNode<T> result = new LinkedListNode<T>(this, value);
            if (head == null) {
                InternalInsertNodeToEmptyList(result);
            }
            else {
                InternalInsertNodeBefore( head, result);
                head = result;
            }
            return result;
        }

        /// <summary>
        /// 添加节点为头部
        /// </summary>
        /// <param name="node">待添加的节点</param>
        public void AddFirst(LinkedListNode<T> node) {
            ValidateNewNode(node);

            if (head == null) {
                InternalInsertNodeToEmptyList(node);
            }
            else {
                InternalInsertNodeBefore( head, node);
                head = node;
            }
            node.list = this;
        }

        /// <summary>
        /// 添加数据为尾部
        /// </summary>
        /// <param name="value">待添加的数据</param>
        /// <returns></returns>
        public LinkedListNode<T> AddLast(T value) {
            LinkedListNode<T> result = new LinkedListNode<T>(this, value);
            if (head== null) {
                InternalInsertNodeToEmptyList(result);
            }
            else {
                InternalInsertNodeBefore( head, result);
            }
            return result;
        }

        /// <summary>
        /// 添加节点为头部
        /// </summary>
        /// <param name="node">待添加的节点</param>
        public void AddLast(LinkedListNode<T> node) {
            ValidateNewNode(node);

            if (head == null) {
                InternalInsertNodeToEmptyList(node);
            }
            else {
                InternalInsertNodeBefore( head, node);
            }
            node.list = this;
        }

其中InternalInsertNodeToEmptyList函数实现如下：

        /// <summary>
        /// 将指定的节点插入到空链表
        /// </summary>
        /// <param name="newNode">待插入的节点</param>
        private void InternalInsertNodeToEmptyList(LinkedListNode<T> newNode) {
            Debug.Assert( head == null && count == 0, "LinkedList must be empty when this method is called!");
            newNode.next = newNode;
            newNode.prev = newNode;
            head = newNode;
            version++;
            count++;
        }

Remove及其相关函数：

        /// <summary>
        /// 移除符合指定数据的节点
        /// </summary>
        /// <param name="value">指定的数据</param>
        /// <returns></returns>
        public bool Remove(T value) {
            LinkedListNode<T> node = Find(value);
            if (node != null) {
                InternalRemoveNode(node);
                return true;
            }
            return false;
        }

        /// <summary>
        /// 移除指定节点
        /// </summary>
        /// <param name="node">指定的节点</param>
        public void Remove(LinkedListNode<T> node) {
            ValidateNode(node);
            InternalRemoveNode(node);
        }

        /// <summary>
        /// 移除头节点
        /// </summary>
        public void RemoveFirst() {
            if ( head == null) { throw new InvalidOperationException(SR.GetString(SR.LinkedListEmpty)); }
            InternalRemoveNode(head);
        }

        /// <summary>
        /// 移除尾节点
        /// </summary>
        public void RemoveLast() {
            if ( head == null) { throw new InvalidOperationException(SR.GetString(SR.LinkedListEmpty)); }
            InternalRemoveNode(head.prev);
        }

而InternalRemoveNode函数实现如下：

        /// <summary>
        /// 移除指定的节点
        /// </summary>
        /// <param name="node">待删除的节点</param>
        internal void InternalRemoveNode(LinkedListNode<T> node) {
            Debug.Assert( node.list == this, "Deleting the node from another list!");
            Debug.Assert( head != null, "This method shouldn't be called on empty list!");
            if ( node.next == node) {
                Debug.Assert(count == 1 && head == node, "this should only be true for a list with only one node");
                head  = null;
            }
            else {
                //node的后继节点的前驱节点指向node的前驱节点
                node.next.prev = node.prev;
                //node的前驱节点的后继节点指向node的后继节点
                node.prev.next = node.next;
                //若node为头结点,则头结点的后继节点为头结点
                if ( head == node) {
                    head = node.next;
                }
            }
            node.Invalidate();
            count--;
            version++;
        }

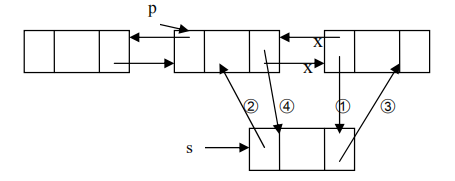

引用一张图大致说一下节点的引用情况：

源码为.net 4.5.1；

.net源码网址:https://referencesource.microsoft.com/

注：本人水平有限，如果有错误，欢迎指正……
