WPF Grid添加实线边框并自定义依赖属性。

一般Grid控件作布局使用，默认是不显示实线边框的，特殊情况下（如做自定义表格），这时候就需要为Grid添加实线边框了。

首先在你的项目新建一个类，下面这个方法是事件处理程序，定义为静态方法。当获取到属性值更改时，开始为Grid添加实线边框，获取Grid的列和行的个数，使用for循坏添加边框，（如果列或行合并的情况下，边框的四边隐藏或显示都不同，所以有几种情况）并设置边框的宽度、颜色。

方法写好后就可以定义依赖属性了，这样就可以在xmal引用调用了。



依赖属性因为自己没有值，但可以通过绑定从数据源获取值，在WPF中，依赖属性支持样式绑定、数据绑定、继承、动画等

依赖属性所在类型继承DependencyObject类

使用public static声明一个静态只读DependencyProperty字段并注册定义的依赖属性，初始化PropertMetadata实例，当属性有效值更改时 ，调用上面那个事件处理程序方法。



读取设置刚才注册的依赖属性



详细代码



全部代码

public class GridHelper
        {
            //边框的宽度 定义默认值
            static double myBorderWidth = 2;//
            static string BorderBrushcolor = "#eee";
            public static double GetBorderWidth(System.Windows.DependencyObject obj)
            {
                return (double)obj.GetValue(BorderWidthProperty);
            }

            public static void SetBorderWidth(System.Windows.DependencyObject obj, double value)
            {
                obj.SetValue(BorderWidthProperty, value);
            }
            public static string GetBorderBrush(System.Windows.DependencyObject obj)
            {
                return (string)obj.GetValue(borderBrushs);
            }
            public static void SetBorderBrush(System.Windows.DependencyObject obj, string value)
            {
                obj.SetValue(borderBrushs, value);
            }
        //自定义边框宽度依赖属性
        public static readonly DependencyProperty BorderWidthProperty =
                DependencyProperty.RegisterAttached("BorderWidth", typeof(double), typeof(GridHelper), new PropertyMetadata(OnBorderWidthChanged));
            //自定义边框颜色依赖属性
            public static readonly DependencyProperty borderBrushs =
                DependencyProperty.RegisterAttached("BorderBrush", typeof(String), typeof(GridHelper), new PropertyMetadata(borderBrush));
            private static void OnBorderWidthChanged(DependencyObject d, DependencyPropertyChangedEventArgs e)
            {
                myBorderWidth = (double)e.NewValue;//更改后属性的值
            }
            private static void borderBrush(DependencyObject b, DependencyPropertyChangedEventArgs e)
            {
                BorderBrushcolor = (string)e.NewValue;//
            }
            public static bool GetShowBorder(DependencyObject obj)
            {
                return (bool)obj.GetValue(ShowBorderProperty);
            }
            public static void SetShowBorder(DependencyObject obj, bool value)
            {
                obj.SetValue(ShowBorderProperty, value);
            }
        /// <summary>
        /// 使用public static声明一个DependencyProperty变量
        /// </summary>
        public static readonly DependencyProperty ShowBorderProperty =
                DependencyProperty.RegisterAttached("ShowBorder", typeof(bool), typeof(GridHelper), new PropertyMetadata(ShowBorder));




            //静态方法
            private static void ShowBorder(DependencyObject d, DependencyPropertyChangedEventArgs e)
            {
                var grid = d as Grid;
                if ((bool)e.OldValue)
                {
                    grid.Loaded -= (s, arg) => { };
                }
                if ((bool)e.NewValue)
                {
                    grid.Loaded += (s, arg) =>
                    {
                        //根据Grid的顶层子控件的个数去添加边框，同时考虑合并的情况
                        var controls = grid.Children;
                        var count = controls.Count;
                        for (int i = 0; i < count; i++)
                        {
                            var item = controls[i] as FrameworkElement;
                            var row = Grid.GetRow(item);
                            var column = Grid.GetColumn(item);
                            var rowspan = Grid.GetRowSpan(item);
                            var columnspan = Grid.GetColumnSpan(item);
                            //设置边框线的颜色  #FFD3F1FE
                            var border = new Border();
                            Color color = (Color)ColorConverter.ConvertFromString(BorderBrushcolor);
                            border.BorderBrush = new SolidColorBrush(color);
                            //   border.BorderBrush = new SolidColorBrush(Colors.Black);
                            if (row == grid.RowDefinitions.Count - 1 && column == grid.ColumnDefinitions.Count - 1)
                                border.BorderThickness = new Thickness(myBorderWidth);
                            else if (row == grid.RowDefinitions.Count - 1)
                                border.BorderThickness = new Thickness(myBorderWidth, myBorderWidth, 0, myBorderWidth);
                            else if (column == grid.ColumnDefinitions.Count - 1)
                                border.BorderThickness = new Thickness(myBorderWidth, myBorderWidth, myBorderWidth, 0);
                            else
                                border.BorderThickness = new Thickness(myBorderWidth, myBorderWidth, 0, 0);
                            Grid.SetRow(border, row);
                            Grid.SetColumn(border, column);
                            Grid.SetRowSpan(border, rowspan);
                            Grid.SetColumnSpan(border, columnspan);
                            grid.Children.Add(border);
                        }
                    };
                }
            }
        }



Xaml代码：

  <Grid local:GridHelper.ShowBorder="True" local:GridHelper.BorderBrush="#FF220404" local:GridHelper.BorderWidth="0.1" Margin="20,20,20,0" Height="200">
        <Grid.Resources>
            <Style TargetType="TextBlock">
                <Setter Property="FontSize" Value="20"/>
                <Setter Property="HorizontalAlignment" Value="Center"/>
                <Setter Property="VerticalAlignment" Value="Center"/>
            </Style>
        </Grid.Resources>
        <Grid.RowDefinitions>
            <RowDefinition/>
            <RowDefinition/>
            <RowDefinition/>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition/>
            <ColumnDefinition/>
            <ColumnDefinition/>
            <ColumnDefinition/>
            <ColumnDefinition/>
            <ColumnDefinition/>
            <ColumnDefinition/>
            <ColumnDefinition/>
        </Grid.ColumnDefinitions>

        <Grid Grid.Column="0" local:GridHelper.ShowBorder="True" local:GridHelper.BorderBrush="#FF220404" local:GridHelper.BorderWidth="0.1" >
            <Grid.ColumnDefinitions>
                <ColumnDefinition />
                <!--<ColumnDefinition Width="1" />-->
                <ColumnDefinition />
            </Grid.ColumnDefinitions>
            <TextBlock Grid.Column="0" Text="第一列" />
            <!--<Rectangle Grid.Column="1" Fill="Black"/>-->
            <TextBlock Grid.Column="2" Text="第二列" />
        </Grid>
        <Grid Grid.Column="1" local:GridHelper.ShowBorder="True" local:GridHelper.BorderBrush="#FF220404" local:GridHelper.BorderWidth="1">
            <Grid.RowDefinitions>
                <RowDefinition/>
                <!--<RowDefinition Height="1"/>-->
                <RowDefinition/>
            </Grid.RowDefinitions>
            <TextBlock Grid.Row="0" Text="第一行" />
            <!--<TextBlock Grid.Row="1" />-->
            <TextBlock Grid.Row="2" Text="第二行" />
        </Grid>
        <TextBlock Grid.Column="2" Text="a" />
        <TextBlock Grid.Column="3" Text="b" />
        <TextBlock Grid.Column="4" Text="c" />
        <TextBlock Grid.Column="5" Text="d" />
        <TextBlock Grid.Column="6" Text="e" />
        <TextBlock Grid.Column="7" Text="f" />
        <TextBlock Grid.Column="0" Grid.Row="1" Text="a" />
        <TextBlock Grid.Column="1" Grid.Row="1" Text="d" />
        <TextBlock Grid.Column="2" Grid.Row="1" Text="g" />
        <TextBlock Grid.Column="3" Grid.Row="1" Text="h" />
        <TextBlock Grid.Column="4" Grid.Row="1" Text="j" />
        <TextBlock Grid.Column="5" Grid.Row="1" Text="l" />
        <TextBlock Grid.Column="6" Grid.Row="1" Text="n" />
        <TextBlock Grid.Column="7" Grid.Row="1" Text="n" />
        <TextBlock Grid.Row="2" Grid.Column="0"/>
        <TextBlock Grid.Row="2" Grid.Column="1"/>
        <TextBlock Grid.Row="2" Grid.Column="2"/>
        <TextBlock Grid.Row="2" Grid.Column="3"/>
        <TextBlock Grid.Row="2" Grid.Column="4"/>
        <TextBlock Grid.Row="2" Grid.Column="5"/>
        <TextBlock Grid.Row="2" Grid.Column="6"/>
        <TextBlock Grid.Row="2" Grid.Column="7"/>

    </Grid>

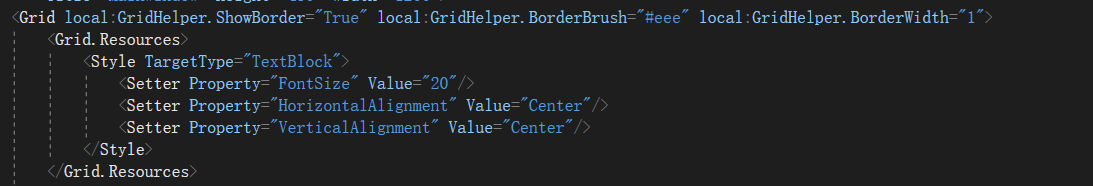

Grid控件设置属性



效果
