redis案例实战一-图形验证码+谷歌开源Kaptcha介绍

1.简介：案例实战之注册登录-图形验证码+谷歌开源Kaptcha引入

• 背景

  • 注册-登录-修改密码一般需要发送验证码，但是容易被攻击恶意调用

  • 什么是短信-邮箱轰炸机

    • 手机短信轰炸机是批􏰀、循环给手机无限发送各种网站的注册验 证码短信的方法。

  • 公司带来的损失

    • 短信一条5分钱，如果被大􏰀盗刷大家自己计算 邮箱通知不用钱，但被大􏰀盗刷，带宽、连接等都被占 用，导致无法正常使用

• 如何避免自己的网站成为”肉鸡“或者被刷呢

  • 增加图形验证码(开发人员)
  • 单IP请求次数限制(开发人员)
  • 限制号码发送(一般短信提供商会做)
  • 攻防永远是有的，只过加大了攻击者的成本，ROI划不 过来自然就放弃了

• Kaptcha 框架介绍

  • 谷歌开源的一个可高度配置的实用验证 码生成工具

    • 验证码的字体/大小/颜色
    • 验证码内容的范围(数字，字母，中文汉字!)
    • 验证码图片的大小，边框，边框粗细，边框颜色
    • 验证码的干扰线 验证码的样式(⻥眼样式、3D、普通模糊)

• 添加依赖

<!--kaptcha依赖包-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>kaptcha-spring-boot-starter</artifactId>
            <version>1.0.0</version>
        </dependency>

• 代码配置

package net.xdclass.xdclassredis.config;

import com.google.code.kaptcha.Constants;
import com.google.code.kaptcha.impl.DefaultKaptcha;
import com.google.code.kaptcha.util.Config;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.Properties;

@Configuration
public class CaptchaConfig {

    /**
     * 验证码配置
     * Kaptcha配置类名
     *
     * @return
     */
    @Bean
    @Qualifier("captchaProducer")
    public DefaultKaptcha kaptcha() {
        DefaultKaptcha kaptcha = new DefaultKaptcha();
        Properties properties = new Properties();
        //验证码个数
        properties.setProperty(Constants.KAPTCHA_TEXTPRODUCER_CHAR_LENGTH, "4");
        //字体间隔
        properties.setProperty(Constants.KAPTCHA_TEXTPRODUCER_CHAR_SPACE,"8");
        //干扰线颜色-没有设置

        //干扰实现类
        properties.setProperty(Constants.KAPTCHA_NOISE_IMPL, "com.google.code.kaptcha.impl.NoNoise");

        //图片样式
        properties.setProperty(Constants.KAPTCHA_OBSCURIFICATOR_IMPL, "com.google.code.kaptcha.impl.WaterRipple");

        //文字来源
        properties.setProperty(Constants.KAPTCHA_TEXTPRODUCER_CHAR_STRING, "0123456789");
        Config config = new Config(properties);
        kaptcha.setConfig(config);
        return kaptcha;
    }
}

 2.实现

验证码存储Redis逻辑编码实战

• CommonUtil工具类

package net.xdclass.xdclassredis.util;


import jakarta.servlet.http.HttpServletRequest;

import java.net.InetAddress;
import java.net.UnknownHostException;
import java.security.MessageDigest;

public class CommonUtil {
    /**
     * 获取ip
     * @param request
     * @return
     */
    public static String getIpAddr(HttpServletRequest request) {
        String ipAddress = null;
        try {
            ipAddress = request.getHeader("x-forwarded-for");
            if (ipAddress == null || ipAddress.length() == 0 || "unknown".equalsIgnoreCase(ipAddress)) {
                ipAddress = request.getHeader("Proxy-Client-IP");
            }
            if (ipAddress == null || ipAddress.length() == 0 || "unknown".equalsIgnoreCase(ipAddress)) {
                ipAddress = request.getHeader("WL-Proxy-Client-IP");
            }
            if (ipAddress == null || ipAddress.length() == 0 || "unknown".equalsIgnoreCase(ipAddress)) {
                ipAddress = request.getRemoteAddr();
                if (ipAddress.equals("127.0.0.1")) {
                    // 根据网卡取本机配置的IP
                    InetAddress inet = null;
                    try {
                        inet = InetAddress.getLocalHost();
                    } catch (UnknownHostException e) {
                        e.printStackTrace();
                    }
                    ipAddress = inet.getHostAddress();
                }
            }
            // 对于通过多个代理的情况，第一个IP为客户端真实IP,多个IP按照','分割
            if (ipAddress != null && ipAddress.length() > 15) {
                // "***.***.***.***".length()
                // = 15
                if (ipAddress.indexOf(",") > 0) {
                    ipAddress = ipAddress.substring(0, ipAddress.indexOf(","));
                }
            }
        } catch (Exception e) {
            ipAddress="";
        }
        return ipAddress;
    }

    /**
     * md5加密
     * @param data
     * @return
     */
    public static String MD5(String data)  {
        try {
            java.security.MessageDigest md = MessageDigest.getInstance("MD5");
            byte[] array = md.digest(data.getBytes("UTF-8"));
            StringBuilder sb = new StringBuilder();
            for (byte item : array) {
                sb.append(Integer.toHexString((item & 0xFF) | 0x100).substring(1, 3));
            }
            return sb.toString().toUpperCase();
        } catch (Exception exception) {
        }
        return null;

    }
}

• 接口开发

package net.xdclass.xdclassredis.controller;

import com.google.code.kaptcha.Producer;
import jakarta.servlet.ServletOutputStream;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import net.xdclass.xdclassredis.util.CommonUtil;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.StringRedisTemplate;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;


import javax.imageio.ImageIO;
import java.awt.image.BufferedImage;

import java.util.concurrent.TimeUnit;

@RestController
@RequestMapping("/api/v1/captcha")
public class CaptchaController {
    @Autowired
    private StringRedisTemplate stringRedisTemplate;

    @Autowired
    private Producer captchaProducer;

    /**
     *临时使用10分钟有效，方便测试
     */
    private static final long CAPTCHA_CODE_EXPIRED = 60 * 1000 * 10;

    /**
     * 获取图形验证码
     * @param request
     * @param response
     */
    @GetMapping("/get_captcha")
    public void getCaptcha(HttpServletRequest request, HttpServletResponse response){

        String captchaText = captchaProducer.createText();
        String key = getCaptchaKey(request);
        //10分钟过期
        stringRedisTemplate.opsForValue().set(key,captchaText,10, TimeUnit.MINUTES);

        //存储

        BufferedImage bufferedImage = captchaProducer.createImage(captchaText);
        ServletOutputStream outputStream = null;
        try {
            outputStream = response.getOutputStream();
            ImageIO.write(bufferedImage,"jpg",outputStream);
            outputStream.flush();
            outputStream.close();
        } catch (Exception e) {
            e.printStackTrace();
        }

    }

    /**
     * 获取缓存的key
     * @param request
     * @return
     */
    private String getCaptchaKey(HttpServletRequest request){

        String ip = CommonUtil.getIpAddr(request);
        String userAgent = request.getHeader("User-Agent");

        String key = "user-service:captcha:"+CommonUtil.MD5(ip+userAgent);

        return key;

    }
}

 3.运行验证

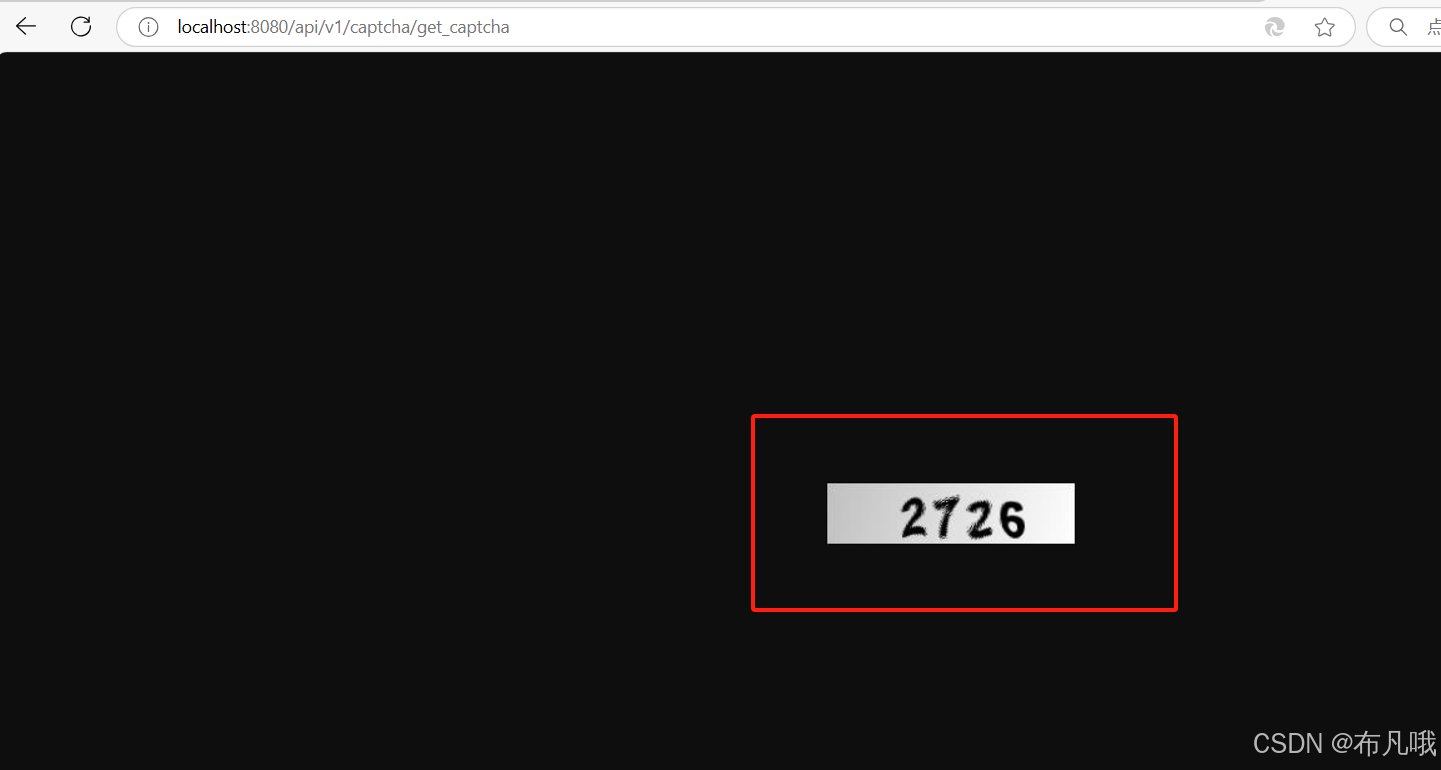

访问浏览器

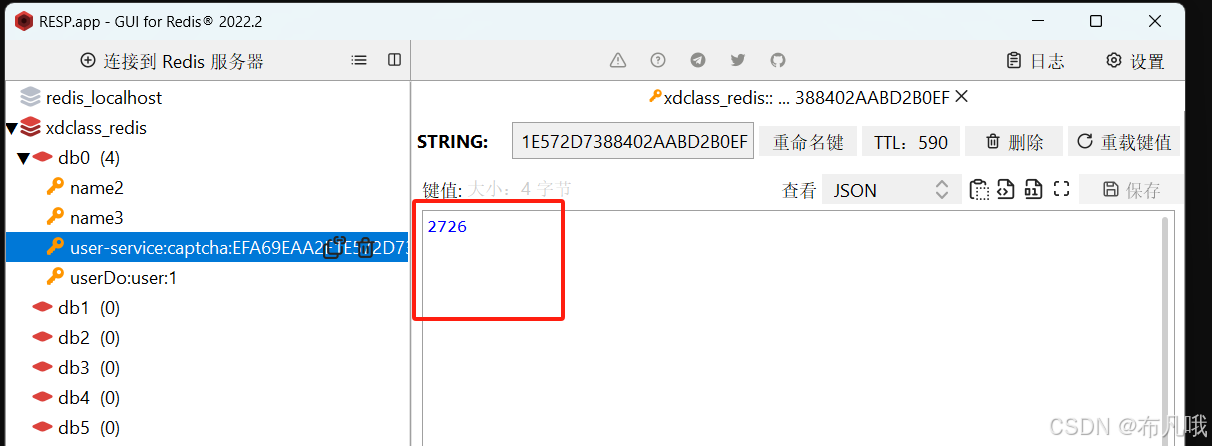

查看redis可视化工具
