本文介绍了一种基于状态机的串口接收器设计方法，通过对输入数据的同步采样，利用移位寄存器实现了低位优先的数据接收。文章提供了完整的Verilog代码示例，包括状态机的状态转移逻辑及数据路径设计。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

题目要求在上一题[Q131 Serial receiver]的基础上增加数据输出的逻辑，状态机和done信号输出的逻辑还是和上一题相同，无需改变，只需要在数据同步期间将数据接收下来即可，同时注意发送数据是先送低位还是先送高位。

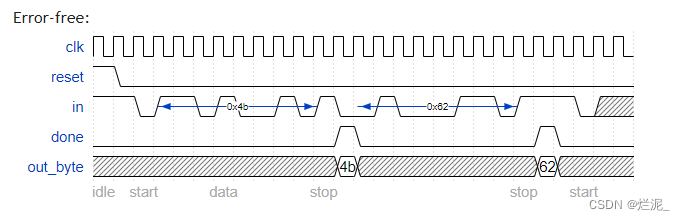

从图中可以看出是先送低位，只需要增加一个移位寄存器，在DATA状态对数据进行移位即可。

比较简单直接贴上代码

module top_module(
    input clk,
    input in,
    input reset,    // Synchronous reset
    output [7:0] out_byte,
    output done
); //

    // Use FSM from Fsm_serial
	parameter 	IDLE 	= 	3'd0;
    parameter	START	=	3'd1;
    parameter	DATA	=	3'd2;
    parameter	STOP	=	3'd3;
    parameter	ERROR	=	3'd4;

    reg	[2:0]	curr_state;
    reg	[2:0]	next_state;
    reg	[2:0]	dat_cnt;
    reg			done_r1;

    wire		done_r;

    always @(posedge clk) begin
        if(reset==1'b1) begin
       		curr_state <= IDLE;
        end
        else begin
           	curr_state <= next_state;
        end
    end

    always @(*) begin
        case(curr_state)
        IDLE:begin
            if(in == 1'b0) begin
            	next_state = DATA;
            end
            else begin
                next_state = IDLE;
            end
        end
        DATA:begin
            if(dat_cnt == 3'd7) begin
            	next_state = STOP;
            end
            else begin
                next_state = DATA;
            end
        end
        STOP:begin
            if( in == 1'b1) begin
               next_state = IDLE;
            end
            else begin
               next_state = ERROR;
            end
        end
        ERROR: begin
            if( in == 1'b1) begin
               next_state = IDLE;
            end
            else begin
               next_state = ERROR;
            end
        end
        default: next_state= IDLE;
        endcase
    end

    always @(posedge clk) begin
        if(reset == 1'b1) begin
        	dat_cnt <= 3'd0;
        end
        else if(curr_state == DATA) begin
        	dat_cnt <= dat_cnt + 1'b1;
        end
        else begin
        	dat_cnt <= 3'd0;
        end
    end

    always @(posedge clk) begin
        if(reset == 1'b1) begin
           done_r <= 1'b0;
        end
        else begin
            done_r <= (curr_state == STOP) && (in == 1'b1);
        end
    end

    assign	done = done_r;
    // New: Datapath to latch input bits.
    reg	[7:0]	out_reg;
    always @(posedge clk) begin
        if(reset) begin
            out_reg <= 8'd0;
        end
        else begin
            if(curr_state == DATA) begin
            	out_reg <={in,out_reg[7:1]};//先送低位
            end
			else begin
                out_reg <= out_reg;
            end
        end
    end
    assign out_byte = out_reg;

endmodule
