总结那些年错过的图像算法模板

1、图像格式转关：RAW8_RGB888

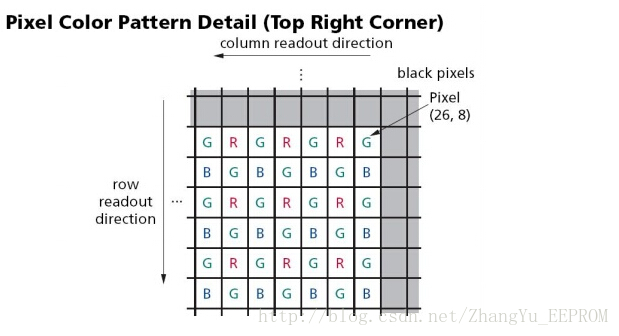

原理：

OddLINE_OddPOINT：R、G 四分之一，B二分之一；

OddLINE_Even_POINT：

EvenLINE_OddPOINT：

EvenLINE_EvenPOINT：

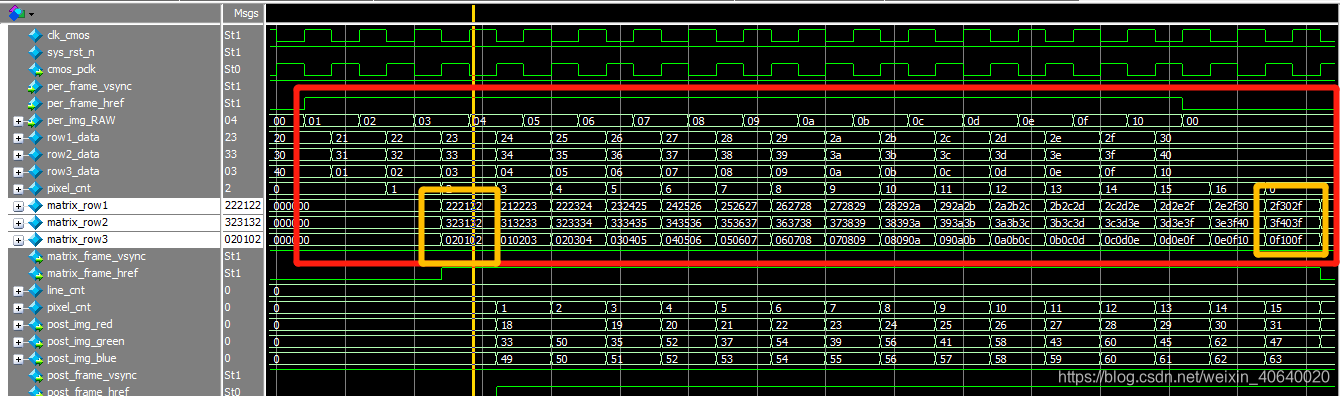

首先要经过Matrix_Generate_3X3_8Bit的矩阵变换

重要代码：

always@(posedge clk or negedge rst_n)
begin
	if(!rst_n)
		begin
		pixel_cnt <= 0;
		row1_data0 <= 0; row1_data1 <= 0;
		row2_data0 <= 0; row2_data1 <= 0;
		row3_data0 <= 0; row3_data1 <= 0;
		{matrix_p11, matrix_p12, matrix_p13} <= 24'h0;
		{matrix_p21, matrix_p22, matrix_p23} <= 24'h0;
		{matrix_p31, matrix_p32, matrix_p33} <= 24'h0;
		end
	else if(read_frame_href)
		begin
		pixel_cnt <=  (pixel_cnt < IMG_HDISP) ? pixel_cnt + 1'b1 : 10'd0;	//Point Counter
		{row1_data1, row1_data0} <= {row1_data0, row1_data};
		{row2_data1, row2_data0} <= {row2_data0, row2_data};
		{row3_data1, row3_data0} <= {row3_data0, row3_data};
		if(pixel_cnt == 0)
			begin
			{matrix_p11, matrix_p12, matrix_p13} <= 0;
			{matrix_p21, matrix_p22, matrix_p23} <= 0;
			{matrix_p31, matrix_p32, matrix_p33} <= 0;
			end
		else if(pixel_cnt == 1)			//First point
			begin
			{matrix_p11, matrix_p12, matrix_p13} <= {row1_data, row1_data0, row1_data};
			{matrix_p21, matrix_p22, matrix_p23} <= {row2_data, row2_data0, row2_data};
			{matrix_p31, matrix_p32, matrix_p33} <= {row3_data, row3_data0, row3_data};
			end
		else if(pixel_cnt == IMG_HDISP)	//Last Point
			begin
			{matrix_p11, matrix_p12, matrix_p13} <= {row1_data1, row1_data,	row1_data1};
			{matrix_p21, matrix_p22, matrix_p23} <= {row2_data1, row2_data,	row2_data1};
			{matrix_p31, matrix_p32, matrix_p33} <= {row3_data1, row3_data,	row3_data1};
			end
		else							//2 ~ IMG_HDISP-1 Point
			begin

			{matrix_p11, matrix_p12, matrix_p13} <= {row1_data1, row1_data0, row1_data};
			{matrix_p21, matrix_p22, matrix_p23} <= {row2_data1, row2_data0, row2_data};
			{matrix_p31, matrix_p32, matrix_p33} <= {row3_data1, row3_data0, row3_data};
			end
		end
	else
		begin
		pixel_cnt <= 0;
		{matrix_p11, matrix_p12, matrix_p13} <= 24'h0;
		{matrix_p21, matrix_p22, matrix_p23} <= 24'h0;
		{matrix_p31, matrix_p32, matrix_p33} <= 24'h0;
		end
end

再运算：

//--------------------------------------
//Convet RAW 2 RGB888 Format
//
localparam	OddLINE_OddPOINT	=	2'b00;	//odd lines + odd point
localparam	OddLINE_Even_POINT	=	2'b01;	//odd lines + even point
localparam	EvenLINE_OddPOINT	=	2'b10;	//even lines + odd point
localparam	EvenLINE_EvenPOINT	=	2'b11;	//even lines + even point
reg	[9:0]	post_img_red_r;
reg	[9:0]	post_img_green_r;
reg	[9:0]	post_img_blue_r;
always@(posedge clk or negedge rst_n)
begin
	if(!rst_n)
		begin
		post_img_red_r	<=	0;
		post_img_green_r<=	0;
		post_img_blue_r	<=	0;
		end
	else
		begin
		case({line_cnt[0], point_cnt[0]})
		//-------------------------BGBG...BGBG--------------------//
		OddLINE_OddPOINT:	//odd lines + odd point
			begin	//Center Blue
			post_img_red_r	<=	(matrix_p11 + matrix_p13 + matrix_p31 + matrix_p33)>>2;
			post_img_green_r<=	(matrix_p12 + matrix_p21 + matrix_p23 + matrix_p32)>>2;
			post_img_blue_r	<=	matrix_p22;
			end
		OddLINE_Even_POINT:	//odd lines + even point
			begin	//Center Green
			post_img_red_r	<=	(matrix_p12 + matrix_p32)>>1;
			post_img_green_r<=	matrix_p22;
			post_img_blue_r	<=	(matrix_p21 + matrix_p23)>>1;
			end
		//-------------------------GRGR...GRGR--------------------//
		EvenLINE_OddPOINT:	//even lines + odd point
			begin	//Center Green
			post_img_red_r	<=	(matrix_p21 + matrix_p23)>>1;
			post_img_green_r<=	matrix_p22;
			post_img_blue_r	<=	(matrix_p12 + matrix_p32)>>1;
			end
		EvenLINE_EvenPOINT: //even lines + even point
			begin	//Center Red
			post_img_red_r	<=	matrix_p22;
			post_img_green_r<=	(matrix_p12 + matrix_p21 + matrix_p23 + matrix_p32)>>2;
			post_img_blue_r	<=	(matrix_p11 + matrix_p13 + matrix_p31 + matrix_p33)>>2;
			end
		endcase
		end
end
