本文介绍在QuartusII7.2SP3与ModelSim-Altera6.1g环境下，遇到无法启动ModelSim进行电路模拟的问题及解决方案。错误主要由于未指定或找不到ModelSim-Altera的可执行文件路径。通过在QuartusII的EDATool选项中正确设置ModelSim-Altera的路径，可以成功解决此问题。
Abstract
若在Quartus II 7.2下啟動ModelSim-Altera 6.1g進行模擬，可能會遇到以下錯誤訊息而無法模擬成功。
Introduction
使用環境：Quartus II 7.2 SP3 + ModelSim-Altera 6.1g
Error: Can't launch the ModelSim-Altera software -- the path to the location of the executables for the ModelSim-Altera software were not specified or the executables were not found at specified path.
Error: You can specify the path inthe EDA Tool Options page of the Options dialog box or using the Tcl command set_user_option.
Error: NativeLink simulation flow was NOT successful
Error: You can specify the path inthe EDA Tool Options page of the Options dialog box or using the Tcl command set_user_option.
Error: NativeLink simulation flow was NOT successful
Solution
Step 1：
設定NativeLink路徑

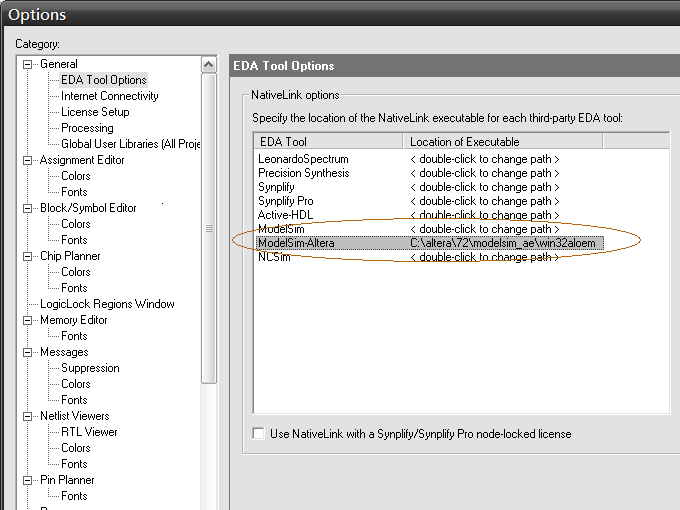

Tools -> Options -> General -> EDA Tool Options：
將ModelSim-Altera的路徑設定到c:\altera\72\modelsim_ae\win32aloem
