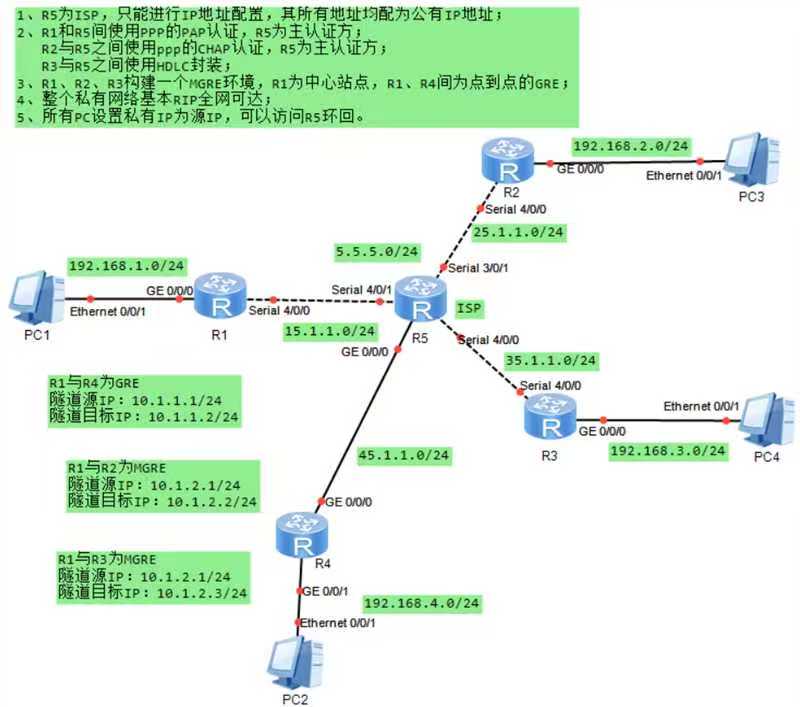

7.27MEGR综合实验

R1

sysname R1
interface GigabitEthernet 0/0/0
 ip address 192.168.1.1 255.255.255.0
interface Serial 4/0/0
 ip address 15.1.1.1 255.255.255.0
 link-protocol ppp
 ppp pap send-username R1 password simple R1Pass
interface Tunnel 0/0/0
 ip address 10.1.1.1 255.255.255.0
 tunnel-protocol gre
 source 15.1.1.1
 destination 10.1.1.2
interface Tunnel 0/0/1
 ip address 10.1.2.1 255.255.255.0
 tunnel-protocol gre p2mp
 source Serial 4/0/0
 nhrp entry 10.1.2.2 25.1.1.2 register
 nhrp entry 10.1.2.3 35.1.1.3 register
rip 1
 version 2
 network 10.0.0.0
 network 15.0.0.0
 network 192.168.1.0

R2

sysname R2
interface GigabitEthernet 0/0/0
 ip address 192.168.2.1 255.255.255.0
interface Serial 4/0/0
 ip address 25.1.1.2 255.255.255.0
 link-protocol ppp
 ppp chap user R2
 ppp chap password simple R2Pass
interface Tunnel 0/0/1
 ip address 10.1.2.2 255.255.255.0
 tunnel-protocol gre p2mp
 source Serial 4/0/0
 nhrp entry 10.1.2.1 15.1.1.1
rip 1
 version 2
 network 10.0.0.0
 network 25.0.0.0
 network 192.168.2.0

R3

sysname R3
interface GigabitEthernet 0/0/0
 ip address 192.168.3.1 255.255.255.0
interface Serial 4/0/0
 ip address 35.1.1.3 255.255.255.0
 link-protocol hdlc
interface Tunnel 0/0/1
 ip address 10.1.2.3 255.255.255.0
 tunnel-protocol gre p2mp
 source Serial 4/0/0
 nhrp entry 10.1.2.1 15.1.1.1
rip 1
 version 2
 network 10.0.0.0
 network 35.0.0.0
 network 192.168.3.0

R4

sysname R4
interface GigabitEthernet 0/0/0
 ip address 192.168.4.1 255.255.255.0
interface GigabitEthernet 0/0/1
 ip address 45.1.1.2 255.255.255.0
interface Tunnel 0/0/0
 ip address 10.1.1.2 255.255.255.0
 tunnel-protocol gre
 source 45.1.1.2
 destination 15.1.1.1
rip 1
 version 2
 network 10.0.0.0
 network 45.0.0.0
 network 192.168.4.0

R5

sysname R5
interface GigabitEthernet 0/0/0
 ip address 5.5.5.1 255.255.255.0
interface Serial 3/0/1
 ip address 25.1.1.1 255.255.255.0
 link-protocol ppp
 ppp pap authentication
 ppp chap authentication
interface Serial 4/0/0
 ip address 15.1.1.2 255.255.255.0
 link-protocol ppp
 ppp pap authentication
 ppp chap authentication
interface Serial 4/0/1
 ip address 35.1.1.1 255.255.255.0
 link-protocol hdlc
interface LoopBack 0
 ip address 5.5.5.5 255.255.255.0
rip 1
 version 2
 network 5.0.0.0
 network 15.0.0.0
 network 25.0.0.0
 network 35.0.0.0
