20240816在飞凌OK3588-C开发板上配置主显示屏为HDMI0
2024/8/16 19:20

参考资料：《OK3588-C_Linux5.10.66+Qt5.15.2_用户使用手册_V1.2_20240321.pdf》的《2.4 屏幕切换》

缘起：最近需要使用TF卡升级飞凌OK3588-C核心板的IMG固件。

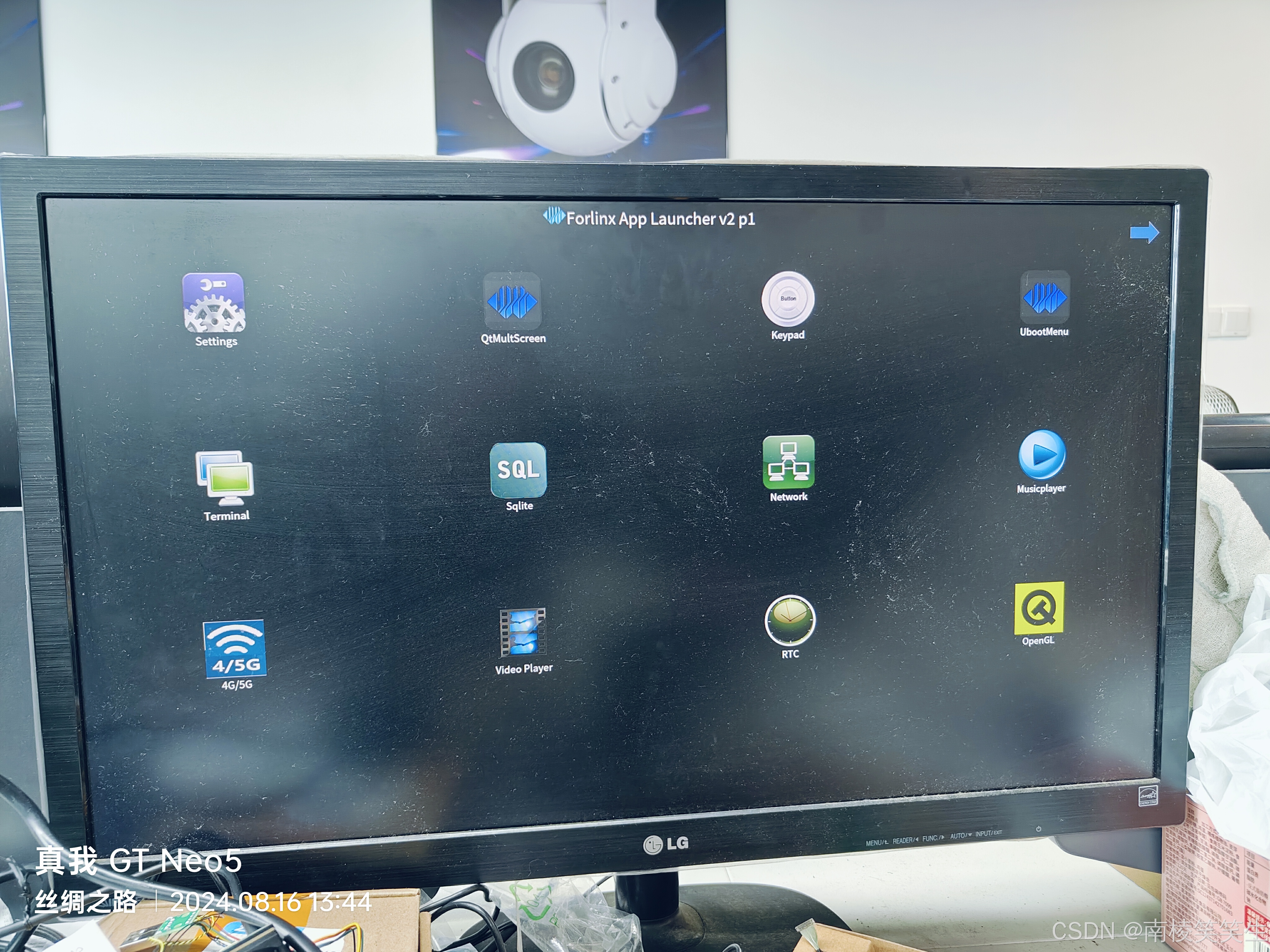

但是我们不用LCD屏幕，使用TF卡刷机的时候，HDMI显示器没有任何提示信息。
串口也没有任何打印【飞凌说正常刷机的时候也没有打印的！】，ps也看不到任何刷机进程，比如dd之类的写入指令。

电话一直问飞凌的人，大家多久可以搞定，大概5-7分钟吧，看你的TF卡的体质/读写速度。
飞凌的人使用的是16GB的Kinston的TF卡，我用的是32GB的Sandisk的卡。
当然现阶段的程序，很少会挑卡了！

后来，飞凌回复说，需要将HDMI0配置成为主显示屏，同时关闭其它不用的显示屏。
于是：我们开始了！

按空格按键进入配置模式：
Net: eth1: ethernet@fe1c0000
Hit key to stop autoboot('Spacebar'): 0
---------------------------------------------
0:Exit to console
1:Reboot
2:Display type
---------------------------------------------

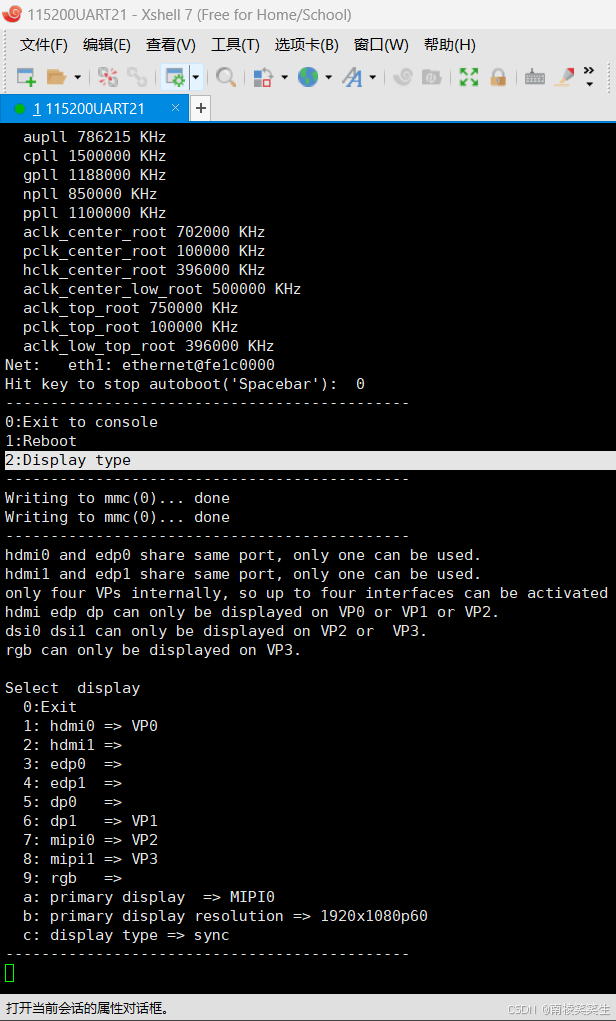

按 2 进入：2:Display type

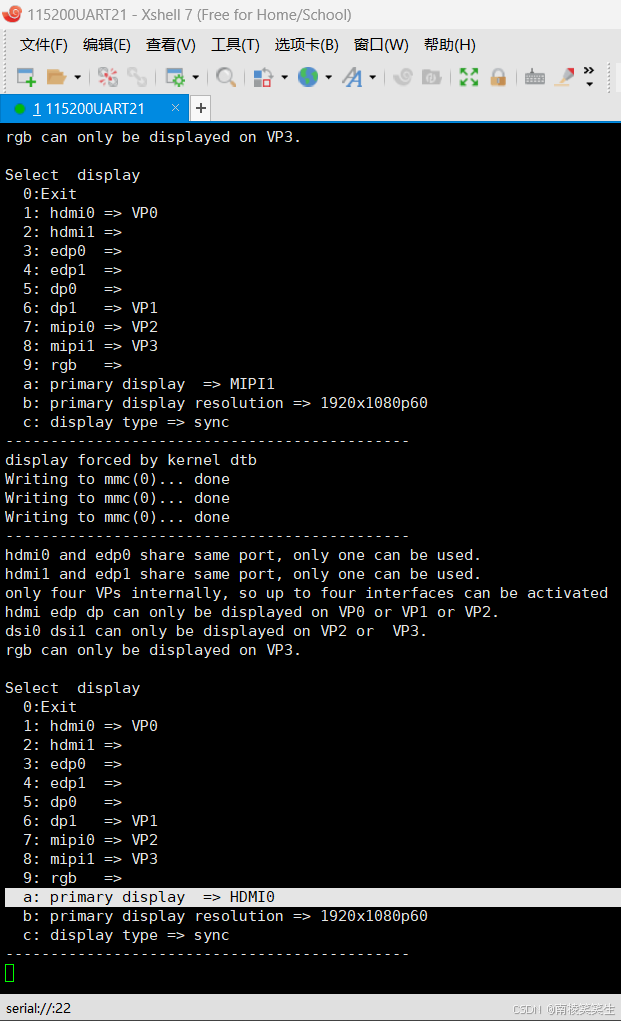

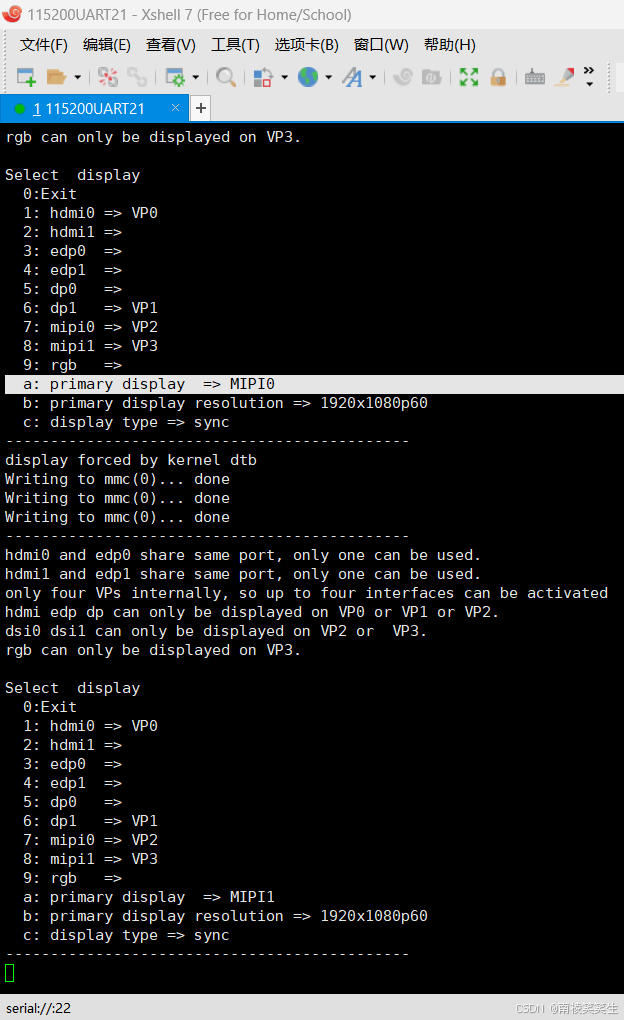

按 a 两次选定主显示器为HDMI0。如果不小心按多了，没事的，继续按a，你还会选回来的！
a: primary display => MIPI0
a: primary display => MIPI1
a: primary display => HDMI0

同时你需要关闭选项：6 7 8，dp1、mipi0和mipi1。
6: dp1 => VP1
7: mipi0 => VP2
8: mipi1 => VP3

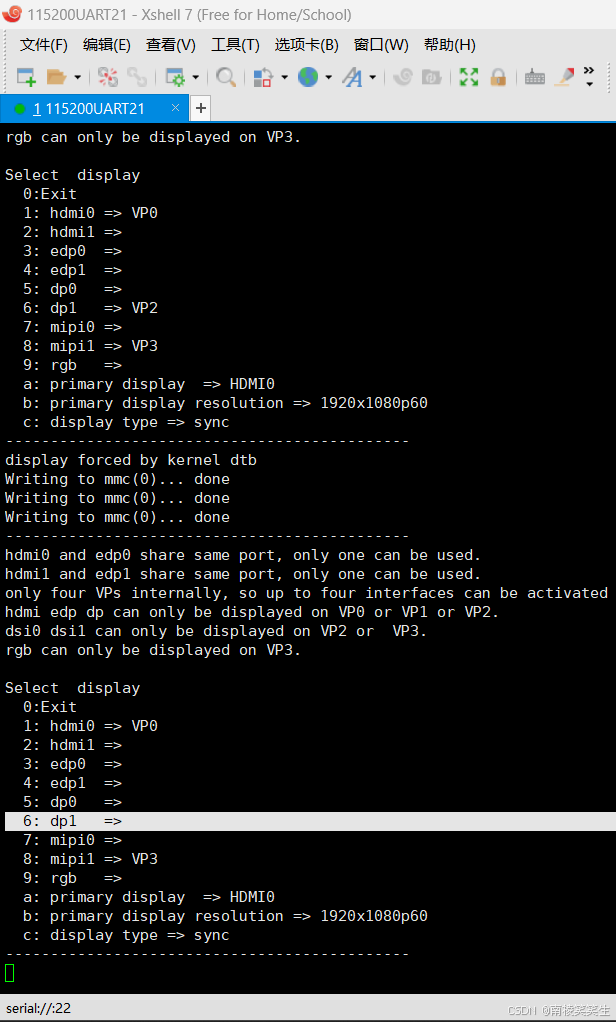

按 6 两次，关闭dp1
6: dp1 => VP1
6: dp1 => VP2
6: dp1 =>

按 8 一次，关闭 mipi1
8: mipi1 => VP3
8: mipi1 =>

按 0，0:Exit 退出配置菜单。
按 1，1:Reboot 重启。

原始：
---------------------------------------------
hdmi0 and edp0 share same port, only one can be used.
hdmi1 and edp1 share same port, only one can be used.
only four VPs internally, so up to four interfaces can be activated
hdmi edp dp can only be displayed on VP0 or VP1 or VP2.
dsi0 dsi1 can only be displayed on VP2 or VP3.
rgb can only be displayed on VP3.

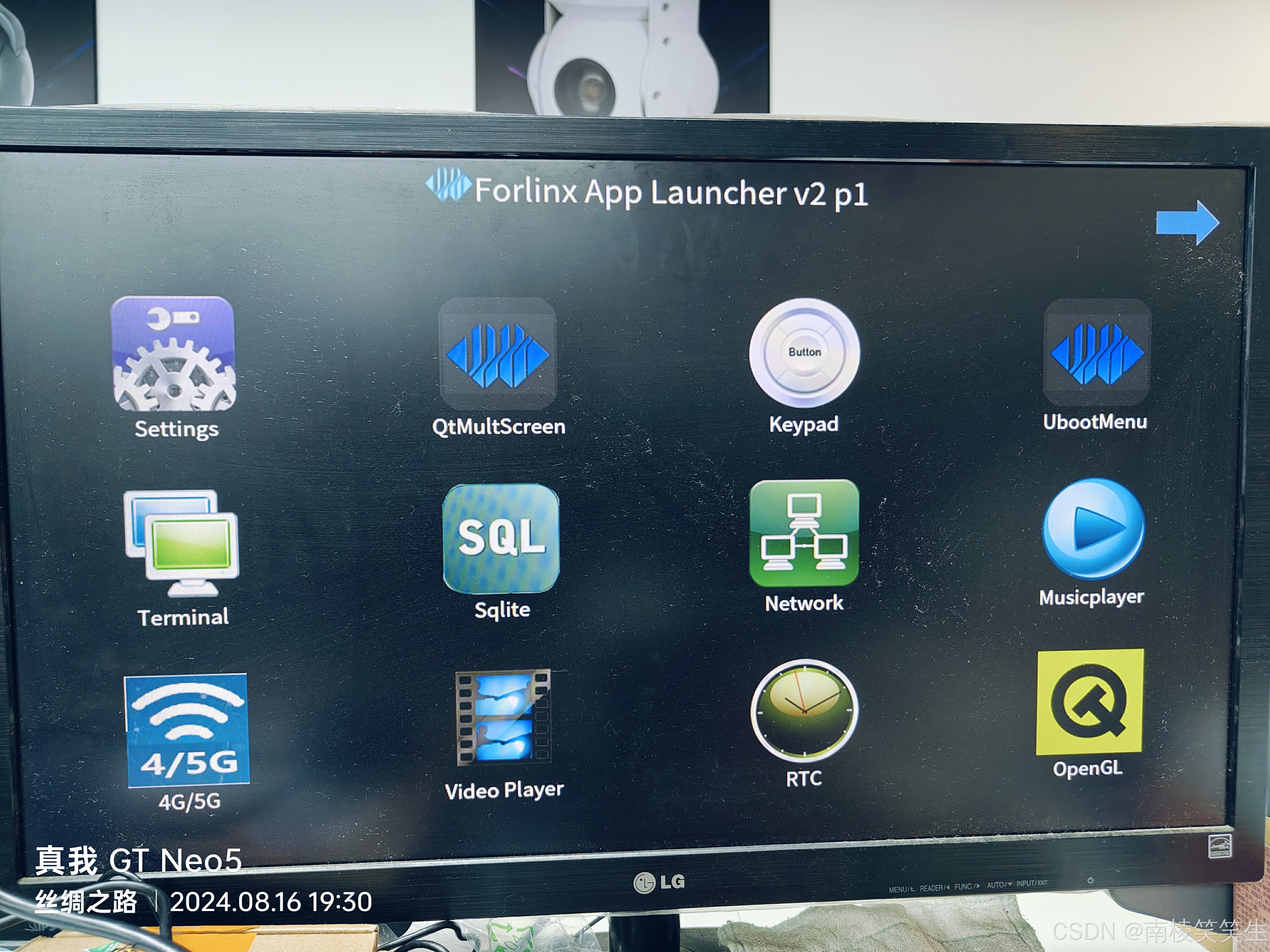

结果：
---------------------------------------------
display forced by kernel dtb
Writing to mmc(0)... done
Writing to mmc(0)... done
Writing to mmc(0)... done
---------------------------------------------
hdmi0 and edp0 share same port, only one can be used.
hdmi1 and edp1 share same port, only one can be used.
only four VPs internally, so up to four interfaces can be activated
hdmi edp dp can only be displayed on VP0 or VP1 or VP2.
dsi0 dsi1 can only be displayed on VP2 or VP3.
rgb can only be displayed on VP3.

分项步骤：

[BEGIN] 2024/8/16 19:31:14
root@ok3588:/# DDR Version V1.07 20220412
LPDDR4X, 2112MHz
channel[0] BW=16 Col=10 Bk=8 CS0 Row=16 CS1 Row=16 CS=2 Die BW=16 Size=2048MB
channel[1] BW=16 Col=10 Bk=8 CS0 Row=16 CS1 Row=16 CS=2 Die BW=16 Size=2048MB
channel[2] BW=16 Col=10 Bk=8 CS0 Row=16 CS1 Row=16 CS=2 Die BW=16 Size=2048MB
channel[3] BW=16 Col=10 Bk=8 CS0 Row=16 CS1 Row=16 CS=2 Die BW=16 Size=2048MB
change to F1: 528MHz
change to F2: 1068MHz
change to F3: 1560MHz
change to F0: 2112MHz
out
U-Boot SPL board init
U-Boot SPL 2017.09-g5f53abfa1e-221223 #zzz (Dec 26 2022 - 09:10:09)
unknown raw ID 0 0 0
unrecognized JEDEC id bytes: 00, 00, 00
Trying to boot from MMC2
MMC: no card present
mmc_init: -123, time 2
spl: mmc init failed with error: -123
Trying to boot from MMC1
SPL: A/B-slot: _a, successful: 0, tries-remain: 7
Trying fit image at 0x4000 sector
## Verified-boot: 0
## Checking atf-1 0x00040000 ... sha256(5ae6932916...) + OK
## Checking uboot 0x00200000 ... sha256(5ca6150e38...) + OK
## Checking fdt 0x00325ad0 ... sha256(6c1121228f...) + OK
## Checking atf-2 0x000f0000 ... sha256(c00c7fd75b...) + OK
## Checking atf-3 0xff100000 ... sha256(71c3a5841b...) + OK
## Checking atf-4 0xff001000 ... sha256(2301cf73be...) + OK
## Checking optee 0x08400000 ... sha256(4ed9cd20b5...) + OK
Jumping to U-Boot(0x00200000) via ARM Trusted Firmware(0x00040000)
Total: 184.60 ms

INFO: Preloader serial: 2
NOTICE: BL31: v2.3():v2.3-384-g45c8fcb44:derrick.huang
NOTICE: BL31: Built : 15:14:04, Jun 18 2022
INFO: ext 32k is not valid
INFO: GICv3 without legacy support detected.
INFO: ARM GICv3 driver initialized in EL3
INFO: system boots from cpu-hwid-0
INFO: idle_st=0x21fff, pd_st=0x11fff9, repair_st=0xfff70001
INFO: dfs DDR fsp_params[0].freq_mhz= 2112MHz
INFO: dfs DDR fsp_params[1].freq_mhz= 528MHz
INFO: dfs DDR fsp_params[2].freq_mhz= 1068MHz
INFO: dfs DDR fsp_params[3].freq_mhz= 1560MHz
INFO: BL31: Initialising Exception Handling Framework
INFO: BL31: Initializing runtime services
INFO: BL31: Initializing BL32
INFO: hdmirx_handler: dma not on, ret
I/TC:
I/TC: OP-TEE version: 3.13.0-645-g87d94c5ef8 #xb.wang (gcc version 10.2.1 20201103 (GNU Toolchain for the A-profile Architecture 10.2-2020.11 (arm-10.16))) #1 Tue Jun 14 10:44:31 CST 2022 aarch64
I/TC: Primary CPU initializing
I/TC: Primary CPU switching to normal world boot
INFO: BL31: Preparing for EL3 exit to normal world
INFO: Entry point address = 0x200000
INFO: SPSR = 0x3c9

U-Boot 2017.09 (Dec 21 2023 - 09:45:34 +0800)

Model: Forlinx OK3588-C Board
PreSerial: 2, raw, 0xfeb50000
DRAM: 7.7 GiB
Sysmem: init
Relocation Offset: edb51000
Relocation fdt: eb9fa7a8 - eb9fecd8
CR: M/C/I
mmc@fe2c0000: 1, mmc@fe2e0000: 0
Bootdev(atags): mmc 0
MMC0: HS200, 200Mhz
PartType: EFI
DM: v2
boot mode: None
FIT: no signed, no conf required
DTB: rk-kernel.dtb
HASH(c): OK
I2c0 speed: 100000Hz
vsel-gpios- not found!
en-gpios- not found!
vdd_cpu_big0_s0 800000 uV
vsel-gpios- not found!
en-gpios- not found!
vdd_cpu_big1_s0 800000 uV
I2c1 speed: 400000Hz
vsel-gpios- not found!
en-gpios- not found!
vdd_npu_s0 800000 uV
spi2: RK806: 2
ON=0x00, OFF=0x00
vdd_gpu_s0 750000 uV
vdd_cpu_lit_s0 750000 uV
vdd_log_s0 750000 uV
vdd_vdenc_s0 init 750000 uV
vdd_ddr_s0 850000 uV
Auth Success!
normal mode
Writing to mmc(0)... done
get vp0 plane mask:0x5, primary id:2, cursor_plane:-1, from dts
get vp1 plane mask:0xa, primary id:3, cursor_plane:-1, from dts
get vp2 plane mask:0x140, primary id:8, cursor_plane:-1, from dts
get vp3 plane mask:0x280, primary id:9, cursor_plane:-1, from dts
Could not find baseparameter partition
Model: Forlinx OK3588 Board
Rockchip UBOOT DRM driver version: v1.0.1
vp0 have layer nr:2[0 2 ], primary plane: 2
vp1 have layer nr:2[1 3 ], primary plane: 3
vp2 have layer nr:2[6 8 ], primary plane: 8
vp3 have layer nr:2[7 9 ], primary plane: 9
Using display timing dts
dsi@fde20000: detailed mode clock 45000 kHz, flags[a]
H: 1024 1064 1112 1160
V: 0600 0640 0644 0692
bus_format: 100e
VOP update mode to: 1024x600p0, type: MIPI0 for VP2
rockchip_vop2_init:No hdmiphypll clk1 found, use system clk
VOP VP2 enable Esmart2[400x300->400x300@312x150] fmt[1] addr[0xedf58000]
final DSI-Link bandwidth: 293333 Kbps x 4
Using display timing dts
dsi@fde30000: detailed mode clock 45000 kHz, flags[a]
H: 1024 1064 1112 1160
V: 0600 0640 0644 0692
bus_format: 100e
VOP update mode to: 1024x600p0, type: MIPI1 for VP3
rockchip_vop2_init:No hdmiphypll clk1 found, use system clk
VOP VP3 enable Esmart3[400x300->400x300@312x150] fmt[1] addr[0xedf58000]
final DSI-Link bandwidth: 294113 Kbps x 4
Monitor has basic audio support
can't find to match
Could not find baseparameter partition
color_format:0

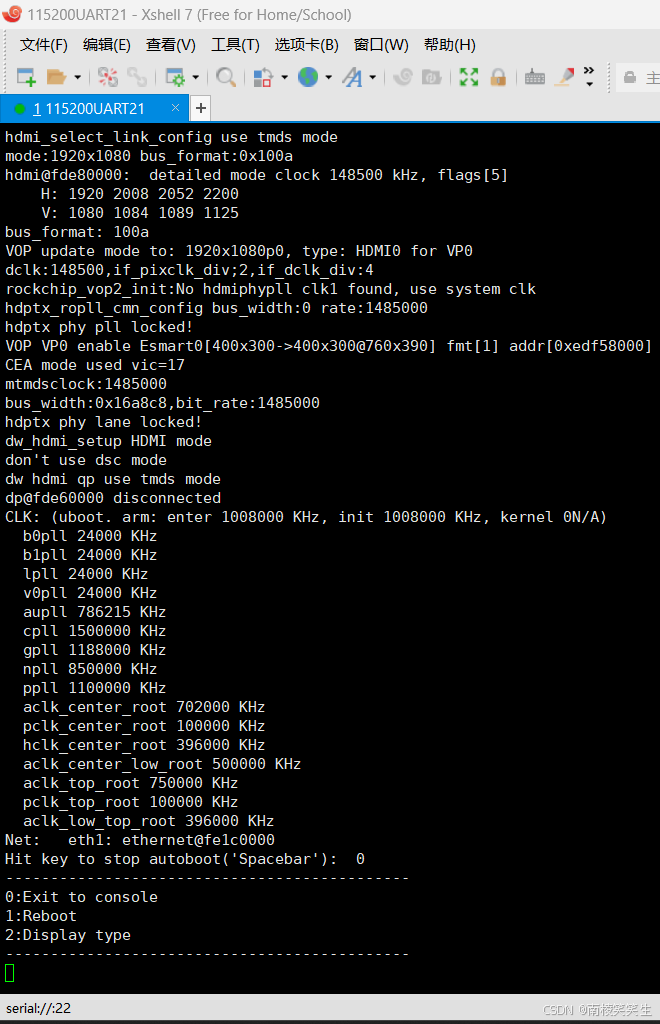

hdmi_select_link_config use tmds mode
mode:1920x1080 bus_format:0x100a
hdmi@fde80000: detailed mode clock 148500 kHz, flags[5]
H: 1920 2008 2052 2200
V: 1080 1084 1089 1125
bus_format: 100a
VOP update mode to: 1920x1080p0, type: HDMI0 for VP0
dclk:148500,if_pixclk_div;2,if_dclk_div:4
rockchip_vop2_init:No hdmiphypll clk1 found, use system clk
hdptx_ropll_cmn_config bus_width:0 rate:1485000
hdptx phy pll locked!
VOP VP0 enable Esmart0[400x300->400x300@760x390] fmt[1] addr[0xedf58000]
CEA mode used vic=17
mtmdsclock:1485000
bus_width:0x16a8c8,bit_rate:1485000
hdptx phy lane locked!
dw_hdmi_setup HDMI mode
don't use dsc mode
dw hdmi qp use tmds mode
dp@fde60000 disconnected
CLK: (uboot. arm: enter 1008000 KHz, init 1008000 KHz, kernel 0N/A)
b0pll 24000 KHz
b1pll 24000 KHz
lpll 24000 KHz
v0pll 24000 KHz
aupll 786215 KHz
cpll 1500000 KHz
gpll 1188000 KHz
npll 850000 KHz
ppll 1100000 KHz
aclk_center_root 702000 KHz
pclk_center_root 100000 KHz
hclk_center_root 396000 KHz
aclk_center_low_root 500000 KHz
aclk_top_root 750000 KHz
pclk_top_root 100000 KHz
aclk_low_top_root 396000 KHz
Net: eth1: ethernet@fe1c0000
Hit key to stop autoboot('Spacebar'): 0
---------------------------------------------
0:Exit to console
1:Reboot
2:Display type
---------------------------------------------
Writing to mmc(0)... done
Writing to mmc(0)... done
---------------------------------------------
hdmi0 and edp0 share same port, only one can be used.
hdmi1 and edp1 share same port, only one can be used.
only four VPs internally, so up to four interfaces can be activated
hdmi edp dp can only be displayed on VP0 or VP1 or VP2.
dsi0 dsi1 can only be displayed on VP2 or VP3.
rgb can only be displayed on VP3.

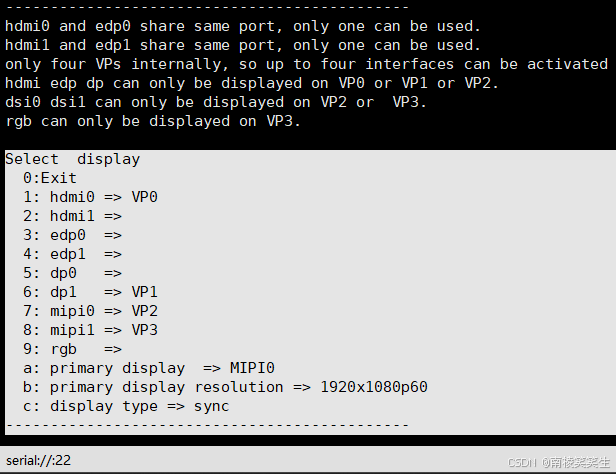

Select display
0:Exit
1: hdmi0 => VP0
2: hdmi1 =>
3: edp0 =>
4: edp1 =>
5: dp0 =>
6: dp1 => VP1
7: mipi0 => VP2
8: mipi1 => VP3
9: rgb =>
a: primary display => MIPI0
b: primary display resolution => 1920x1080p60
c: display type => sync
---------------------------------------------
display forced by kernel dtb
Writing to mmc(0)... done
Writing to mmc(0)... done
Writing to mmc(0)... done
---------------------------------------------
hdmi0 and edp0 share same port, only one can be used.
hdmi1 and edp1 share same port, only one can be used.
only four VPs internally, so up to four interfaces can be activated
hdmi edp dp can only be displayed on VP0 or VP1 or VP2.
dsi0 dsi1 can only be displayed on VP2 or VP3.
rgb can only be displayed on VP3.

Select display
0:Exit
1: hdmi0 => VP0
2: hdmi1 =>
3: edp0 =>
4: edp1 =>
5: dp0 =>
6: dp1 => VP1
7: mipi0 => VP2
8: mipi1 => VP3
9: rgb =>
a: primary display => MIPI1
b: primary display resolution => 1920x1080p60
c: display type => sync
---------------------------------------------
display forced by kernel dtb
Writing to mmc(0)... done
Writing to mmc(0)... done
Writing to mmc(0)... done
---------------------------------------------
hdmi0 and edp0 share same port, only one can be used.
hdmi1 and edp1 share same port, only one can be used.
only four VPs internally, so up to four interfaces can be activated
hdmi edp dp can only be displayed on VP0 or VP1 or VP2.
dsi0 dsi1 can only be displayed on VP2 or VP3.
rgb can only be displayed on VP3.

Select display
0:Exit
1: hdmi0 => VP0
2: hdmi1 =>
3: edp0 =>
4: edp1 =>
5: dp0 =>
6: dp1 => VP1
7: mipi0 => VP2
8: mipi1 => VP3
9: rgb =>
a: primary display => HDMI0
b: primary display resolution => 1920x1080p60
c: display type => sync
---------------------------------------------
display forced by kernel dtb
Writing to mmc(0)... done
Writing to mmc(0)... done
Writing to mmc(0)... done
---------------------------------------------
hdmi0 and edp0 share same port, only one can be used.
hdmi1 and edp1 share same port, only one can be used.
only four VPs internally, so up to four interfaces can be activated
hdmi edp dp can only be displayed on VP0 or VP1 or VP2.
dsi0 dsi1 can only be displayed on VP2 or VP3.
rgb can only be displayed on VP3.

Select display
0:Exit
1: hdmi0 => VP0
2: hdmi1 =>
3: edp0 =>
4: edp1 =>
5: dp0 =>
6: dp1 => VP2
7: mipi0 =>
8: mipi1 => VP3
9: rgb =>
a: primary display => HDMI0
b: primary display resolution => 1920x1080p60
c: display type => sync
---------------------------------------------
display forced by kernel dtb
Writing to mmc(0)... done
Writing to mmc(0)... done
Writing to mmc(0)... done
---------------------------------------------
hdmi0 and edp0 share same port, only one can be used.
hdmi1 and edp1 share same port, only one can be used.
only four VPs internally, so up to four interfaces can be activated
hdmi edp dp can only be displayed on VP0 or VP1 or VP2.
dsi0 dsi1 can only be displayed on VP2 or VP3.
rgb can only be displayed on VP3.

Select display
0:Exit
1: hdmi0 => VP0
2: hdmi1 =>
3: edp0 =>
4: edp1 =>
5: dp0 =>
6: dp1 =>
7: mipi0 =>
8: mipi1 => VP3
9: rgb =>
a: primary display => HDMI0
b: primary display resolution => 1920x1080p60
c: display type => sync
---------------------------------------------
display forced by kernel dtb
Writing to mmc(0)... done
Writing to mmc(0)... done
Writing to mmc(0)... done
---------------------------------------------
hdmi0 and edp0 share same port, only one can be used.
hdmi1 and edp1 share same port, only one can be used.
only four VPs internally, so up to four interfaces can be activated
hdmi edp dp can only be displayed on VP0 or VP1 or VP2.
dsi0 dsi1 can only be displayed on VP2 or VP3.
rgb can only be displayed on VP3.

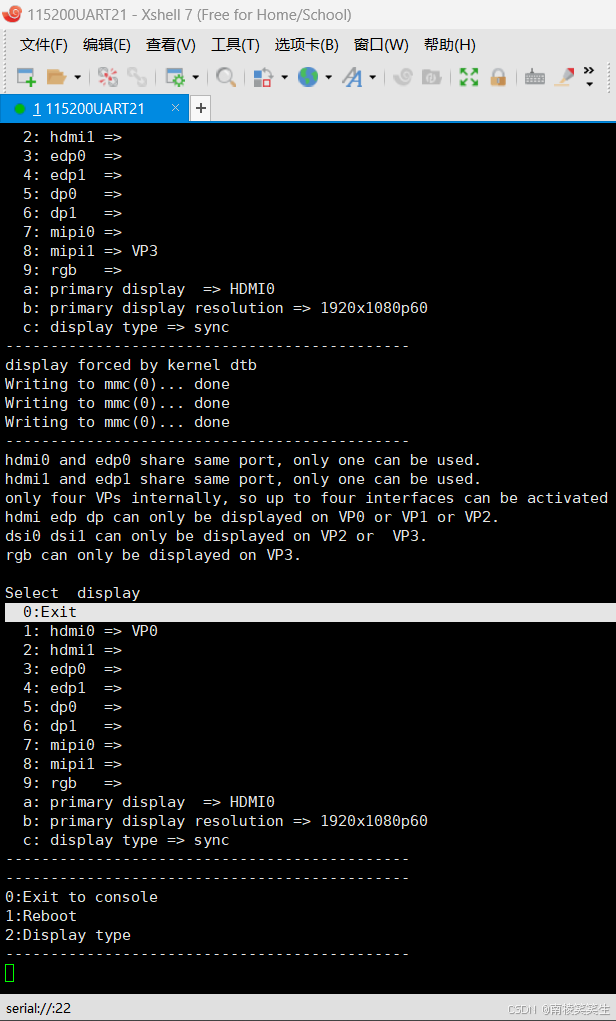

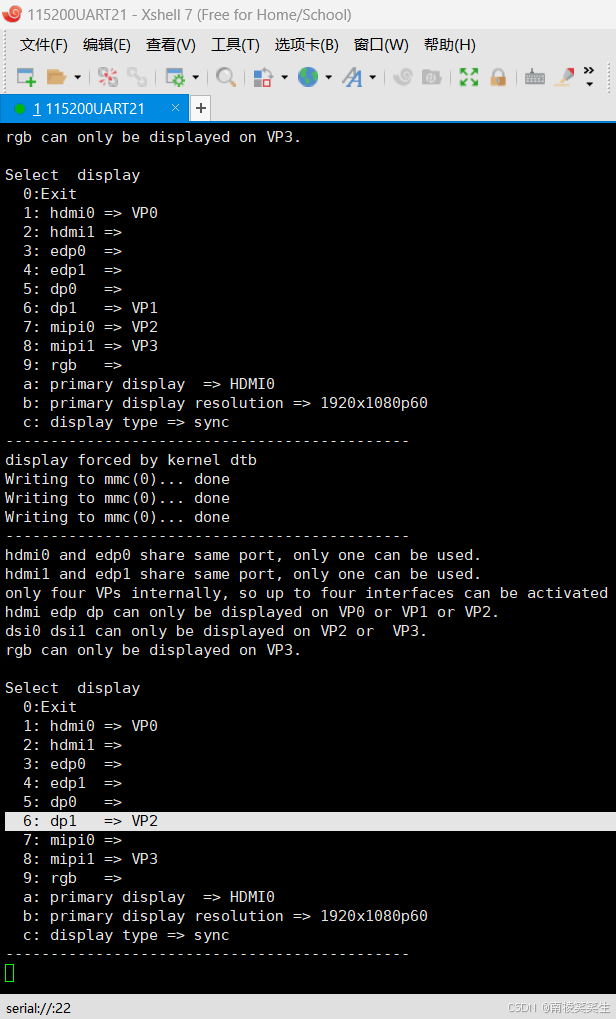

Select display
0:Exit
1: hdmi0 => VP0
2: hdmi1 =>
3: edp0 =>
4: edp1 =>
5: dp0 =>
6: dp1 =>
7: mipi0 =>
8: mipi1 =>
9: rgb =>
a: primary display => HDMI0
b: primary display resolution => 1920x1080p60
c: display type => sync
---------------------------------------------
---------------------------------------------
0:Exit to console
1:Reboot
2:Display type
---------------------------------------------
DDR Version V1.07 20220412
LPDDR4X, 2112MHz
channel[0] BW=16 Col=10 Bk=8 CS0 Row=16 CS1 Row=16 CS=2 Die BW=16 Size=2048MB
channel[1] BW=16 Col=10 Bk=8 CS0 Row=16 CS1 Row=16 CS=2 Die BW=16 Size=2048MB
channel[2] BW=16 Col=10 Bk=8 CS0 Row=16 CS1 Row=16 CS=2 Die BW=16 Size=2048MB
channel[3] BW=16 Col=10 Bk=8 CS0 Row=16 CS1 Row=16 CS=2 Die BW=16 Size=2048MB
change to F1: 528MHz
change to F2: 1068MHz
change to F3: 1560MHz
change to F0: 2112MHz
out
U-Boot SPL board init
U-Boot SPL 2017.09-g5f53abfa1e-221223 #zzz (Dec 26 2022 - 09:10:09)
unknown raw ID 0 0 0
unrecognized JEDEC id bytes: 00, 00, 00
Trying to boot from MMC2
MMC: no card present
mmc_init: -123, time 2
spl: mmc init failed with error: -123
Trying to boot from MMC1
SPL: A/B-slot: _a, successful: 0, tries-remain: 7
Trying fit image at 0x4000 sector
## Verified-boot: 0
## Checking atf-1 0x00040000 ... sha256(5ae6932916...) + OK
## Checking uboot 0x00200000 ... sha256(5ca6150e38...) + OK
## Checking fdt 0x00325ad0 ... sha256(6c1121228f...) + OK
## Checking atf-2 0x000f0000 ... sha256(c00c7fd75b...) + OK
## Checking atf-3 0xff100000 ... sha256(71c3a5841b...) + OK
## Checking atf-4 0xff001000 ... sha256(2301cf73be...) + OK
## Checking optee 0x08400000 ... sha256(4ed9cd20b5...) + OK
Jumping to U-Boot(0x00200000) via ARM Trusted Firmware(0x00040000)
Total: 184.103 ms

U-Boot 2017.09 (Dec 21 2023 - 09:45:34 +0800)

Model: Forlinx OK3588-C Board
PreSerial: 2, raw, 0xfeb50000
DRAM: 7.7 GiB
Sysmem: init
Relocation Offset: edb51000
Relocation fdt: eb9fa7a8 - eb9fecd8
CR: M/C/I
mmc@fe2c0000: 1, mmc@fe2e0000: 0
Bootdev(atags): mmc 0
MMC0: HS200, 200Mhz
PartType: EFI
DM: v2
boot mode: None
FIT: no signed, no conf required
DTB: rk-kernel.dtb
HASH(c): OK
I2c0 speed: 100000Hz
vsel-gpios- not found!
en-gpios- not found!
vdd_cpu_big0_s0 800000 uV
vsel-gpios- not found!
en-gpios- not found!
vdd_cpu_big1_s0 800000 uV
I2c1 speed: 400000Hz
vsel-gpios- not found!
en-gpios- not found!
vdd_npu_s0 800000 uV
spi2: RK806: 2
ON=0x00, OFF=0x00
vdd_gpu_s0 750000 uV
vdd_cpu_lit_s0 750000 uV
vdd_log_s0 750000 uV
vdd_vdenc_s0 init 750000 uV
vdd_ddr_s0 850000 uV
Auth Success!
normal mode
Writing to mmc(0)... done
get vp0 plane mask:0x5, primary id:2, cursor_plane:-1, from dts
get vp1 plane mask:0xa, primary id:3, cursor_plane:-1, from dts
get vp2 plane mask:0x140, primary id:8, cursor_plane:-1, from dts
get vp3 plane mask:0x280, primary id:9, cursor_plane:-1, from dts
Could not find baseparameter partition
Model: Forlinx OK3588 Board
Rockchip UBOOT DRM driver version: v1.0.1
vp0 have layer nr:2[0 2 ], primary plane: 2
vp1 have layer nr:2[1 3 ], primary plane: 3
vp2 have layer nr:2[6 8 ], primary plane: 8
vp3 have layer nr:2[7 9 ], primary plane: 9
Monitor has basic audio support
can't find to match
Could not find baseparameter partition
color_format:0

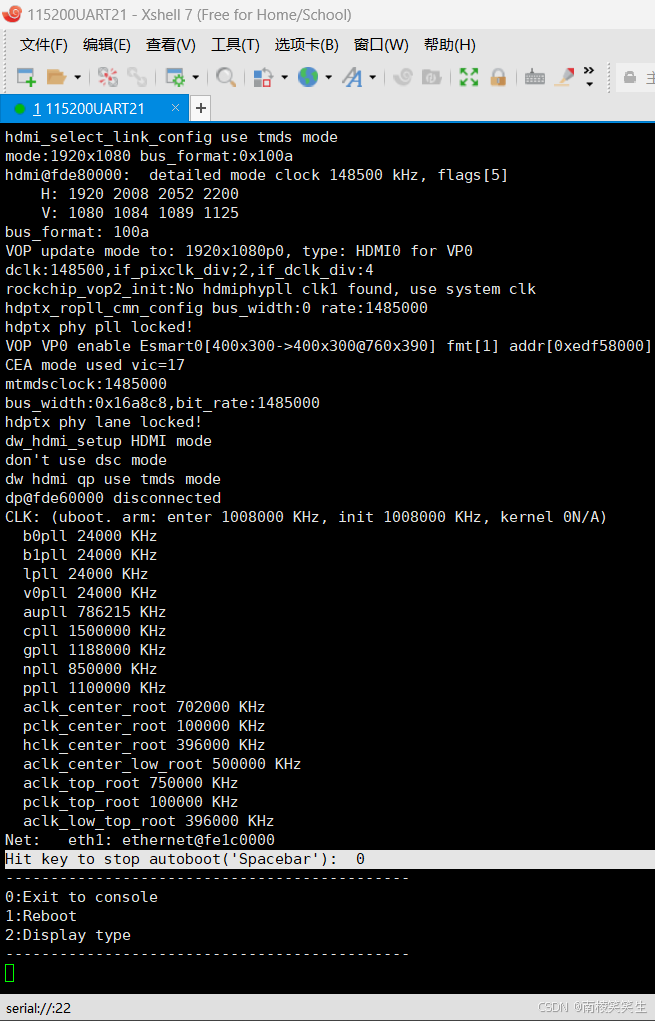

hdmi_select_link_config use tmds mode
mode:1920x1080 bus_format:0x100a
hdmi@fde80000: detailed mode clock 148500 kHz, flags[5]
H: 1920 2008 2052 2200
V: 1080 1084 1089 1125
bus_format: 100a
VOP update mode to: 1920x1080p0, type: HDMI0 for VP0
dclk:148500,if_pixclk_div;2,if_dclk_div:4
rockchip_vop2_init:No hdmiphypll clk1 found, use system clk
hdptx_ropll_cmn_config bus_width:0 rate:1485000
hdptx phy pll locked!
VOP VP0 enable Esmart0[400x300->400x300@760x390] fmt[1] addr[0xedf58000]
CEA mode used vic=17
mtmdsclock:1485000
bus_width:0x16a8c8,bit_rate:1485000
hdptx phy lane locked!
dw_hdmi_setup HDMI mode
don't use dsc mode
dw hdmi qp use tmds mode
CLK: (uboot. arm: enter 1008000 KHz, init 1008000 KHz, kernel 0N/A)
b0pll 24000 KHz
b1pll 24000 KHz
lpll 24000 KHz
v0pll 24000 KHz
aupll 786215 KHz
cpll 1500000 KHz
gpll 1188000 KHz
npll 850000 KHz
ppll 1100000 KHz
aclk_center_root 702000 KHz
pclk_center_root 100000 KHz
hclk_center_root 396000 KHz
aclk_center_low_root 500000 KHz
aclk_top_root 750000 KHz
pclk_top_root 100000 KHz
aclk_low_top_root 396000 KHz
Net: eth1: ethernet@fe1c0000
Hit key to stop autoboot('Spacebar'): 0
ANDROID: reboot reason: "(none)"
No valid android hdr
Android image load failed
Android boot failed, error -1.
## Booting FIT Image at 0xe97d8980 with size 0x02020e00
Fdt Ramdisk skip relocation
## Loading kernel from FIT Image at e97d8980 ...
Using 'conf' configuration
optee api revision: 2.0
TEEC: Waring: Could not find security partition
## Verified-boot: 0
Trying 'kernel' kernel subimage
Description: unavailable
Type: Kernel Image
Compression: uncompressed
Data Start: 0xe9804580
Data Size: 33509888 Bytes = 32 MiB
Architecture: AArch64
OS: Linux
Load Address: 0x00400000
Entry Point: 0x00400000
Hash algo: sha256
Hash value: e549e7e58056e5682b1325a136a33bdb79297107bfd1442094db6c8e3c427f88
Verifying Hash Integrity ... sha256+ OK
## Loading fdt from FIT Image at e97d8980 ...
Using 'conf' configuration
Trying 'fdt' fdt subimage
Description: unavailable
Type: Flat Device Tree
Compression: uncompressed
Data Start: 0xe97d9180
Data Size: 177129 Bytes = 173 KiB
Architecture: AArch64
Load Address: 0x0a100000
Hash algo: sha256
Hash value: bcc12344b5d026176fde2ae6df28cbb654d5fd93a433443185ce53e926e181f4
Verifying Hash Integrity ... sha256+ OK
Loading fdt from 0x0a100000 to 0x0a100000
Booting using the fdt blob at 0x0a100000
Loading Kernel Image from 0xe9804580 to 0x00400000 ... OK
kernel loaded at 0x00400000, end = 0x023f5200
'reserved-memory' dma-trans@3c000000: addr=3c000000 size=4000000
'reserved-memory' cma: addr=10000000 size=10000000
Using Device Tree in place at 000000000a100000, end 000000000a12e3e8
Adding bank: 0x00200000 - 0x08400000 (size: 0x08200000)
Adding bank: 0x09400000 - 0xf0000000 (size: 0xe6c00000)
Adding bank: 0x100000000 - 0x200000000 (size: 0x100000000)
Total: 2015.451 ms

Starting kernel ...

I/TC: Secondary CPU 1 initializing
I/TC: Secondary CPU 1 switching to normal world boot
I/TC: Secondary CPU 2 initializing
I/TC: Secondary CPU 2 switching to normal world boot
I/TC: Secondary CPU 3 initializing
I/TC: Secondary CPU 3 switching to normal world boot
I/TC: Secondary CPU 4 initializing
I/TC: Secondary CPU 4 switching to normal world boot
I/TC: Secondary CPU 5 initializing
I/TC: Secondary CPU 5 switching to normal world boot
I/TC: Secondary CPU 6 initializing
I/TC: Secondary CPU 6 switching to normal world boot
I/TC: Secondary CPU 7 initializing
I/TC: Secondary CPU 7 switching to normal world boot
mount: mounting PARTLABEL=oem on /oem failed: No such file or directory
mount: mounting PARTLABEL=userdata on /userdata failed: No such file or directory
Starting syslogd: OK
Starting klogd: OK
Running sysctl: OK
/usr/bin/modetest
Populating /dev using udev: done
Initializing random number generator: OK
Saving random seed: OK
Will now mount all partitions in /etc/fstab
Note: Will skip fsck, remove /.skip_fsck to enable
Handling rootfs: /dev/mmcblk0p6 / ext4 rw,noauto 1
Handling oem: /dev/mmcblk0p7 /oem ext2 defaults 2
Mounting /dev/mmcblk0p7(ext2) on /oem
Handling userdata: /dev/mmcblk0p8 /userdata ext2 defaults 2
Mounting /dev/mmcblk0p8(ext2) on /userdata
Log saved to /tmp/mountall.log
Starting system message bus: done
Starting iptables: OK
Starting bluetoothd: OK
Starting network: OK
## Error: "secondary_display" not defined
starting weston... done.
Starting dropbear sshd: OK
Starting lighttpd: OK
Starting matrix: /etc/init.d/S50matrix-browser: line 12: warning: setlocale: LC_ALL: cannot change locale (zh_CN.utf8): No such file or directory
Starting pulseaudio: W: [pulseaudio] main.c: This program is not intended to be run as root (unless --system is specified).
Date: 1970-01-01 CST
[08:00:11.825] weston 10.0.0
https://wayland.freedesktop.org
Bug reports to: https://gitlab.freedesktop.org/wayland/weston/issues/
Build: v0.3-8-g8cb8c2b72+
[08:00:11.826] Command line: /usr/bin/weston
[08:00:11.826] OS: Linux, 5.10.66, #5 SMP Tue Aug 6 16:53:31 CST 2024, aarch64
[08:00:11.826] Flight recorder: enabled
[08:00:11.826] warning: XDG_RUNTIME_DIR "/var/run" is not configured
correctly. Unix access mode must be 0700 (current mode is 0755),
and must be owned by the user UID 0 (current owner is UID 0).
Refer to your distribution on how to get it, or
http://www.freedesktop.org/wiki/Specifications/basedir-spec
on how to implement it.
[08:00:11.828] Using config file '/etc/xdg/weston/weston.ini'
[08:00:11.829] Output repaint window is -1 ms maximum.
[08:00:11.829] Loading module '/usr/lib/libweston-10/drm-backend.so'
[08:00:11.832] initializing drm backend
[08:00:11.832] Entering mirror mode.
[08:00:11.832] Trying weston_launch launcher...
[08:00:11.832] could not get launcher fd from env
[08:00:11.832] Trying direct launcher...
[08:00:11.833] using /dev/dri/card0
[08:00:11.833] DRM: does not support atomic modesetting
[08:00:11.833] DRM: does not support GBM modifiers
[08:00:11.833] DRM: supports picture aspect ratio
[08:00:11.835] Loading module '/usr/lib/libweston-10/gl-renderer.so'
[08:00:11.837] EGL client extensions: EGL_EXT_client_extensions
EGL_EXT_platform_base EGL_KHR_client_get_all_proc_addresses
EGL_KHR_platform_gbm EGL_KHR_platform_wayland
EGL_EXT_platform_wayland
arm_release_ver of this libmali is 'g6p0-01eac0', rk_so_ver is '6'.
[08:00:11.849] EGL version: 1.4 Valhall-"g6p0-01eac0"
[08:00:11.849] EGL vendor: ARM
[08:00:11.849] EGL client APIs: OpenGL_ES
[08:00:11.849] EGL extensions: EGL_WL_bind_wayland_display
EGL_NV_context_priority_realtime EGL_KHR_partial_update
EGL_KHR_config_attribs EGL_KHR_image EGL_KHR_image_base
EGL_KHR_fence_sync EGL_KHR_wait_sync EGL_KHR_gl_colorspace
EGL_KHR_get_all_proc_addresses EGL_IMG_context_priority
EGL_KHR_no_config_context EGL_EXT_image_dma_buf_import
EGL_EXT_image_dma_buf_import_modifiers EGL_EXT_yuv_surface
EGL_EXT_pixel_format_float EGL_ARM_pixmap_multisample_discard
EGL_KHR_gl_texture_2D_image EGL_KHR_gl_renderbuffer_image
EGL_KHR_create_context EGL_KHR_surfaceless_context
EGL_KHR_gl_texture_cubemap_image EGL_EXT_image_gl_colorspace
EGL_EXT_create_context_robustness
[08:00:11.849] warning: Disabling render GPU timeline and explicit synchronization due to missing EGL_ANDROID_native_fence_sync extension
[08:00:11.849] EGL_KHR_surfaceless_context available
[08:00:11.861] GL version: OpenGL ES 3.2 v1.g6p0-01eac0.ba52c908d926792b8f5fe28f383a2b03
[08:00:11.861] GLSL version: OpenGL ES GLSL ES 3.20
[08:00:11.861] GL vendor: ARM
[08:00:11.861] GL renderer: Mali-LODX
[08:00:11.861] GL extensions: GL_ARM_rgba8 GL_ARM_mali_shader_binary
GL_OES_depth24 GL_OES_depth_texture
GL_OES_depth_texture_cube_map GL_OES_packed_depth_stencil
GL_OES_rgb8_rgba8 GL_EXT_read_format_bgra
GL_OES_compressed_paletted_texture
GL_OES_compressed_ETC1_RGB8_texture GL_OES_standard_derivatives
GL_OES_EGL_image GL_OES_EGL_image_external
GL_OES_EGL_image_external_essl3 GL_OES_EGL_sync
GL_OES_texture_npot GL_OES_vertex_half_float
GL_OES_required_internalformat GL_OES_vertex_array_object
GL_OES_mapbuffer GL_EXT_texture_format_BGRA8888
GL_EXT_texture_rg GL_EXT_texture_type_2_10_10_10_REV
GL_OES_fbo_render_mipmap GL_OES_element_index_uint
GL_EXT_shadow_samplers GL_OES_texture_compression_astc
GL_KHR_texture_compression_astc_ldr
GL_KHR_texture_compression_astc_hdr
GL_KHR_texture_compression_astc_sliced_3d
GL_EXT_texture_compression_astc_decode_mode
GL_EXT_texture_compression_astc_decode_mode_rgb9e5 GL_KHR_debug
GL_EXT_occlusion_query_boolean GL_EXT_disjoint_timer_query
GL_EXT_blend_minmax GL_EXT_discard_framebuffer
GL_OES_get_program_binary GL_OES_texture_3D
GL_EXT_texture_storage GL_EXT_multisampled_render_to_texture
GL_EXT_multisampled_render_to_texture2
GL_OES_surfaceless_context GL_OES_texture_stencil8
GL_EXT_shader_pixel_local_storage
GL_ARM_shader_framebuffer_fetch
GL_ARM_shader_framebuffer_fetch_depth_stencil
GL_ARM_mali_program_binary GL_EXT_sRGB
GL_EXT_sRGB_write_control GL_EXT_texture_sRGB_decode
GL_EXT_texture_sRGB_R8 GL_EXT_texture_sRGB_RG8
GL_KHR_blend_equation_advanced
GL_KHR_blend_equation_advanced_coherent
GL_OES_texture_storage_multisample_2d_array
GL_OES_shader_image_atomic GL_EXT_robustness
GL_EXT_draw_buffers_indexed GL_OES_draw_buffers_indexed
GL_EXT_texture_border_clamp GL_OES_texture_border_clamp
GL_EXT_texture_cube_map_array GL_OES_texture_cube_map_array
GL_OES_sample_variables GL_OES_sample_shading
GL_OES_shader_multisample_interpolation GL_EXT_shader_io_blocks
GL_OES_shader_io_blocks GL_EXT_tessellation_shader
GL_OES_tessellation_shader GL_EXT_primitive_bounding_box
GL_OES_primitive_bounding_box GL_EXT_geometry_shader
GL_OES_geometry_shader GL_ANDROID_extension_pack_es31a
GL_EXT_gpu_shader5 GL_OES_gpu_shader5 GL_EXT_texture_buffer
GL_OES_texture_buffer GL_EXT_copy_image GL_OES_copy_image
GL_EXT_shader_non_constant_global_initializers
GL_EXT_color_buffer_half_float GL_EXT_unpack_subimage
GL_EXT_color_buffer_float GL_EXT_float_blend GL_EXT_YUV_target
GL_OVR_multiview GL_OVR_multiview2
GL_OVR_multiview_multisampled_render_to_texture
GL_KHR_robustness GL_KHR_robust_buffer_access_behavior
GL_EXT_draw_elements_base_vertex
GL_OES_draw_elements_base_vertex GL_EXT_buffer_storage
GL_EXT_texture_filter_anisotropic GL_OES_texture_float_linear
GL_ARM_texture_unnormalized_coordinates
GL_EXT_shader_framebuffer_fetch
[08:00:11.951] GL ES 3.2 - renderer features:
read-back format: BGRA
wl_shm sub-image to texture: yes
EGL Wayland extension: yes
[08:00:11.951] couldn't fstat launcher tty: Bad file descriptor
[08:00:11.963] event2 - adc-keys: is tagged by udev as: Keyboard
[08:00:11.963] event2 - adc-keys: device is a keyboard
[08:00:11.964] event0 - rk805 pwrkey: is tagged by udev as: Keyboard
[08:00:11.964] event0 - rk805 pwrkey: device is a keyboard
[08:00:11.965] event1 - rockchip-hdmi0 rockchip-hdmi0: is tagged by udev as: Switch
[08:00:12.006] event1 - not using input device '/dev/input/event1'
[08:00:12.053] libinput: configuring device "adc-keys".
[08:00:12.054] libinput: configuring device "rk805 pwrkey".
[08:00:12.165] DRM: head 'HDMI-A-1' updated, connector 409 is connected, EDID make 'GSM', model '27MP35', serial 'unknown'
[08:00:12.165] DRM: head 'HDMI-A-1' found, connector 409 is connected, EDID make 'GSM', model '27MP35', serial 'unknown'
[08:00:12.166] Registered plugin API 'weston_drm_output_api_v1' of size 24
[08:00:12.166] Color manager: no-op
[08:00:12.166] Output 'HDMI-A-1' using color profile: built-in default sRGB SDR profile
[08:00:12.166] Chosen EGL config details: id: 9 rgba: 8 8 8 0 buf: 24 dep: 0 stcl: 0 int: 0-1 type: win|pbf|swap_preserved vis_id: XRGB8888 (0x34325258)
[08:00:12.166] Output HDMI-A-1 (crtc 68) video modes:
1920x1080@60.0, preferred, current, 148.5 MHz
1920x1080@60.0 16:9, 148.5 MHz
1920x1080@59.9 16:9, 148.4 MHz
1920x1080i@60.0, 74.2 MHz
1920x1080i@60.0 16:9, 74.2 MHz
1920x1080i@59.9 16:9, 74.2 MHz
1920x1080@50.0 16:9, 148.5 MHz
1920x1080i@50.0 16:9, 74.2 MHz
1680x1050@59.9, 119.0 MHz
1400x1050@59.9, 101.0 MHz
1600x900@60.0, 108.0 MHz
1280x1024@75.0, 135.0 MHz
1280x1024@60.0, 108.0 MHz
1440x900@59.9, 88.8 MHz
1280x800@59.9, 71.0 MHz
1152x864@75.0, 108.0 MHz
1280x720@60.0, 74.2 MHz
1280x720@60.0 16:9, 74.2 MHz
1280x720@59.9 16:9, 74.2 MHz
1280x720@50.0 16:9, 74.2 MHz
1024x768@75.0, 78.8 MHz
1024x768@60.0, 65.0 MHz
800x600@75.0, 49.5 MHz
800x600@60.3, 40.0 MHz
720x576@50.0 16:9, 27.0 MHz
720x480@60.0 4:3, 27.0 MHz
720x480@60.0 16:9, 27.0 MHz
720x480@59.9, 27.0 MHz
720x480@59.9 16:9, 27.0 MHz
640x480@75.0, 31.5 MHz
640x480@60.0 4:3, 25.2 MHz
640x480@59.9, 25.2 MHz
640x480@59.9 4:3, 25.2 MHz
720x400@70.1, 28.3 MHz
[08:00:12.167] associating input device event2 with output HDMI-A-1 (none by udev)
[08:00:12.167] associating input device event0 with output HDMI-A-1 (none by udev)
[08:00:12.167] Output 'HDMI-A-1' enabled with head(s) HDMI-A-1
[08:00:12.167] Compositor capabilities:
arbitrary surface rotation: yes
screen capture uses y-flip: yes
cursor planes: yes
arbitrary resolutions: no
view mask clipping: yes
explicit sync: no
color operations: yes
presentation clock: CLOCK_MONOTONIC, id 1
presentation clock resolution: 0.000000001 s
[08:00:12.172] Loading module '/usr/lib/weston/desktop-shell.so'
[08:00:12.175] launching '/usr/libexec/weston-keyboard'
[08:00:12.177] Note: support for the deprecated wl_shell interface is disabled. If a legacy client still needs it, it can be re-enabled by passing -Ddeprecated-wl-shell=true to Meson when building Weston.
[08:00:12.177] launching '/usr/libexec/weston-desktop-shell'
could not load cursor 'dnd-move'
could not load cursor 'dnd-move'
could not load cursor 'dnd-copy'
could not load cursor 'dnd-copy'
could not load cursor 'dnd-none'
could not load cursor 'dnd-none'
xkbcommon: ERROR: couldn't find a Compose file for locale "C" (mapped to "C")
could not create XKB compose table for locale 'C'. Disabiling compose
QStandardPaths: runtime directory '/var/run' is not a directory, but a symbolic link to a directory permissions 0755 owned by UID 0 GID 0
xkbcommon: ERROR: couldn't find a Compose file for locale "C" (mapped to "C")
could not create XKB compose table for locale 'C'. Disabiling compose
Failure: No such entity
OK
Starting sshd: OK
Debug: configfs_init
mkdir: cannot create directory '/sys/kernel/config/usb_gadget/rockchip/functions/uac1.gs0': No such file or directory
mkdir: cannot create directory '/sys/kernel/config/usb_gadget/rockchip/functions/uac2.gs0': No such file or directory
mkdir: cannot create directory '/sys/kernel/config/usb_gadget/rockchip/functions/mtp.gs0': No such file or directory
mkdir: cannot create directory '/sys/kernel/config/usb_gadget/rockchip/functions/rndis.gs0': No such file or directory
mkdir: cannot create directory '/sys/kernel/config/usb_gadget/rockchip/functions/acm.gs6': No such file or directory
mkdir: cannot create directory '/sys/kernel/config/usb_gadget/rockchip/functions/hid.usb0': No such file or directory
Starting vsftpd: OK
Starting dnsmasq:
dnsmasq: unknown interface uap0
FAIL
Starting input-event-daemon: input-event-daemon: Start parsing /etc/input-event-daemon.conf...
input-event-daemon: Adding device: /dev/input/event0...
input-event-daemon: Adding device: /dev/input/event1...
input-event-daemon: Adding device: /dev/input/event2...
input-event-daemon: Start listening on 3 devices...
done
root@ok3588:/#
root@ok3588:/#
root@ok3588:/#
root@ok3588:/#
root@ok3588:/#
