RK3588S HDMI-TX显示调试

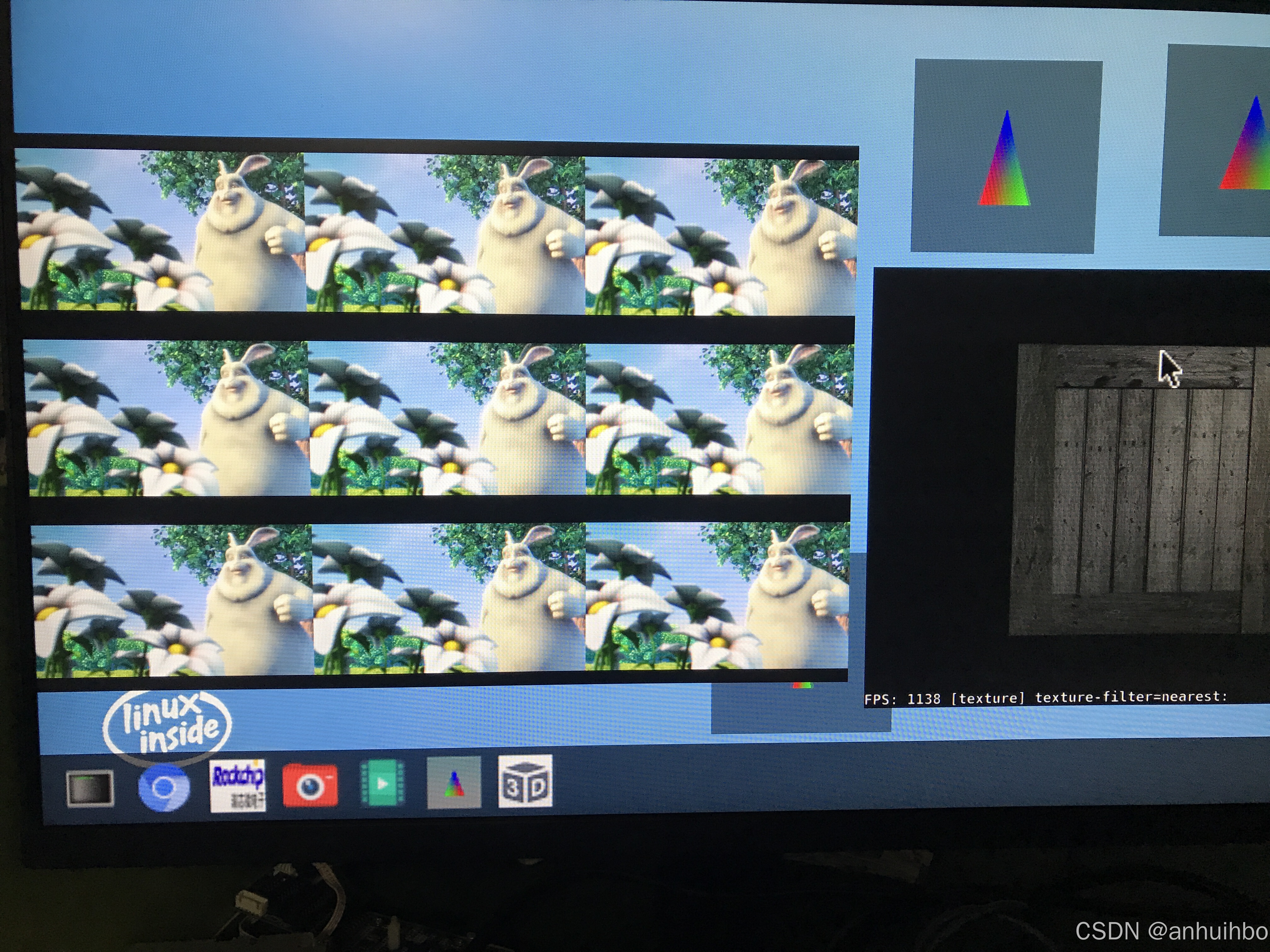

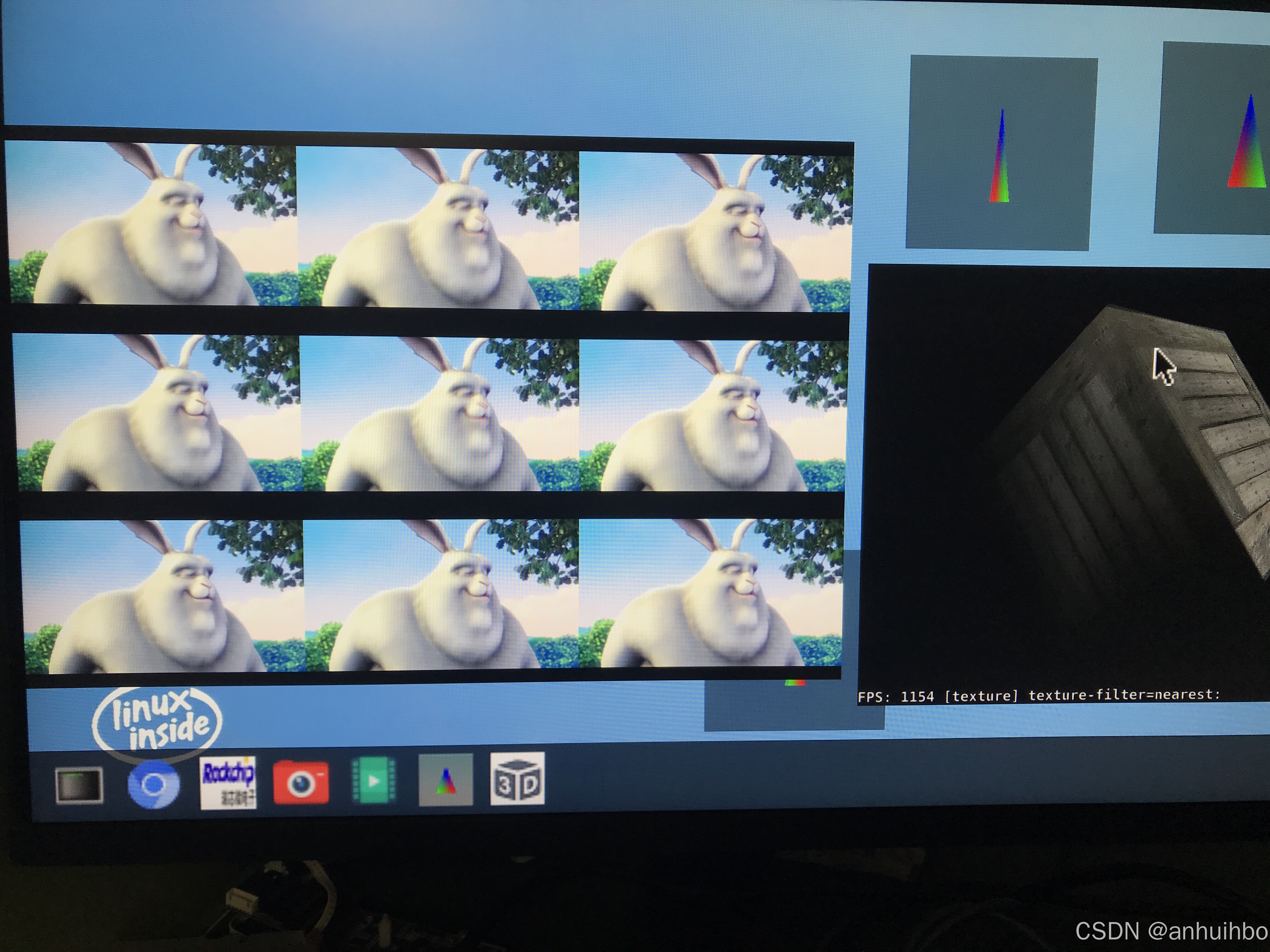

        介绍RK3588S HDMI-TX显示调试过程，HDMI连接显示器显示正常。

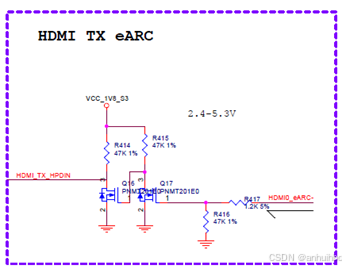

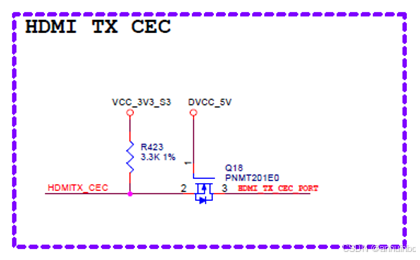

1、硬件

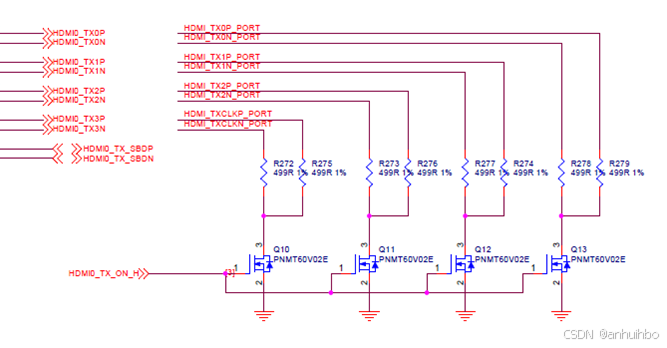

        软件需要适配GPIO，HDMI0_TX_ON_H为GPIO4_B6。

2、SDK

        SDK采用瑞芯微官方版本rk3588_linux_release_v1.1.1_20230520。选择DTS并编译。

Pick a defconfig:

1. rockchip_defconfig

2. rockchip_rk3588_evb1_lp4_v10_defconfig

3. rockchip_rk3588_evb3_lp5_v10_defconfig

4. rockchip_rk3588_evb7_lp4_v10_defconfig

5. rockchip_rk3588s_evb1_lp4x_v10_defconfig

Which would you like? [1]: 5

3、DTS编辑

编辑文件rk3588s-evb1-lp4x.dtsi。

/* hdmi0 */

&hdmi0 {

       enable-gpios = <&gpio4 RK_PB6 GPIO_ACTIVE_HIGH>;

       status = "okay";

};

&hdmi0_in_vp0 {

       status = "okay";

};

&hdmi0_sound {

              status = "okay";

};

&hdptxphy_hdmi0 {

       status = "okay";

};

&route_hdmi0{

       status = "okay";

};

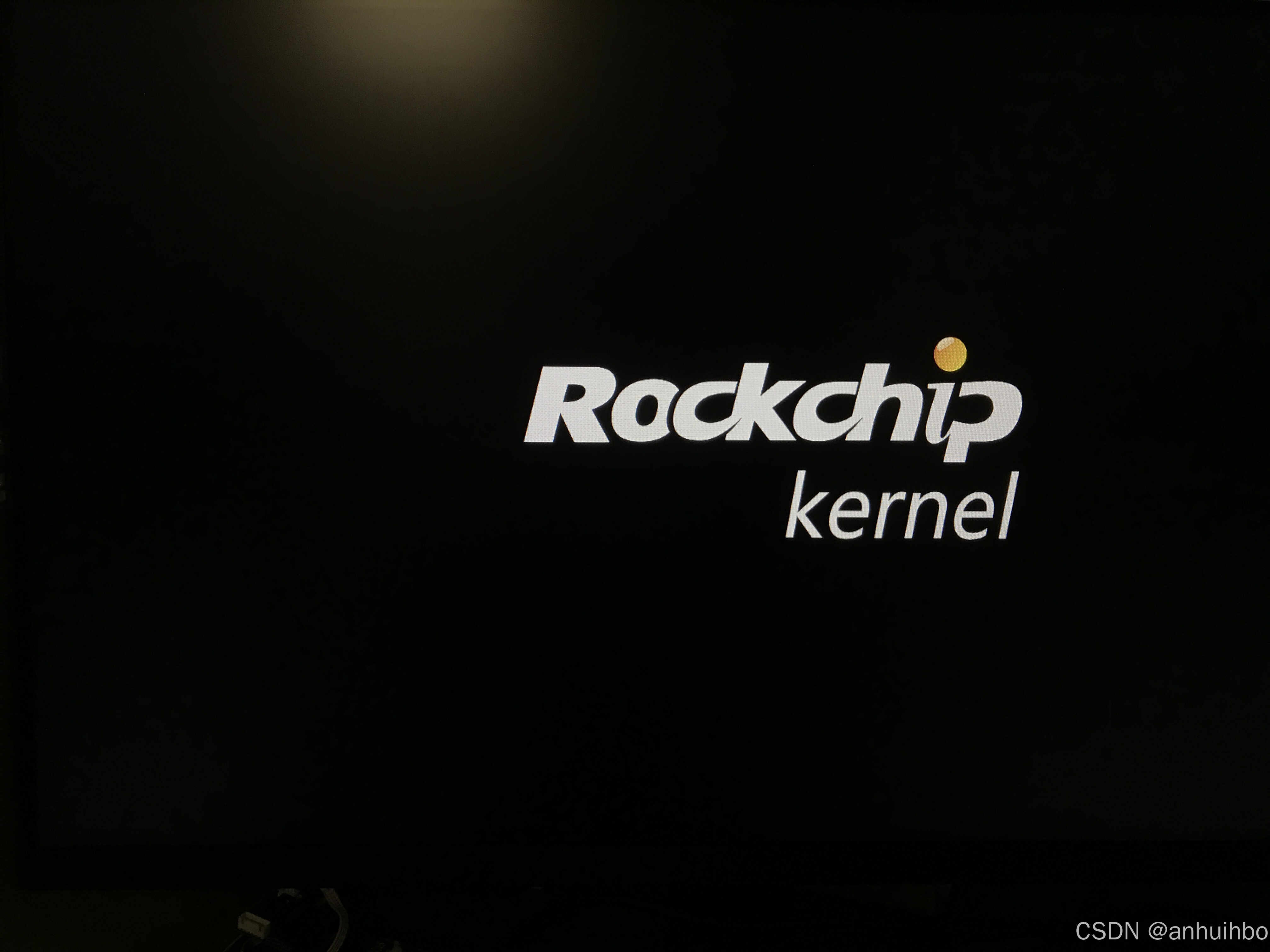

4、编译下载启动

DDR V1.11 f1474cf52f cym 23/05/09-11:02:36
LPDDR4, 2112MHz
channel[0] BW=16 Col=10 Bk=8 CS0 Row=17 CS1 Row=17 CS=2 Die BW=8 Size=4096MB
channel[1] BW=16 Col=10 Bk=8 CS0 Row=17 CS1 Row=17 CS=2 Die BW=8 Size=4096MB
channel[2] BW=16 Col=10 Bk=8 CS0 Row=17 CS1 Row=17 CS=2 Die BW=8 Size=4096MB
channel[3] BW=16 Col=10 Bk=8 CS0 Row=17 CS1 Row=17 CS=2 Die BW=8 Size=4096MB
Manufacturer ID:0x13
CH0 RX Vref:34.8%, TX Vref:13.2%,13.2%
CH1 RX Vref:33.4%, TX Vref:13.2%,13.2%
CH2 RX Vref:35.7%, TX Vref:13.2%,13.2%
CH3 RX Vref:36.1%, TX Vref:13.2%,13.2%
change to F1: 528MHz
change to F2: 1068MHz
change to F3: 1560MHz
change to F0: 2112MHz
out
U-Boot SPL board init
U-Boot SPL 2017.09-g5f53abfa1e-221223 #zzz (Dec 26 2022 - 09:10:09)
unknown raw ID 0 0 0
unrecognized JEDEC id bytes: 00, 00, 00
Trying to boot from MMC2
MMC: no card present
mmc_init: -123, time 0
spl: mmc init failed with error: -123
Trying to boot from MMC1
SPL: A/B-slot: _a, successful: 0, tries-remain: 7
Trying fit image at 0x4000 sector
## Verified-boot: 0
## Checking atf-1 0x00040000 ... sha256(7efcd01a0f...) + OK
## Checking uboot 0x00200000 ... sha256(ecd0e95d39...) + OK
## Checking fdt 0x0033bf10 ... sha256(8ecccd16d2...) + OK
## Checking atf-2 0x000f0000 ... sha256(da90adf3a4...) + OK
## Checking atf-3 0xff100000 ... sha256(1163474a5b...) + OK
## Checking optee 0x08400000 ... sha256(6193f4aac7...) + OK
Jumping to U-Boot(0x00200000) via ARM Trusted Firmware(0x00040000)
Total: 118.934 ms

INFO:    Preloader serial: 2
NOTICE:  BL31: v2.3():v2.3-589-g3389cfdda:derrick.huang
NOTICE:  BL31: Built : 10:14:29, May  9 2023
INFO:    spec: 0x13
INFO:    ext 32k is valid
INFO:    ddr: stride-en 4CH
INFO:    GICv3 without legacy support detected.
INFO:    ARM GICv3 driver initialized in EL3
INFO:    valid_cpu_msk=0xff bcore0_rst = 0x0, bcore1_rst = 0x0
INFO:    system boots from cpu-hwid-0
INFO:    idle_st=0x21fff, pd_st=0x11fff9, repair_st=0xfff70001
INFO:    dfs DDR fsp_params[0].freq_mhz= 2112MHz
INFO:    dfs DDR fsp_params[1].freq_mhz= 528MHz
INFO:    dfs DDR fsp_params[2].freq_mhz= 1068MHz
INFO:    dfs DDR fsp_params[3].freq_mhz= 1560MHz
INFO:    BL31: Initialising Exception Handling Framework
INFO:    BL31: Initializing runtime services
INFO:    BL31: Initializing BL32
I/TC:
I/TC: OP-TEE version: 3.13.0-698-g7f1ea6d6e #hisping.lin (gcc version 10.2.1 20201103 (GNU Toolchain for the A-profile Architecture 10.2-2020.11 (arm-10.16))) #53 Wed Apr 19 14:30:22 CST 2023 aarch64
I/TC: Primary CPU initializing
I/TC: Primary CPU switching to normal world boot
INFO:    BL31: Preparing for EL3 exit to normal world
INFO:    Entry point address = 0x200000
INFO:    SPSR = 0x3c9

U-Boot 2017.09 (Oct 29 2024 - 10:26:20 -0700)

Model: Rockchip RK3588 Evaluation Board
MPIDR: 0x81000000
PreSerial: 2, raw, 0xfeb50000
DRAM:  16 GiB
Sysmem: init
Relocation Offset: eda22000
Relocation fdt: eb9fabe0 - eb9fecd0
CR: M/C/I
Using default environment

DM: v2
mmc@fe2c0000: 1, mmc@fe2e0000: 0
Bootdev(atags): mmc 0
MMC0: HS400 Enhanced Strobe, 200Mhz
PartType: EFI
boot mode: normal
FIT: no signed, no conf required
RESC: 'boot', blk@0x00018be8
DTB: rk-kernel.dtb
HASH(c): OK
I2c0 speed: 100000Hz
vsel-gpios- not found!
en-gpios- not found!
vdd_cpu_big0_s0 800000 uV
vsel-gpios- not found!
en-gpios- not found!
vdd_cpu_big1_s0 800000 uV
I2c1 speed: 100000Hz
vsel-gpios- not found!
en-gpios- not found!
read reg[0x03] failed, ret=-121
Failed to get chip ID!
get vp1 plane mask:0xf, primary id:3, cursor_plane:-1, from dts
get vp2 plane mask:0x3c0, primary id:8, cursor_plane:-1, from dts
Could not find baseparameter partition
Model: Rockchip RK3588S EVB1 LP4X V10 Board
MPIDR: 0x81000000
spi2: RK806: 2
ON=0x00, OFF=0x00
Rockchip UBOOT DRM driver version: v1.0.1
vp0 have layer nr:0[], primary plane: 0
vp1 have layer nr:4[0 1 2 3 ], primary plane: 3
vp2 have layer nr:4[6 7 8 9 ], primary plane: 8
vp3 have layer nr:0[], primary plane: 0
Monitor has basic audio support
Could not find baseparameter partition
color_format:1
hdmi_select_link_config use tmds mode
mode:1920x1080 bus_format:0x2025
hdmi@fde80000:  detailed mode clock 148500 kHz, flags[5]
    H: 1920 2008 2052 2200
    V: 1080 1084 1089 1125
bus_format: 2025
VOP update mode to: 1920x1080p60, type: HDMI0 for VP0
dclk:148500,if_pixclk_div;2,if_dclk_div:4
VP0 set crtc_clock to 148500KHz
VOP VP0 enable Cluster0[654x270->654x270@633x405] fmt[2] addr[0xedf04000]
CEA mode used vic=16
mtmdsclock:148500000
hdptx_ropll_cmn_config bus_width:16a8c8 rate:1485000
hdptx phy pll locked!
dw_hdmi_setup HDMI mode
don't use dsc mode
dw hdmi qp use tmds mode
bus_width:0x16a8c8,bit_rate:1485000
hdptx phy lane locked!
CLK: (uboot. arm: enter 1008000 KHz, init 1008000 KHz, kernel 0N/A)
  b0pll 24000 KHz
  b1pll 24000 KHz
  lpll 24000 KHz
  v0pll 24000 KHz
  aupll 786431 KHz
  cpll 1500000 KHz
  gpll 1188000 KHz
  npll 850000 KHz
  ppll 1100000 KHz
  aclk_center_root 702000 KHz
  pclk_center_root 100000 KHz
  hclk_center_root 396000 KHz
  aclk_center_low_root 500000 KHz
  aclk_top_root 750000 KHz
  pclk_top_root 100000 KHz
  aclk_low_top_root 396000 KHz
Net:   No ethernet found.
Hit key to stop autoboot('CTRL+C'):  0
ANDROID: reboot reason: "(none)"
optee api revision: 2.0
TEEC: Waring: Could not find security partition
Not AVB images, AVB skip
No valid android hdr
Android image load failed
Android boot failed, error -1.
## Booting FIT Image at 0xe967cbc0 with size 0x0217d000
Fdt Ramdisk skip relocation
## Loading kernel from FIT Image at e967cbc0 ...
   Using 'conf' configuration
## Verified-boot: 0
   Trying 'kernel' kernel subimage
     Description:  unavailable
     Type:         Kernel Image
     Compression:  uncompressed
     Data Start:   0xe96a11c0
     Data Size:    34966016 Bytes = 33.3 MiB
     Architecture: AArch64
     OS:           Linux
     Load Address: 0x00400000
     Entry Point:  0x00400000
     Hash algo:    sha256
     Hash value:   deeffa2a92bb0958ac7b27da1cc517a03f38fe42fd2f8e02bdb95da752ee4139
   Verifying Hash Integrity ... sha256+ OK
## Loading fdt from FIT Image at e967cbc0 ...
   Using 'conf' configuration
   Trying 'fdt' fdt subimage
     Description:  unavailable
     Type:         Flat Device Tree
     Compression:  uncompressed
     Data Start:   0xe967d3c0
     Data Size:    146474 Bytes = 143 KiB
     Architecture: AArch64
     Load Address: 0x08300000
     Hash algo:    sha256
     Hash value:   97ce9a7b5397cb3ce3257ec1a064f910b6ef304cbfe1db20c285eced5458b7cc
   Verifying Hash Integrity ... sha256+ OK
   Loading fdt from 0x08300000 to 0x08300000
   Booting using the fdt blob at 0x08300000
   Loading Kernel Image from 0xe96a11c0 to 0x00400000 ... OK
   kernel loaded at 0x00400000, end = 0x02558a00
   Using Device Tree in place at 0000000008300000, end 0000000008326c29
WARNING: could not set reg FDT_ERR_BADOFFSET.
## reserved-memory:
  drm-logo@00000000: addr=edf00000 size=b8000
  ramoops@110000: addr=110000 size=f0000
Adding bank: 0x00200000 - 0x08400000 (size: 0x08200000)
Adding bank: 0x09400000 - 0xf0000000 (size: 0xe6c00000)
Adding bank: 0x100000000 - 0x3fc000000 (size: 0x2fc000000)
Adding bank: 0x3fc500000 - 0x3fff00000 (size: 0x03a00000)
Adding bank: 0x4f0000000 - 0x500000000 (size: 0x10000000)
Total: 812.535/881.967 ms

Starting kernel ...

[    0.885948] Booting Linux on physical CPU 0x0000000000 [0x412fd050]
[    0.885965] Linux version 5.10.160 (root@ubuntu) (aarch64-none-linux-gnu-gcc (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 10.3.1 20210621, GNU ld (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 2.36.1.20210621) #1 SMP Mon Oct 21 05:32:59 PDT 2024
[    0.892179] Machine model: Rockchip RK3588S EVB1 LP4X V10 Board
[    0.892243] earlycon: uart8250 at MMIO32 0x00000000feb50000 (options '')
[    0.896349] printk: bootconsole [uart8250] enabled
[    0.898245] efi: UEFI not found.
[    0.901924] OF: fdt: Reserved memory: failed to reserve memory for node 'drm-cubic-lut@00000000': base 0x0000000000000000, size 0 MiB
[    0.903059] Reserved memory: created CMA memory pool at 0x00000004ff800000, size 8 MiB
[    0.903781] OF: reserved mem: initialized node cma, compatible id shared-dma-pool
[    1.115684] Zone ranges:
[    1.115923]   DMA      [mem 0x0000000000200000-0x00000000ffffffff]
[    1.116491]   DMA32    empty
[    1.116755]   Normal   [mem 0x0000000100000000-0x00000004ffffffff]
[    1.117321] Movable zone start for each node
[    1.117711] Early memory node ranges
[    1.118038]   node   0: [mem 0x0000000000200000-0x00000000083fffff]
[    1.118611]   node   0: [mem 0x0000000009400000-0x00000000efffffff]
[    1.119185]   node   0: [mem 0x0000000100000000-0x00000003fbffffff]
[    1.119760]   node   0: [mem 0x00000003fc500000-0x00000003ffefffff]
[    1.120332]   node   0: [mem 0x00000004f0000000-0x00000004ffffffff]
[    1.120906] Initmem setup node 0 [mem 0x0000000000200000-0x00000004ffffffff]
[    1.216342] On node 0, zone Normal: 256 pages in unavailable ranges
[    1.216477] psci: probing for conduit method from DT.
[    1.217514] psci: PSCIv1.1 detected in firmware.
[    1.217935] psci: Using standard PSCI v0.2 function IDs
[    1.218414] psci: Trusted OS migration not required
[    1.218862] psci: SMC Calling Convention v1.2
[    1.219586] percpu: Embedded 30 pages/cpu s83480 r8192 d31208 u122880
[    1.220322] Detected VIPT I-cache on CPU0
[    1.220721] CPU features: detected: GIC system register CPU interface
[    1.221309] CPU features: detected: Virtualization Host Extensions
[    1.221877] CPU features: detected: ARM errata 1165522, 1319367, or 1530923
[    1.222517] alternatives: patching kernel code
[    1.224529] Built 1 zonelists, mobility grouping on.  Total pages: 4122720
[    1.225161] Kernel command line: storagemedia=emmc androidboot.storagemedia=emmc androidboot.mode=normal  androidboot.verifiedbootstate=orange rw rootwait earlycon=uart8250,mmio32,0xfeb50000 console=ttyFIQ0 irqchip.gicv3_pseudo_nmi=0 root=PARTUUID=614e0000-0000
[    1.228924] Dentry cache hash table entries: 2097152 (order: 12, 16777216 bytes, linear)
[    1.230416] Inode-cache hash table entries: 1048576 (order: 11, 8388608 bytes, linear)
[    1.231139] mem auto-init: stack:off, heap alloc:off, heap free:off
[    1.237891] software IO TLB: mapped [mem 0x00000000e9f00000-0x00000000edf00000] (64MB)
[    1.352358] Memory: 16321724K/16752640K available (18112K kernel code, 3298K rwdata, 6032K rodata, 6592K init, 530K bss, 422724K reserved, 8192K cma-reserved)
[    1.353753] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=8, Nodes=1
[    1.354370] ftrace: allocating 56269 entries in 220 pages
[    1.424444] ftrace: allocated 220 pages with 5 groups
[    1.425120] rcu: Hierarchical RCU implementation.
[    1.425554] rcu:     RCU event tracing is enabled.
[    1.425968]  Rude variant of Tasks RCU enabled.
[    1.426383] rcu: RCU calculated value of scheduler-enlistment delay is 30 jiffies.
[    1.430996] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[    1.433098] GICv3: GIC: Using split EOI/Deactivate mode
[    1.433579] GICv3: 480 SPIs implemented
[    1.433930] GICv3: 0 Extended SPIs implemented
[    1.434355] GICv3: Distributor has no Range Selector support
[    1.434877] GICv3: 16 PPIs implemented
[    1.435260] GICv3: CPU0: found redistributor 0 region 0:0x00000000fe680000
[    1.435972] ITS [mem 0xfe640000-0xfe65ffff]
[    1.436395] ITS@0x00000000fe640000: allocated 8192 Devices @3fc6e0000 (indirect, esz 8, psz 64K, shr 0)
[    1.437269] ITS@0x00000000fe640000: allocated 32768 Interrupt Collections @3fc6f0000 (flat, esz 2, psz 64K, shr 0)
[    1.438215] ITS: using cache flushing for cmd queue
[    1.438682] ITS [mem 0xfe660000-0xfe67ffff]
[    1.439099] ITS@0x00000000fe660000: allocated 8192 Devices @3fc710000 (indirect, esz 8, psz 64K, shr 0)
[    1.439973] ITS@0x00000000fe660000: allocated 32768 Interrupt Collections @3fc720000 (flat, esz 2, psz 64K, shr 0)
[    1.440918] ITS: using cache flushing for cmd queue
[    1.441454] GICv3: using LPI property table @0x00000003fc730000
[    1.442099] GIC: using cache flushing for LPI property table
[    1.442620] GICv3: CPU0: using allocated LPI pending table @0x00000003fc740000
[    1.550435] arch_timer: cp15 timer(s) running at 24.00MHz (phys).
[    1.550999] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[    1.551991] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[    1.553467] Console: colour dummy device 80x25
[    1.553917] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=80000)
[    1.554864] pid_max: default: 32768 minimum: 301
[    1.555408] Mount-cache hash table entries: 32768 (order: 6, 262144 bytes, linear)
[    1.556132] Mountpoint-cache hash table entries: 32768 (order: 6, 262144 bytes, linear)
[    1.558038] rcu: Hierarchical SRCU implementation.
[    1.559128] Platform MSI: msi-controller@fe640000 domain created
[    1.559690] Platform MSI: msi-controller@fe660000 domain created
[    1.560453] PCI/MSI: /interrupt-controller@fe600000/msi-controller@fe640000 domain created
[    1.561239] PCI/MSI: /interrupt-controller@fe600000/msi-controller@fe660000 domain created
[    1.562066] EFI services will not be available.
[    1.562760] smp: Bringing up secondary CPUs ...
I/TC: Secondary CPU 1 initializing
I/TC: Secondary CPU 1 switching to normal world boot
I/TC: Secondary CPU 2 initializing
I/TC: Secondary CPU 2 switching to normal world boot
I/TC: Secondary CPU 3 initializing
I/TC: Secondary CPU 3 switching to normal world boot
I/TC: Secondary CPU 4 initializing
I/TC: Secondary CPU 4 switching to normal world boot
I/TC: Secondary CPU 5 initializing
I/TC: Secondary CPU 5 switching to normal world boot
I/TC: Secondary CPU 6 initializing
I/TC: Secondary CPU 6 switching to normal world boot
I/TC: Secondary CPU 7 initializing
I/TC: Secondary CPU 7 switching to normal world boot
[    1.564276] Detected VIPT I-cache on CPU1
[    1.564300] GICv3: CPU1: found redistributor 100 region 0:0x00000000fe6a0000
[    1.564314] GICv3: CPU1: using allocated LPI pending table @0x00000003fc750000
[    1.564349] CPU1: Booted secondary processor 0x0000000100 [0x412fd050]
[    1.565536] Detected VIPT I-cache on CPU2
[    1.565556] GICv3: CPU2: found redistributor 200 region 0:0x00000000fe6c0000
[    1.565569] GICv3: CPU2: using allocated LPI pending table @0x00000003fc760000
[    1.565602] CPU2: Booted secondary processor 0x0000000200 [0x412fd050]
[    1.566724] Detected VIPT I-cache on CPU3
[    1.566741] GICv3: CPU3: found redistributor 300 region 0:0x00000000fe6e0000
[    1.566754] GICv3: CPU3: using allocated LPI pending table @0x00000003fc770000
[    1.566785] CPU3: Booted secondary processor 0x0000000300 [0x412fd050]
[    1.567899] CPU features: detected: Spectre-v4
[    1.567901] CPU features: detected: Spectre-BHB
[    1.567903] Detected PIPT I-cache on CPU4
[    1.567914] GICv3: CPU4: found redistributor 400 region 0:0x00000000fe700000
[    1.567921] GICv3: CPU4: using allocated LPI pending table @0x00000003fc780000
[    1.567942] CPU4: Booted secondary processor 0x0000000400 [0x414fd0b0]
[    1.569029] Detected PIPT I-cache on CPU5
[    1.569040] GICv3: CPU5: found redistributor 500 region 0:0x00000000fe720000
[    1.569048] GICv3: CPU5: using allocated LPI pending table @0x00000003fc790000
[    1.569069] CPU5: Booted secondary processor 0x0000000500 [0x414fd0b0]
[    1.570160] Detected PIPT I-cache on CPU6
[    1.570171] GICv3: CPU6: found redistributor 600 region 0:0x00000000fe740000
[    1.570179] GICv3: CPU6: using allocated LPI pending table @0x00000003fc7a0000
[    1.570200] CPU6: Booted secondary processor 0x0000000600 [0x414fd0b0]
[    1.571276] Detected PIPT I-cache on CPU7
[    1.571287] GICv3: CPU7: found redistributor 700 region 0:0x00000000fe760000
[    1.571295] GICv3: CPU7: using allocated LPI pending table @0x00000003fc7b0000
[    1.571315] CPU7: Booted secondary processor 0x0000000700 [0x414fd0b0]
[    1.571364] smp: Brought up 1 node, 8 CPUs
[    1.588463] SMP: Total of 8 processors activated.
[    1.588902] CPU features: detected: Privileged Access Never
[    1.589414] CPU features: detected: User Access Override
[    1.589903] CPU features: detected: 32-bit EL0 Support
[    1.590374] CPU features: detected: Common not Private translations
[    1.590950] CPU features: detected: RAS Extension Support
[    1.591446] CPU features: detected: Data cache clean to the PoU not required for I/D coherence
[    1.592240] CPU features: detected: CRC32 instructions
[    1.592711] CPU features: detected: Speculative Store Bypassing Safe (SSBS)
[    1.593351] CPU features: detected: RCpc load-acquire (LDAPR)
[    1.593943] CPU: All CPU(s) started at EL2
[    1.596713] devtmpfs: initialized
[    1.603049] Registered cp15_barrier emulation handler
[    1.603517] Registered setend emulation handler
[    1.603985] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 6370867519511994 ns
[    1.604883] futex hash table entries: 2048 (order: 5, 131072 bytes, linear)
[    1.605639] pinctrl core: initialized pinctrl subsystem
[    1.606281] DMI not present or invalid.
[    1.606794] NET: Registered protocol family 16
[    1.607963] DMA: preallocated 2048 KiB GFP_KERNEL pool for atomic allocations
[    1.608707] DMA: preallocated 2048 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[    1.609759] Registered FIQ tty driver
[    1.610179] thermal_sys: Registered thermal governor 'fair_share'
[    1.610180] thermal_sys: Registered thermal governor 'step_wise'
[    1.610737] thermal_sys: Registered thermal governor 'user_space'
[    1.611286] thermal_sys: Registered thermal governor 'power_allocator'
[    1.611934] thermal thermal_zone1: power_allocator: sustainable_power will be estimated
[    1.613285] thermal thermal_zone2: power_allocator: sustainable_power will be estimated
[    1.614034] thermal thermal_zone3: power_allocator: sustainable_power will be estimated
[    1.614781] thermal thermal_zone4: power_allocator: sustainable_power will be estimated
[    1.615529] thermal thermal_zone5: power_allocator: sustainable_power will be estimated
[    1.616280] thermal thermal_zone6: power_allocator: sustainable_power will be estimated
[    1.617022] cpuidle: using governor menu
[    1.617454] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[    1.618156] ASID allocator initialised with 65536 entries
[    1.619522] ramoops: dmesg-0 0x20000@0x0000000000110000
[    1.620087] ramoops: console 0x80000@0x0000000000130000
[    1.620570] ramoops: pmsg    0x50000@0x00000000001b0000
[    1.621233] printk: console [ramoops-1] enabled
[    1.621648] pstore: Registered ramoops as persistent store backend
[    1.622213] ramoops: using 0xf0000@0x110000, ecc: 0
[    1.650334] rockchip-gpio fd8a0000.gpio: probed /pinctrl/gpio@fd8a0000
[    1.651083] rockchip-gpio fec20000.gpio: probed /pinctrl/gpio@fec20000
[    1.651808] rockchip-gpio fec30000.gpio: probed /pinctrl/gpio@fec30000
[    1.652532] rockchip-gpio fec40000.gpio: probed /pinctrl/gpio@fec40000
[    1.653266] rockchip-gpio fec50000.gpio: probed /pinctrl/gpio@fec50000
[    1.653883] rockchip-pinctrl pinctrl: probed pinctrl
[    1.660746] fiq_debugger fiq_debugger.0: IRQ fiq not found
[    1.661253] fiq_debugger fiq_debugger.0: IRQ wakeup not found
[    1.661780] fiq_debugger_probe: could not install nmi irq handler
[[    1.662372] printk: console [ttyFIQ0] enabled
    1.662372] printk: console [ttyFIQ0] enabled
[    1.663148] printk: bootconsole [uart8250] disabled
[    1.663148] printk: bootconsole [uart8250] disabled
[    1.663656] Registered fiq debugger ttyFIQ0
[    1.663902] vcc5v0_sys: supplied by vcc12v_dcin
[    1.663979] vcc5v0_usbdcin: supplied by vcc12v_dcin
[    1.664049] vcc5v0_usb: supplied by vcc5v0_usbdcin
[    1.664180] vbus5v0_typec: supplied by vcc5v0_usb
[    1.664226] vcc_1v1_nldo_s3: supplied by vcc5v0_sys
[    1.664333] vcc3v3_pcie20: supplied by vcc12v_dcin
[    1.664395] vcc5v0_host: supplied by vcc5v0_usb
[    1.664606] iommu: Default domain type: Translated
[    1.667017] SCSI subsystem initialized
[    1.667075] usbcore: registered new interface driver usbfs
[    1.667086] usbcore: registered new interface driver hub
[    1.667097] usbcore: registered new device driver usb
[    1.667122] mc: Linux media interface: v0.10
[    1.667130] videodev: Linux video capture interface: v2.00
[    1.667147] pps_core: LinuxPPS API ver. 1 registered
[    1.667150] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[    1.667155] PTP clock support registered
[    1.667346] arm-scmi firmware:scmi: SCMI Notifications - Core Enabled.
[    1.667373] arm-scmi firmware:scmi: SCMI Protocol v2.0 'rockchip:' Firmware version 0x0
[    1.668086] Advanced Linux Sound Architecture Driver Initialized.
[    1.668216] Bluetooth: Core ver 2.22
[    1.668226] NET: Registered protocol family 31
[    1.668228] Bluetooth: HCI device and connection manager initialized
[    1.668233] Bluetooth: HCI socket layer initialized
[    1.668236] Bluetooth: L2CAP socket layer initialized
[    1.668241] Bluetooth: SCO socket layer initialized
[    1.669465] rockchip-cpuinfo cpuinfo: SoC            : 35880000
[    1.669469] rockchip-cpuinfo cpuinfo: Serial         : d161c0a0c1a02a57
[    1.669656] clocksource: Switched to clocksource arch_sys_counter
[    1.916326] NET: Registered protocol family 2
[    1.916492] IP idents hash table entries: 262144 (order: 9, 2097152 bytes, linear)
[    1.920113] tcp_listen_portaddr_hash hash table entries: 8192 (order: 5, 131072 bytes, linear)
[    1.920240] TCP established hash table entries: 131072 (order: 8, 1048576 bytes, linear)
[    1.920886] TCP bind hash table entries: 65536 (order: 8, 1048576 bytes, linear)
[    1.921531] TCP: Hash tables configured (established 131072 bind 65536)
[    1.921566] UDP hash table entries: 8192 (order: 6, 262144 bytes, linear)
[    1.921802] UDP-Lite hash table entries: 8192 (order: 6, 262144 bytes, linear)
[    1.922079] NET: Registered protocol family 1
[    1.922251] RPC: Registered named UNIX socket transport module.
[    1.922254] RPC: Registered udp transport module.
[    1.922257] RPC: Registered tcp transport module.
[    1.922259] RPC: Registered tcp NFSv4.1 backchannel transport module.
[    1.922508] PCI: CLS 0 bytes, default 64
[    1.923020] rockchip-thermal fec00000.tsadc: Missing rockchip,grf property
[    1.923367] rockchip-thermal fec00000.tsadc: tsadc is probed successfully!
[    1.923874] hw perfevents: enabled with armv8_pmuv3 PMU driver, 7 counters available
[    1.925496] Initialise system trusted keyrings
[    1.925541] workingset: timestamp_bits=62 max_order=22 bucket_order=0
[    1.926865] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    1.927021] NFS: Registering the id_resolver key type
[    1.927031] Key type id_resolver registered
[    1.927034] Key type id_legacy registered
[    1.927045] ntfs: driver 2.1.32 [Flags: R/O].
[    1.927101] jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
[    1.927186] fuse: init (API version 7.32)
[    1.927274] SGI XFS with security attributes, no debug enabled
[    1.947299] NET: Registered protocol family 38
[    1.947304] Key type asymmetric registered
[    1.947308] Asymmetric key parser 'x509' registered
[    1.947318] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 242)
[    1.947321] io scheduler mq-deadline registered
[    1.947325] io scheduler kyber registered
[    1.951641] rockchip-hdptx-phy-hdmi fed60000.hdmiphy: can't request region for resource [mem 0xfed60000-0xfed61fff]
[    1.951652] rockchip-hdptx-phy-hdmi: probe of fed60000.hdmiphy failed with error -16
[    1.953036] iep: Module initialized.
[    1.953060] mpp_service mpp-srv: unknown mpp version for missing VCS info
[    1.953063] mpp_service mpp-srv: probe start
[    1.953898] mpp_vdpu2 fdb50400.vdpu: Adding to iommu group 1
[    1.954066] mpp_vdpu2 fdb50400.vdpu: probe device
[    1.954142] mpp_vdpu2 fdb50400.vdpu: reset_group->rw_sem_on=0
[    1.954148] mpp_vdpu2 fdb50400.vdpu: reset_group->rw_sem_on=0
[    1.954208] mpp_vdpu2 fdb50400.vdpu: probing finish
[    1.954308] mpp_vepu2 jpege-ccu: probing start
[    1.954311] mpp_vepu2 jpege-ccu: probing finish
[    1.954378] mpp_vepu2 fdb50000.vepu: Adding to iommu group 1
[    1.954395] mpp_vepu2 fdb50000.vepu: probing start
[    1.954452] mpp_vepu2 fdb50000.vepu: reset_group->rw_sem_on=0
[    1.954456] mpp_vepu2 fdb50000.vepu: reset_group->rw_sem_on=0
[    1.954513] mpp_vepu2 fdb50000.vepu: probing finish
[    1.954581] mpp_vepu2 fdba0000.jpege-core: Adding to iommu group 5
[    1.954707] mpp_vepu2 fdba0000.jpege-core: probing start
[    1.954791] mpp_vepu2 fdba0000.jpege-core: attach ccu success
[    1.954855] mpp_vepu2 fdba0000.jpege-core: probing finish
[    1.954933] mpp_vepu2 fdba4000.jpege-core: Adding to iommu group 6
[    1.955044] mpp_vepu2 fdba4000.jpege-core: probing start
[    1.955111] mpp_vepu2 fdba4000.jpege-core: attach ccu success
[    1.955167] mpp_vepu2 fdba4000.jpege-core: probing finish
[    1.955244] mpp_vepu2 fdba8000.jpege-core: Adding to iommu group 7
[    1.955354] mpp_vepu2 fdba8000.jpege-core: probing start
[    1.955419] mpp_vepu2 fdba8000.jpege-core: attach ccu success
[    1.955472] mpp_vepu2 fdba8000.jpege-core: probing finish
[    1.955537] mpp_vepu2 fdbac000.jpege-core: Adding to iommu group 8
[    1.955649] mpp_vepu2 fdbac000.jpege-core: probing start
[    1.955714] mpp_vepu2 fdbac000.jpege-core: attach ccu success
[    1.955767] mpp_vepu2 fdbac000.jpege-core: probing finish
[    1.955949] mpp-iep2 fdbb0000.iep: Adding to iommu group 9
[    1.956062] mpp-iep2 fdbb0000.iep: probe device
[    1.956143] mpp-iep2 fdbb0000.iep: allocate roi buffer failed
[    1.956191] mpp-iep2 fdbb0000.iep: probing finish
[    1.956344] mpp_jpgdec fdb90000.jpegd: Adding to iommu group 4
[    1.956518] mpp_jpgdec fdb90000.jpegd: probe device
[    1.956649] mpp_jpgdec fdb90000.jpegd: probing finish
[    1.956927] mpp_rkvdec2 fdc30000.rkvdec-ccu: rkvdec-ccu, probing start
[    1.956964] mpp_rkvdec2 fdc30000.rkvdec-ccu: ccu-mode: 1
[    1.956967] mpp_rkvdec2 fdc30000.rkvdec-ccu: probing finish
[    1.957021] mpp_rkvdec2 fdc38100.rkvdec-core: Adding to iommu group 12
[    1.957230] mpp_rkvdec2 fdc38100.rkvdec-core: rkvdec-core, probing start
[    1.957305] mpp_rkvdec2 fdc38100.rkvdec-core: shared_niu_a is not found!
[    1.957309] rkvdec2_init:1022: No niu aclk reset resource define
[    1.957312] mpp_rkvdec2 fdc38100.rkvdec-core: shared_niu_h is not found!
[    1.957315] rkvdec2_init:1025: No niu hclk reset resource define
[    1.957330] mpp_rkvdec2 fdc38100.rkvdec-core: no regulator, devfreq is disabled
[    1.957374] mpp_rkvdec2 fdc38100.rkvdec-core: core_mask=00010001
[    1.957377] mpp_rkvdec2 fdc38100.rkvdec-core: attach ccu as core 0
[    1.957505] mpp_rkvdec2 fdc38100.rkvdec-core: sram_start 0x00000000ff001000
[    1.957508] mpp_rkvdec2 fdc38100.rkvdec-core: rcb_iova 0x00000000fff00000
[    1.957511] mpp_rkvdec2 fdc38100.rkvdec-core: sram_size 491520
[    1.957515] mpp_rkvdec2 fdc38100.rkvdec-core: rcb_size 1048576
[    1.957518] mpp_rkvdec2 fdc38100.rkvdec-core: min_width 512
[    1.957522] mpp_rkvdec2 fdc38100.rkvdec-core: rcb_info_count 20
[    1.957526] mpp_rkvdec2 fdc38100.rkvdec-core: [136, 24576]
[    1.957529] mpp_rkvdec2 fdc38100.rkvdec-core: [137, 49152]
[    1.957532] mpp_rkvdec2 fdc38100.rkvdec-core: [141, 90112]
[    1.957535] mpp_rkvdec2 fdc38100.rkvdec-core: [140, 49152]
[    1.957538] mpp_rkvdec2 fdc38100.rkvdec-core: [139, 180224]
[    1.957541] mpp_rkvdec2 fdc38100.rkvdec-core: [133, 49152]
[    1.957544] mpp_rkvdec2 fdc38100.rkvdec-core: [134, 8192]
[    1.957547] mpp_rkvdec2 fdc38100.rkvdec-core: [135, 4352]
[    1.957550] mpp_rkvdec2 fdc38100.rkvdec-core: [138, 13056]
[    1.957553] mpp_rkvdec2 fdc38100.rkvdec-core: [142, 291584]
[    1.957573] mpp_rkvdec2 fdc38100.rkvdec-core: probing finish
[    1.957621] mpp_rkvdec2 fdc48100.rkvdec-core: Adding to iommu group 13
[    1.957805] mpp_rkvdec2 fdc48100.rkvdec-core: rkvdec-core, probing start
[    1.957882] mpp_rkvdec2 fdc48100.rkvdec-core: shared_niu_a is not found!
[    1.957885] rkvdec2_init:1022: No niu aclk reset resource define
[    1.957889] mpp_rkvdec2 fdc48100.rkvdec-core: shared_niu_h is not found!
[    1.957891] rkvdec2_init:1025: No niu hclk reset resource define
[    1.957904] mpp_rkvdec2 fdc48100.rkvdec-core: no regulator, devfreq is disabled
[    1.957937] mpp_rkvdec2 fdc48100.rkvdec-core: core_mask=00020002
[    1.957952] mpp_rkvdec2 fdc48100.rkvdec-core: attach ccu as core 1
[    1.958099] mpp_rkvdec2 fdc48100.rkvdec-core: sram_start 0x00000000ff079000
[    1.958102] mpp_rkvdec2 fdc48100.rkvdec-core: rcb_iova 0x00000000ffe00000
[    1.958105] mpp_rkvdec2 fdc48100.rkvdec-core: sram_size 487424
[    1.958108] mpp_rkvdec2 fdc48100.rkvdec-core: rcb_size 1048576
[    1.958112] mpp_rkvdec2 fdc48100.rkvdec-core: min_width 512
[    1.958116] mpp_rkvdec2 fdc48100.rkvdec-core: rcb_info_count 20
[    1.958119] mpp_rkvdec2 fdc48100.rkvdec-core: [136, 24576]
[    1.958122] mpp_rkvdec2 fdc48100.rkvdec-core: [137, 49152]
[    1.958125] mpp_rkvdec2 fdc48100.rkvdec-core: [141, 90112]
[    1.958128] mpp_rkvdec2 fdc48100.rkvdec-core: [140, 49152]
[    1.958131] mpp_rkvdec2 fdc48100.rkvdec-core: [139, 180224]
[    1.958134] mpp_rkvdec2 fdc48100.rkvdec-core: [133, 49152]
[    1.958137] mpp_rkvdec2 fdc48100.rkvdec-core: [134, 8192]
[    1.958140] mpp_rkvdec2 fdc48100.rkvdec-core: [135, 4352]
[    1.958143] mpp_rkvdec2 fdc48100.rkvdec-core: [138, 13056]
[    1.958146] mpp_rkvdec2 fdc48100.rkvdec-core: [142, 291584]
[    1.958165] mpp_rkvdec2 fdc48100.rkvdec-core: probing finish
[    1.958297] mpp_rkvenc2 rkvenc-ccu: probing start
[    1.958301] mpp_rkvenc2 rkvenc-ccu: probing finish
[    1.958691] mpp_av1dec: Adding child /av1d@fdc70000
[    1.958846] mpp_av1dec: register device av1d-master
[    1.958858] mpp_av1dec av1d-master: av1_iommu_of_xlate,784
[    1.958871] av1_iommu_probe_device,736, consumer : av1d-master, supplier : fdca0000.iommu
[    1.958877] mpp_av1dec av1d-master: Adding to iommu group 15
[    1.959062] mpp_av1dec av1d-master: probing start
[    1.959196] mpp_av1dec av1d-master: probing finish
[    1.959221] mpp_service mpp-srv: probe success
[    1.965715] dma-pl330 fea10000.dma-controller: Loaded driver for PL330 DMAC-241330
[    1.965721] dma-pl330 fea10000.dma-controller:       DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[    1.966313] dma-pl330 fea30000.dma-controller: Loaded driver for PL330 DMAC-241330
[    1.966325] dma-pl330 fea30000.dma-controller:       DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[    1.966928] dma-pl330 fed10000.dma-controller: Loaded driver for PL330 DMAC-241330
[    1.966933] dma-pl330 fed10000.dma-controller:       DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[    1.967367] rockchip-pvtm fda40000.pvtm: pvtm@0 probed
[    1.967405] rockchip-pvtm fda50000.pvtm: pvtm@1 probed
[    1.967438] rockchip-pvtm fda60000.pvtm: pvtm@2 probed
[    1.967472] rockchip-pvtm fdaf0000.pvtm: pvtm@3 probed
[    1.967509] rockchip-pvtm fdb30000.pvtm: pvtm@4 probed
[    1.967820] rockchip-system-monitor rockchip-system-monitor: system monitor probe
[    1.968374] Serial: 8250/16550 driver, 10 ports, IRQ sharing disabled
[    1.968748] febb0000.serial: ttyS8 at MMIO 0xfebb0000 (irq = 78, base_baud = 1500000) is a 16550A
[    1.969534] random: crng init done
[    1.970196] rockchip-vop2 fdd90000.vop: Adding to iommu group 14
[    1.978788] brd: module loaded
[    1.981031] loop: module loaded
[    1.981159] zram: Added device: zram0
[    1.981258] lkdtm: No crash points registered, enable through debugfs
[    1.981322] system_heap: orders[0] = 6
[    1.981325] system_heap: orders[1] = 4
[    1.981329] system_heap: orders[2] = 0
[    1.982715] rockchip-spi feb20000.spi: no high_speed pinctrl state
[    1.983534] rk806 spi2.0: chip id: RK806,ver:0x2, 0x1
[    1.983719] rk806 spi2.0: ON: 0x40 OFF:0x0
[    1.985091] vdd_gpu_s0: supplied by vcc5v0_sys
[    1.986173] vdd_cpu_lit_s0: supplied by vcc5v0_sys
[    1.986864] vdd_log_s0: supplied by vcc5v0_sys
[    1.987451] vdd_vdenc_s0: supplied by vcc5v0_sys
[    1.988034] vdd_ddr_s0: supplied by vcc5v0_sys
[    1.988346] vdd2_ddr_s3: supplied by vcc5v0_sys
[    1.988858] vdd_2v0_pldo_s3: supplied by vcc5v0_sys
[    1.989316] vcc_3v3_s3: supplied by vcc5v0_sys
[    1.989740] vddq_ddr_s0: supplied by vcc5v0_sys
[    1.990261] vcc_1v8_s3: supplied by vcc5v0_sys
[    1.990765] vdd_0v75_s3: supplied by vcc_1v1_nldo_s3
[    1.991284] vdd_ddr_pll_s0: supplied by vcc_1v1_nldo_s3
[    1.991657] avdd_0v75_s0: Bringing 750000uV into 837500-837500uV
[    1.991849] avdd_0v75_s0: supplied by vcc_1v1_nldo_s3
[    1.992282] vdd_0v85_s0: supplied by vcc_1v1_nldo_s3
[    1.992703] vdd_0v75_s0: supplied by vcc_1v1_nldo_s3
[    1.993216] avcc_1v8_s0: supplied by vdd_2v0_pldo_s3
[    1.993846] vcc_1v8_s0: supplied by vdd_2v0_pldo_s3
[    1.994388] avdd_1v2_s0: supplied by vdd_2v0_pldo_s3
[    1.994956] vcc_3v3_s0: supplied by vcc5v0_sys
[    1.995411] vccio_sd_s0: supplied by vcc5v0_sys
[    1.995882] pldo6_s3: supplied by vcc5v0_sys
[    1.996266] rk806 spi2.0: no sleep-setting state
[    1.996270] rk806 spi2.0: no reset-setting pinctrl state
[    1.996274] rk806 spi2.0: no dvs-setting pinctrl state
[    1.997475] rockchip-spi feb20000.spi: probed, poll=0, rsd=0
[    1.998622] usbcore: registered new interface driver rtl8150
[    1.998636] usbcore: registered new interface driver r8152
[    2.005825] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    2.005832] ehci-pci: EHCI PCI platform driver
[    2.005851] ehci-platform: EHCI generic platform driver
[    2.008020] ehci-platform fc800000.usb: EHCI Host Controller
[    2.008125] ehci-platform fc800000.usb: new USB bus registered, assigned bus number 1
[    2.008171] ehci-platform fc800000.usb: irq 20, io mem 0xfc800000
[    2.019663] ehci-platform fc800000.usb: USB 2.0 started, EHCI 1.00
[    2.019725] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
[    2.019730] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    2.019734] usb usb1: Product: EHCI Host Controller
[    2.019737] usb usb1: Manufacturer: Linux 5.10.160 ehci_hcd
[    2.019741] usb usb1: SerialNumber: fc800000.usb
[    2.019921] hub 1-0:1.0: USB hub found
[    2.019932] hub 1-0:1.0: 1 port detected
[    2.022173] ehci-platform fc880000.usb: EHCI Host Controller
[    2.022237] ehci-platform fc880000.usb: new USB bus registered, assigned bus number 2
[    2.022279] ehci-platform fc880000.usb: irq 22, io mem 0xfc880000
[    2.032994] ehci-platform fc880000.usb: USB 2.0 started, EHCI 1.00
[    2.033042] usb usb2: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
[    2.033047] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    2.033051] usb usb2: Product: EHCI Host Controller
[    2.033054] usb usb2: Manufacturer: Linux 5.10.160 ehci_hcd
[    2.033058] usb usb2: SerialNumber: fc880000.usb
[    2.033207] hub 2-0:1.0: USB hub found
[    2.033216] hub 2-0:1.0: 1 port detected
[    2.033460] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[    2.033467] ohci-platform: OHCI generic platform driver
[    2.033570] ohci-platform fc840000.usb: Generic Platform OHCI controller
[    2.033629] ohci-platform fc840000.usb: new USB bus registered, assigned bus number 3
[    2.033661] ohci-platform fc840000.usb: irq 21, io mem 0xfc840000
[    2.093711] usb usb3: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.10
[    2.093717] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    2.093722] usb usb3: Product: Generic Platform OHCI controller
[    2.093725] usb usb3: Manufacturer: Linux 5.10.160 ohci_hcd
[    2.093729] usb usb3: SerialNumber: fc840000.usb
[    2.093881] hub 3-0:1.0: USB hub found
[    2.093892] hub 3-0:1.0: 1 port detected
[    2.094057] ohci-platform fc8c0000.usb: Generic Platform OHCI controller
[    2.094116] ohci-platform fc8c0000.usb: new USB bus registered, assigned bus number 4
[    2.094152] ohci-platform fc8c0000.usb: irq 23, io mem 0xfc8c0000
[    2.153710] usb usb4: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.10
[    2.153716] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    2.153720] usb usb4: Product: Generic Platform OHCI controller
[    2.153724] usb usb4: Manufacturer: Linux 5.10.160 ohci_hcd
[    2.153727] usb usb4: SerialNumber: fc8c0000.usb
[    2.153877] hub 4-0:1.0: USB hub found
[    2.153887] hub 4-0:1.0: 1 port detected
[    2.154216] usbcore: registered new interface driver cdc_acm
[    2.154220] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[    2.154284] usbcore: registered new interface driver uas
[    2.154314] usbcore: registered new interface driver usb-storage
[    2.154340] usbcore: registered new interface driver usbserial_generic
[    2.154350] usbserial: USB Serial support registered for generic
[    2.154362] usbcore: registered new interface driver cp210x
[    2.154369] usbserial: USB Serial support registered for cp210x
[    2.154387] usbcore: registered new interface driver ftdi_sio
[    2.154394] usbserial: USB Serial support registered for FTDI USB Serial Device
[    2.154433] usbcore: registered new interface driver keyspan
[    2.154441] usbserial: USB Serial support registered for Keyspan - (without firmware)
[    2.154448] usbserial: USB Serial support registered for Keyspan 1 port adapter
[    2.154455] usbserial: USB Serial support registered for Keyspan 2 port adapter
[    2.154463] usbserial: USB Serial support registered for Keyspan 4 port adapter
[    2.154476] usbcore: registered new interface driver option
[    2.154483] usbserial: USB Serial support registered for GSM modem (1-port)
[    2.154539] usbcore: registered new interface driver oti6858
[    2.154546] usbserial: USB Serial support registered for oti6858
[    2.154558] usbcore: registered new interface driver pl2303
[    2.154565] usbserial: USB Serial support registered for pl2303
[    2.154579] usbcore: registered new interface driver qcserial
[    2.154586] usbserial: USB Serial support registered for Qualcomm USB modem
[    2.154603] usbcore: registered new interface driver sierra
[    2.154610] usbserial: USB Serial support registered for Sierra USB modem
[    2.154922] usbcore: registered new interface driver usbtouchscreen
[    2.155015] .. rk pwm remotectl v2.0 init
[    2.155098] input: fd8b0030.pwm as /devices/platform/fd8b0030.pwm/input/input0
[    2.155219] remotectl-pwm fd8b0030.pwm: pwm version is 0x2130000
[    2.155238] remotectl-pwm fd8b0030.pwm: Controller support pwrkey capture
[    2.156092] input: rk805 pwrkey as /devices/platform/feb20000.spi/spi_master/spi2/spi2.0/rk805-pwrkey.1.auto/input/input1
[    2.156257] i2c /dev entries driver
[    2.159526] vdd_cpu_big0_s0: supplied by vcc5v0_sys
[    2.167913] vdd_cpu_big1_s0: supplied by vcc5v0_sys
[    2.184794] rk860-regulator 1-0042: Failed to get chip ID!
[    2.197007] usbcore: registered new interface driver uvcvideo
[    2.197014] USB Video Class driver (1.1.1)
[    2.197572] Bluetooth: HCI UART driver ver 2.3
[    2.197584] Bluetooth: HCI UART protocol H4 registered
[    2.197592] Bluetooth: HCI UART protocol ATH3K registered
[    2.197644] usbcore: registered new interface driver bfusb
[    2.197688] usbcore: registered new interface driver btusb
[    2.198299] cpu cpu0: bin=0
[    2.198471] cpu cpu0: leakage=10
[    2.199864] cpu cpu0: pvtm=1442
[    2.199966] cpu cpu0: pvtm-volt-sel=2
[    2.201790] cpu cpu4: bin=0
[    2.201962] cpu cpu4: leakage=8
[    2.208394] cpu cpu4: pvtm=1659
[    2.212280] cpu cpu4: pvtm-volt-sel=3
[    2.214861] cpu cpu6: bin=0
[    2.215031] cpu cpu6: leakage=8
[    2.221476] cpu cpu6: pvtm=1677
[    2.225376] cpu cpu6: pvtm-volt-sel=4
[    2.226776] cpu cpu0: avs=0
[    2.227300] cpu cpu4: avs=0
[    2.227815] cpu cpu6: avs=0
[    2.227999] cpu cpu0: EM: created perf domain
[    2.228027] cpu cpu0: l=10000 h=85000 hyst=5000 l_limit=0 h_limit=1608000000 h_table=0
[    2.228527] cpu cpu4: EM: created perf domain
[    2.228549] cpu cpu4: l=10000 h=85000 hyst=5000 l_limit=0 h_limit=2208000000 h_table=0
[    2.236793] cpu cpu6: EM: created perf domain
[    2.237068] cpu cpu6: l=10000 h=85000 hyst=5000 l_limit=0 h_limit=2208000000 h_table=0
[    2.245948] sdhci: Secure Digital Host Controller Interface driver
[    2.245966] sdhci: Copyright(c) Pierre Ossman
[    2.245971] Synopsys Designware Multimedia Card Interface Driver
[    2.246279] sdhci-pltfm: SDHCI platform and OF driver helper
[    2.247020] arm-scmi firmware:scmi: Failed. SCMI protocol 17 not active.
[    2.247054] SMCCC: SOC_ID: ARCH_SOC_ID not implemented, skipping ....
[    2.247597] cryptodev: driver 1.12 loaded.
[    2.247621] hid: raw HID events driver (C) Jiri Kosina
[    2.247769] usbcore: registered new interface driver usbhid
[    2.247774] usbhid: USB HID core driver
[    2.255735] optee: probing for conduit method.
[    2.255767] optee: revision 3.13 (7f1ea6d6)
[    2.256034] optee: dynamic shared memory is enabled
[    2.256157] optee: initialized driver
[    2.256708] usbcore: registered new interface driver snd-usb-audio
[    2.261737] Initializing XFRM netlink socket
[    2.261994] NET: Registered protocol family 10
[    2.262419] Segment Routing with IPv6
[    2.262479] NET: Registered protocol family 17
[    2.262492] NET: Registered protocol family 15
[    2.262558] Bluetooth: RFCOMM socket layer initialized
[    2.262571] Bluetooth: RFCOMM ver 1.11
[    2.262580] Bluetooth: HIDP (Human Interface Emulation) ver 1.2
[    2.262586] Bluetooth: HIDP socket layer initialized
[    2.262611] [BT_RFKILL]: Enter rfkill_rk_init
[    2.262616] [WLAN_RFKILL]: Enter rfkill_wlan_init
[    2.262898] Key type dns_resolver registered
[    2.263617] Loading compiled-in X.509 certificates
[    2.264203] pstore: Using crash dump compression: deflate
[    2.264383] rga3_core0 fdb60000.rga: Adding to iommu group 2
[    2.264561] rga: rga3_core0, irq = 36, match scheduler
[    2.264921] rga: rga3_core0 hardware loaded successfully, hw_version:3.0.76831.
[    2.264949] rga: rga3_core0 probe successfully
[    2.265169] rga3_core1 fdb70000.rga: Adding to iommu group 3
[    2.265316] rga: rga3_core1, irq = 37, match scheduler
[    2.265510] rga: rga3_core1 hardware loaded successfully, hw_version:3.0.76831.
[    2.265527] rga: rga3_core1 probe successfully
[    2.265754] rga: rga2, irq = 38, match scheduler
[    2.265927] rga: rga2 hardware loaded successfully, hw_version:3.2.63318.
[    2.265938] rga: rga2 probe successfully
[    2.266067] rga_iommu: IOMMU binding successfully, default mapping core[0x1]
[    2.266232] rga: Module initialized. v1.2.26
[    2.276386] mmc0: SDHCI controller on fe2e0000.mmc [fe2e0000.mmc] using ADMA
[    2.287014] combophy_avdd0v85: supplied by vdd_0v85_s0
[    2.287212] mali fb000000.gpu: Kernel DDK version g17p0-01eac0
[    2.289750] combophy_avdd1v8: supplied by avcc_1v8_s0
[    2.294250] mali fb000000.gpu: bin=0
[    2.294326] vcc3v3_lcd_edp: supplied by vcc_3v3_s3
[    2.294454] mali fb000000.gpu: leakage=15
[    2.294484] debugfs: Directory 'fb000000.gpu-mali' with parent 'vdd_gpu_s0' already present!
[    2.294632] vcc_3v3_sd_s0: supplied by vcc_3v3_s3
[    2.295076] mpp_rkvenc2 fdbd0000.rkvenc-core: Adding to iommu group 10
[    2.295341] mpp_rkvenc2 fdbd0000.rkvenc-core: probing start
[    2.295987] mali fb000000.gpu: pvtm=895
[    2.296077] mali fb000000.gpu: pvtm-volt-sel=4
[    2.296100] mpp_rkvenc2 fdbd0000.rkvenc-core: leakage=11
[    2.296112] mpp_rkvenc2 fdbd0000.rkvenc-core: leakage-volt-sel=1
[    2.296217] mpp_rkvenc2 fdbd0000.rkvenc-core: avs=0
[    2.296236] mpp_rkvenc2 fdbd0000.rkvenc-core: l=-2147483648 h=2147483647 hyst=0 l_limit=0 h_limit=0 h_table=0
[    2.296467] mali fb000000.gpu: avs=0
[    2.296483] mpp_rkvenc2 fdbd0000.rkvenc-core: attach ccu as core 0
[    2.296493] W : [File] : drivers/gpu/arm/bifrost/platform/rk/mali_kbase_config_rk.c; [Line] : 143; [Func] : kbase_platform_rk_init(); power-off-delay-ms not available.
[    2.296742] mpp_rkvenc2 fdbd0000.rkvenc-core: probing finish
[    2.296868] mpp_rkvenc2 fdbe0000.rkvenc-core: Adding to iommu group 11
[    2.296918] mali fb000000.gpu: GPU hardware issue table may need updating:
[    2.296918] r0p0 status 5 is unknown; treating as r0p0 status 0
[    2.296926] mali fb000000.gpu: GPU identified as 0x7 arch 10.8.6 r0p0 status 0
[    2.296960] mali fb000000.gpu: No priority control manager is configured
[    2.297124] mpp_rkvenc2 fdbe0000.rkvenc-core: probing start
[    2.297136] mali fb000000.gpu: No memory group manager is configured
[    2.297157] mali fb000000.gpu: Protected memory allocator not available
[    2.297718] mali fb000000.gpu: Capping CSF_FIRMWARE_TIMEOUT to CSF_FIRMWARE_PING_TIMEOUT
[    2.298007] mali fb000000.gpu: l=10000 h=85000 hyst=5000 l_limit=0 h_limit=800000000 h_table=0
[    2.301617] mpp_rkvenc2 fdbe0000.rkvenc-core: leakage=11
[    2.301626] mpp_rkvenc2 fdbe0000.rkvenc-core: leakage-volt-sel=1
[    2.301706] mpp_rkvenc2 fdbe0000.rkvenc-core: avs=0
[    2.301721] mpp_rkvenc2 fdbe0000.rkvenc-core: l=-2147483648 h=2147483647 hyst=0 l_limit=0 h_limit=0 h_table=0
[    2.304650] mali fb000000.gpu: Probed as mali0
[    2.305218] mpp_rkvenc2 fdbe0000.rkvenc-core: attach ccu as core 1
[    2.305406] mpp_rkvenc2 fdbe0000.rkvenc-core: probing finish
[    2.306344] rockchip-dmc dmc: leakage=34
[    2.306355] rockchip-dmc dmc: leakage-volt-sel=1
[    2.306619] rockchip-dmc dmc: avs=0
[    2.306632] rockchip-dmc dmc: current ATF version 0x100
[    2.306700] rockchip-dmc dmc: normal_rate = 1560000000
[    2.306707] rockchip-dmc dmc: reboot_rate = 2112000000
[    2.306712] rockchip-dmc dmc: suspend_rate = 528000000
[    2.306718] rockchip-dmc dmc: video_4k_rate = 1560000000
[    2.306723] rockchip-dmc dmc: video_4k_10b_rate = 1560000000
[    2.306729] rockchip-dmc dmc: video_svep_rate = 1560000000
[    2.306734] rockchip-dmc dmc: boost_rate = 2112000000
[    2.306739] rockchip-dmc dmc: fixed_rate(isp|cif0|cif1|dualview) = 2112000000
[    2.306745] rockchip-dmc dmc: performance_rate = 2112000000
[    2.306751] rockchip-dmc dmc: hdmirx_rate = 2112000000
[    2.306758] rockchip-dmc dmc: failed to get vop bandwidth to dmc rate
[    2.306763] rockchip-dmc dmc: failed to get vop pn to msch rl
[    2.306846] rockchip-dmc dmc: l=10000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
[    2.306882] rockchip-dmc dmc: could not find power_model node
[    2.309730] mmc0: Host Software Queue enabled
[    2.309743] mmc0: new HS400 Enhanced strobe MMC card at address 0001
[    2.310039] mmcblk0: mmc0:0001 Y2P128 116 GiB
[    2.310141] mmcblk0boot0: mmc0:0001 Y2P128 partition 1 4.00 MiB
[    2.310243] mmcblk0boot1: mmc0:0001 Y2P128 partition 2 4.00 MiB
[    2.310341] mmcblk0rpmb: mmc0:0001 Y2P128 partition 3 16.0 MiB, chardev (236:0)
[    2.312011]  mmcblk0: p1 p2 p3 p4 p5 p6 p7 p8
[    2.318959] input: adc-keys as /devices/platform/adc-keys/input/input2
[    2.321100] dwmmc_rockchip fe2c0000.mmc: IDMAC supports 32-bit address mode.
[    2.321145] dwmmc_rockchip fe2c0000.mmc: Using internal DMA controller.
[    2.321156] dwmmc_rockchip fe2c0000.mmc: Version ID is 270a
[    2.321196] dwmmc_rockchip fe2c0000.mmc: DW MMC controller at irq 68,32 bit host data width,256 deep fifo
[    2.322756] cfg80211: Loading compiled-in X.509 certificates for regulatory database
[    2.324369] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
[    2.325149] rockchip-pm rockchip-suspend: not set pwm-regulator-config
[    2.325160] rockchip-suspend not set sleep-mode-config for mem-lite
[    2.325165] rockchip-suspend not set wakeup-config for mem-lite
[    2.325170] rockchip-suspend not set sleep-mode-config for mem-ultra
[    2.325174] rockchip-suspend not set wakeup-config for mem-ultra
[    2.325755] I : [File] : drivers/gpu/arm/mali400/mali/linux/mali_kernel_linux.c; [Line] : 406; [Func] : mali_module_init(); svn_rev_string_from_arm of this mali_ko is '', rk_ko_ver is '5', built at '05:37:10', on 'Oct 21 2024'.
[    2.326026] Mali:
[    2.326028] Mali device driver loaded
[    2.326036] ALSA device list:
[    2.326042]   No soundcards found.
[    2.326257] platform regulatory.0: Direct firmware load for regulatory.db failed with error -2
[    2.326263] cfg80211: failed to load regulatory.db
[    2.336308] mmc_host mmc1: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0)
[    2.351024] EXT4-fs (mmcblk0p6): mounted filesystem with ordered data mode. Opts: (null)
[    2.351049] VFS: Mounted root (ext4 filesystem) on device 179:6.
[    2.351354] devtmpfs: mounted
[    2.355222] Freeing unused kernel memory: 6592K
[    2.383057] Run /sbin/init as init process
[    2.390658] vendor storage:20190527 ret = 0
[    2.424750] EXT4-fs (mmcblk0p6): re-mounted. Opts: (null)
[    2.542392] EXT4-fs (mmcblk0p7): mounted filesystem with ordered data mode. Opts: (null)
[    2.551629] EXT4-fs (mmcblk0p8): mounted filesystem with ordered data mode. Opts: (null)
Starting syslogd: [    2.589718] usb 4-1: new full-speed USB device number 2 using ohci-platform
OK
Starting klogd: OK
Running sysctl: OK
Populating /dev using udev: [    2.636708] udevd[252]: starting version 3.2.10
[    2.650470] udevd[253]: starting eudev-3.2.10
[    2.822722] usb 4-1: New USB device found, idVendor=046d, idProduct=c341, bcdDevice= 1.38
[    2.822766] usb 4-1: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[    2.822774] usb 4-1: Product: Logitech Mechanical keyboard
[    2.822781] usb 4-1: Manufacturer: Logitech Mechanical keyboard
[    2.822788] usb 4-1: SerialNumber: KG511U00000A
[    2.833824] input: Logitech Mechanical keyboard Logitech Mechanical keyboard as /devices/platform/fc8c0000.usb/usb4/4-1/4-1:1.0/0003:046D:C341.0001/input/input3
[    2.891768] hid-generic 0003:046D:C341.0001: input,hidraw0: USB HID v1.11 Keyboard [Logitech Mechanical keyboard Logitech Mechanical keyboard] on usb-fc8c0000.usb-1/input0
[    2.900080] input: Logitech Mechanical keyboard Logitech Mechanical keyboard Keyboard as /devices/platform/fc8c0000.usb/usb4/4-1/4-1:1.1/0003:046D:C341.0002/input/input4
[    2.957510] input: Logitech Mechanical keyboard Logitech Mechanical keyboard Consumer Control as /devices/platform/fc8c0000.usb/usb4/4-1/4-1:1.1/0003:046D:C341.0002/input/input5
[    2.958154] hid-generic 0003:046D:C341.0002: input,hidraw1: USB HID v1.11 Keyboard [Logitech Mechanical keyboard Logitech Mechanical keyboard] on usb-fc8c0000.usb-1/input1
[    2.965737] hid-generic 0003:046D:C341.0003: hiddev96,hidraw2: USB HID v1.11 Device [Logitech Mechanical keyboard Logitech Mechanical keyboard] on usb-fc8c0000.usb-1/input2
done
Initializing random number generator: OK
Saving random seed: OK
Will now mount all partitions in /etc/fstab
Note: Will skip fsck, remove /.skip_fsck to enable
Handling /dev/block/by-name//dev/root / ext4 rw,noauto 1
Handling /dev/block/by-name/tmpfs /tmp tmpfs mode=1777 0
Handling /dev/block/by-name/tmpfs /run tmpfs mode=0755,nosuid,nodev 0
Handling /dev/block/by-name/proc /proc proc defaults 0
Handling /dev/block/by-name/devtmpfs /dev devtmpfs defaults 0
Handling /dev/block/by-name/devpts /dev/pts devpts mode=0620,ptmxmode=0666,gid=5 0
Handling /dev/block/by-name/tmpfs /dev/shm tmpfs nosuid,nodev,noexec 0
Handling /dev/block/by-name/sysfs /sys sysfs defaults 0
Handling /dev/block/by-name/configfs /sys/kernel/config configfs defaults 0
Handling /dev/block/by-name/debugfs /sys/kernel/debug debugfs defaults 0
Handling /dev/block/by-name/pstore /sys/fs/pstore pstore defaults 0
Handling /dev/mmcblk0p7 /oem ext4 defaults 2
Mounting /dev/mmcblk0p7(ext4) on /oem with -o defaults
[    3.807276] EXT4-fs (mmcblk0p7): mounted filesystem with ordered data mode. Opts: (null)
Handling /dev/mmcblk0p8 /userdata ext4 defaults 2
Mounting /dev/mmcblk0p8(ext4) on /userdata with -o defaults
[    3.888540] EXT4-fs (mmcblk0p8): mounted filesystem with ordered data mode. Opts: (null)
Log saved to /tmp/mount-all.log
Starting system message bus: done
load wifi modules: [    4.484012] bcmdhd: loading out-of-tree module taints kernel.
[    4.494664] [dhd] _dhd_module_init: in Dongle Host Driver, version 101.10.361.25 (wlan=r892223-20220929-2)
[    4.494664] /home/han/RK3588/rk3588_linux_release_v1.1.1_20230520/rk3588_v1.11/external/rkwifibt/drivers/bcmdhd compiled on Oct 29 2024 at 10:27:21
[    4.494664]
[    4.494714] [WLAN_RFKILL]: rockchip_wifi_get_oob_irq: Enter
[    4.494721] [WLAN_RFKILL]: rockchip_wifi_get_oob_irq: rfkill-wlan driver has not Successful initialized
[    4.494728] dhd_wlan_init_gpio: unknown oob irqflags !
[    4.494735] [dhd] dhd_wlan_init_gpio: WL_HOST_WAKE=-1, oob_irq=-1, oob_irq_flags=0x0
[    4.494741] [dhd] dhd_wlan_init_gpio: WL_REG_ON=-1
[    4.494748] [dhd] STATIC-MSG) dhd_static_buf_init : 101.10.361.25 (wlan=r892223-20220928-2)
[    4.495048] [dhd] STATIC-MSG) dhd_init_wlan_mem : prealloc ok for index 0: 8138752(7948K)
[    4.495056] [dhd] dhd_wifi_platform_load: Enter
[    4.495062] [dhd] Power-up adapter 'DHD generic adapter'
[    4.495148] [dhd] wifi_platform_set_power = 1, delay: 200 msec
[    4.495155] [dhd] ======== PULL WL_REG_ON(-1) HIGH! ========
[    4.495162] [WLAN_RFKILL]: rockchip_wifi_power: 1
[    4.495167] [WLAN_RFKILL]: rockchip_wifi_power: rfkill-wlan driver has not Successful initialized
[    4.800074] [dhd] wifi_platform_bus_enumerate device present 1
[    4.800113] [dhd] ======== Card detection to detect SDIO card! ========
[    6.936645] [dhd] failed to power up DHD generic adapter, 0 retry left
[    6.952905] [dhd] wifi_platform_set_power = 0, delay: 0 msec
[    6.952934] [dhd] ======== PULL WL_REG_ON(-1) LOW! ========
[    6.952944] [WLAN_RFKILL]: rockchip_wifi_power: 0
[    6.952953] [WLAN_RFKILL]: rockchip_wifi_power: rfkill-wlan driver has not Successful initialized
[    6.952962] [dhd] wifi_platform_bus_enumerate device present 0
[    6.952969] [dhd] ======== Card detection to remove SDIO card! ========
[    6.952978] [dhd] failed to power up DHD generic adapter, max retry reached**
[    6.953020] [dhd] unregister wifi platform drivers
[    6.953028] [dhd] wifi_platform_bus_enumerate device present 0
[    6.953035] [dhd] ======== Card detection to remove SDIO card! ========
[    6.953043] [dhd] STATIC-MSG) dhd_static_buf_exit : Enter
[    6.953409] [dhd] dhd_wlan_deinit_gpio: gpio_free(WL_HOST_WAKE 0)
[    6.953422] [dhd] _dhd_module_init: Failed to load the driver, try cnt 0
[    6.953443] [dhd] _dhd_module_init: Failed to load driver max retry reached**
[    6.953451] [dhd] _dhd_module_init: Exit err=-19
killall: brcm_patchram_plus1: no process killed
sh: line 1: /sys/class/rfkill/rfkill0/state: No such file or directory
sh: line 1: /proc/bluetooth/sleep/btwrite: No such file or directory
sh: line 1: /sys/class/rfkill/rfkill0/state: No such file or directory
sh: line 1: /proc/bluetooth/sleep/btwrite: No such file or directory
OK
###AMPAK FW Auto detection patch version = [v1.1 20161117]###
FW folder path = /system/etc/firmware
[   27.098774] of_dma_request_slave_channel: dma-names property of node '/proc_resetserial@febb0000' missing or empty
[   27.098834] dw-apb-uart febb0000.serial: failed to request DMA, use interrupt mode
wl: wl driver adapter not found
Starting bluetoothd: OK
Starting network: OK
Starting seatd: OK
Starting dhcpcd...
dhcpcd-9.4.1 starting
dev: loaded udev
forked to background, child pid 627
Starting ntpd: OK
starting weston... done.
Starting dropbear sshd: OK
Starting pulseaudio: OK
Starting /usr/bin/usbdevice start, log saved to /tmp/usbdevice.log
W: [pulseaudio] main.c: This program is not intended to be run as root (unless --system is specified).
E: [pulseaudio] module-rescue-streams.c: module-rescue-stream is obsolete and should no longer be loaded. Please remove it from your configuration.
W: [pulseaudio] server-lookup.c: Unable to contact D-Bus: org.freedesktop.DBus.Error.NotSupported: Using X11 for dbus-daemon autolaunch was disabled at compile time, set your DBUS_SESSION_BUS_ADDRESS instead
W: [pulseaudio] main.c: Unable to contact D-Bus: org.freedesktop.DBus.Error.NotSupported: Using X11 for dbus-daemon autolaunch was disabled at compile time, set your DBUS_SESSION_BUS_ADDRESS instead
Date: 1970-01-01 UTC
[00:00:25.888] weston 11.0.1
               https://wayland.freedesktop.org
               Bug reports to: https://gitlab.freedesktop.org/wayland/weston/issues/
               Build: 11.0.1
[00:00:25.890] Command line: /usr/bin/weston
[00:00:25.890] OS: Linux, 5.10.160, #1 SMP Mon Oct 21 05:32:59 PDT 2024, aarch64
[00:00:25.891] Flight recorder: enabled
[00:00:25.891] warning: XDG_RUNTIME_DIR "/var/run" is not configured
correctly.  Unix access mode must be 0700 (current mode is 0755),
and must be owned by the user UID 0 (current owner is UID 0).
Refer to your distribution on how to get it, or
http://www.freedesktop.org/wiki/Specifications/basedir-spec
on how to implement it.
/etc/xdg/weston/weston.ini.d/02-desktop.ini: "shell/locking" from "false" to "true"
[00:00:25.895] Using config file '/etc/xdg/weston/weston.ini'
[00:00:25.896] Output repaint window is -1 ms maximum.
[00:00:25.897] Loading module '/usr/lib/libweston-11/drm-backend.so'
[00:00:25.902] initializing drm backend
[00:00:25.902] Entering mirror mode.
[00:00:25.902] Trying libseat launcher...
[00:00:25.903] [libseat/libseat.c:73] Seat opened with backend 'seatd'
[00:00:25.903] [libseat/backend/seatd.c:228] Enabling seat
[00:00:25.904] libseat: session control granted
[00:00:25.904] no drm device found
[00:00:25.905] fatal: failed to create compositor backend
Internal warning: debug scope 'drm-backend' has not been destroyed.
[   27.520356] file system registered
[   27.557639] read descriptors
[   27.557683] read strings
Starting dnsmasq: OK
Starting input-event-daemon: done
root@rk3588s-buildroot:/# [   27.748786] android_work: did not send uevent (0 0 0000000000000000)

root@rk3588s-buildroot:/#

5、启动报错rockchip-hdptx-phy-hdmi fed60000.hdmiphy: can't request region for resource [mem 0xfed60000-0xfed61fff]

        启动报错：

[    1.951641] rockchip-hdptx-phy-hdmi fed60000.hdmiphy: can't request region for resource [mem 0xfed60000-0xfed61fff]
[    1.951652] rockchip-hdptx-phy-hdmi: probe of fed60000.hdmiphy failed with error -16
[    1.953036] iep: Module initialized.

        显示器黑色没有显示。

        修正DTS后，重新编译，下载。

6、启动正常完整log

DDR V1.11 f1474cf52f cym 23/05/09-11:02:36
LPDDR4, 2112MHz
channel[0] BW=16 Col=10 Bk=8 CS0 Row=17 CS1 Row=17 CS=2 Die BW=8 Size=4096MB
channel[1] BW=16 Col=10 Bk=8 CS0 Row=17 CS1 Row=17 CS=2 Die BW=8 Size=4096MB
channel[2] BW=16 Col=10 Bk=8 CS0 Row=17 CS1 Row=17 CS=2 Die BW=8 Size=4096MB
channel[3] BW=16 Col=10 Bk=8 CS0 Row=17 CS1 Row=17 CS=2 Die BW=8 Size=4096MB
Manufacturer ID:0x13
CH0 RX Vref:34.3%, TX Vref:13.2%,13.2%
CH1 RX Vref:33.4%, TX Vref:13.2%,13.2%
CH2 RX Vref:36.5%, TX Vref:13.2%,13.2%
CH3 RX Vref:36.1%, TX Vref:13.2%,13.2%
change to F1: 528MHz
change to F2: 1068MHz
change to F3: 1560MHz
change to F0: 2112MHz
out
U-Boot SPL board init
U-Boot SPL 2017.09-g5f53abfa1e-221223 #zzz (Dec 26 2022 - 09:10:09)
unknown raw ID 0 0 0
unrecognized JEDEC id bytes: 00, 00, 00
Trying to boot from MMC2
MMC: no card present
mmc_init: -123, time 1
spl: mmc init failed with error: -123
Trying to boot from MMC1
SPL: A/B-slot: _a, successful: 0, tries-remain: 7
Trying fit image at 0x4000 sector
## Verified-boot: 0
## Checking atf-1 0x00040000 ... sha256(7efcd01a0f...) + OK
## Checking uboot 0x00200000 ... sha256(9734b83d3d...) + OK
## Checking fdt 0x0033bf10 ... sha256(8ecccd16d2...) + OK
## Checking atf-2 0x000f0000 ... sha256(da90adf3a4...) + OK
## Checking atf-3 0xff100000 ... sha256(1163474a5b...) + OK
## Checking optee 0x08400000 ... sha256(6193f4aac7...) + OK
Jumping to U-Boot(0x00200000) via ARM Trusted Firmware(0x00040000)
Total: 118.936 ms

INFO:    Preloader serial: 2
NOTICE:  BL31: v2.3():v2.3-589-g3389cfdda:derrick.huang
NOTICE:  BL31: Built : 10:14:29, May  9 2023
INFO:    spec: 0x13
INFO:    ext 32k is valid
INFO:    ddr: stride-en 4CH
INFO:    GICv3 without legacy support detected.
INFO:    ARM GICv3 driver initialized in EL3
INFO:    valid_cpu_msk=0xff bcore0_rst = 0x0, bcore1_rst = 0x0
INFO:    system boots from cpu-hwid-0
INFO:    idle_st=0x21fff, pd_st=0x11fff9, repair_st=0xfff70001
INFO:    dfs DDR fsp_params[0].freq_mhz= 2112MHz
INFO:    dfs DDR fsp_params[1].freq_mhz= 528MHz
INFO:    dfs DDR fsp_params[2].freq_mhz= 1068MHz
INFO:    dfs DDR fsp_params[3].freq_mhz= 1560MHz
INFO:    BL31: Initialising Exception Handling Framework
INFO:    BL31: Initializing runtime services
INFO:    BL31: Initializing BL32
I/TC:
I/TC: OP-TEE version: 3.13.0-698-g7f1ea6d6e #hisping.lin (gcc version 10.2.1 20201103 (GNU Toolchain for the A-profile Architecture 10.2-2020.11 (arm-10.16))) #53 Wed Apr 19 14:30:22 CST 2023 aarch64
I/TC: Primary CPU initializing
I/TC: Primary CPU switching to normal world boot
INFO:    BL31: Preparing for EL3 exit to normal world
INFO:    Entry point address = 0x200000
INFO:    SPSR = 0x3c9

U-Boot 2017.09 (Oct 30 2024 - 08:40:19 -0700)

Model: Rockchip RK3588 Evaluation Board
MPIDR: 0x81000000
PreSerial: 2, raw, 0xfeb50000
DRAM:  16 GiB
Sysmem: init
Relocation Offset: eda22000
Relocation fdt: eb9fabe0 - eb9fecd0
CR: M/C/I
Using default environment

DM: v2
mmc@fe2c0000: 1, mmc@fe2e0000: 0
Bootdev(atags): mmc 0
MMC0: HS400 Enhanced Strobe, 200Mhz
PartType: EFI
boot mode: normal
FIT: no signed, no conf required
RESC: 'boot', blk@0x00018beb
DTB: rk-kernel.dtb
HASH(c): OK
I2c0 speed: 100000Hz
vsel-gpios- not found!
en-gpios- not found!
vdd_cpu_big0_s0 800000 uV
vsel-gpios- not found!
en-gpios- not found!
vdd_cpu_big1_s0 800000 uV
I2c1 speed: 100000Hz
vsel-gpios- not found!
en-gpios- not found!
read reg[0x03] failed, ret=-121
Failed to get chip ID!
get vp0 plane mask:0x5, primary id:2, cursor_plane:-1, from dts
get vp1 plane mask:0xa, primary id:3, cursor_plane:-1, from dts
get vp2 plane mask:0x140, primary id:8, cursor_plane:-1, from dts
get vp3 plane mask:0x280, primary id:9, cursor_plane:-1, from dts
Could not find baseparameter partition
Model: Rockchip RK3588S EVB1 LP4X V10 Board
MPIDR: 0x81000000
spi2: RK806: 2
ON=0x00, OFF=0x00
Rockchip UBOOT DRM driver version: v1.0.1
vp0 have layer nr:2[0 2 ], primary plane: 2
vp1 have layer nr:2[1 3 ], primary plane: 3
vp2 have layer nr:2[6 8 ], primary plane: 8
vp3 have layer nr:2[7 9 ], primary plane: 9
Monitor has basic audio support
Could not find baseparameter partition
color_format:1
hdmi_select_link_config use tmds mode
mode:1920x1080 bus_format:0x2025
hdmi@fde80000:  detailed mode clock 148500 kHz, flags[5]
    H: 1920 2008 2052 2200
    V: 1080 1084 1089 1125
bus_format: 2025
VOP update mode to: 1920x1080p60, type: HDMI0 for VP0
dclk:148500,if_pixclk_div;2,if_dclk_div:4
hdptx_ropll_cmn_config bus_width:16a8c8 rate:1485000
hdptx phy pll locked!
VP0 set crtc_clock to 1485KHz
VOP VP0 enable Esmart0[654x270->654x270@633x405] fmt[2] addr[0xedf04000]
CEA mode used vic=16
mtmdsclock:148500000
hdptx_ropll_cmn_config bus_width:16a8c8 rate:1485000
hdptx phy pll locked!
dw_hdmi_setup HDMI mode
don't use dsc mode
dw hdmi qp use tmds mode
bus_width:0x16a8c8,bit_rate:1485000
hdptx phy lane locked!
CLK: (uboot. arm: enter 1008000 KHz, init 1008000 KHz, kernel 0N/A)
  b0pll 24000 KHz
  b1pll 24000 KHz
  lpll 24000 KHz
  v0pll 24000 KHz
  aupll 786431 KHz
  cpll 1500000 KHz
  gpll 1188000 KHz
  npll 850000 KHz
  ppll 1100000 KHz
  aclk_center_root 702000 KHz
  pclk_center_root 100000 KHz
  hclk_center_root 396000 KHz
  aclk_center_low_root 500000 KHz
  aclk_top_root 594000 KHz
  pclk_top_root 100000 KHz
  aclk_low_top_root 396000 KHz
Net:   No ethernet found.
Hit key to stop autoboot('CTRL+C'):  0
ANDROID: reboot reason: "(none)"
optee api revision: 2.0
TEEC: Waring: Could not find security partition
Not AVB images, AVB skip
No valid android hdr
Android image load failed
Android boot failed, error -1.
## Booting FIT Image at 0xe967c5c0 with size 0x0217d600
Fdt Ramdisk skip relocation
## Loading kernel from FIT Image at e967c5c0 ...
   Using 'conf' configuration
## Verified-boot: 0
   Trying 'kernel' kernel subimage
     Description:  unavailable
     Type:         Kernel Image
     Compression:  uncompressed
     Data Start:   0xe96a11c0
     Data Size:    34966016 Bytes = 33.3 MiB
     Architecture: AArch64
     OS:           Linux
     Load Address: 0x00400000
     Entry Point:  0x00400000
     Hash algo:    sha256
     Hash value:   deeffa2a92bb0958ac7b27da1cc517a03f38fe42fd2f8e02bdb95da752ee4139
   Verifying Hash Integrity ... sha256+ OK
## Loading fdt from FIT Image at e967c5c0 ...
   Using 'conf' configuration
   Trying 'fdt' fdt subimage
     Description:  unavailable
     Type:         Flat Device Tree
     Compression:  uncompressed
     Data Start:   0xe967cdc0
     Data Size:    148129 Bytes = 144.7 KiB
     Architecture: AArch64
     Load Address: 0x08300000
     Hash algo:    sha256
     Hash value:   950ef5eb88f5ab3a7c551a7a79f92c264fd604fdbb8a56ea81dcfe71d165ee29
   Verifying Hash Integrity ... sha256+ OK
   Loading fdt from 0x08300000 to 0x08300000
   Booting using the fdt blob at 0x08300000
   Loading Kernel Image from 0xe96a11c0 to 0x00400000 ... OK
   kernel loaded at 0x00400000, end = 0x02558a00
   Using Device Tree in place at 0000000008300000, end 00000000083272a0
WARNING: could not set reg FDT_ERR_BADOFFSET.
## reserved-memory:
  drm-logo@00000000: addr=edf00000 size=b8000
  ramoops@110000: addr=110000 size=f0000
Adding bank: 0x00200000 - 0x08400000 (size: 0x08200000)
Adding bank: 0x09400000 - 0xf0000000 (size: 0xe6c00000)
Adding bank: 0x100000000 - 0x3fc000000 (size: 0x2fc000000)
Adding bank: 0x3fc500000 - 0x3fff00000 (size: 0x03a00000)
Adding bank: 0x4f0000000 - 0x500000000 (size: 0x10000000)
Total: 818.236/887.701 ms

Starting kernel ...

[    0.891717] Booting Linux on physical CPU 0x0000000000 [0x412fd050]
[    0.891735] Linux version 5.10.160 (root@ubuntu) (aarch64-none-linux-gnu-gcc (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 10.3.1 20210621, GNU ld (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 2.36.1.20210621) #1 SMP Mon Oct 21 05:32:59 PDT 2024
[    0.898098] Machine model: Rockchip RK3588S EVB1 LP4X V10 Board
[    0.898161] earlycon: uart8250 at MMIO32 0x00000000feb50000 (options '')
[    0.902267] printk: bootconsole [uart8250] enabled
[    0.904183] efi: UEFI not found.
[    0.907950] OF: fdt: Reserved memory: failed to reserve memory for node 'drm-cubic-lut@00000000': base 0x0000000000000000, size 0 MiB
[    0.909083] Reserved memory: created CMA memory pool at 0x00000004ff800000, size 8 MiB
[    0.909805] OF: reserved mem: initialized node cma, compatible id shared-dma-pool
[    1.122620] Zone ranges:
[    1.122859]   DMA      [mem 0x0000000000200000-0x00000000ffffffff]
[    1.123427]   DMA32    empty
[    1.123692]   Normal   [mem 0x0000000100000000-0x00000004ffffffff]
[    1.124258] Movable zone start for each node
[    1.124648] Early memory node ranges
[    1.124976]   node   0: [mem 0x0000000000200000-0x00000000083fffff]
[    1.125548]   node   0: [mem 0x0000000009400000-0x00000000efffffff]
[    1.126122]   node   0: [mem 0x0000000100000000-0x00000003fbffffff]
[    1.126701]   node   0: [mem 0x00000003fc500000-0x00000003ffefffff]
[    1.127272]   node   0: [mem 0x00000004f0000000-0x00000004ffffffff]
[    1.127846] Initmem setup node 0 [mem 0x0000000000200000-0x00000004ffffffff]
[    1.223389] On node 0, zone Normal: 256 pages in unavailable ranges
[    1.223524] psci: probing for conduit method from DT.
[    1.224562] psci: PSCIv1.1 detected in firmware.
[    1.224983] psci: Using standard PSCI v0.2 function IDs
[    1.225463] psci: Trusted OS migration not required
[    1.225911] psci: SMC Calling Convention v1.2
[    1.226643] percpu: Embedded 30 pages/cpu s83480 r8192 d31208 u122880
[    1.227399] Detected VIPT I-cache on CPU0
[    1.227795] CPU features: detected: GIC system register CPU interface
[    1.228384] CPU features: detected: Virtualization Host Extensions
[    1.228951] CPU features: detected: ARM errata 1165522, 1319367, or 1530923
[    1.229591] alternatives: patching kernel code
[    1.231602] Built 1 zonelists, mobility grouping on.  Total pages: 4122720
[    1.232234] Kernel command line: storagemedia=emmc androidboot.storagemedia=emmc androidboot.mode=normal  androidboot.verifiedbootstate=orange rw rootwait earlycon=uart8250,mmio32,0xfeb50000 console=ttyFIQ0 irqchip.gicv3_pseudo_nmi=0 root=PARTUUID=614e0000-0000
[    1.236000] Dentry cache hash table entries: 2097152 (order: 12, 16777216 bytes, linear)
[    1.237494] Inode-cache hash table entries: 1048576 (order: 11, 8388608 bytes, linear)
[    1.238218] mem auto-init: stack:off, heap alloc:off, heap free:off
[    1.244982] software IO TLB: mapped [mem 0x00000000e9f00000-0x00000000edf00000] (64MB)
[    1.359193] Memory: 16321704K/16752640K available (18112K kernel code, 3298K rwdata, 6032K rodata, 6592K init, 530K bss, 422744K reserved, 8192K cma-reserved)
[    1.360589] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=8, Nodes=1
[    1.361206] ftrace: allocating 56269 entries in 220 pages
[    1.431349] ftrace: allocated 220 pages with 5 groups
[    1.432025] rcu: Hierarchical RCU implementation.
[    1.432459] rcu:     RCU event tracing is enabled.
[    1.432874]  Rude variant of Tasks RCU enabled.
[    1.433288] rcu: RCU calculated value of scheduler-enlistment delay is 30 jiffies.
[    1.437894] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[    1.440026] GICv3: GIC: Using split EOI/Deactivate mode
[    1.440507] GICv3: 480 SPIs implemented
[    1.440858] GICv3: 0 Extended SPIs implemented
[    1.441283] GICv3: Distributor has no Range Selector support
[    1.441804] GICv3: 16 PPIs implemented
[    1.442188] GICv3: CPU0: found redistributor 0 region 0:0x00000000fe680000
[    1.442901] ITS [mem 0xfe640000-0xfe65ffff]
[    1.443324] ITS@0x00000000fe640000: allocated 8192 Devices @3fc6e0000 (indirect, esz 8, psz 64K, shr 0)
[    1.444198] ITS@0x00000000fe640000: allocated 32768 Interrupt Collections @3fc6f0000 (flat, esz 2, psz 64K, shr 0)
[    1.445144] ITS: using cache flushing for cmd queue
[    1.445612] ITS [mem 0xfe660000-0xfe67ffff]
[    1.446030] ITS@0x00000000fe660000: allocated 8192 Devices @3fc710000 (indirect, esz 8, psz 64K, shr 0)
[    1.446904] ITS@0x00000000fe660000: allocated 32768 Interrupt Collections @3fc720000 (flat, esz 2, psz 64K, shr 0)
[    1.447849] ITS: using cache flushing for cmd queue
[    1.448386] GICv3: using LPI property table @0x00000003fc730000
[    1.449034] GIC: using cache flushing for LPI property table
[    1.449555] GICv3: CPU0: using allocated LPI pending table @0x00000003fc740000
[    1.561891] arch_timer: cp15 timer(s) running at 24.00MHz (phys).
[    1.562456] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[    1.563448] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[    1.564942] Console: colour dummy device 80x25
[    1.565392] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=80000)
[    1.566338] pid_max: default: 32768 minimum: 301
[    1.566883] Mount-cache hash table entries: 32768 (order: 6, 262144 bytes, linear)
[    1.567606] Mountpoint-cache hash table entries: 32768 (order: 6, 262144 bytes, linear)
[    1.569516] rcu: Hierarchical SRCU implementation.
[    1.570611] Platform MSI: msi-controller@fe640000 domain created
[    1.571173] Platform MSI: msi-controller@fe660000 domain created
[    1.571944] PCI/MSI: /interrupt-controller@fe600000/msi-controller@fe640000 domain created
[    1.572731] PCI/MSI: /interrupt-controller@fe600000/msi-controller@fe660000 domain created
[    1.573565] EFI services will not be available.
[    1.574255] smp: Bringing up secondary CPUs ...
I/TC: Secondary CPU 1 initializing
I/TC: Secondary CPU 1 switching to normal world boot
I/TC: Secondary CPU 2 initializing
I/TC: Secondary CPU 2 switching to normal world boot
I/TC: Secondary CPU 3 initializing
I/TC: Secondary CPU 3 switching to normal world boot
I/TC: Secondary CPU 4 initializing
I/TC: Secondary CPU 4 switching to normal world boot
I/TC: Secondary CPU 5 initializing
I/TC: Secondary CPU 5 switching to normal world boot
I/TC: Secondary CPU 6 initializing
I/TC: Secondary CPU 6 switching to normal world boot
I/TC: Secondary CPU 7 initializing
I/TC: Secondary CPU 7 switching to normal world boot
[    1.575775] Detected VIPT I-cache on CPU1
[    1.575799] GICv3: CPU1: found redistributor 100 region 0:0x00000000fe6a0000
[    1.575813] GICv3: CPU1: using allocated LPI pending table @0x00000003fc750000
[    1.575848] CPU1: Booted secondary processor 0x0000000100 [0x412fd050]
[    1.577043] Detected VIPT I-cache on CPU2
[    1.577062] GICv3: CPU2: found redistributor 200 region 0:0x00000000fe6c0000
[    1.577075] GICv3: CPU2: using allocated LPI pending table @0x00000003fc760000
[    1.577108] CPU2: Booted secondary processor 0x0000000200 [0x412fd050]
[    1.578234] Detected VIPT I-cache on CPU3
[    1.578252] GICv3: CPU3: found redistributor 300 region 0:0x00000000fe6e0000
[    1.578265] GICv3: CPU3: using allocated LPI pending table @0x00000003fc770000
[    1.578296] CPU3: Booted secondary processor 0x0000000300 [0x412fd050]
[    1.579407] CPU features: detected: Spectre-v4
[    1.579409] CPU features: detected: Spectre-BHB
[    1.579410] Detected PIPT I-cache on CPU4
[    1.579421] GICv3: CPU4: found redistributor 400 region 0:0x00000000fe700000
[    1.579429] GICv3: CPU4: using allocated LPI pending table @0x00000003fc780000
[    1.579450] CPU4: Booted secondary processor 0x0000000400 [0x414fd0b0]
[    1.580535] Detected PIPT I-cache on CPU5
[    1.580547] GICv3: CPU5: found redistributor 500 region 0:0x00000000fe720000
[    1.580554] GICv3: CPU5: using allocated LPI pending table @0x00000003fc790000
[    1.580576] CPU5: Booted secondary processor 0x0000000500 [0x414fd0b0]
[    1.581672] Detected PIPT I-cache on CPU6
[    1.581683] GICv3: CPU6: found redistributor 600 region 0:0x00000000fe740000
[    1.581691] GICv3: CPU6: using allocated LPI pending table @0x00000003fc7a0000
[    1.581712] CPU6: Booted secondary processor 0x0000000600 [0x414fd0b0]
[    1.582792] Detected PIPT I-cache on CPU7
[    1.582803] GICv3: CPU7: found redistributor 700 region 0:0x00000000fe760000
[    1.582811] GICv3: CPU7: using allocated LPI pending table @0x00000003fc7b0000
[    1.582832] CPU7: Booted secondary processor 0x0000000700 [0x414fd0b0]
[    1.582882] smp: Brought up 1 node, 8 CPUs
[    1.599981] SMP: Total of 8 processors activated.
[    1.600420] CPU features: detected: Privileged Access Never
[    1.600932] CPU features: detected: User Access Override
[    1.601420] CPU features: detected: 32-bit EL0 Support
[    1.601893] CPU features: detected: Common not Private translations
[    1.602468] CPU features: detected: RAS Extension Support
[    1.602964] CPU features: detected: Data cache clean to the PoU not required for I/D coherence
[    1.603759] CPU features: detected: CRC32 instructions
[    1.604231] CPU features: detected: Speculative Store Bypassing Safe (SSBS)
[    1.604871] CPU features: detected: RCpc load-acquire (LDAPR)
[    1.605465] CPU: All CPU(s) started at EL2
[    1.608236] devtmpfs: initialized
[    1.614715] Registered cp15_barrier emulation handler
[    1.615183] Registered setend emulation handler
[    1.615653] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 6370867519511994 ns
[    1.616552] futex hash table entries: 2048 (order: 5, 131072 bytes, linear)
[    1.617307] pinctrl core: initialized pinctrl subsystem
[    1.617947] DMI not present or invalid.
[    1.618463] NET: Registered protocol family 16
[    1.619629] DMA: preallocated 2048 KiB GFP_KERNEL pool for atomic allocations
[    1.620376] DMA: preallocated 2048 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[    1.621422] Registered FIQ tty driver
[    1.621848] thermal_sys: Registered thermal governor 'fair_share'
[    1.621850] thermal_sys: Registered thermal governor 'step_wise'
[    1.622406] thermal_sys: Registered thermal governor 'user_space'
[    1.622957] thermal_sys: Registered thermal governor 'power_allocator'
[    1.623609] thermal thermal_zone1: power_allocator: sustainable_power will be estimated
[    1.624960] thermal thermal_zone2: power_allocator: sustainable_power will be estimated
[    1.625709] thermal thermal_zone3: power_allocator: sustainable_power will be estimated
[    1.626459] thermal thermal_zone4: power_allocator: sustainable_power will be estimated
[    1.627208] thermal thermal_zone5: power_allocator: sustainable_power will be estimated
[    1.627959] thermal thermal_zone6: power_allocator: sustainable_power will be estimated
[    1.628702] cpuidle: using governor menu
[    1.629137] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[    1.629838] ASID allocator initialised with 65536 entries
[    1.631262] ramoops: dmesg-0 0x20000@0x0000000000110000
[    1.631824] ramoops: console 0x80000@0x0000000000130000
[    1.632307] ramoops: pmsg    0x50000@0x00000000001b0000
[    1.632975] printk: console [ramoops-1] enabled
[    1.633390] pstore: Registered ramoops as persistent store backend
[    1.633956] ramoops: using 0xf0000@0x110000, ecc: 0
[    1.663857] rockchip-gpio fd8a0000.gpio: probed /pinctrl/gpio@fd8a0000
[    1.664633] rockchip-gpio fec20000.gpio: probed /pinctrl/gpio@fec20000
[    1.665361] rockchip-gpio fec30000.gpio: probed /pinctrl/gpio@fec30000
[    1.666086] rockchip-gpio fec40000.gpio: probed /pinctrl/gpio@fec40000
[    1.666828] rockchip-gpio fec50000.gpio: probed /pinctrl/gpio@fec50000
[    1.667440] rockchip-pinctrl pinctrl: probed pinctrl
[    1.674312] fiq_debugger fiq_debugger.0: IRQ fiq not found
[    1.674819] fiq_debugger fiq_debugger.0: IRQ wakeup not found
[    1.675346] fiq_debugger_probe: could not install nmi irq handler
[[    1.675938] printk: console [ttyFIQ0] enabled
    1.675938] printk: console [ttyFIQ0] enabled
[    1.676719] printk: bootconsole [uart8250] disabled
[    1.676719] printk: bootconsole [uart8250] disabled
[    1.677243] Registered fiq debugger ttyFIQ0
[    1.677445] vcc5v0_sys: supplied by vcc12v_dcin
[    1.677520] vcc5v0_usbdcin: supplied by vcc12v_dcin
[    1.677589] vcc5v0_usb: supplied by vcc5v0_usbdcin
[    1.677714] vbus5v0_typec: supplied by vcc5v0_usb
[    1.677761] vcc_1v1_nldo_s3: supplied by vcc5v0_sys
[    1.677892] vcc3v3_pcie20: supplied by vcc12v_dcin
[    1.677961] vcc5v0_host: supplied by vcc5v0_usb
[    1.678160] iommu: Default domain type: Translated
[    1.680845] SCSI subsystem initialized
[    1.680900] usbcore: registered new interface driver usbfs
[    1.680911] usbcore: registered new interface driver hub
[    1.680922] usbcore: registered new device driver usb
[    1.680947] mc: Linux media interface: v0.10
[    1.680954] videodev: Linux video capture interface: v2.00
[    1.680971] pps_core: LinuxPPS API ver. 1 registered
[    1.680974] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[    1.680979] PTP clock support registered
[    1.681152] arm-scmi firmware:scmi: SCMI Notifications - Core Enabled.
[    1.681179] arm-scmi firmware:scmi: SCMI Protocol v2.0 'rockchip:' Firmware version 0x0
[    1.681928] Advanced Linux Sound Architecture Driver Initialized.
[    1.682058] Bluetooth: Core ver 2.22
[    1.682067] NET: Registered protocol family 31
[    1.682070] Bluetooth: HCI device and connection manager initialized
[    1.682073] Bluetooth: HCI socket layer initialized
[    1.682077] Bluetooth: L2CAP socket layer initialized
[    1.682083] Bluetooth: SCO socket layer initialized
[    1.683312] rockchip-cpuinfo cpuinfo: SoC            : 35880000
[    1.683317] rockchip-cpuinfo cpuinfo: Serial         : d161c0a0c1a02a57
[    1.683507] clocksource: Switched to clocksource arch_sys_counter
[    1.930904] NET: Registered protocol family 2
[    1.931073] IP idents hash table entries: 262144 (order: 9, 2097152 bytes, linear)
[    1.934721] tcp_listen_portaddr_hash hash table entries: 8192 (order: 5, 131072 bytes, linear)
[    1.934849] TCP established hash table entries: 131072 (order: 8, 1048576 bytes, linear)
[    1.935496] TCP bind hash table entries: 65536 (order: 8, 1048576 bytes, linear)
[    1.936141] TCP: Hash tables configured (established 131072 bind 65536)
[    1.936177] UDP hash table entries: 8192 (order: 6, 262144 bytes, linear)
[    1.936413] UDP-Lite hash table entries: 8192 (order: 6, 262144 bytes, linear)
[    1.936692] NET: Registered protocol family 1
[    1.936870] RPC: Registered named UNIX socket transport module.
[    1.936874] RPC: Registered udp transport module.
[    1.936877] RPC: Registered tcp transport module.
[    1.936879] RPC: Registered tcp NFSv4.1 backchannel transport module.
[    1.937149] PCI: CLS 0 bytes, default 64
[    1.937727] rockchip-thermal fec00000.tsadc: Missing rockchip,grf property
[    1.938114] rockchip-thermal fec00000.tsadc: tsadc is probed successfully!
[    1.938620] hw perfevents: enabled with armv8_pmuv3 PMU driver, 7 counters available
[    1.940237] Initialise system trusted keyrings
[    1.940285] workingset: timestamp_bits=62 max_order=22 bucket_order=0
[    1.941604] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    1.941763] NFS: Registering the id_resolver key type
[    1.941774] Key type id_resolver registered
[    1.941777] Key type id_legacy registered
[    1.941789] ntfs: driver 2.1.32 [Flags: R/O].
[    1.941846] jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
[    1.941934] fuse: init (API version 7.32)
[    1.942029] SGI XFS with security attributes, no debug enabled
[    1.962239] NET: Registered protocol family 38
[    1.962244] Key type asymmetric registered
[    1.962248] Asymmetric key parser 'x509' registered
[    1.962258] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 242)
[    1.962262] io scheduler mq-deadline registered
[    1.962265] io scheduler kyber registered
[    1.962625] rockchip-csi2-dphy-hw fedc0000.csi2-dphy0-hw: csi2 dphy hw probe successfully!
[    1.962784] rockchip-csi2-dphy csi2-dphy0: csi2 dphy0 probe successfully!
[    1.967444] rockchip-hdptx-phy-hdmi fed60000.hdmiphy: hdptx phy init success
[    1.968881] iep: Module initialized.
[    1.968906] mpp_service mpp-srv: unknown mpp version for missing VCS info
[    1.968910] mpp_service mpp-srv: probe start
[    1.969765] mpp_vdpu2 fdb50400.vdpu: Adding to iommu group 1
[    1.969930] mpp_vdpu2 fdb50400.vdpu: probe device
[    1.970003] mpp_vdpu2 fdb50400.vdpu: reset_group->rw_sem_on=0
[    1.970009] mpp_vdpu2 fdb50400.vdpu: reset_group->rw_sem_on=0
[    1.970067] mpp_vdpu2 fdb50400.vdpu: probing finish
[    1.970210] mpp_vepu2 jpege-ccu: probing start
[    1.970214] mpp_vepu2 jpege-ccu: probing finish
[    1.970283] mpp_vepu2 fdb50000.vepu: Adding to iommu group 1
[    1.970352] mpp_vepu2 fdb50000.vepu: probing start
[    1.970409] mpp_vepu2 fdb50000.vepu: reset_group->rw_sem_on=0
[    1.970414] mpp_vepu2 fdb50000.vepu: reset_group->rw_sem_on=0
[    1.970478] mpp_vepu2 fdb50000.vepu: probing finish
[    1.970562] mpp_vepu2 fdba0000.jpege-core: Adding to iommu group 5
[    1.970672] mpp_vepu2 fdba0000.jpege-core: probing start
[    1.970742] mpp_vepu2 fdba0000.jpege-core: attach ccu success
[    1.970801] mpp_vepu2 fdba0000.jpege-core: probing finish
[    1.970875] mpp_vepu2 fdba4000.jpege-core: Adding to iommu group 6
[    1.970985] mpp_vepu2 fdba4000.jpege-core: probing start
[    1.971050] mpp_vepu2 fdba4000.jpege-core: attach ccu success
[    1.971105] mpp_vepu2 fdba4000.jpege-core: probing finish
[    1.971179] mpp_vepu2 fdba8000.jpege-core: Adding to iommu group 7
[    1.971295] mpp_vepu2 fdba8000.jpege-core: probing start
[    1.971366] mpp_vepu2 fdba8000.jpege-core: attach ccu success
[    1.971421] mpp_vepu2 fdba8000.jpege-core: probing finish
[    1.971493] mpp_vepu2 fdbac000.jpege-core: Adding to iommu group 8
[    1.971610] mpp_vepu2 fdbac000.jpege-core: probing start
[    1.971675] mpp_vepu2 fdbac000.jpege-core: attach ccu success
[    1.971731] mpp_vepu2 fdbac000.jpege-core: probing finish
[    1.971918] mpp-iep2 fdbb0000.iep: Adding to iommu group 9
[    1.972029] mpp-iep2 fdbb0000.iep: probe device
[    1.972112] mpp-iep2 fdbb0000.iep: allocate roi buffer failed
[    1.972168] mpp-iep2 fdbb0000.iep: probing finish
[    1.972304] mpp_jpgdec fdb90000.jpegd: Adding to iommu group 4
[    1.972467] mpp_jpgdec fdb90000.jpegd: probe device
[    1.972597] mpp_jpgdec fdb90000.jpegd: probing finish
[    1.972874] mpp_rkvdec2 fdc30000.rkvdec-ccu: rkvdec-ccu, probing start
[    1.972913] mpp_rkvdec2 fdc30000.rkvdec-ccu: ccu-mode: 1
[    1.972915] mpp_rkvdec2 fdc30000.rkvdec-ccu: probing finish
[    1.972967] mpp_rkvdec2 fdc38100.rkvdec-core: Adding to iommu group 12
[    1.973167] mpp_rkvdec2 fdc38100.rkvdec-core: rkvdec-core, probing start
[    1.973243] mpp_rkvdec2 fdc38100.rkvdec-core: shared_niu_a is not found!
[    1.973246] rkvdec2_init:1022: No niu aclk reset resource define
[    1.973250] mpp_rkvdec2 fdc38100.rkvdec-core: shared_niu_h is not found!
[    1.973253] rkvdec2_init:1025: No niu hclk reset resource define
[    1.973267] mpp_rkvdec2 fdc38100.rkvdec-core: no regulator, devfreq is disabled
[    1.973300] mpp_rkvdec2 fdc38100.rkvdec-core: core_mask=00010001
[    1.973303] mpp_rkvdec2 fdc38100.rkvdec-core: attach ccu as core 0
[    1.973450] mpp_rkvdec2 fdc38100.rkvdec-core: sram_start 0x00000000ff001000
[    1.973453] mpp_rkvdec2 fdc38100.rkvdec-core: rcb_iova 0x00000000fff00000
[    1.973456] mpp_rkvdec2 fdc38100.rkvdec-core: sram_size 491520
[    1.973459] mpp_rkvdec2 fdc38100.rkvdec-core: rcb_size 1048576
[    1.973463] mpp_rkvdec2 fdc38100.rkvdec-core: min_width 512
[    1.973484] mpp_rkvdec2 fdc38100.rkvdec-core: probing finish
[    1.973537] mpp_rkvdec2 fdc48100.rkvdec-core: Adding to iommu group 13
[    1.973720] mpp_rkvdec2 fdc48100.rkvdec-core: rkvdec-core, probing start
[    1.973793] mpp_rkvdec2 fdc48100.rkvdec-core: shared_niu_a is not found!
[    1.973796] rkvdec2_init:1022: No niu aclk reset resource define
[    1.973800] mpp_rkvdec2 fdc48100.rkvdec-core: shared_niu_h is not found!
[    1.973803] rkvdec2_init:1025: No niu hclk reset resource define
[    1.973815] mpp_rkvdec2 fdc48100.rkvdec-core: no regulator, devfreq is disabled
[    1.973847] mpp_rkvdec2 fdc48100.rkvdec-core: core_mask=00020002
[    1.973862] mpp_rkvdec2 fdc48100.rkvdec-core: attach ccu as core 1
[    1.974009] mpp_rkvdec2 fdc48100.rkvdec-core: sram_start 0x00000000ff079000
[    1.974012] mpp_rkvdec2 fdc48100.rkvdec-core: rcb_iova 0x00000000ffe00000
[    1.974015] mpp_rkvdec2 fdc48100.rkvdec-core: sram_size 487424
[    1.974018] mpp_rkvdec2 fdc48100.rkvdec-core: rcb_size 1048576
[    1.974022] mpp_rkvdec2 fdc48100.rkvdec-core: min_width 512
[    1.974042] mpp_rkvdec2 fdc48100.rkvdec-core: probing finish
[    1.974187] mpp_rkvenc2 rkvenc-ccu: probing start
[    1.974191] mpp_rkvenc2 rkvenc-ccu: probing finish
[    1.974588] mpp_av1dec: Adding child /av1d@fdc70000
[    1.974751] mpp_av1dec: register device av1d-master
[    1.974764] mpp_av1dec av1d-master: av1_iommu_of_xlate,784
[    1.974777] av1_iommu_probe_device,736, consumer : av1d-master, supplier : fdca0000.iommu
[    1.974783] mpp_av1dec av1d-master: Adding to iommu group 17
[    1.974966] mpp_av1dec av1d-master: probing start
[    1.975105] mpp_av1dec av1d-master: probing finish
[    1.975128] mpp_service mpp-srv: probe success
[    1.980029] dma-pl330 fea10000.dma-controller: Loaded driver for PL330 DMAC-241330
[    1.980036] dma-pl330 fea10000.dma-controller:       DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[    1.980627] dma-pl330 fea30000.dma-controller: Loaded driver for PL330 DMAC-241330
[    1.980632] dma-pl330 fea30000.dma-controller:       DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[    1.981226] dma-pl330 fed10000.dma-controller: Loaded driver for PL330 DMAC-241330
[    1.981231] dma-pl330 fed10000.dma-controller:       DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[    1.981682] rockchip-pvtm fda40000.pvtm: pvtm@0 probed
[    1.981719] rockchip-pvtm fda50000.pvtm: pvtm@1 probed
[    1.981753] rockchip-pvtm fda60000.pvtm: pvtm@2 probed
[    1.981788] rockchip-pvtm fdaf0000.pvtm: pvtm@3 probed
[    1.981820] rockchip-pvtm fdb30000.pvtm: pvtm@4 probed
[    1.982160] rockchip-system-monitor rockchip-system-monitor: system monitor probe
[    1.982725] Serial: 8250/16550 driver, 10 ports, IRQ sharing disabled
[    1.983118] febb0000.serial: ttyS8 at MMIO 0xfebb0000 (irq = 90, base_baud = 1500000) is a 16550A
[    1.984002] random: crng init done
[    1.984565] rockchip-vop2 fdd90000.vop: Adding to iommu group 16
[    1.989542] rockchip-vop2 fdd90000.vop: [drm:vop2_bind] vp0 assign plane mask: 0x5, primary plane phy id: 2
[    1.989550] rockchip-vop2 fdd90000.vop: [drm:vop2_bind] vp1 assign plane mask: 0xa, primary plane phy id: 3
[    1.989555] rockchip-vop2 fdd90000.vop: [drm:vop2_bind] vp2 assign plane mask: 0x140, primary plane phy id: 8
[    1.989560] rockchip-vop2 fdd90000.vop: [drm:vop2_bind] vp3 assign plane mask: 0x280, primary plane phy id: 9
[    1.989727] [drm] failed to init overlay plane Cluster0-win1
[    1.989753] [drm] failed to init overlay plane Cluster1-win1
[    1.989777] [drm] failed to init overlay plane Cluster2-win1
[    1.989800] [drm] failed to init overlay plane Cluster3-win1
[    1.997220] rockchip-drm display-subsystem: bound fdd90000.vop (ops 0xffffffc0092bcb90)
[    1.997576] dwhdmi-rockchip fde80000.hdmi: registered ddc I2C bus driver
[    1.997814] rockchip-drm display-subsystem: bound fde80000.hdmi (ops 0xffffffc0092cb608)
[    2.103277] dwhdmi-rockchip fde80000.hdmi: use tmds mode
[    2.103306] dwhdmi-rockchip fde80000.hdmi: use tmds mode
[    2.228090] rockchip-drm display-subsystem: [drm] fb0: rockchipdrmfb frame buffer device
[    2.228468] [drm] Initialized rockchip 3.0.0 20140818 for display-subsystem on minor 0
[    2.233230] brd: module loaded
[    2.235383] loop: module loaded
[    2.235512] zram: Added device: zram0
[    2.235605] lkdtm: No crash points registered, enable through debugfs
[    2.235667] system_heap: orders[0] = 6
[    2.235670] system_heap: orders[1] = 4
[    2.235673] system_heap: orders[2] = 0
[    2.237193] rockchip-spi feb20000.spi: no high_speed pinctrl state
[    2.238020] rk806 spi2.0: chip id: RK806,ver:0x2, 0x1
[    2.238204] rk806 spi2.0: ON: 0x40 OFF:0x0
[    2.239556] vdd_gpu_s0: supplied by vcc5v0_sys
[    2.240612] vdd_cpu_lit_s0: supplied by vcc5v0_sys
[    2.241284] vdd_log_s0: supplied by vcc5v0_sys
[    2.241869] vdd_vdenc_s0: supplied by vcc5v0_sys
[    2.242440] vdd_ddr_s0: supplied by vcc5v0_sys
[    2.242746] vdd2_ddr_s3: supplied by vcc5v0_sys
[    2.243244] vdd_2v0_pldo_s3: supplied by vcc5v0_sys
[    2.243704] vcc_3v3_s3: supplied by vcc5v0_sys
[    2.244112] vddq_ddr_s0: supplied by vcc5v0_sys
[    2.244612] vcc_1v8_s3: supplied by vcc5v0_sys
[    2.245105] vdd_0v75_s3: supplied by vcc_1v1_nldo_s3
[    2.245582] vdd_ddr_pll_s0: supplied by vcc_1v1_nldo_s3
[    2.245945] avdd_0v75_s0: Bringing 750000uV into 837500-837500uV
[    2.246158] avdd_0v75_s0: supplied by vcc_1v1_nldo_s3
[    2.246576] vdd_0v85_s0: supplied by vcc_1v1_nldo_s3
[    2.246995] vdd_0v75_s0: supplied by vcc_1v1_nldo_s3
[    2.247538] avcc_1v8_s0: supplied by vdd_2v0_pldo_s3
[    2.248170] vcc_1v8_s0: supplied by vdd_2v0_pldo_s3
[    2.248731] avdd_1v2_s0: supplied by vdd_2v0_pldo_s3
[    2.249270] vcc_3v3_s0: supplied by vcc5v0_sys
[    2.249683] vccio_sd_s0: supplied by vcc5v0_sys
[    2.250132] pldo6_s3: supplied by vcc5v0_sys
[    2.250521] rk806 spi2.0: no sleep-setting state
[    2.250525] rk806 spi2.0: no reset-setting pinctrl state
[    2.250529] rk806 spi2.0: no dvs-setting pinctrl state
[    2.251680] rockchip-spi feb20000.spi: probed, poll=0, rsd=0
[    2.252898] usbcore: registered new interface driver rtl8150
[    2.252914] usbcore: registered new interface driver r8152
[    2.260273] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    2.260282] ehci-pci: EHCI PCI platform driver
[    2.260300] ehci-platform: EHCI generic platform driver
[    2.262487] ehci-platform fc800000.usb: EHCI Host Controller
[    2.262554] ehci-platform fc800000.usb: new USB bus registered, assigned bus number 1
[    2.262602] ehci-platform fc800000.usb: irq 20, io mem 0xfc800000
[    2.273513] ehci-platform fc800000.usb: USB 2.0 started, EHCI 1.00
[    2.273571] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
[    2.273576] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    2.273580] usb usb1: Product: EHCI Host Controller
[    2.273584] usb usb1: Manufacturer: Linux 5.10.160 ehci_hcd
[    2.273587] usb usb1: SerialNumber: fc800000.usb
[    2.273764] hub 1-0:1.0: USB hub found
[    2.273774] hub 1-0:1.0: 1 port detected
[    2.276014] ehci-platform fc880000.usb: EHCI Host Controller
[    2.276076] ehci-platform fc880000.usb: new USB bus registered, assigned bus number 2
[    2.276116] ehci-platform fc880000.usb: irq 22, io mem 0xfc880000
[    2.286845] ehci-platform fc880000.usb: USB 2.0 started, EHCI 1.00
[    2.286897] usb usb2: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
[    2.286902] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    2.286905] usb usb2: Product: EHCI Host Controller
[    2.286909] usb usb2: Manufacturer: Linux 5.10.160 ehci_hcd
[    2.286913] usb usb2: SerialNumber: fc880000.usb
[    2.287064] hub 2-0:1.0: USB hub found
[    2.287074] hub 2-0:1.0: 1 port detected
[    2.287318] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[    2.287325] ohci-platform: OHCI generic platform driver
[    2.287433] ohci-platform fc840000.usb: Generic Platform OHCI controller
[    2.287492] ohci-platform fc840000.usb: new USB bus registered, assigned bus number 3
[    2.287524] ohci-platform fc840000.usb: irq 21, io mem 0xfc840000
[    2.347563] usb usb3: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.10
[    2.347569] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    2.347573] usb usb3: Product: Generic Platform OHCI controller
[    2.347577] usb usb3: Manufacturer: Linux 5.10.160 ohci_hcd
[    2.347581] usb usb3: SerialNumber: fc840000.usb
[    2.347744] hub 3-0:1.0: USB hub found
[    2.347755] hub 3-0:1.0: 1 port detected
[    2.347920] ohci-platform fc8c0000.usb: Generic Platform OHCI controller
[    2.347982] ohci-platform fc8c0000.usb: new USB bus registered, assigned bus number 4
[    2.348012] ohci-platform fc8c0000.usb: irq 23, io mem 0xfc8c0000
[    2.407561] usb usb4: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.10
[    2.407566] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    2.407570] usb usb4: Product: Generic Platform OHCI controller
[    2.407574] usb usb4: Manufacturer: Linux 5.10.160 ohci_hcd
[    2.407578] usb usb4: SerialNumber: fc8c0000.usb
[    2.407729] hub 4-0:1.0: USB hub found
[    2.407739] hub 4-0:1.0: 1 port detected
[    2.408082] usbcore: registered new interface driver cdc_acm
[    2.408086] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[    2.408149] usbcore: registered new interface driver uas
[    2.408179] usbcore: registered new interface driver usb-storage
[    2.408204] usbcore: registered new interface driver usbserial_generic
[    2.408213] usbserial: USB Serial support registered for generic
[    2.408225] usbcore: registered new interface driver cp210x
[    2.408233] usbserial: USB Serial support registered for cp210x
[    2.408251] usbcore: registered new interface driver ftdi_sio
[    2.408258] usbserial: USB Serial support registered for FTDI USB Serial Device
[    2.408298] usbcore: registered new interface driver keyspan
[    2.408305] usbserial: USB Serial support registered for Keyspan - (without firmware)
[    2.408312] usbserial: USB Serial support registered for Keyspan 1 port adapter
[    2.408320] usbserial: USB Serial support registered for Keyspan 2 port adapter
[    2.408328] usbserial: USB Serial support registered for Keyspan 4 port adapter
[    2.408341] usbcore: registered new interface driver option
[    2.408348] usbserial: USB Serial support registered for GSM modem (1-port)
[    2.408404] usbcore: registered new interface driver oti6858
[    2.408411] usbserial: USB Serial support registered for oti6858
[    2.408423] usbcore: registered new interface driver pl2303
[    2.408430] usbserial: USB Serial support registered for pl2303
[    2.408444] usbcore: registered new interface driver qcserial
[    2.408451] usbserial: USB Serial support registered for Qualcomm USB modem
[    2.408468] usbcore: registered new interface driver sierra
[    2.408476] usbserial: USB Serial support registered for Sierra USB modem
[    2.408797] usbcore: registered new interface driver usbtouchscreen
[    2.408892] .. rk pwm remotectl v2.0 init
[    2.408974] input: fd8b0030.pwm as /devices/platform/fd8b0030.pwm/input/input0
[    2.409097] remotectl-pwm fd8b0030.pwm: pwm version is 0x2130000
[    2.409116] remotectl-pwm fd8b0030.pwm: Controller support pwrkey capture
[    2.410062] input: rk805 pwrkey as /devices/platform/feb20000.spi/spi_master/spi2/spi2.0/rk805-pwrkey.3.auto/input/input1
[    2.410256] i2c /dev entries driver
[    2.413535] vdd_cpu_big0_s0: supplied by vcc5v0_sys
[    2.421907] vdd_cpu_big1_s0: supplied by vcc5v0_sys
[    2.438766] rk860-regulator 1-0042: Failed to get chip ID!
[    2.451898] rkcifhw fdce0000.rkcif: Adding to iommu group 15
[    2.452439] rkcifhw fdce0000.rkcif: failed to get iclk_host0
[    2.452489] rkcifhw: probe of fdce0000.rkcif failed with error -2
[    2.453298] rockchip-mipi-csi2: probe success, v4l2_dev:(efault)!
[    2.453527] rockchip-mipi-csi2: probe success, v4l2_dev:(efault)!
[    2.454691] rkisp_hw fdcb0000.rkisp: Adding to iommu group 14
[    2.454871] rkisp_hw fdcb0000.rkisp: is_thunderboot: 0
[    2.454884] rkisp_hw fdcb0000.rkisp: max input:0x0@0fps
[    2.454894] rkisp_hw fdcb0000.rkisp: Missing rockchip,grf property
[    2.455057] rkisp_hw fdcb0000.rkisp: no find phandle sram
[    2.455398] rkisp rkisp0-vir0: rkisp driver version: v02.02.01
[    2.455516] rkisp rkisp0-vir0: No memory-region-thunderboot specified
[    2.455655] rkisp rkisp0-vir0: Entity type for entity rkisp-isp-subdev was not initialized!
[    2.456731] rkisp rkisp0-vir1: rkisp driver version: v02.02.01
[    2.456823] rkisp rkisp0-vir1: No memory-region-thunderboot specified
[    2.456947] rkisp rkisp0-vir1: Entity type for entity rkisp-isp-subdev was not initialized!
[    2.459116] usbcore: registered new interface driver uvcvideo
[    2.459126] USB Video Class driver (1.1.1)
[    2.460560] Bluetooth: HCI UART driver ver 2.3
[    2.460572] Bluetooth: HCI UART protocol H4 registered
[    2.460580] Bluetooth: HCI UART protocol ATH3K registered
[    2.460628] usbcore: registered new interface driver bfusb
[    2.460670] usbcore: registered new interface driver btusb
[    2.461756] cpu cpu0: bin=0
[    2.461945] cpu cpu0: leakage=10
[    2.463469] cpu cpu0: pvtm=1442
[    2.463650] cpu cpu0: pvtm-volt-sel=2
[    2.465615] cpu cpu4: bin=0
[    2.465786] cpu cpu4: leakage=8
[    2.472216] cpu cpu4: pvtm=1662
[    2.476101] cpu cpu4: pvtm-volt-sel=3
[    2.478697] cpu cpu6: bin=0
[    2.478866] cpu cpu6: leakage=8
[    2.485306] cpu cpu6: pvtm=1678
[    2.489204] cpu cpu6: pvtm-volt-sel=4
[    2.490616] cpu cpu0: avs=0
[    2.491143] cpu cpu4: avs=0
[    2.491663] cpu cpu6: avs=0
[    2.491845] cpu cpu0: EM: created perf domain
[    2.491872] cpu cpu0: l=10000 h=85000 hyst=5000 l_limit=0 h_limit=1608000000 h_table=0
[    2.492358] cpu cpu4: EM: created perf domain
[    2.492380] cpu cpu4: l=10000 h=85000 hyst=5000 l_limit=0 h_limit=2208000000 h_table=0
[    2.500666] cpu cpu6: EM: created perf domain
[    2.500966] cpu cpu6: l=10000 h=85000 hyst=5000 l_limit=0 h_limit=2208000000 h_table=0
[    2.511101] sdhci: Secure Digital Host Controller Interface driver
[    2.511135] sdhci: Copyright(c) Pierre Ossman
[    2.511143] Synopsys Designware Multimedia Card Interface Driver
[    2.511739] sdhci-pltfm: SDHCI platform and OF driver helper
[    2.513159] arm-scmi firmware:scmi: Failed. SCMI protocol 17 not active.
[    2.513233] SMCCC: SOC_ID: ARCH_SOC_ID not implemented, skipping ....
[    2.514383] cryptodev: driver 1.12 loaded.
[    2.514450] hid: raw HID events driver (C) Jiri Kosina
[    2.514772] usbcore: registered new interface driver usbhid
[    2.514782] usbhid: USB HID core driver
[    2.524842] optee: probing for conduit method.
[    2.524879] optee: revision 3.13 (7f1ea6d6)
[    2.525024] optee: dynamic shared memory is enabled
[    2.525150] optee: initialized driver
[    2.525526] usbcore: registered new interface driver snd-usb-audio
[    2.529510] rockchip-pinctrl pinctrl: pin gpio1-25 already requested by fec90000.i2c; cannot claim for fe4b0000.pdm
[    2.529531] rockchip-pinctrl pinctrl: pin-57 (fe4b0000.pdm) status -22
[    2.529538] rockchip-pinctrl pinctrl: could not request pin 57 (gpio1-25) from group pdm0m0-sdi1  on device rockchip-pinctrl
[    2.529544] rockchip-pdm fe4b0000.pdm: Error applying setting, reverse things back
[    2.529560] rockchip-pdm: probe of fe4b0000.pdm failed with error -22
[    2.531852] input: rockchip-hdmi0 rockchip-hdmi0 as /devices/platform/hdmi0-sound/sound/card0/input2
[    2.532600] Initializing XFRM netlink socket
[    2.532847] NET: Registered protocol family 10
[    2.533249] Segment Routing with IPv6
[    2.533283] NET: Registered protocol family 17
[    2.533295] NET: Registered protocol family 15
[    2.533406] Bluetooth: RFCOMM socket layer initialized
[    2.533418] Bluetooth: RFCOMM ver 1.11
[    2.533426] Bluetooth: HIDP (Human Interface Emulation) ver 1.2
[    2.533432] Bluetooth: HIDP socket layer initialized
[    2.533467] [BT_RFKILL]: Enter rfkill_rk_init
[    2.533472] [WLAN_RFKILL]: Enter rfkill_wlan_init
[    2.533757] Key type dns_resolver registered
[    2.534389] imx415 5-001a: driver version: 00.01.08
[    2.534400] imx415 5-001a:  Get hdr mode failed! no hdr default
[    2.534458] imx415 5-001a: could not get default pinstate
[    2.534464] imx415 5-001a: could not get sleep pinstate
[    2.534480] imx415 5-001a: supply dvdd not found, using dummy regulator
[    2.534550] imx415 5-001a: supply dovdd not found, using dummy regulator
[    2.534578] imx415 5-001a: supply avdd not found, using dummy regulator
[    2.549619] mmc0: SDHCI controller on fe2e0000.mmc [fe2e0000.mmc] using ADMA
[    2.582720] mmc0: Host Software Queue enabled
[    2.582742] mmc0: new HS400 Enhanced strobe MMC card at address 0001
[    2.583043] mmcblk0: mmc0:0001 Y2P128 116 GiB
[    2.583165] mmcblk0boot0: mmc0:0001 Y2P128 partition 1 4.00 MiB
[    2.583262] mmcblk0boot1: mmc0:0001 Y2P128 partition 2 4.00 MiB
[    2.583339] mmcblk0rpmb: mmc0:0001 Y2P128 partition 3 16.0 MiB, chardev (236:0)
[    2.586066]  mmcblk0: p1 p2 p3 p4 p5 p6 p7 p8
[    2.659641] vendor storage:20190527 ret = 0
[    2.696940] usb 4-1: new low-speed USB device number 2 using ohci-platform
[    2.703577] rk3x-i2c fead0000.i2c: timeout, ipd: 0x90, state: 3
[    2.703598] imx415 5-001a: Unexpected sensor id(000000), ret(-5)
[    2.703832] imx415 7-001a: driver version: 00.01.08
[    2.703841] imx415 7-001a:  Get hdr mode failed! no hdr default
[    2.703872] imx415 7-001a: Failed to get power-gpios
[    2.703878] imx415 7-001a: could not get default pinstate
[    2.703882] imx415 7-001a: could not get sleep pinstate
[    2.703898] imx415 7-001a: supply dvdd not found, using dummy regulator
[    2.703952] imx415 7-001a: supply dovdd not found, using dummy regulator
[    2.703978] imx415 7-001a: supply avdd not found, using dummy regulator
[    2.773054] imx415 7-001a: Unexpected sensor id(000000), ret(-5)
[    2.774215] Loading compiled-in X.509 certificates
[    2.775629] pstore: Using crash dump compression: deflate
[    2.776166] rga3_core0 fdb60000.rga: Adding to iommu group 2
[    2.776520] rga: rga3_core0, irq = 36, match scheduler
[    2.777334] rga: rga3_core0 hardware loaded successfully, hw_version:3.0.76831.
[    2.777377] rga: rga3_core0 probe successfully
[    2.778050] rga3_core1 fdb70000.rga: Adding to iommu group 3
[    2.778387] rga: rga3_core1, irq = 37, match scheduler
[    2.779119] rga: rga3_core1 hardware loaded successfully, hw_version:3.0.76831.
[    2.779160] rga: rga3_core1 probe successfully
[    2.779824] rga: rga2, irq = 38, match scheduler
[    2.780408] rga: rga2 hardware loaded successfully, hw_version:3.2.63318.
[    2.780432] rga: rga2 probe successfully
[    2.780795] rga_iommu: IOMMU binding successfully, default mapping core[0x1]
[    2.781077] rga: Module initialized. v1.2.26
[    2.807992] rockchip-pinctrl pinctrl: pin gpio1-25 already requested by fec90000.i2c; cannot claim for fe4b0000.pdm
[    2.808025] rockchip-pinctrl pinctrl: pin-57 (fe4b0000.pdm) status -22
[    2.808036] rockchip-pinctrl pinctrl: could not request pin 57 (gpio1-25) from group pdm0m0-sdi1  on device rockchip-pinctrl
[    2.808045] rockchip-pdm fe4b0000.pdm: Error applying setting, reverse things back
[    2.808073] rockchip-pdm: probe of fe4b0000.pdm failed with error -22
[    2.808090] mali fb000000.gpu: Kernel DDK version g17p0-01eac0
[    2.808883] combophy_avdd0v85: supplied by vdd_0v85_s0
[    2.808987] mali fb000000.gpu: bin=0
[    2.809181] mali fb000000.gpu: leakage=15
[    2.809230] debugfs: Directory 'fb000000.gpu-mali' with parent 'vdd_gpu_s0' already present!
[    2.809393] combophy_avdd1v8: supplied by avcc_1v8_s0
[    2.809984] vcc3v3_lcd_edp: supplied by vcc_3v3_s3
[    2.810702] mali fb000000.gpu: pvtm=895
[    2.810745] vcc_3v3_sd_s0: supplied by vcc_3v3_s3
[    2.811253] mali fb000000.gpu: pvtm-volt-sel=4
[    2.812246] mpp_rkvenc2 fdbd0000.rkvenc-core: Adding to iommu group 10
[    2.812298] mali fb000000.gpu: avs=0
[    2.812355] W : [File] : drivers/gpu/arm/bifrost/platform/rk/mali_kbase_config_rk.c; [Line] : 143; [Func] : kbase_platform_rk_init(); power-off-delay-ms not available.
[    2.812748] mpp_rkvenc2 fdbd0000.rkvenc-core: probing start
[    2.813005] mali fb000000.gpu: GPU hardware issue table may need updating:
[    2.813005] r0p0 status 5 is unknown; treating as r0p0 status 0
[    2.813023] mali fb000000.gpu: GPU identified as 0x7 arch 10.8.6 r0p0 status 0
[    2.813112] mali fb000000.gpu: No priority control manager is configured
[    2.813501] mali fb000000.gpu: No memory group manager is configured
[    2.813570] mali fb000000.gpu: Protected memory allocator not available
[    2.813628] mpp_rkvenc2 fdbd0000.rkvenc-core: failed to init_opp_table
[    2.813644] rkvenc_init:1814: failed to add venc devfreq
[    2.813735] mpp_rkvenc2 fdbd0000.rkvenc-core: attach ccu as core 0
[    2.814320] mpp_rkvenc2 fdbd0000.rkvenc-core: probing finish
[    2.814695] mpp_rkvenc2 fdbe0000.rkvenc-core: Adding to iommu group 11
[    2.814771] mali fb000000.gpu: Capping CSF_FIRMWARE_TIMEOUT to CSF_FIRMWARE_PING_TIMEOUT
[    2.815201] mpp_rkvenc2 fdbe0000.rkvenc-core: probing start
[    2.815331] mali fb000000.gpu: l=10000 h=85000 hyst=5000 l_limit=0 h_limit=800000000 h_table=0
[    2.830992] mpp_rkvenc2 fdbe0000.rkvenc-core: failed to init_opp_table
[    2.831026] rkvenc_init:1814: failed to add venc devfreq
[    2.831047] mali fb000000.gpu: Probed as mali0
[    2.831119] mpp_rkvenc2 fdbe0000.rkvenc-core: attach ccu as core 1
[    2.831580] mpp_rkvenc2 fdbe0000.rkvenc-core: probing finish
[    2.832205] rkcifhw fdce0000.rkcif: failed to get iclk_host0
[    2.832271] rkcifhw: probe of fdce0000.rkcif failed with error -2
[    2.854929] rockchip-dmc dmc: leakage=34
[    2.854959] rockchip-dmc dmc: leakage-volt-sel=1
[    2.855303] rockchip-dmc dmc: avs=0
[    2.855319] rockchip-dmc dmc: current ATF version 0x100
[    2.855407] rockchip-dmc dmc: normal_rate = 1560000000
[    2.855417] rockchip-dmc dmc: reboot_rate = 2112000000
[    2.855424] rockchip-dmc dmc: suspend_rate = 528000000
[    2.855431] rockchip-dmc dmc: video_4k_rate = 1560000000
[    2.855438] rockchip-dmc dmc: video_4k_10b_rate = 1560000000
[    2.855445] rockchip-dmc dmc: video_svep_rate = 1560000000
[    2.855452] rockchip-dmc dmc: boost_rate = 2112000000
[    2.855459] rockchip-dmc dmc: fixed_rate(isp|cif0|cif1|dualview) = 2112000000
[    2.855466] rockchip-dmc dmc: performance_rate = 2112000000
[    2.855474] rockchip-dmc dmc: hdmirx_rate = 2112000000
[    2.855483] rockchip-dmc dmc: failed to get vop bandwidth to dmc rate
[    2.855490] rockchip-dmc dmc: failed to get vop pn to msch rl
[    2.855593] rockchip-dmc dmc: l=10000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
[    2.857167] rockchip-dmc dmc: could not find power_model node
[    2.870009] rockchip-csi2-dphy csi2-dcphy0: csi2 dphy0 probe successfully!
[    2.871354] input: adc-keys as /devices/platform/adc-keys/input/input3
[    2.875269] dwmmc_rockchip fe2c0000.mmc: IDMAC supports 32-bit address mode.
[    2.875340] dwmmc_rockchip fe2c0000.mmc: Using internal DMA controller.
[    2.875364] dwmmc_rockchip fe2c0000.mmc: Version ID is 270a
[    2.875432] dwmmc_rockchip fe2c0000.mmc: DW MMC controller at irq 79,32 bit host data width,256 deep fifo
[    2.877652] cfg80211: Loading compiled-in X.509 certificates for regulatory database
[    2.881226] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
[    2.882066] platform regulatory.0: Direct firmware load for regulatory.db failed with error -2
[    2.882076] cfg80211: failed to load regulatory.db
[    2.882549] rockchip-pm rockchip-suspend: not set pwm-regulator-config
[    2.882568] rockchip-suspend not set sleep-mode-config for mem-lite
[    2.882574] rockchip-suspend not set wakeup-config for mem-lite
[    2.882584] rockchip-suspend not set sleep-mode-config for mem-ultra
[    2.882591] rockchip-suspend not set wakeup-config for mem-ultra
[    2.883886] I : [File] : drivers/gpu/arm/mali400/mali/linux/mali_kernel_linux.c; [Line] : 406; [Func] : mali_module_init(); svn_rev_string_from_arm of this mali_ko is '', rk_ko_ver is '5', built at '05:37:10', on 'Oct 21 2024'.
[    2.884233] Mali:
[    2.884236] Mali device driver loaded
[    2.884250] rkisp rkisp0-vir0: clear unready subdev num: 1
[    2.884557] rkisp0-vir0: Async subdev notifier completed
[    2.884593] rkisp rkisp0-vir1: clear unready subdev num: 1
[    2.884999] rkisp0-vir1: Async subdev notifier completed
[    2.885029] ALSA device list:
[    2.885050]   #0: rockchip-hdmi0
[    2.889782] mmc_host mmc1: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0)
[    2.912971] EXT4-fs (mmcblk0p6): mounted filesystem with ordered data mode. Opts: (null)
[    2.913013] VFS: Mounted root (ext4 filesystem) on device 179:6.
[    2.913376] devtmpfs: mounted
[    2.916284] Freeing unused kernel memory: 6592K
[    2.924560] usb 4-1: New USB device found, idVendor=10c4, idProduct=8105, bcdDevice= 0.00
[    2.924573] usb 4-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[    2.924580] usb 4-1: Product: USB OPTICAL MOUSE
[    2.924585] usb 4-1: Manufacturer: YSPRINGTECH
[    2.932000] input: YSPRINGTECH USB OPTICAL MOUSE as /devices/platform/fc8c0000.usb/usb4/4-1/4-1:1.0/0003:10C4:8105.0001/input/input4
[    2.940375] Run /sbin/init as init process
[    2.985182] EXT4-fs (mmcblk0p6): re-mounted. Opts: (null)
[    2.990401] hid-generic 0003:10C4:8105.0001: input,hidraw0: USB HID v1.11 Mouse [YSPRINGTECH USB OPTICAL MOUSE] on usb-fc8c0000.usb-1/input0
[    3.110606] EXT4-fs (mmcblk0p7): mounted filesystem with ordered data mode. Opts: (null)
[    3.122739] EXT4-fs (mmcblk0p8): recovery complete
[    3.123312] EXT4-fs (mmcblk0p8): mounted filesystem with ordered data mode. Opts: (null)
Starting syslogd: OK
Starting klogd: OK
Running sysctl: OK
Populating /dev using udev: [    4.637269] udevd[269]: starting version 3.2.10
[    4.651788] udevd[270]: starting eudev-3.2.10
done
Saving random seed: OK
Will now mount all partitions in /etc/fstab
Note: Will skip fsck, remove /.skip_fsck to enable
Handling /dev/block/by-name//dev/root / ext4 rw,noauto 1
Resizing /dev/mmcblk0p6(ext4)
resize2fs 1.46.5 (30-Dec-2021)
[    4.937591] EXT4-fs (mmcblk0p6): resizing filesystem from 279491 to 3670016 blocks
[    4.978035] EXT4-fs (mmcblk0p6): resized filesystem to 3670016
Filesystem at /dev/mmcblk0p6 is mounted on /; on-line resizing required
old_desc_blocks = 1, new_desc_blocks = 1
The filesystem on /dev/mmcblk0p6 is now 3670016 (4k) blocks long.

Handling /dev/block/by-name/tmpfs /tmp tmpfs mode=1777 0
Handling /dev/block/by-name/tmpfs /run tmpfs mode=0755,nosuid,nodev 0
Handling /dev/block/by-name/proc /proc proc defaults 0
Handling /dev/block/by-name/devtmpfs /dev devtmpfs defaults 0
Handling /dev/block/by-name/devpts /dev/pts devpts mode=0620,ptmxmode=0666,gid=5 0
Handling /dev/block/by-name/tmpfs /dev/shm tmpfs nosuid,nodev,noexec 0
Handling /dev/block/by-name/sysfs /sys sysfs defaults 0
Handling /dev/block/by-name/configfs /sys/kernel/config configfs defaults 0
Handling /dev/block/by-name/debugfs /sys/kernel/debug debugfs defaults 0
Handling /dev/block/by-name/pstore /sys/fs/pstore pstore defaults 0
Handling /dev/mmcblk0p7 /oem ext4 defaults 2
Mounting /dev/mmcblk0p7(ext4) on /oem with -o defaults
[    5.519089] EXT4-fs (mmcblk0p7): mounted filesystem with ordered data mode. Opts: (null)
Resizing /dev/mmcblk0p7(ext4)
resize2fs 1.46.5 (30-Dec-2021)
The filesystem is already 131072 (1k) blocks long.  Nothing to do!

Handling /dev/mmcblk0p8 /userdata ext4 defaults 2
Mounting /dev/mmcblk0p8(ext4) on /userdata with -o defaults
[    5.619735] EXT4-fs (mmcblk0p8): mounted filesystem with ordered data mode. Opts: (null)
Resizing /dev/mmcblk0p8(ext4)
resize2fs 1.46.5 (30-Dec-2021)
The filesystem is already 26770424 (4k) blocks long.  Nothing to do!

Log saved to /tmp/mount-all.log
Starting system message bus: done
wpa_supplicant.conf init
wpa_supplicant.conf init
load wifi modules: [    6.248111] bcmdhd: loading out-of-tree module taints kernel.
[    6.258512] [dhd] _dhd_module_init: in Dongle Host Driver, version 101.10.361.25 (wlan=r892223-20220929-2)
[    6.258512] /home/han/RK3588/rk3588_linux_release_v1.1.1_20230520/rk3588_v1.11/external/rkwifibt/drivers/bcmdhd compiled on Oct 30 2024 at 08:41:25
[    6.258512]
[    6.258574] [WLAN_RFKILL]: rockchip_wifi_get_oob_irq: Enter
[    6.258582] [WLAN_RFKILL]: rockchip_wifi_get_oob_irq: rfkill-wlan driver has not Successful initialized
[    6.258589] dhd_wlan_init_gpio: unknown oob irqflags !
[    6.258597] [dhd] dhd_wlan_init_gpio: WL_HOST_WAKE=-1, oob_irq=-1, oob_irq_flags=0x0
[    6.258604] [dhd] dhd_wlan_init_gpio: WL_REG_ON=-1
[    6.258611] [dhd] STATIC-MSG) dhd_static_buf_init : 101.10.361.25 (wlan=r892223-20220928-2)
[    6.258933] [dhd] STATIC-MSG) dhd_init_wlan_mem : prealloc ok for index 0: 8138752(7948K)
[    6.258942] [dhd] dhd_wifi_platform_load: Enter
[    6.258949] [dhd] Power-up adapter 'DHD generic adapter'
[    6.259046] [dhd] wifi_platform_set_power = 1, delay: 200 msec
[    6.259055] [dhd] ======== PULL WL_REG_ON(-1) HIGH! ========
[    6.259062] [WLAN_RFKILL]: rockchip_wifi_power: 1
[    6.259068] [WLAN_RFKILL]: rockchip_wifi_power: rfkill-wlan driver has not Successful initialized
[    6.563902] [dhd] wifi_platform_bus_enumerate device present 1
[    6.563940] [dhd] ======== Card detection to detect SDIO card! ========
[    8.657169] [dhd] failed to power up DHD generic adapter, 0 retry left
[    8.673426] [dhd] wifi_platform_set_power = 0, delay: 0 msec
[    8.673455] [dhd] ======== PULL WL_REG_ON(-1) LOW! ========
[    8.673464] [WLAN_RFKILL]: rockchip_wifi_power: 0
[    8.673472] [WLAN_RFKILL]: rockchip_wifi_power: rfkill-wlan driver has not Successful initialized
[    8.673481] [dhd] wifi_platform_bus_enumerate device present 0
[    8.673489] [dhd] ======== Card detection to remove SDIO card! ========
[    8.673497] [dhd] failed to power up DHD generic adapter, max retry reached**
[    8.673539] [dhd] unregister wifi platform drivers
[    8.673547] [dhd] wifi_platform_bus_enumerate device present 0
[    8.673553] [dhd] ======== Card detection to remove SDIO card! ========
[    8.673562] [dhd] STATIC-MSG) dhd_static_buf_exit : Enter
[    8.673926] [dhd] dhd_wlan_deinit_gpio: gpio_free(WL_HOST_WAKE 0)
[    8.673941] [dhd] _dhd_module_init: Failed to load the driver, try cnt 0
[    8.673963] [dhd] _dhd_module_init: Failed to load driver max retry reached**
[    8.673971] [dhd] _dhd_module_init: Exit err=-19
killall: brcm_patchram_plus1: no process killed
sh: line 1: /sys/class/rfkill/rfkill0/state: No such file or directory
sh: line 1: /proc/bluetooth/sleep/btwrite: No such file or directory
sh: line 1: /sys/class/rfkill/rfkill0/state: No such file or directory
sh: line 1: /proc/bluetooth/sleep/btwrite: No such file or directory
OK
###AMPAK FW Auto detection patch version = [v1.1 20161117]###
FW folder path = /system/etc/firmware
[   28.815303] of_dma_request_slave_channel: dma-names property of node '/proc_resetserial@febb0000' missing or empty
[   28.815363] dw-apb-uart febb0000.serial: failed to request DMA, use interrupt mode
wl: wl driver adapter not found
Starting bluetoothd: OK
Starting network: OK
Starting seatd: OK
Starting dhcpcd...
dhcpcd-9.4.1 starting
dev: loaded udev
forked to background, child pid 689
Starting ntpd: OK
starting weston... done.
Starting dropbear sshd: OK
Starting pulseaudio: OK
Starting /usr/bin/usbdevice start, log saved to /tmp/usbdevice.log
W: [pulseaudio] main.c: This program is not intended to be run as root (unless --system is specified).
W: [pulseaudio] authkey.c: Failed to open cookie file '/userdata/.pulse/.config/pulse/cookie': No such file or directory
W: [pulseaudio] authkey.c: Failed to load authentication key '/userdata/.pulse/.config/pulse/cookie': No such file or directory
W: [pulseaudio] authkey.c: Failed to open cookie file '/userdata/.pulse/.pulse-cookie': No such file or directory
W: [pulseaudio] authkey.c: Failed to load authentication key '/userdata/.pulse/.pulse-cookie': No such file or directory
Date: 1970-01-01 UTC
[00:00:27.607] weston 11.0.1
               https://wayland.freedesktop.org
               Bug reports to: https://gitlab.freedesktop.org/wayland/weston/issues/
               Build: 11.0.1
[00:00:27.609] Command line: /usr/bin/weston
[00:00:27.609] OS: Linux, 5.10.160, #1 SMP Mon Oct 21 05:32:59 PDT 2024, aarch64
E: [pulseaudio] module-rescue-streams.c: module-rescue-stream is obsolete and should no longer be loaded. Please remove it from your configuration.
[00:00:27.610] Flight recorder: enabled
[00:00:27.611] warning: XDG_RUNTIME_DIR "/var/run" is not configured
correctly.  Unix access mode must be 0700 (current mode is 0755),
and must be owned by the user UID 0 (current owner is UID 0).
Refer to your distribution on how to get it, or
http://www.freedesktop.org/wiki/Specifications/basedir-spec
on how to implement it.
/etc/xdg/weston/weston.ini.d/02-desktop.ini: "shell/locking" from "false" to "true"
[00:00:27.615] Using config file '/etc/xdg/weston/weston.ini'
[00:00:27.616] Output repaint window is -1 ms maximum.
[00:00:27.617] Loading module '/usr/lib/libweston-11/drm-backend.so'
W: [pulseaudio] server-lookup.c: Unable to contact D-Bus: org.freedesktop.DBus.Error.NotSupported: Using X11 for dbus-daemon autolaunch was disabled at compile time, set your DBUS_SESSION_BUS_ADDRESS instead
W: [pulseaudio] main.c: Unable to contact D-Bus: org.freedesktop.DBus.Error.NotSupported: Using X11 for dbus-daemon autolaunch was disabled at compile time, set your DBUS_SESSION_BUS_ADDRESS instead
[00:00:27.622] initializing drm backend
[00:00:27.622] Entering mirror mode.
[00:00:27.622] Trying libseat launcher...
[00:00:27.623] [libseat/libseat.c:73] Seat opened with backend 'seatd'
[00:00:27.623] [libseat/backend/seatd.c:228] Enabling seat
[00:00:27.624] libseat: session control granted
[00:00:27.625] using /dev/dri/card0
[00:00:27.625] DRM: does not support atomic modesetting
[00:00:27.625] DRM: does not support GBM modifiers
[00:00:27.626] DRM: supports picture aspect ratio
[00:00:27.628] Loading module '/usr/lib/libweston-11/gl-renderer.so'
arm_release_ver: g13p0-01eac0, rk_so_ver: 3
[   29.203572] mali fb000000.gpu: Loading Mali firmware 0x1010000
[   29.206695] mali fb000000.gpu: Mali firmware git_sha: a9b9d413d30169284dfbc5c68e8c65fdaeca28b7
[00:00:27.666] EGL version: 1.4 Valhall-"g13p0-01eac0"
[00:00:27.666] EGL vendor: ARM
[00:00:27.666] EGL client APIs: OpenGL_ES
[00:00:27.666] EGL features:
               EGL Wayland extension: yes
               context priority: yes
               buffer age: no
               partial update: yes
               swap buffers with damage: no
               configless context: yes
               surfaceless context: yes
               dmabuf support: modifiers
[00:00:27.687] GL version: OpenGL ES 3.2 v1.g13p0-01eac0.11addb9882ee8209dc0912af75110af7
[00:00:27.688] GLSL version: OpenGL ES GLSL ES 3.20
[00:00:27.688] GL vendor: ARM
[00:00:27.688] GL renderer: Mali-G610
[   29.263166] file system registered
[   29.302751] read descriptors
[   29.302800] read strings
[00:00:27.821] GL ES 3.2 - renderer features:
               read-back format: ARGB8888
               wl_shm 10 bpc formats: yes
               wl_shm 16 bpc formats: no
               wl_shm half-float formats: yes
               internal R and RG formats: yes
               OES_EGL_image_external: yes
               wl_shm sub-image to texture: yes
[00:00:27.836] event3  - adc-keys: is tagged by udev as: Keyboard
[00:00:27.836] event3  - adc-keys: device is a keyboard
[00:00:27.839] event4  - YSPRINGTECH USB OPTICAL MOUSE: is tagged by udev as: Mouse
[00:00:27.839] event4  - YSPRINGTECH USB OPTICAL MOUSE: device is a pointer
[00:00:27.841] event0  - fd8b0030.pwm: is tagged by udev as: Keyboard
[00:00:27.841] event0  - fd8b0030.pwm: device is a keyboard
[00:00:27.843] event1  - rk805 pwrkey: is tagged by udev as: Keyboard
[00:00:27.843] event1  - rk805 pwrkey: device is a keyboard
Starting dnsmasq: [00:00:27.845] event2  - rockchip-hdmi0 rockchip-hdmi0: is tagged by udev as: Switch
OK
Starting input-event-daemon: [00:00:27.910] event2  - not using input device '/dev/input/event2'
done
root@rk3588s-buildroot:/# [   29.495639] android_work: did not send uevent (0 0 0000000000000000)
[00:00:27.950] libinput: configuring device "adc-keys".
[00:00:27.950] libinput: configuring device "YSPRINGTECH USB OPTICAL MOUSE".
[00:00:27.951] libinput: configuring device "fd8b0030.pwm".
[00:00:27.951] libinput: configuring device "rk805 pwrkey".
[00:00:28.101] DRM: head 'HDMI-A-1' updated, connector 205 is connected, EDID make 'XMI', model 'Redmi 27 NF', serial '308780026525'
               Supported EOTF modes: SDR
[00:00:28.102] DRM: head 'HDMI-A-1' found, connector 205 is connected, EDID make 'XMI', model 'Redmi 27 NF', serial '308780026525'
               Supported EOTF modes: SDR
[00:00:28.104] Registered plugin API 'weston_drm_output_api_v1' of size 32
[00:00:28.104] Color manager: no-op
[00:00:28.104] Output 'HDMI-A-1' attempts EOTF mode: SDR
[00:00:28.105] Output 'HDMI-A-1' using color profile: built-in default sRGB SDR profile
[00:00:28.106] Chosen EGL config details: id:   9 rgba: 8 8 8 0 buf: 24 dep:  0 stcl: 0 int: 0-1 type: win|pbf|swap_preserved vis_id: XRGB8888 (0x34325258)
[00:00:28.107] Initialized backlight for head 'HDMI-A-1', device /sys/class/backlight/backlight
[00:00:28.108] Output HDMI-A-1 (crtc 68) video modes:
               1920x1080@60.0, preferred, current, 148.5 MHz
               1920x1080@75.0, 178.9 MHz
               1920x1080@60.0 16:9, 148.5 MHz
               1920x1080@59.9 16:9, 148.4 MHz
               1920x1080i@60.0 16:9, 74.2 MHz
               1920x1080i@59.9 16:9, 74.2 MHz
               1920x1080@50.0 16:9, 148.5 MHz
               1920x1080i@50.0 16:9, 74.2 MHz
               1680x1050@59.9, 119.0 MHz
               1600x900@60.0, 108.0 MHz
               1280x1024@75.0, 135.0 MHz
               1280x1024@60.0, 108.0 MHz
               1440x900@75.0, 136.8 MHz
               1440x900@59.9, 88.8 MHz
               1366x768@59.8, 85.5 MHz
               1280x800@59.9, 71.0 MHz
               1152x864@75.0, 108.0 MHz
               1280x768@59.9, 79.5 MHz
               1280x720@60.0, 74.2 MHz
               1280x720@60.0 16:9, 74.2 MHz
               1280x720@59.9 16:9, 74.2 MHz
               1280x720@50.0 16:9, 74.2 MHz
               1024x768@75.0, 78.8 MHz
               1024x768@70.1, 75.0 MHz
               1024x768@60.0, 65.0 MHz
               800x600@75.0, 49.5 MHz
               800x600@72.2, 50.0 MHz
               800x600@60.3, 40.0 MHz
               720x576@50.0 16:9, 27.0 MHz
               720x480@60.0 16:9, 27.0 MHz
               720x480@59.9 16:9, 27.0 MHz
               640x480@75.0, 31.5 MHz
               640x480@72.8, 31.5 MHz
               640x480@66.7, 30.2 MHz
               640x480@60.0 4:3, 25.2 MHz
               640x480@59.9, 25.2 MHz
               640x480@59.9 4:3, 25.2 MHz
               720x400@70.1, 28.3 MHz
[00:00:28.120] associating input device event3 with output HDMI-A-1 (none by udev)
[00:00:28.121] associating input device event4 with output HDMI-A-1 (none by udev)
[00:00:28.122] associating input device event0 with output HDMI-A-1 (none by udev)
[00:00:28.122] associating input device event1 with output HDMI-A-1 (none by udev)
[00:00:28.123] Output 'HDMI-A-1' enabled with head(s) HDMI-A-1
[00:00:28.123] Compositor capabilities:
               arbitrary surface rotation: yes
               screen capture uses y-flip: yes
               cursor planes: yes
               arbitrary resolutions: no
               view mask clipping: yes
               explicit sync: yes
               color operations: yes
               presentation clock: CLOCK_MONOTONIC, id 1
               presentation clock resolution: 0.000000001 s
[00:00:28.135] Loading module '/usr/lib/weston/desktop-shell.so'
[00:00:28.138] launching '/usr/libexec/weston-keyboard'
[00:00:28.143] launching '/usr/libexec/weston-desktop-shell'
[   29.755585] dwhdmi-rockchip fde80000.hdmi: use tmds mode
/etc/xdg/weston/weston.ini.d/02-desktop.ini: "shell/locking" from "false" to "true"
[   29.768627] dwhdmi-rockchip fde80000.hdmi: use tmds mode
/etc/xdg/weston/weston.ini.d/02-desktop.ini: "shell/locking" from "false" to "true"
/etc/xdg/weston/weston.ini.d/02-desktop.ini: "shell/locking" from "false" to "true"
could not load cursor 'dnd-move'
could not load cursor 'dnd-move'
could not load cursor 'dnd-copy'
could not load cursor 'dnd-copy'
could not load cursor 'dnd-none'
could not load cursor 'dnd-none'
xkbcommon: ERROR: couldn't find a Compose file for locale "en_US.UTF-8" (mapped to "en_US.UTF-8")
could not create XKB compose table for locale 'en_US.UTF-8'.  Disabiling compose
xkbcommon: ERROR: couldn't find a Compose file for locale "en_US.UTF-8" (mapped to "en_US.UTF-8")
could not create XKB compose table for locale 'en_US.UTF-8'.  Disabiling compose
[   30.790547] Freeing drm_logo memory: 736K

root@rk3588s-buildroot:/#
root@rk3588s-buildroot:/#
root@rk3588s-buildroot:/# [   33.617542] vcc3v3_lcd_edp: disabling

7、显示器显示正常

启动过程

播放视频，动态图，3D图等

RK3588 HDMI TX输出显示

8、欢迎讨论交流，以及项目合作。可以定制设计RK3588板卡，以及与FPGA视频交互处理等。
