《机器学习实战》KNN算法实现

---

本系列都是参考《机器学习实战》这本书，只对学习过程一个记录，不做详细的描述！

注释：看了一段时间Ng的机器学习视频，感觉不能光看不练，现在一边练习再一边去学习理论！

KNN很早就之前就看过也记录过，在此不做更多说明，这是k-means之前的记录，感觉差不多：http://www.cnblogs.com/wjy-lulu/p/7002688.html

1.简单的分类

代码：

 1 import numpy as np
 2 import operator
 3 import KNN
 4
 5 def classify0(inX,dataSet,labels,k):
 6      dataSetSize = dataSet.shape[0] #样本个数
 7      diffMat = np.tile(inX,(dataSetSize,1)) - dataSet#样本每个值和测试数据做差
 8      sqDiffMat = diffMat**2#平方
 9      sqDistances = sqDiffMat.sum(axis=1)#第二维度求和，也就是列
10      distances = sqDistances**0.5#平方根
11      sortedDistIndicies = distances.argsort()#下标排序
12      classCount = {}
13
14      for i in range(k):
15           voteIlabel = labels[sortedDistIndicies[i]]#得到距离最近的几个数
16           classCount[voteIlabel] = classCount.get(voteIlabel,0)+1#标签计数
17      sortedClassCount = sorted(classCount.items(),key=operator.itemgetter(1),reverse=True)#按照数值排序operator.itemgetter(1)代表第二个域
18      #上面排序之后就不是字典了，而是一个列表里面包含的元组[('c',2),('a',3)]
19      return sortedClassCount[0][0]
20
21 if __name__ == '__main__':
22      group,labels = KNN.createDataSet()
23      result = classify0([0,0.5],group,labels,1)
24      print (result)

KNN.Py文件

1 import numpy as np
2 import operator
3
4
5 def createDataSet():
6     group = np.array([[1.0, 1.1], [1.0, 1.0], [0, 0], [0, 0.1]])
7     labels = ['A', 'B', 'C', 'D']
8     return group, labels

2.约会网站的预测

　　下面给出每个部分的代码和注释：

A.文本文件转换为可用数据

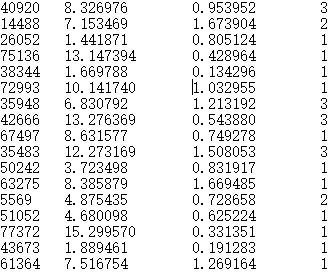

上面的文本中有空格和换行，而且样本和标签都在一起，必须的分开处理成矩阵才可以进行下一步操作。

 1 def file2matrix(filename):#把文件转化为可操作数据
 2     fr = open(filename)#打开文件
 3     arrayOLines = fr.readlines()#读取每行文件
 4     numberOfLines = len(arrayOLines)#行数量
 5     returnMat = np.zeros([numberOfLines,3])#存储数据
 6     classLabelVector = []
 7     index = 0
 8     for line in arrayOLines:
 9         line = line.strip()#去除换行符
10         listFromLine = line.split('\t')#按照空格去分割
11         returnMat[index,:] = listFromLine[0:3]#样本
12         classLabelVector.append(int(listFromLine[-1]))#labels
13         index += 1
14     return returnMat,classLabelVector#返回数据和标签

 B.归一化

数据大小差异太明显，比如有三个特征：a=[1,2,3],b=[1000,2000,3000],c=[0.1,0.2,0.3],我们发现c和a根本没啥作用，因为b的值太大了，或者说b的权重太大了，Ng中可以用惩罚系数去操作，或者正则化都可以处理这类数据，当然这是题外话。

 1 def autoNorm(dataSet):#归一化函数
 2     #每列的最值
 3     minValue = dataSet.min(0)
 4     maxValue = dataSet.max(0)
 5     range = maxValue - minValue
 6     #创建最小值矩阵
 7     midData =  np.tile(minValue,[dataSet.shape[0],1])
 8     dataSet = dataSet - midData
 9     #创建range矩阵
10     range = np.tile(range,[dataSet.shape[0],1])
11     dataSet = dataSet / range #直接相除不是矩阵相除
12     return dataSet,minValue,maxValue

C.预测

KNN的方法就是距离，计算K个距离，然后排序看哪个占得比重大就选哪个类。

 1 def classify0(inX, dataSet, labels, k):#核心分类程序
 2     dataSetSize = dataSet.shape[0]  # 样本个数
 3     diffMat = np.tile(inX, (dataSetSize, 1)) - dataSet  # 样本每个值和测试数据做差
 4     sqDiffMat = diffMat ** 2  # 平方
 5     sqDistances = sqDiffMat.sum(axis=1)  # 第二维度求和，也就是列
 6     distances = sqDistances ** 0.5  # 平方根
 7     sortedDistIndicies = distances.argsort()  # 下标排序
 8     classCount = {}
 9
10     for i in range(k):
11         voteIlabel = labels[sortedDistIndicies[i]]  # 得到距离最近的几个数
12         classCount[voteIlabel] = classCount.get(voteIlabel, 0) + 1  # 标签计数
13     sortedClassCount = sorted(classCount.items(), key=operator.itemgetter(1),
14                               reverse=True)  # 按照数值排序operator.itemgetter(1)代表第二个域
15     # 上面排序之后就不是字典了，而是一个列表里面包含的元组[('c',2),('a',3)]
16     return sortedClassCount[0][0]

D.性能测试

比如1000个数据，900个用做样本，100用做测试，看看精确度是多少?

 1 def datingClassTest():
 2     hoRatio = 0.2
 3     datingDataMat , datingLabels = file2matrix('datingTestSet2.txt')
 4     normMat = autoNorm(datingDataMat)
 5     n = normMat.shape[0]
 6     numTestVecs = int(n*hoRatio)#测试数据和样本数据的分割点
 7     erroCount = 0.0
 8     #numTestVecs:n样本，[i,numTestVecs]测试
 9     for i in range(numTestVecs):
10         classfiResult = classify0(normMat[i,:],normMat[numTestVecs:n,:],
11                                   datingLabels[numTestVecs:n],3)
12         if (classfiResult!=datingLabels[i]): erroCount+=1.0
13     print ("the totle error os: %f" %(erroCount/float(numTestVecs)))

 E.实战分类

注意输入的数据也得归一化

 1 def classfiPerson():
 2     resultList = ['not at all','in small doses','in large doses']
 3     personTats = float(input('please input video game \n'))
 4     ffMiles = float(input('please input flier miles \n'))
 5     iceCream = float(input('please input ice cream \n'))
 6     datingData,datingLabels = file2matrix('datingTestSet2.txt')
 7     normData,minData,maxData = autoNorm(datingData)
 8     inputData = np.array([personTats,ffMiles,iceCream])#转化为矩阵
 9     inputData = (inputData - minData)/(maxData - minData)#输入归一化
10     result = classify0(inputData,normData,datingLabels,3)
11     print('等级是：',result)

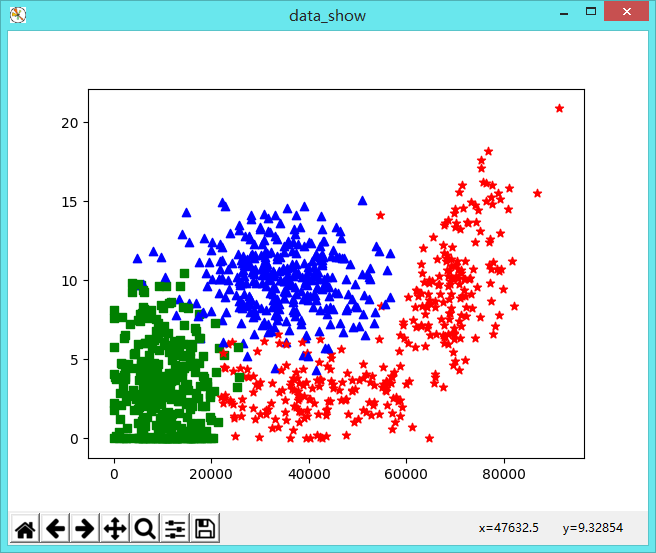

F.可视化显示

 1      datingDatas, datingLabels = KNN.file2matrix('datingTestSet2.txt')
 2      #可视化样本数据显示
 3      fig = plt.figure('data_show')
 4      ax = fig.add_subplot(111)
 5      for i in range(datingDatas.shape[0]):
 6           if datingLabels[i]==1:
 7                ax.scatter(datingDatas[i, 0], datingDatas[i, 1], marker="*",c='r')  # 用后两个特征绘图
 8
 9           if datingLabels[i]==2:
10                ax.scatter(datingDatas[i, 0], datingDatas[i, 1], marker="s", c='g')  # 用后两个特征绘图
11
12           if datingLabels[i]==3:
13                ax.scatter(datingDatas[i, 0], datingDatas[i, 1], marker="^", c='b')  # 用后两个特征绘图
14      plt.show()

G.完整代码

 1 import numpy as np
 2 import operator
 3 #from numpy import *
 4
 5 def createDataSet():#创建简单测试的几个数
 6     group = np.array([[1.0, 1.1], [1.0, 1.0], [0, 0], [0, 0.1]])
 7     labels = ['A', 'B', 'C', 'D']
 8     return group, labels
 9
10 def autoNorm(dataSet):#归一化函数
11     #每列的最值
12     minValue = dataSet.min(0)
13     maxValue = dataSet.max(0)
14     range = maxValue - minValue
15     #创建最小值矩阵
16     midData =  np.tile(minValue,[dataSet.shape[0],1])
17     dataSet = dataSet - midData
18     #创建range矩阵
19     range = np.tile(range,[dataSet.shape[0],1])
20     dataSet = dataSet / range #直接相除不是矩阵相除
21     return dataSet,minValue,maxValue
22
23 def file2matrix(filename):#把文件转化为可操作数据
24     fr = open(filename)#打开文件
25     arrayOLines = fr.readlines()#读取每行文件
26     numberOfLines = len(arrayOLines)#行数量
27     returnMat = np.zeros([numberOfLines,3])#存储数据
28     classLabelVector = []
29     index = 0
30     for line in arrayOLines:
31         line = line.strip()#去除换行符
32         listFromLine = line.split('\t')#按照空格去分割
33         returnMat[index,:] = listFromLine[0:3]#样本
34         classLabelVector.append(int(listFromLine[-1]))#labels
35         index += 1
36     return returnMat,classLabelVector#返回数据和标签
37
38 def classify0(inX, dataSet, labels, k):#核心分类程序
39     dataSetSize = dataSet.shape[0]  # 样本个数
40     diffMat = np.tile(inX, (dataSetSize, 1)) - dataSet  # 样本每个值和测试数据做差
41     sqDiffMat = diffMat ** 2  # 平方
42     sqDistances = sqDiffMat.sum(axis=1)  # 第二维度求和，也就是列
43     distances = sqDistances ** 0.5  # 平方根
44     sortedDistIndicies = distances.argsort()  # 下标排序
45     classCount = {}
46
47     for i in range(k):
48         voteIlabel = labels[sortedDistIndicies[i]]  # 得到距离最近的几个数
49         classCount[voteIlabel] = classCount.get(voteIlabel, 0) + 1  # 标签计数
50     sortedClassCount = sorted(classCount.items(), key=operator.itemgetter(1),
51                               reverse=True)  # 按照数值排序operator.itemgetter(1)代表第二个域
52     # 上面排序之后就不是字典了，而是一个列表里面包含的元组[('c',2),('a',3)]
53     return sortedClassCount[0][0]
54
55 def datingClassTest():
56     hoRatio = 0.2
57     datingDataMat , datingLabels = file2matrix('datingTestSet2.txt')
58     normMat = autoNorm(datingDataMat)
59     n = normMat.shape[0]
60     numTestVecs = int(n*hoRatio)#测试数据和样本数据的分割点
61     erroCount = 0.0
62     #numTestVecs:n样本，[i,numTestVecs]测试
63     for i in range(numTestVecs):
64         classfiResult = classify0(normMat[i,:],normMat[numTestVecs:n,:],
65                                   datingLabels[numTestVecs:n],3)
66         if (classfiResult!=datingLabels[i]): erroCount+=1.0
67     print ("the totle error os: %f" %(erroCount/float(numTestVecs)))
68
69 def classfiPerson():
70     resultList = ['not at all','in small doses','in large doses']
71     personTats = float(input('please input video game \n'))
72     ffMiles = float(input('please input flier miles \n'))
73     iceCream = float(input('please input ice cream \n'))
74     datingData,datingLabels = file2matrix('datingTestSet2.txt')
75     normData,minData,maxData = autoNorm(datingData)
76     inputData = np.array([personTats,ffMiles,iceCream])#转化为矩阵
77     inputData = (inputData - minData)/(maxData - minData)#输入归一化
78     result = classify0(inputData,normData,datingLabels,3)
79     print('等级是：',result)

3.手写数字识别

 A.转换文件

 1 def img2vector(filename):
 2     returnVector = np.zeros([32,32])
 3     fr = open(filename)
 4     lineData = fr.readlines()
 5     count = 0
 6     for line in lineData:
 7         line = line.strip()#去除换行符
 8         for j in range(len(line)):
 9             returnVector[count,j] = line[j]
10         count += 1
11     returnVector = returnVector.reshape(1,1024).astype(int)#转化为1X1024
12     return returnVector

B.识别分类

 1 def handWriteringClassTest():
 2     #--------------------------读取数据---------------------------------
 3     hwLabels = []
 4     trainingFileList = os.listdir('trainingDigits')#获取文件目录
 5     m = len(trainingFileList)#获取目录个数
 6     trainingMat = np.zeros([m,1024])#全部样本
 7     for i in range(m):
 8         fileNameStr = trainingFileList[i]
 9         fileStr = fileNameStr.split('.')[0]#得到不带格式的文件名
10         classNumStr = int(fileStr.split('_')[0])#得到最前面的数字类别0-9
11         hwLabels.append(classNumStr)#存储
12         dirList = 'trainingDigits/' + fileNameStr#绝对目录信息
13         vectorUnderTest = img2vector(dirList)#读取第i个数据信息
14         trainingMat[i,:] = vectorUnderTest #存储
15     #--------------------------测试数据--------------------------------
16     testFileList = os.listdir('testDigits')
17     errorCount = 0.0
18     m = len(testFileList)
19     for i in range(m):
20         fileNameStr = testFileList[i]
21         fileInt = fileNameStr.split('.')[0].split('_')[0]
22         dirList = 'testDigits/' + fileNameStr  # 绝对目录信息
23         vectorUnderTest = img2vector(dirList)  # 读取第i个数据信息
24         if int(fileInt) != int(classify0(vectorUnderTest,trainingMat,hwLabels,3)):
25             errorCount += 1
26     print('error count is : ',errorCount)
27     print('error Rate is : ', (errorCount/m))

C.完整代码

  1 import numpy as np
  2 import operator
  3 import os
  4 #from numpy import *
  5
  6 def createDataSet():#创建简单测试的几个数
  7     group = np.array([[1.0, 1.1], [1.0, 1.0], [0, 0], [0, 0.1]])
  8     labels = ['A', 'B', 'C', 'D']
  9     return group, labels
 10
 11 def autoNorm(dataSet):#归一化函数
 12     #每列的最值
 13     minValue = dataSet.min(0)
 14     maxValue = dataSet.max(0)
 15     range = maxValue - minValue
 16     #创建最小值矩阵
 17     midData =  np.tile(minValue,[dataSet.shape[0],1])
 18     dataSet = dataSet - midData
 19     #创建range矩阵
 20     range = np.tile(range,[dataSet.shape[0],1])
 21     dataSet = dataSet / range #直接相除不是矩阵相除
 22     return dataSet,minValue,maxValue
 23
 24 def file2matrix(filename):#把文件转化为可操作数据
 25     fr = open(filename)#打开文件
 26     arrayOLines = fr.readlines()#读取每行文件
 27     numberOfLines = len(arrayOLines)#行数量
 28     returnMat = np.zeros([numberOfLines,3])#存储数据
 29     classLabelVector = []
 30     index = 0
 31     for line in arrayOLines:
 32         line = line.strip()#去除换行符
 33         listFromLine = line.split('\t')#按照空格去分割
 34         returnMat[index,:] = listFromLine[0:3]#样本
 35         classLabelVector.append(int(listFromLine[-1]))#labels
 36         index += 1
 37     return returnMat,classLabelVector#返回数据和标签
 38
 39 def classify0(inX, dataSet, labels, k):#核心分类程序
 40     dataSetSize = dataSet.shape[0]  # 样本个数
 41     diffMat = np.tile(inX, (dataSetSize, 1)) - dataSet  # 样本每个值和测试数据做差
 42     sqDiffMat = diffMat ** 2  # 平方
 43     sqDistances = sqDiffMat.sum(axis=1)  # 第二维度求和，也就是列
 44     distances = sqDistances ** 0.5  # 平方根
 45     sortedDistIndicies = distances.argsort()  # 下标排序
 46     classCount = {}
 47
 48     for i in range(k):
 49         voteIlabel = labels[sortedDistIndicies[i]]  # 得到距离最近的几个数
 50         classCount[voteIlabel] = classCount.get(voteIlabel, 0) + 1  # 标签计数
 51     sortedClassCount = sorted(classCount.items(), key=operator.itemgetter(1),
 52                               reverse=True)  # 按照数值排序operator.itemgetter(1)代表第二个域
 53     # 上面排序之后就不是字典了，而是一个列表里面包含的元组[('c',2),('a',3)]
 54     return sortedClassCount[0][0]
 55
 56 def datingClassTest():
 57     hoRatio = 0.2
 58     datingDataMat , datingLabels = file2matrix('datingTestSet2.txt')
 59     normMat = autoNorm(datingDataMat)
 60     n = normMat.shape[0]
 61     numTestVecs = int(n*hoRatio)#测试数据和样本数据的分割点
 62     erroCount = 0.0
 63     #numTestVecs:n样本，[i,numTestVecs]测试
 64     for i in range(numTestVecs):
 65         classfiResult = classify0(normMat[i,:],normMat[numTestVecs:n,:],
 66                                   datingLabels[numTestVecs:n],3)
 67         if (classfiResult!=datingLabels[i]): erroCount+=1.0
 68     print ("the totle error os: %f" %(erroCount/float(numTestVecs)))
 69
 70 def classfiPerson():
 71     resultList = ['not at all','in small doses','in large doses']
 72     personTats = float(input('please input video game \n'))
 73     ffMiles = float(input('please input flier miles \n'))
 74     iceCream = float(input('please input ice cream \n'))
 75     datingData,datingLabels = file2matrix('datingTestSet2.txt')
 76     normData,minData,maxData = autoNorm(datingData)
 77     inputData = np.array([personTats,ffMiles,iceCream])#转化为矩阵
 78     inputData = (inputData - minData)/(maxData - minData)#输入归一化
 79     result = classify0(inputData,normData,datingLabels,3)
 80     print('等级是：',result)
 81
 82 def img2vector(filename):
 83     returnVector = np.zeros([32,32])
 84     fr = open(filename)
 85     lineData = fr.readlines()
 86     count = 0
 87     for line in lineData:
 88         line = line.strip()#去除换行符
 89         for j in range(len(line)):
 90             returnVector[count,j] = line[j]
 91         count += 1
 92     returnVector = returnVector.reshape(1,1024).astype(int)#转化为1X1024
 93     return returnVector
 94
 95 def img2vector2(filename):
 96     returnVect = np.zeros([1,1024])
 97     fr = open(filename)
 98     for i in range(32):
 99         lineStr = fr.readline()
100         for j in range(32):
101             returnVect[0,32*i+j] = int(lineStr[j])
102     return returnVect
103
104 def handWriteringClassTest():
105     #--------------------------读取数据---------------------------------
106     hwLabels = []
107     trainingFileList = os.listdir('trainingDigits')#获取文件目录
108     m = len(trainingFileList)#获取目录个数
109     trainingMat = np.zeros([m,1024])#全部样本
110     for i in range(m):
111         fileNameStr = trainingFileList[i]
112         fileStr = fileNameStr.split('.')[0]#得到不带格式的文件名
113         classNumStr = int(fileStr.split('_')[0])#得到最前面的数字类别0-9
114         hwLabels.append(classNumStr)#存储
115         dirList = 'trainingDigits/' + fileNameStr#绝对目录信息
116         vectorUnderTest = img2vector(dirList)#读取第i个数据信息
117         trainingMat[i,:] = vectorUnderTest #存储
118     #--------------------------测试数据--------------------------------
119     testFileList = os.listdir('testDigits')
120     errorCount = 0.0
121     m = len(testFileList)
122     for i in range(m):
123         fileNameStr = testFileList[i]
124         fileInt = fileNameStr.split('.')[0].split('_')[0]
125         dirList = 'testDigits/' + fileNameStr  # 绝对目录信息
126         vectorUnderTest = img2vector(dirList)  # 读取第i个数据信息
127         if int(fileInt) != int(classify0(vectorUnderTest,trainingMat,hwLabels,3)):
128             errorCount += 1
129     print('error count is : ',errorCount)
130     print('error Rate is : ', (errorCount/m))
