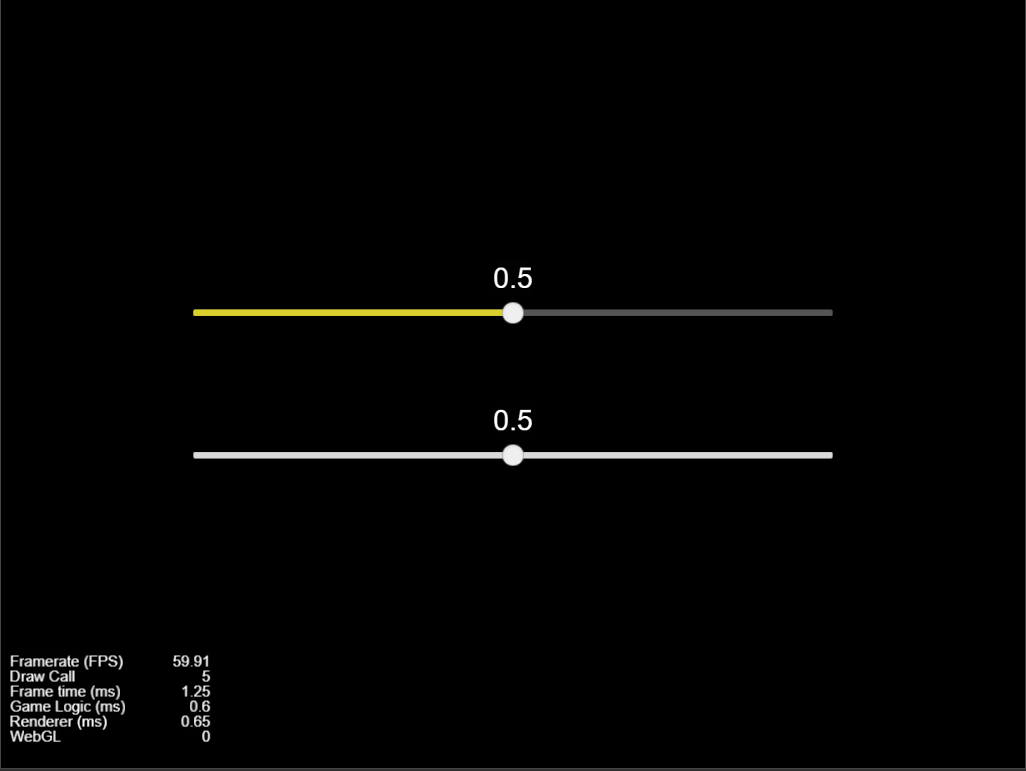

效果演示

上方：扩展的滑块组件及其状态显示

下方：默认的滑块组件及其状态显示

扩展的滑块组件支持拖拽开始/拖拽/拖拽结束事件的回调，同时也扩展了当前进度的展示

使用方法

直接将 SliderEx 预制件放在需要的地方

声明 SliderEx 的变量

@property(SliderEx)sliderEx: SliderEx = null;

在代码中注册拖拽事件回调

this.sliderEx.handleDragStart((progress: number) => {    this.labelSliderEx.string = "拖拽开始：" + progress;});this.sliderEx.handleDragMove((progress: number) => {    this.labelSliderEx.string = "拖拽中：" + progress;});this.sliderEx.handleDragEnd((progress: number) => {    this.labelSliderEx.string = "拖拽结束：" + progress;});

实现方法

Slider 的源码中已经注册了拖拽事件的函数，所以我们只需要继承 Slider，然后重写（override）对应的拖拽事件

源码路径：

resources\engine\cocos2d\core\components\CCSlider.js

在触摸事件处理函数中，根据 Slider 的进度设置当前进度条的宽度，并调用对应的回调方法

private handleTouchEvent(callback: (progress: number) => void) {    this.nodeProgress.width = this.node.width * this.progress;    if (callback) {        callback(this.progress);    }}

完整的代码：

/** * @author 渡鸦 * @description 扩展滑块拖拽事件及当前进度展示 */const { ccclass, property } = cc._decorator;@ccclassexport default class SliderEx extends cc.Slider {    @property(cc.Node)    nodeProgress: cc.Node = null;    private _handleDragStart: (progress: number) => void = null;    private _handleDragMove: (progress: number) => void = null;    private _handleDragEnd: (progress: number) => void = null;    private __preload() {        super.__preload();        let widget = this.node.getComponent(cc.Widget);        if (widget) {            widget.updateAlignment();        }    }    private _onHandleDragStart(event: cc.Event.EventTouch) {        super._onHandleDragStart(event);        if (this._handleDragStart) {            this._handleDragStart(this.progress);        }    }    private _onTouchBegan(event) {        if (!this.handle) { return; }        super._onTouchBegan(event);        this.handleTouchEvent(this._handleDragStart);    }    private _onTouchMoved(event) {        if (!this.handle) { return; }        super._onTouchMoved(event);        this.handleTouchEvent(this._handleDragMove);    }    private _onTouchEnded(event) {        super._onTouchEnded(event);        this.handleTouchEvent(this._handleDragEnd);    }    private _onTouchCancelled(event) {        super._onTouchCancelled(event);        this.handleTouchEvent(this._handleDragEnd);    }    private _updateHandlePosition() {        if (!this.handle) { return; }        super._updateHandlePosition();        this.nodeProgress.width = this.node.width * this.progress;    }    private handleTouchEvent(callback: (progress: number) => void) {        this.nodeProgress.width = this.node.width * this.progress;        if (callback) {            callback(this.progress);        }    }    /**     * 拖拽开始事件回调     * @param callback      */    handleDragStart(callback: (progress: number) => void) {        this._handleDragStart = callback;    }    /**    * 拖拽中事件回调    * @param callback     */    handleDragMove(callback: (progress: number) => void) {        this._handleDragMove = callback;    }    /**    * 拖拽结束事件回调    * @param callback     */    handleDragEnd(callback: (progress: number) => void) {        this._handleDragEnd = callback;    }    /**     * 设置进度     * @param value      */    setProgress(value: number) {        if (!this._dragging) {            this.progress = value;            this.nodeProgress.width = this.node.width * value;        }    }}
