Apache Calcite自定义csv adapter之FilterableTable

上篇文章是实现了csv ScannableTable, 现在在那基础上增加使用FilterableTable实现

先说一下流程

1. 创建MyFilterableTable, 实现FilterableTable
2. 修改CsvSchema, 增加判断创建FilterableTable类型的表
3. 修改my_csv_model.json的配置

1 MyFilterableTable

与Scannable代码基本一致, 不过实现的是FilterableTable, 重写的scan方法多了一个参数(这个参数暂时不用管)

public class MyFilterableTable extends AbstractTable implements FilterableTable {

    private String path;
    private Source source;

    public MyFilterableTable(String path) throws MalformedURLException {
        this.path = path;
        this.source = Sources.of(new URL(path));
    }

    @Override
    public RelDataType getRowType(RelDataTypeFactory relDataTypeFactory) {
        JavaTypeFactory typeFactory = (JavaTypeFactory) relDataTypeFactory;
        //字段名
        List<String> names = new ArrayList<>();
        //类型
        List<RelDataType> types = new ArrayList<>();
        try {
            // 读取文件内容
            BufferedReader br = new BufferedReader(new FileReader(source.file()));
            // 读取第一行，规定第一行是字段信息, 如  ID:VARCHAR,NAME1:VARCHAR,NAME2:VARCHAR
            String line = br.readLine();
            String[] lines = line.split(",");
            for (String column : lines) {
                // 字段名
                String name = column.split(":")[0];
                // 字段类型
                String type = column.split(":")[1];
                names.add(name);
                types.add(typeFactory.createSqlType(SqlTypeName.get(type)));
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
        return typeFactory.createStructType(Pair.zip(names,types));
    }

    @Override
    public Enumerable<Object[]> scan(DataContext root, List<RexNode> list) {
        JavaTypeFactory typeFactory = requireNonNull(root.getTypeFactory(), "typeFactory");
        List<String> selfFilter = new ArrayList<>();
        return new AbstractEnumerable<Object[]>() {
            @Override
            public Enumerator<Object[]> enumerator() {
                return new CsvEnumerator(source);
            }
        };
    }
}

2 CsvSchema

CsvSchema的getTableMap方法, 增加判断FILTERABLE类型

public class CsvSchema extends AbstractSchema {

    private Map<String, Table> tableMap;
    private Map<String, Object> operand;

    public CsvSchema(Map<String, Object> operand) {
        this.operand = operand;
    }

    @Override
    protected Map<String, Table> getTableMap() {
        if (tableMap == null) {
            tableMap = new HashMap<>();
            List<Map<String, String>> tables = (ArrayList<Map<String, String>>) operand.get("tables");
            for (Map<String, String> table : tables) {
                String type = table.get("type");
                String path = table.get("path");
                String name = table.get("name");
                try {
                    if("SCANNABLE".equals(type)){
                        tableMap.put(name, new MyScannableTable(path));
                    }else if("FILTERABLE".equals(type)){
                        tableMap.put(name, new MyFilterableTable(path));
                    }
                } catch (MalformedURLException e) {
                    e.printStackTrace();
                }
            }
        }
        return tableMap;
    }
}

3 my_csv_model.json

把csv_user的type改成FILTERABLE

{
  "version": "1.0",
  "defaultSchema": "csv",
  "schemas": [
    {
      "name": "csv",
      "type": "custom",
      "factory": "com.cxydevelop.calcite.csv.CsvSchemaFactory",
      "operand": {
        "tables": [
          {
            "name": "csv_user",
            "path": "file:///D:\\cxy\\idea_workspace\\myproject\\calcite\\src\\main\\resources\\csv_dir\\csv_user.csv",
            "type": "FILTERABLE"
          },{
            "name": "csv_detail",
            "path": "file:///D:\\cxy\\idea_workspace\\myproject\\calcite\\src\\main\\resources\\csv_dir\\csv_detail.csv",
            "type": "SCANNABLE"
          }
        ]
      }
    }
  ]
}

4 测试

@Test
    public void query() throws Exception {
        List<String> sqls = new ArrayList<>();
        sqls.add("select * from csv.csv_user");
        sqls.add("select * from csv.csv_user where (id ='1' and name = 'name1') or (id = '3' and name = 'name3')");
        sqls.add("select t1.id, t1.name, t2.age, t2.desc from csv.csv_user t1 left join csv.csv_detail t2 on t1.id = t2.id");
        for (String sql : sqls) {
            System.out.println("执行sql:" + sql);
            printResultSet(conn.createStatement().executeQuery(sql));
        }
    }

5 结果

执行sql:select * from csv.csv_user
[1, name1, www1]
[2, name2, eee2]
[3, name3, qwe3]
[4, name4, qwe4]
[5, name5, qwe5]
[6, name6, qwe6]
执行sql:select * from csv.csv_user where (id ='1' and name = 'name1') or (id = '3' and name = 'name3')
[1, name1, www1]
[3, name3, qwe3]
执行sql:select t1.id, t1.name, t2.age, t2.desc from csv.csv_user t1 left join csv.csv_detail t2 on t1.id = t2.id
[1, name1, 11, aaa]
[2, name2, 22, bbb]
[3, name3, 33, cccc]
[4, name4, null, null]
[5, name5, null, null]
[6, name6, null, null]

可以看到, 通过sql可以正确的查询出csv的数据.

6 问题

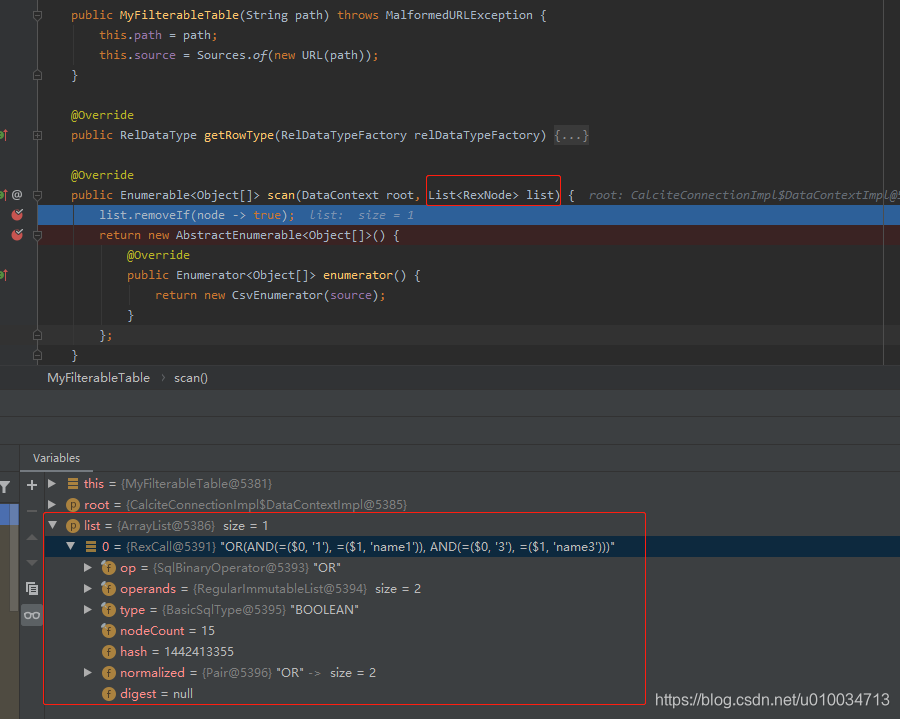

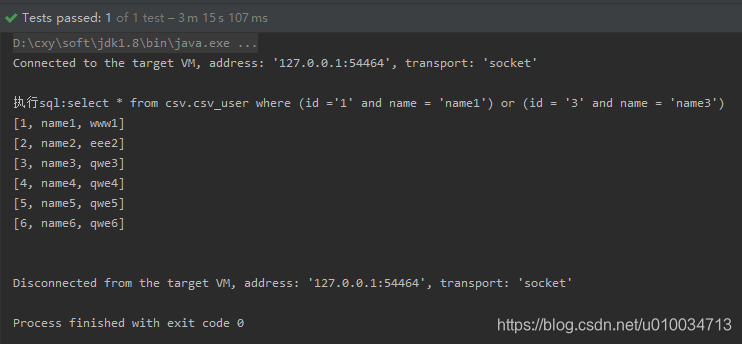

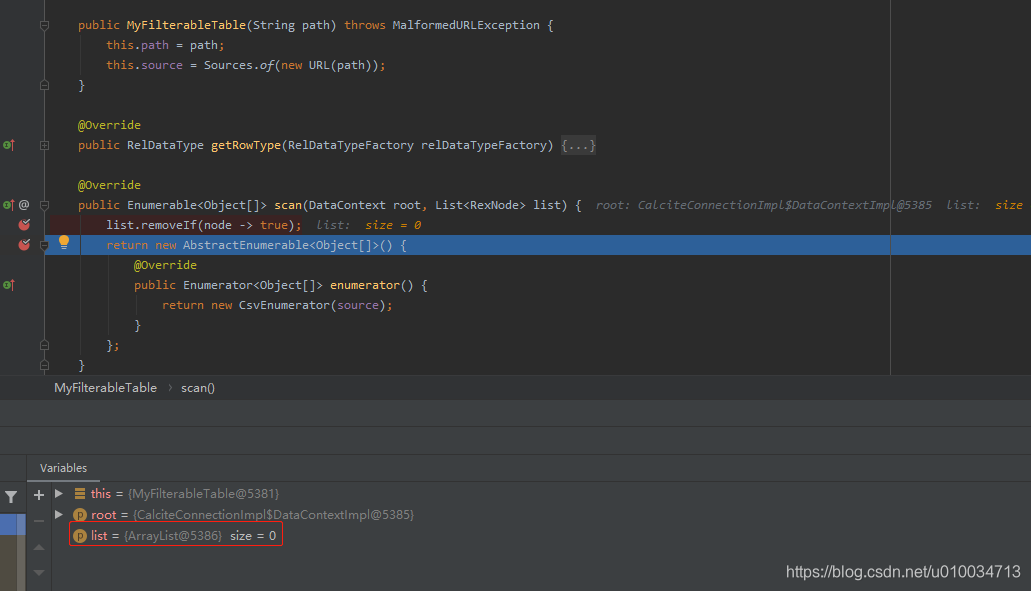

回到刚刚scan方法的第二个List类型的参数, 打断点可以发现, 这个参数是where的条件信息, 如果把list里面的元素删除掉, 打印结果可以发现sql中的过滤条件失效了

所以在FilterableTable中可以获取到sql中的过滤条件, 目的其实是想要让我们可以自己来处理, 把过滤条件下推到我们数据源(即我们在读取文件的地方CsvEnumerator), 效率会更高

7 官方CsvFilterableTable的源码

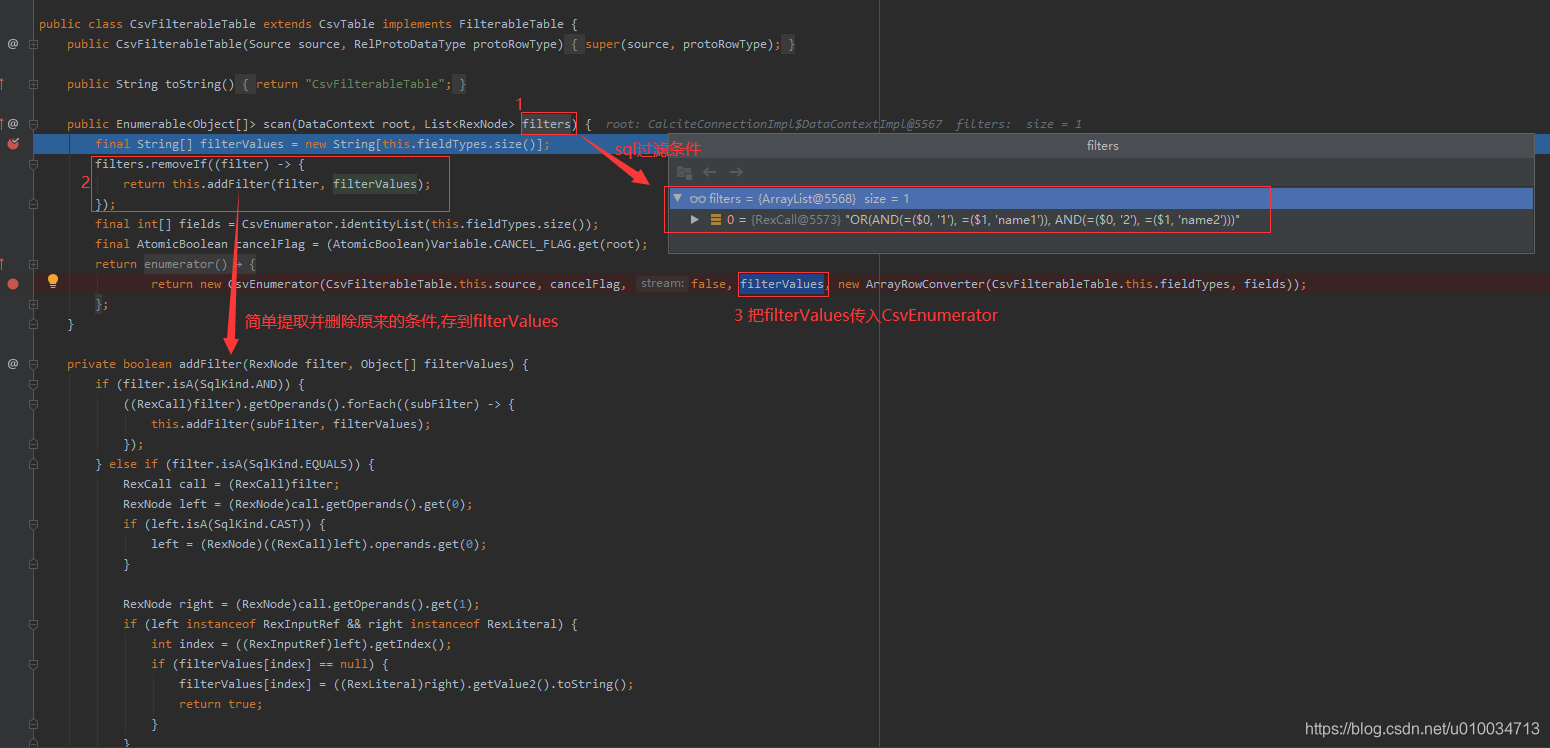

查看官方CsvFilterableTable的源码, 可以发现, 他也是做了一个很简单的处理 : 在scan方法中, 在过滤条件参数filters中把AND类型的条件递归提取出来存到filterValues, 然后传给CsvEnumerator

下面使用的是官方自带的csv连接器执行sql, 主要是看看源码执行过程中的细节

select * from csv.csv_user where (id ='1' and name = 'name1') or (id = '3' and name = 'name3')

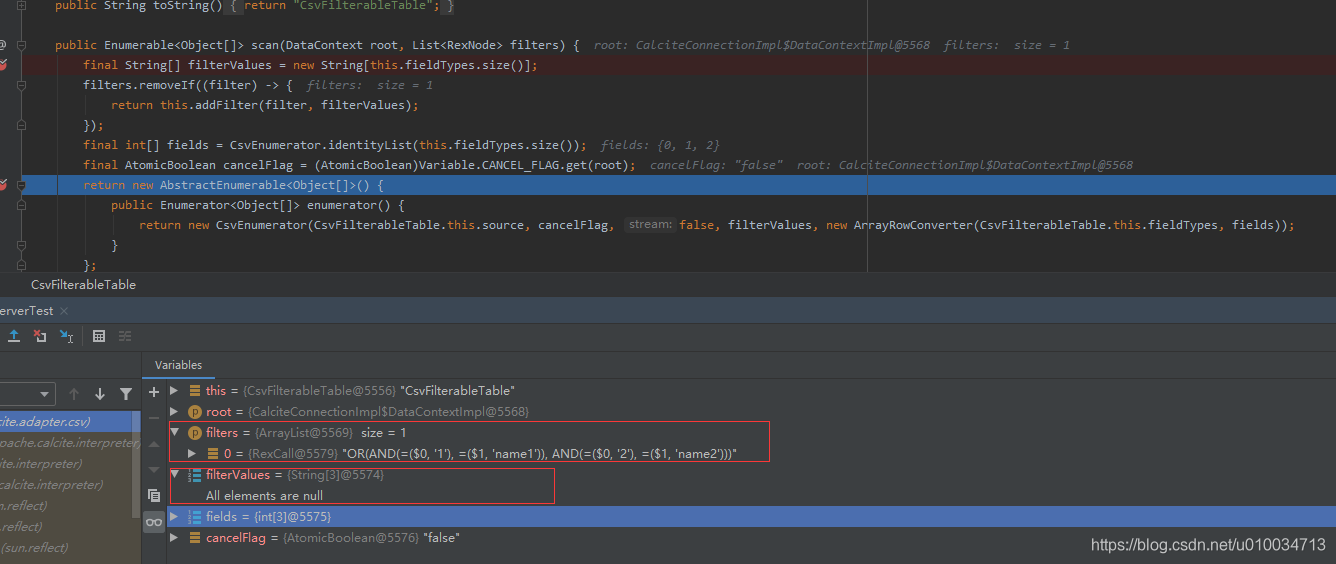

现在执行的sql的条件是OR,  所以可以发现filter中的条件没有被提取出来并删掉, filterValues是空的

把sql改成如下

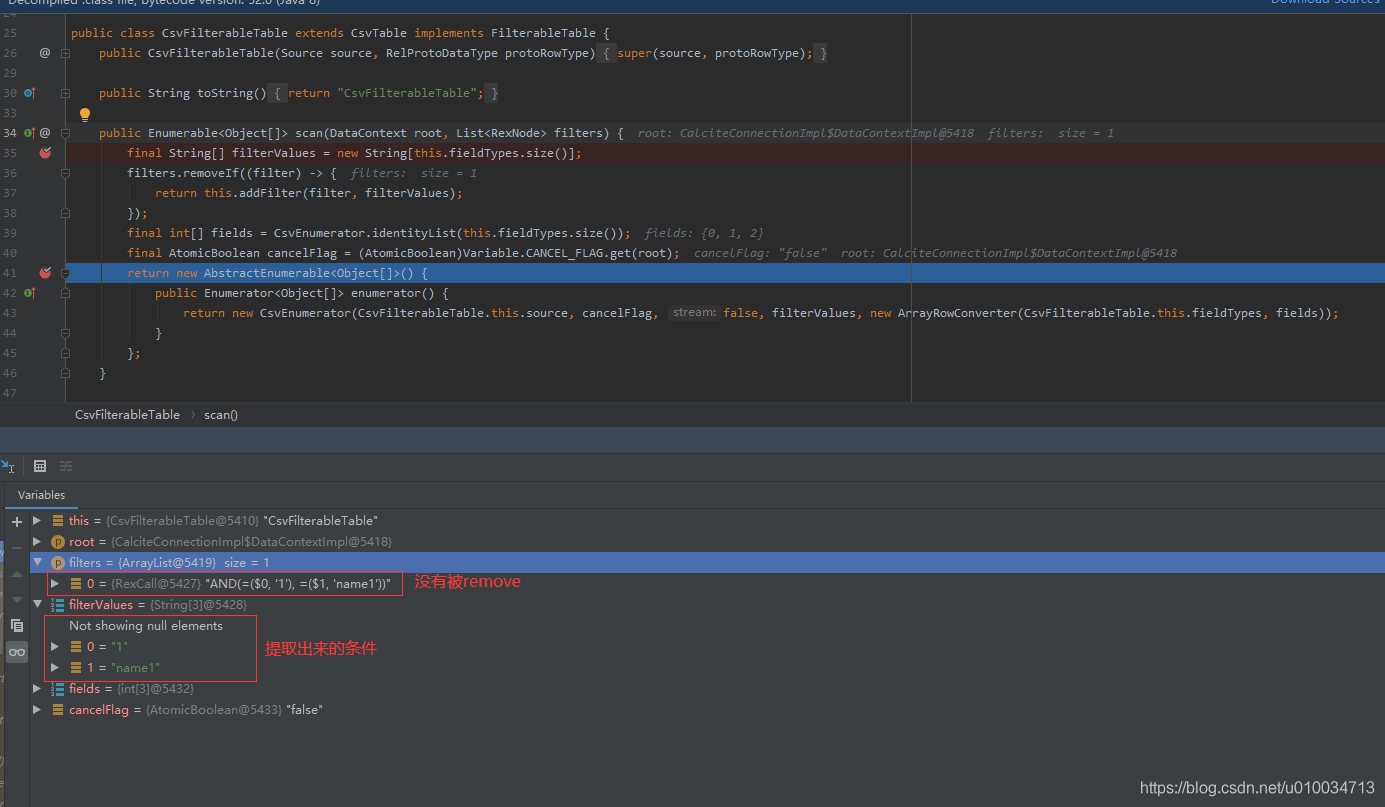

select * from csv.csv_user where id ='1' and name = 'name1'



代码的细节提取的条件是AND关系连接的关系或者一个EQUALS条件

比如

select * from csv.csv_user where id ='1'	提取id = '1' ,并且会remove掉原来的
select * from csv.csv_user where id ='1' and name = 'name1'	提取id ='1' 和name = 'name1',但不会remove掉原来的
select * from csv.csv_user where (id ='1' and name = 'name1') or (id = '3' and name = 'name3')	不提取不会remove掉原来的
