设计模式实现之state模式

状态模式的定义：Allow an object to alter its behavior when its internal state changes. The object will appear to change its class.（当一个对象在状态改变时允许其改变行为，这个对象看起来像其改变了其类）。

一个对象可以在声明周期内修改自己的状态，但是却不能在生命周期内修改自己所属的类。运用状态模式，可以得到一个优雅的折衷。

状态模式的核心是封装，状态的变化引起了行为俄变更，从外部看起来就像是这个对象对应的类发生了改变一样，状态模式的通用类图如下图所示：

state:抽象状态角色，为接口或者抽象类，负责对象操作接口的定义，并且封装环境角色以实现状态切换。

concretestate:具体状态角色，每一个具体状态必须完成两个职责，本状态的行为管理以及趋向状态管理，通俗的讲，就是本状态下要做的事情，以及本状态如何过渡到其它状态。

context:定义客户端需要的接口，并且负责具体状态的切换，是使用状态的一方。

Client:用户程序，main函数等等，可以看作是舞台，场景类。

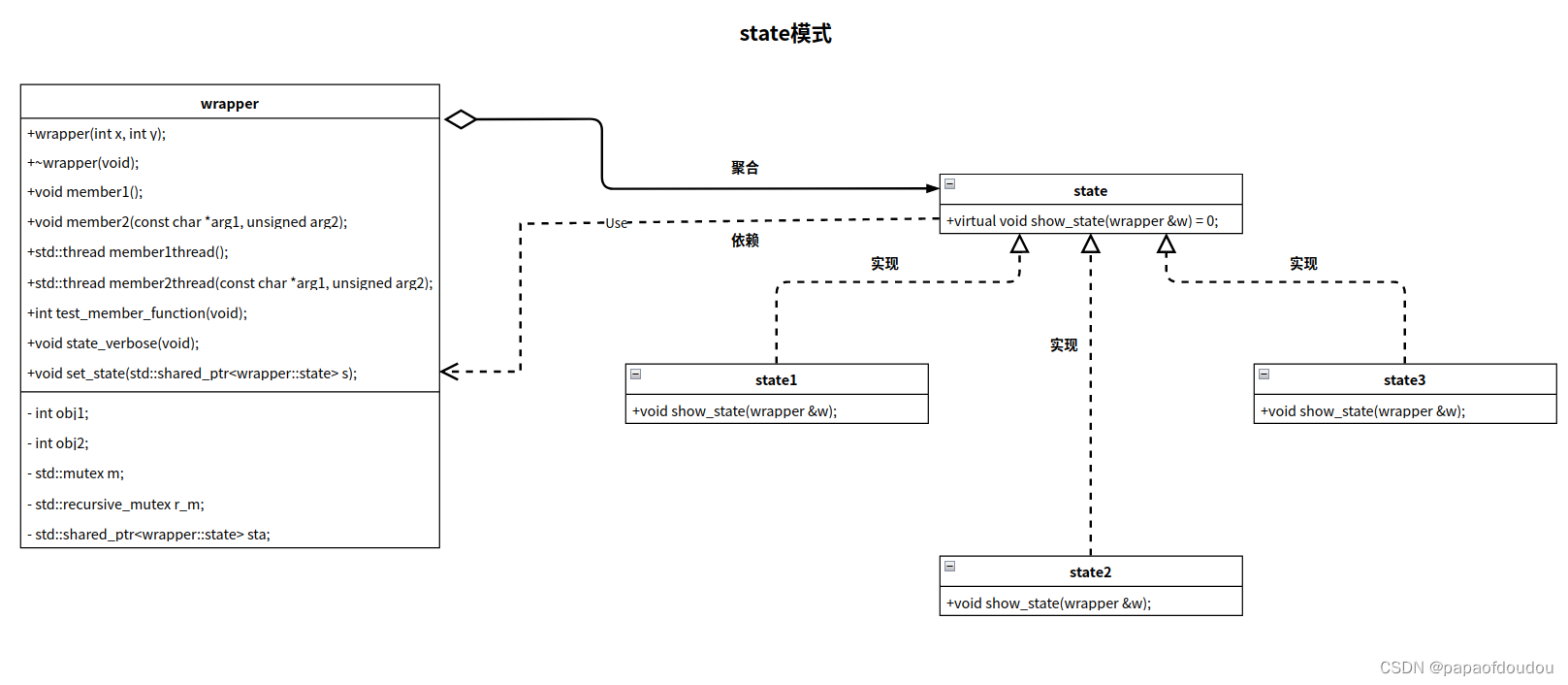

 本用例状态模式UML类图：

状态模式代码实现：

#include <thread>
#include <memory>
#include <mutex>
#include <iostream>

class wrapper
{
public:
    wrapper(int x, int y) {
	this->obj1 = x;
	this->obj2 = y;
	//sta = new state1(1);
        sta = std::make_shared<state1>(1);
	std::cout << __func__ << __LINE__ << std::endl;
    }

    ~wrapper(void) {
	//delete sta;
	std::cout << __func__ <<"  "<< __LINE__ << std::endl;
    }

    void member1() {
        while(1) {
	    m.lock();
	    r_m.lock();
            std::cout << "i am member1 " << "obj1 = " << this->obj1 << " obj2 = " << this->obj2 << " id " << std::this_thread::get_id() << std::endl;
	    r_m.unlock();
	    m.unlock();
            std::this_thread::sleep_for(std::chrono::milliseconds(1000));
        }
    }

    void member2(const char *arg1, unsigned arg2) {
        while(1) {
	    m.lock();
	    r_m.lock();
            std::cout << "i am member2 and my first arg is (" << arg1 << ") and second arg is (" << arg2 << ")" << std::endl;
	    sta->show_state(*this);
	    r_m.unlock();
	    m.unlock();
            std::this_thread::sleep_for(std::chrono::milliseconds(1000));
        }
    }

    std::thread member1thread() {
	std::thread th1;
        th1 = std::thread(&wrapper::member1, this);
	return th1;
    }

    std::thread member2thread(const char *arg1, unsigned arg2) {
        return std::thread(&wrapper::member2, this, arg1, arg2);
    }

    int test_member_function(void)
    {
	return this->obj1 + this->obj2;
    }

    void state_verbose(void)
    {
	sta->show_state(*this);
    }

    class state
    {
      public:
        virtual void show_state(wrapper &w) = 0;
    };

    void set_state(std::shared_ptr<wrapper::state> s)
    {
	sta = s;
    }

    class state1: public state
    {
      public:
        state1(int st)
	{
	    test1 = st;
	}
        void show_state(wrapper &w)
        {
    	    std::cout << "now in state 1" << std::endl;
            std::shared_ptr<wrapper::state> s = std::make_shared<state2>(2);
            w.set_state(s);
	    w.state_verbose();
        }

      private:
        int test1;
    };

    class state2: public state
    {
      public:
        state2(int st)
	{
	    test2 = st;
	}

        void show_state(wrapper &w)
        {
    	    std::cout << "now in state 2" << std::endl;
            std::shared_ptr<wrapper::state> s = std::make_shared<state3>(3);
            w.set_state(s);
	    w.state_verbose();
        }

      private:
        int test2;
    };

    class state3: public state
    {
      public:
        state3(int st)
	{
	    test3 = st;
	}

        void show_state(wrapper &w)
        {
            std::cout << "now in state 3" << std::endl;
            std::shared_ptr<wrapper::state> s = std::make_shared<state1>(1);
            w.set_state(s);
	    //w.state_verbose();
        }

      private:
       int test3;
    };

private:
    int obj1;
    int obj2;
    std::mutex m;
    std::recursive_mutex r_m;
    //class state *sta;
    std::shared_ptr<wrapper::state> sta;
};

void f1(int n)
{
    for (int i = 0; i < 5; ++i) {
        std::cout << "thread " << n << " executing\n";
        std::this_thread::sleep_for(std::chrono::milliseconds(10));
    }
}

int main(void)
{
    int ret;
    //wrapper *w = new wrapper(1, 2);
    //std::shared_ptr<wrapper> w = std::make_shared<wrapper>(1, 2);
    auto w = std
