KVM虚拟化之小型虚拟机kvmtool的使用

KVM（Kernel-based Virtual Machine）最初是由以色列的公司Qumranet开发的。KVM在2007年2月被正式合并到Linux 2.6.20核心中，成为内核源代码的一部分。2008年9月4日，RedHat公司收购了Qumranet，开始在RHEL中用KVM替换Xen，第一个包含KVM的版本是RHEL 5.4。从RHEL 6开始，KVM成为默认的虚拟化引擎。KVM必须在具备Intel VT或AMD-V功能的X86平台上运行。在Linux内核3.9版中，加入了对ARM架构的支持。具体kvm虚拟化支持的处理器可以通过官网进行查询。

KVM包含一个为处理器提供底层虚拟化、可加载的核心模块kvm.ko（kvm-intel.ko或kvm-amd.ko），使用QEMU（QEMU-KVM）作为虚拟机上层控制工具。KVM不需要改变Linux或Windows系统就能运行。

实际上，在Linux中，kvm就是内核中的一个模块，用户空间通过QEMU模拟硬件提供给虚拟机使用，而一台使用kvm创建的虚拟机就是一个Linux中的进程，管理这个对应的进程就是相当于管理整个对应的虚拟机。

根据 kvmtool github仓库文档的描述，类似于qemu的作用，kvmtool是一个支持运行KVM Guest OS的 host os端用户态虚拟机工具，它是一个纯虚拟化工具，guest os不需要修改即可运行其上, 不过，由于KVM是基于CPU的硬件虚拟化支持的，所以类似于qemu-kvm，它只支持基于相同架构的Guest OS.

kvmtool代码量只有5KLOC，是一个干净的、从头开始写的、轻量级虚拟化工具,  由于轻量，对于想要学习虚拟化的人来说非常友好。kvmtool 作为KVM主机工具实现，可以引导Linux映像,无需BIOS和其他相关依赖. 下面我们尝试基于ubuntu22环境下搭建一个kvmtool运行环境，在虚拟机上运行另一个linux guest os。

主机环境

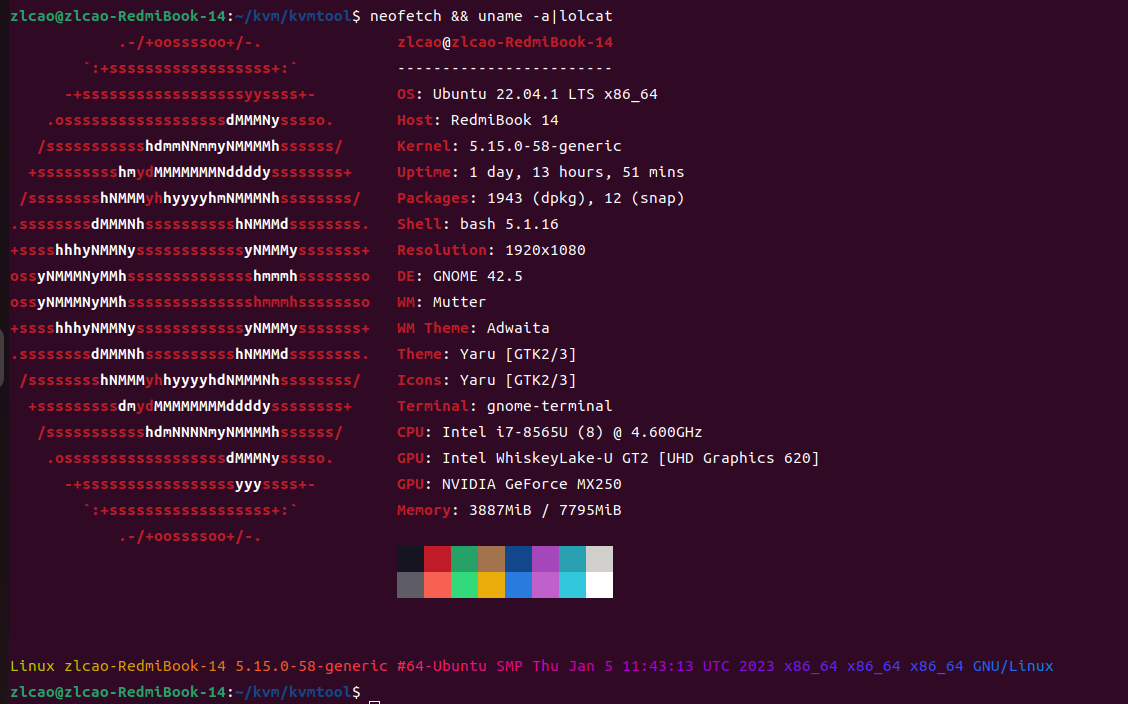

本实验使用的主机系统是ubuntu22.04,具体信息参考下图：

下载代码

下载kvmtool:

$ git clone https://github.com/kvmtool/kvmtool.git

下载busybox:

$ wget https://busybox.net/downloads/busybox-1.32.0.tar.bz2

下载Linux内核：

$ axel -a -n 80 https://www.kernel.org/pub/linux/kernel/v5.x/linux-5.15.18.tar.gz

选择版本的时候，刻意选择工具和源码版本大体同一段时间的即可，无需太多关注。

编译kvmtool

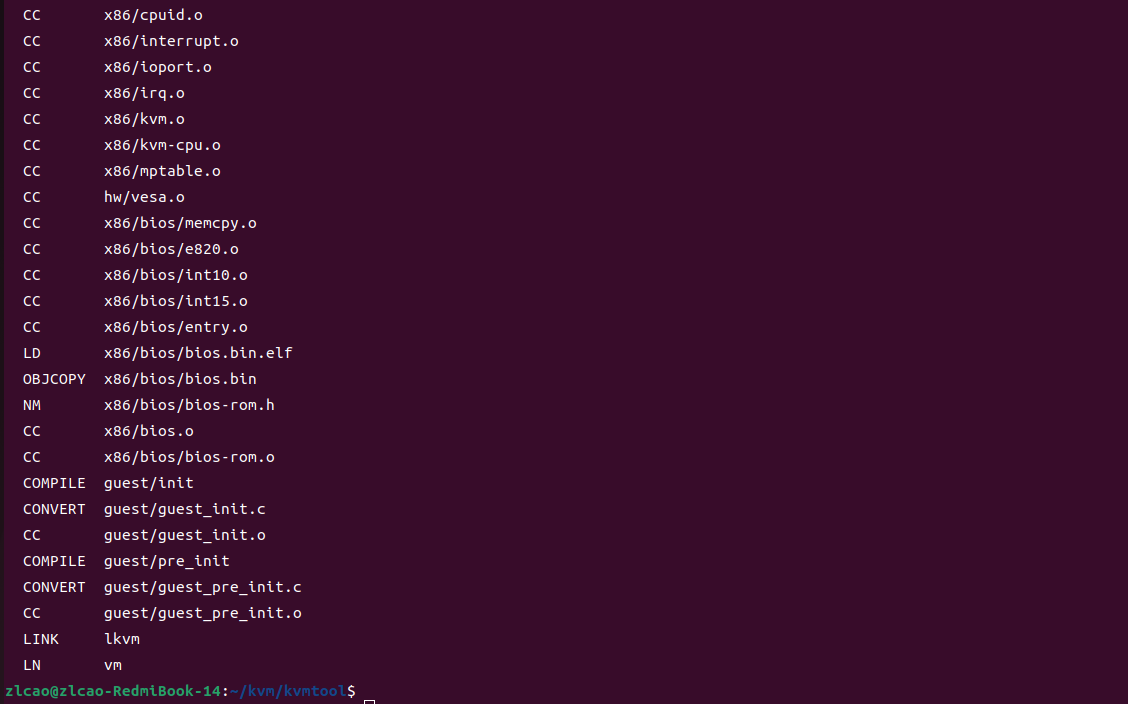

本次实验使用的kvmtool版本为：e17d182ad3f797f01947fc234d95c96c050c534b，编译方式简单直接，进入 kvmtool目录下直接make 即可：

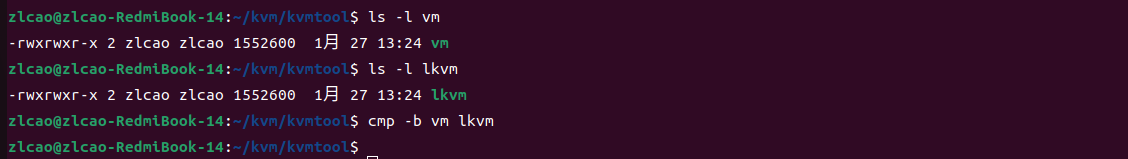

编译后的可执行程序为lkvm，同时建立了一个lkvm的硬连接vm.两者完全一致,如果需要调试kvmtool,可以手动修改Makefile中的CFLAGS：

编译Linux内核

内核的编译方法很简单，参考博客

桌面PC/服务器 ubuntu18.04 Linux内核编译升级与机制分析_ubuntu18.04升级内核_papaofdoudou的博客-优快云博客

这里需要注意三点：

1. 修掉.pem文件缺失相关的编译错误，有两个
2. 只需要编译bzImage目标，不需要编译模块
3. 默认menuconfig可能配置为CONFIG_VIRTIO_NET=m,需要设置为CONFIG_VIRTIO_NET=y，已经打开了KVM,VIRTIO(CONFIG_VIRTIO_NET=y)相关选项

最后生成bzImage文件:

编译busybox

基于busybox制作根文件系统，构建目录结构，参考博客:

linux4.15 arm qemu @ubuntu18.04环境搭建与bootgraph启动优化_ubuntu18的gdb版本_papaofdoudou的博客-优快云博客

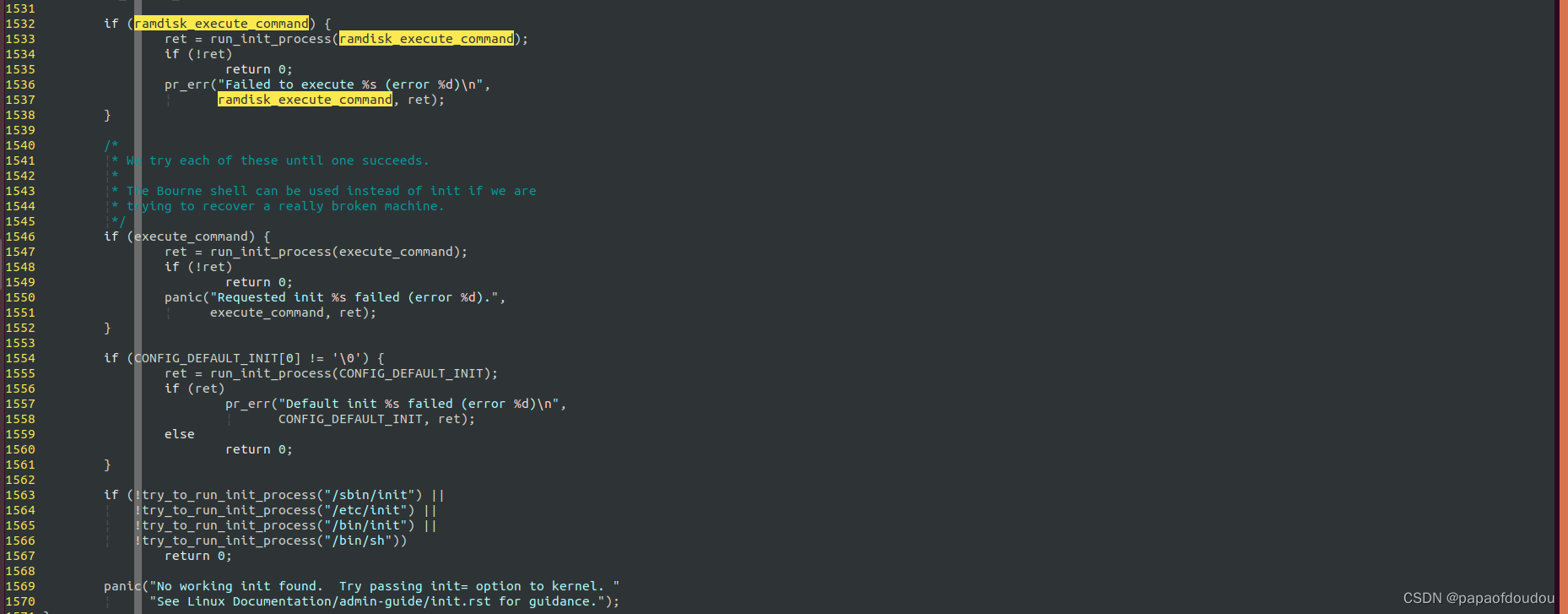

需要注意的是，执行完博客中的操作后，需要将顶层目录的linuxrc文件重命名为init（这步必须做，否则无法进入控制台）。原因很简单，1号进程的启动优先级如下图所示：

所以，linuxrc无法启动的原因很简单，就是默认的ramdisk_execute_command为init, 如果将ramdisk_execute_command修改为linuxrc,则不修改文件名也可以正常启动。

之后将rootfs目录压缩为cpio文件。

$ find . | cpio -o --format=newc > root_fs.cpio

完成后目录结构如下：

以上三步操作完成后，就可以开始运行了。

运行虚拟机

执行前，确认主机存在/dev/kvm设备节点

运行虚拟机执行如下命令

$ sudo ./lkvm run -k ../linux-5.15.18/arch/x86/boot/bzImage -i ../busybox-1.32.0/_install/root_fs.cpio

zlcao@zlcao-RedmiBook-14:~/kvm/kvmtool$ sudo ./lkvm run -k ../linux-5.15.18/arch/x86/boot/bzImage -i ../busybox-1.32.0/_install/root_fs.cpio
  # lkvm run -k ../linux-5.15.18/arch/x86/boot/bzImage -m 704 -c 8 --name guest-100110
[    0.000000] Linux version 5.15.18 (zlcao@zlcao-RedmiBook-14) (gcc (Ubuntu 11.3.0-1ubuntu1~22.04) 11.3.0, GNU ld (GNU Binutils for Ubuntu) 2.38) #1 SMP Fri Jan 27 12:27:51 CST 2023
[    0.000000] Command line: noapic noacpi pci=conf1 reboot=k panic=1 i8042.direct=1 i8042.dumbkbd=1 i8042.nopnp=1 earlyprintk=serial i8042.noaux=1 console=ttyS0 root=/dev/vda rw
[    0.000000] KERNEL supported cpus:
[    0.000000]   Intel GenuineIntel
[    0.000000]   AMD AuthenticAMD
[    0.000000]   Hygon HygonGenuine
[    0.000000]   Centaur CentaurHauls
[    0.000000]   zhaoxin   Shanghai
[    0.000000] x86/fpu: Supporting XSAVE feature 0x001: 'x87 floating point registers'
[    0.000000] x86/fpu: Supporting XSAVE feature 0x002: 'SSE registers'
[    0.000000] x86/fpu: Supporting XSAVE feature 0x004: 'AVX registers'
[    0.000000] x86/fpu: Supporting XSAVE feature 0x008: 'MPX bounds registers'
[    0.000000] x86/fpu: Supporting XSAVE feature 0x010: 'MPX CSR'
[    0.000000] x86/fpu: xstate_offset[2]:  576, xstate_sizes[2]:  256
[    0.000000] x86/fpu: xstate_offset[3]:  832, xstate_sizes[3]:   64
[    0.000000] x86/fpu: xstate_offset[4]:  896, xstate_sizes[4]:   64
[    0.000000] x86/fpu: Enabled xstate features 0x1f, context size is 960 bytes, using 'compacted' format.
[    0.000000] signal: max sigframe size: 2032
[    0.000000] BIOS-provided physical RAM map:
[    0.000000] BIOS-e820: [mem 0x0000000000000000-0x000000000009fbff] usable
[    0.000000] BIOS-e820: [mem 0x000000000009fc00-0x000000000009ffff] reserved
[    0.000000] BIOS-e820: [mem 0x00000000000f0000-0x00000000000ffffe] reserved
[    0.000000] BIOS-e820: [mem 0x0000000000100000-0x000000002bffffff] usable
[    0.000000] printk: bootconsole [earlyser0] enabled
[    0.000000] ERROR: earlyprintk= earlyser already used
[    0.000000] NX (Execute Disable) protection: active
[    0.000000] DMI not present or invalid.
[    0.000000] Hypervisor detected: KVM
[    0.000000] kvm-clock: Using msrs 4b564d01 and 4b564d00
[    0.000000] kvm-clock: cpu 0, msr 11c01001, primary cpu clock
[    0.000004] kvm-clock: using sched offset of 198180346 cycles
[    0.000522] clocksource: kvm-clock: mask: 0xffffffffffffffff max_cycles: 0x1cd42e4dffb, max_idle_ns: 881590591483 ns
[    0.002007] tsc: Detected 1992.002 MHz processor
[    0.002444] last_pfn = 0x2c000 max_arch_pfn = 0x400000000
[    0.002986] Disabled
[    0.003182] x86/PAT: MTRRs disabled, skipping PAT initialization too.
[    0.003765] CPU MTRRs all blank - virtualized system.
[    0.004236] x86/PAT: Configuration [0-7]: WB  WT  UC- UC  WB  WT  UC- UC
Memory KASLR using RDRAND RDTSC...
[    0.005590] found SMP MP-table at [mem 0x000f03b0-0x000f03bf]
[    0.006456] Using GB pages for direct mapping
[    0.007160] RAMDISK: [mem 0x2bd00000-0x2bf83fff]
[    0.007640] ACPI: Early table checksum verification disabled
[    0.008311] ACPI BIOS Error (bug): A valid RSDP was not found (20210730/tbxfroot-210)
[    0.009234] No NUMA configuration found
[    0.009526] Faking a node at [mem 0x0000000000000000-0x000000002bffffff]
[    0.010001] NODE_DATA(0) allocated [mem 0x2bfd6000-0x2bffffff]
[    0.010937] Zone ranges:
[    0.011122]   DMA      [mem 0x0000000000001000-0x0000000000ffffff]
[    0.011581]   DMA32    [mem 0x0000000001000000-0x000000002bffffff]
[    0.012074]   Normal   empty
[    0.012351]   Device   empty
[    0.012626] Movable zone start for each node
[    0.012971] Early memory node ranges
[    0.013292]   node   0: [mem 0x0000000000001000-0x000000000009efff]
[    0.013732]   node   0: [mem 0x0000000000100000-0x000000002bffffff]
[    0.014192] Initmem setup node 0 [mem 0x0000000000001000-0x000000002bffffff]
[    0.014710] On node 0, zone DMA: 1 pages in unavailable ranges
[    0.014878] On node 0, zone DMA: 97 pages in unavailable ranges
[    0.022910] On node 0, zone DMA32: 16384 pages in unavailable ranges
[    0.023633] Intel MultiProcessor Specification v1.4
[    0.024453] MPTABLE: OEM ID: KVMCPU00
[    0.024719] MPTABLE: Product ID: 0.1
[    0.025000] MPTABLE: APIC at: 0xFEE00000
[    0.025279] Processor #0 (Bootup-CPU)
[    0.025527] Processor #1
[    0.025698] Processor #2
[    0.025861] Processor #3
[    0.026025] Processor #4
[    0.026191] Processor #5
[    0.026356] Processor #6
[    0.026521] Processor #7
[    0.026715] IOAPIC[0]: apic_id 9, version 17, address 0xfec00000, GSI 0-23
[    0.027163] Processors: 8
[    0.027344] smpboot: Allowing 8 CPUs, 0 hotplug CPUs
[    0.027735] kvm-guest: KVM setup pv remote TLB flush
[    0.028059] kvm-guest: setup PV sched yield
[    0.028372] PM: hibernation: Registered nosave memory: [mem 0x00000000-0x00000fff]
[    0.028859] PM: hibernation: Registered nosave memory: [mem 0x0009f000-0x0009ffff]
[    0.029349] PM: hibernation: Registered nosave memory: [mem 0x000a0000-0x000effff]
[    0.029843] PM: hibernation: Registered nosave memory: [mem 0x000f0000-0x000fefff]
[    0.030330] PM: hibernation: Registered nosave memory: [mem 0x000ff000-0x000fffff]
[    0.030820] [mem 0x2c000000-0xffffffff] available for PCI devices
[    0.031217] Booting paravirtualized kernel on KVM
[    0.031546] clocksource: refined-jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645519600211568 ns
[    0.032234] setup_percpu: NR_CPUS:8192 nr_cpumask_bits:8 nr_cpu_ids:8 nr_node_ids:1
[    0.034042] percpu: Embedded 61 pages/cpu s212992 r8192 d28672 u262144
[    0.034524] kvm-guest: setup async PF for cpu 0
[    0.034866] kvm-guest: stealtime: cpu 0, msr 2ae33080
[    0.035203] kvm-guest: PV spinlocks enabled
[    0.035483] PV qspinlock hash table entries: 256 (order: 0, 4096 bytes, linear)
[    0.035994] Built 1 zonelists, mobility grouping on.  Total pages: 177152
[    0.036454] Policy zone: DMA32
[    0.036658] Kernel command line: noapic noacpi pci=conf1 reboot=k panic=1 i8042.direct=1 i8042.dumbkbd=1 i8042.nopnp=1 earlyprintk=serial i8042.noaux=1 console=ttyS0 root=/dev/vda rw
[    0.037994] Unknown kernel command line parameters "noacpi", will be passed to user space.
[    0.039146] Dentry cache hash table entries: 131072 (order: 8, 1048576 bytes, linear)
[    0.039968] Inode-cache hash table entries: 65536 (order: 7, 524288 bytes, linear)
[    0.040621] mem auto-init: stack:off, heap alloc:on, heap free:off
[    0.045493] Memory: 657968K/720504K available (16393K kernel code, 4387K rwdata, 10492K rodata, 2932K init, 4816K bss, 62276K reserved, 0K cma-reserved)
[    0.046448] random: get_random_u64 called from __kmem_cache_create+0x2f/0x520 with crng_init=0
[    0.046702] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=8, Nodes=1
[    0.047702] ftrace: allocating 47928 entries in 188 pages
[    0.064484] ftrace: allocated 188 pages with 5 groups
[    0.065149] rcu: Hierarchical RCU implementation.
[    0.065448] rcu:     RCU restricting CPUs from NR_CPUS=8192 to nr_cpu_ids=8.
[    0.065873]     Rude variant of Tasks RCU enabled.
[    0.066157]     Tracing variant of Tasks RCU enabled.
[    0.066456] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
[    0.066930] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=8
[    0.070850] NR_IRQS: 524544, nr_irqs: 488, preallocated irqs: 16
[    0.071549] random: crng done (trusting CPU's manufacturer)
[    0.071979] Console: colour *CGA 80x25
[    0.072283] printk: console [ttyS0] enabled
[    0.072283] printk: console [ttyS0] enabled
[    0.072969] printk: bootconsole [earlyser0] disabled
[    0.072969] printk: bootconsole [earlyser0] disabled
[    0.073921] APIC: Switch to symmetric I/O mode setup
[    0.074351] Not enabling interrupt remapping due to skipped IO-APIC setup
[    0.075319] kvm-guest: setup PV IPIs
[    0.075970] clocksource: tsc-early: mask: 0xffffffffffffffff max_cycles: 0x396d566cf43, max_idle_ns: 881590760263 ns
[    0.076947] Calibrating delay loop (skipped) preset value.. 3984.00 BogoMIPS (lpj=7968008)
[    0.077665] pid_max: default: 32768 minimum: 301
[    0.081003] LSM: Security Framework initializing
[    0.081417] landlock: Up and running.
[    0.081733] Yama: becoming mindful.
[    0.082087] AppArmor: AppArmor initialized
[    0.082481] Mount-cache hash table entries: 2048 (order: 2, 16384 bytes, linear)
[    0.083131] Mountpoint-cache hash table entries: 2048 (order: 2, 16384 bytes, linear)
Poking KASLR using RDRAND RDTSC...
[    0.085044] x86/cpu: User Mode Instruction Prevention (UMIP) activated
[    0.085971] Last level iTLB entries: 4KB 64, 2MB 8, 4MB 8
[    0.086434] Last level dTLB entries: 4KB 64, 2MB 0, 4MB 0, 1GB 4
[    0.086991] Spectre V1 : Mitigation: usercopy/swapgs barriers and __user pointer sanitization
[    0.088961] Spectre V2 : Mitigation: Full generic retpoline
[    0.089424] Spectre V2 : Spectre v2 / SpectreRSB mitigation: Filling RSB on context switch
[    0.090121] Spectre V2 : Enabling Restricted Speculation for firmware calls
[    0.090713] Spectre V2 : mitigation: Enabling conditional Indirect Branch Prediction Barrier
[    0.091429] Spectre V2 : User space: Mitigation: STIBP via seccomp and prctl
[    0.092018] Speculative Store Bypass: Mitigation: Speculative Store Bypass disabled via prctl and seccomp
[    0.092950] SRBDS: Unknown: Dependent on hypervisor status
[    0.093435] MDS: Mitigation: Clear CPU buffers
[    0.101335] Freeing SMP alternatives memory: 40K
[    0.318017] smpboot: CPU0: Intel 06/8e (family: 0x6, model: 0x8e, stepping: 0xb)
[    0.319105] Performance Events: Skylake events, 32-deep LBR, full-width counters, Intel PMU driver.
[    0.321782] ... version:                2
[    0.322127] ... bit width:              48
[    0.322481] ... generic registers:      4
[    0.322819] ... value mask:             0000ffffffffffff
[    0.323267] ... max period:             00007fffffffffff
[    0.323719] ... fixed-purpose events:   3
[    0.324941] ... event mask:             000000070000000f
[    0.325598] rcu: Hierarchical SRCU implementation.
[    0.327121] smp: Bringing up secondary CPUs ...
[    0.327742] x86: Booting SMP configuration:
[    0.328094] .... node  #0, CPUs:      #1
[    0.009568] kvm-clock: cpu 1, msr 11c01041, secondary cpu clock
[    0.329211] kvm-guest: setup async PF for cpu 1
[    0.329667] kvm-guest: stealtime: cpu 1, msr 2ae73080
[    0.330021]  #2
[    0.009568] kvm-clock: cpu 2, msr 11c01081, secondary cpu clock
[    0.009568] [Firmware Bug]: CPU2: APIC id mismatch. Firmware: 2 APIC: 7
[    0.331227] kvm-guest: setup async PF for cpu 2
[    0.331227] kvm-guest: stealtime: cpu 2, msr 2aeb3080
[    0.333172]  #3
[    0.009568] kvm-clock: cpu 3, msr 11c010c1, secondary cpu clock
[    0.009568] [Firmware Bug]: CPU3: APIC id mismatch. Firmware: 3 APIC: 7
[    0.334905] kvm-guest: setup async PF for cpu 3
[    0.334905] kvm-guest: stealtime: cpu 3, msr 2aef3080
[    0.334905] MDS CPU bug present and SMT on, data leak possible. See https://www.kernel.org/doc/html/latest/admin-guide/hw-vuln/mds.html for more details.
[    0.337190]  #4
[    0.009568] kvm-clock: cpu 4, msr 11c01101, secondary cpu clock
[    0.009568] [Firmware Bug]: CPU4: APIC id mismatch. Firmware: 4 APIC: 1
[    0.339458] kvm-guest: setup async PF for cpu 4
[    0.339458] kvm-guest: stealtime: cpu 4, msr 2af33080
[    0.341165]  #5
[    0.009568] kvm-clock: cpu 5, msr 11c01141, secondary cpu clock
[    0.009568] [Firmware Bug]: CPU5: APIC id mismatch. Firmware: 5 APIC: 0
[    0.343159] kvm-gu
