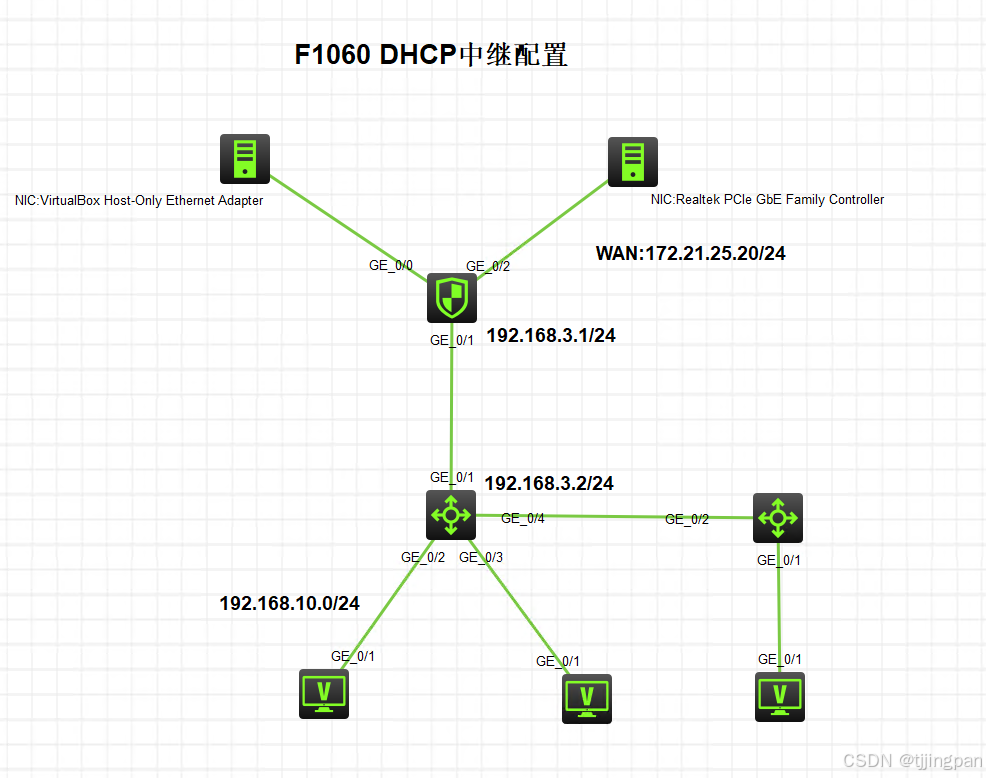

华三防火墙nateasy及dhcp服务器及交换机中继实验案例

本文链接：https://blog.youkuaiyun.com/tjjingpan/article/details/145323435

防火墙配置

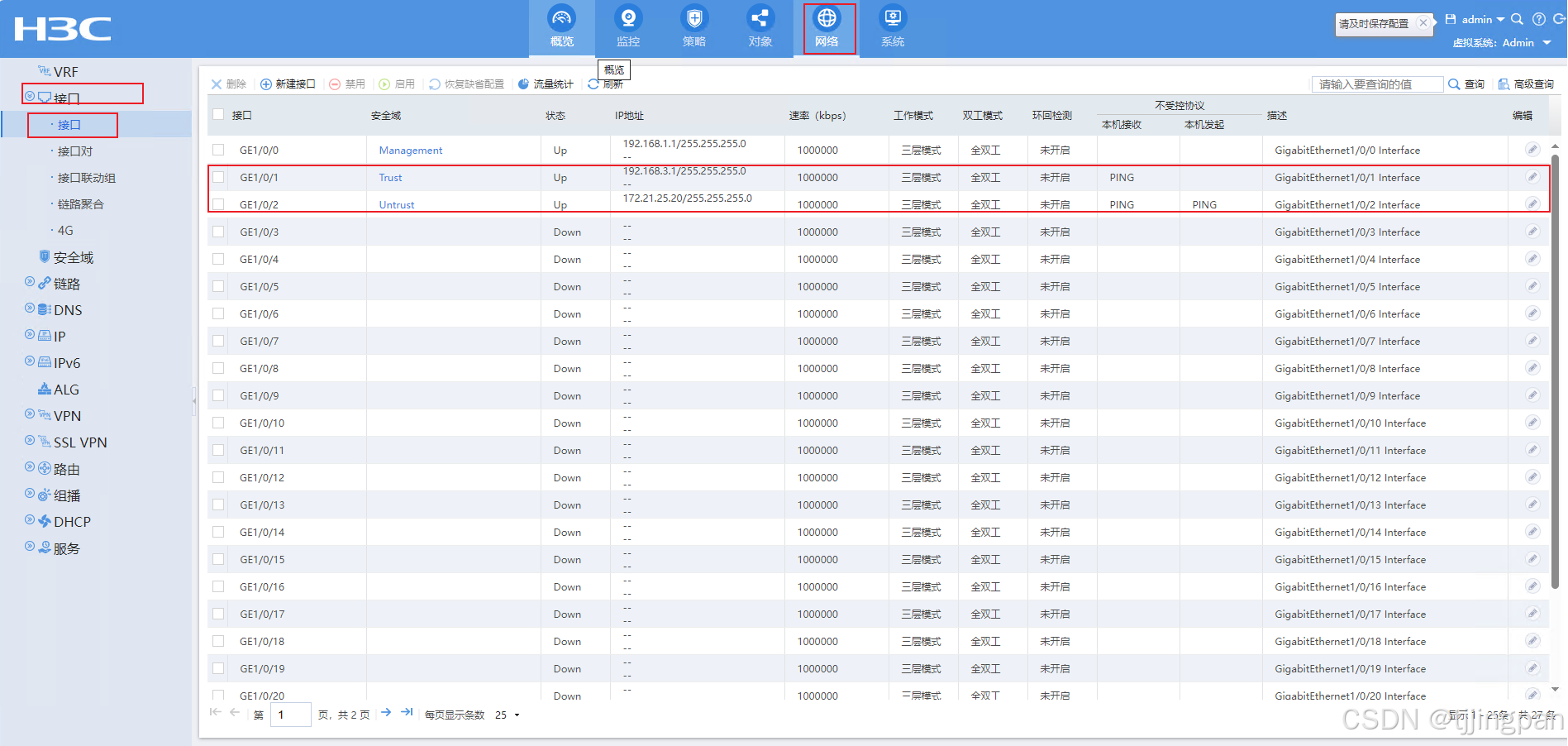

接口配置

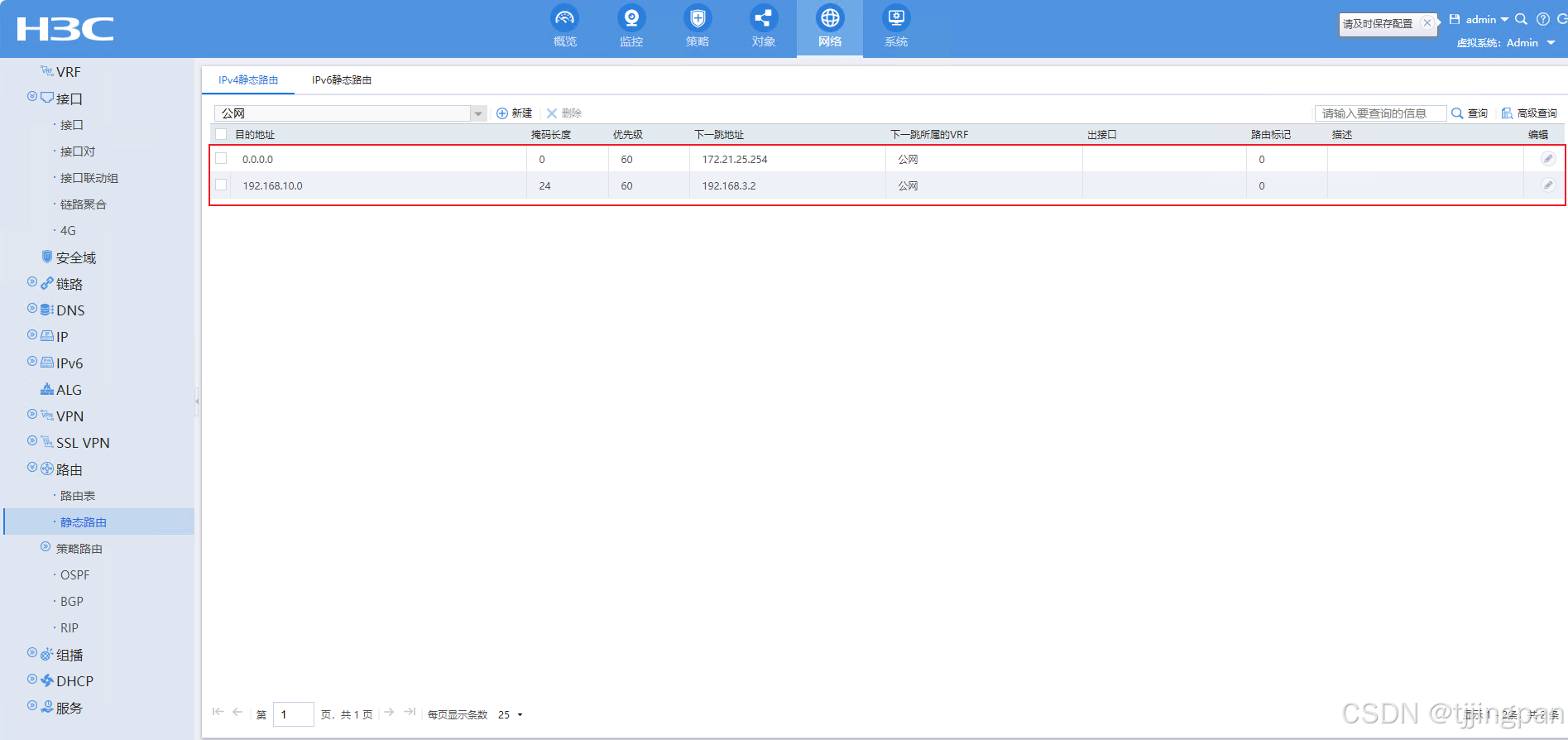

静态路由配置

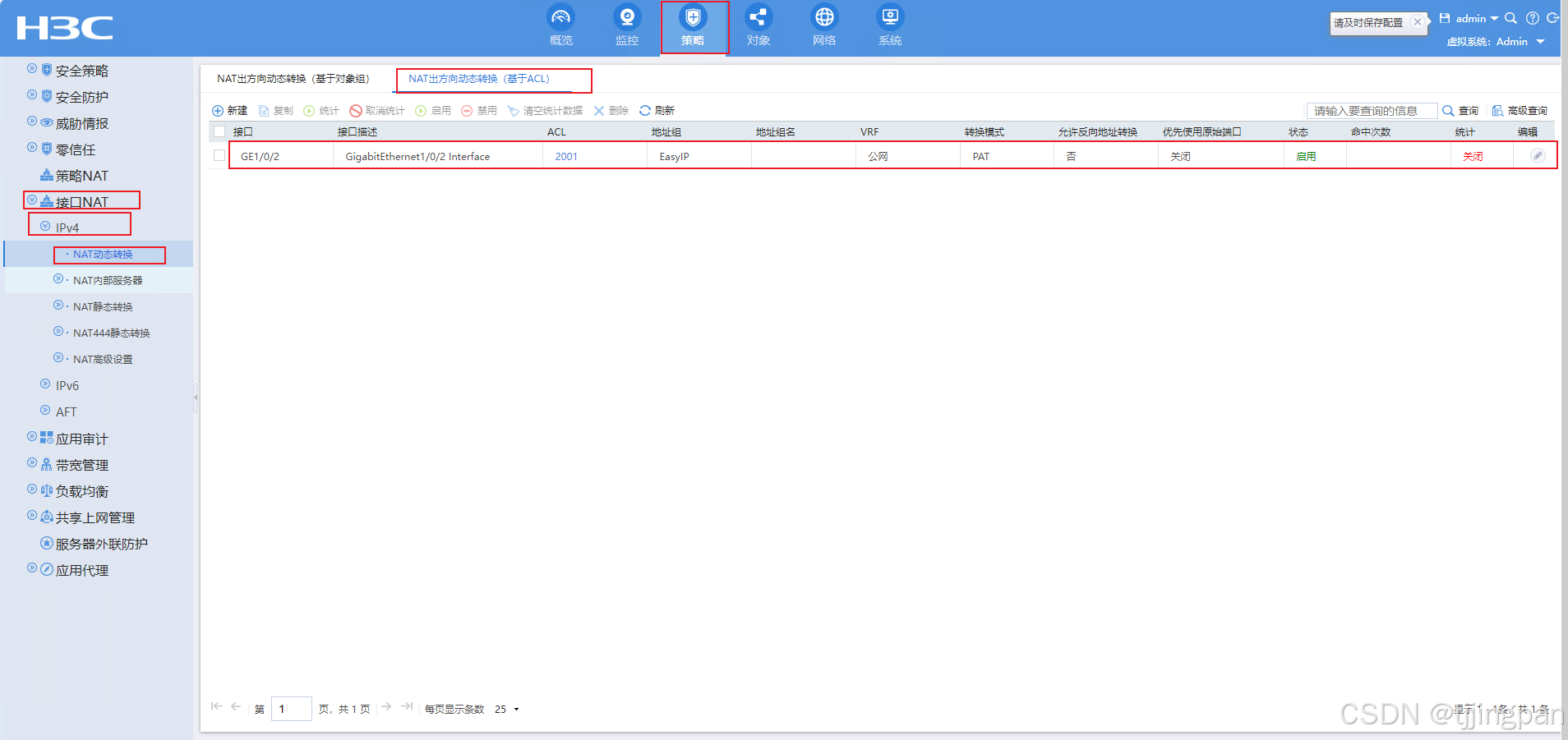

接口NAT

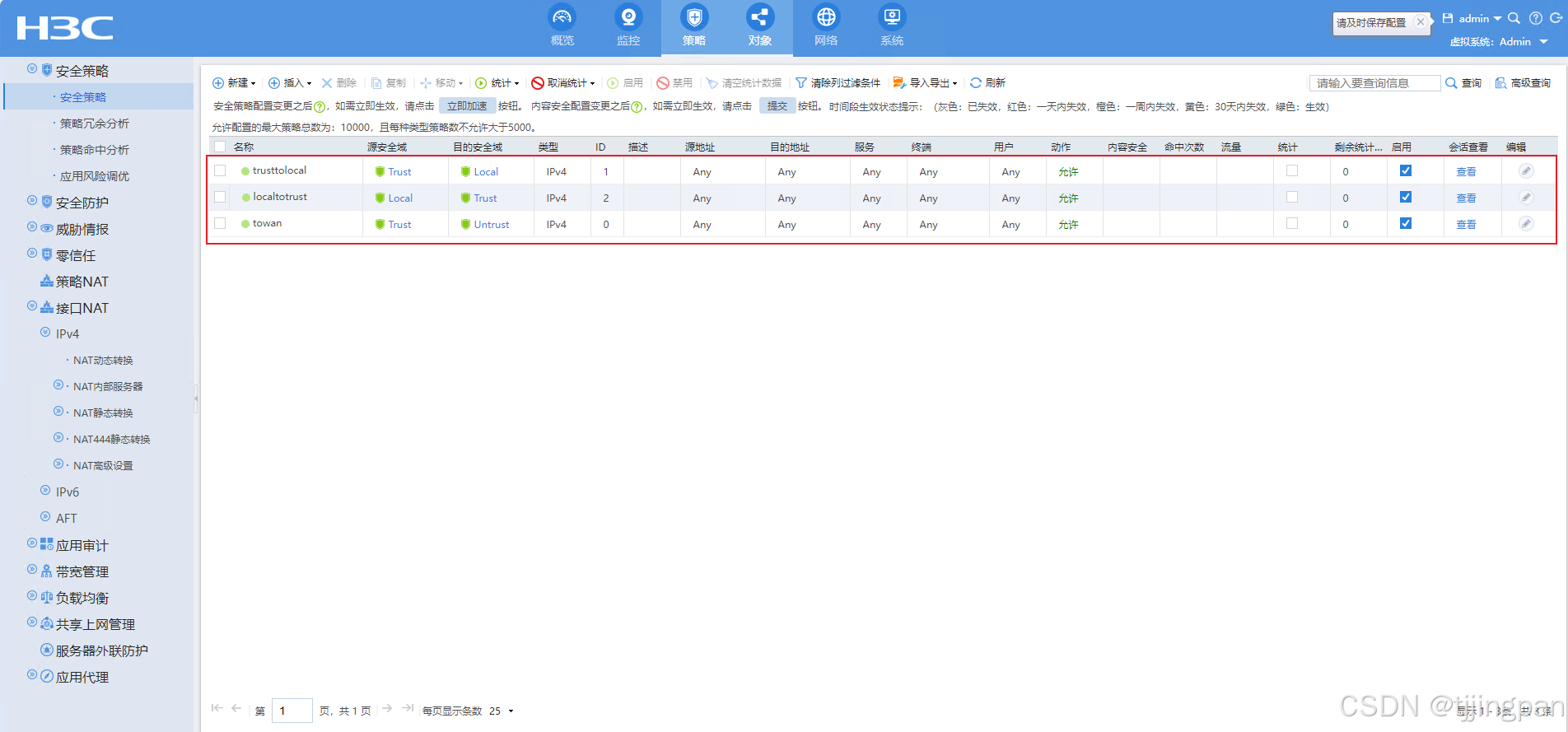

案全策略

配置文件

#
 version 7.1.064, Alpha 7164
#
 sysname fw1
#
context Admin id 1
#
 telnet server enable
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 1
#
 dhcp enable
#
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
object-group ip address 1
 0 network subnet 192.168.10.0 255.255.255.0
#
dhcp server ip-pool dhcp
 gateway-list 192.168.10.1
 network 192.168.10.0 mask 255.255.255.0
 dns-list 114.114.114.114
#
interface NULL0
#
interface GigabitEthernet1/0/0
 port link-mode route
 combo enable copper
 ip address 192.168.1.1 255.255.255.0
#
interface GigabitEthernet1/0/1
 port link-mode route
 combo enable copper
 ip address 192.168.3.1 255.255.255.0
 manage ping inbound
#
interface GigabitEthernet1/0/2
 port link-mode route
 combo enable copper
 ip address 172.21.25.20 255.255.255.0
 nat outbound 2001
 manage ping inbound
 manage ping outbound
#
interface GigabitEthernet1/0/3
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/4
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/5
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/6
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/7
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/8
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/9
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/10
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/11
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/12
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/13
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/14
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/15
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/16
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/17
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/18
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/19
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/20
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/21
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/22
 port link-mode route
 combo enable copper
#
interface GigabitEthernet1/0/23
 port link-mode route
 combo enable copper
 undo dhcp select server
#
security-zone name Local
#
security-zone name Trust
 import interface GigabitEthernet1/0/1
#
security-zone name DMZ
#
security-zone name Untrust
 import interface GigabitEthernet1/0/2
#
security-zone name Management
 import interface GigabitEthernet1/0/0
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-admin
#
line con 0
 authentication-mode scheme
 user-role network-admin
#
line vty 0 4
 authentication-mode scheme
 user-role network-admin
#
line vty 5 63
 user-role network-operator
#
 ip route-static 0.0.0.0 0 172.21.25.254
 ip route-static 192.168.10.0 24 192.168.3.2
#
 info-center loghost 127.0.0.1 port 3301 format default
 info-center source CFGLOG loghost level informational
#
acl basic 2001
 rule 0 permit source 192.168.10.0 0.0.0.255
#
domain system
#
 aaa session-limit ftp 16
 aaa session-limit telnet 16
 aaa session-limit ssh 16
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
local-user admin class manage
 password hash $h$6$2yPCoJSq/Jwr/9kA$zZMCGcTgNBLidaJqhB4U9n5t9znfxcIDYHpP1xazLcbY1VOVFOwVVIq2CB/ZnsW93rc5KDIvJ9mItduHhZpdRQ==
 service-type telnet terminal http
 authorization-attribute user-role level-3
 authorization-attribute user-role network-admin
 authorization-attribute user-role network-operator
#
 ip http enable
 ip https enable
#
security-policy ip
 rule 1 name trusttolocal
  action pass
  source-zone Trust
  destination-zone Local
 rule 2 name localtotrust
  action pass
  source-zone Local
  destination-zone Trust
 rule 0 name towan
  action pass
  source-zone Trust
  destination-zone Untrust
#
return

交换机sw1配置

#
 version 7.1.075, Alpha 7571
#
 sysname sw1
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 1
#
 dhcp enable
 dhcp relay client-information record
 dhcp relay always-unicast
#
 lldp global enable
#
 system-working-mode standard
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
vlan 10
#
 stp global enable
#
interface NULL0
#
interface Vlan-interface10
 ip address 192.168.10.1 255.255.255.0
 dhcp select relay
 dhcp relay server-address 192.168.3.1
#
interface FortyGigE1/0/53
 port link-mode bridge
#
interface FortyGigE1/0/54
 port link-mode bridge
#
interface GigabitEthernet1/0/1
 port link-mode route
 combo enable fiber
 ip address 192.168.3.2 255.255.255.0
#
interface GigabitEthernet1/0/2
 port link-mode bridge
 port access vlan 10
 combo enable fiber
#
interface GigabitEthernet1/0/3
 port link-mode bridge
 port access vlan 10
 combo enable fiber
#
interface GigabitEthernet1/0/4
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/5
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/6
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/7
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/8
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/9
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/10
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/11
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/12
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/13
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/14
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/15
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/16
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/17
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/18
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/19
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/20
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/21
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/22
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/23
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/24
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/25
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/26
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/27
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/28
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/29
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/30
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/31
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/32
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/33
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/34
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/35
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/36
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/37
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/38
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/39
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/40
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/41
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/42
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/43
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/44
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/45
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/46
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/47
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/48
 port link-mode bridge
 combo enable fiber
#
interface M-GigabitEthernet0/0/0
#
interface Ten-GigabitEthernet1/0/49
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/50
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/51
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/52
 port link-mode bridge
 combo enable fiber
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 63
 user-role network-operator
#
 ip route-static 0.0.0.0 0 192.168.3.1
#
radius scheme system
 user-name-format without-domain
#
domain name system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
return

交换机sw2配置

#
 version 7.1.075, Alpha 7571
#
 sysname sw2
#
 irf mac-address persistent timer
 irf auto-update enable
 undo irf link-delay
 irf member 1 priority 1
#
 dhcp enable
#
 lldp global enable
#
 system-working-mode standard
 xbar load-single
 password-recovery enable
 lpu-type f-series
#
vlan 1
#
vlan 10
#
 stp global enable
#
interface NULL0
#
interface Vlan-interface10
 dhcp select relay
 dhcp relay server-address 192.168.3.1
#
interface FortyGigE1/0/53
 port link-mode bridge
#
interface FortyGigE1/0/54
 port link-mode bridge
#
interface GigabitEthernet1/0/1
 port link-mode bridge
 port access vlan 10
 combo enable fiber
#
interface GigabitEthernet1/0/2
 port link-mode bridge
 port link-type trunk
 port trunk permit vlan 1 10
 combo enable fiber
#
interface GigabitEthernet1/0/3
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/4
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/5
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/6
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/7
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/8
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/9
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/10
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/11
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/12
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/13
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/14
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/15
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/16
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/17
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/18
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/19
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/20
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/21
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/22
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/23
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/24
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/25
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/26
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/27
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/28
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/29
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/30
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/31
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/32
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/33
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/34
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/35
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/36
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/37
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/38
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/39
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/40
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/41
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/42
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/43
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/44
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/45
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/46
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/47
 port link-mode bridge
 combo enable fiber
#
interface GigabitEthernet1/0/48
 port link-mode bridge
 combo enable fiber
#
interface M-GigabitEthernet0/0/0
#
interface Ten-GigabitEthernet1/0/49
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/50
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/51
 port link-mode bridge
 combo enable fiber
#
interface Ten-GigabitEthernet1/0/52
 port link-mode bridge
 combo enable fiber
#
 scheduler logfile size 16
#
line class aux
 user-role network-operator
#
line class console
 user-role network-admin
#
line class tty
 user-role network-operator
#
line class vty
 user-role network-operator
#
line aux 0
 user-role network-operator
#
line con 0
 user-role network-admin
#
line vty 0 63
 user-role network-operator
#
radius scheme system
 user-name-format without-domain
#
domain name system
#
 domain default enable system
#
role name level-0
 description Predefined level-0 role
#
role name level-1
 description Predefined level-1 role
#
role name level-2
 description Predefined level-2 role
#
role name level-3
 description Predefined level-3 role
#
role name level-4
 description Predefined level-4 role
#
role name level-5
 description Predefined level-5 role
#
role name level-6
 description Predefined level-6 role
#
role name level-7
 description Predefined level-7 role
#
role name level-8
 description Predefined level-8 role
#
role name level-9
 description Predefined level-9 role
#
role name level-10
 description Predefined level-10 role
#
role name level-11
 description Predefined level-11 role
#
role name level-12
 description Predefined level-12 role
#
role name level-13
 description Predefined level-13 role
#
role name level-14
 description Predefined level-14 role
#
user-group system
#
return

实验文件：

通过网盘分享的文件：hcl_45e7d2268516.zip
链接: https://pan.baidu.com/s/1CWFVpvfHmrFJD5N3OcXFCg?pwd=g2z7 提取码: g2z7
