Springboot源码分析（一）

      阅读源码有助于项目中问题原因的查找，也方便我们对在项目中的程序的拓展。然而阅读源码是一个痛苦的过程，记录一下自己的学习过程吧。

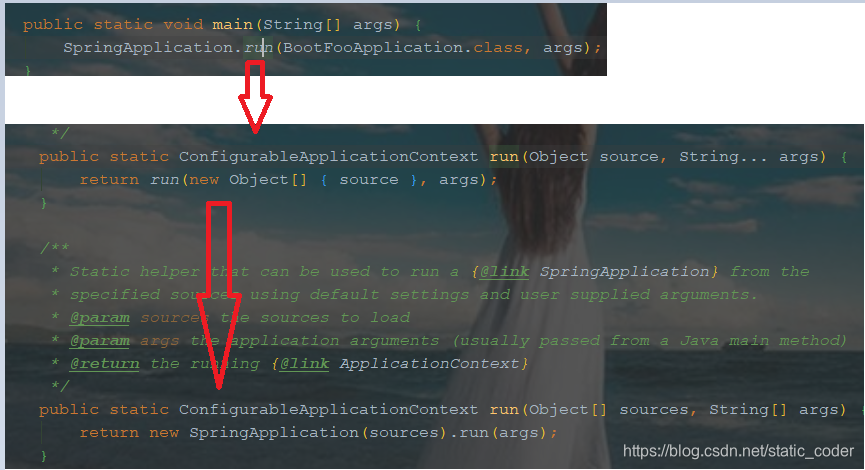

1、Main方法开始

 再进去看看SpringApplication实例化过程

// SpringApplication 实例化过程
public SpringApplication(ResourceLoader resourceLoader, Class<?>... primarySources) {
	this.resourceLoader = resourceLoader;
	Assert.notNull(primarySources, "PrimarySources must not be null");
	this.primarySources = new LinkedHashSet<>(Arrays.asList(primarySources));
	// 根据classpath，获取WEB环境类型[NONE, SERVLET, REACTIVE--响应式web application]
	// 默认是基于servlet的web application
	this.webApplicationType = WebApplicationType.deduceFromClasspath(); //SERVLET
	// 获取一个上下文的的实例
	setInitializers((Collection) getSpringFactoriesInstances(ApplicationContextInitializer.class));
	// 设置一个ApplicationListener监听器，里面包含了spring的核心监听器（org.springframework.web.context.ContextLoaderListener）
	setListeners((Collection) getSpringFactoriesInstances(ApplicationListener.class));
	// 追踪看是不是"main"方法启动
	this.mainApplicationClass = deduceMainApplicationClass();
}

private <T> Collection<T> getSpringFactoriesInstances(Class<T> type, Class<?>[] parameterTypes, Object... args) {
	ClassLoader classLoader = getClassLoader();
	// Use names and ensure unique to protect against duplicates
	// 加载 spring-boot-autoconfig下面的META-INF/spring.factories
	Set<String> names = new LinkedHashSet<>(SpringFactoriesLoader.loadFactoryNames(type, classLoader));
	// 实例化加载的数据（包名），该数据都是springboot整合第三方工具提供的配置文件包等
	List<T> instances = createSpringFactoriesInstances(type, parameterTypes, classLoader, args, names);
	AnnotationAwareOrderComparator.sort(instances);
	return instances;
}

public static List<String> loadFactoryNames(Class<?> factoryType, @Nullable ClassLoader classLoader) {
	String factoryTypeName = factoryType.getName();
	return loadSpringFactories(classLoader).getOrDefault(factoryTypeName, Collections.emptyList());
}

private static Map<String, List<String>> loadSpringFactories(@Nullable ClassLoader classLoader) {
	MultiValueMap<String, String> result = cache.get(classLoader);
	if (result != null) {
		return result;
	}

	try {
		// 加载 spring-boot-autoconfig下面的META-INF/spring.factories
		Enumeration<URL> urls = (classLoader != null ?
				classLoader.getResources(FACTORIES_RESOURCE_LOCATION) :
				ClassLoader.getSystemResources(FACTORIES_RESOURCE_LOCATION));
		result = new LinkedMultiValueMap<>();
		while (urls.hasMoreElements()) {
			URL url = urls.nextElement();
			UrlResource resource = new UrlResource(url);
			Properties properties = PropertiesLoaderUtils.loadProperties(resource);
			for (Map.Entry<?, ?> entry : properties.entrySet()) {
				String factoryTypeName = ((String) entry.getKey()).trim();
				for (String factoryImplementationName : StringUtils.commaDelimitedListToStringArray((String) entry.getValue())) {
					result.add(factoryTypeName, factoryImplementationName.trim());
				}
			}
		}
		cache.put(classLoader, result);
		return result;
	}
	catch (IOException ex) {
		throw new IllegalArgumentException("Unable to load factories from location [" +
				FACTORIES_RESOURCE_LOCATION + "]", ex);
	}
}

 通过实例化SpringApplication的过程我们可以看出：

 ①：获取web环境，这里返回的是基于servlet的web环境

 ②：获取一个上下文的实例

 ③：监听上下文

这里只是为启动Spring容器做好准备。

2、Run方法

public ConfigurableApplicationContext run(String... args) {
	StopWatch stopWatch = new StopWatch();
	stopWatch.start();
	ConfigurableApplicationContext context = null;
	Collection<SpringBootExceptionReporter> exceptionReporters = new ArrayList<>();
	configureHeadlessProperty();
	// 获取监听器
	SpringApplicationRunListeners listeners = getRunListeners(args);
	listeners.starting();
	try {
		ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
		// 初始化一个可配置的环境[NONE, SERVLET, REACTIVE--响应式web application]
		// 这里的ConfigurableEnvironment是StandardServletEnvironment
		ConfigurableEnvironment environment = prepareEnvironment(listeners, applicationArguments);
		configureIgnoreBeanInfo(environment);
		// 打印Banner
		Banner printedBanner = printBanner(environment);
		// 创建一个上下文环境ApplicationContext-- sevelet环境
		context = createApplicationContext();
		// 创建异常回调的方法
		exceptionReporters = getSpringFactoriesInstances(SpringBootExceptionReporter.class,
				new Class[] { ConfigurableApplicationContext.class }, context);
		// 初始化上下文的环境
		prepareContext(context, environment, listeners, applicationArguments, printedBanner);
		refreshContext(context);
		afterRefresh(context, applicationArguments);
		stopWatch.stop();
		if (this.logStartupInfo) {
			new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), stopWatch);
		}
		listeners.started(context);
		callRunners(context, applicationArguments);
	}
	catch (Throwable ex) {
		handleRunFailure(context, ex, exceptionReporters, listeners);
		throw new IllegalStateException(ex);
	}

	try {
		listeners.running(context);
	}
	catch (Throwable ex) {
		handleRunFailure(context, ex, exceptionReporters, null);
		throw new IllegalStateException(ex);
	}
	return context;
}

其他的都比较简单，我们主要看一下

prepareContext(context, environment, listeners, applicationArguments, printedBanner);

这个方法是用来初始化上文环境的

private void prepareContext(ConfigurableApplicationContext context, ConfigurableEnvironment environment,
			SpringApplicationRunListeners listeners, ApplicationArguments applicationArguments, Banner printedBanner) {
	// 设置环境
	context.setEnvironment(environment);
	// 上下文环境的后置处理：加载转化器,以保证数据传输的可靠性
	postProcessApplicationContext(context);
	// 初始化环境
	applyInitializers(context);
	// 监听上下文环境
	listeners.contextPrepared(context);
	// 开始打印日志，并加载运行环境（dev，test）
	if (this.logStartupInfo) {
		logStartupInfo(context.getParent() == null);
		logStartupProfileInfo(context);
	}
	// Add boot specific singleton beans
	// 加载一个特殊Bean到spring容器中
	ConfigurableListableBeanFactory beanFactory = context.getBeanFactory();
	beanFactory.registerSingleton("springApplicationArguments", applicationArguments);
	if (printedBanner != null) {
		beanFactory.registerSingleton("springBootBanner", printedBanner);
	}
	if (beanFactory instanceof DefaultListableBeanFactory) {
		((DefaultListableBeanFactory) beanFactory)
				.setAllowBeanDefinitionOverriding(this.allowBeanDefinitionOverriding);
	}
	if (this.lazyInitialization) {
		context.addBeanFactoryPostProcessor(new LazyInitializationBeanFactoryPostProcessor());
	}
	// Load the sources
	Set<Object> sources = getAllSources();
	Assert.notEmpty(sources, "Sources must not be empty");
	// 将Bean交给spring管理
	load(context, sources.toArray(new Object[0]));
	// 监听上下文环境加载过程
	listeners.contextLoaded(context);
}

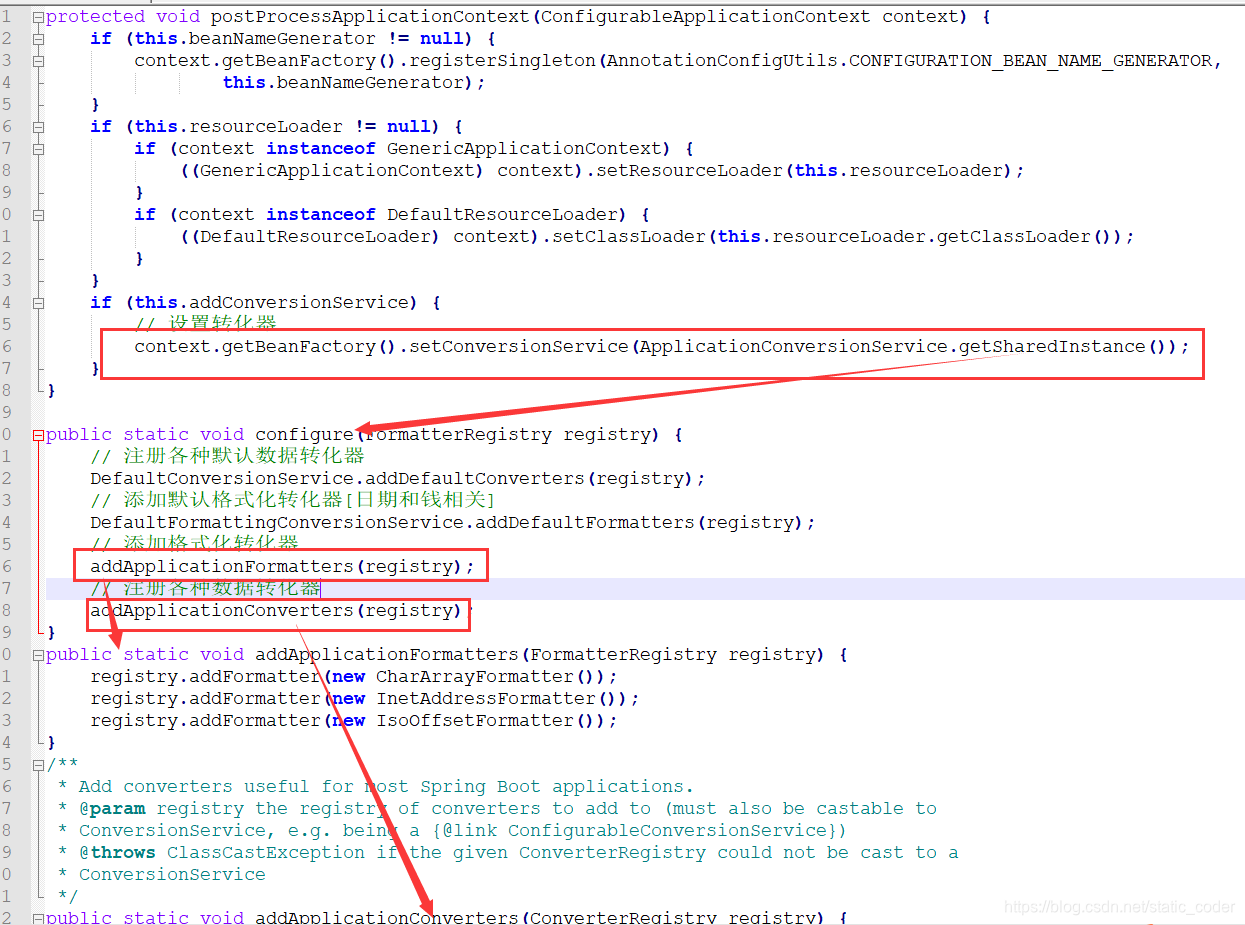

在这里我们要注意这个方法：上下文后置处理方法

postProcessApplicationContext(context);

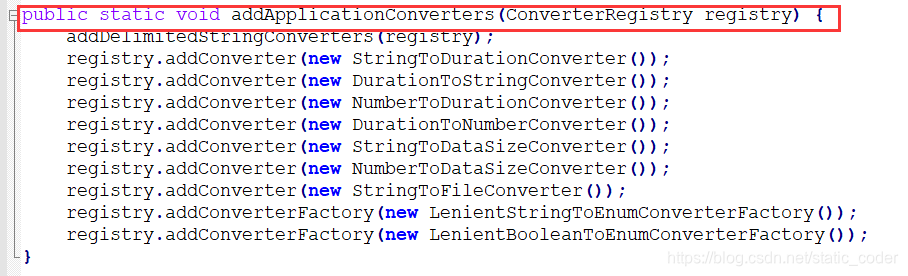

 这里面注册是大量的默认基础数据的转化器，以保证我们数据的传输：

这个时候上下文环境就已经初始化完成了，下面就会交给Spring去管理，完成后续操作
