神经网络之模型搭建和参数优化---基于CNN

模型搭建与参数优化

本文主要是复习pytorch实战计算机视觉的内容，模型采用CNN，数据集是手写体

1.模型搭建

class Model(torch.nn.Module):
    def __init__(self):
        super(Model,self).__init__()
        self.conv1 = torch.nn.Sequential(
            torch.nn.Conv2d(1,64,kernel_size=3,stride=1,padding=1),
            torch.nn.ReLU(),
            torch.nn.Conv2d(64,128,kernel_size=3,stride=1,padding=1),
            torch.nn.ReLU(),
            torch.nn.MaxPool2d(stride=2,kernel_size=2)
        )
        self.fc = torch.nn.Sequential(
            torch.nn.Linear(14*14*128,1024),
            torch.nn.ReLU(),
            torch.nn.Dropout(p=0.5),
            torch.nn.Linear(1024,10)
        )

    def forward(self,x):
        x = self.conv1(x) #卷积处理
        x = x.view(-1,14*14*128) # 传入全连接层是必须扁平化处理否则会报错
        x = self.fc(x)
        return x

2.模型训练和参数优化

cost = torch.nn.CrossEntropyLoss()#损失函数采用交叉熵
optimizer = torch.optim.Adam(model.parameters())#参数优化采用Adam优化的是model中所有参数
if Use_gpu:
    model = model.cuda()
n_epochs = 5
for epoch in range(n_epochs):
    running_loss = 0.0
    runing_correct = 0.0
    print("Epoch{}/{}".format(epoch,n_epochs))
    for data in data_loader_train:
        X_train,y_train = data
        if Use_gpu:
            X_train,y_train = Variable(X_train.cuda()),Variable(y_train.cuda())
        else:
            X_train,y_train = Variable(X_train),Variable(y_train)
        outputs = model(X_train)
        _,pred = torch.max(outputs.data,1)
        optimizer.zero_grad() #梯度清零
        loss = cost(outputs,y_train) #计算损失值
        loss.backward() #反向传播
        optimizer.step()
        running_loss+=loss.data
        runing_correct += torch.sum(pred==y_train.data)
    testing_correct=0
    for data in data_loader_test:
        X_test,y_test = data
        if Use_gpu:
            X_test,y_test = Variable(X_test.cuda()),Variable(y_test.cuda())
        else:
            X_test,y_test = Variable(X_test),Variable(y_test)

        outputs = model(X_test)
        _,pred = torch.max(outputs.data,1)
        testing_correct += torch.sum(pred==y_test.data)
    print("Loss is:{:.4f},Train acc:{:.4f},Test acc:{:.4f}"
          .format(running_loss/len(data_train),
                  100*runing_correct/len(data_train),
                  100*testing_correct/len(data_test)))

 输出：
Epoch0/5
Loss is:0.0007,Train acc:98.0000,Test acc:98.0000
Epoch1/5
Loss is:0.0005,Train acc:99.0000,Test acc:98.0000
Epoch2/5
Loss is:0.0003,Train acc:99.0000,Test acc:98.0000
Epoch3/5
Loss is:0.0003,Train acc:99.0000,Test acc:98.0000
Epoch4/5
Loss is:0.0002,Train acc:99.0000,Test acc:98.0000

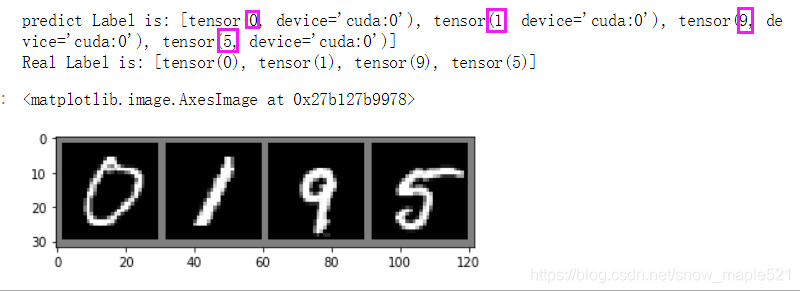

3.对测试数据可视化

data_loader_test = torch.utils.data.DatalLoader(dataset=data_test,batch_size=4,shuffle=True)

X_test,y_test = next(iter(data_loader_test))
if Use_gpu:
    X_test = Variable(X_test.cuda())
else:
    X_test = Variable(X_test)
pred = model(X_test)
_,pred = torch.max(pred,1)
print("predict Label is:",[i for i in pred.data])
print("Real Label is:",[i for i in y_test])
img = torchvision.utils.make_grid(X_test)
img = img.cpu.numpy().transpose(1,2,0) #cuda数据类型不能直接转numpy需要先变成cpu
std = [0.5,0.5,0.5]
mean = [0.5,0.5,0.5]
img = img*std + mean
plt.imshow(img)

致谢

深度学习之pytorch实战计算机视觉
