Introduction

在英飞凌MCU中，UART通信可以通过三种主要模式进行：Interrupt（中断）、Direct（直接）和DMA（直接存储器访问）。下面是这三种通讯模式的区别：

Interrupt（中断）模式：
- 在中断模式下，UART通过中断请求（IRQ）与CPU通信。当UART接收到数据或者发送数据时，它会生成一个中断信号给CPU，CPU响应中断并执行相应的中断服务程序（ISR）来处理数据。
- 这种模式下，CPU需要在每次数据传输时响应中断，这可能会导致CPU资源的频繁占用，尤其是在数据传输频繁时。
- 适用于数据传输速率不高，对实时性要求不是非常高的应用场景。
Direct（直接）模式：
- 直接模式下，UART的数据传输不通过中断或DMA，而是直接通过CPU编程控制数据的发送和接收。
- 这种方式下，CPU需要轮询UART的状态寄存器，检查是否可以发送或接收数据，然后进行相应的读写操作。
- 直接模式通常用于简单的串口通信，或者在系统资源允许的情况下，对实时性要求较高的场合。
DMA（直接存储器访问）模式：
- DMA模式允许UART通过DMA控制器直接将数据从外设传输到内存，或者从内存传输到外设，而不需要CPU的直接参与。
- 在这种模式下，DMA控制器负责管理数据的移动，减少了CPU的负担，使得CPU可以处理其他任务。
- DMA模式适用于高速数据传输，可以显著提高数据传输效率，尤其在数据量大且频繁传输的场景中。

总结来说，中断模式适合于数据传输速率较低的应用，直接模式适用于简单的串口通信，而DMA模式适合于高速且数据量大的传输场景，可以有效地减轻CPU负担。每种模式都有其适用的场景和优缺点，开发者可以根据具体的应用需求选择合适的通信模式。

实践

英飞凌的IDE DAVE（Digital Application Virtual Engineer）是一款专为XMC系列微控制器（MCU）设计的集成开发环境（IDE）。以下是DAVE的主要特点和功能：

基于Eclipse的IDE：DAVE基于Eclipse平台，提供了一个熟悉的开发环境，支持代码提示和快捷键自定义等功能。
DAVE APPs：DAVE提供了可配置的应用库（DAVE APPs），这些是预定义的模块，可以通过图形化界面进行配置，然后自动生成源代码库供开发者进行上层逻辑的开发。
图形化配置界面：DAVE提供了一个图形化的外设配置界面，用户可以通过拖放组件来配置外设（如GPIO、UART、SPI、PWM等），并自动生成相应的初始化代码。
代码生成工具：配置完外设后，用户可以点击“Project” -> “Generate Code”，DAVE会自动根据配置生成相应的初始化代码，包含了每个外设的初始化函数，自动配置了所有外设寄存器。
实时调试功能：DAVE支持实时调试功能，包括设置断点、单步调试、查看变量和调用栈等，以及实时查看外设状态的功能。
支持多种编译工具：DAVE支持多种编译工具，如GCC ARM，以及与硬件的无缝集成，使得开发者可以专注于应用逻辑的实现，而无需过多关注底层硬件的配置和管理。
性能分析工具：DAVE IDE支持性能分析工具，可以对代码的执行时间进行剖析，查找性能瓶颈，并提供了针对不同外设的低功耗配置，帮助实现节能优化。
固件包：DAVE IDE提供了固件包（如XMC-Device-FW），里面包含了XMC系列MCU的所有驱动程序和外设配置函数，便于快速开始开发。
免费使用：DAVE是一个免费提供给用户的开发工具，可以帮助用户减少开发时间和成本。
支持多种MCU系列：DAVE支持英飞凌的多种MCU系列，包括XMC系列、XC800、C166、XC166、XE166、XC2000和TriCore AUDO系列产品。

DAVE通过提供图形化的配置界面、强大的代码生成工具、实时调试功能以及对XMC MCU系列的全面支持，使得开发者能够高效地开发、调试和部署嵌入式应用。

New Project in DAVE

关于一个简单的串口程序，我原来写过一篇blog, 可以参考：【基于DAVE的英飞凌XMC4200的RS485通讯】

Interrupt mode

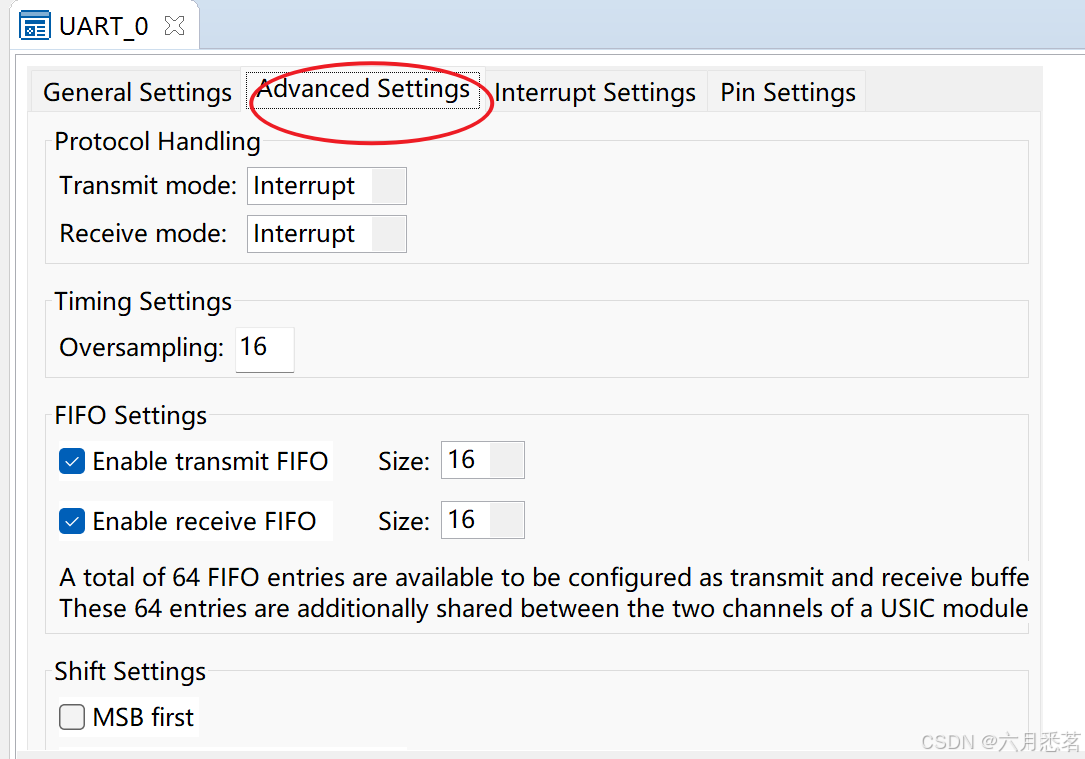

在UART APP configuration 界面的advanced settings页面中可以看到，默认模式是Interrupt模式。
在这里插入图片描述
generate code 之后我们可以去uart.c里面看具体怎么收发数据。

/*
 * @brief Common function to transmit data.
 *
 * @param[in]  handle UART APP handle pointer of type UART_t*
 * @param[in]  data_ptr Pointer to data of type uint8_t
 * @param[in]  count Number of uint8_t type bytes to be transmitted
 *
 * @return  UART_STATUS_t
 *          UART_SUCCESS: If the data is put to transmit.<BR>
 *          UART_STATUS_BUSY  : If the channel is busy.<BR>
 *          UART_STATUS_BUFFER_INVALID: Either if buffer is NULL or count is 0.<BR>
 *          UART_STATUS_MODE_MISMATCH: If the configured mode is invalid.<BR>
 *
 */
UART_STATUS_t UART_Transmit(const UART_t *const handle, uint8_t* data_ptr, uint32_t count)
{
  UART_STATUS_t ret_stat = UART_STATUS_MODE_MISMATCH;

  switch(handle->config->transmit_mode)
  {
#ifdef UART_TX_INTERRUPT_USED
  case UART_TRANSFER_MODE_INTERRUPT:
    ret_stat = UART_StartTransmitIRQ(handle, data_ptr, count);
    break;
#endif
#ifdef UART_TX_DMA_USED
  case UART_TRANSFER_MODE_DMA:
    ret_stat = UART_StartTransmitDMA(handle, data_ptr, count);
    break;
#endif
#ifdef UART_TX_DIRECT_USED
  case UART_TRANSFER_MODE_DIRECT:
    ret_stat = UART_lStartTransmitPolling(handle, data_ptr, count);
    break;
#endif
  default:
    break;
  }
  return ret_stat;
}
/*
 * @brief Common function to receive data.
 *
 * @param[in]  handle UART APP handle pointer of type UART_t*
 * @param[in]  data_ptr Pointer to data of type uint8_t
 * @param[in]  count Number of uint8_t type bytes to be received
 *
 * @return  UART_STATUS_t
 *          UART_SUCCESS: If the data is put to transmit.<BR>
 *          UART_STATUS_BUSY  : If the channel is busy.<BR>
 *          UART_STATUS_BUFFER_INVALID: Either if buffer is NULL or count is 0.<BR>
 *          UART_STATUS_MODE_MISMATCH: If the configured mode is invalid.<BR>
 *
 */
UART_STATUS_t UART_Receive(const UART_t *const handle, uint8_t* data_ptr, uint32_t count)
{
  UART_STATUS_t ret_stat = UART_STATUS_MODE_MISMATCH;

  switch(handle->config->receive_mode)
  {
#ifdef UART_RX_INTERRUPT_USED
  case UART_TRANSFER_MODE_INTERRUPT:
    ret_stat = UART_StartReceiveIRQ(handle, data_ptr, count);
    break;
#endif
#ifdef UART_RX_DMA_USED
  case UART_TRANSFER_MODE_DMA:
    ret_stat = UART_StartReceiveDMA(handle, data_ptr, count);
    break;
#endif
#ifdef UART_RX_DIRECT_USED
  case UART_TRANSFER_MODE_DIRECT:
    ret_stat = UART_lStartReceivePolling(handle, data_ptr, count);
    break;
#endif
  default:
    break;
  }
  return ret_stat;
}

/*
 * @brief Registers a request for transmitting data over UART channel.
 *
 * @param[in]  UART_t*  UART APP handle pointer of type UART_t
 * @param[in]  uint8_t* Pointer to data
 * @param[in]  uint32_t Total no of words to be transmitted.
 *
 * @return  UART_STATUS_t UART_STATUS_SUCCESS if the request is accepted.
 *                        UART_STATUS_BUSY if a transmission is in progress.
 * Details of function:
 * The data transmission is accomplished using transmit interrupt. User can configure
 * a callback function in the APP UI. When the data is fully transmitted, the callback
 * function will be executed. If transmit FIFO is enabled, the trigger limit is set to 0.
 * So the transmit interrupt will be generated when all the data in FIFO is moved from FIFO.
 *
 * <i>Imp Note:</i> Return value should be validated by user to ensure that the
 * request is registered.
 *
 *
 */
UART_STATUS_t UART_StartTransmitIRQ(const UART_t *const handle, uint8_t* data_ptr, uint32_t count)
{
  UART_STATUS_t ret_stat = UART_STATUS_MODE_MISMATCH;
  UART_RUNTIME_t * ptr_runtime = handle->runtime;

  XMC_ASSERT("UART_StartTransmitIRQ: UART APP handle invalid", ((handle != NULL)&&
            (handle->runtime != NULL)));

  if (handle->config->transmit_mode == UART_TRANSFER_MODE_INTERRUPT)
  {
    ret_stat = UART_STATUS_BUSY;
    if (ptr_runtime->tx_busy == false)
    {
      /*If there is no transmission in progress*/
      if ((data_ptr != NULL) && (count > 0U))
      {
        /*Obtain the address of data, size of data*/
        ptr_runtime->tx_data = data_ptr;
        ptr_runtime->tx_data_count = count;
        /*Initialize to first index and set the busy flag*/
        ptr_runtime->tx_data_index = 0U;
        ptr_runtime->tx_busy = true;

        /*Enable the transmit buffer event*/
        if (handle->config->tx_fifo_size != XMC_USIC_CH_FIFO_DISABLED)
        {
          /*Clear the transmit FIFO*/
          XMC_USIC_CH_TXFIFO_Flush(handle->channel);
          /*Enable transmit buffer interrupt*/
          XMC_USIC_CH_TXFIFO_EnableEvent(handle->channel,(uint32_t)XMC_USIC_CH_TXFIFO_EVENT_CONF_STANDARD);
        }
        else
        {
          XMC_USIC_CH_EnableEvent(handle->channel, (uint32_t)XMC_USIC_CH_EVENT_TRANSMIT_BUFFER);
        }
        ret_stat = UART_STATUS_SUCCESS;
        /*Trigger the transmit buffer interrupt*/
        XMC_USIC_CH_TriggerServiceRequest(handle->channel, (uint32_t)handle->config->tx_sr);
      }
      else
      {
        ret_stat = UART_STATUS_BUFFER_INVALID;
      }
    }
  }
  return ret_stat;
}
/*
 * @brief Registers a request to receive data over UART channel.
 *
 * @param[in]  UART_t* UART APP handle pointer of type UART_t
 * @param[in]  uint8_t*  Pointer to data array
 * @param[in]  uint32_t  Total no of bytes to be read.
 *
 * @return  UART_STATUS_t UART_STATUS_SUCCESS if the request is accepted.
 *                        UART_STATUS_BUSY if a reception is in progress.
 * Details of function:
 * This function registers the receive request by configuring the UART
 * receive FIFO/Standard buffer (depending on the user configuration). The data
 * is received asynchronously. When the requested number of data bytes are received,
 * optionally, the user configured callback function will be executed. If a callback
 * function is not configured on the APP UI, the user has to poll for the status of
 * rx_busy variable of the APP handle structure.
 *
 * <i>Imp Note:</i> Return value should be validated by user to ensure that the
 * request is registered.
 *
 *
 */
UART_STATUS_t UART_StartReceiveIRQ(const UART_t *const handle, uint8_t* data_ptr, uint32_t count)
{
  UART_STATUS_t ret_stat = UART_STATUS_MODE_MISMATCH;
  UART_RUNTIME_t * ptr_runtime = handle->runtime;

  XMC_ASSERT("UART_StartReceiveIRQ: UART APP handle invalid", ((handle != NULL)&&
            (handle->runtime != NULL)));

  if (handle->config->receive_mode == UART_TRANSFER_MODE_INTERRUPT)
  {
    ret_stat = UART_STATUS_BUSY;
    if (ptr_runtime->rx_busy == false)
    {
      /*If no active reception in progress*/
      if ((data_ptr != NULL) && (count > 0U))
      {
        /*Obtain the address of data buffer and
         * number of data bytes to be received*/
        ptr_runtime->rx_data = data_ptr;
        ptr_runtime->rx_data_count = count;
        ptr_runtime->rx_busy = true;
        ptr_runtime->rx_data_index = 0U;

        if (handle->config->rx_fifo_size != XMC_USIC_CH_FIFO_DISABLED)
        {
          /*Clear the receive FIFO, configure the trigger lime
           * and enable the receive events*/
          XMC_USIC_CH_RXFIFO_Flush(handle->channel);

          /*Configure the FIFO trigger limit based on the required data size*/
          UART_lReconfigureRxFIFO(handle, count);

          XMC_USIC_CH_RXFIFO_EnableEvent(handle->channel,
            (uint32_t)((uint32_t)XMC_USIC_CH_RXFIFO_EVENT_CONF_STANDARD |
            (uint32_t)XMC_USIC_CH_RXFIFO_EVENT_CONF_ALTERNATE));
        }
        else
        {
          XMC_USIC_CH_EnableEvent(handle->channel,
          (uint32_t)((uint32_t)XMC_USIC_CH_EVENT_STANDARD_RECEIVE | (uint32_t)XMC_USIC_CH_EVENT_ALTERNATIVE_RECEIVE));
        }
        ret_stat = UART_STATUS_SUCCESS;
      }
      else
      {
        ret_stat = UART_STATUS_BUFFER_INVALID;
      }
    }
  }
  return ret_stat;
}

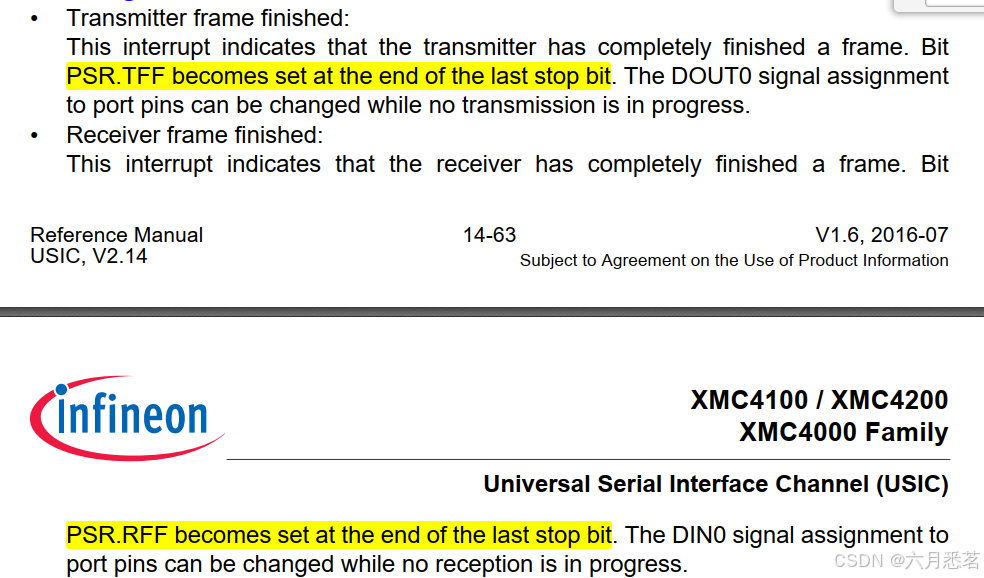

从上述代码中可以看到，在interrupt mode中是通过 XMC_USIC_CH_RXFIFO_EnableEvent或XMC_USIC_CH_EnableEvent来开始数据传输的，一般会选择使用FIFO，这样会降低CPU的操作频率。

Direct mode

generate code 后我们可以看到direct mode下是怎么工作的

/*
 * Polling method to transmit data.
 * @param[in] UART_t* handle UART APP handle pointer
 * @param[in] uint8_t*  Pointer to data array
 * @param[in] uint32_t number of bytes to be transmitted.
 *
 * @return UART_STATUS_t Status of transmit request handling.
 *
 * Description:
 * Transmits data by blocking the CPU until all data is sent. Transmission
 * cannot be aborted since it is blocking implementation. Based on FIFO selection,
 * either TBUF or IN register is updated with the data.
 *
 */
static UART_STATUS_t UART_lStartTransmitPolling(const UART_t *const handle, uint8_t* data_ptr, uint32_t count)
{
  UART_STATUS_t ret_stat = UART_STATUS_BUFFER_INVALID;
  uint32_t loc_index;

  XMC_ASSERT("UART_Transmit: UART APP handle invalid", (((handle != NULL)&&
            (handle->runtime != NULL))&&(handle->config != NULL)));

  if ((data_ptr != NULL) && (count > 0U))
  {
    ret_stat = UART_STATUS_BUSY;
    if (handle->runtime->tx_busy == false)
    {
      handle->runtime->tx_busy = true;
      if (handle->config->tx_fifo_size != XMC_USIC_CH_FIFO_DISABLED)
      {
        /*Clear the transmit FIFO*/
        XMC_USIC_CH_TXFIFO_Flush(handle->channel);
      }
      /*Loop through each byte*/
      for (loc_index = 0U; loc_index < count; loc_index++)
      {
        /*If FIFO is enabled, FIFO filling status should be checked
         * to avoid overflow error*/
        if (handle->config->tx_fifo_size != XMC_USIC_CH_FIFO_DISABLED)
        {
          /*Wait if transmit FIFO is full*/
          while (XMC_USIC_CH_TXFIFO_IsFull(handle->channel) == true)
          {
          }
        }
        XMC_UART_CH_Transmit(handle->channel, (uint16_t)data_ptr[loc_index]);
      }

      if (handle->config->tx_fifo_size != XMC_USIC_CH_FIFO_DISABLED)
      {
        /*Wait till FIFO is empty*/
        while (XMC_USIC_CH_TXFIFO_IsEmpty(handle->channel) == false)
        {
        }
      }
      ret_stat = UART_STATUS_SUCCESS;
      handle->runtime->tx_busy = false;
    }
  }
  return ret_stat;
}

/*
 * Polling method to receive data.
 * @param[in] UART_t* handle UART APP handle pointer
 * @param[in] uint8_t*  Pointer to data array
 * @param[in] uint32_t number of bytes to be received.
 *
 * @return UART_STATUS_t Status of receive request handling.
 *
 * Description:
 * Receives data by blocking the CPU until all data is received. Reception
 * cannot be aborted since it is blocking implementation. Based on FIFO selection,
 * either RBUF or OUT register will be read.
 *
 */
static UART_STATUS_t UART_lStartReceivePolling(const UART_t *const handle, uint8_t* data_ptr, uint32_t count)
{
  UART_STATUS_t ret_stat = UART_STATUS_BUFFER_INVALID;
  uint32_t loc_index;
  uint32_t loc_status;

  XMC_ASSERT("UART_Receive: UART APP handle invalid", ((handle != NULL)&&
            (handle->runtime != NULL)));

  if ((data_ptr != NULL) && (count > 0U))
  {
    ret_stat = UART_STATUS_BUSY;
    if (handle->runtime->rx_busy == false)
    {
      handle->runtime->rx_busy = true;
      if (handle->config->rx_fifo_size != XMC_USIC_CH_FIFO_DISABLED)
      {
        /*Clear the receive FIFO, configure the trigger lime
         * and enable the receive events*/
        XMC_USIC_CH_RXFIFO_Flush(handle->channel);
      }
      for (loc_index = 0U; loc_index < count; loc_index++)
      {
        /*If receive FIFO is configured, wait for FIFO to get data.*/
        if (handle->config->rx_fifo_size != XMC_USIC_CH_FIFO_DISABLED)
        {
          /*Wait if FIFO empty*/
          while(XMC_USIC_CH_RXFIFO_IsEmpty(handle->channel) == true)
          {
          }
        }
        else
        {
          /*Wait for RIF or AIF flag update*/
          loc_status = XMC_UART_CH_GetStatusFlag(handle->channel);
          while (!(loc_status & ((uint32_t)XMC_UART_CH_STATUS_FLAG_ALTERNATIVE_RECEIVE_INDICATION |
                (uint32_t)XMC_UART_CH_STATUS_FLAG_RECEIVE_INDICATION)))
          {
            loc_status = XMC_UART_CH_GetStatusFlag(handle->channel);
          }
          /*Clear the detected event.
           * Both events should not be cleared at once, otherwise if 2 bytes are received, only
           * one byte will be read.*/
          XMC_UART_CH_ClearStatusFlag(handle->channel,
              ((uint32_t)XMC_UART_CH_STATUS_FLAG_RECEIVE_INDICATION | (uint32_t)XMC_UART_CH_STATUS_FLAG_ALTERNATIVE_RECEIVE_INDICATION));
        }
        data_ptr[loc_index] = (uint8_t)XMC_UART_CH_GetReceivedData(handle->channel);
      }
      ret_stat = UART_STATUS_SUCCESS;
      handle->runtime->rx_busy = false;
    }
  }
  return ret_stat;
}

可以看到上述代码中用了for 循环和while循环，这样会让CPU一直出于block的状态。一般不建议使用。

DMA mode

同样generate code

/*
 * @brief Registers a request for transmitting data over UART channel using DMA.
 *
 * @param[in]  UART_t*  UART APP handle pointer of type UART_t
 * @param[in]  uint8_t* Pointer to data
 * @param[in]  uint32_t Total no of words to be transmitted.
 *
 * @return  UART_STATUS_t UART_STATUS_SUCCESS if the request is accepted.
 *                        UART_STATUS_BUSY if a transmission is in progress.
 * Details of function:
 * The data transmission is accomplished using a DMA channel. User can configure
 * a callback function in the APP UI. When the data is fully transmitted, the callback
 * function will be executed.
 * <i>Imp Note:</i> Return value should be validated by user to ensure that the
 * request is registered.
 *
 *
 */
UART_STATUS_t UART_StartTransmitDMA(const UART_t *const handle, uint8_t* data_ptr, uint32_t count)
{
  UART_STATUS_t ret_stat = UART_STATUS_MODE_MISMATCH;
  UART_RUNTIME_t * ptr_runtime = handle->runtime;
  const UART_DMA_CONFIG_t * ptr_dma_config = handle->config->transmit_dma_config;
  XMC_DMA_t * ptr_gpdma = handle->config->global_dma->dma;

  XMC_ASSERT("UART_StartTransmitDMA: UART APP handle invalid", (((handle != NULL)&&
            (handle->runtime != NULL))&&(handle->config != NULL)));

  if (handle->config->transmit_mode == UART_TRANSFER_MODE_DMA)
  {
    ret_stat = UART_STATUS_BUSY;
    if (ptr_runtime->tx_busy == false)
    {
      /*If there is no transmission in progress*/
      if ((data_ptr != NULL) && ((count > 0U) &&(count <= UART_DMA_MAXCOUNT)))
      {
        /*Obtain the address of data, size of data*/
        ptr_runtime->tx_data = data_ptr;
        ptr_runtime->tx_data_count = count;
        /*Initialize to first index and set the busy flag*/
        ptr_runtime->tx_data_index = 0U;
        ptr_runtime->tx_busy = true;

        /*Enable transmit event generation*/
        XMC_UART_CH_EnableEvent(handle->channel, (uint32_t)XMC_UART_CH_EVENT_TRANSMIT_BUFFER);
        ret_stat = UART_STATUS_SUCCESS;

        /*Enable DMA channel*/
        XMC_DMA_CH_SetBlockSize(ptr_gpdma, ptr_dma_config->dma_channel, count);
        XMC_DMA_CH_SetSourceAddress(ptr_gpdma, ptr_dma_config->dma_channel, (uint32_t)data_ptr);
        XMC_DMA_CH_SetDestinationAddress(ptr_gpdma, ptr_dma_config->dma_channel,
                                         (uint32_t)&(handle->channel->TBUF[0]));
        XMC_DMA_CH_Enable(ptr_gpdma, ptr_dma_config->dma_channel);
      }
      else
      {
        ret_stat = UART_STATUS_BUFFER_INVALID;
      }
    }
  }
  return ret_stat;
}

/*
 * @brief Registers a request to receive data over UART channel using DMA.
 *
 * @param[in]  UART_t* UART APP handle pointer of type UART_t
 * @param[in]  uint8_t*  Pointer to data array
 * @param[in]  uint32_t  Total no of bytes to be read.
 *
 * @return  UART_STATUS_t UART_STATUS_SUCCESS if the request is accepted.
 *                        UART_STATUS_BUSY if a reception is in progress.
 * Details of function:
 * This function registers the receive request by configuring the UART
 * receive Standard buffer and the DMA channel. The data
 * is received asynchronously. When the requested number of data bytes are received,
 * optionally, the user configured callback function will be executed.
 *
 * <i>Imp Note:</i> Return value should be validated by user to ensure that the
 * request is registered.
 *
 *
 */
UART_STATUS_t UART_StartReceiveDMA(const UART_t *const handle, uint8_t* data_ptr, uint32_t count)
{
  UART_STATUS_t ret_stat = UART_STATUS_MODE_MISMATCH;
  UART_RUNTIME_t * ptr_runtime = handle->runtime;
  const UART_DMA_CONFIG_t * ptr_dma_config = handle->config->receive_dma_config;
  XMC_DMA_t * ptr_gpdma = handle->config->global_dma->dma;

  XMC_ASSERT("UART_StartReceiveDMA: UART APP handle invalid", (((handle != NULL)&&
            (handle->runtime != NULL)) && (handle->config != NULL)));

  if (handle->config->receive_mode == UART_TRANSFER_MODE_DMA)
  {
    ret_stat = UART_STATUS_BUSY;
    if (ptr_runtime->rx_busy == false)
    {
      /*If no active reception in progress*/
      if ((data_ptr != NULL) && ((count > 0U) && (count <= UART_DMA_MAXCOUNT)))
      {
        /*Obtain the address of data buffer and
         * number of data bytes to be received*/
        ptr_runtime->rx_data = data_ptr;
        ptr_runtime->rx_data_count = count;
        ptr_runtime->rx_busy = true;
        ptr_runtime->rx_data_index = 0U;

        XMC_USIC_CH_EnableEvent(handle->channel,
          (uint32_t)((uint32_t)XMC_USIC_CH_EVENT_STANDARD_RECEIVE | (uint32_t)XMC_USIC_CH_EVENT_ALTERNATIVE_RECEIVE));
        ret_stat = UART_STATUS_SUCCESS;

        /*Enable DMA channel*/
        XMC_DMA_CH_SetBlockSize(ptr_gpdma, ptr_dma_config->dma_channel, count);
        XMC_DMA_CH_SetSourceAddress(ptr_gpdma, ptr_dma_config->dma_channel, (uint32_t)&(handle->channel->RBUF));
        XMC_DMA_CH_SetDestinationAddress(ptr_gpdma, ptr_dma_config->dma_channel, (uint32_t)data_ptr);
        XMC_DMA_CH_Enable(ptr_gpdma, ptr_dma_config->dma_channel);
      }
      else
      {
        ret_stat = UART_STATUS_BUFFER_INVALID;
      }
    }
  }
  return ret_stat;
}

可以看到函数开头的description中建议我们配置callback 函数，这样可以在收发所有数据结束后调用callback函数，进行后续操作。
这样有一个好处。比如说发送结束之后我要做一些操作，但这些操作必须发完所有数据之后才可以进行。而DMA模式下又不占用CPU资源，当软件中执行完UART_Transmit后，不代表所有数据被发完了，我们必须计算发送这些数据的时间，创建相应的delay, delay结束后再进行相关操作。
在DAVE中我们可以用APP TIMER 和INTERRUPT完成。
比如我们要在9600下发送10个byte, 那么我们需要

$t = 1 s /9600 * 10 bi t * 10 b y t e = 10416 u s .$
那么TIMER和INTERRUPT可以如下图设置。

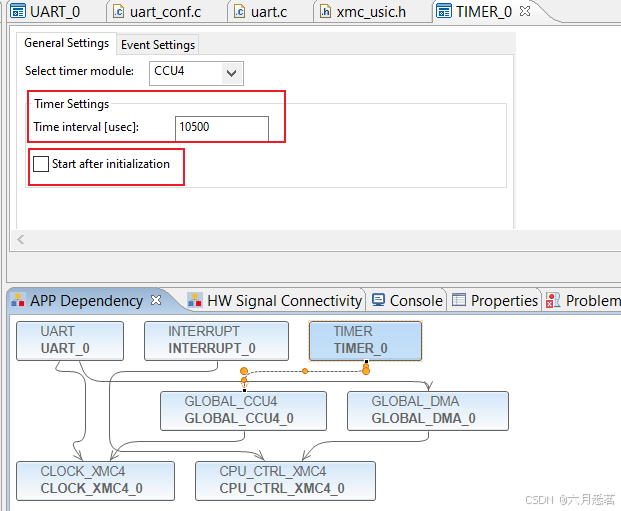

将time interval设为10500us, 不让TIMER start after initialization。
在这里插入图片描述

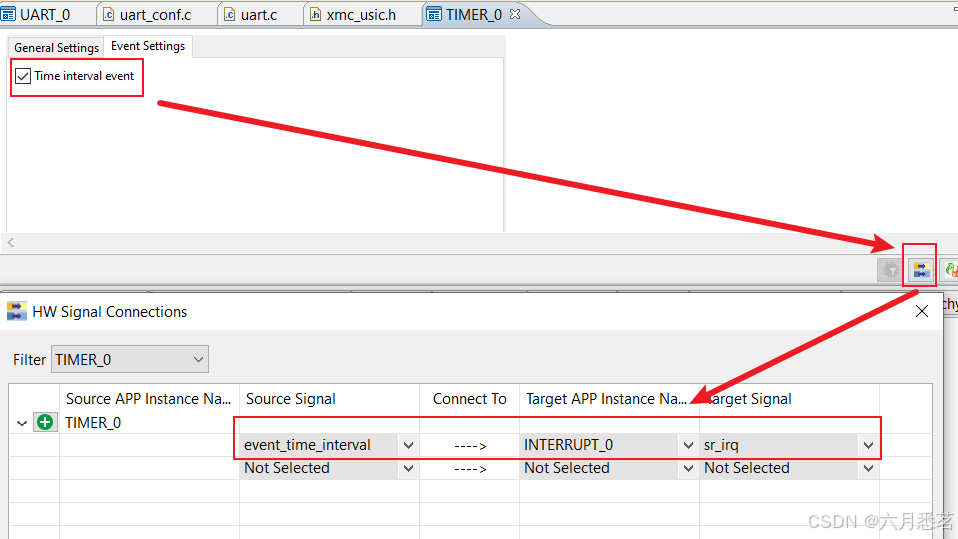

将Time interval event连接到INTERRUPT的ISR上，这样表明当时间走完之后，要调用interrupt。

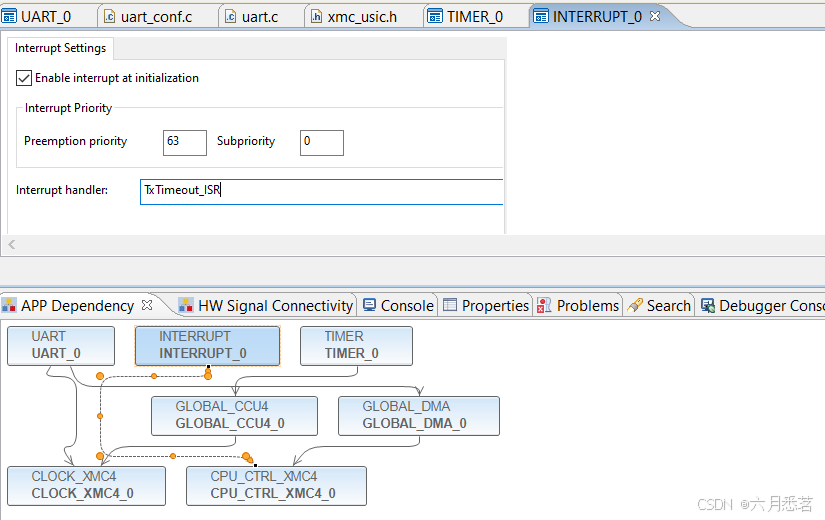

将INTERRUPT handler改名为TxTimeout_ISR

同样generate code.

DMA without callback

接下来可以写一个简单的程序。发完数据后才开始收。
新建tesRXTX.h

#ifndef TESRXTX_H_
#define TESRXTX_H_

extern UART_STATUS_t UART_0_RxStatus;
extern UART_STATUS_t UART_0_TxStatus;
void TXfirst(void);
void initTIMER(uint32_t time_interval);
void checkRX(void);

新建tesRXTX.c

#include "DAVE.h"
#include "tesRXTX.h"

UART_STATUS_t UART_0_RxStatus;
UART_STATUS_t UART_0_TxStatus;
//data initialization
uint8_t TX_DATA[10] = { 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, 0x0A };
uint8_t RX_DATA[255];

void TXfirst(void)
{
	//transmit data
	UART_0_TxStatus = UART_Transmit(&UART_0, TX_DATA, 10);
	initTIMER(10500);//10500us,
}

void initTIMER(uint32_t time_interval)
{
	//init timer
	TIMER_Stop(&TIMER_0);
	TIMER_Clear(&TIMER_0);
	TIMER_SetTimeInterval(&TIMER_0, time_interval * 100); //factor is 100
	TIMER_Start(&TIMER_0);
}

void checkRX(void)
{
	if ((UART_0_RxStatus == UART_STATUS_SUCCESS) && (RX_DATA[0] == 0x55))
	{
		//transmit data
		UART_Transmit(&UART_0, RX_DATA, 10);
		RX_DATA[0] = 0;
		UART_AbortReceive(&UART_0);
	}
}

//interrupt ISR
void TxTimeout_ISR(void)
{
	//receive 10 byte
	UART_0_RxStatus = UART_Receive(&UART_0, RX_DATA, 10);

}

main.c中调用

#include "DAVE.h"                 //Declarations from DAVE Code Generation (includes SFR declaration)
#include "tesRXTX.h"

/**

 * @brief main() - Application entry point
 *
 * <b>Details of function</b><br>
 * This routine is the application entry point. It is invoked by the device startup code. It is responsible for
 * invoking the APP initialization dispatcher routine - DAVE_Init() and hosting the place-holder for user application
 * code.
 */

int main(void)
{
  DAVE_STATUS_t status;

  status = DAVE_Init();           /* Initialization of DAVE APPs  */

  if (status != DAVE_STATUS_SUCCESS)
  {
    /* Placeholder for error handler code. The while loop below can be replaced with an user error handler. */
    XMC_DEBUG("DAVE APPs initialization failed\n");

    while(1U)
    {

    }
  }

  /* Placeholder for user application code. The while loop below can be replaced with user application code. */
  TXfirst();
  while(1U)
  {
	  checkRX();
  }

}

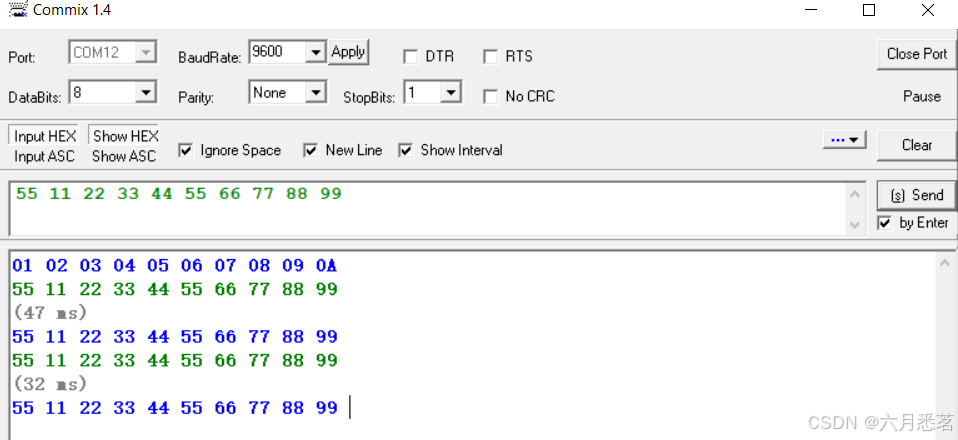

然后将程序下载到开发板中，打开串口助手，查看收发的数据。
可以看到上电之后串口助手就会收到XMC4200发的数组TX_DATA[10] = { 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, 0x0A };，这时手动用串口助手发送55 11 22 33 44 55 66 77 88 99给XMC4200，XMC4200就会将收到的数据发出来。
在这里插入图片描述

DMA with callback

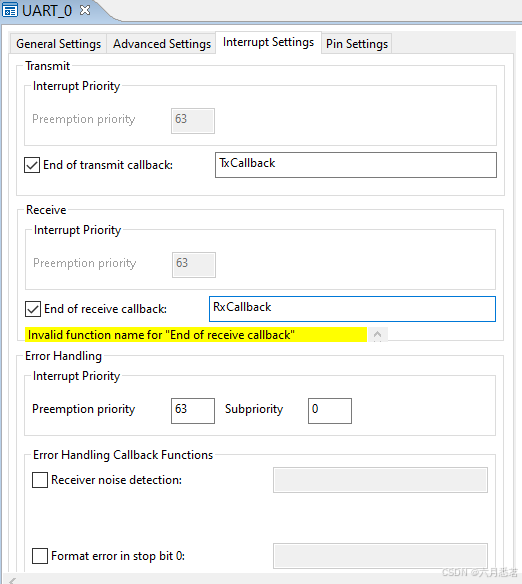

接下来使用callback，去掉TIMER和INTERRUPT.
在这里插入图片描述

`tesRXTX.h`

#ifndef TESRXTX_H_
#define TESRXTX_H_

extern UART_STATUS_t UART_0_RxStatus;
extern UART_STATUS_t UART_0_TxStatus;
void TXfirst(void);

#endif /* TESRXTX_H_ */

`tesRXTX.c`

#include "DAVE.h"
#include "tesRXTX.h"

UART_STATUS_t UART_0_RxStatus;
UART_STATUS_t UART_0_TxStatus;
//data initialization
uint8_t TX_DATA[10] = { 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, 0x0A };
uint8_t RX_DATA[255];

void TXfirst(void)
{
	//transmit data
	UART_0_TxStatus = UART_Transmit(&UART_0, TX_DATA, 10);
}


//End of transmit ISR
void TxCallback(void)
{
	//receive 10 byte
	UART_0_RxStatus = UART_Receive(&UART_0, RX_DATA, 5);

}

//End of RECEIVE ISR
void RxCallback(void)
{
	//transmit data
	UART_Transmit(&UART_0, RX_DATA, 5);
}

main.c 中只需要调用一次 `TXfirst();` 就可以了

#include "DAVE.h"                 //Declarations from DAVE Code Generation (includes SFR declaration)
#include "tesRXTX.h"

/**

 * @brief main() - Application entry point
 *
 * <b>Details of function</b><br>
 * This routine is the application entry point. It is invoked by the device startup code. It is responsible for
 * invoking the APP initialization dispatcher routine - DAVE_Init() and hosting the place-holder for user application
 * code.
 */

int main(void)
{
  DAVE_STATUS_t status;

  status = DAVE_Init();           /* Initialization of DAVE APPs  */

  if (status != DAVE_STATUS_SUCCESS)
  {
    /* Placeholder for error handler code. The while loop below can be replaced with an user error handler. */
    XMC_DEBUG("DAVE APPs initialization failed\n");

    while(1U)
    {

    }
  }

  /* Placeholder for user application code. The while loop below can be replaced with user application code. */
  TXfirst();
}

测试结果以及问题

test setup

在这里插入图片描述

test result

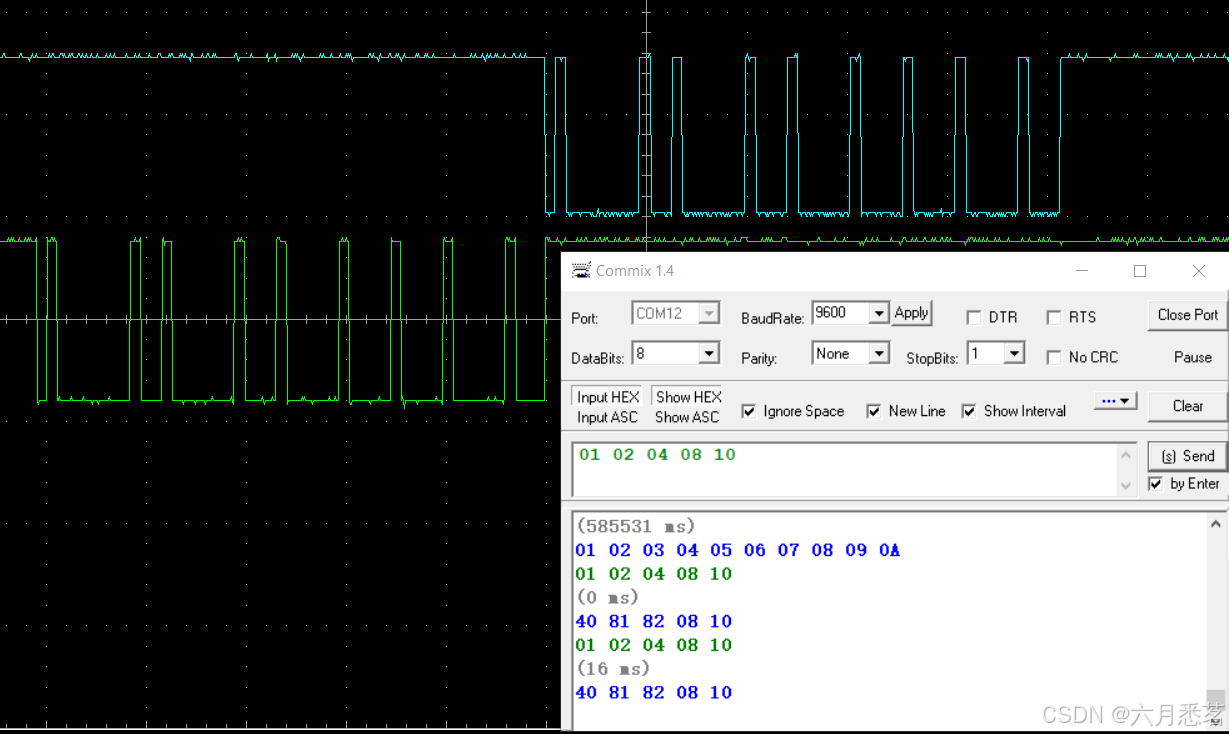

但是这里有个问题，收发的数据在串口助手上显示是不一致的，但是在示波器上是一致的。
在这里插入图片描述

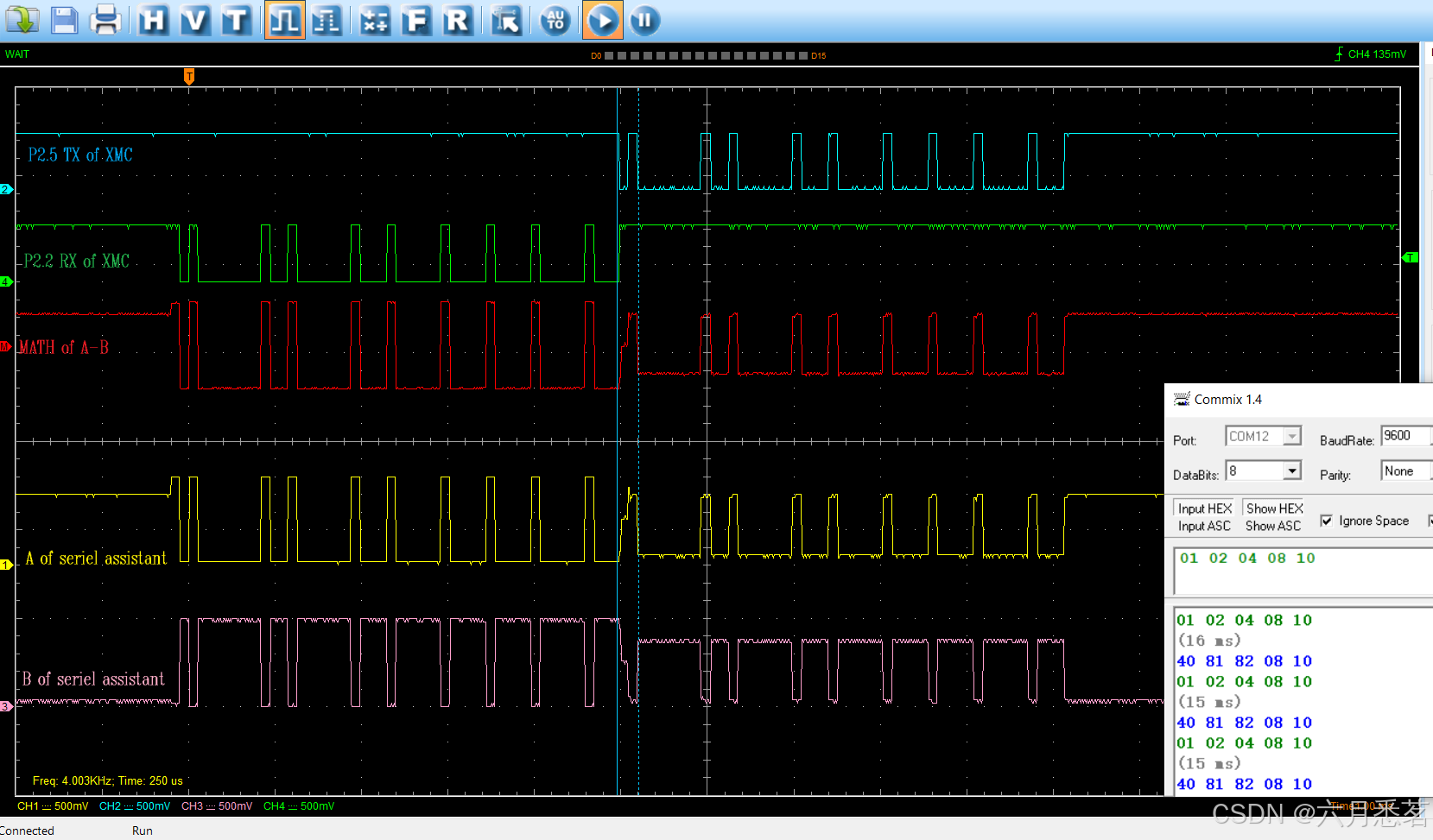

将示波器探头接在串口助手的A,B端，发现收发太快，导致第一个下降沿在串口助手端没有识别。

为了解决这个问题，我们可以在XMC发之前加入delay。

#include "DAVE.h"
#include "tesRXTX.h"

UART_STATUS_t UART_0_RxStatus;
UART_STATUS_t UART_0_TxStatus;
//data initialization
uint8_t TX_DATA[10] = { 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, 0x0A };
uint8_t RX_DATA[255];

void TXfirst(void)
{
	//transmit data
	UART_0_TxStatus = UART_Transmit(&UART_0, TX_DATA, 10);
}


//End of transmit ISR
void TxCallback(void)
{
	//receive 10 byte
	UART_0_RxStatus = UART_Receive(&UART_0, RX_DATA, 5);

}

//End of RECEIVE ISR
void RxCallback(void)
{
	custom_delay(1000);
	//transmit data
	UART_Transmit(&UART_0, RX_DATA, 5);
}

void custom_delay(int32_t delay_cyc)
{
	while (delay_cyc--)
		asm("NOP");
}

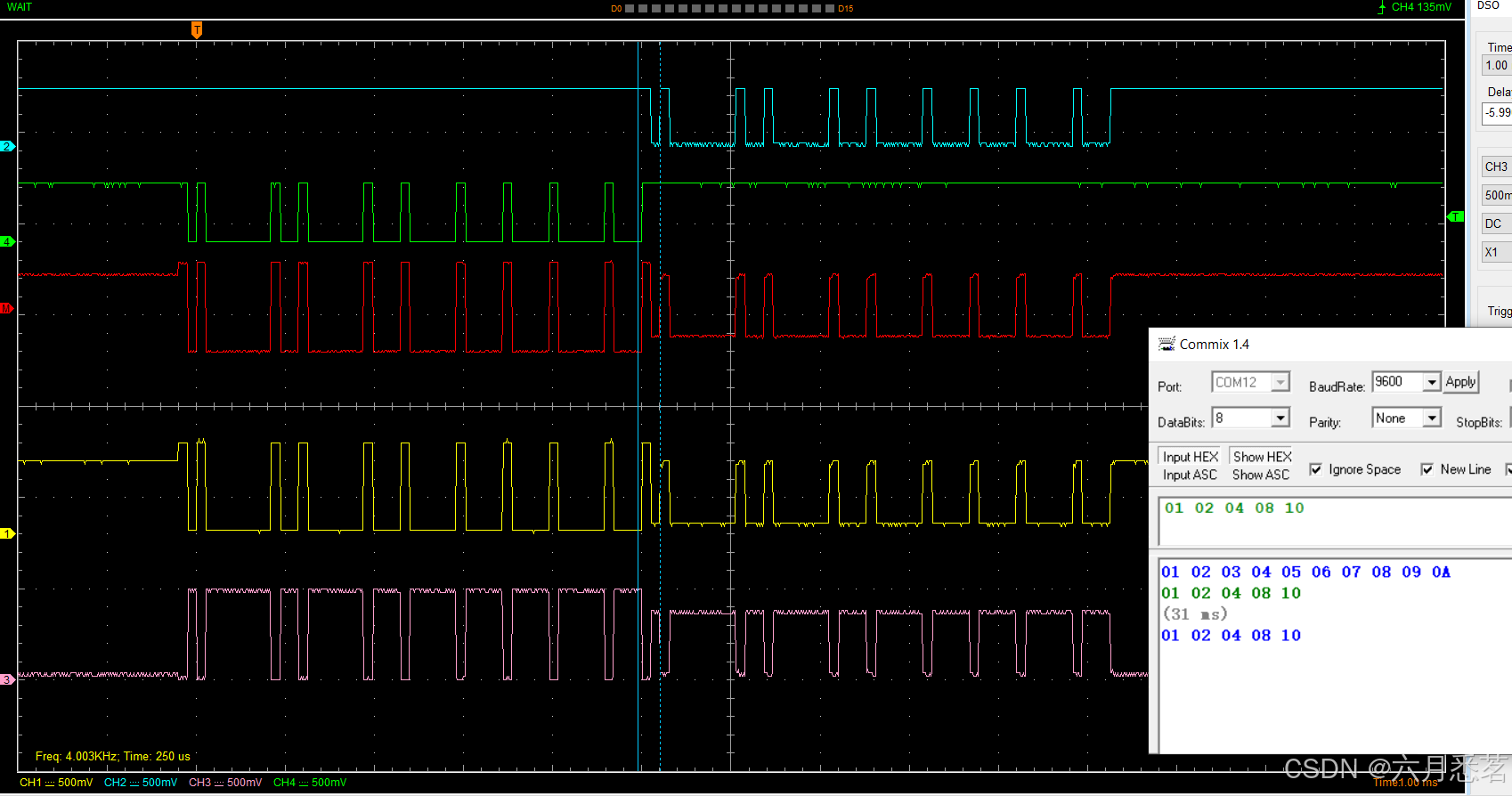

这样收发就一致了
在这里插入图片描述

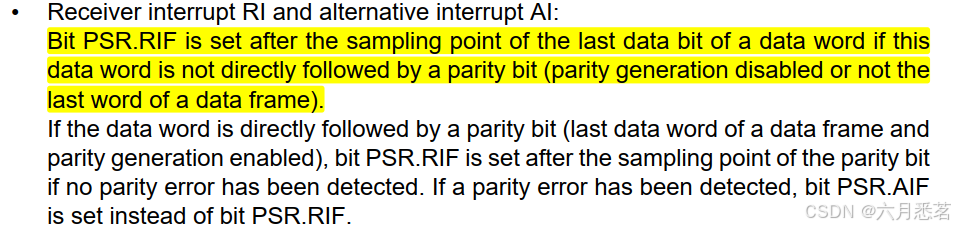

后来查看英飞凌手册发现，之所以callback函数被过早调用，是因为interrupt flag在收到最后一个databit后就被置1了，而这时还有stop bit 没有发完。

如果可以做到使用PSR.TFF和PSR.RFF而不是PSR.RIF, 那么上述问题应该可以解决。
在这里插入图片描述
