Netty + Redis + Websocket IM 分布式集群实现

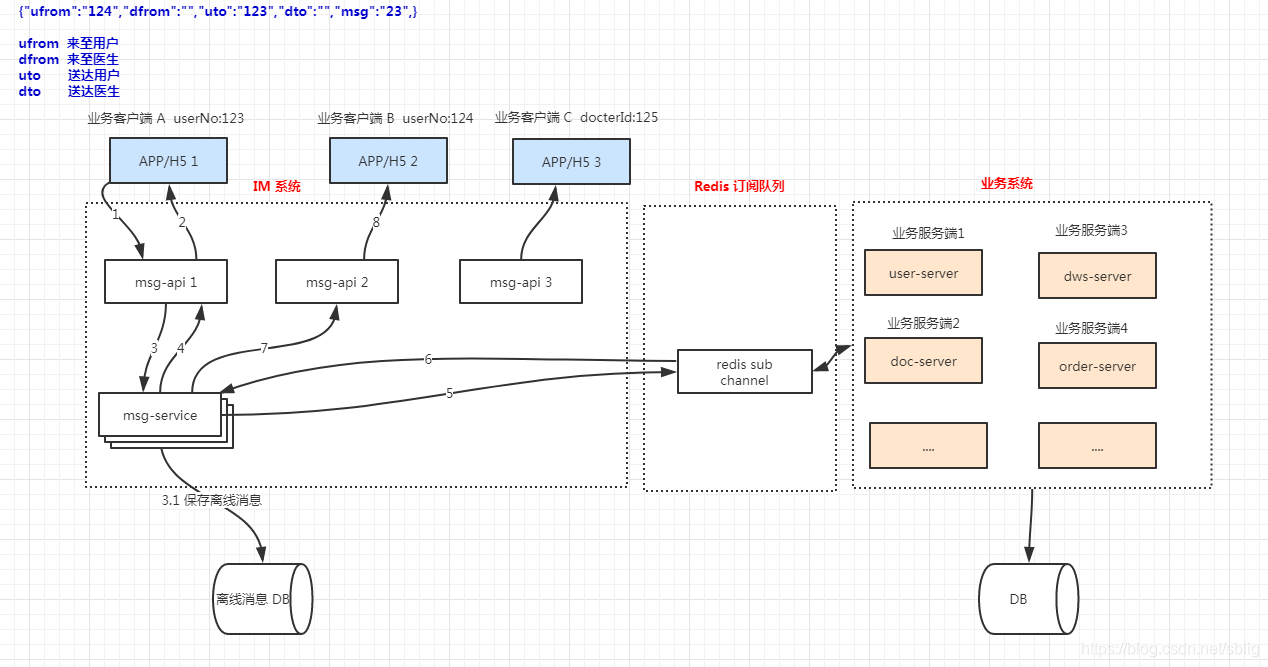

本文档详细介绍了如何使用Netty、WebSocket和Redis构建一个IM即时通讯系统的分布式集群。配置类中涵盖了连接设置,收发消息Handler处理通信逻辑,Redis工具类用于存储和检索消息,同时利用Redis的订阅监听功能实现实时推送。此外,还包含启动类以运行服务及测试客户端,以及一个简单的HTML页面ws123.html用于测试WebSocket连接。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >



常量表
Constants.java

/**
 * 项目中的全局常量定义
 */
public interface Constants {

    String WEBSOCKET_STR = "websocket";
    String UPGRADE_STR = "Upgrade";
    int OK_CODE = 200;

    String HTTP_CODEC = "http-codec";
    String AGGREGATOR = "aggregator";
    String HTTP_CHUNKED = "http-chunked";
    String HANDLER = "handler";
    int MAX_CONTENT_LENGTH = 65536;
    int PORT = 8989;

    String WEB_SOCKET_URL = "ws://localhost:"+PORT+"/ws";

    //订阅者列表
    String IM_QUEUE_CHANNLID = "im-queue-channlid";
}

配置类:

NettyConfig.java

import io.netty.channel.group.ChannelGroup;
import io.netty.channel.group.DefaultChannelGroup;
import io.netty.util.concurrent.GlobalEventExecutor;

import java.util.ArrayList;
import java.util.List;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;

/**
 * @program: Netty-WebSocket
 * @description: 工程的全局配置类
 **/
public class NettyConfig {

    /**
     * 存储每一个客户端接入进来时的channel对象
     */
    public final static ChannelGroup GROUP = new DefaultChannelGroup(GlobalEventExecutor.INSTANCE);

    /**
     * 本地存储一份map <channel, 1>
     */
    public final static Map<String,String> LOCALCHANNELMAP = new ConcurrentHashMap<>();

    /**
     * 本地存储一份map <tokey, channel>  送达到key,channel
     */
    public final static Map<String, List<String>> LOCALCHANNELLISTMAP = new ConcurrentHashMap<>();

}



收发消息 handler

MyWebsocketHandler.java

import com.xx.im.api.WebsocketServer;
import com.xx.im.api.config.Constants;
import com.xx.im.api.config.NettyConfig;
import com.xx.im.api.redis.JedisUtil;
import io.netty.buffer.ByteBuf;
import io.netty.buffer.Unpooled;
import io.netty.channel.*;
import io.netty.handler.codec.http.*;
import io.netty.handler.codec.http.websocketx.*;
import io.netty.util.CharsetUtil;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.util.Date;

/**
 * @program: Netty-WebSocket
 * @description: 接收处理并响应客户端WebSocket请求的核心业务处理类
 **/
@ChannelHandler.Sharable
public class MyWebsocketHandler extends SimpleChannelInboundHandler<Object> {

    private static Logger log = LoggerFactory.getLogger(MyWebsocketHandler.class);

    private WebSocketServerHandshaker handshaker;

    /**
     * 服务端处理客户端WebSocket请求的核心方法
     *
     * @param ctx ctx
     * @param msg msg
     * @throws Exception Exception
     */
    @Override
    protected void channelRead0(ChannelHandlerContext ctx, Object msg) throws Exception {
        // 处理客户端向服务端发起http握手请求的业务
        if (msg instanceof FullHttpRequest) {
            handHttpRequest(ctx, (FullHttpRequest) msg);
        }
        // 处理websocket连接
        else if (msg instanceof WebSocketFrame) {
            handWebsocketFrame(ctx, (WebSocketFrame) msg);
        }
    }

    /**
     * 处理客户端与服务端之间的websocket业务
     *
     * @param ctx   ctx
     * @param frame frame
     */
    private void handWebsocketFrame(ChannelHandlerContext ctx, WebSocketFrame frame) {
        // 判断是否是关闭websocket的指令
        if (frame instanceof CloseWebSocketFrame) {
            handshaker.close(ctx.channel(), ((CloseWebSocketFrame) frame).retain());
            log.debug("接收到关闭websocket的指令");
        }

        // 判断是否是ping消息
        if (frame instanceof PingWebSocketFrame) {
            ctx.channel().write(new PongWebSocketFrame(frame.content().retain()));
            log.debug("接收到ping消息");
            return;
        }

        // 判断是否是二进制消息,如果是二进制消息,则抛出异常
        if (!(frame instanceof TextWebSocketFrame)) {
            log.error("目前不支持二进制消息");
            throw new UnsupportedOperationException("【" + this.getClass().getName() + "】不支持的消息");
        }

        // 获取客户端向服务端发送的消息
        String requestStr = ((TextWebSocketFrame) frame).text();
        log.debug("服务端收到客户端的消息: {}", requestStr);


        // 那个客户端发来的,继续返回给那个客户端
        //Channel channel = NettyConfig.GROUP.find(ctx.channel().id());
        //channel.writeAndFlush(tws);

        // 发布到redis 订阅列表中,进行广播
        String keychannel = ctx.channel().id().asLongText();
        ChannelId id = ctx.channel().id();
        JedisUtil.set(keychannel,requestStr);
        JedisUtil.set(keychannel+"Id",id);
        JedisUtil.pushMsg(keychannel);


        // 返回应答消息
//        String responseStr = new Date().toString()  + ctx.channel().id() +  " ===>>> " + requestStr;
//        TextWebSocketFrame tws = new TextWebSocketFrame(responseStr);
        // 群发,服务端向每个连接上来的客户端群发消息
        //NettyConfig.GROUP.writeAndFlush(tws);

//        log.debug("群发消息完成. 群发的消息为: {}", responseStr);
    }

    /**
     * 处理客户端向服务端发起http握手请求的业务
     *
     * @param ctx     ctx
     * @param request request
     */
    private void handHttpRequest(ChannelHandlerContext ctx, FullHttpRequest request) {
        String upgrade = request.headers().get(Constants.UPGRADE_STR);
        // 非websocket的http握手请求处理
        if (!request.decoderResult().isSuccess() || !Constants.WEBSOCKET_STR.equals(upgrade)) {
            sendHttpResponse(ctx, request,
                    new DefaultFullHttpResponse(HttpVersion.HTTP_1_1, HttpResponseStatus.BAD_REQUEST));
            log.warn("非websocket的http握手请求");
            return;
        }

        WebSocketServerHandshakerFactory wsFactory =  new WebSocketServerHandshakerFactory(Constants.WEB_SOCKET_URL, null, false);
        handshaker = wsFactory.newHandshaker(request);
        if (handshaker == null) {
            // 响应不支持的请求
            WebSocketServerHandshakerFactory.sendUnsupportedVersionResponse(ctx.channel());
            log.warn("不支持的请求");
        } else {
            handshaker.handshake(ctx.channel(), request);
            log.debug("正常处理");
        }
    }

    /**
     * 服务端主动向客户端发送消息
     *
     * @param ctx      ctx
     * @param request  request
     * @param response response
     */
    private void sendHttpResponse(ChannelHandlerContext ctx,
                                  FullHttpRequest request,
                                  DefaultFullHttpResponse response) {
        // 不成功的响应
        if (response.status().code() != Constants.OK_CODE) {
            ByteBuf buf = Unpooled.copiedBuffer(response.status().toString(), CharsetUtil.UTF_8);
            response.content().writeBytes(buf);
            buf.release();
            log.warn("不成功的响应");
        }

        // 服务端向客户端发送数据
        ChannelFuture channelFuture = ctx.channel().writeAndFlush(response);
        if (!HttpUtil.isKeepAlive(request) ||
                response.status().code() != Constants.OK_CODE) {
            // 如果是非Keep-Alive,或不成功都关闭连接
            channelFuture.addListener(ChannelFutureListener.CLOSE);
            log.info("websocket连接关闭");
        }
    }

    /**
     * 客户端与服务端创建连接的时候调用
     *
     * @param ctx ctx
     * @throws Exception Exception
     */
    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
        // 将channel添加到channel group中
        NettyConfig.GROUP.add(ctx.channel());
        NettyConfig.LOCALCHANNELMAP.put( ctx.channel().id().asLongText(),"1");//存在,并且在线
        log.info("客户端与服务端连接开启...");
    }

    /**
     * 客户端与服务端断开连接的时候调用
     *
     * @param ctx ctx
     * @throws Exception Exception
     */
    @Override
    public void channelInactive(ChannelHandlerContext ctx) throws Exception {
        // 从channel group中移除这个channel
        NettyConfig.GROUP.remove(ctx.channel());
        NettyConfig.LOCALCHANNELMAP.remove(ctx.channel().id().asLongText());// 不存在,离线
        log.info("客户端与服务端关闭连接...");
    }

    /**
     * 服务端接收客户端发送过来的数据结束之后调用
     *
     * @param ctx ctx
     * @throws Exception Exception
     */
    @Override
    public void channelReadComplete(ChannelHandlerContext ctx) throws Exception {
        // 清空数据
        ctx.flush();

        log.info("flush数据 {}{}", ctx.name(),ctx.channel().id().asLongText());
    }

    /**
     * 工程出现异常的时候调用
     *
     * @param ctx   ctx
     * @param cause cause
     * @throws Exception Exception
     */
    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        // 打印异常堆栈
        cause.printStackTrace();
        // 主动关闭连接
        ctx.close();
        log.error("WebSocket连接异常");
    }
}
初始化通道
MyWebsocketInitializer.java

import com.xx.im.api.config.Constants;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.socket.SocketChannel;
import io.netty.handler.codec.http.HttpObjectAggregator;
import io.netty.handler.codec.http.HttpServerCodec;
import io.netty.handler.stream.ChunkedWriteHandler;

public class MyWebsocketInitializer extends ChannelInitializer<SocketChannel> {
    @Override
    protected void initChannel(SocketChannel ch) throws Exception {
        ch.pipeline().addLast(Constants.HTTP_CODEC, new HttpServerCodec());
        ch.pipeline().addLast(Constants.AGGREGATOR, new HttpObjectAggregator(Const
