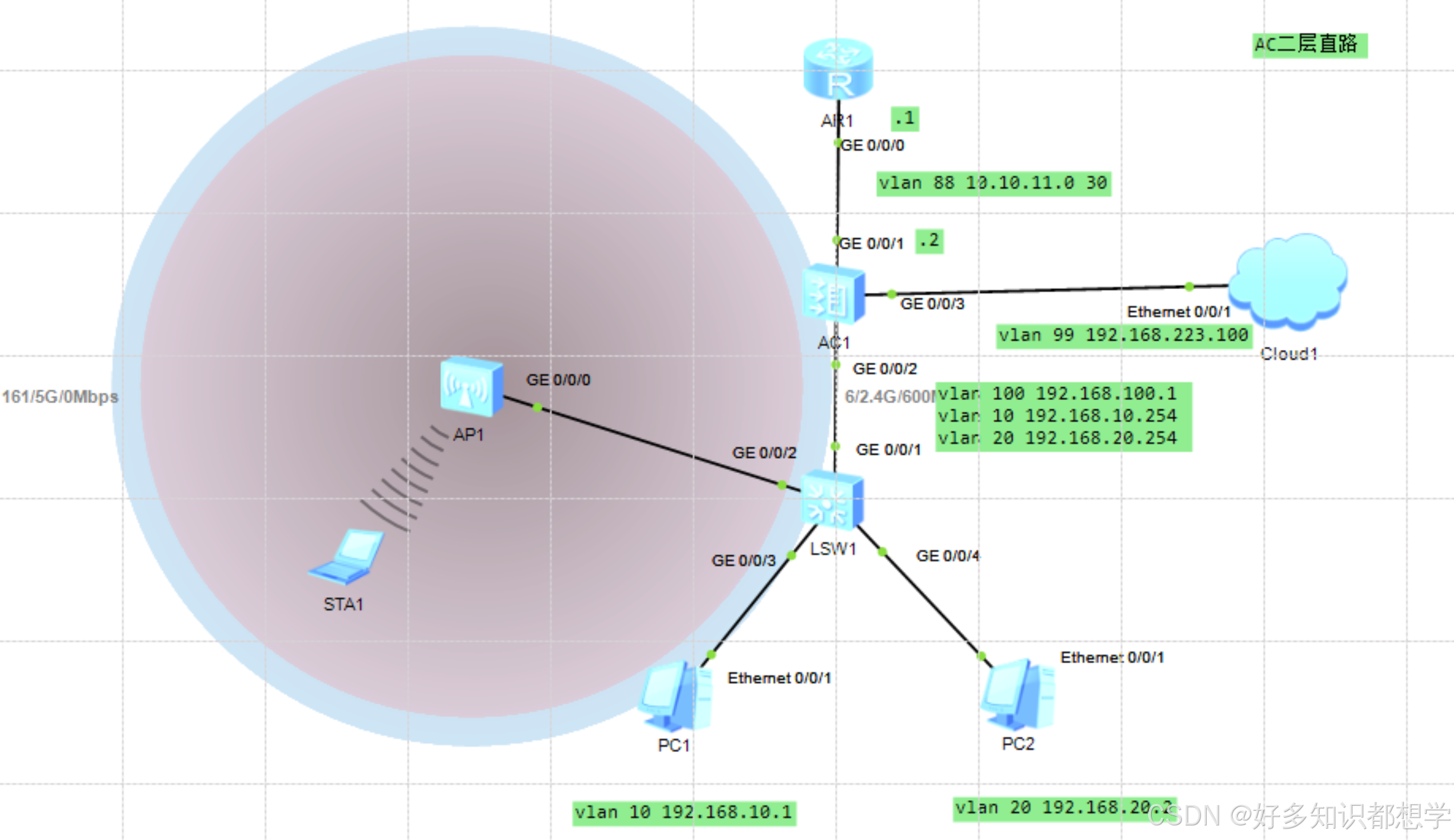

AC二层直路连接

配置VLAN、Trunk和IP地址

[SW1]

<Huawei>system-view

[Huawei]sysname SW1

[SW1]vlan batch 10 20 100

[SW1]int g 0/0/3

[SW1-GigabitEthernet0/0/3]port link-type access

[SW1-GigabitEthernet0/0/3]port default vlan 10

[SW1-GigabitEthernet0/0/3]int g 0/0/4

[SW1-GigabitEthernet0/0/4]port link-type access

[SW1-GigabitEthernet0/0/4]port default vlan 20

[SW1-GigabitEthernet0/0/4]int g 0/0/1

[SW1-GigabitEthernet0/0/1]port link-type trunk

[SW1-GigabitEthernet0/0/1]port trunk pvid vlan 100

[SW1-GigabitEthernet0/0/1]port trunk allow-pass vlan 10 20 99 100

[SW1-GigabitEthernet0/0/1]int g 0/0/2

[SW1-GigabitEthernet0/0/2]port link-type trunk

[SW1-GigabitEthernet0/0/2]port trunk pvid vlan 100

[SW1-GigabitEthernet0/0/7]port trunk allow-pass vlan all

[AC]

<AC6605>system-view

[AC6605]sysname AC

[AC]vlan batch 10 20 88 99 100

[AC]int g 0/0/2

[AC-GigabitEthernet0/0/2]port link-type trunk

[AC-GigabitEthernet0/0/2]port trunk pvid vlan 100

[AC-GigabitEthernet0/0/2]port trunk allow-pass vlan 10 20 99 100

[AC-GigabitEthernet0/0/2]int g 0/0/3

[AC-GigabitEthernet0/0/3]port link-type access

[AC-GigabitEthernet0/0/3]port default vlan 99

[AC-GigabitEthernet0/0/3]int g 0/0/1

[AC-GigabitEthernet0/0/1]port link-type trunk

[AC-GigabitEthernet0/0/1]port trunk pvid vlan 88

[AC-GigabitEthernet0/0/1]port trunk allow-pass vlan all

[AC-GigabitEthernet0/0/1]int vlanif 10

[AC-Vlanif10]ip address 192.168.10.254 24

[AC-Vlanif10]int vlanif 20

[AC-Vlanif20]ip address 192.168.20.254 24

[AC-Vlanif20]int vlanif 100

[AC-Vlanif100]ip address 192.168.100.1 24

[AC-Vlanif100]int vlanif 99

[AC-Vlanif99]ip address 192.168.223.100 24

[AC-Vlanif99]int vlanif 88

[AC-Vlanif88]ip address 10.10.11.2 30

[R1]

<Huawei>system-view

[Huawei]sysname R1

[R1]int g 0/0/0

[R1-GigabitEthernet0/0/0]ip address 10.10.11.1 30

[R1]ip route-static 0.0.0.0 10.10.11.2

启动HTTP

[AC]http server enable

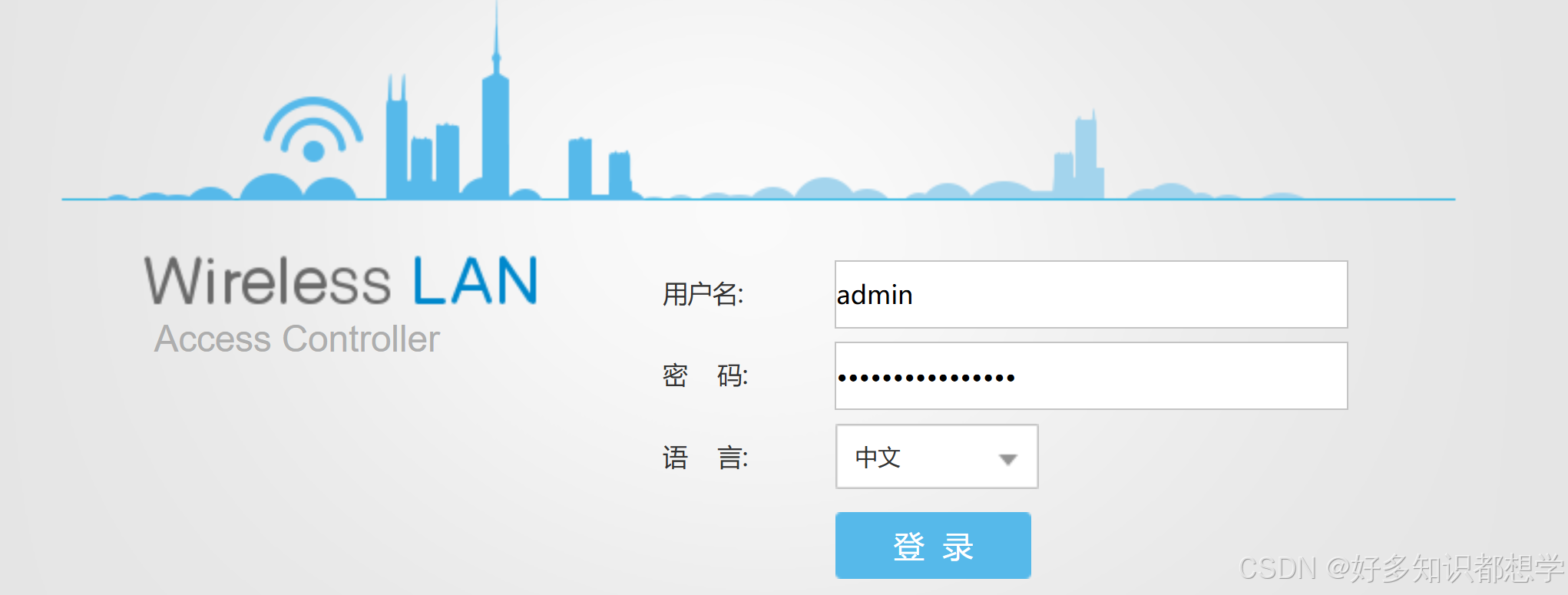

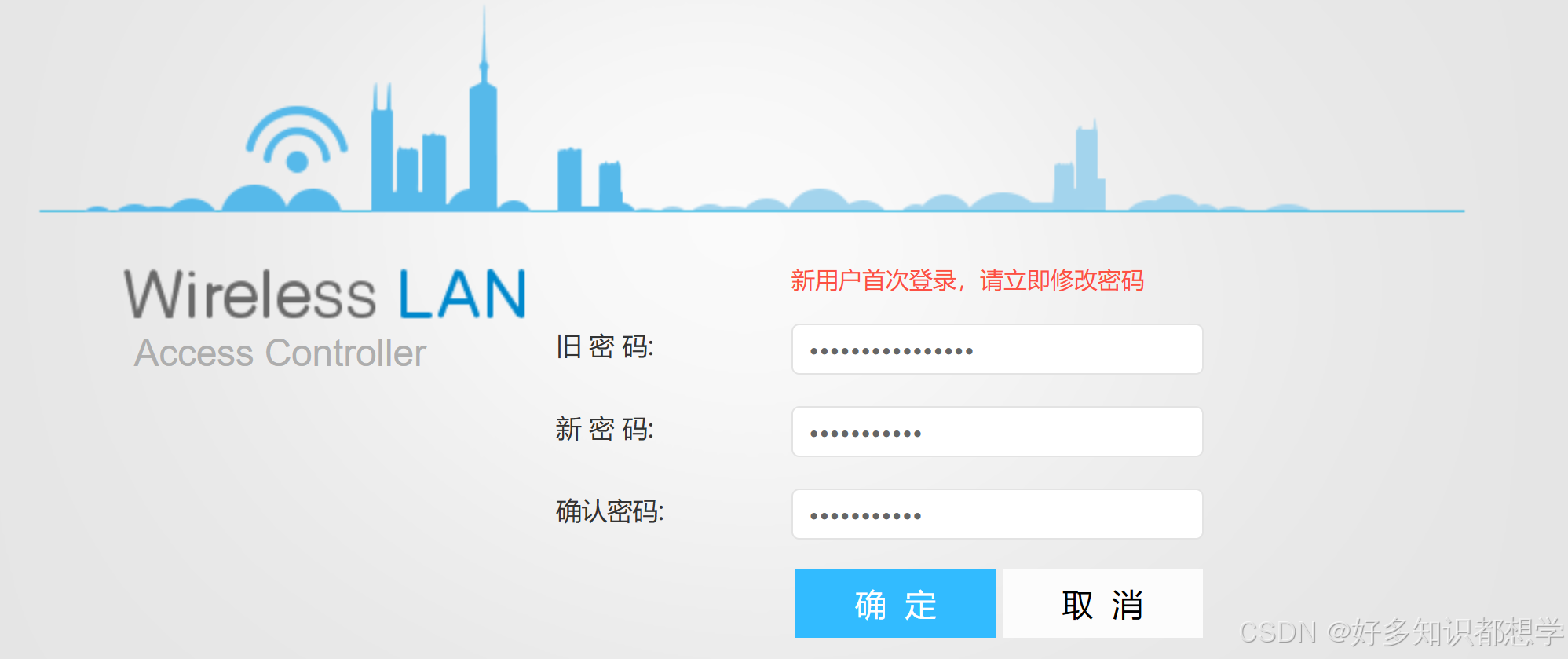

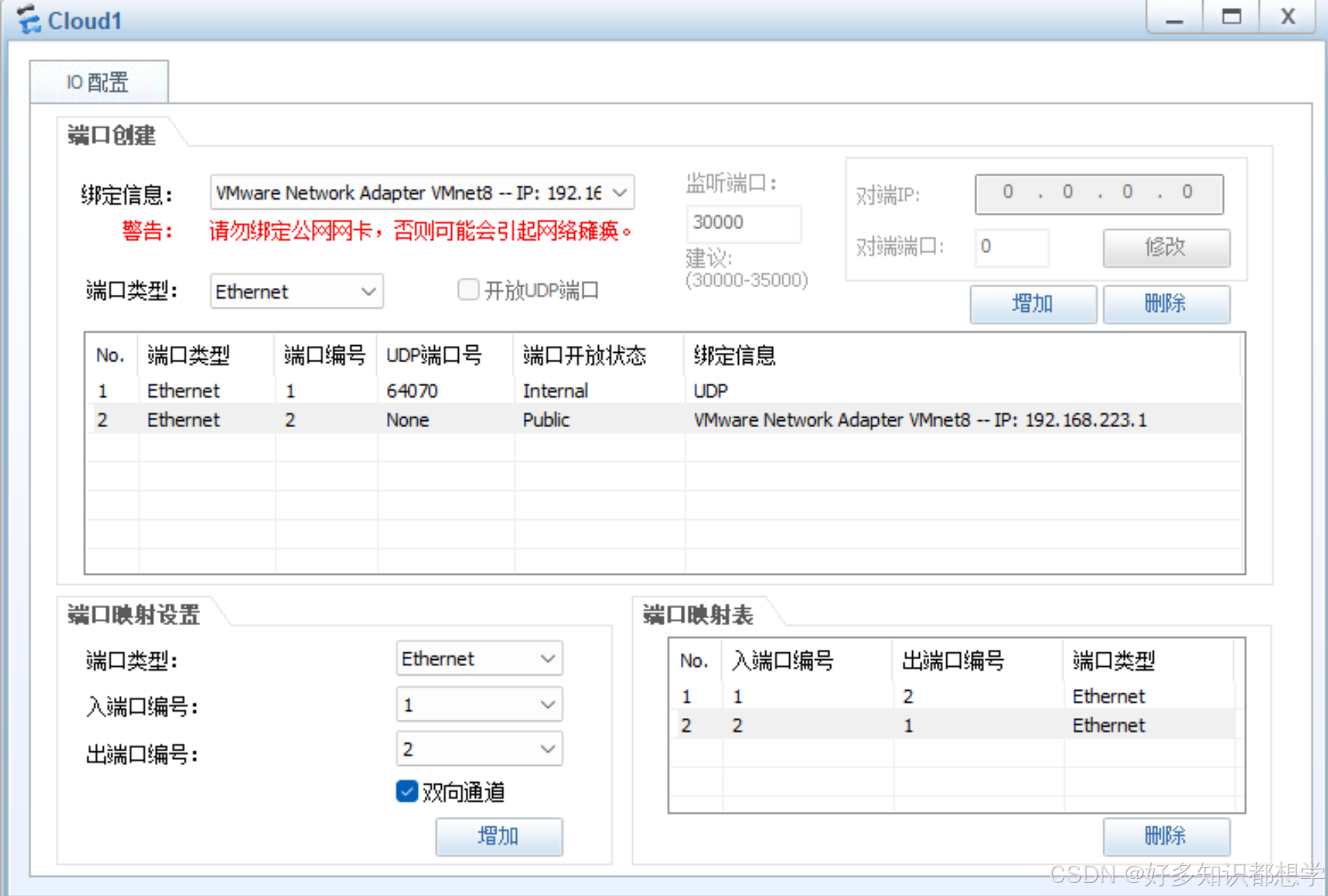

登录AC的Web界面

密码默认为admin@huawei.com

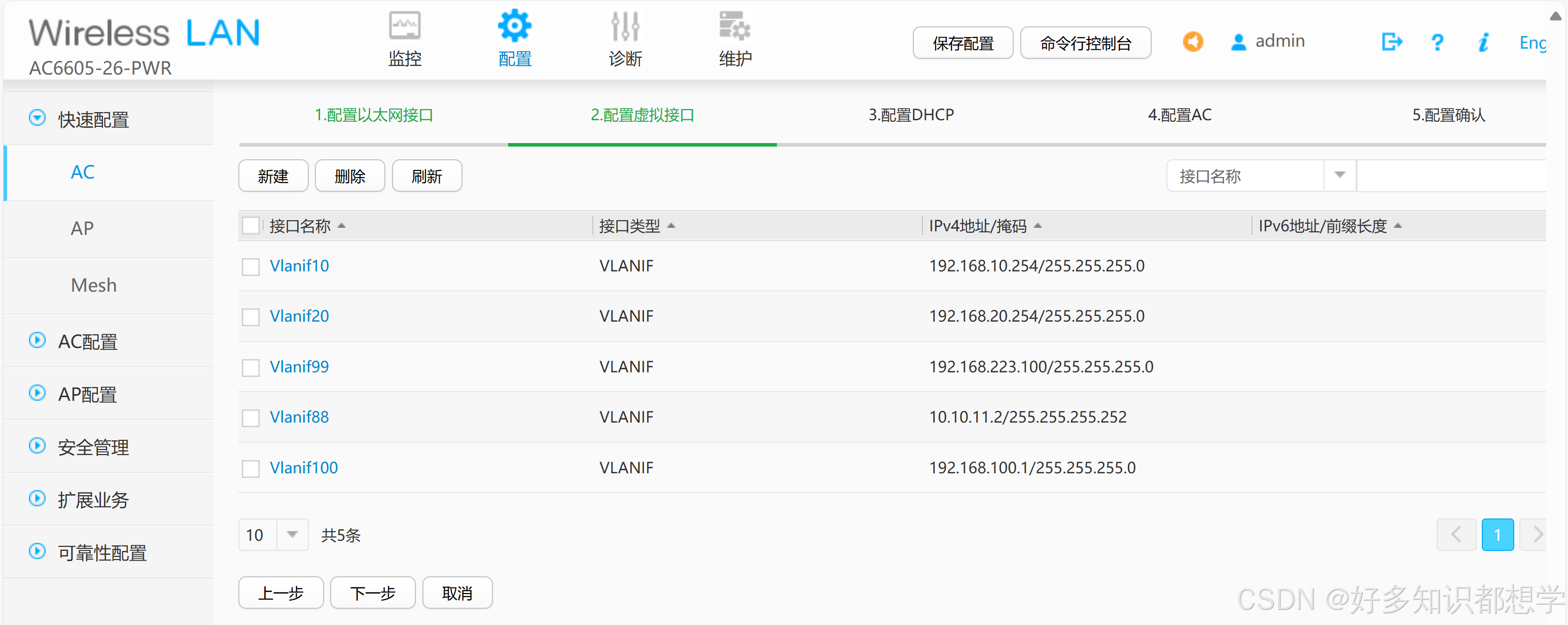

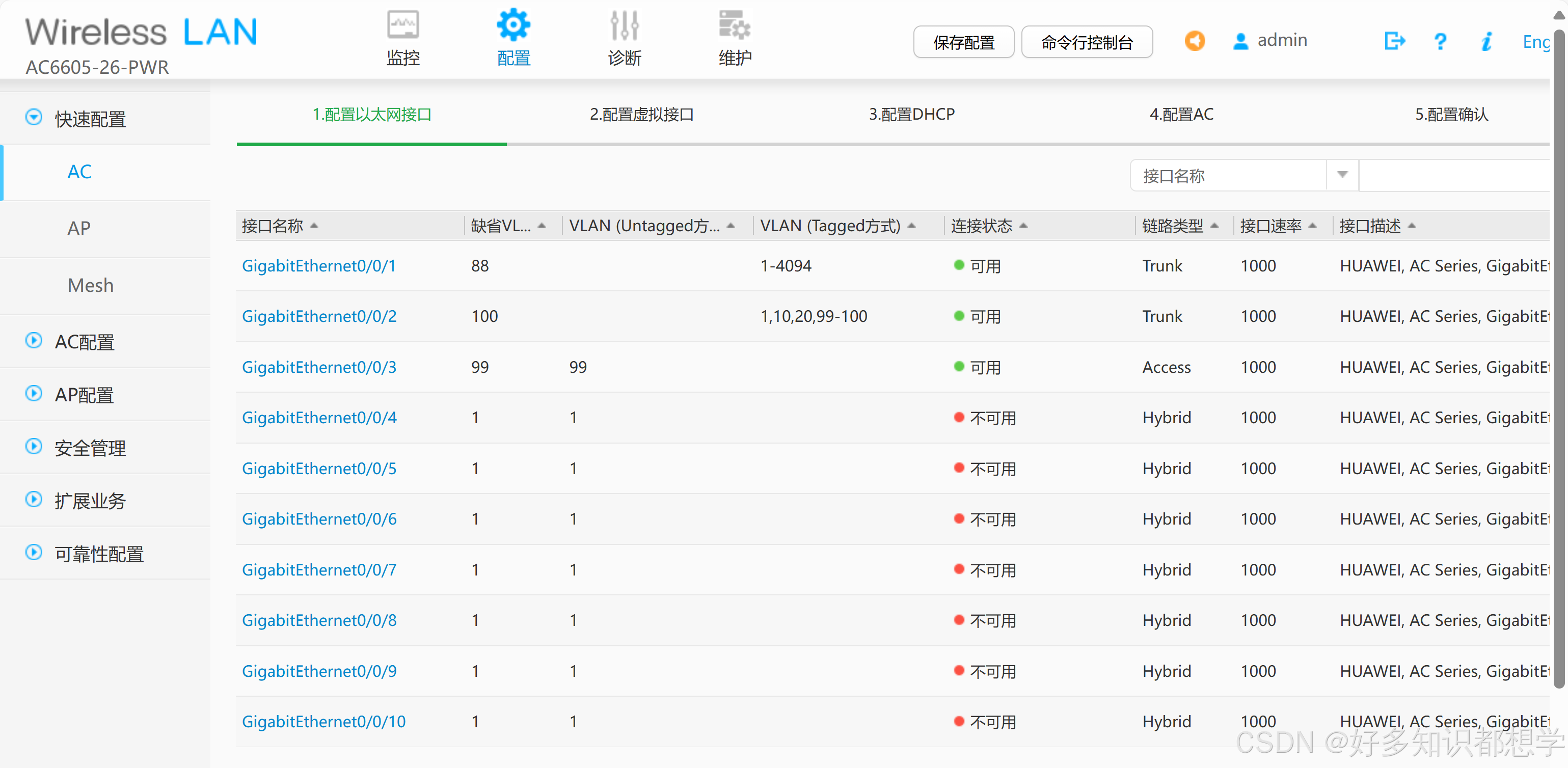

配置AC关联PC配置以太网接口和虚拟接口

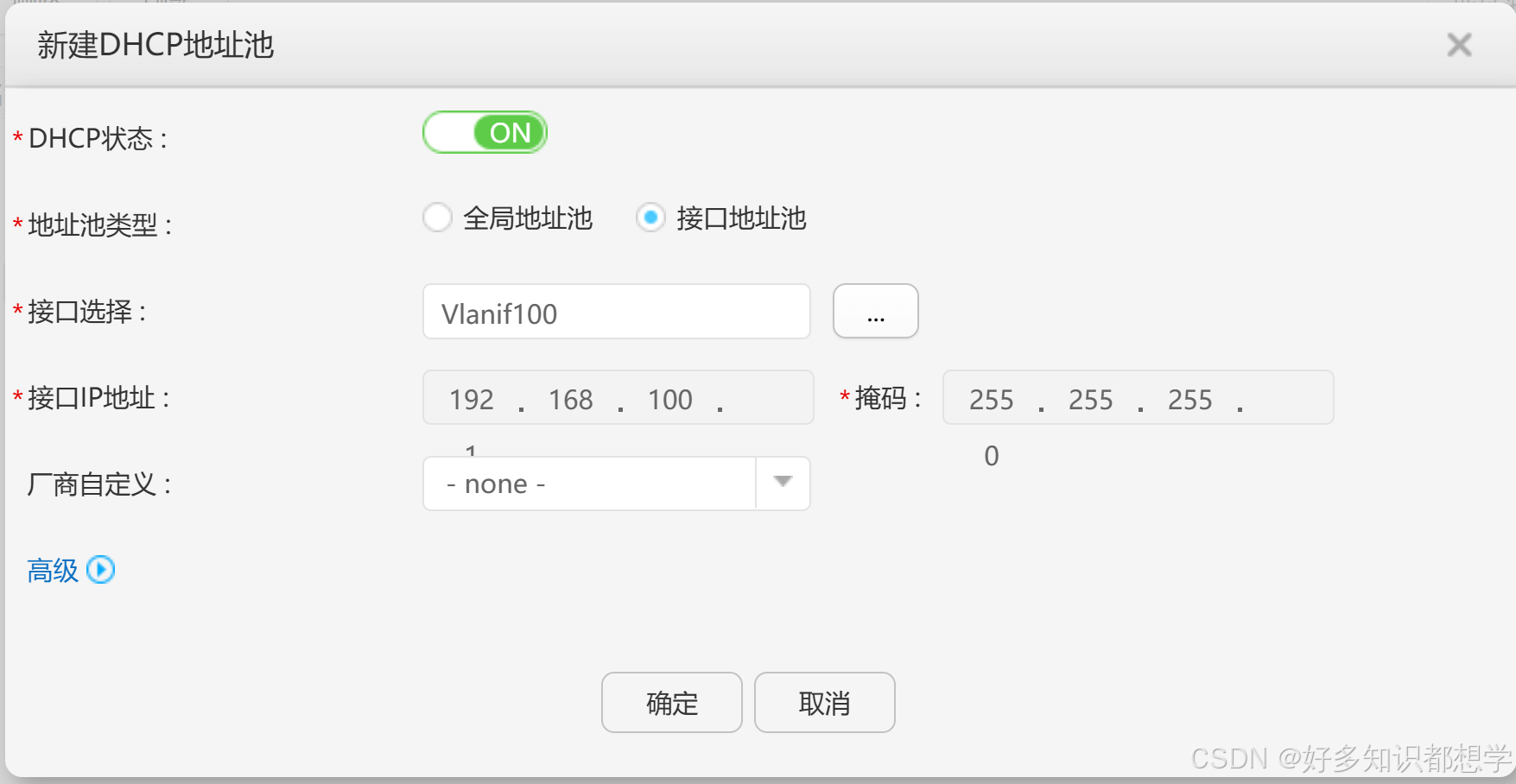

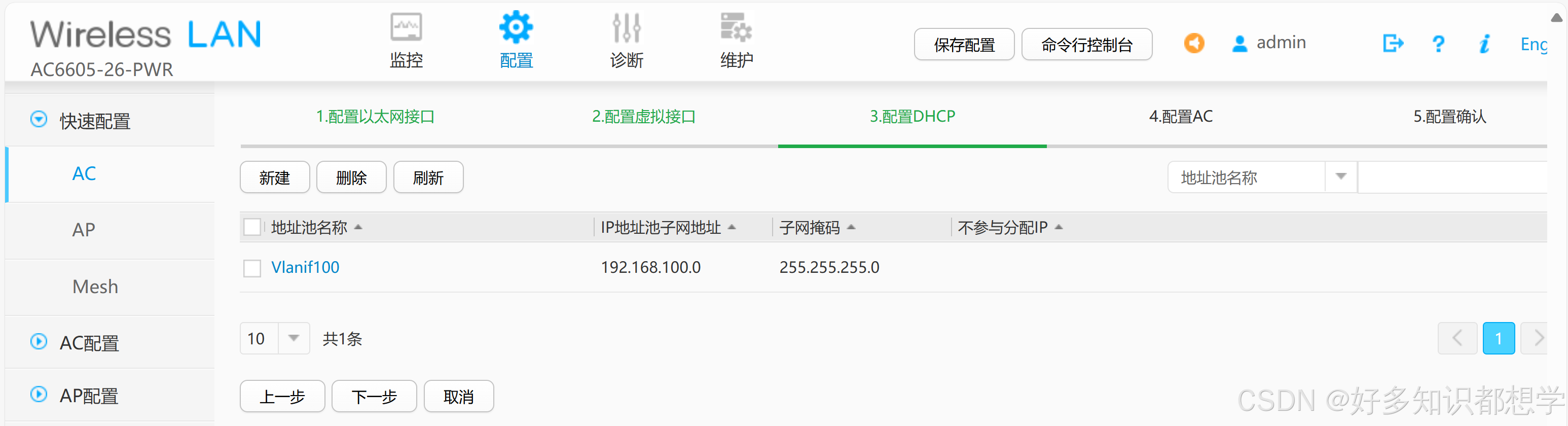

配置DHCP

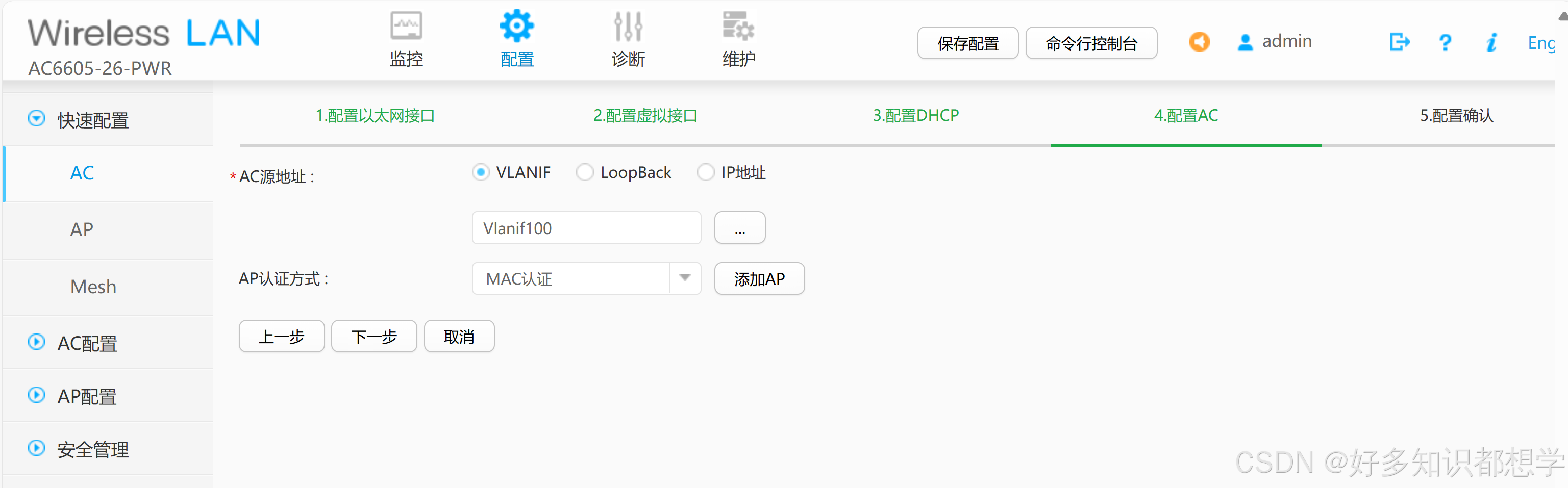

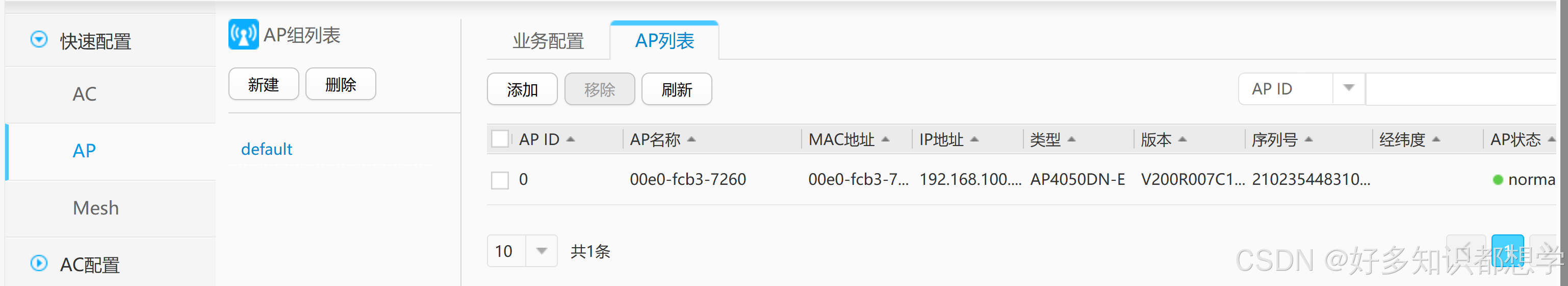

配置AC并添加AP

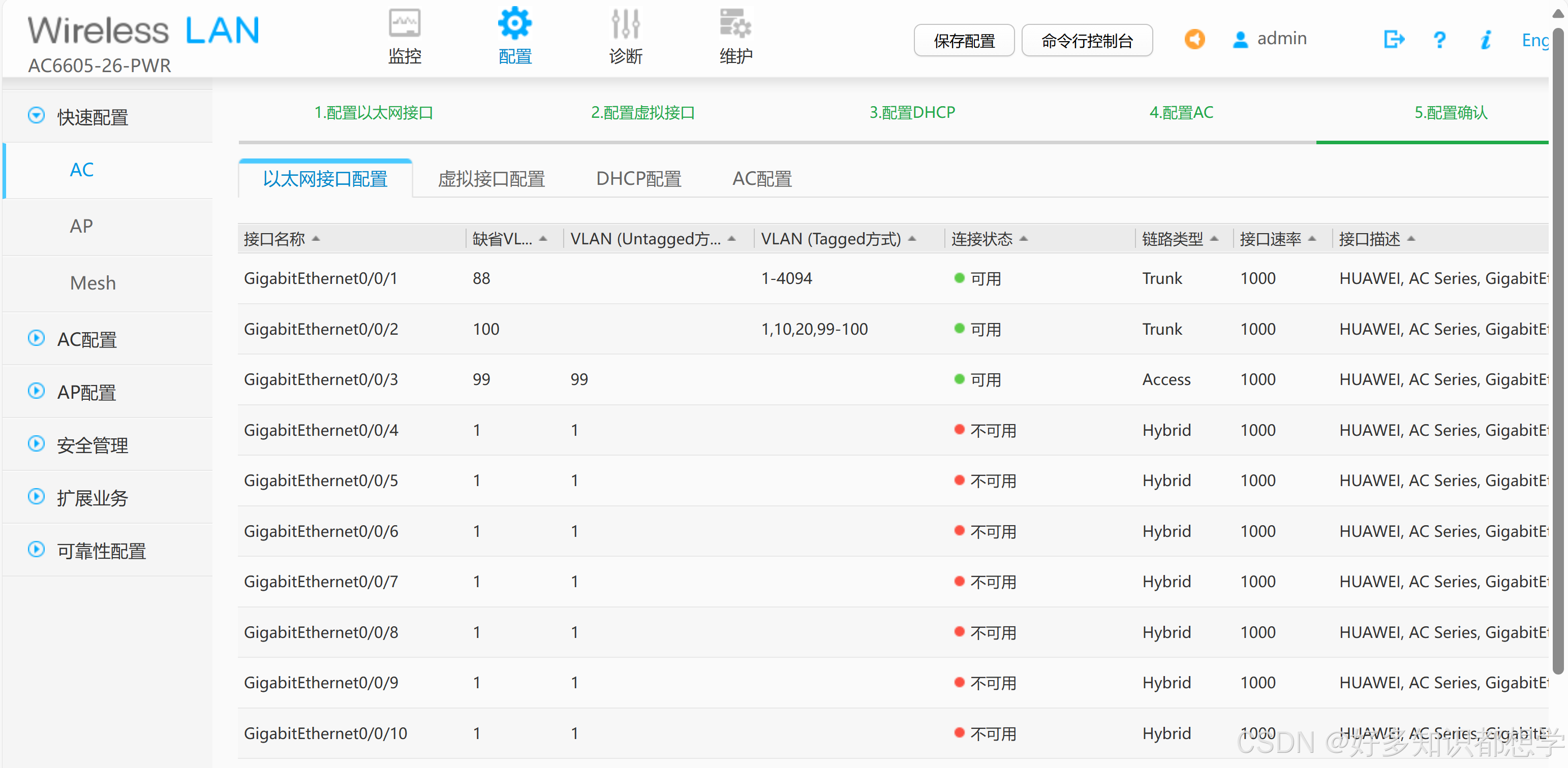

配置确认

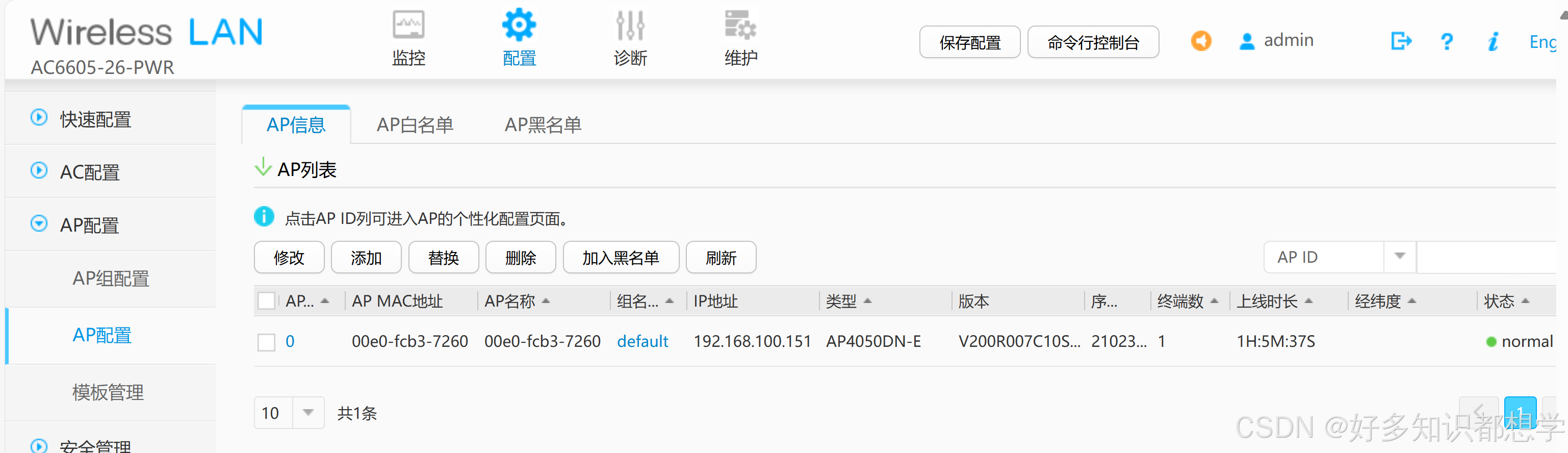

查看AP状态

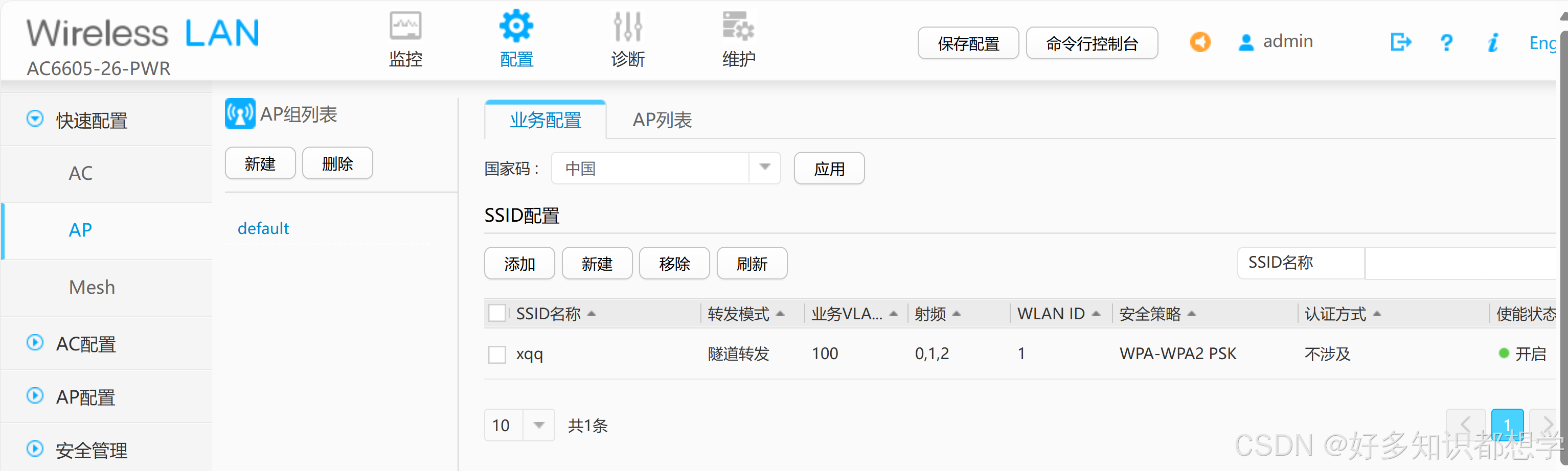

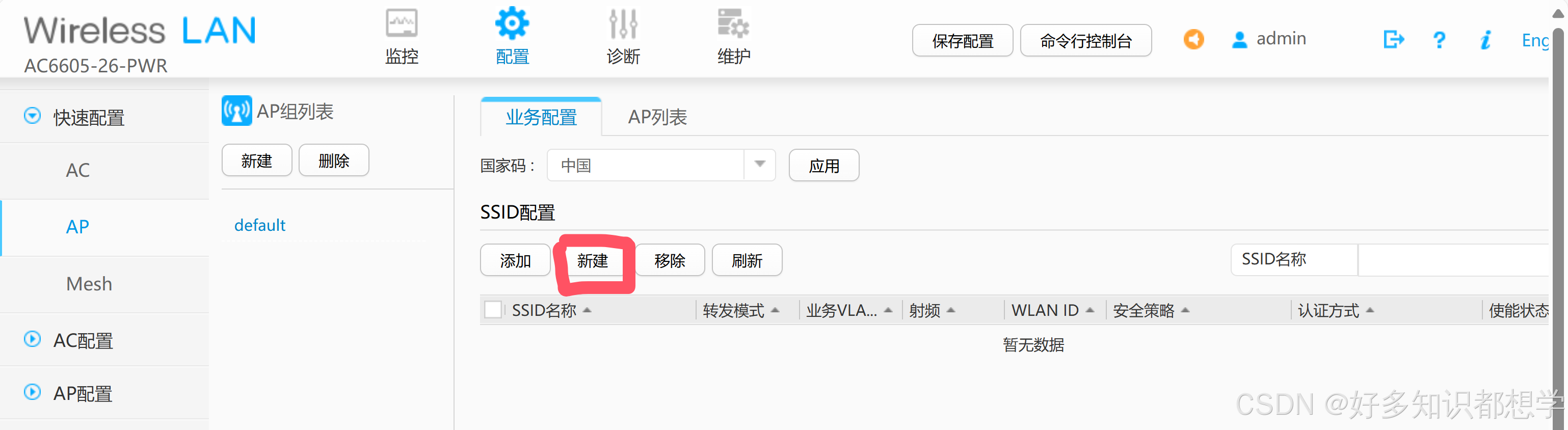

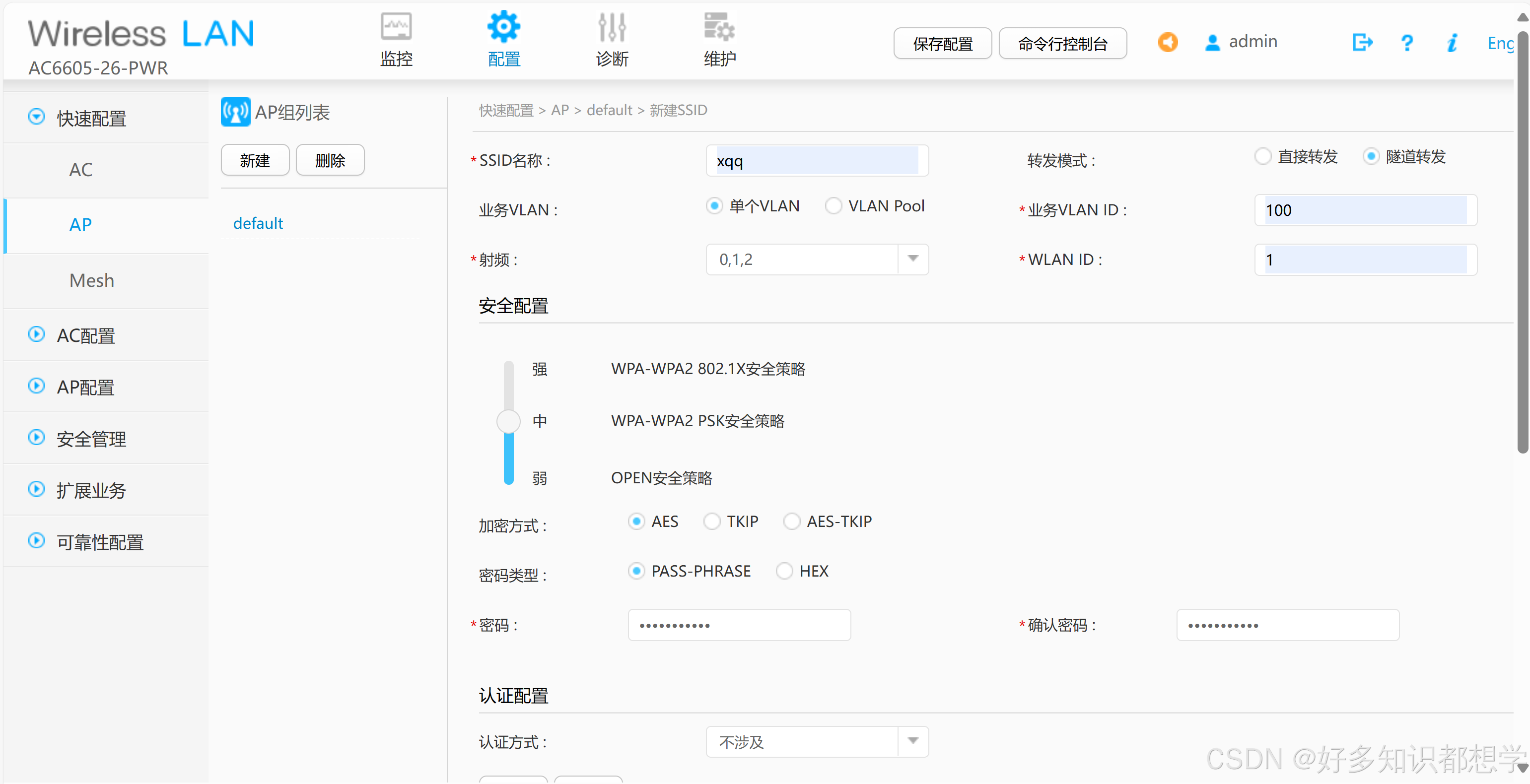

SSID配置

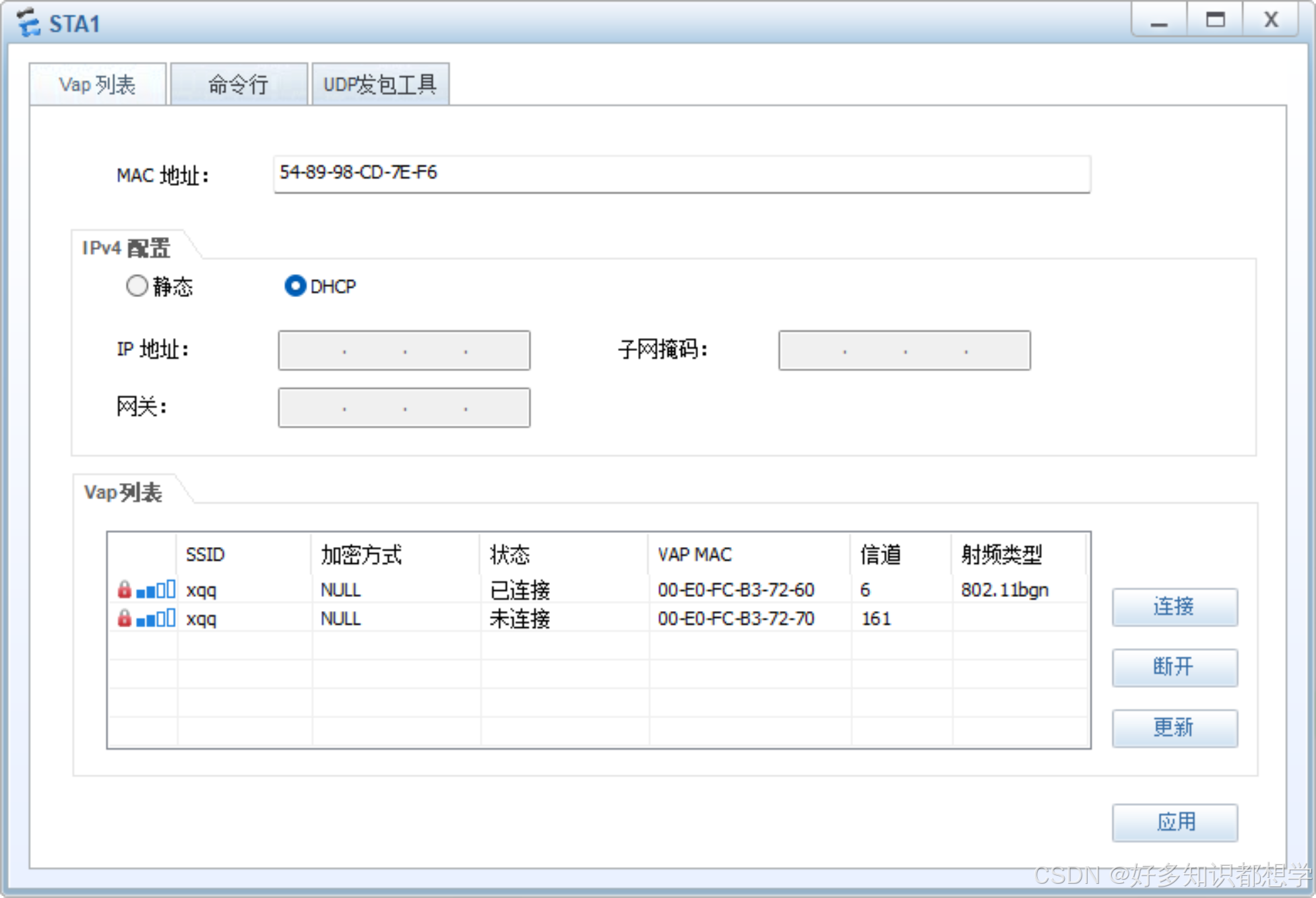

连接无线
