Swin Transformer

1. 网络架构

先放一张网络架构图，看着方便！

2. 参数意义与设置

import torch
import torch.nn as nn
import torch.utils.checkpoint as checkpoint
from timm.models.layers import DropPath, to_2tuple, trunc_normal_

class SwinTransformer(nn.Module):
    r""" Swin Transformer
        A PyTorch impl of : `Swin Transformer: Hierarchical Vision Transformer using Shifted Windows`  -
          https://arxiv.org/pdf/2103.14030

    Args:
        img_size (int | tuple(int)): Input image size. Default 224  // 224
        patch_size (int | tuple(int)): Patch size. Default: 4       // 4
        in_chans (int): Number of input image channels. Default: 3  // 3
        num_classes (int): Number of classes for classification head. Default: 1000
        embed_dim (int): Patch embedding dimension. Default: 96    //128
        depths (tuple(int)): Depth of each Swin Transformer layer.  //[ 2, 2, 18, 2 ]
        num_heads (tuple(int)): Number of attention heads in different layers.   //[ 4, 8, 16, 32 ]
        window_size (int): Window size. Default: 7
        mlp_ratio (float): Ratio of mlp hidden dim to embedding dim. Default: 4
        qkv_bias (bool): If True, add a learnable bias to query, key, value. Default: True
        qk_scale (float): Override default qk scale of head_dim ** -0.5 if set. Default: None
        drop_rate (float): Dropout rate. Default: 0
        attn_drop_rate (float): Attention dropout rate. Default: 0
        drop_path_rate (float): Stochastic depth rate. Default: 0.1
        norm_layer (nn.Module): Normalization layer. Default: nn.LayerNorm.
        ape (bool): If True, add absolute position embedding to the patch embedding. Default: False
        patch_norm (bool): If True, add normalization after patch embedding. Default: True
        use_checkpoint (bool): Whether to use checkpointing to save memory. Default: False

初始化：swin_base_patch4_window7_224为例

    def __init__(self, img_size=224, patch_size=4, in_chans=3, num_classes=1000,
                 embed_dim=96, depths=[2, 2, 6, 2], num_heads=[3, 6, 12, 24],
                 window_size=7, mlp_ratio=4., qkv_bias=True, qk_scale=None,
                 drop_rate=0., attn_drop_rate=0., drop_path_rate=0.1,
                 norm_layer=nn.LayerNorm, ape=False, patch_norm=True,
                 use_checkpoint=False, **kwargs):
        super().__init__()

        self.num_classes = num_classes   #1000
        self.num_layers = len(depths)    #4
        self.embed_dim = embed_dim       #128
        self.ape = ape                   #false
        self.patch_norm = patch_norm     #true
        self.num_features = int(embed_dim * 2 ** (self.num_layers - 1)) #1024
        self.mlp_ratio = mlp_ratio       #4

3. 将图像分割成不重叠的图像块（split image into non-overlapping patches）

        self.patch_embed = PatchEmbed(
            img_size=img_size,      #图像尺寸，224
            patch_size=patch_size,  #分割的图像块尺寸4,即 4*4
            in_chans=in_chans,      #图像的输入通道，3
            embed_dim=embed_dim,    #线性投影输出的通道数，128
            norm_layer=norm_layer if self.patch_norm else None) #使用layer_norm

下面来看一下具体实现：

class PatchEmbed(nn.Module):
    r""" Image to Patch Embedding

    Args:
        img_size (int): Image size.  Default: 224.
        patch_size (int): Patch token size. Default: 4.
        in_chans (int): Number of input image channels. Default: 3.
        embed_dim (int): Number of linear projection output channels. Default: 96.
        norm_layer (nn.Module, optional): Normalization layer. Default: None
    """

    def __init__(self, img_size=224, patch_size=4, in_chans=3, embed_dim=96, norm_layer=None):
        super().__init__()
        img_size = to_2tuple(img_size)   # 输入是int类型可转为元组tuple类型,to_2tuple()中间的数字表示新元组的长度,（224， 224）
        patch_size = to_2tuple(patch_size) # (4, 4)
        patches_resolution = [img_size[0] // patch_size[0], img_size[1] // patch_size[1]]  #'//'先做除法，然后向下取整，224//4=56
        self.img_size = img_size  #(224, 224)
        self.patch_size = patch_size #(4, 4)
        self.patches_resolution = patches_resolution #(56,56), 每个patch的实际尺寸
        self.num_patches = patches_resolution[0] * patches_resolution[1] #这个命名不好，因为这个数值表示的是每个图像块的实际像素数3136

        self.in_chans = in_chans  # 3
        self.embed_dim = embed_dim # 线性投影输出维度 128

        # nn.Conv2d(3, 128, (4, 4), (4, 4))
        self.proj = nn.Conv2d(in_chans, embed_dim, kernel_size=patch_size, stride=patch_size)
        if norm_layer is not None:
            self.norm = norm_layer(embed_dim)   # LayerNorm((128, ), eps=1e-05, elementwise_affine=True
        else:
            self.norm = None

    def forward(self, x):
        B, C, H, W = x.shape   # torch.Size[8, 3, 224, 224]
        # 查看放宽尺寸限制（FIXME look at relaxing size constraints)
        assert H == self.img_size[0] and W == self.img_size[1], \
            f"Input image size ({H}*{W}) doesn't match model ({self.img_size[0]}*{self.img_size[1]})."
        x_tmp = self.proj(x)
        x_tmp = x_tmp.flatten(2)
        x_tmp = x_tmp.transpose(1, 2)
        x = self.proj(x).flatten(2).transpose(1, 2)  # B Ph*Pw C
        if self.norm is not None:
            x = self.norm(x)
        return x

    def flops(self):
        Ho, Wo = self.patches_resolution
        flops = Ho * Wo * self.embed_dim * self.in_chans * (self.patch_size[0] * self.patch_size[1])
        if self.norm is not None:
            flops += Ho * Wo * self.embed_dim
        return flops

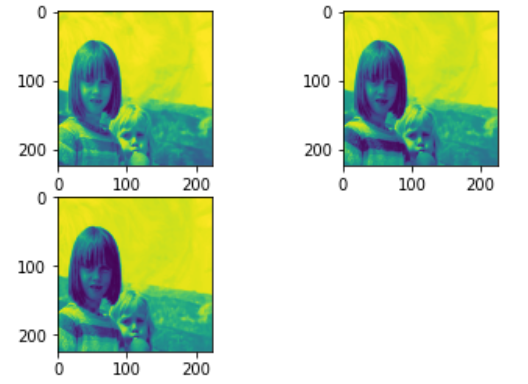

输入3维图像示例，每个图像是单个通道的成像

B, C, H, W = x.shape (4, 3, 224, 224)
