echarts根据树状图节点动态设置容器高度

1.methods初始化树状图方法并根据节点动态设置容器高度

// 根节点的背景图
import gen from '@/assets/fiveImg/d-gen.png'
// 子节点的背景图
import zi from '@/assets/fiveImg/d-zi.png'
    // 根据子节点个数动态设置容器高度
    dynamicHeight() {
      let container = this.$refs.tree
      let allNode = 0
      let nodes = this.myChart._chartsViews[0]._data._graphicEls
      for (let i = 0, count = nodes.length; i < count; i++) {
        let node = nodes[i]
        if (node === undefined) continue
        allNode++
      }
      // 根据子项目多少决定高度
      let height = window.innerHeight
      let currentHeight = 65 * allNode
      let newHeight = Math.max(currentHeight, height)
      container.style.height = newHeight + 'px'
      if (nodes.length <= 5) {
        container.style.height = '430px'
      } else {
        // 超过5个根据节点宽度*个数，设置容器宽度
        container.style.height = newHeight + 'px'
      }
      this.myChart.resize()
    },
    // 树
    initThree(data) {
      const option = {
        tooltip: { formatter: (params) => params.data.name },
        toolbox: {
          feature: {
            saveAsImage: { title: '',
              name: '指标分类',
              iconStyle: { borderColor: "#666" },
              emphasis: {iconStyle: { borderColor: "#666"}},
            },
          }
        },
        series: {
          type: 'tree',
          symbolSize: ['180', 80],
          left: 120,
          right: 120,
          top: 0,
          bottom: 0,
          initialTreeDepth: 4, //展示的层数(从0开始)
          symbol: `image://${zi}`,
          edgeShape: 'polyline',
          label: {
            position: ['50%', '20%'],
            align: 'center',
            color: '#570100',
            formatter: ({ data }) => {
              if (data.name.length > 8) {
                return `{name|${data.valueCalc}(分)}\n${(data.name && data.name.slice(0, 8) + '...') || ''}`
              } else {
                return `{name|${data.valueCalc}(分)}\n${data.name || ''}`
              }
            },
            rich: { name: { fontWeight: 700, fontSize: 20, padding: [0, 0, 10, 0] } },
          },
          lineStyle: { color: '#E8672B' },
          // ...data[0]展示数据，因为需要对象格式，而后端返回了数组所以我取了第一个
          /**
            数据格式：children可以无线嵌套
            {name:'显示文字',children:[{name:'显示文字'}]}
           */
          data: [{ symbolSize: [188, 80], symbol: `image://${gen}`, ...data[0] }],
        },
      }
      this.myChart = echarts.init(this.$refs.tree)
      this.myChart.setOption(option)
      // 初始化计算容器高度
      this.dynamicHeight()
      // 点击节点展开收起重新计算高度
      this.myChart.on('click', () => this.dynamicHeight())
    },

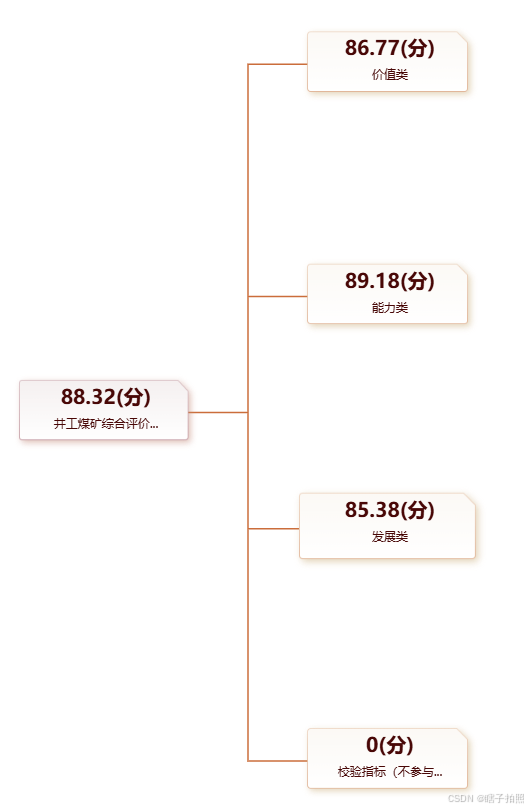

2.效果
