vue3+echarts5实现3d饼图

1.新建chart.js文件

function getParametricEquation(startRatio, endRatio, isSelected, isHovered, k, h) {
  // 计算
  let midRatio = (startRatio + endRatio) / 2;
  let startRadian = startRatio * Math.PI * 2;
  let endRadian = endRatio * Math.PI * 2;
  let midRadian = midRatio * Math.PI * 2;
  isSelected = false;
  k = typeof k !== "undefined" ? k : 1 / 3;
  let offsetX = isSelected ? Math.sin(midRadian) * 0.1 : 0;
  let offsetY = isSelected ? Math.cos(midRadian) * 0.1 : 0;
  let hoverRate = isHovered ? 1.05 : 1;
  return {
    u: { min: -Math.PI, max: Math.PI * 3, step: Math.PI / 32, },
    v: { min: 0, max: Math.PI * 2, step: Math.PI / 20, },
    x: function (u, v) {
      if (u < startRadian) {
        return (offsetX + Math.cos(startRadian) * (1 + Math.cos(v) * k) * hoverRate);
      }
      if (u > endRadian) {
        return (offsetX + Math.cos(endRadian) * (1 + Math.cos(v) * k) * hoverRate);
      }
      return offsetX + Math.cos(u) * (1 + Math.cos(v) * k) * hoverRate;
    },
    y: function (u, v) {
      if (u < startRadian) {
        return (offsetY + Math.sin(startRadian) * (1 + Math.cos(v) * k) * hoverRate);
      }
      if (u > endRadian) {
        return (offsetY + Math.sin(endRadian) * (1 + Math.cos(v) * k) * hoverRate);
      }
      return offsetY + Math.sin(u) * (1 + Math.cos(v) * k) * hoverRate;
    },
    z: function (u, v) {
      if (u < -Math.PI * 0.5) {
        return Math.sin(u);
      }
      if (u > Math.PI * 2.5) {
        return Math.sin(u) * h * 0.1;
      }
      return Math.sin(v) > 0 ? 1 * h * 0.1 : -1;
    },
  };
}

export function getPie3D(pieData, internalDiameterRatio) {
  let series = [];
  let sumValue = 0;
  let startValue = 0;
  let endValue = 0;
  let legendData = [];
  let k = typeof internalDiameterRatio !== "undefined" ? (1 - internalDiameterRatio) / (1 + internalDiameterRatio) : 1 / 3;
  for (let i = 0; i < pieData.length; i++) {
    sumValue += pieData[i].value;
    let seriesItem = {
      name: typeof pieData[i].name === "undefined" ? `series${i}` : pieData[i].name,
      type: "surface",
      parametric: true,
      wireframe: { show: false, },
      pieData: pieData[i],
      pieStatus: { selected: false, hovered: false, k: 1 / 10, },
    };
    if (typeof pieData[i].itemStyle != "undefined") {
      let itemStyle = {};
      typeof pieData[i].itemStyle.color != "undefined" ? (itemStyle.color = pieData[i].itemStyle.color) : null;
      typeof pieData[i].itemStyle.opacity != "undefined" ? (itemStyle.opacity = pieData[i].itemStyle.opacity) : null;
      seriesItem.itemStyle = itemStyle;
    }
    series.push(seriesItem);
  }
  for (let i = 0; i < series.length; i++) {
    endValue = startValue + series[i].pieData.value;
    series[i].pieData.startRatio = startValue / sumValue;
    series[i].pieData.endRatio = endValue / sumValue;
    series[i].parametricEquation = getParametricEquation(
      series[i].pieData.startRatio,
      series[i].pieData.endRatio,
      false,
      false,
      k,
      series[i].pieData.value
    );
    startValue = endValue;
    legendData.push(series[i].name);
  }
  let option = {
    color: ["rgba(26, 255, 167, 1)", "rgba(42, 184, 255, 1)", "rgba(210, 0, 255, 1)"],
    title: {
      text: `46.2% \n{num|回收物料状态}`,
      right: 'center',
      top: '35%',
      textStyle: { color: "#fff", fontWeight: 400, fontSize: 24, rich: { num: { fontSize: 14 } }, },
    },
    legend: { bottom: "20", itemWidth: 10, itemHeight: 10, icon: "rund", textStyle: { color: "#fff" }, },
    xAxis3D: {},
    yAxis3D: {},
    zAxis3D: {},
    grid3D: {
      // distance缩小、alpha放大、beta调整角度
      viewControl: { autoRotate: false, distance: 120, alpha: 26, beta: 60, },
      left: "center",
      top: -20,
      show: false,
      boxHeight: 20,
    },
    series: series,
  };
  return option;
}

2.vue文件引入并使用

<script setup>
import * as echarts from "echarts";
import "echarts-gl"; // 3d图表库
import { getPie3D } from "./chart";

// 中 -> 3d饼图 --> 回收物料状态
const pieRef = ref(null);
const pieOption = async () => {
  echarts.init(pieRef.value).setOption(getPie3D([
    { name: "完好状态",  value: 30, itemStyle: { opacity: 0.7 } },
    { name: "待修状态",  value: 50, itemStyle: { opacity: 0.7 } },
    { name: "报废状态",  value: 20, itemStyle: { opacity: 0.7 } }
  ], 0.7));
}
</script>

<template>
 <div class="bai pie-ec" ref="pieRef"></div>
</template>

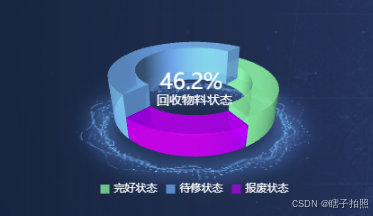

显示效果
