配置华为路由器DHCPServer，设置GigabitEthernet0/0/0接口使用接口DHCP分配192.168.1.0/24网段IP，GigabitEthernet0/0/1接口使用全局DHCP分配192.168.2.0/24网段IP。排除部分IP地址并设置DNS和租期。实验结果显示，四个PC通过ping命令能互相通信，配置成功。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

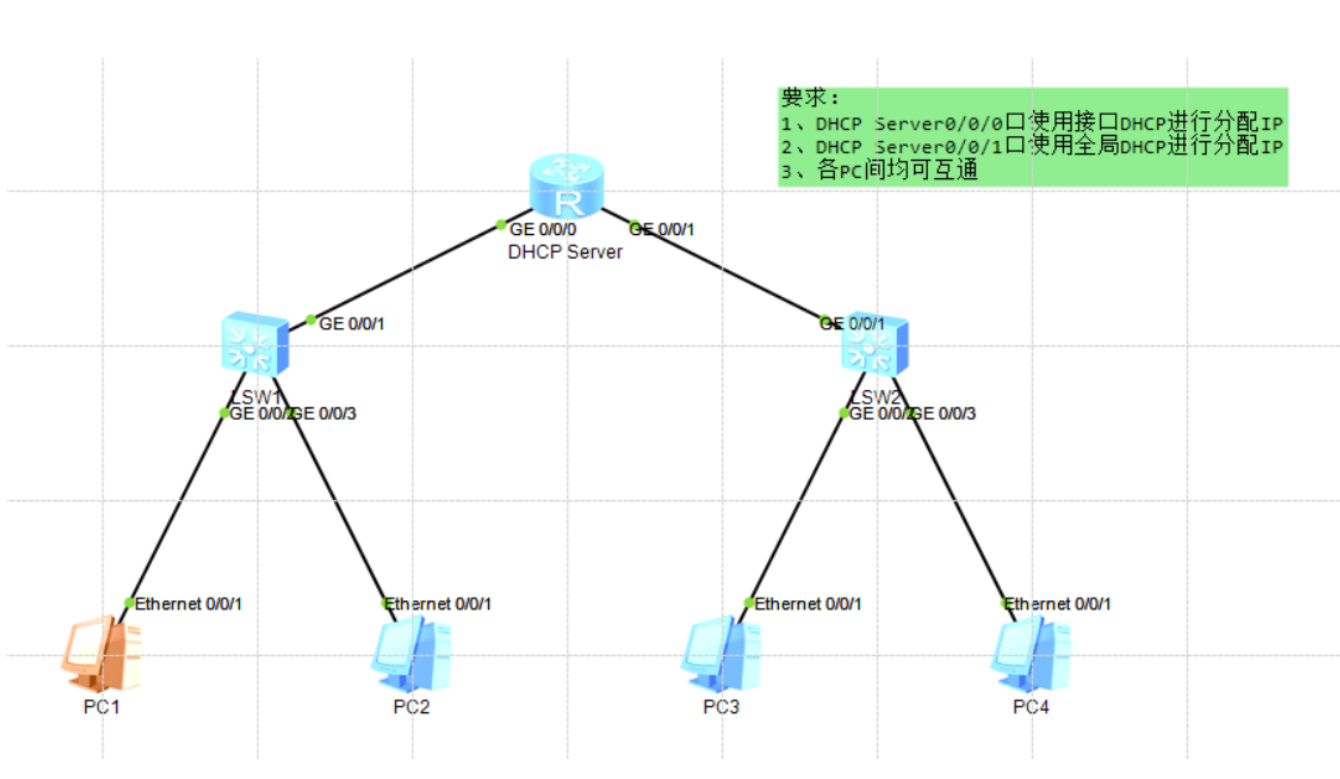

要求：

DHCP Server0/0/0使用接口DHCP进行分配IP

DHCP Server0/0/1使用全局DHCP进行分配IP

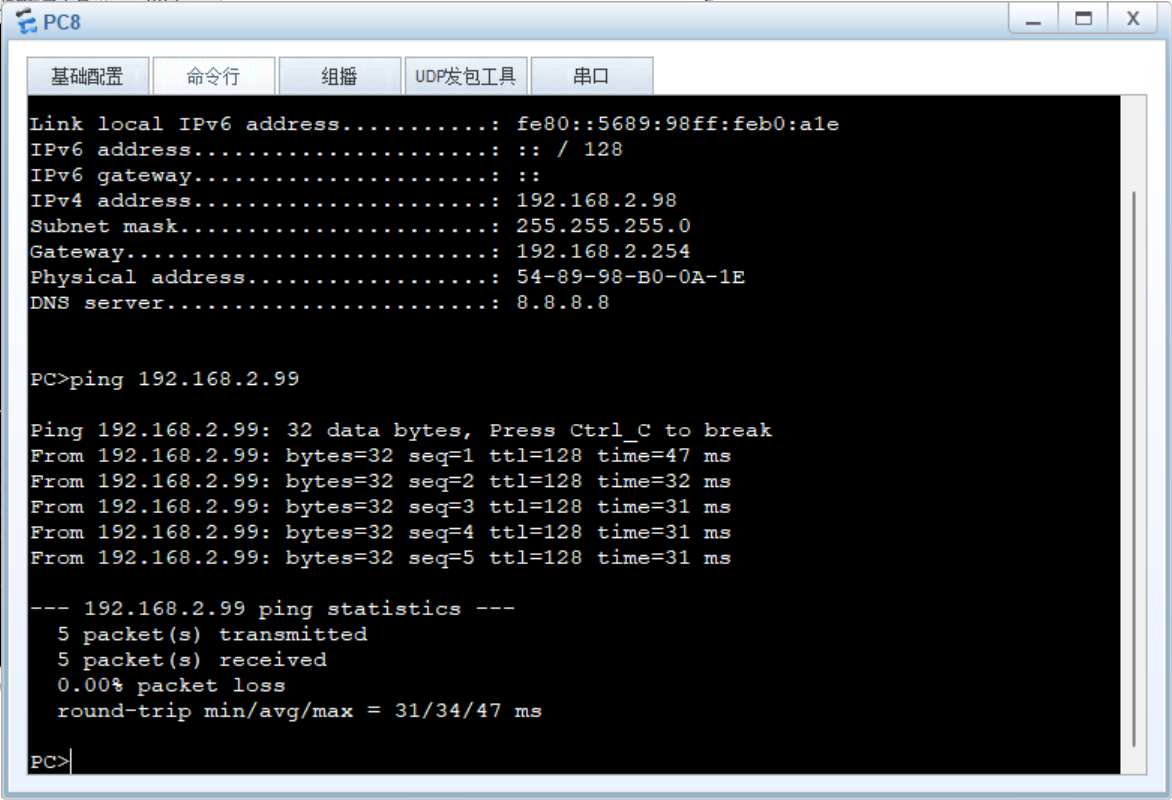

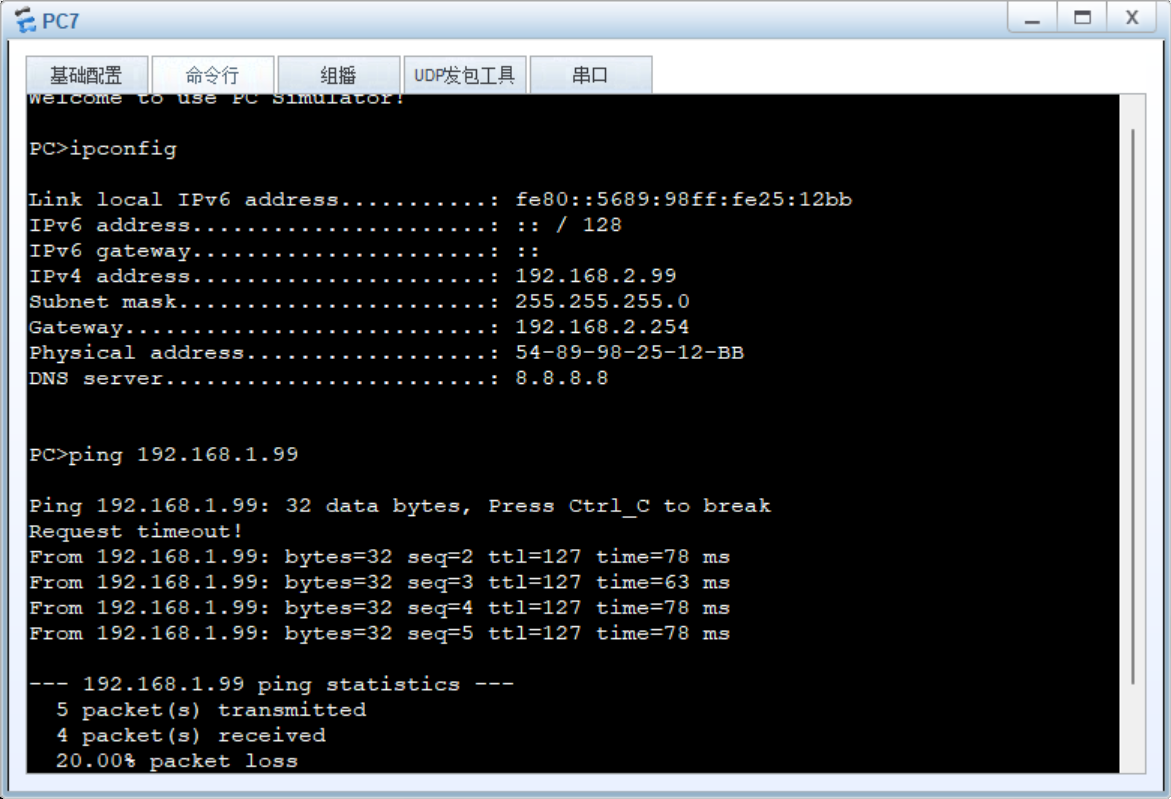

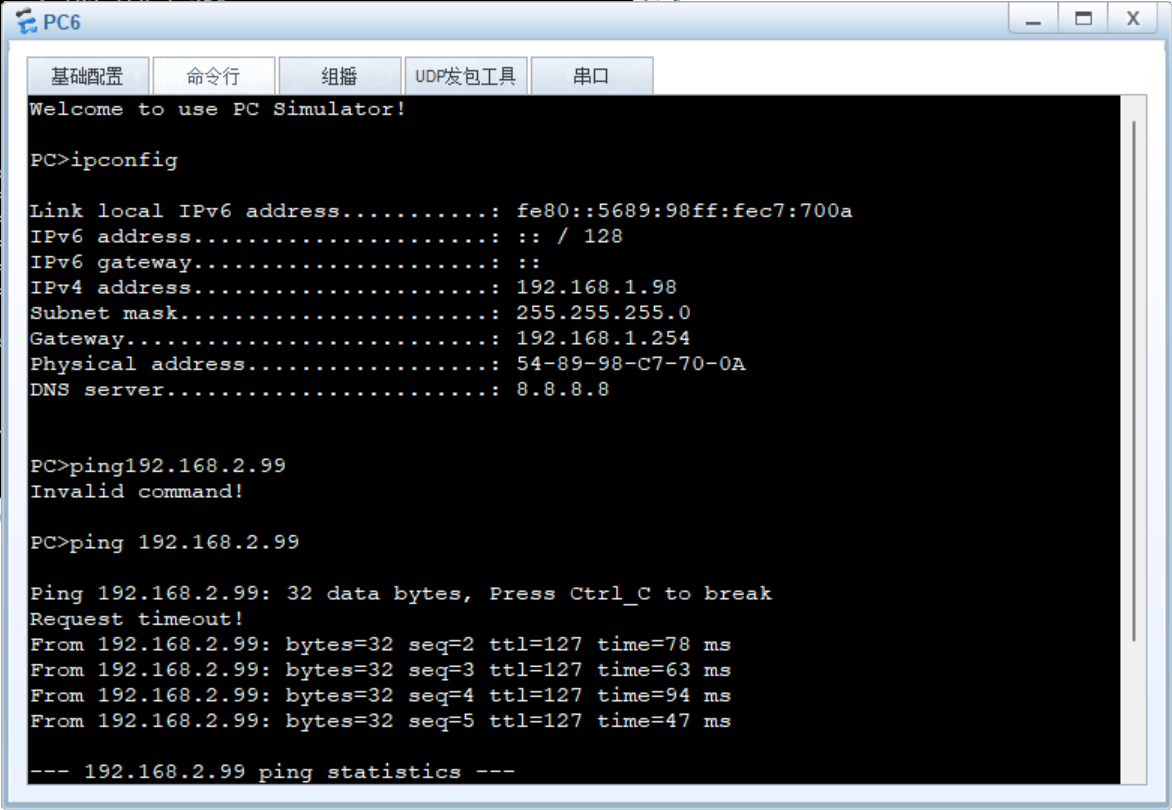

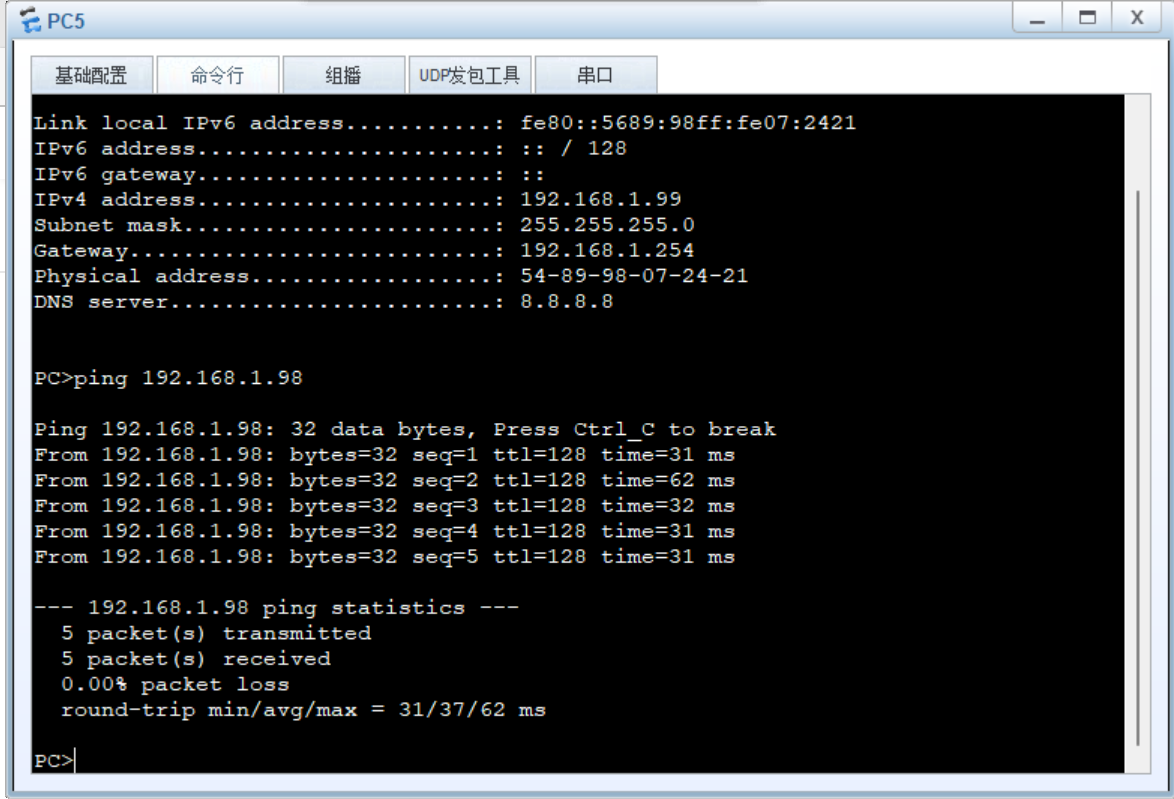

各PC间均可通

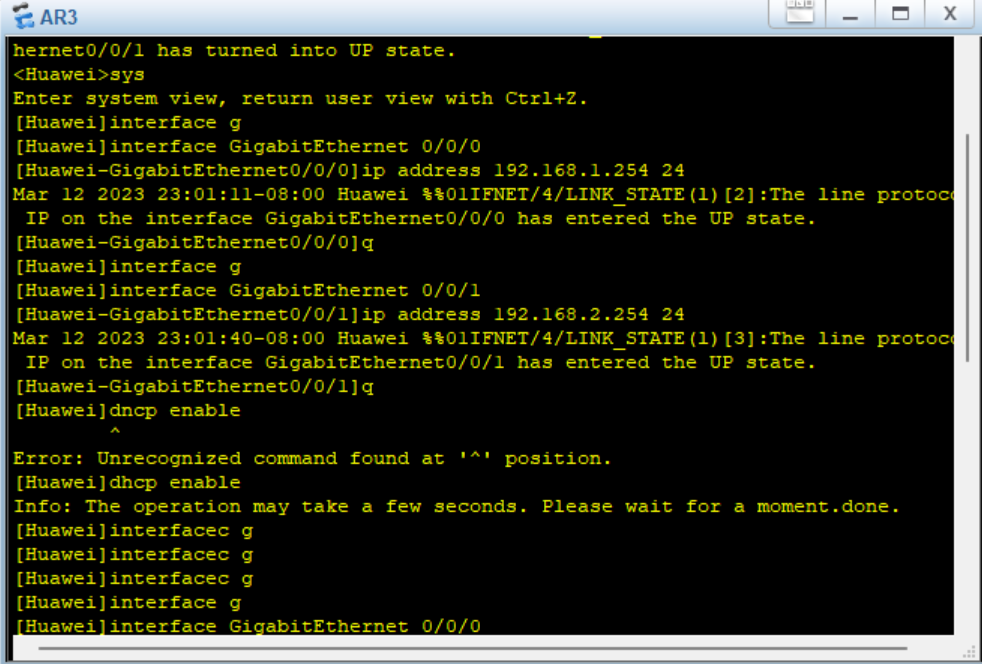

配置路由器的左右接口IP

[Huawei]sys
[Huawei]sysname DHCP Server
[DHCP Server]interface g
[DHCP Server]interface GigabitEthernet 0/0/0
[DHCP Server-GigabitEthernet0/0/0]ip address 192.168.1.254 24
[DHCP Server-GigabitEthernet0/0/0]
Mar 12 2023 19:35:19-08:00 DHCP Server %%01IFNET/4/LINK_STATE(l)[0]:The line pro
tocol IP on the interface GigabitEthernet0/0/0 has entered the UP state.
[DHCP Server-GigabitEthernet0/0/0]q
[DHCP Server]interface g
[DHCP Server]interface GigabitEthernet 0/0/1
[DHCP Server-GigabitEthernet0/0/1]ip address 192.168.2.254 24
[DHCP Server-GigabitEthernet0/0/1]
Mar 12 2023 19:36:11-08:00 DHCP Server %%01IFNET/4/LINK_STATE(l)[1]:The line pro
tocol IP on the interface GigabitEthernet0/0/1 has entered the UP state.
[DHCP Server-GigabitEthernet0/0/1]

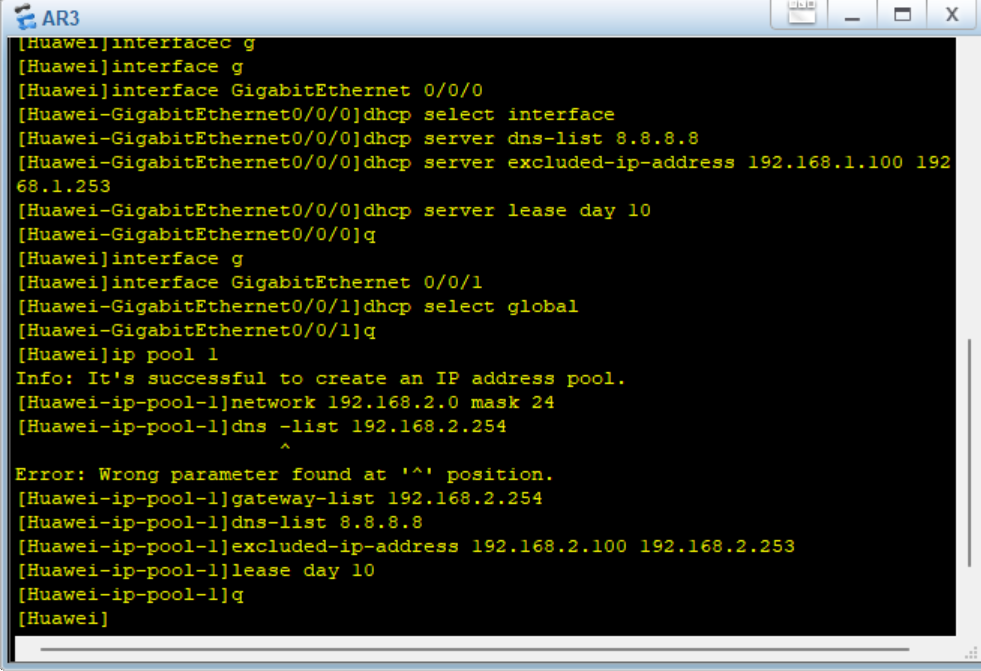

0/0/0接口配置接口DHCP

[Huawei]dncp enable
[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]dhcp select interface
[Huawei-GigabitEthernet0/0/0]dhcp server dns-list 8.8.8.8
[Huawei-GigabitEthernet0/0/0]dhcp server excluded-ip-address 192.168.1.100 192.1
68.1.253
[Huawei-GigabitEthernet0/0/0]dhcp server lease day 10
[Huawei-GigabitEthernet0/0/0]q

0/0/1接口配置全局DHCP

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]dhcp select global
[Huawei-GigabitEthernet0/0/1]q
[Huawei]ip pool 1
Info: It's successful to create an IP address pool.
[Huawei-ip-pool-1]network 192.168.2.0 mask 24
[Huawei-ip-pool-1]dns -list 192.168.2.254
                      ^
Error: Wrong parameter found at '^' position.
[Huawei-ip-pool-1]gateway-list 192.168.2.254
[Huawei-ip-pool-1]dns-list 8.8.8.8
[Huawei-ip-pool-1]excluded-ip-address 192.168.2.100 192.168.2.253
[Huawei-ip-pool-1]lease day 10
[Huawei-ip-pool-1]q
