Unity读取mysql数据控制物体位置实时移动

目录

一、序言

二、连接mysql数据库

三、unity获取数据后实时控制物体位置

---

一、序言

        本文主要描述unity连接mysql数据库，获取其中的数据，并实时控制unity的物体位置，到达某个位置后，另一个物体发生反应的内容。

二、连接mysql数据库

具体操作方法如下：

Unity连接数据库mysql全过程+可能遇到的问题与解决方案-优快云博客https://blog.youkuaiyun.com/qq_53316719/article/details/133909278?spm=1001.2014.3001.5502

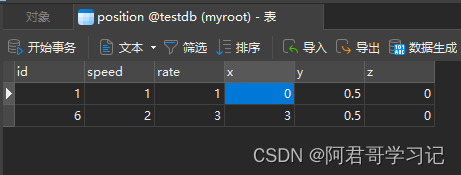

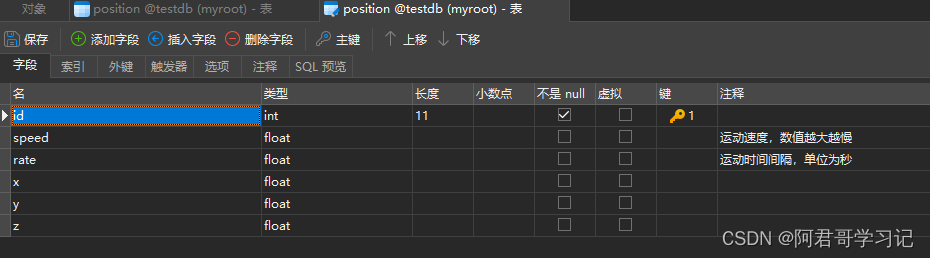

数据库和表数据例子：

注意：rate最好与x数值相近 ，间隔1s运行1的距离

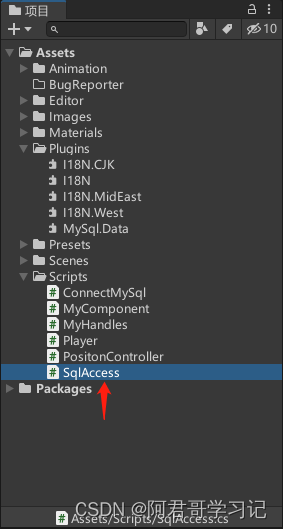

 在unity项目中创建一个C#文件，名为SqlAccess,是连接数据库与调用交互数据库方法的类

SqlAccess.cs：

using System;
using System.Data;
using MySql.Data.MySqlClient;
using UnityEngine;
using System.Text;

public class SqlAccess
{
    public static MySqlConnection dbConnection;
    //如果只是在本地的话，写localhost就可以。
    // static string host = "localhost";
    //如果是局域网，那么写上本机的局域网IP
    static string host = "localhost";
    static string port = "3306";
    static string username = "myroot";  //用户名
    static string pwd = "myroot";    //密码
    static string database = "testdb";  //数据库名

    public SqlAccess()
    {
        OpenSql();
    }

    /// <summary>
    /// 连接数据库
    /// </summary>
    public static void OpenSql()
    {
        try
        {
            string connectionString = string.Format("server = {0};port={1};database = {2};user = {3};password = {4};charset=utf8;", host, port, database, username, pwd);
            dbConnection = new MySqlConnection(connectionString);
            dbConnection.Open();
            Debug.Log("建立连接...");
        }
        catch (Exception e)
        {
            throw new Exception("服务器连接失败，请重新检查是否打开MySql服务。" + e.Message.ToString());
        }
    }

    /// <summary>
    /// 关闭数据库连接
    /// </summary>
    public void Close()
    {
        if (dbConnection != null)
        {
            dbConnection.Close();
            dbConnection.Dispose();
            dbConnection = null;
            Debug.Log("连接已关闭...");
        }
    }

    /// <summary>
    /// 查询
    /// </summary>
    /// <param name="tableName">表名</param>
    /// <param name="items"></param>
    /// <param name="col">字段名</param>
    /// <param name="operation">运算符</param>
    /// <param name="values">字段值</param>
    /// <returns>DataSet</returns>
    public DataSet SelectWhere(string tableName, string[] items, string[] col, string[] operation, string[] values)
    {

        if (col.Length != operation.Length || operation.Length != values.Length)
            throw new Exception("col.Length != operation.Length != values.Length");

        StringBuilder query = new StringBuilder();
        query.Append("SELECT ");
        query.Append(items[0]);

        for (int i = 1; i < items.Length; ++i)
        {
            query.Append(", ");
            query.Append(items[i]);
        }

        query.Append(" FROM ");
        query.Append(tableName);
        query.Append(" WHERE 1=1");

        for (int i = 0; i < col.Length; ++i)
        {
            query.Append(" AND ");
            query.Append(col[i]);
            query.Append(operation[i]);
            query.Append("'");
            query.Append(values[0]);
            query.Append("' ");
        }
        //Debug.Log(query.ToString());
        return ExecuteQuery(query.ToString());
    }


    /// <summary>
    /// 执行sql语句
    /// </summary>
    /// <param name="sqlString">sql语句</param>
    /// <returns></returns>
    public static DataSet ExecuteQuery(string sqlString)
    {
        if (dbConnection.State == ConnectionState.Open)
        {
            DataSet ds = new DataSet();
            try
            {
                MySqlDataAdapter da = new MySqlDataAdapter(sqlString, dbConnection);
                da.Fill(ds);
            }
            catch (Exception ee)
            {
                throw new Exception("SQL:" + sqlString + " Error:" + ee.Message.ToString());
            }
            finally
            {

            }
            return ds;
        }
        return null;
    }
}

三、unity获取数据后实时控制物体位置

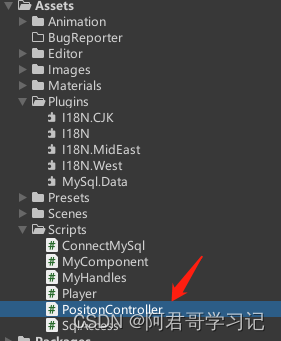

打开unity项目创建一个C#文件，名为：PositonController

PositonController.cs：

using System.Data;
using UnityEngine;

//[System.Serializable]
//public class EventVector3 : UnityEvent<Vector3> { }
public class PositonController : MonoBehaviour
{
    //public EventVector3 postionVector3;
    public new GameObject gameObject;

    public float x;
    public float y;
    public float z;
    float speed = .5f;

    float nextTime;
    float rate = 2f;

    DataTable table;
    int count = 0;
    int currentInt = -1;
    DataSet ds = null;

    //注意这里不同的对象的权重不一致，否则运动会变得一致
    private Vector3 velocity = Vector3.zero;
    private Vector3 velocity2 = Vector3.zero;
    GameObject object2;
    Vector3 position;
    // Start is called before the first frame update
    void Start()
    {
        object2 = GameObject.Find("Object2");
        Debug.Log(gameObject.transform.position.ToString() + "Cube");
        SqlAccess sql = new SqlAccess();
        string[] items = { "x", "y", "z", "speed", "rate" };
        string[] col = { };
        string[] op = { };
        string[] val = { };
        ds = sql.SelectWhere("position", items, col, op, val);

        if (ds != null)
        {
            table = ds.Tables[0];
            count = table.Rows.Count;
        }
    }

    void Update()
    {
        Vector3 size = object2.GetComponent<Renderer>().bounds.size;
        //Debug.Log(size.x + "直径");
        if (Mathf.Abs(object2.transform.position.x - gameObject.transform.position.x) <= size.x + 0.02)
        {
            currentInt = -1;
            ds = null;
            Debug.Log(gameObject.transform.position + "位置");
            object2.transform.position = Vector3.SmoothDamp(object2.transform.position, new Vector3(4f, 0.5f, 2f), ref velocity2, 1.5f);
        }

        while (Time.time > nextTime && currentInt < (count - 1) && ds != null)
        {
            currentInt++;
            //时间间隔越大，移动速度越慢
            rate = (float)table.Rows[currentInt][table.Columns[4]];
            nextTime = Time.time + rate;
            x = (float)table.Rows[currentInt][table.Columns[0]];
            y = (float)table.Rows[currentInt][table.Columns[1]];
            z = (float)table.Rows[currentInt][table.Columns[2]];
            speed = (float)table.Rows[currentInt][table.Columns[3]];
            Debug.Log(" currentInt:" + currentInt + " Position:" + x + " , " + y + " , " + z + " Speed:" + speed);
            Debug.Log(gameObject.transform.position.ToString() + "Cube");
        }
        //postionVector3?.Invoke(position);

        if (Mathf.Abs(x) < 0.01 && Mathf.Abs(y) < 0.01 && Mathf.Abs(z) < 0.01)
        {
            //位置校正
            gameObject.transform.position = Vector3.SmoothDamp(transform.position, position, ref velocity, speed);
        }
        gameObject.transform.position = Vector3.SmoothDamp(transform.position, new Vector3(x, y, z), ref velocity, speed);

    }
}

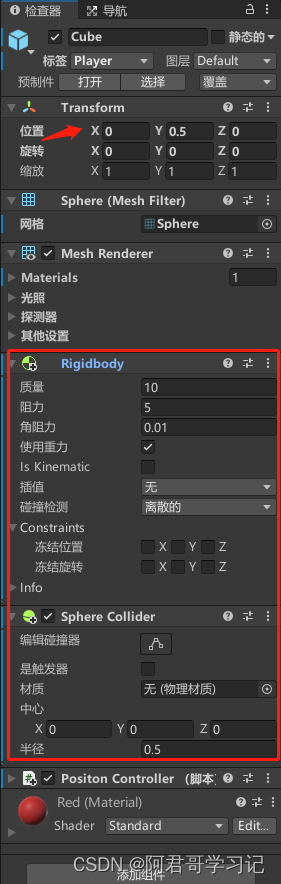

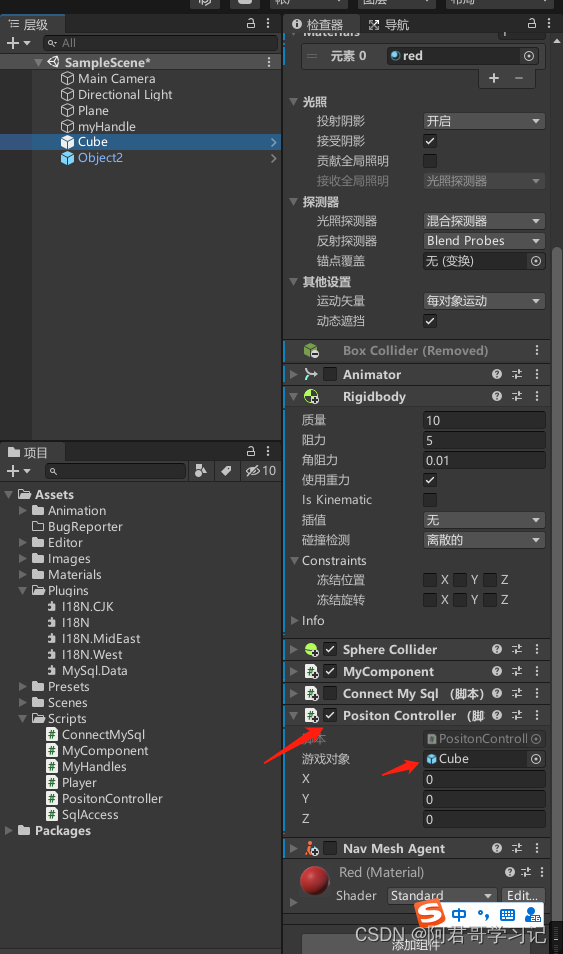

 然后创建一个球体，命名为Cude，并设置它的位置、添加刚体、碰撞体的组件，如图‘；

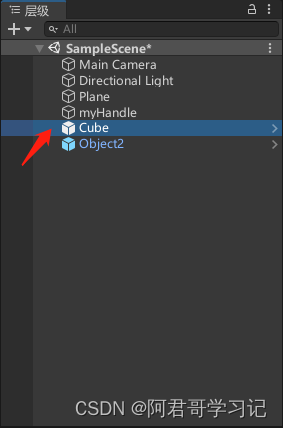

然后挂载PositonController文件到Cude球体上，然后选中游戏对象为Cude

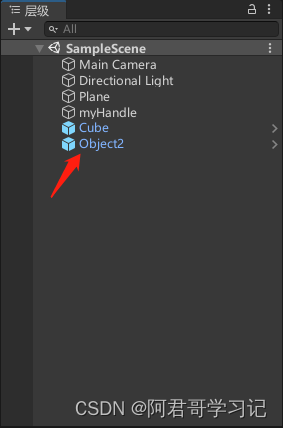

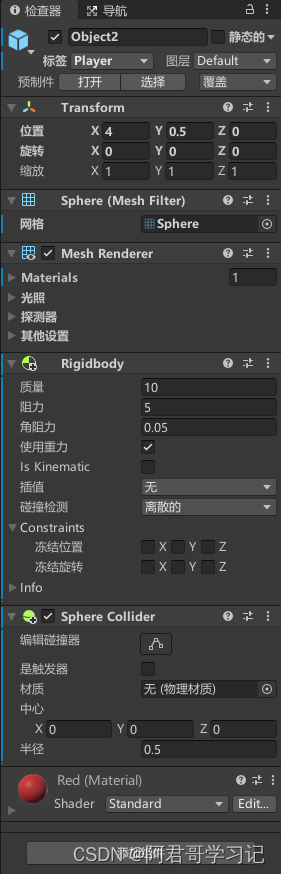

然后在场景中创建一个新对象，命名为Object2（注意这里一定要设置为Object2，因为程序中涉及根据名称赋值该对象的相关信息），并设置它的位置、添加刚体、碰撞体的组件，如图；

然后点击运行效果

unity-mysql获取数据控制物体移动小demo
