yolov5 hubconf的模型部署与使用, 含视频、摄像头处理

模型加载流程

PyTorch Hub是一个简易API和工作流程，为复现研究提供了基本构建模块

在项目的根目录下, 实现 hubconf.py文件, 这个项目就可以使用pytorch hub进行加载模型

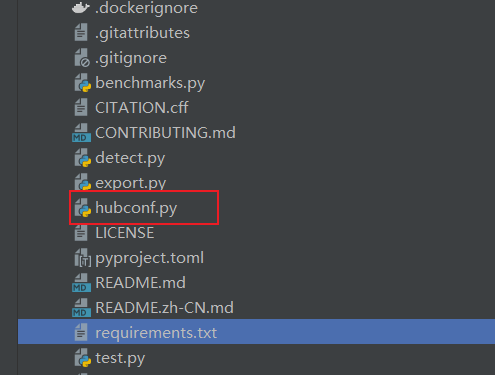

我们可以看到, yolov5 下就实现了这个文件

在这里插入图片描述

我们使用一行代码就可以将模型加载出来

# repo_or_dir : hubconf.py在哪个目录下
# model : 调用哪个函数, 如果是自定义模型, 需要传入模型地址, 如果是预训练模型, 需要传入模型名称
# source : 模型在本地还是在github 上, 如果在本地repo_or_dir就写项目地址
model = torch.hub.load(repo_or_dir='./', model='yolov5s', source='local')

# 也可以 model = torch.hub.load(repo_or_dir='./', 'custom', './yolov5x.pt', source='local')

对应我们的写法, 调用到了 hubconf.py 的 yolov5s 方法

def yolov5s(pretrained=True, channels=3, classes=80, autoshape=True, _verbose=True, device=None):
    return _create("yolov5s", pretrained, channels, classes, autoshape, _verbose, device)

我们继续看 _create方法

def _create(name, pretrained=True, channels=3, classes=80, autoshape=True, verbose=True, device=None):
    """
    Creates or loads a YOLOv5 model.

    Arguments:
        name (str): model name 'yolov5s' or path 'path/to/best.pt'
        pretrained (bool): load pretrained weights into the model
        channels (int): number of input channels
        classes (int): number of model classes
        autoshape (bool): apply YOLOv5 .autoshape() wrapper to model
        verbose (bool): print all information to screen
        device (str, torch.device, None): device to use for model parameters

    Returns:
        YOLOv5 model
    """
	# ...
    check_requirements(ROOT / "requirements.txt", exclude=("opencv-python", "tensorboard", "thop"))
    name = Path(name)
    path = name.with_suffix(".pt") if name.suffix == "" and not name.is_dir() else name  # checkpoint path
    try:
        device = select_device(device)
        if pretrained and channels == 3 and classes == 80:
            try:
                model = DetectMultiBackend(path, device=device, fuse=autoshape)  # detection model
                	#  无效代码...
                    else:
                        model = AutoShape(model)  # for file/URI/PIL/cv2/np inputs and NMS
            except Exception:
                model = attempt_load(path, device=device, fuse=False)  # arbitrary model
        # ...
        return model.to(device)

    except Exception as e:
        help_url = "https://docs.ultralytics.com/yolov5/tutorials/pytorch_hub_model_loading"
        s = f"{e}. Cache may be out of date, try `force_reload=True` or see {help_url} for help."
        raise Exception(s) from e

去除了无效代码, 我们可以看出, 首先将模型加载成DetectMultiBackend对象, 这也是 detect.py中用到的检测模型, 然后, 再封装成AutoShape对象, 这个对象可以帮我们完成从letterbox 图像预处理, 到预检测框生成, NMS过滤, 再 scale_boxes恢复图像原大小的全过程

我们可以从其forward方法可以看出

    def forward(self, ims, size=640, augment=False, profile=False):
        """
        Performs inference on inputs with optional augment & profiling.

        Supports various formats including file, URI, OpenCV, PIL, numpy, torch.
        """
        # For size(height=640, width=1280), RGB images example inputs are:
        #   file:        ims = 'data/images/zidane.jpg'  # str or PosixPath
        #   URI:             = 'https://ultralytics.com/images/zidane.jpg'
        #   OpenCV:          = cv2.imread('image.jpg')[:,:,::-1]  # HWC BGR to RGB x(640,1280,3)
        #   PIL:             = Image.open('image.jpg') or ImageGrab.grab()  # HWC x(640,1280,3)
        #   numpy:           = np.zeros((640,1280,3))  # HWC
        #   torch:           = torch.zeros(16,3,320,640)  # BCHW (scaled to size=640, 0-1 values)
        #   multiple:        = [Image.open('image1.jpg'), Image.open('image2.jpg'), ...]  # list of images

        dt = (Profile(), Profile(), Profile())
        with dt[0]:
            if isinstance(size, int):  # expand
                size = (size, size)
            p = next(self.model.parameters()) if self.pt else torch.empty(1, device=self.model.device)  # param
            autocast = self.amp and (p.device.type != "cpu")  # Automatic Mixed Precision (AMP) inference
            if isinstance(ims, torch.Tensor):  # torch
                with amp.autocast(autocast):
                    return self.model(ims.to(p.device).type_as(p), augment=augment)  # inference

            # Pre-process
            n, ims = (len(ims), list(ims)) if isinstance(ims, (list, tuple)) else (1, [ims])  # number, list of images
            shape0, shape1, files = [], [], []  # image and inference shapes, filenames
            for i, im in enumerate(ims):
                f = f"image{i}"  # filename
                if isinstance(im, (str, Path)):  # filename or uri
                    im, f = Image.open(requests.get(im, stream=True).raw if str(im).startswith("http") else im), im
                    im = np.asarray(exif_transpose(im))
                elif isinstance(im, Image.Image):  # PIL Image
                    im, f = np.asarray(exif_transpose(im)), getattr(im, "filename", f) or f
                files.append(Path(f).with_suffix(".jpg").name)
                if im.shape[0] < 5:  # image in CHW
                    im = im.transpose((1, 2, 0))  # reverse dataloader .transpose(2, 0, 1)
                im = im[..., :3] if im.ndim == 3 else cv2.cvtColor(im, cv2.COLOR_GRAY2BGR)  # enforce 3ch input
                s = im.shape[:2]  # HWC
                shape0.append(s)  # image shape
                g = max(size) / max(s)  # gain
                shape1.append([int(y * g) for y in s])
                ims[i] = im if im.data.contiguous else np.ascontiguousarray(im)  # update
            shape1 = [make_divisible(x, self.stride) for x in np.array(shape1).max(0)]  # inf shape
            x = [letterbox(im, shape1, auto=False)[0] for im in ims]  # pad
            x = np.ascontiguousarray(np.array(x).transpose((0, 3, 1, 2)))  # stack and BHWC to BCHW
            x = torch.from_numpy(x).to(p.device).type_as(p) / 255  # uint8 to fp16/32

        with amp.autocast(autocast):
            # Inference
            with dt[1]:
                y = self.model(x, augment=augment)  # forward

            # Post-process
            with dt[2]:
                y = non_max_suppression(
                    y if self.dmb else y[0],
                    self.conf,
                    self.iou,
                    self.classes,
                    self.agnostic,
                    self.multi_label,
                    max_det=self.max_det,
                )  # NMS
                for i in range(n):
                    scale_boxes(shape1, y[i][:, :4], shape0[i])

            return Detections(ims, y, files, dt, self.names, x.shape)

最后返回一个Detections对象, 这个对象可以帮我们得到检测框位置, 检测框图像等等多种数据

模型基本使用

图片可视化：results.show()
图片结果：results.render()
数据结果：results,pandas()
裁切结果：results.crops()
文本结果：results.print()

import torch
from models.common import AutoShape, Detections




def test1():
    # 导入模型
    '''
    repo_or_dir: 项目地址, 该地址下需要有一个 hubconf.py 文件
    model: 调用哪个函数, 如果是自定义模型, 需要传入模型地址, 如果是预训练模型, 需要传入模型名称, 这里是自定义
    source: 是在本地还是在github 上, 如果在本地repo_or_dir就写项目地址
    '''
    model:AutoShape = torch.hub.load('./', 'custom', './weights/yolov5x.pt', source='local')
    # model = torch.hub.load(repo_or_dir='./', model='yolov5x', source='local')
    print(type(model))
    # 图片地址
    image_path = './data/images/bus.jpg'

    # 预测
    results:Detections = model(image_path)
    # print(results.render()[0].shape)  # (1080, 810, 3)

    print(results)
    # results.show() # 展示图片
    print(results.pandas().xyxy[0])
    '''
    xmin        ymin        xmax        ymax  confidence  class    name
0  667.667297  393.297791  809.253662  880.357971    0.937885      0  person
1   15.557645  233.723160  799.038452  732.006592    0.925769      5     bus
2   49.887505  396.291016  245.754440  904.234375    0.922690      0  person
3  221.138351  409.338318  344.786987  860.277771    0.898539      0  person
4    0.250775  550.910889   78.686089  870.606018    0.711578      0  person
    '''
    print(results.pandas().xyxyn[0])
    '''
    xmin      ymin      xmax      ymax  confidence  class    name
0  0.824281  0.364165  0.999079  0.815146    0.937885      0  person
1  0.019207  0.216410  0.986467  0.677784    0.925769      5     bus
2  0.061590  0.366936  0.303401  0.837254    0.922690      0  person
3  0.273010  0.379017  0.425663  0.796553    0.898539      0  person
4  0.000310  0.510103  0.097143  0.806117    0.711578      0  person
    '''
    print(results.pandas().xywh[0])
    '''
    xcenter     ycenter       width      height  confidence  class    name
0  738.460449  636.827881  141.586365  487.060181    0.937885      0  person
1  407.298035  482.864868  783.480835  498.283447    0.925769      5     bus
2  147.820969  650.262695  195.866943  507.943359    0.922690      0  person
3  282.962677  634.808044  123.648636  450.939453    0.898539      0  person
4   39.468433  710.758423   78.435310  319.695129    0.711578      0  person
    '''
    print(results.pandas().xywhn[0])
    '''
    xcenter   ycenter     width    height  confidence  class    name
0  0.911680  0.589655  0.174798  0.450982    0.937885      0  person
1  0.502837  0.447097  0.967260  0.461374    0.925769      5     bus
2  0.182495  0.602095  0.241811  0.470318    0.922690      0  person
3  0.349337  0.587785  0.152653  0.417537    0.898539      0  person
4  0.048726  0.658110  0.096834  0.296014    0.711578      0  person
    '''
    print(results.crop(save=False)) # 表示预测到的每个物体图像, 是个列表, 每个元素是字典, 是主要信息
    '''
    [{'box': [tensor(0.25077, device='cuda:0'), tensor(550.91089, device='cuda:0'), tensor(78.68609, device='cuda:0'), tensor(870.60602, device='cuda:0')], 'conf': tensor(0.71158, device='cuda:0'), 'cls': tensor(0., device='cuda:0'), 'label': 'person 0.71', 'im': array([[[128, 119, 116],
        [123, 117, 112],
        [125, 119, 112],
        ...,
        [122, 152, 179],
        ....
        ....
        ]
    '''
    print(results.crop(save=False)[0]["im"])

    from PIL import Image
    # 展示裁剪后的图片
    Image.fromarray(results.crop(save=False)[3]["im"][:, :, ::-1]).show()
    print(str(results))
    '''
    image 1/1: 1080x810 4 persons, 1 bus
    Speed: 19.0ms pre-process, 73.3ms inference, 5.0ms NMS per image at shape (1, 3, 640, 480)
    '''

对视频, 摄像头等多种类型的数据进行推理

我们封装好了一套对图像, 视频, 摄像头数据进行推理的方法供大伙参考

# YOLOv5 PyTorch HUB Inference (DetectionModels only)
import math
import time
from threading import Thread

import cv2
import numpy as np
import torch
import platform

from utils.augmentations import letterbox

model = torch.hub.load(repo_or_dir='./', model='yolov5s', source='local')  # or yolov5n - yolov5x6 or custom
im = r'C:\Users\产品研发部-xxx\Desktop\yolov5-master\data\images\bus.jpg'
startTime = time.time()
results = model(im)  # inference
print(f'单张图像用时{((time.time() - startTime) * 1000):.2f}ms')

save_path = r'C:\Users\产品研发部-xxx\Desktop\yolov5-master\data\video\test.mp4'
vid = r'C:\Users\产品研发部-xxx\Desktop\yolov5-master\data\video\WIN_20240702_15_07_22_Pro.mp4'


def get_video(video_path: str, save_path: str, img_size=640):
    """
    对Video类型数据进行解析
    :param video_path: video路径
    :param save_path: 保存路径
    :param img_size: letterbox压缩的尺寸, 默认为 (640, 640)
    :return:
    """
    vid_stride = 1  # 帧跨度, 默认1
    cap = cv2.VideoCapture(video_path)  # 视频捕获器
    fps = cap.get(cv2.CAP_PROP_FPS)  # 视频帧率
    w = int(cap.get(cv2.CAP_PROP_FRAME_WIDTH))  # 视频宽度
    h = int(cap.get(cv2.CAP_PROP_FRAME_HEIGHT))  # 视频高度
    frames = int(cap.get(cv2.CAP_PROP_FRAME_COUNT) / vid_stride)  # 321 / 1
    videoWriter = cv2.VideoWriter(save_path, cv2.VideoWriter_fourcc(*"mp4v"), fps, (w, h))  # 定义视频写入器, 第二个参数是编码方式
    print(f'一共{frames:.2f}帧, 帧率: {fps:.2f} 宽: {w} 高: {h}')
    for i in range(frames):
        for _ in range(vid_stride):  # 跨一下视频偏置, 比如说录制的视频2帧算一帧
            cap.grab()  # 尝试获取视频当前帧 , cap.read() = cap.grab() + cap.retrieve()
        ret_val, im0 = cap.retrieve()
        origin_im = im0.copy()  # 保留一下源图像数据, 可以进行别的处理
        while not ret_val:  # 失败的情况, 或者视频结束了
            cap.release()  # 释放资源
            ret_val, im0 = cap.read()  # 读取帧数据
        startTime = time.time()
        results = model(im0,size=img_size)  # 得到结果
        print(f'第{i + 1}/{frames}帧用时{((time.time() - startTime) * 1000):.2f}ms')
        videoWriter.write(results.render()[0])
    videoWriter.release()
    cap.release()


def get_img(im, img_size=640):
    """
    基本用法, 返回对应渲染后的图像数据(PIL)
    # 输入可以是下列各项 For size(height=640, width=1280), RGB images example inputs are:
    #   file:        ims = 'data/images/zidane.jpg'  # str or PosixPath
    #   URI:             = 'https://ultralytics.com/images/zidane.jpg'
    #   OpenCV:          = cv2.imread('image.jpg')[:,:,::-1]  # HWC BGR to RGB x(640,1280,3)
    #   PIL:             = Image.open('image.jpg') or ImageGrab.grab()  # HWC x(640,1280,3)
    #   numpy:           = np.zeros((640,1280,3))  # HWC
    #   torch:           = torch.zeros(16,3,320,640)  # BCHW (scaled to size=640, 0-1 values)
    #   multiple:        = [Image.open('image1.jpg'), Image.open('image2.jpg'), ...]  # list of images
    :return:
    """
    results = model(im, size=img_size)  # inference
    return results.render()[0]


# get_video(vid, save_path)

def get_stream(source='0', save_path='./test.mp4', view_img=True, img_size=640):
    """
    处理摄像头, 流视频等数据
    :param source: 默认为 0(摄像头) 也可以是 'rtsp://example.com/media.mp4'  # RTSP, RTMP, HTTP stream
    :param save_path: 保存路径
    :param view_img: 是否观看实时处理结果
    :param img_size: letterbox压缩的尺寸, 默认为 (640, 640)
    :return:
    """
    class LoadingStream:
        def __init__(self, sources="0", vid_stride=1):
            """
            :param sources: 默认摄像头
            :param vid_stride:
            """
            self.vid_stride = vid_stride
            self.sources = eval(sources)
            cap = cv2.VideoCapture(self.sources)
            self.cap = cap
            self.w = int(cap.get(cv2.CAP_PROP_FRAME_WIDTH))  # 640
            self.h = int(cap.get(cv2.CAP_PROP_FRAME_HEIGHT))  # 480
            fps = cap.get(cv2.CAP_PROP_FPS)  # warning: may return 0 or nan 30
            self.frames = max(int(cap.get(cv2.CAP_PROP_FRAME_COUNT)), 0) or float("inf")  # infinite stream fallback inf
            self.fps = max((fps if math.isfinite(fps) else 0) % 100, 0) or 30  # 30 FPS fallback 30

            _, self.img = cap.read()  # guarantee first frame
            # 定义当前流媒体对应的线程, 且是守护线程
            print(f"1/1 {self.sources} Success ({self.frames} frames {self.w}x{self.h} at {self.fps:.2f} FPS)")
            self.thread = Thread(target=self.update, args=([cap, self.sources]), daemon=True)
            # 启动
            self.thread.start()

        def update(self, cap, stream):
            """
            :param cap: 捕获的媒体对象
            :param stream: 流媒体或者摄像头url, 摄像头的话为 0
            :return:
            """
            n, f = 0, self.frames  # frame number, frame array
            while cap.isOpened() and n < f:
                n += 1
                cap.grab()  # .read() = .grab() followed by .retrieve()
                if n % self.vid_stride == 0:
                    success, im = cap.retrieve()
                    if success:
                        self.img = im
                    else:
                        print("WARNING ⚠️ Video stream unresponsive, please check your IP camera connection.")
                        self.img = np.zeros_like(self.img)
                        cap.open(stream)  # re-open stream if signal was lost
                time.sleep(0.0)  # wait time

        def __iter__(self):
            self.count = -1
            return self

        def __next__(self):
            self.count += 1
            # 按 q 退出
            if not self.thread.is_alive() or cv2.waitKey(1) == ord("q"):  # q to quit
                cv2.destroyAllWindows()
                self.cap.release()
                raise StopIteration

            im0 = self.img.copy()

            return im0

        def __len__(self):
            """Returns the number of sources in the dataset, supporting up to 32 streams at 30 FPS over 30 years."""
            return 1  # 1E12 frames = 32 streams at 30 FPS for 30 years

    loadingStream = LoadingStream(sources=source)
    videoWriter = cv2.VideoWriter(save_path, cv2.VideoWriter_fourcc(*"mp4v"), loadingStream.fps,
                                  (loadingStream.w, loadingStream.h))  # 定义视频写入器, 第二个参数是编码方式
    current_frame = 0
    for img in loadingStream:
        current_frame += 1
        origin_im = img.copy()  # 保留一下源图像数据, 可以进行别的处理
        startTime = time.time()
        results = model(img, size=img_size)  # 得到结果
        print(f'第{current_frame}帧用时{((time.time() - startTime) * 1000):.2f}ms')
        process_img = results.render()[0]
        videoWriter.write(process_img)
        if view_img:
            name = str('Camera' if eval(source) == 0 else source)
            if platform.system() == "Linux":
                cv2.namedWindow(name, cv2.WINDOW_NORMAL | cv2.WINDOW_KEEPRATIO)  # allow window resize (Linux)
                cv2.resizeWindow(name, loadingStream.w, loadingStream.h)
            cv2.imshow(name, process_img)
            cv2.waitKey(1)  # 1 millisecondimg_size
    videoWriter.release()


# get_stream(source='0', save_path=save_path, view_img=True)
