vl_39 自动贩卖机题目2

1.1题目描述

题目描述：

设计一个自动贩售机，输入货币有两种，为0.5/1元，饮料价格是1.5/2.5元，要求进行找零，找零只会支付0.5元。

ps:

1、投入的货币会自动经过边沿检测并输出一个在时钟上升沿到1，在下降沿到0的脉冲信号

2、此题忽略出饮料后才能切换饮料的问题

注意rst为低电平复位

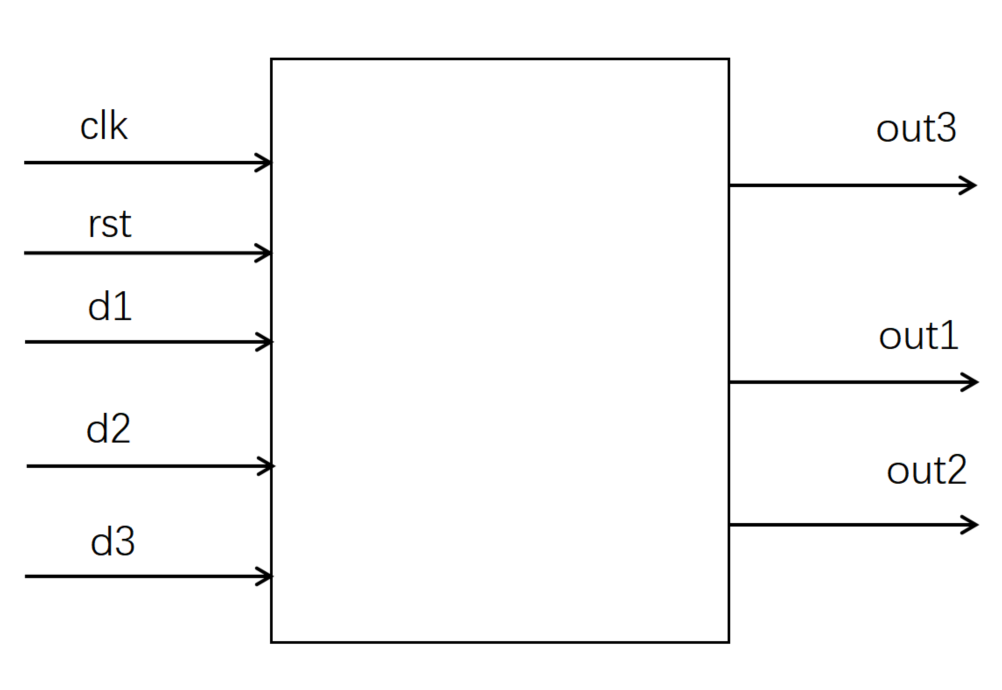

信号示意图：

d1 0.5

d2 1

sel  选择饮料

out1 饮料1

out2 饮料2

out3 零钱

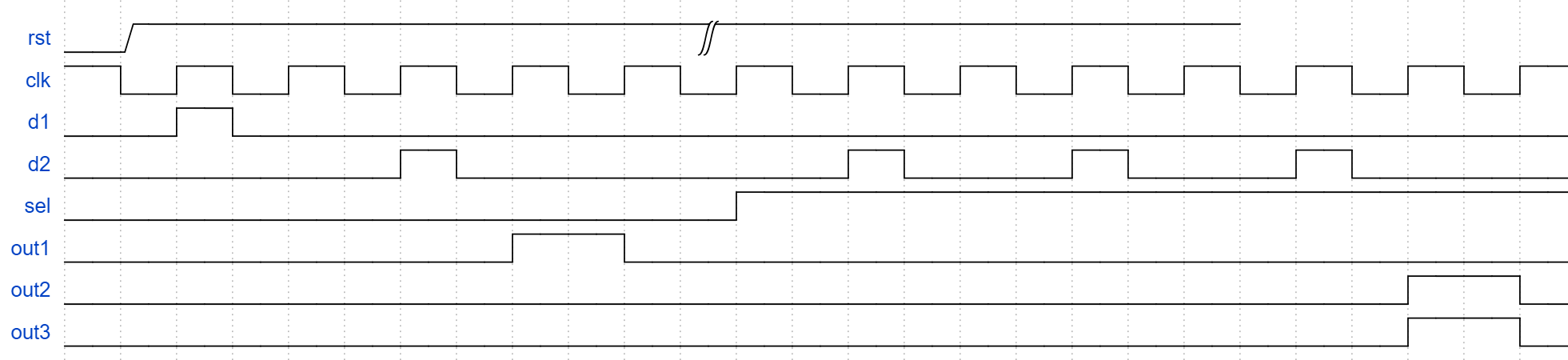

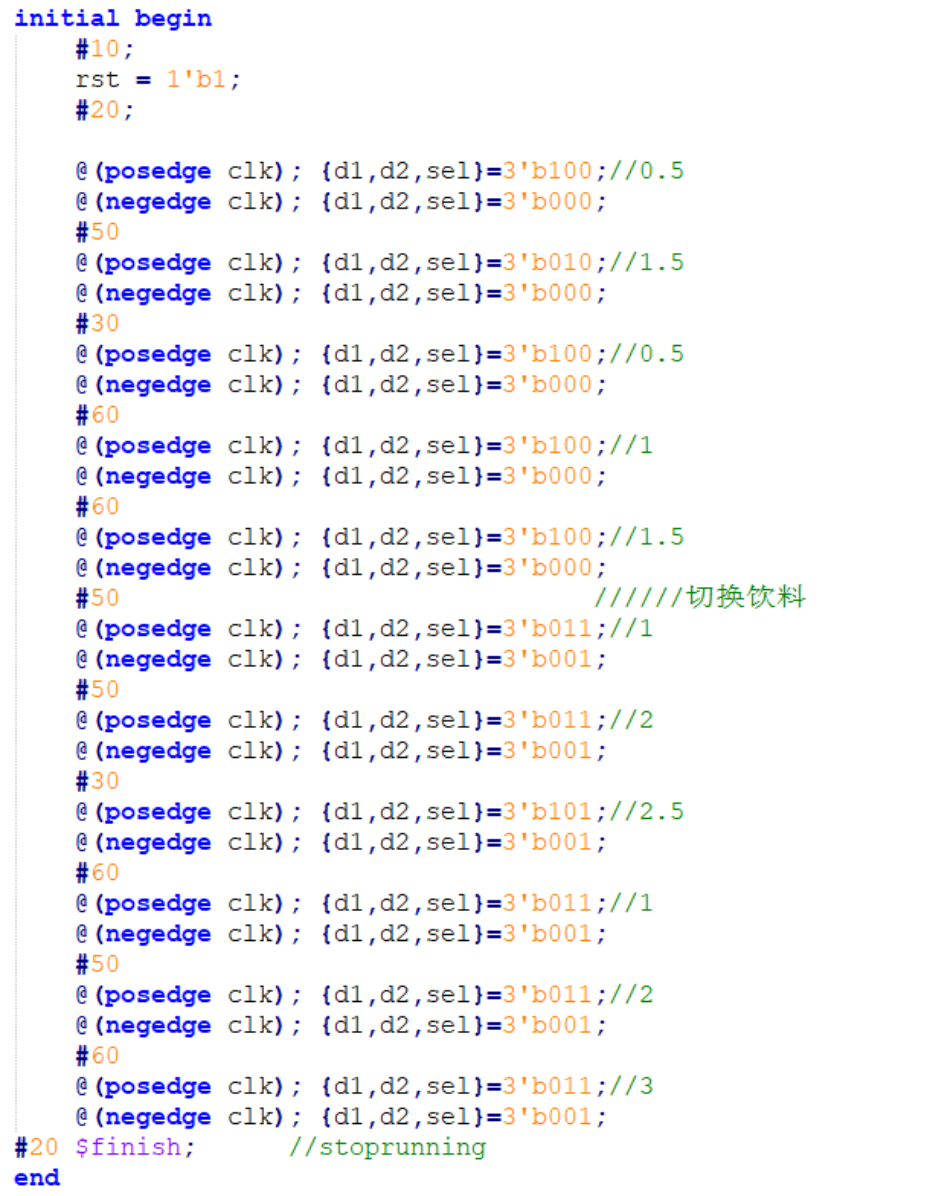

波形示意图：

输入描述：

输入信号 clk rst d1 d2 sel
类型 wire

输出描述：

输出信号  out1 out2  out3
类型  reg

2.1状态转换表

input_signal	d1	d2
state
IDLE	HALF	ONE
HALF	ONE	ONE_HALF
ONE	ONE_HALF	TWO
ONE_HALF	TWO	TWO_HALF
TWO	TWO_HALF	THREE
TWO_HALF	NULL	NULL
THREE	NULL	NULL

解题思路：sel信号作为选通信号，当不选通时，为饮料1，当选通时切换为饮料2 ，所以根据时序状态来说，第二段组合逻辑判断状态转移条件和第三段时序逻辑进行状态输出应该有两条路径，一个是选通，另一个是不选通，注意此时我们可以将d1 0.5元的输入信号与 1元的输入信号跟它一起组合起来进行输入，注意先定义线性wire类型的input_state ，然后进行拼接，使用case语句时候，从结构设计上更为简洁直观；同时状态机第三段结果输出的时候，也应该结合选通信号来进行输出，out3信号应该结合next_state 来进行选通，图中不同颜色信号代表不同的选通信号时 out3的输出情况。

3.1代码段

`timescale 1ns/1ns

module seller2(
	input wire clk  ,
	input wire rst  ,
	input wire d1 ,
	input wire d2 ,
	input wire sel ,

	output reg out1,
	output reg out2,
	output reg out3
);
//*************code***********//

//parameter define
parameter  IDLE  = 7'b000_000_1,
           HALF  = 7'b000_001_0,
		   ONE = 7'b000_010_0,
		   ONE_HALF = 7'b000_100_0,
		   TWO = 7'b001_000_0 ,
		   TWO_HALF = 7'b010_000_0,
		   THREE = 7'b100_000_0;
//reg define
reg  [6 : 0]  cur_state ; // 现态
reg  [6 : 0]  next_state ; //次态

//wire define
wire [1 : 0 ] input_state ;
assign  input_state = {d1,d2} ;

//one_motion
always @ (posedge clk or negedge rst) begin
    if(!rst) begin
        cur_state <= IDLE ; // 初始化状态为零状态
    end
    else begin
        cur_state <= next_state ; // 次态赋值给现态
	end
end

//two_motion
always @ (*) begin
    if (!sel) begin
	    case (cur_state)
	IDLE : begin
	       case (input_state)
		   2'b10 : next_state = HALF ;
           2'b01 : next_state = ONE ;
           default : next_state = next_state ;
           endcase
           end
    HALF  : begin
	       case (input_state)
		   2'b10 : next_state = ONE ;
           2'b01 : next_state = ONE_HALF ;
           default : next_state = next_state ;
           endcase
           end
   	ONE : begin
	       case (input_state)
		   2'b10 : next_state = ONE_HALF ;
           2'b01 : next_state = TWO ;
           default : next_state = next_state ;
           endcase
           end
     default : next_state = IDLE ;
	     endcase
    end
    else begin
	    case (cur_state )
  	IDLE : begin
	       case (input_state)
		   2'b10 : next_state = HALF ;
           2'b01 : next_state = ONE ;
           default : next_state = next_state ;
           endcase
           end
    HALF  : begin
	       case (input_state)
		   2'b10 : next_state = ONE ;
           2'b01 : next_state = ONE_HALF ;
           default : next_state = next_state ;
           endcase
           end
   	ONE : begin
	       case (input_state)
		   2'b10 : next_state = ONE_HALF ;
           2'b01 : next_state = TWO ;
           default : next_state = next_state ;
           endcase
           end
    ONE_HALF : begin
	       case (input_state)
		   2'b10 : next_state = TWO ;
           2'b01 : next_state = TWO_HALF ;
           default : next_state = next_state ;
           endcase
           end
     TWO  : begin
	       case (input_state)
		   2'b10 : next_state = TWO_HALF  ;
           2'b01 : next_state = THREE ;
           default : next_state = next_state ;
           endcase
           end
     default : next_state = IDLE ;
         endcase
    end
end

//THREE_motion
always @ (posedge clk or negedge rst) begin
    if (!rst) begin
	     out1 <= 1'b0 ;
		 out2 <= 1'b0 ;
		 out3 <= 1'b0 ;  //初始化状态都为闲置状态
	end

	    if(!sel) begin
		case( next_state)
	ONE_HALF :  begin
	          out1 <= 1'b1 ;
			  out2 <= 1'b0 ;
			  out3 <= 1'b0 ;
	            end
	TWO:  begin
	          out1 <= 1'b1;
			  out2 <= 1'b0 ;
			  out3 <= 1'b1 ;
		  end
	default : begin
	         out1 <= 1'b0 ;
			 out2 <= 1'b0 ;
			 out3 <= 1'b0 ;
		   end
        endcase
	end
    else  if (sel) begin
	    case (next_state)
    TWO_HALF : begin
            out1 <= 1'b0 ;
            out2 <= 1'b1 ;
            out3 <= 1'b0 ;
               end
        THREE : begin
            out1 <= 1'b0 ;
            out2 <= 1'b1 ;
            out3 <= 1'b1 ;
                end
        default : begin
            out1 <= 1'b0 ;
            out2 <= 1'b0 ;
            out3 <= 1'b0 ;
       end
       endcase
   end
end
//*************code***********//
endmodule
