【目标检测】yolox模型推理

1. 源码

https://github.com/Megvii-BaseDetection/YOLOX

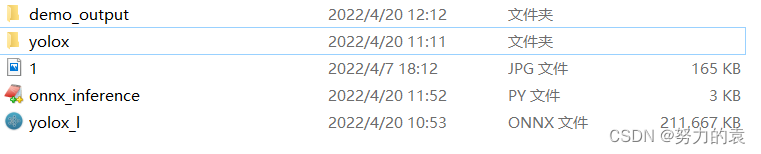

2. 相关文件

3. 代码

3.1 onnx_inference

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
# Copyright (c) Megvii, Inc. and its affiliates.

import argparse
import os

import cv2
import numpy as np

import onnxruntime

from yolox.data.data_augment import preproc as preprocess
from yolox.data.datasets import COCO_CLASSES
from yolox.utils import mkdir, multiclass_nms, demo_postprocess, vis


def make_parser():
    parser = argparse.ArgumentParser("onnxruntime inference sample")
    parser.add_argument(
        "-m",
        "--model",
        type=str,
        default="yolox_l.onnx",
        help="Input your onnx model.",
    )
    parser.add_argument(
        "-i",
        "--image_path",
        type=str,
        default='1.jpg',
        help="Path to your input image.",
    )
    parser.add_argument(
        "-o",
        "--output_dir",
        type=str,
        default='demo_output',
        help="Path to your output directory.",
    )
    parser.add_argument(
        "-s",
        "--score_thr",
        type=float,
        default=0.3,
        help="Score threshould to filter the result.",
    )
    parser.add_argument(
        "--input_shape",
        type=str,
        default="640,640",
        help="Specify an input shape for inference.",
    )
    parser.add_argument(
        "--with_p6",
        action="store_true",
        help="Whether your model uses p6 in FPN/PAN.",
    )
    return parser


if __name__ == '__main__':
    args = make_parser().parse_args()

    input_shape = tuple(map(int, args.input_shape.split(',')))
    origin_img = cv2.imread(args.image_path)
    img, ratio = preprocess(origin_img, input_shape)

    session = onnxruntime.InferenceSession(args.model)

    ort_inputs = {session.get_inputs()[0].name: img[None, :, :, :]}
    output = session.run(None, ort_inputs)
    predictions = demo_postprocess(output[0], input_shape, p6=args.with_p6)[0]

    boxes = predictions[:, :4]
    scores = predictions[:, 4:5] * predictions[:, 5:]

    boxes_xyxy = np.ones_like(boxes)
    boxes_xyxy[:, 0] = boxes[:, 0] - boxes[:, 2]/2.
    boxes_xyxy[:, 1] = boxes[:, 1] - boxes[:, 3]/2.
    boxes_xyxy[:, 2] = boxes[:, 0] + boxes[:, 2]/2.
    boxes_xyxy[:, 3] = boxes[:, 1] + boxes[:, 3]/2.
    boxes_xyxy /= ratio
    dets = multiclass_nms(boxes_xyxy, scores, nms_thr=0.45, score_thr=0.1)
    if dets is not None:
        final_boxes, final_scores, final_cls_inds = dets[:, :4], dets[:, 4], dets[:, 5]
        origin_img = vis(origin_img, final_boxes, final_scores, final_cls_inds,
                         conf=args.score_thr, class_names=COCO_CLASSES)

    mkdir(args.output_dir)
    output_path = os.path.join(args.output_dir, os.path.basename(args.image_path))
    cv2.imwrite(output_path, origin_img)

4. yolox对视频进行推理

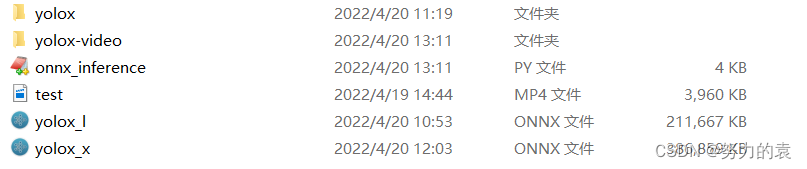

4.1 相关文件## 4.2 onnx_inference

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
# Copyright (c) Megvii, Inc. and its affiliates.

import argparse
import os

import cv2
import numpy as np

import onnxruntime

from yolox.data.data_augment import preproc as preprocess
from yolox.data.datasets import COCO_CLASSES
from yolox.utils import mkdir, multiclass_nms, demo_postprocess, vis


def make_parser():
    parser = argparse.ArgumentParser("onnxruntime inference sample")
    parser.add_argument(
        "-m",
        "--model",
        type=str,
        default="yolox_l.onnx",
        help="Input your onnx model.",
    )
    parser.add_argument(
        "-i",
        "--image_path",
        type=str,
        default='1.jpg',
        help="Path to your input image.",
    )
    parser.add_argument(
        "-o",
        "--output_dir",
        type=str,
        default='demo_output',
        help="Path to your output directory.",
    )
    parser.add_argument(
        "-s",
        "--score_thr",
        type=float,
        default=0.3,
        help="Score threshould to filter the result.",
    )
    parser.add_argument(
        "--input_shape",
        type=str,
        default="640,640",
        help="Specify an input shape for inference.",
    )
    parser.add_argument(
        "--with_p6",
        action="store_true",
        help="Whether your model uses p6 in FPN/PAN.",
    )
    return parser


if __name__ == '__main__':
    args = make_parser().parse_args()

    input_shape = tuple(map(int, args.input_shape.split(',')))
    # origin_img = cv2.imread(args.image_path)

    videopath = r'./test.mp4'
    path_filename = './yolox-video'
    videodata = cv2.VideoCapture(videopath)
    # fourcc = cv2.VideoWriter_fourcc(*'XVID')
    fourcc = cv2.VideoWriter_fourcc(*'mp4v')
    fps = videodata.get(cv2.CAP_PROP_FPS)
    success, frame = videodata.read()
    if (success):
        height = frame.shape[0]
        width = frame.shape[1]
    size = (int(width), int(height))
    out = cv2.VideoWriter(path_filename + '/' + 'yolox-l' + '.mp4', fourcc, fps, size)
    sum = 0
    timef = 1  # 隔timef帧获取一帧
    for i in range(int(videodata.get(cv2.CAP_PROP_FRAME_COUNT))):
        sum += 1
        success, frame = videodata.read()
        if success == True and (sum % timef == 0):
            img, ratio = preprocess(frame, input_shape)

            session = onnxruntime.InferenceSession(args.model)

            ort_inputs = {session.get_inputs()[0].name: img[None, :, :, :]}
            output = session.run(None, ort_inputs)
            predictions = demo_postprocess(output[0], input_shape, p6=args.with_p6)[0]

            boxes = predictions[:, :4]
            scores = predictions[:, 4:5] * predictions[:, 5:]

            boxes_xyxy = np.ones_like(boxes)
            boxes_xyxy[:, 0] = boxes[:, 0] - boxes[:, 2] / 2.
            boxes_xyxy[:, 1] = boxes[:, 1] - boxes[:, 3] / 2.
            boxes_xyxy[:, 2] = boxes[:, 0] + boxes[:, 2] / 2.
            boxes_xyxy[:, 3] = boxes[:, 1] + boxes[:, 3] / 2.
            boxes_xyxy /= ratio
            dets = multiclass_nms(boxes_xyxy, scores, nms_thr=0.45, score_thr=0.1)
            if dets is not None:
                final_boxes, final_scores, final_cls_inds = dets[:, :4], dets[:, 4], dets[:, 5]
                out_frame = vis(frame, final_boxes, final_scores, final_cls_inds,
                                 conf=args.score_thr, class_names=COCO_CLASSES)
                out.write(out_frame)
