简易版c++ 线程池 实现两元运算

场景：

1. 请求线程负责接收运算，然后放入任务队列

2. 计算线程从任务队列中取出线程，计算后输出结果，保存计算结果

3. 多对多模型，多个请求线程和多个计算线程



线程池中两个互斥量，一个是请求队列的，一个是计算队列的。一个条件变量，当有任务时候，用于唤醒计算线程。

两元运算需要手动输入，然后由线程池接收计算。



代码：

TPool.h

#ifndef TPOOL_H
#define TPOOL_H

#include "pthread.h"
#include<queue>
#include<vector>
#include<iostream>
#include<functional>

using namespace std;

class job
{
public:
    job();
    ~job();

    int a;
    int b;
    char c;
    double ans;

};

class TPool
{
public:
    TPool(int qNum = 5, int cNum = 5); // 请求线程与计算线程的数量
    TPool(const TPool &) = default;
    TPool &operator=(const TPool &) = delete;
    ~TPool();
    void stop();

private:
    bool isRunning; // 线程池的状态
	pthread_mutex_t mutex_;//请求队列互斥量
	pthread_mutex_t mutex1_;//计算 队列互斥量
	pthread_cond_t condition_;//条件变量
    pthread_t* threads_rq;//请求 线程数组
    pthread_t* threads_c;//计算 线程数组
    // vector<int> job;//任务队列
    queue<job> jobs;//任务队列
    queue<job> answers;//任务队列
	// queue<taskType> taskQueue_;//任务队列

    void createThreads();//创建线程
    int qNum_;
    int cNum_;
    static void* rqFunc(void* args);  // 为什么是static 类成员函数作为回调 需要静态函数
    void rqPush(pthread_t tid );  // 请求 入
    static void* cFunc(void* args);
    void ctake(pthread_t tid );  // 计算 取



};



#endif // !TPOOL_H

TPool.cpp

#include "TPool.h"

#include <pthread.h>
job::job()
{
}

job::~job()
{
}

TPool::TPool(int qNum, int cNum)
{
    qNum_ = qNum;
    cNum_ = cNum;
    isRunning = true;
    pthread_mutex_init(&mutex_,NULL);
    pthread_mutex_init(&mutex1_, NULL);
    pthread_cond_init(&condition_, NULL);
    createThreads();
}
TPool::~TPool()
{
    stop();
}

void TPool::createThreads()
{
    threads_rq = new pthread_t[qNum_];
    threads_c = new pthread_t[cNum_];
    for(int i = 0; i < qNum_; i++){
        cout << "创建第" << i + 1 << "个请求线程" << endl;
        pthread_create(&threads_rq[i], NULL, rqFunc, this);
    }
    for(int i = 0; i < cNum_; i++){
        cout << "创建第" << i + 1 << "个计算线程" << endl;
        pthread_create(&threads_c[i], NULL, cFunc, this);
    }
}

void * TPool::rqFunc(void* args){

	pthread_t tid = pthread_self();
	TPool* tp = static_cast<TPool*>(args);
    while (tp->isRunning)
    {
        tp->rqPush(tid);
    }

}
void TPool::rqPush(pthread_t tid ){

        pthread_mutex_lock(&mutex_);
        job *j =  new job();
        cout << "请求线程"<< tid << "准备接受" << endl;
        cin >> j->a >> j -> c >> j -> b;
        jobs.push(*j);
        pthread_mutex_unlock(&mutex_);
        pthread_cond_signal(&condition_);

}


void* TPool::cFunc(void* args){
	pthread_t tid = pthread_self();
    TPool* tp = static_cast<TPool*>(args);    // 空类型指针转换为 Threadpool 指针
    while (tp->isRunning)
    {
        tp->ctake(tid);

    }
}

void TPool::ctake(pthread_t tid ){

    pthread_mutex_lock(&mutex1_);
    while (jobs.empty()&&isRunning){  // 防止虚假唤醒
        pthread_cond_wait(&condition_, &mutex1_);
    }
    cout << "计算线程"<< tid<< "取任务" << endl;
    job j = jobs.front();
    jobs.pop();
    pthread_mutex_unlock(&mutex1_);

    switch (j.c)
    {
        case '+':
            j.ans = j.a + j.b;
            answers.push(j);
            cout << j.a << j.c << j.b << "=" <<j.ans << endl;
            break;
        case '-':
            j.ans = j.a - j.b;
            answers.push(j);
            cout << j.a << j.c << j.b << "=" <<j.ans << endl;
            break;
        case '*':
            j.ans = j.a * j.b;
            answers.push(j);
            cout << j.a << j.c << j.b << "=" <<j.ans << endl;
            break;
        case '/':
            j.ans = j.a / j.b;
            answers.push(j);
            cout << j.a << j.c << j.b << "=" <<j.ans << endl;
            break;

    default:
    cout << j.c << "不是有效运算"<< endl;
        break;
    }

}

void TPool::stop(){
	//防止重复stop
	if (!isRunning) {
		return;
	}
	cout << "stop the threadpool!!" << endl;
	isRunning = false;
	//唤醒所有在等待的线程
	pthread_cond_broadcast(&condition_);

	for (int i = 0; i < qNum_; i++)
	{
		pthread_join(threads_rq[i], NULL);//join所有线程
	}

    for (int i = 0; i < cNum_; i++)
	{
		pthread_join(threads_c[i], NULL);
	}


	delete[] threads_rq;
	delete[] threads_c;

	threads_rq = NULL;
    threads_c = NULL;


    // for(int i = 0; i < jobs.size(); i++){
    //     free(jobs[i]);
    // }
    while(!answers.empty()){
        job *j = &answers.front();
        answers.pop();
        delete j;

    }
	pthread_mutex_destroy(&mutex_);
	pthread_mutex_destroy(&mutex1_);
	pthread_cond_destroy(&condition_);


}

 test.cpp

#include "TPool.h"
#include <unistd.h>


using namespace std;



int main(int argc, const char** argv) {


    TPool pool(5,3);

    sleep(1200);
    // pthread_exit(NULL);


    return 0;
}

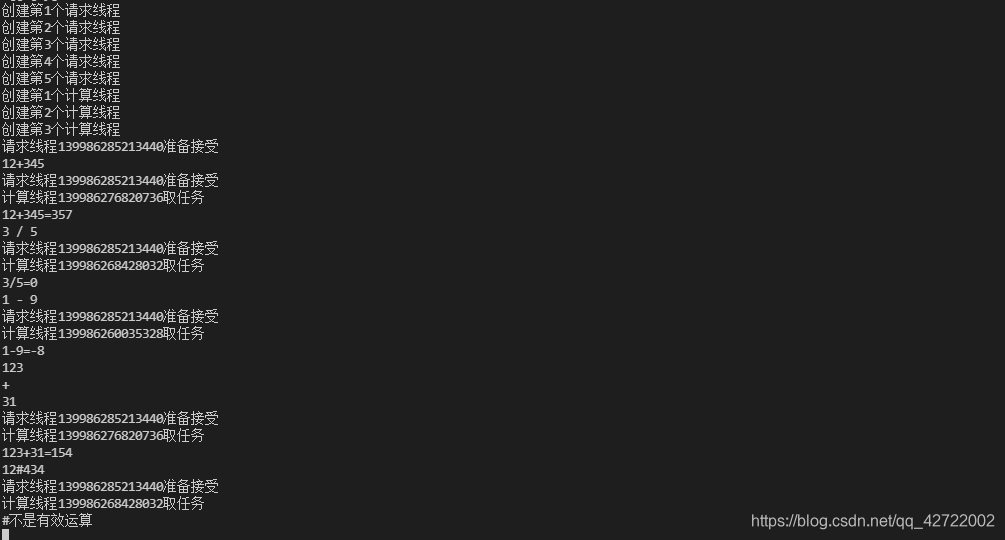

 运行结果：
