GroupNormalization

一、GroupNormalization的先辈 - BatchNormalization

Batch Normalization - “批归一化”，简称BN，是神经网络中一种特殊的层，如果batch_size为n，则在前向传播过程中，网络中每个节点都有n个输出，即对该层每个节点的这n个输出进行归一化再输出，具体相关计算如下所示：

其keras的实现代码如下（这一部分为源码，大家可以选择性跳过）：

class BatchNormalization(Layer):
    """Batch normalization layer (Ioffe and Szegedy, 2014).

    Normalize the activations of the previous layer at each batch,
    i.e. applies a transformation that maintains the mean activation
    close to 0 and the activation standard deviation close to 1.

    # Arguments
        axis: Integer, the axis that should be normalized
            (typically the features axis).
            For instance, after a `Conv2D` layer with
            `data_format="channels_first"`,
            set `axis=1` in `BatchNormalization`.
        momentum: Momentum for the moving mean and the moving variance.
        epsilon: Small float added to variance to avoid dividing by zero.
        center: If True, add offset of `beta` to normalized tensor.
            If False, `beta` is ignored.
        scale: If True, multiply by `gamma`.
            If False, `gamma` is not used.
            When the next layer is linear (also e.g. `nn.relu`),
            this can be disabled since the scaling
            will be done by the next layer.
        beta_initializer: Initializer for the beta weight.
        gamma_initializer: Initializer for the gamma weight.
        moving_mean_initializer: Initializer for the moving mean.
        moving_variance_initializer: Initializer for the moving variance.
        beta_regularizer: Optional regularizer for the beta weight.
        gamma_regularizer: Optional regularizer for the gamma weight.
        beta_constraint: Optional constraint for the beta weight.
        gamma_constraint: Optional constraint for the gamma weight.
    # Input shape
        Arbitrary. Use the keyword argument `input_shape`
        (tuple of integers, does not include the samples axis)
        when using this layer as the first layer in a model.
    # Output shape
        Same shape as input.
    # References
        - [Batch Normalization: Accelerating Deep Network Training by
           Reducing Internal Covariate Shift](https://arxiv.org/abs/1502.03167)
    """

    @interfaces.legacy_batchnorm_support
    def __init__(self,
                 axis=-1,
                 momentum=0.99,
                 epsilon=1e-3,
                 center=True,
                 scale=True,
                 beta_initializer='zeros',
                 gamma_initializer='ones',
                 moving_mean_initializer='zeros',
                 moving_variance_initializer='ones',
                 beta_regularizer=None,
                 gamma_regularizer=None,
                 beta_constraint=None,
                 gamma_constraint=None,
                 **kwargs):
        super(BatchNormalization, self).__init__(**kwargs)
        self.supports_masking = True
        self.axis = axis
        self.momentum = momentum
        self.epsilon = epsilon
        self.center = center
        self.scale = scale
        self.beta_initializer = initializers.get(beta_initializer)
        self.gamma_initializer = initializers.get(gamma_initializer)
        self.moving_mean_initializer = initializers.get(moving_mean_initializer)
        self.moving_variance_initializer = (
            initializers.get(moving_variance_initializer))
        self.beta_regularizer = regularizers.get(beta_regularizer)
        self.gamma_regularizer = regularizers.get(gamma_regularizer)
        self.beta_constraint = constraints.get(beta_constraint)
        self.gamma_constraint = constraints.get(gamma_constraint)

    def build(self, input_shape):
        dim = input_shape[self.axis]
        if dim is None:
            raise ValueError('Axis ' + str(self.axis) + ' of '
                             'input tensor should have a defined dimension '
                             'but the layer received an input with shape ' +
                             str(input_shape) + '.')
        self.input_spec = InputSpec(ndim=len(input_shape), axes={self.axis: dim})
        shape = (dim,)

        if self.scale:
            self.gamma = self.add_weight(shape=shape,
                                         name='gamma',
                                         initializer=self.gamma_initializer,
                                         regularizer=self.gamma_regularizer,
                                         constraint=self.gamma_constraint)
        else:
            self.gamma = None
        if self.center:
            self.beta = self.add_weight(shape=shape,
                                        name='beta',
                                        initializer=self.beta_initializer,
                                        regularizer=self.beta_regularizer,
                                        constraint=self.beta_constraint)
        else:
            self.beta = None
        self.moving_mean = self.add_weight(
            shape=shape,
            name='moving_mean',
            initializer=self.moving_mean_initializer,
            trainable=False)
        self.moving_variance = self.add_weight(
            shape=shape,
            name='moving_variance',
            initializer=self.moving_variance_initializer,
            trainable=False)
        self.built = True

    def call(self, inputs, training=None):
        input_shape = K.int_shape(inputs)
        # Prepare broadcasting shape.
        ndim = len(input_shape)
        reduction_axes = list(range(len(input_shape)))
        del reduction_axes[self.axis]
        broadcast_shape = [1] * len(input_shape)
        broadcast_shape[self.axis] = input_shape[self.axis]

        # Determines whether broadcasting is needed.
        needs_broadcasting = (sorted(reduction_axes) != list(range(ndim))[:-1])

        def normalize_inference():
            if needs_broadcasting:
                # In this case we must explicitly broadcast all parameters.
                broadcast_moving_mean = K.reshape(self.moving_mean, broadcast_shape)
                broadcast_moving_variance = K.reshape(self.moving_variance, broadcast_shape)
                if self.center:
                    broadcast_beta = K.reshape(self.beta, broadcast_shape)
                else:
                    broadcast_beta = None
                if self.scale:
                    broadcast_gamma = K.reshape(self.gamma, broadcast_shape)
                else:
                    broadcast_gamma = None
                return K.batch_normalization(
                    inputs,
                    broadcast_moving_mean,
                    broadcast_moving_variance,
                    broadcast_beta,
                    broadcast_gamma,
                    axis=self.axis,
                    epsilon=self.epsilon)
            else:
                return K.batch_normalization(
                    inputs,
                    self.moving_mean,
                    self.moving_variance,
                    self.beta,
                    self.gamma,
                    axis=self.axis,
                    epsilon=self.epsilon)

        # If the learning phase is *static* and set to inference:
        if training in {0, False}:
            return normalize_inference()

        # If the learning is either dynamic, or set to training:
        normed_training, mean, variance = K.normalize_batch_in_training(
            inputs, self.gamma, self.beta, reduction_axes, epsilon=self.epsilon)

        if K.backend() != 'cntk':
            sample_size = K.prod([K.shape(inputs)[axis] for axis in reduction_axes])
            sample_size = K.cast(sample_size, dtype=K.dtype(inputs))
            # sample variance - unbiased estimator of population variance
            variance *= sample_size / (sample_size - (1.0 + self.epsilon))

        self.add_update([K.moving_average_update(self.moving_mean, mean, self.momentum),
                         K.moving_average_update(self.moving_variance, variance, self.momentum)], inputs)

        # Pick the normalized form corresponding to the training phase.
        return K.in_train_phase(normed_training,
                                normalize_inference,
                                training=training)

    def get_config(self):
        config = {
            'axis': self.axis,
            'momentum': self.momentum,
            'epsilon': self.epsilon,
            'center': self.center,
            'scale': self.scale,
            'beta_initializer': initializers.serialize(self.beta_initializer),
            'gamma_initializer': initializers.serialize(self.gamma_initializer),
            'moving_mean_initializer':
                initializers.serialize(self.moving_mean_initializer),
            'moving_variance_initializer':
                initializers.serialize(self.moving_variance_initializer),
            'beta_regularizer': regularizers.serialize(self.beta_regularizer),
            'gamma_regularizer': regularizers.serialize(self.gamma_regularizer),
            'beta_constraint': constraints.serialize(self.beta_constraint),
            'gamma_constraint': constraints.serialize(self.gamma_constraint)
        }
        base_config = super(BatchNormalization, self).get_config()
        return dict(list(base_config.items()) + list(config.items()))

    def compute_output_shape(self, input_shape):
        return input_shape

在实际使用中，BN层在深度学习卷积块中的应用效果还是非常不错的：

1. 使网络中每层输入数据的分布相对稳定，加速模型学习速度
2. 使模型对网络中的参数不那么敏感，简化调参过程，使得网络学习更加稳定
3. 允许网络使用饱和性激活函数，缓解梯度消失问题
4. 具有一定的正则化效果

但是BN层也具有它的一些缺陷，即使用BN层需要有足够大的batch_size，较小的batch_size会导致批统计不准确，会极大地增加模型错误率。但是在日常使用过程中，加大batch_size又会导致内存不够用，从而造成矛盾。从下面这张batch_size与error的统计图可以看出，BN层在batch_size从16降为8的某一结点上，error开始极具增大。

二、BatchNormalization的后浪小生 - GroupNormalization

那么，我们是否有什么新的方案来克服或者是缓解BatchNormalization的不足点呢，毕竟在实际中并不是所有人都拥有足够大的显存来运行代码。为此，GroupNormalization应运而生。GroupNormalization是由2018年3月份何恺明团队提出（说它是后浪小生倒也合理，毕竟年轻嘛，哈哈），它的主要创新点在于它优化了BN层在较小batch_size下训练误差过大的劣势。

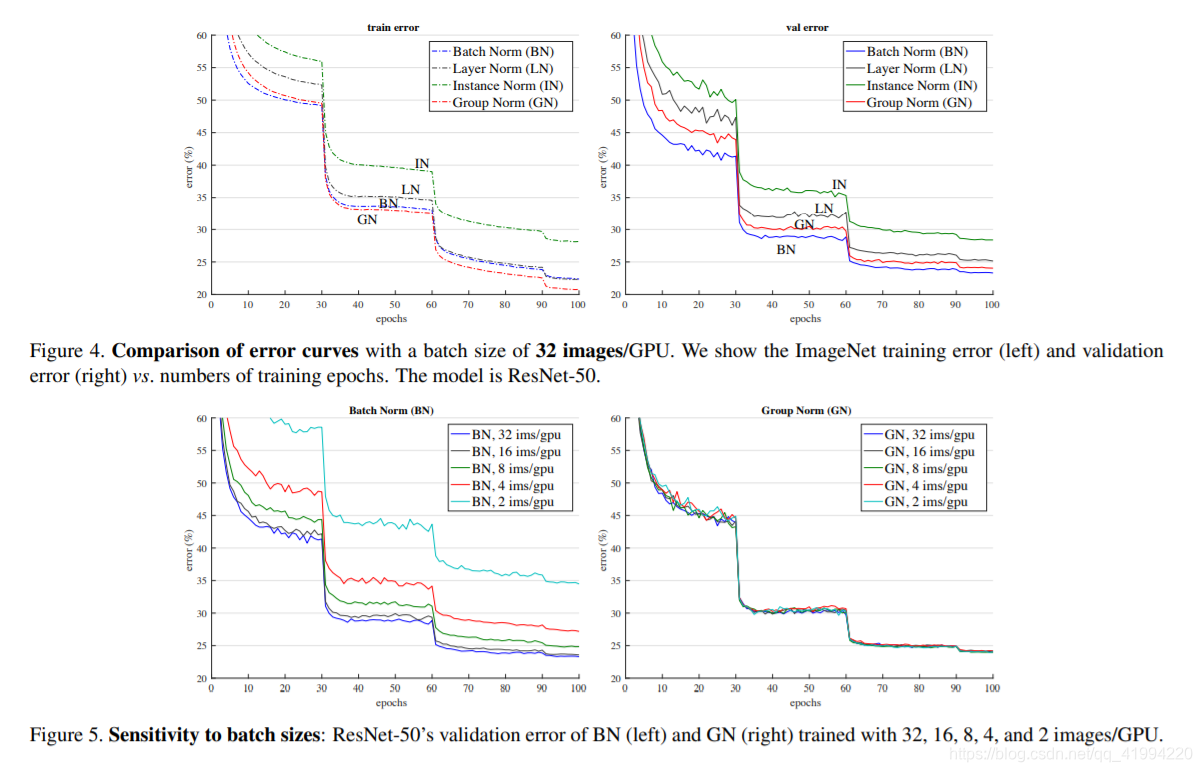

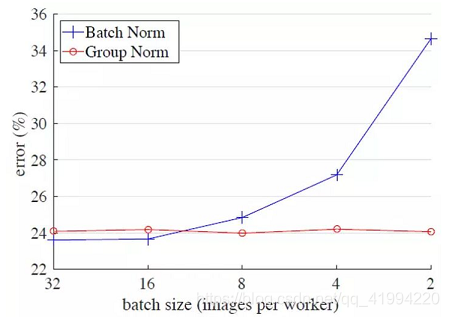

从上面给出的图中我们也可以明显看出，GroupNormalization在每个batch_size下几乎error都是相同的。那么它与BN层在实现方面究竟有什么差异呢：

中间两个LayerNormalization和InstanceNormalization是BatchNormalization的另外两个派生，但本次讲的是GroupNormalization，故本次不对这两个进行对比，感兴趣的可以去翻看下对应的论文即可（或有时间我再更新补上这两个）：

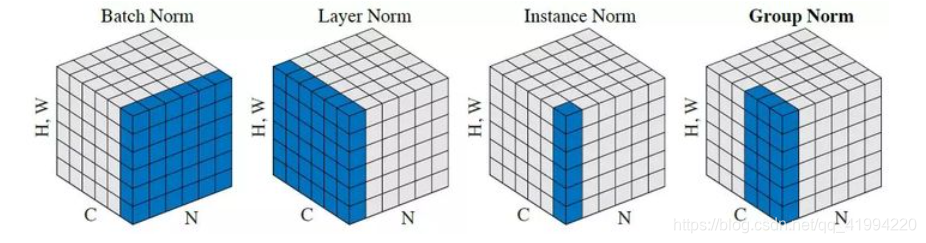

BatchNormalization：实质上就是对batch方向做归一化，算NxHxW的均值
GroupNormalization：实质上就是将channel方向分group，然后每个group内做归一化，计算(C//G)xHxW的均值
其中，C和N分别表示channel和batch_size，W和H表示特征图的长与宽尺寸，feature_map的张量表示：[N, W, H, C]

GroupNormalization在pytorch下的实现代码如下：

import numpy as np
import torch
import torch.nn as nn

class GroupNorm(nn.Module):
    def __init__(self, num_features, num_groups=32, eps=1e-5):
        super(GroupNorm, self).__init__()
        self.weight = nn.Parameter(torch.ones(1,num_features,1,1))
        self.bias = nn.Parameter(torch.zeros(1,num_features,1,1))
        self.num_groups = num_groups
        self.eps = eps

    def forward(self, x):
        N,C,H,W = x.size()
        G = self.num_groups
        assert C % G == 0

        x = x.view(N,G,-1)
        mean = x.mean(-1, keepdim=True)
        var = x.var(-1, keepdim=True)

        x = (x-mean) / (var+self.eps).sqrt()
        x = x.view(N,C,H,W)

GroupNormalization在tensorflow下的实现代码如下（论文给出的代码）：

def GroupNorm(x, gamma, beta, G, eps=1e-5):
    # x: input features with shape [N, C, H, W]
    # gamma, beta: scale and offset, with shape [1, C, 1, 1]
    # G: number of groups or GN

    N, C, H, W = x.shape
    x = tf.reshape(x, [N, G, C // G, H, W])

    mean, var = tf.nn.moments(x, [2, 3, 4], keep_dims=True)
    x = (x - mean) / tf.sqrt(var + eps)

    x = tf.reshape(x, [N, C, H, W])

    return x * gamma + beta

GroupNormalization在keras下的实现代码如下：

from keras.engine import Layer, InputSpec
from keras import initializers
from keras import regularizers
from keras import constraints
from keras import backend as K

class GroupNormalization(Layer):
    """Group normalization layer

    Group Normalization divides the channels into groups and computes within each group
    the mean and variance for normalization. GN's computation is independent of batch sizes,
    and its accuracy is stable in a wide range of batch sizes

    # Arguments
        groups: Integer, the number of groups for Group Normalization.
        axis: Integer, the axis that should be normalized
            (typically the features axis).
            For instance, after a `Conv2D` layer with
            `data_format="channels_first"`,
            set `axis=1` in `BatchNormalization`.
        epsilon: Small float added to variance to avoid dividing by zero.
        center: If True, add offset of `beta` to normalized tensor.
            If False, `beta` is ignored.
        scale: If True, multiply by `gamma`.
            If False, `gamma` is not used.
            When the next layer is linear (also e.g. `nn.relu`),
            this can be disabled since the scaling
            will be done by the next layer.
        beta_initializer: Initializer for the beta weight.
        gamma_initializer: Initializer for the gamma weight.
        beta_regularizer: Optional regularizer for the beta weight.
        gamma_regularizer: Optional regularizer for the gamma weight.
        beta_constraint: Optional constraint for the beta weight.
        gamma_constraint: Optional constraint for the gamma weight.

    # Input shape
        Arbitrary. Use the keyword argument `input_shape`
        (tuple of integers, does not include the samples axis)
        when using this layer as the first layer in a model.

    # Output shape
        Same shape as input.

    # References
        - [Group Normalization](https://arxiv.org/abs/1803.08494)
    """

    def __init__(self,
                 groups=16,
                 axis=-1,
                 epsilon=1e-5,
                 center=True,
                 scale=True,
                 beta_initializer='zeros',
                 gamma_initializer='ones',
                 beta_regularizer=None,
                 gamma_regularizer=None,
                 beta_constraint=None,
                 gamma_constraint=None,
                 **kwargs):
        super(GroupNormalization, self).__init__(**kwargs)
        self.supports_masking = True
        self.groups = groups
        self.axis = axis
        self.epsilon = epsilon
        self.center = center
        self.scale = scale
        self.beta_initializer = initializers.get(beta_initializer)
        self.gamma_initializer = initializers.get(gamma_initializer)
        self.beta_regularizer = regularizers.get(beta_regularizer)
        self.gamma_regularizer = regularizers.get(gamma_regularizer)
        self.beta_constraint = constraints.get(beta_constraint)
        self.gamma_constraint = constraints.get(gamma_constraint)

    def build(self, input_shape):
        dim = input_shape[self.axis]

        if dim is None:
            raise ValueError('Axis ' + str(self.axis) + ' of ' +
                             'input tensor should have a defined dimension' +
                             'but the layer received an input with shape ' +
                             str(input_shape) + '.')

        if dim < self.groups:
            raise ValueError('Number of groups (' + str(self.groups) + ') cannot be ' +
                             'more than the number of channels (' +
                             str(dim) + ').')

        if dim % self.groups != 0:
            raise ValueError('Number of groups (' + str(self.groups) + ') must be a ' +
                             'multiple of the number of channels (' +
                             str(dim) + ').')

        self.input_spec = InputSpec(ndim=len(input_shape), axes={self.axis: dim})
        shape = (dim,)

        if self.scale:
            self.gamma = self.add_weight(shape=shape, name='gamma',
                                         initializer=self.gamma_initializer,
                                         regularizer=self.gamma_regularizer,
                                         constraint=self.gamma_constraint)
        else:
            self.gamma = None

        if self.center:
            self.beta = self.add_weight(shape=shape, name='beta',
                                        initializer=self.beta_initializer,
                                        regularizer=self.beta_regularizer,
                                        constraint=self.beta_constraint)
        else:
            self.beta = None

        self.built = True

    def call(self, inputs, **kwargs):
        input_shape = K.int_shape(inputs)
        tensor_input_shape = K.shape(inputs)

        # Prepare broadcasting shape.
        reduction_axes = list(range(len(input_shape)))
        del reduction_axes[self.axis]
        broadcast_shape = [1] * len(input_shape)
        broadcast_shape[self.axis] = input_shape[self.axis] // self.groups
        broadcast_shape.insert(1, self.groups)

        reshape_group_shape = K.shape(inputs)
        group_axes = [reshape_group_shape[i] for i in range(len(input_shape))]
        group_axes[self.axis] = input_shape[self.axis] // self.groups
        group_axes.insert(1, self.groups)

        # reshape inputs to new group shape
        group_shape = [group_axes[0], self.groups] + group_axes[2:]
        group_shape = K.stack(group_shape)
        inputs = K.reshape(inputs, group_shape)

        group_reduction_axes = list(range(len(group_axes)))
        group_reduction_axes = group_reduction_axes[2:]

        mean = K.mean(inputs, axis=group_reduction_axes, keepdims=True)
        variance = K.var(inputs, axis=group_reduction_axes, keepdims=True)

        inputs = (inputs - mean) / (K.sqrt(variance + self.epsilon))

        # prepare broadcast shape
        inputs = K.reshape(inputs, group_shape)
        outputs = inputs

        # In this case we must explicitly broadcast all parameters.
        if self.scale:
            broadcast_gamma = K.reshape(self.gamma, broadcast_shape)
            outputs = outputs * broadcast_gamma

        if self.center:
            broadcast_beta = K.reshape(self.beta, broadcast_shape)
            outputs = outputs + broadcast_beta

        outputs = K.reshape(outputs, tensor_input_shape)

        return outputs

    def get_config(self):
        config = {
            'groups': self.groups,
            'axis': self.axis,
            'epsilon': self.epsilon,
            'center': self.center,
            'scale': self.scale,
            'beta_initializer': initializers.serialize(self.beta_initializer),
            'gamma_initializer': initializers.serialize(self.gamma_initializer),
            'beta_regularizer': regularizers.serialize(self.beta_regularizer),
            'gamma_regularizer': regularizers.serialize(self.gamma_regularizer),
            'beta_constraint': constraints.serialize(self.beta_constraint),
            'gamma_constraint': constraints.serialize(self.gamma_constraint)
        }
        base_config = super(GroupNormalization, self).get_config()
        return dict(list(base_config.items()) + list(config.items()))

    def compute_output_shape(self, input_shape):
        return input_shape

GroupNormalization的具体实现效果（论文中给出：https://arxiv.org/pdf/1803.08494.pdf）：
