通用工业视觉软件设计之窗口显示栏-更新显示

通用工业视觉软件设计之窗口显示栏-更新显示

FrmNum

  #region 主窗体显示窗体的布局变更

  /// <summary>
  /// 主窗体布局刷新/窗体布局使用，序列化后窗体使用
  /// </summary>
  /// <param name="e"></param>
  public delegate void PropertyLayFrmChange(int e);

  static public event PropertyLayFrmChange LayFrmChangeHandler;

  static private int m_frmNum;

  static public int FrmNum
  {
      get
      {
          return m_frmNum;
      }
      set
      {
          m_frmNum = value;
          LayFrmChangeHandler(m_frmNum);
      }
  }

  #endregion

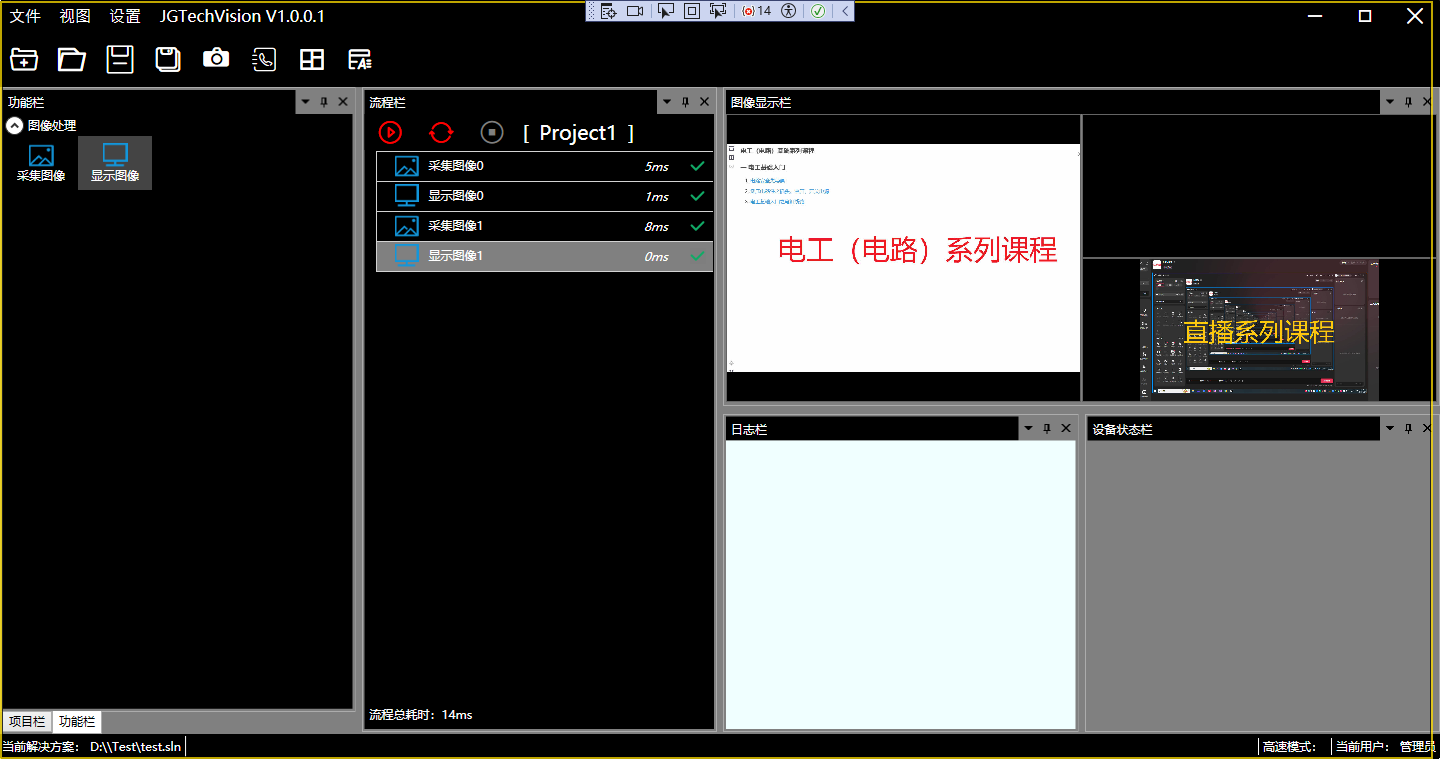

主窗口

        private Dispatcher m_Dispatcher = Dispatcher.CurrentDispatcher;

   //布局窗体，变更事件
   ModuleSystemHelper.DataEventChange.LayFrmChangeHandler += (e) =>
   {
       if (!m_Dispatcher.CheckAccess())
       {
           m_Dispatcher.Invoke(new Action(() =>
           {
               CreateLayOutFrm(e);
           }));
       }
       else
       {
           CreateLayOutFrm(e);
       }
   };

 /// <summary>
 /// 根据窗体布局创建窗体
 /// </summary>
 private void CreateLayOutFrm(int FrmNum)
 {
     SysLayout.LayoutFrmNum = FrmNum;
     SysLayout.CreateLayoutFrm(DispHindow);
 }
