Nio的方式启动一个服务端：
@Slf4j
public class Server {
public static void main(String[] args) throws IOException {
// 1. 创建 selector, 管理多个 channel
Selector selector = Selector.open();
ServerSocketChannel ssc = ServerSocketChannel.open();
ssc.configureBlocking(false);
// 2. 建立 selector 和 channel 的联系（注册）
// SelectionKey 就是将来事件发生后，通过它可以知道事件和哪个channel的事件
SelectionKey sscKey = ssc.register(selector, 0, null);
// key 只关注 accept 事件
sscKey.interestOps(SelectionKey.OP_ACCEPT);
log.debug("sscKey:{}", sscKey);
ssc.bind(new InetSocketAddress(8080));
while (true) {
// 3. select 方法, 没有事件发生，线程阻塞，有事件，线程才会恢复运行
// select 在事件未处理时，它不会阻塞, 事件发生后要么处理，要么取消，不能置之不理
selector.select();
// 4. 处理事件, selectedKeys 内部包含了所有发生的事件
Iterator<SelectionKey> iter = selector.selectedKeys().iterator(); // accept, read
while (iter.hasNext()) {
SelectionKey key = iter.next();
// 处理key 时，要从 selectedKeys 集合中删除，否则下次处理就会有问题
iter.remove();
log.debug("key: {}", key);
// 5. 区分事件类型
if (key.isAcceptable()) { // 如果是 accept
ServerSocketChannel channel = (ServerSocketChannel) key.channel();
SocketChannel sc = channel.accept();
sc.configureBlocking(false);
SelectionKey scKey = sc.register(selector, 0, null);
scKey.interestOps(SelectionKey.OP_READ);
log.debug("{}", sc);
log.debug("scKey:{}", scKey);
} else if (key.isReadable()) { // 如果是 read
try {
SocketChannel channel = (SocketChannel) key.channel(); // 拿到触发事件的channel
ByteBuffer buffer = ByteBuffer.allocate(4);
int read = channel.read(buffer); // 如果是正常断开，read 的方法的返回值是 -1
if(read == -1) {
key.cancel();
} else {
buffer.flip();
System.out.println(Charset.defaultCharset().decode(buffer));
}
} catch (IOException e) {
e.printStackTrace();
key.cancel(); // 因为客户端断开了,因此需要将 key 取消（从 selector 的 keys 集合中真正删除 key）
}
}
}
}
}
}
在nio中有几个比较重要的步骤：
1.创建 selector, 管理多个 channel
Selector selector = Selector.open();
2.创建ServerSocketChannel
ServerSocketChannel ssc = ServerSocketChannel.open();
3.建立 selector 和 channel 的联系（注册），SelectionKey 就是将来事件发生后，通过它可以知道事件和哪个channel的事件
SelectionKey sscKey = ssc.register(selector, 0, null);
4.关注 accept 事件
sscKey.interestOps(SelectionKey.OP_ACCEPT);
5.绑定端口
ssc.bind(new InetSocketAddress(8080));
Netty是一个基于Java NIO的网络编程框架
分析上面nio中的启动的相关代码，在netty哪些位置会出现，做了什么事，以及netty的启动流程。
Netty的启动代码：
public class TestSourceServer {
public static void main(String[] args) {
new ServerBootstrap()
.group(new NioEventLoopGroup())
.channel(NioServerSocketChannel.class)
.childHandler(new ChannelInitializer<NioSocketChannel>() {
@Override
protected void initChannel(NioSocketChannel ch) {
ch.pipeline().addLast(new LoggingHandler());
}
}).bind(8080);
}
}
Netty启动代码的初始化对象流程图：

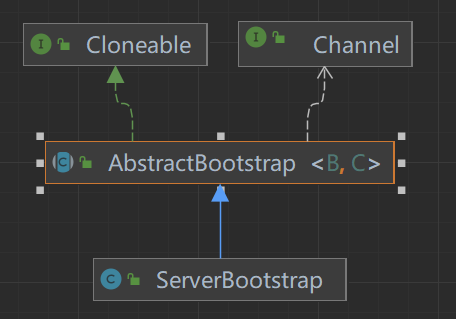

ServerBootstrap类的依赖关系图：
源码分析：
1.创建selector
group(new NioEventLoopGroup())，在new NioEventLoopGroup()会进行selector的创建，跟nio中的第一步创建selector是一致了。具体可以参考NioEventLoop解析章节
2.doBind
入口 io.netty.bootstrap.ServerBootstrap#bind
关键代码 io.netty.bootstrap.AbstractBootstrap#doBind
private ChannelFuture doBind(final SocketAddress localAddress) {
// 1. 执行初始化和注册 regFuture 会由 initAndRegister 设置其是否完成，这里是一个异步的过程，从而回调 3.2 处代码
final ChannelFuture regFuture = initAndRegister();
final Channel channel = regFuture.channel();
if (regFuture.cause() != null) {
return regFuture;
}
// 2. 因为是 initAndRegister 异步执行，需要分两种情况来看，调试时也需要通过 suspend 断点类型加以区分
// 2.1 如果已经完成
if (regFuture.isDone()) {
ChannelPromise promise = channel.newPromise();
// 3.1 立刻调用 doBind0
doBind0(regFuture, channel, localAddress, promise);
return promise;
} else {
// 2.2 还没有完成
final PendingRegistrationPromise promise = new PendingRegistrationPromise(channel);
// 3.2 添加回调操作，回调 执行doBind0
regFuture.addListener(new ChannelFutureListener() {
@Override
public void operationComplete(ChannelFuture future) throws Exception {
Throwable cause = future.cause();
if (cause != null) {
// Registration on the EventLoop failed so fail the ChannelPromise directly to not cause an
// IllegalStateException once we try to access the EventLoop of the Channel.
promise.setFailure(cause);
} else {
promise.registered();
// 3. 由注册线程去执行 doBind0
doBind0(regFuture, channel, localAddress, promise);
}
}
});
return promise;
}
}
2.1.initAndRegister
接着我们看initAndRegister();方法，关键代码io.netty.bootstrap.AbstractBootstrap#initAndRegister
public abstract class AbstractBootstrap<B extends AbstractBootstrap<B, C>, C extends Channel> implements Cloneable {
private volatile ChannelFactory<? extends C> channelFactory;
public B channel(Class<? extends C> channelClass) {
return channelFactory(new ReflectiveChannelFactory<C>(
ObjectUtil.checkNotNull(channelClass, "channelClass")
));
}
final ChannelFuture initAndRegister() {
Channel channel = null;
try {
// 1.来自于ServerBootstrap启动的channel(NioServerSocketChannel.class)方法，通过反射创建NioServerSocketChannel对象
channel = channelFactory.newChannel();
// 1.1 初始化 - 做的事就是给NioServerSocketChannel添加一个初始化器 ChannelInitializer
init(channel);
} catch (Throwable t) {
if (channel != null) {
channel.unsafe().closeForcibly();
return new DefaultChannelPromise(channel, GlobalEventExecutor.INSTANCE).setFailure(t);
}
return new DefaultChannelPromise(new FailedChannel(), GlobalEventExecutor.INSTANCE).setFailure(t);
}
// 1.2 注册 - 做的事就是将原生 channel（NioServerSocketChannel） 注册到 selector 上
ChannelFuture regFuture = config().group().register(channel);
if (regFuture.cause() != null) {
if (channel.isRegistered()) {
channel.close();
} else {
channel.unsafe().closeForcibly();
}
}
return regFuture;
}
}
2.1.1.channelFactory.newChannel
channelFactory.newChannel()方法，关键代码 io.netty.channel.ReflectiveChannelFactory#newChannel：
public class ReflectiveChannelFactory<T extends Channel> implements ChannelFactory<T> {
private final Constructor<? extends T> constructor;
public T newChannel() {
try {
// 调用NioServerSocketChannel的无参构造方法
return constructor.newInstance();
} catch (Throwable t) {
throw new ChannelException("Unable to create Channel from class " + constructor.getDeclaringClass(), t);
}
}
}
NioServerSocketChannel类，关键代码 io.netty.channel.socket.nio.NioServerSocketChannel#NioServerSocketChannel：
public class NioServerSocketChannel extends AbstractNioMessageChannel
implements io.netty.channel.socket.ServerSocketChannel {
private static final SelectorProvider DEFAULT_SELECTOR_PROVIDER = SelectorProvider.provider();
private static ServerSocketChannel newSocket(SelectorProvider provider) {
try {
return provider.openServerSocketChannel();
} catch (IOException e) {
throw new ChannelException(
"Failed to open a server socket.", e);
}
}
public NioServerSocketChannel() {
this(newSocket(DEFAULT_SELECTOR_PROVIDER));
}
public NioServerSocketChannel(ServerSocketChannel channel) {
// 会调用父类AbstractChannel将pipeline赋值初始化一个DefaultChannelPipeline对象，以及其他对象的初始化
super(null, channel, SelectionKey.OP_ACCEPT);
config = new NioServerSocketChannelConfig(this, javaChannel().socket());
}
}
在newSocket的方法中就是跟nio中的第二步创建ServerSocketChannel是一致了。
2.1.2.init(channel)
关键代码 io.netty.bootstrap.ServerBootstrap#init：
@Override
// 这里 channel 实际上是 NioServerSocketChannel
void init(Channel channel) throws Exception {
final Map<ChannelOption<?>, Object> options = options0();
synchronized (options) {
setChannelOptions(channel, options, logger);
}
final Map<AttributeKey<?>, Object> attrs = attrs0();
synchronized (attrs) {
for (Entry<AttributeKey<?>, Object> e: attrs.entrySet()) {
@SuppressWarnings("unchecked")
AttributeKey<Object> key = (AttributeKey<Object>) e.getKey();
channel.attr(key).set(e.getValue());
}
}
// 得到NioServerSocketChannel的pipeline，也就是默认的DefaultChannelPipeline对象
ChannelPipeline p = channel.pipeline();
final EventLoopGroup currentChildGroup = childGroup;
final ChannelHandler currentChildHandler = childHandler;
final Entry<ChannelOption<?>, Object>[] currentChildOptions;
final Entry<AttributeKey<?>, Object>[] currentChildAttrs;
synchronized (childOptions) {
currentChildOptions = childOptions.entrySet().toArray(newOptionArray(0));
}
synchronized (childAttrs) {
currentChildAttrs = childAttrs.entrySet().toArray(newAttrArray(0));
}
// 为 NioServerSocketChannel 添加初始化器
p.addLast(new ChannelInitializer<Channel>() {
// 什么时候会被执行呢？
// 会在注册（io.netty.channel.AbstractChannel.AbstractUnsafe#register0）代码中的pipeline.invokeHandlerAddedIfNeeded()调用到这
@Override
public void initChannel(final Channel ch) throws Exception {
final ChannelPipeline pipeline = ch.pipeline();
ChannelHandler handler = config.handler();
if (handler != null) {
pipeline.addLast(handler);
}
// 初始化器的职责是将 ServerBootstrapAcceptor 加入至 NioServerSocketChannel
ch.eventLoop().execute(new Runnable() {
@Override
public void run() {
// channelpipline中加入一个ServerBootstrapAcceptor，他其实也是一个入站处理器
pipeline.addLast(new ServerBootstrapAcceptor(
ch, currentChildGroup, currentChildHandler, currentChildOptions, currentChildAttrs));
}
});
}
});
}
2.1.3config().group().register(channel)
描述：将初始化好的channel与创建好的EventLoop关联起来，就是让EventLoop的线程run起来，一直监听 这个channel
config().group()中得到的是NioEventLoopGroup，因为在我们启动的时候使用的是.group(new NioEventLoopGroup())方法。

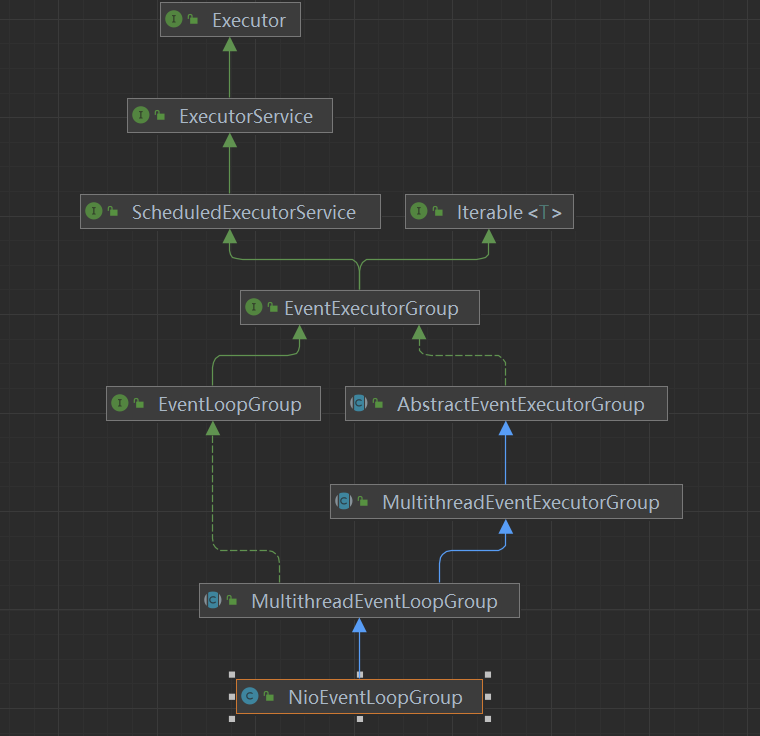

NioEventLoopGroup类的依赖图：
通过调用MultithreadEventLoopGroup类的register方法最终会调用到SingleThreadEventLoop的register方法中。

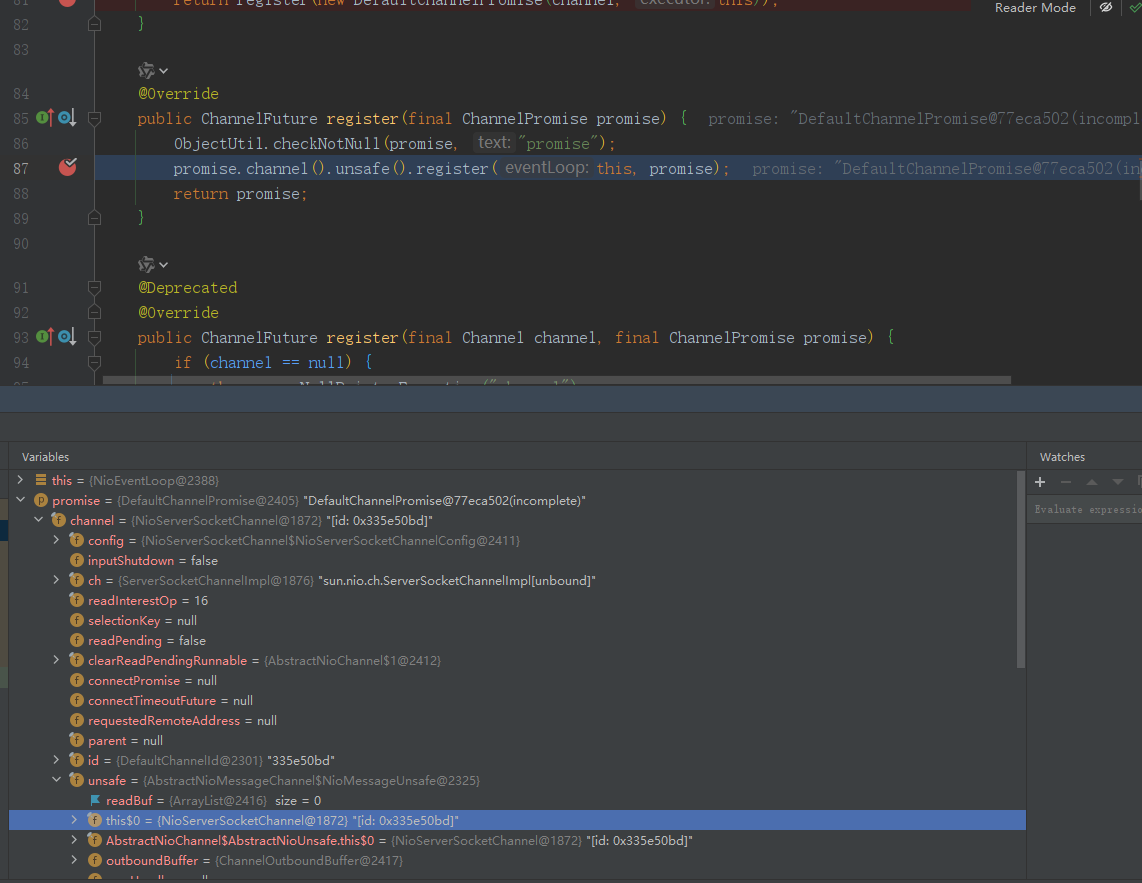

关键代码 io.netty.channel.SingleThreadEventLoop#register(io.netty.channel.ChannelPromise)

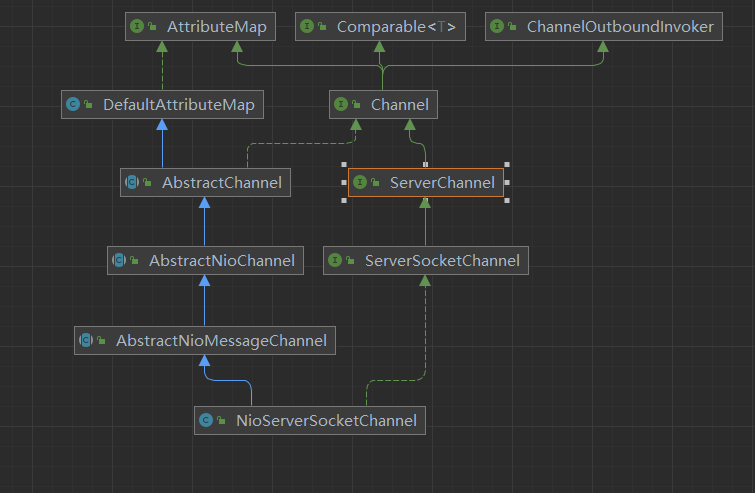

promise.channel()的对象就是在1.1.2的init方法中传递过来的NioServerSocketChannel对象。NioServerSocketChannel的依赖关系图：
在1.1.2的init方法中的NioServerSocketChannel对象创建过程中会赋值一些属性，
这其中就包括在AbstractChannel#AbstractChannel(io.netty.channel.Channel)中给unsafe创建一个AbstractNioMessageChannel.NioMessageUnsafe的内部类对象，因为newUnsafe()是一个抽象方法，所以会找子类（NioServerSocketChannel）的实现过的方法，而NioServerSocketChannel没有这个newUnsafe方法，所以会找父类AbstractNioMessageChannel的newUnsafe方法创建AbstractNioMessageChannel的内部类对象NioMessageUnsafe。
public abstract class AbstractChannel extends DefaultAttributeMap implements Channel {
//省略一些属性
private final Unsafe unsafe;
/**
* Creates a new instance.
*
* @param parent
* the parent of this channel. {@code null} if there's no parent.
*/
protected AbstractChannel(Channel parent) {
this.parent = parent;
id = newId();
unsafe = newUnsafe();
pipeline = newChannelPipeline();
}
protected abstract AbstractUnsafe newUnsafe();
}
public abstract class AbstractNioMessageChannel extends AbstractNioChannel {
/**
* @see AbstractNioChannel#AbstractNioChannel(Channel, SelectableChannel, int)
*/
protected AbstractNioMessageChannel(Channel parent, SelectableChannel ch, int readInterestOp) {
super(parent, ch, readInterestOp);
}
@Override
protected AbstractNioUnsafe newUnsafe() {
return new NioMessageUnsafe();
}
private final class NioMessageUnsafe extends AbstractNioUnsafe {}
}
promise.channel().unsafe()对象找到父类io.netty.channel.AbstractChannel.AbstractUnsafe中的register方法
关键代码 io.netty.channel.AbstractChannel.AbstractUnsafe#register
调用register0方法时会调用nioEventLoopGroup线程来执行后续的代码
public abstract class AbstractChannel extends DefaultAttributeMap implements Channel {
protected abstract class AbstractUnsafe implements Unsafe {
@Override
public final void register(EventLoop eventLoop, final ChannelPromise promise) {
if (eventLoop == null) {
throw new NullPointerException("eventLoop");
}
if (isRegistered()) {
promise.setFailure(new IllegalStateException("registered to an event loop already"));
return;
}
if (!isCompatible(eventLoop)) {
promise.setFailure(
new IllegalStateException("incompatible event loop type: " + eventLoop.getClass().getName()));
return;
}
AbstractChannel.this.eventLoop = eventLoop;
if (eventLoop.inEventLoop()) {
register0(promise);
} else {
try {
// 将任务提交给eventLoop
// 首次执行 execute 方法时，会启动 nioEventLoop 线程，之后注册等操作在 nioEventLoop 线程上执行
// 因为只有一个 NioServerSocketChannel 因此，也只会有一个 boss nioEventLoop 线程
// 这行代码完成的事实是 main -> nioEventLoop boss 线程的切换
eventLoop.execute(new Runnable() {
@Override
public void run() {
register0(promise);
}
});
} catch (Throwable t) {
logger.warn(
"Force-closing a channel whose registration task was not accepted by an event loop: {}",
AbstractChannel.this, t);
closeForcibly();
closeFuture.setClosed();
safeSetFailure(promise, t);
}
}
}

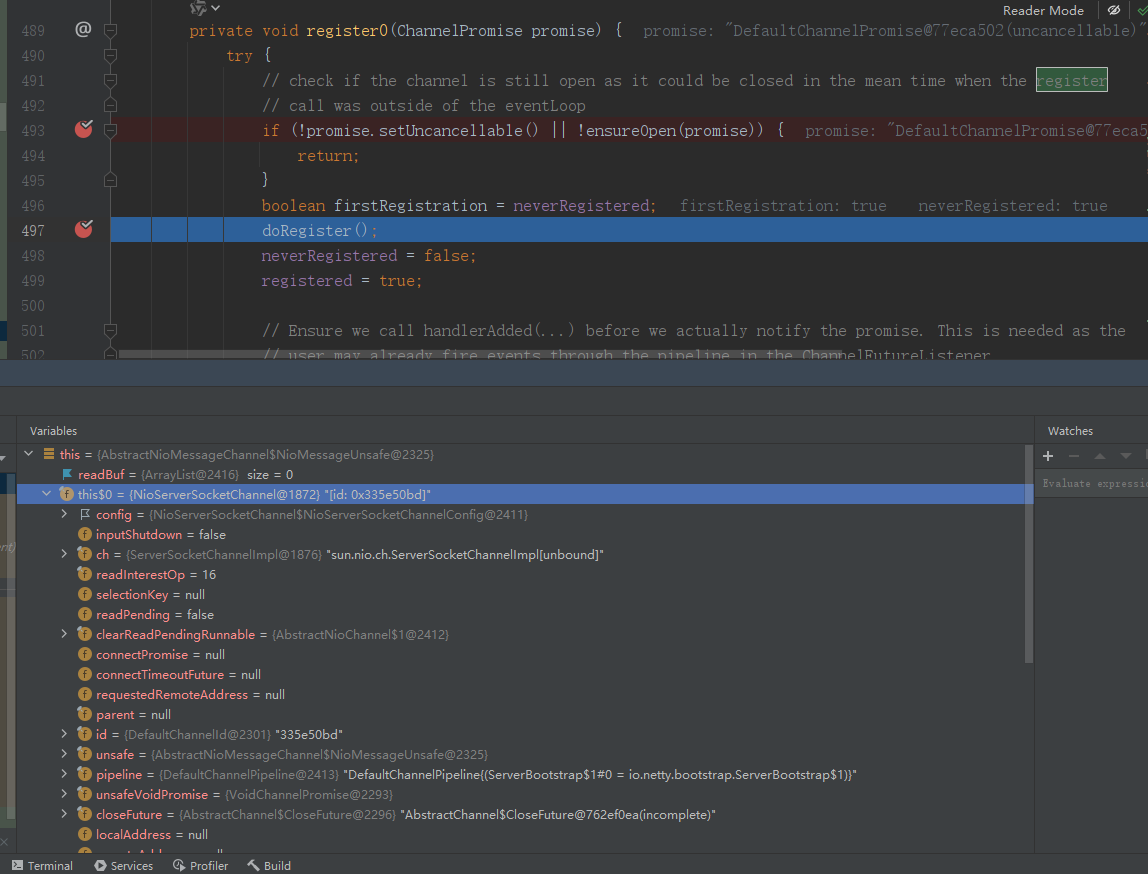

private void register0(ChannelPromise promise) {
try {
if (!promise.setUncancellable() || !ensureOpen(promise)) {
return;
}
boolean firstRegistration = neverRegistered;

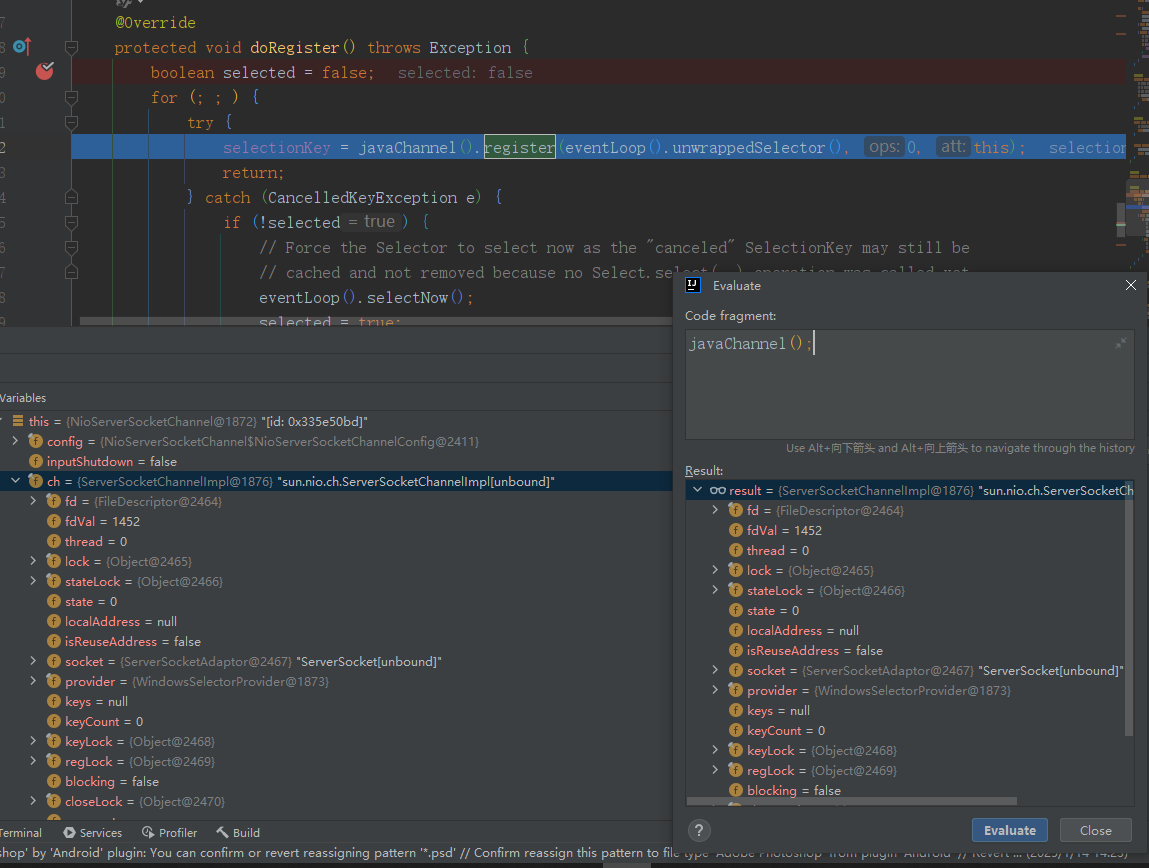

// 1.2.1 原生的 nio channel 绑定到 selector 上，注意此时没有注册 selector 关注事件，附件为 NioServerSocketChannel
doRegister();
neverRegistered = false;
registered = true;
// 1.2.2 执行 NioServerSocketChannel 初始化器的 initChannel
pipeline.invokeHandlerAddedIfNeeded();
// 回调 3.2 io.netty.bootstrap.AbstractBootstrap#doBind0
safeSetSuccess(promise);
pipeline.fireChannelRegistered();
// 对应 server socket channel 还未绑定，isActive 为 false
if (isActive()) {
if (firstRegistration) {
pipeline.fireChannelActive();
} else if (config().isAutoRead()) {
// 关注read事件
beginRead();
}
}
} catch (Throwable t) {
closeForcibly();
closeFuture.setClosed();
safeSetFailure(promise, t);
}
}
}
}
接着执行execute方法，在NioEventLoop中是没有这个方法的，所以向上找（SingleThreadEventExecutor）
@Override
public void execute(Runnable task) {
if (task == null) {
throw new NullPointerException("task");
}
boolean inEventLoop = inEventLoop();
if (inEventLoop) {
addTask(task);
} else {
// 开启线程
startThread();
// 添加传过来的task到task队列中，注意这里的task中是要执行一个register0(promise)方法的
addTask(task);
if (isShutdown() && removeTask(task)) {
reject();
}
}
if (!addTaskWakesUp && wakesUpForTask(task)) {
wakeup(inEventLoop);
}
}
执行doStartThread()方法：
private void doStartThread() {
assert thread == null;
executor.execute(new Runnable() {
@Override
public void run() {
thread = Thread.currentThread();
if (interrupted) {
thread.interrupt();
}
boolean success = false;
updateLastExecutionTime();
try {
// 开始线程
SingleThreadEventExecutor.this.run();
success = true;
} catch (Throwable t) {
logger.warn("Unexpected exception from an event executor: ", t);
} finally {
for (;;) {
int oldState = STATE_UPDATER.get(SingleThreadEventExecutor.this);
if (oldState >= ST_SHUTTING_DOWN || STATE_UPDATER.compareAndSet(
SingleThreadEventExecutor.this, oldState, ST_SHUTTING_DOWN)) {
break;
}
}
// Check if confirmShutdown() was called at the end of the loop.
if (success && gracefulShutdownStartTime == 0) {
logger.error("Buggy " + EventExecutor.class.getSimpleName() + " implementation; " +
SingleThreadEventExecutor.class.getSimpleName() + ".confirmShutdown() must be called " +
"before run() implementation terminates.");
}
try {
// Run all remaining tasks and shutdown hooks.
for (;;) {
if (confirmShutdown()) {
break;
}
}
} finally {
try {
cleanup();
} finally {
STATE_UPDATER.set(SingleThreadEventExecutor.this, ST_TERMINATED);
threadLock.release();
if (!taskQueue.isEmpty()) {
logger.warn(
"An event executor terminated with " +
"non-empty task queue (" + taskQueue.size() + ')');
}
terminationFuture.setSuccess(null);
}
}
}
}
});
}
进入SingleThreadEventExecutor.this.run()方法：
在这里会死循环，监听selector上的事件或者是任务
@Override
protected void run() {
// 死循环，监听selector上的事件或者是任务
for (;;) {
try {
switch (selectStrategy.calculateStrategy(selectNowSupplier, hasTasks())) {
case SelectStrategy.CONTINUE:
continue;
case SelectStrategy.SELECT:
select(wakenUp.getAndSet(false));
if (wakenUp.get()) {
selector.wakeup();
}
default:
// fallthrough
}
cancelledKeys = 0;
needsToSelectAgain = false;
final int ioRatio = this.ioRatio;
if (ioRatio == 100) {
try {
processSelectedKeys();
} finally {
// Ensure we always run tasks.
runAllTasks();
}
} else {
final long ioStartTime = System.nanoTime();
try {
processSelectedKeys();
} finally {
// register0(channel);是一个普通任务，所以会在这执行
final long ioTime = System.nanoTime() - ioStartTime;
// 这里会回调上面提到的提交的task，也就是register0(channel);
runAllTasks(ioTime * (100 - ioRatio) / ioRatio);
}
}
} catch (Throwable t) {
handleLoopException(t);
}
// Always handle shutdown even if the loop processing threw an exception.
try {
if (isShuttingDown()) {
closeAll();
if (confirmShutdown()) {
return;
}
}
} catch (Throwable t) {
handleLoopException(t);
}
}
}
调用内部类（AbstractUnsafe）的外部类（AbstractChannel）的doRegister()方法，有一个this$0的指针指向外部对象
关键代码 io.netty.channel.AbstractChannel#doRegister
doRegister并没有任何的注册实现，由子类来重写doRegister实现注册，而当前的this$0的指针指向外部对象是NioServerSocketCahnnel对象，NioServerSocketCahnnel对象的父类AbstractNioChannel中有doRegister方法。
protected void doRegister() throws Exception {
// NOOP
}
关键代码 io.netty.channel.nio.AbstractNioChannel#doRegister
@Override
protected void doRegister() throws Exception {
boolean selected = false;
for (;;) {
try {
// 建立 selector 和 channel 的联系（注册）
selectionKey = javaChannel().register(eventLoop().unwrappedSelector(), 0, this);
return;
} catch (CancelledKeyException e) {
if (!selected) {
// Force the Selector to select now as the "canceled" SelectionKey may still be
// cached and not removed because no Select.select(..) operation was called yet.
eventLoop().selectNow();
selected = true;
} else {
// We forced a select operation on the selector before but the SelectionKey is still cached
// for whatever reason. JDK bug ?
throw e;
}
}
}
}
这里可以看到ServerSocketChannel注册到NioEventLoop的选择器上，并同时将this（NioServerSocketChannel）对象作为附件保存下来。
跟nio中的第三步建立 selector 和 channel 的联系是一致了。
关键代码 io.netty.channel.ChannelInitializer#initChannel
private boolean initChannel(ChannelHandlerContext ctx) throws Exception {
if (initMap.add(ctx)) { // Guard against re-entrance.
try {
// 1.2.2.1 执行初始化
initChannel((C) ctx.channel());
} catch (Throwable cause) {
exceptionCaught(ctx, cause);
} finally {
// 1.2.2.2 移除初始化器
ChannelPipeline pipeline = ctx.pipeline();
if (pipeline.context(this) != null) {
pipeline.remove(this);
}
}
return true;
}
return false;
}
2.2.doBind0(regFuture, channel, localAddress, promise);
执行doBind0是在另一个线程nioEventLoopGroup中执行
关键代码 io.netty.bootstrap.AbstractBootstrap#doBind0
// 由1.doBind源码分析的3.1 或 3.2 执行 doBind0，这里的channel是NioServerSocketChannel
private static void doBind0(
final ChannelFuture regFuture, final Channel channel,
final SocketAddress localAddress, final ChannelPromise promise) {
channel.eventLoop().execute(new Runnable() {
@Override
public void run() {
// initAndRegister是否成功
if (regFuture.isSuccess()) {
channel.bind(localAddress, promise).addListener(ChannelFutureListener.CLOSE_ON_FAILURE);
} else {
promise.setFailure(regFuture.cause());
}
}
});
}
关键代码io.netty.channel.AbstractChannel.AbstractUnsafe#bind
public final void bind(final SocketAddress localAddress, final ChannelPromise promise) {
assertEventLoop();
if (!promise.setUncancellable() || !ensureOpen(promise)) {
return;
}
if (Boolean.TRUE.equals(config().getOption(ChannelOption.SO_BROADCAST)) &&
localAddress instanceof InetSocketAddress &&
!((InetSocketAddress) localAddress).getAddress().isAnyLocalAddress() &&
!PlatformDependent.isWindows() && !PlatformDependent.maybeSuperUser()) {
// 记录日志...
}
boolean wasActive = isActive();
try {
// 3.3 执行端口绑定
doBind(localAddress);
} catch (Throwable t) {
safeSetFailure(promise, t);
closeIfClosed();
return;
}
if (!wasActive && isActive()) {
invokeLater(new Runnable() {
@Override
public void run() {
// 3.4 触发 active 事件
pipeline.fireChannelActive();
}
});
}
safeSetSuccess(promise);
}
关键代码 io.netty.channel.socket.nio.NioServerSocketChannel#doBind
protected void doBind(SocketAddress localAddress) throws Exception {
if (PlatformDependent.javaVersion() >= 7) {
javaChannel().bind(localAddress, config.getBacklog());
} else {
javaChannel().socket().bind(localAddress, config.getBacklog());
}
}
跟nio中的第五步绑定端口是一致了。
接着执行3.4 触发 active 事件：
关键代码 io.netty.channel.DefaultChannelPipeline.HeadContext#channelActive
public void channelActive(ChannelHandlerContext ctx) {
ctx.fireChannelActive();
// 触发 read (NioServerSocketChannel 上的 read 不是读取数据，只是为了触发 channel 的事件注册)
readIfIsAutoRead();
}
关键代码io.netty.channel.nio.AbstractNioChannel#doBeginRead
protected void doBeginRead() throws Exception {
// Channel.read() or ChannelHandlerContext.read() was called
final SelectionKey selectionKey = this.selectionKey;
if (!selectionKey.isValid()) {
return;
}
readPending = true;
final int interestOps = selectionKey.interestOps();
// readInterestOp 取值是 16，在 NioServerSocketChannel 创建时初始化好，代表关注 accept 事件
if ((interestOps & readInterestOp) == 0) {
selectionKey.interestOps(interestOps | readInterestOp);
}
}
跟nio中的第四步关注 accept 事件是一致了
扫一扫
1万+
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
