即将开始自己的研究生生活，在这里记下关于学习的点滴吧，希望能够坚持！

一、找到PCL和VS2017的安装包并下载

PCL下载：https://github.com/PointCloudLibrary/pcl/releases/tag/pcl-1.8.1
VS 官网可以下载
目前PCL点云库的最新版本是1.8.1，如下图所示。

在这里根据自己电脑的情况下载相应的版本（操作系统的位数，以及Visual Studio的版本）。我选择PCL-1.8.1-AllInOne-msvc2017-win64.exe和pcl-1.8.1-pdb-msvc2017-win64.zip两个文件。这两个包根据网速不同，下载的时间也不同，耐心等待即可。

二、PCL安装

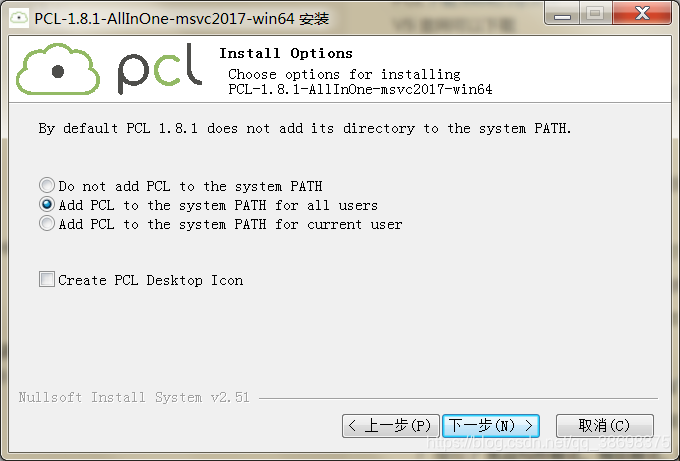

1、双击.exe文件运行，并勾选上Add PCL to system PATH for all users

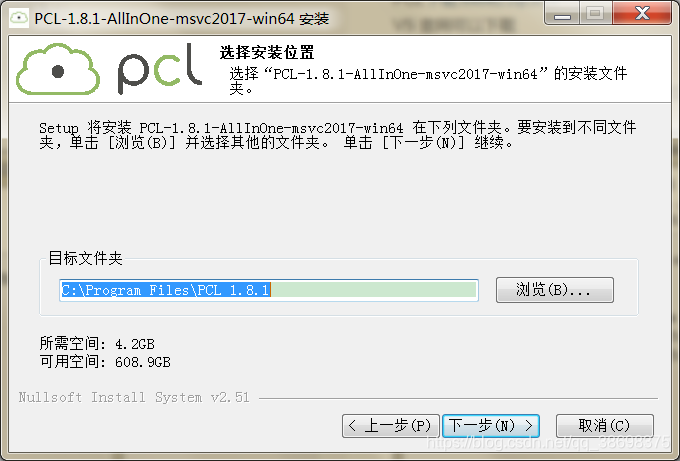

2、修改安装路径，我的就是安装在c盘下面，不需要修改

3、勾选所需要的组件，一般都是全部勾选

4、在安装途中会弹出OpenNI的安装对话窗口，为了避免麻烦可以直接将安装路径选择在C:\Program Files\PCL 1.8.1\3rdParty\OpenNI2之下

三、配置

1、打开vs新建一个控制台程序

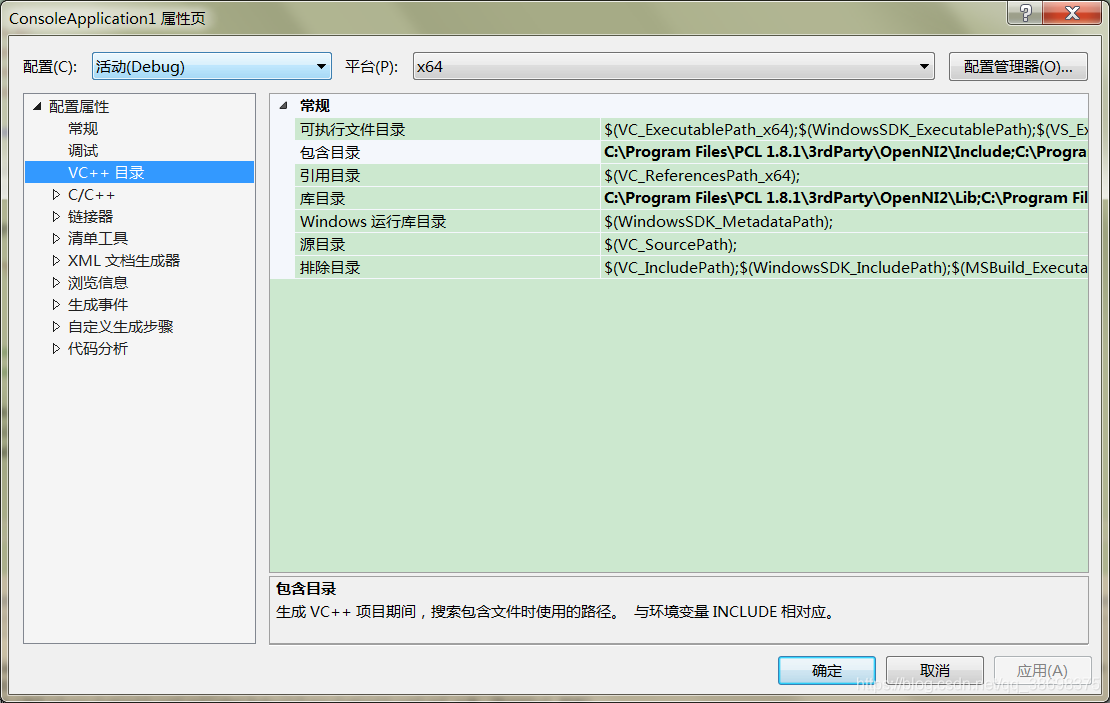

2、 在解决方案管理器里找到你新建的项目，右键点属性，弹出属性页窗口。在debug模式下进行配置，并将平台改为X64.

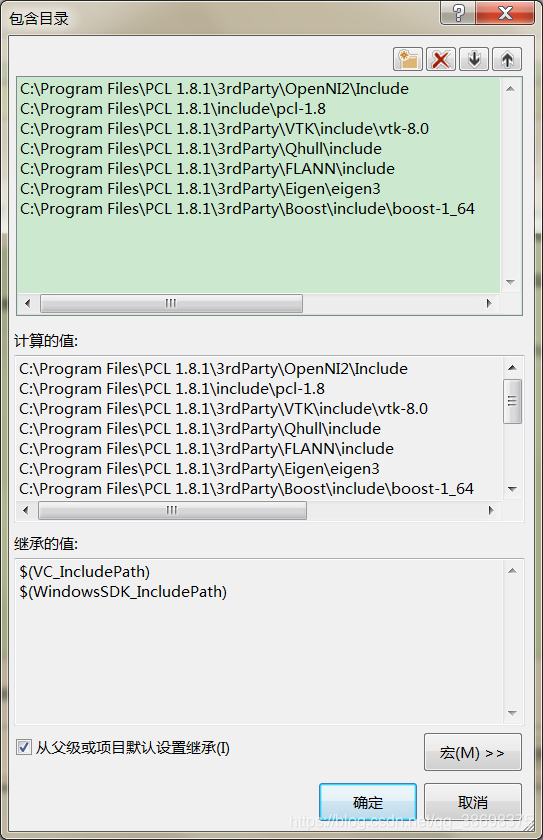

3、在VC++目录下把以下路径复制进去，注意PCL版本不一样具体的目录也不一样
C:\Program Files\PCL1.8.1\3rdParty\OpenNI2\Include
C:\Program Files\PCL1.8.1\include\pcl-1.8
C:\Program Files\PCL1.8.1\3rdParty\VTK\include\vtk-8.0
C:\Program Files\PCL1.8.1\3rdParty\QHull\include
C:\Program Files\PCL1.8.1\3rdParty\FLANN\include
C:\Program Files\PCL1.8.1\3rdParty\Eigen\eigen3
C:\Program Files\PCL1.8.1\3rdParty\Boost\include\boost-1_64

4、在库目录下将以下路径粘贴进去
C:\Program Files\PCL1.8.1\3rdParty\OpenNI2\Lib
C:\Program Files\PCL1.8.1\3rdParty\VTK\lib
C:\Program Files\PCL1.8.1\3rdParty\Qhull\lib
C:\Program Files\PCL1.8.1\3rdParty\FLANN\lib
C:\Program Files\PCL1.8.1\3rdParty\Boost\lib
C:\Program Files\PCL1.8.1\lib

然后点击属性页中的C/C++下的预处理器，点击右侧的预处理器定义右侧的下拉菜单，选择编辑…，添加如下两条定义：

1_SCL_SECURE_NO_WARNINGS
2_CRT_SECURE_NO_WARNINGS

5、接着点击属性页中的链接器下的输入，点击右侧的附加依赖项，将如下文件名填写到窗口中：
vtknetcdf_c+±gd.lib
pcl_common_debug.lib
pcl_features_debug.lib
pcl_filters_debug.lib
pcl_io_ply_debug.lib
pcl_io_debug.lib
pcl_kdtree_debug.lib
pcl_keypoints_debug.lib
pcl_ml_debug.lib
pcl_octree_debug.lib
pcl_outofcore_debug.lib
pcl_people_debug.lib
pcl_recognition_debug.lib
pcl_registration_debug.lib
pcl_sample_consensus_debug.lib
pcl_search_debug.lib
pcl_segmentation_debug.lib
pcl_stereo_debug.lib
pcl_surface_debug.lib
pcl_tracking_debug.lib
pcl_visualization_debug.lib
libboost_atomic-vc141-mt-gd-1_64.lib
libboost_bzip2-vc141-mt-gd-1_64.lib
libboost_chrono-vc141-mt-gd-1_64.lib
libboost_container-vc141-mt-gd-1_64.lib
libboost_context-vc141-mt-gd-1_64.lib
libboost_coroutine-vc141-mt-gd-1_64.lib
libboost_date_time-vc141-mt-gd-1_64.lib
libboost_exception-vc141-mt-gd-1_64.lib
libboost_fiber-vc141-mt-gd-1_64.lib
libboost_filesystem-vc141-mt-gd-1_64.lib
libboost_graph-vc141-mt-gd-1_64.lib
libboost_graph_parallel-vc141-mt-gd-1_64.lib
libboost_iostreams-vc141-mt-gd-1_64.lib
libboost_locale-vc141-mt-gd-1_64.lib
libboost_log-vc141-mt-gd-1_64.lib
libboost_log_setup-vc141-mt-gd-1_64.lib
libboost_math_c99-vc141-mt-gd-1_64.lib
libboost_math_c99f-vc141-mt-gd-1_64.lib
libboost_math_c99l-vc141-mt-gd-1_64.lib
libboost_math_tr1-vc141-mt-gd-1_64.lib
libboost_math_tr1f-vc141-mt-gd-1_64.lib
libboost_math_tr1l-vc141-mt-gd-1_64.lib
libboost_mpi-vc141-mt-gd-1_64.lib
libboost_numpy3-vc141-mt-gd-1_64.lib
libboost_numpy-vc141-mt-gd-1_64.lib
libboost_prg_exec_monitor-vc141-mt-gd-1_64.lib
libboost_program_options-vc141-mt-gd-1_64.lib
libboost_python3-vc141-mt-gd-1_64.lib
libboost_python-vc141-mt-gd-1_64.lib
libboost_random-vc141-mt-gd-1_64.lib
libboost_regex-vc141-mt-gd-1_64.lib
libboost_serialization-vc141-mt-gd-1_64.lib
libboost_signals-vc141-mt-gd-1_64.lib
libboost_system-vc141-mt-gd-1_64.lib
libboost_test_exec_monitor-vc141-mt-gd-1_64.lib
libboost_thread-vc141-mt-gd-1_64.lib
libboost_timer-vc141-mt-gd-1_64.lib
libboost_type_erasure-vc141-mt-gd-1_64.lib
libboost_unit_test_framework-vc141-mt-gd-1_64.lib
libboost_wave-vc141-mt-gd-1_64.lib
libboost_wserialization-vc141-mt-gd-1_64.lib
libboost_zlib-vc141-mt-gd-1_64.lib
flann-gd.lib
flann_cpp-gd.lib
flann_cpp_s-gd.lib
flann_s-gd.lib
qhull_d.lib
qhullcpp_d.lib
qhullstatic_d.lib
qhullstatic_r_d.lib
qhull_p_d.lib
qhull_r_d.lib
vtkalglib-8.0-gd.lib
vtkChartsCore-8.0-gd.lib
vtkCommonColor-8.0-gd.lib
vtkCommonComputationalGeometry-8.0-gd.lib
vtkCommonCore-8.0-gd.lib
vtkCommonDataModel-8.0-gd.lib
vtkCommonExecutionModel-8.0-gd.lib
vtkCommonMath-8.0-gd.lib
vtkCommonMisc-8.0-gd.lib
vtkCommonSystem-8.0-gd.lib
vtkCommonTransforms-8.0-gd.lib
vtkDICOMParser-8.0-gd.lib
vtkDomainsChemistry-8.0-gd.lib
vtkexoIIc-8.0-gd.lib
vtkexpat-8.0-gd.lib
vtkFiltersAMR-8.0-gd.lib
vtkFiltersCore-8.0-gd.lib
vtkFiltersExtraction-8.0-gd.lib
vtkFiltersFlowPaths-8.0-gd.lib
vtkFiltersGeneral-8.0-gd.lib
vtkFiltersGeneric-8.0-gd.lib
vtkFiltersGeometry-8.0-gd.lib
vtkFiltersHybrid-8.0-gd.lib
vtkFiltersHyperTree-8.0-gd.lib
vtkFiltersImaging-8.0-gd.lib
vtkFiltersModeling-8.0-gd.lib
vtkFiltersParallel-8.0-gd.lib
vtkFiltersParallelImaging-8.0-gd.lib
vtkFiltersPoints-8.0-gd.lib
vtkFiltersProgrammable-8.0-gd.lib
vtkFiltersSelection-8.0-gd.lib
vtkFiltersSMP-8.0-gd.lib
vtkFiltersSources-8.0-gd.lib
vtkFiltersStatistics-8.0-gd.lib
vtkFiltersTexture-8.0-gd.lib
vtkFiltersTopology-8.0-gd.lib
vtkFiltersVerdict-8.0-gd.lib
vtkfreetype-8.0-gd.lib
vtkGeovisCore-8.0-gd.lib
vtkgl2ps-8.0-gd.lib
vtkhdf5-8.0-gd.lib
vtkhdf5_hl-8.0-gd.lib
vtkImagingColor-8.0-gd.lib
vtkImagingCore-8.0-gd.lib
vtkImagingFourier-8.0-gd.lib
vtkImagingGeneral-8.0-gd.lib
vtkImagingHybrid-8.0-gd.lib
vtkImagingMath-8.0-gd.lib
vtkImagingMorphological-8.0-gd.lib
vtkImagingSources-8.0-gd.lib
vtkImagingStatistics-8.0-gd.lib
vtkImagingStencil-8.0-gd.lib
vtkInfovisCore-8.0-gd.lib
vtkInfovisLayout-8.0-gd.lib
vtkInteractionImage-8.0-gd.lib
vtkInteractionStyle-8.0-gd.lib
vtkInteractionWidgets-8.0-gd.lib
vtkIOAMR-8.0-gd.lib
vtkIOCore-8.0-gd.lib
vtkIOEnSight-8.0-gd.lib
vtkIOExodus-8.0-gd.lib
vtkIOExport-8.0-gd.lib
vtkIOExportOpenGL-8.0-gd.lib
vtkIOGeometry-8.0-gd.lib
vtkIOImage-8.0-gd.lib
vtkIOImport-8.0-gd.lib
vtkIOInfovis-8.0-gd.lib
vtkIOLegacy-8.0-gd.lib
vtkIOLSDyna-8.0-gd.lib
vtkIOMINC-8.0-gd.lib
vtkIOMovie-8.0-gd.lib
vtkIONetCDF-8.0-gd.lib
vtkIOParallel-8.0-gd.lib
vtkIOParallelXML-8.0-gd.lib
vtkIOPLY-8.0-gd.lib
vtkIOSQL-8.0-gd.lib
vtkIOTecplotTable-8.0-gd.lib
vtkIOVideo-8.0-gd.lib
vtkIOXML-8.0-gd.lib
vtkIOXMLParser-8.0-gd.lib
vtkjpeg-8.0-gd.lib
vtkjsoncpp-8.0-gd.lib
vtklibharu-8.0-gd.lib
vtklibxml2-8.0-gd.lib
vtklz4-8.0-gd.lib
vtkmetaio-8.0-gd.lib
vtkNetCDF-8.0-gd.lib
vtkoggtheora-8.0-gd.lib
vtkParallelCore-8.0-gd.lib
vtkpng-8.0-gd.lib
vtkproj4-8.0-gd.lib
vtkRenderingAnnotation-8.0-gd.lib
vtkRenderingContext2D-8.0-gd.lib
vtkRenderingContextOpenGL-8.0-gd.lib
vtkRenderingCore-8.0-gd.lib
vtkRenderingFreeType-8.0-gd.lib
vtkRenderingGL2PS-8.0-gd.lib
vtkRenderingImage-8.0-gd.lib
vtkRenderingLabel-8.0-gd.lib
vtkRenderingLIC-8.0-gd.lib
vtkRenderingLOD-8.0-gd.lib
vtkRenderingOpenGL-8.0-gd.lib
vtkRenderingVolume-8.0-gd.lib
vtkRenderingVolumeOpenGL-8.0-gd.lib
vtksqlite-8.0-gd.lib
vtksys-8.0-gd.lib
vtktiff-8.0-gd.lib
vtkverdict-8.0-gd.lib
vtkViewsContext2D-8.0-gd.lib
vtkViewsCore-8.0-gd.lib
vtkViewsInfovis-8.0-gd.lib
vtkzlib-8.0-gd.lib
opengl32.lib

至此，PCL就已经配置好了，可以直接在网上找一个简单的例子进行测试，没有问题就打开新建的项目就可以使用啦！

大家也可以参考这篇更详细的安装配置教程：http://gyshgx868.github.io/2018/03/06/PointCloud/pcl-install/
