重读&笔记系列-《深入理解计算机系统》第三章-part3,part4

Machine Programming III: Procedures

Mechanisms in Procedures

• Passing control

  • To beginning of procedure code
  • Back to return point

• Passing data

  • Procedure arguments
  • Return value

• Memory management

  • Allocate during procedure execution

  • Mechanisms all implemented with machine instructions

• x86-64 implementation of a procedure uses only those mechanisms required

Stack Structure

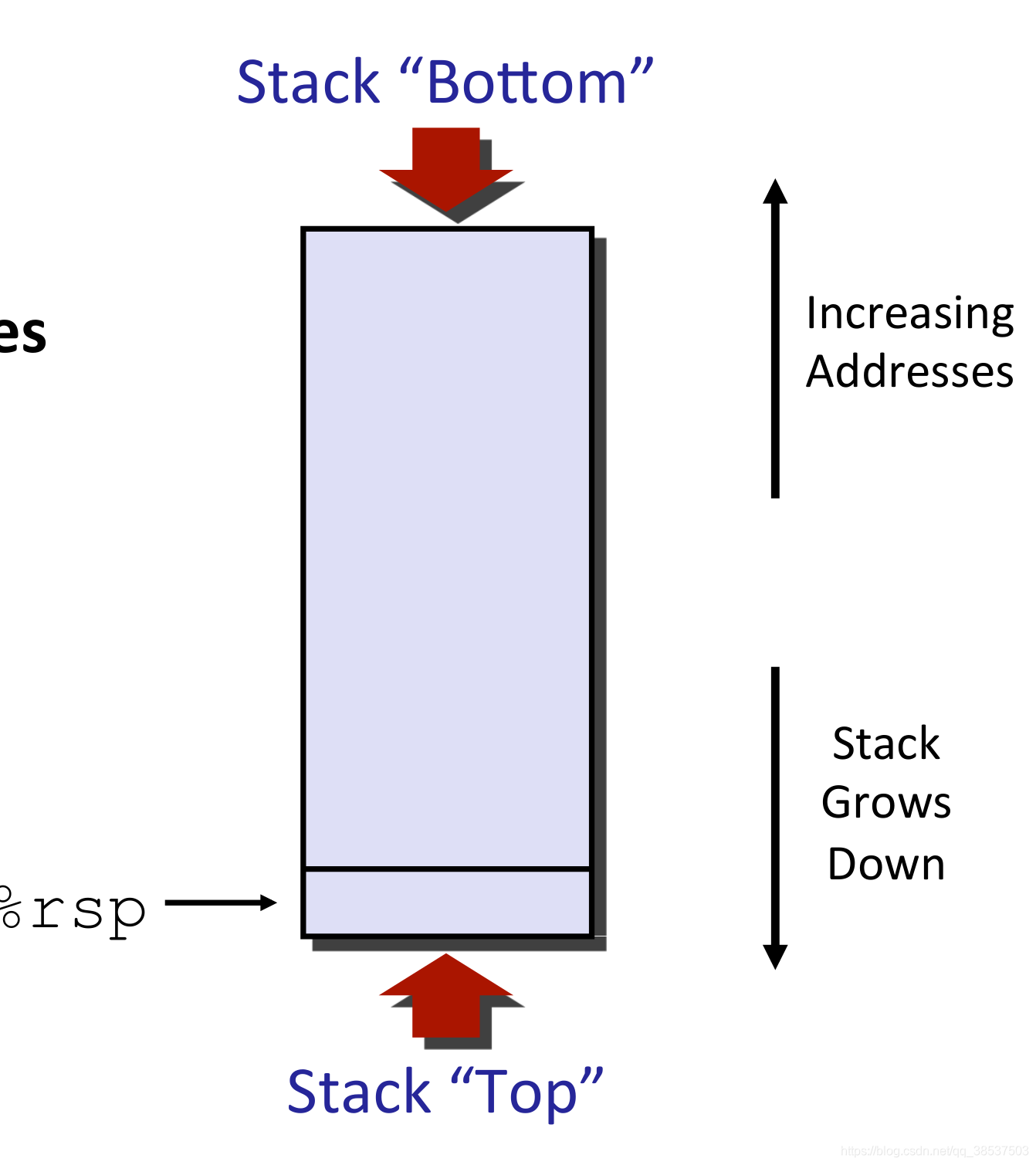

x86-64 Stack

• Region of memory managed with stack discipline
• Grows toward lower addresses
• Register %rsp contains lowest stack address
  • address of “top” element

• pushq Src
  • Fetch operand at Src
  • Decrement %rsp by 8
  • Write operand at address given by %rsp
• popq Dest
  • Read value at address given by %rsp
  • Increment %rsp by 8
  • Store value at Dest (must be register)

Calling Conventions

Passing control

Code Example

void multstore (long x, long y, long *dest)
{
    long t = mult2(x, y);
    *dest = t;
}

000000000400540 <multstore>:
	400540: push	%rbx				# Save %rbx
	400541: mov		%rdx, %rbx			# Save dest
	400544: callq	400550 <mult2>		# mult2(x, y)
	400549: mov		%rax, (%rbx)		# Save at dest
	40054c: pop		%rbx				# Restore %rbx
    50054d: retq						# Return

long mult2 (long a, long b)
{
    long s = a * b;
    return s;
}

000000000400550 <mult2>:
	400550: mov		%rdi, %rax
	400553: imul	%rsi, %rax
	400557: retq

Procedure Control Flow

• Use stack to support procedure call and return
• Procedure call: call label
  • Push return address on stack
  • Jump to label
• Return address:
  • Address of the next instruction right after call
  • Example from disassembly

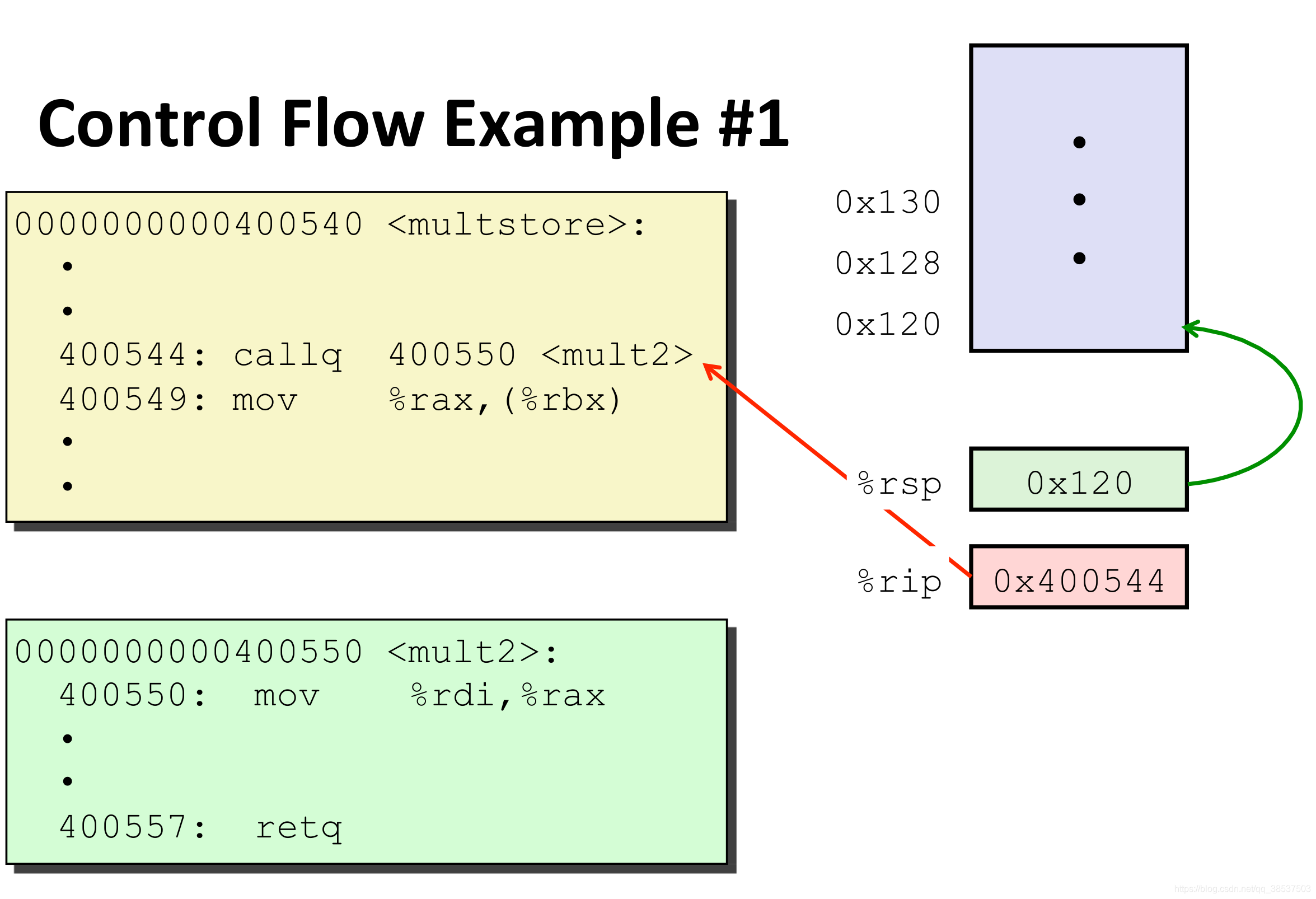

Control Flow Example #1

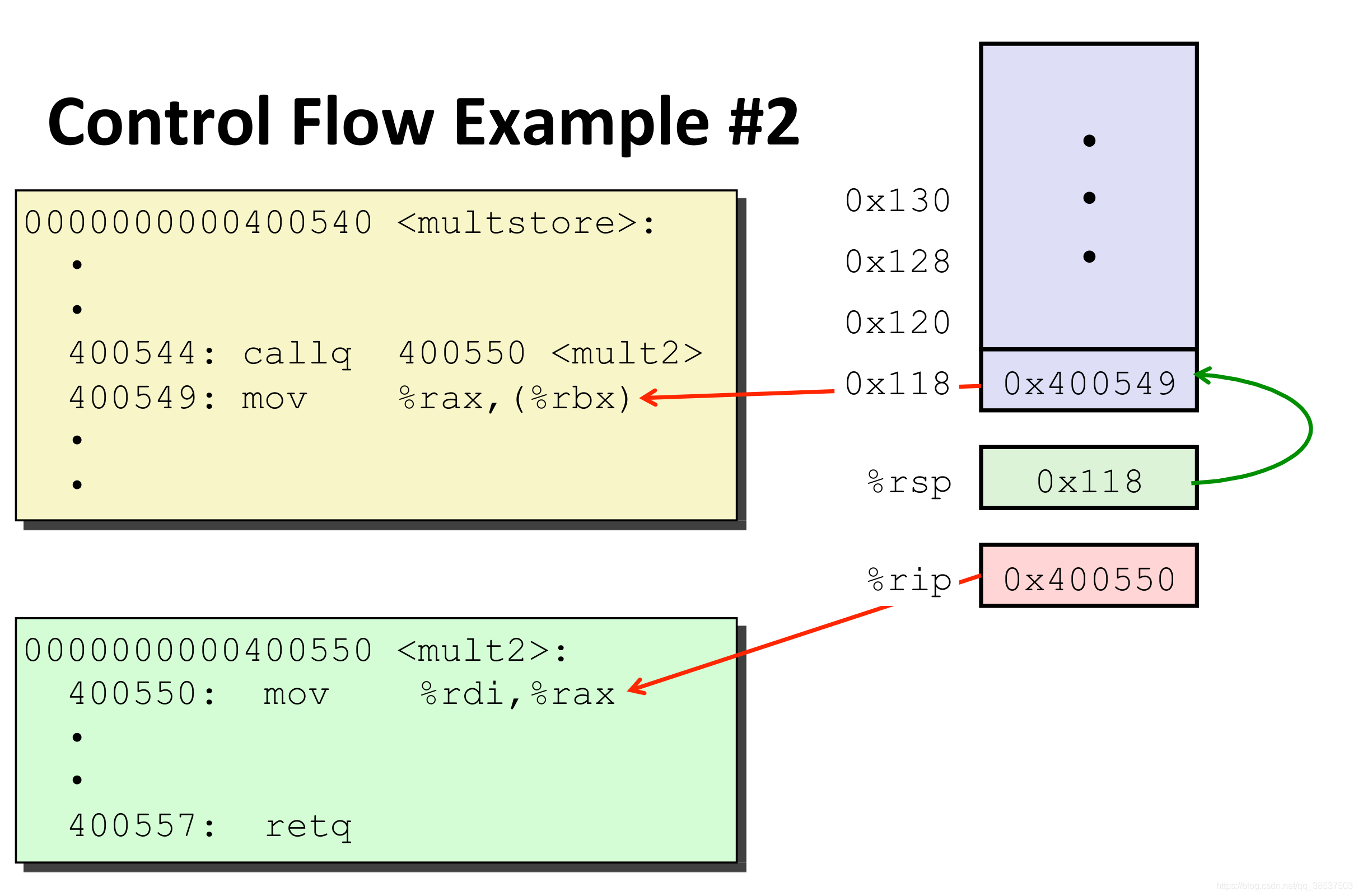

Control Flow Example #2

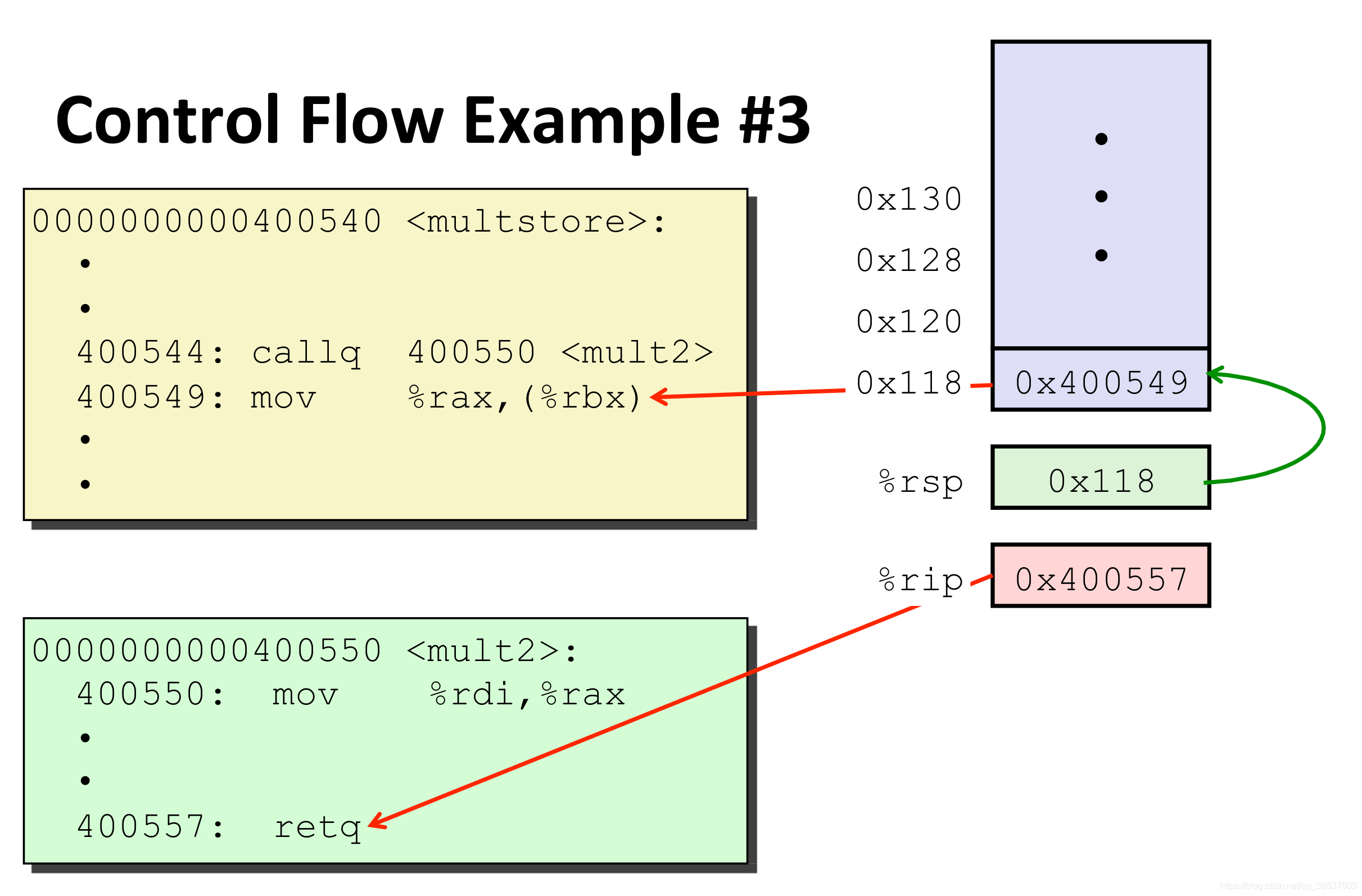

Control Flow Example #3

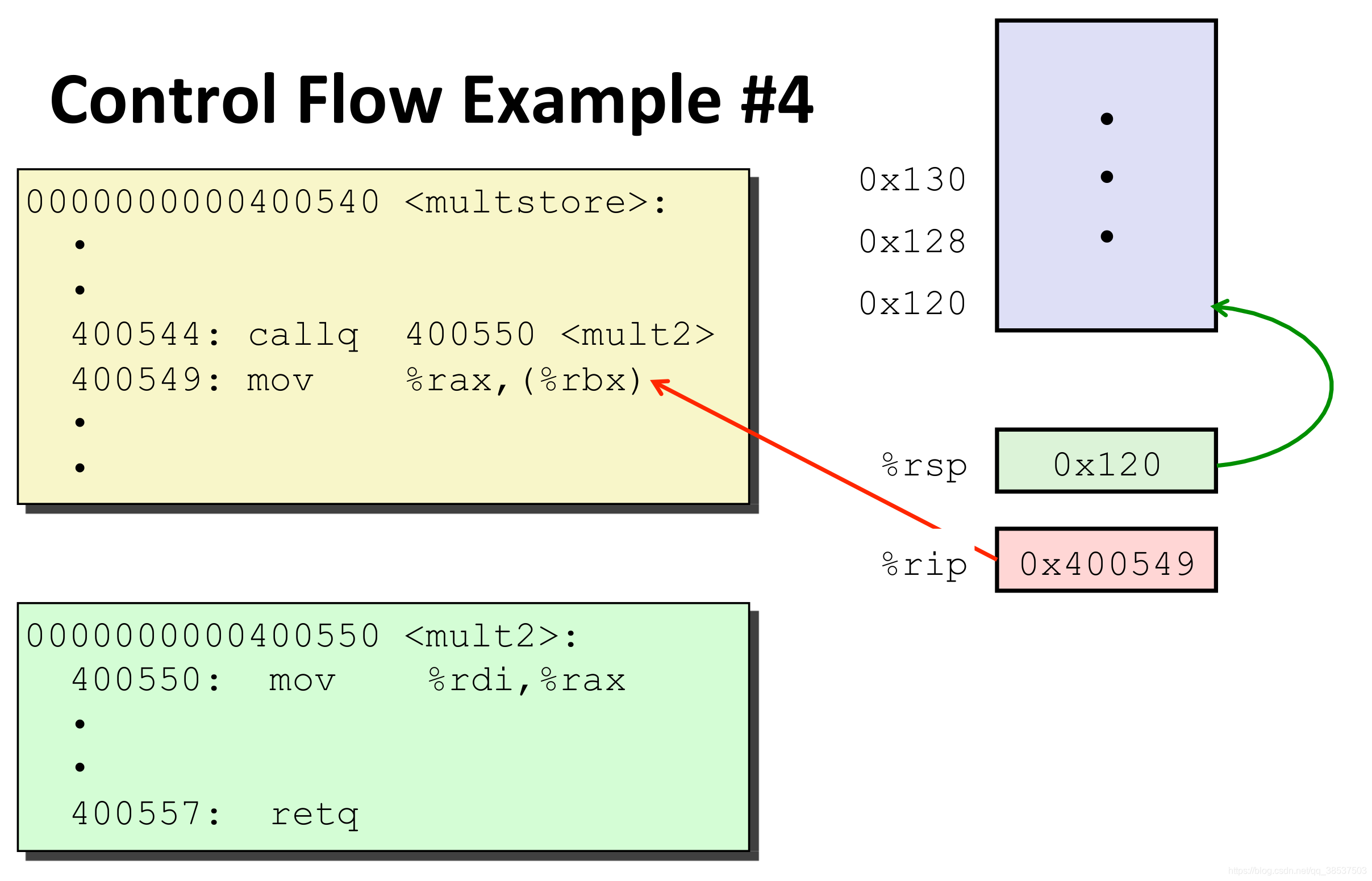

Control Flow Example #4

Passing data

Procedure Data Flow

• Register

  • First 6 argument %rdi %rsi %rdx %rcx %r8 %r9

• Stack

  • Argn … Arg8 Arg7

• Return Value

  • %rax

• Only allocate stack space when needed

Data Flow Example

void multstore (long x, long y, long *dest)
{
    long t = mult2(x, y);
    *dest = t;
}

0000000000400540 <multstore>:
    # x in %rdi, y in %rsi, dest in %rdx
    • • •
    400541: mov		%rdx, %rbx		# Save dest
    400544: callq	400550 <mullt2>	# mult2(x, y)
    # t in %rax
    400549: mov		%rax, (%rbx)	# Save at dest
    • • •

long mult2 (long a, long b)
{
    long s = a * b;
    return s;
}

0000000000400550 <mult2>:
# a in %rdi, b in %rsi
400550: mov 	%rdi,%rax	# a
400553: imul 	%rsi,%rax	# a*b
# s in %rax					# Return
400557: retq

Managing local data

Stack-Based Languages

• Languages that support recursion
  • e.g, C, Pascal, Java
  • Code must be “Reentrant”
    • Multiple simultaneous instantiations of single procedure
  • Need some place to store state of each instantiation
    • Arguments
    • Local variables
    • Return pointer
• Stack discipline
  • State for given procedure needed for limited time
    • From when called to when return
  • Callee returns before caller does
• Stack allocated in Frames
  • state for single procedure instantiation

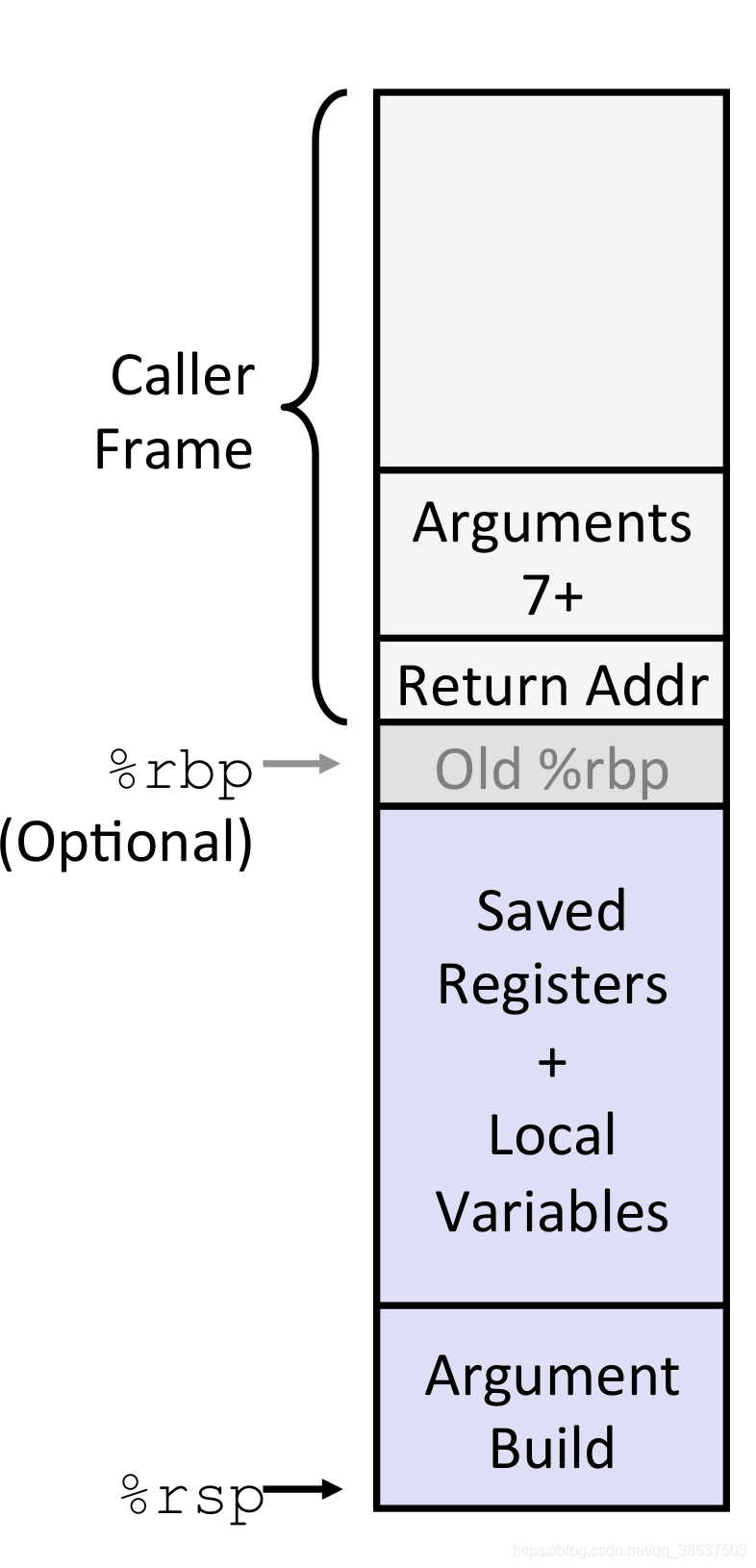

x86-64/Linux Stack Frame

• Current Stack Frame (“Top” to Bottom)

  • “argument build:”

    Parameters for function about to call

  • Local variables

    If can’t keep in registers

  • Saved register context

  • Old frame pointer (optional)

• Caller Stack Frame

  • Return address
    • Pushed by call instruction
  • Arguments for this call

Register Saving Conventions

• When procedure yoo call who:

  • yoo is the caller
  • who is the callee

• Can register be used for temporary storage?

  yoo:
  	• • •
      movq $15213, %rdx
      call who
      addq %rdx, %rax
  	• • •
  	ret


  who:
      • • •
      subq $18213, %rdx
      • • •
      ret


  • Contents of register %rdx overwritten by who
  • This could be trouble -> something should be done!
    • Need some coordination

x86-64 Linux Register Usage

• %rax
  • Return value
  • Also caller-saved
  • Can be modified by procedure
• %rdi, …, %r9
  • Arguments
  • Also caller-saved
  • Can be modified by procedure
• %r10, %r11
  • Caller-saved
  • Can be modified by procedure
• %rbx, %r12, %r13, %r14
  • Callee-saved
  • Callee must save & restore
• %rbp
  • Callee-saved
  • Callee must save & store
  • May be used as frame pointer
  • Can mix & match
• %rsp
  • Special form of callee save
  • Restored to original value upon exit from procedure

Illustration of Recursion

Recursive Function

/* Recursive popcount */
long pcount_r(unsigned long x) {
    if (x == 0)
    	return 0;
    else
    	return (x & 1)
    		+ pcount_r(x >> 1);
}

pcount_r:
    movl	$0, %eax
    testq	%rdi, %rdi
    je		.L6
    pushq	%rbx
    movq	%rdi, %rbx
    andl	$1, %ebx
    shrq	%rdi
    call 	pcount_r
    addq	%rbx, %rax
    popq	%rbx
.L6:
	rep; ret

Observations About Recursion

• Handled Without Special Consideration
  • Stack frames mean that each function call has private storage
    • Saved registers & local variables
    • Saved return pointer
  • Register saving conventions prevent one function call from corrupting another’s data
    • Unless the C code explicitly does so (e.g., buffer overflow in Lecture 9)
  • Stack discipline follows call/return pattern
    • If P calls Q, then Q returns before P
    • Last-In, First-Out
• Also works for mutual recursion
  • P calls Q; Q calls P

x86-64 Procedure Summary

• Important Points
  • Stack is the right data structure for procedure call / return
  • If P calls Q, then Q returns before P
• Recursion(& mutual recursion) handled by normal calling conventions
  • Can safely store values in local stack frame and in callee-saved registers
  • Put function arguments at top of stack
  • Result return in %rax
• Pointers are addresses of values
  • On stack or global


Machine Programming IV: Data

Summary

• Arrays
  • Elements packed into contiguous region of memory
  • Use index arithmetic to locate individual elements
• Structure
  • Elements packed into single region of memory
  • Access using offsets determined by compiler
  • Possible require internal and external padding to ensure alignment
• Combinations
  • Can nest structure and array code arbitrarily
• Floating Point
  • Data held and operated on in XMM registers
