PowerDesigner逆向生成PDM

本文介绍如何使用Navicat和PowerDesigner进行MySQL数据库的备份和逆向工程操作,包括导出数据库脚本文件及创建PDM文件的过程,并提供了一个用于替换表名和字段名的VBA脚本。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

环境:mysql数据库 navicate powerdesigner
1.使用navicate登录mysql,导出数据库脚本文件
在这里插入图片描述

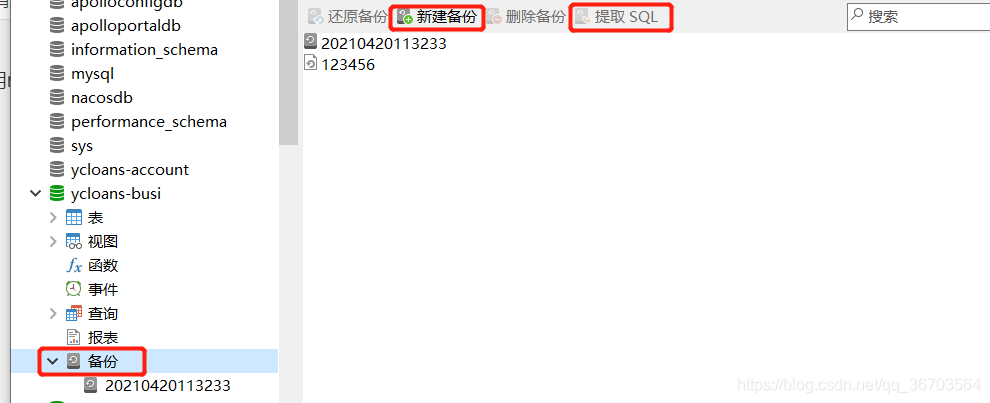

选择数据库,新建备份,选择备份文件提取sql

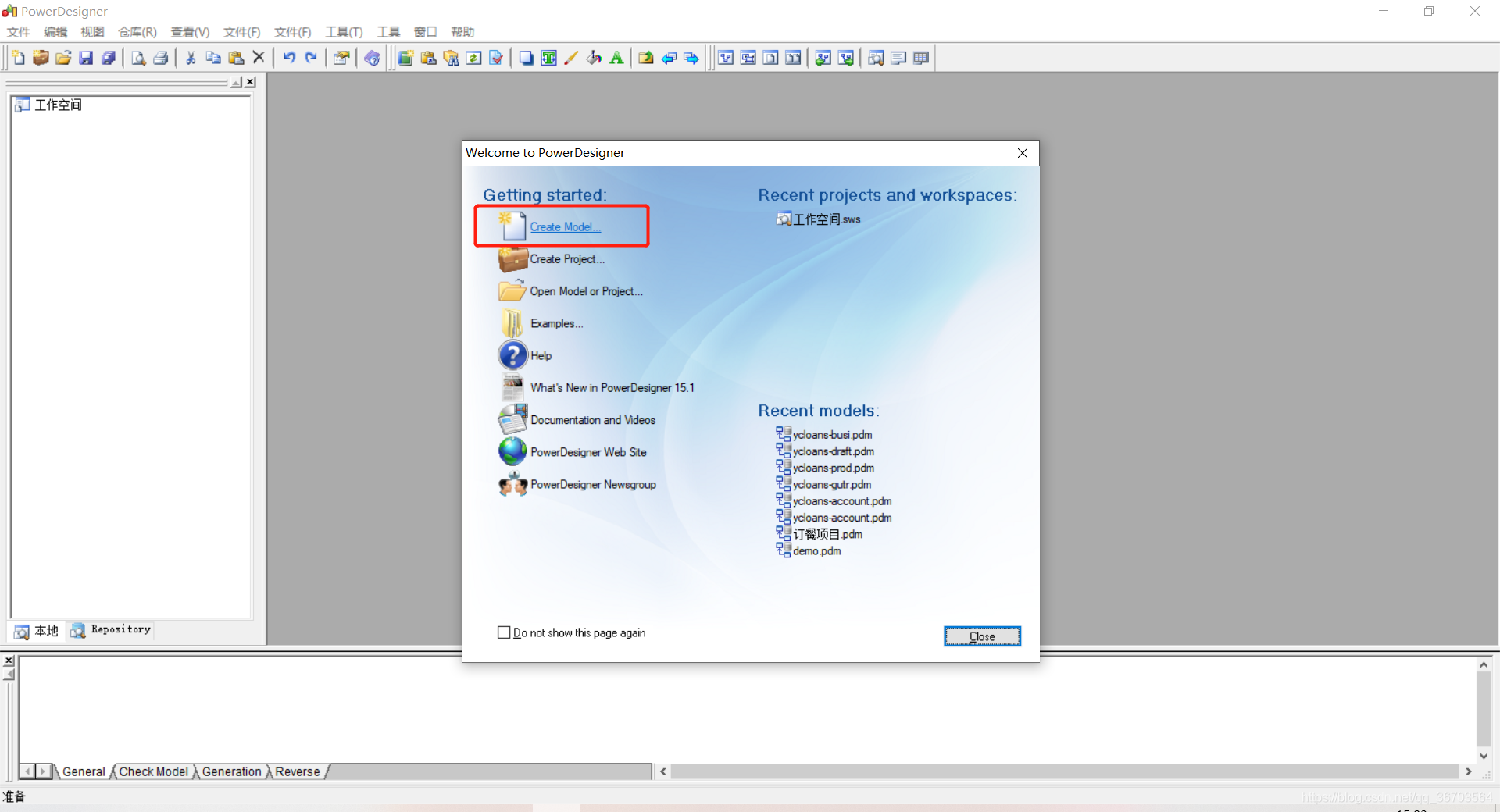

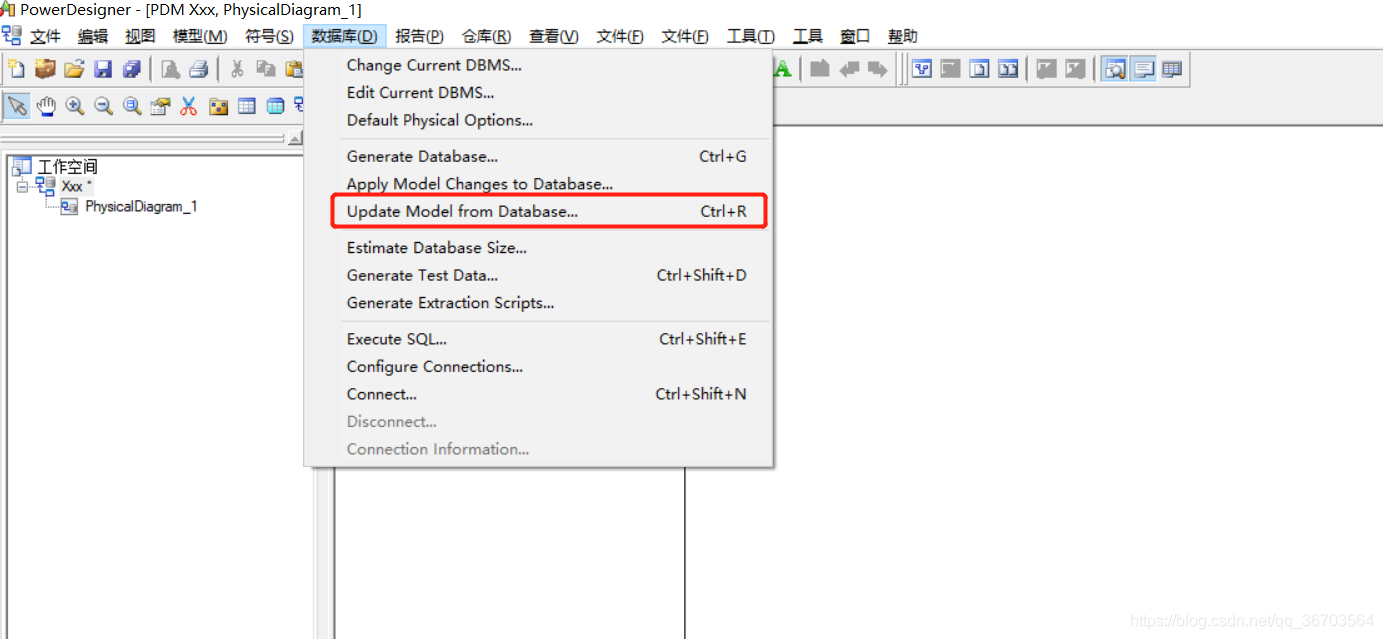

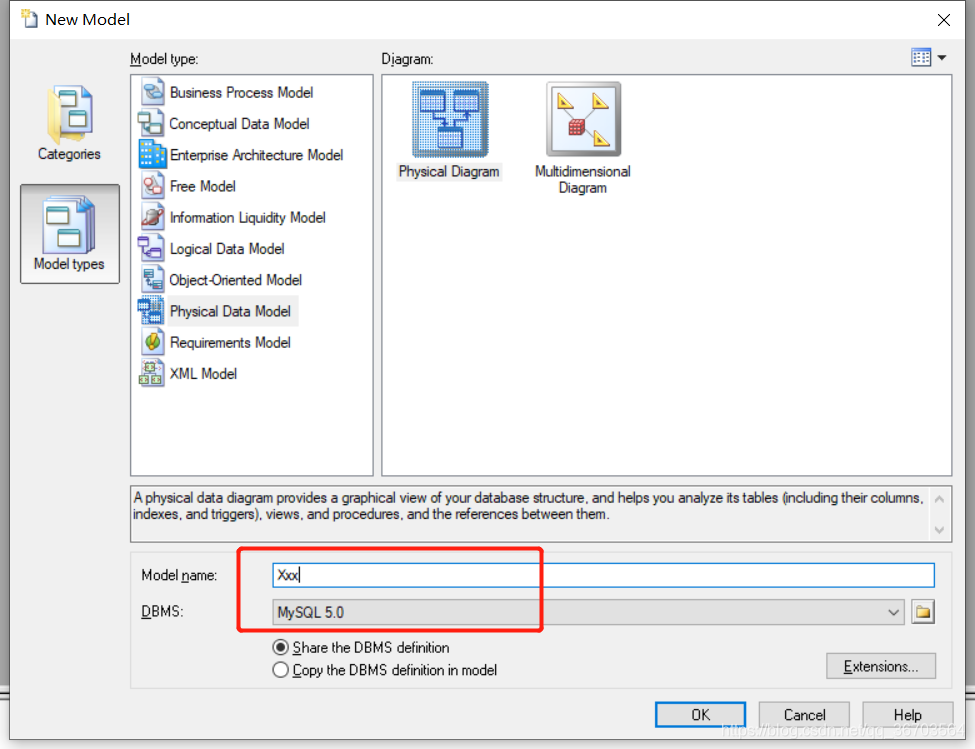

2.使用PowerDesigner创建PDM文件
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

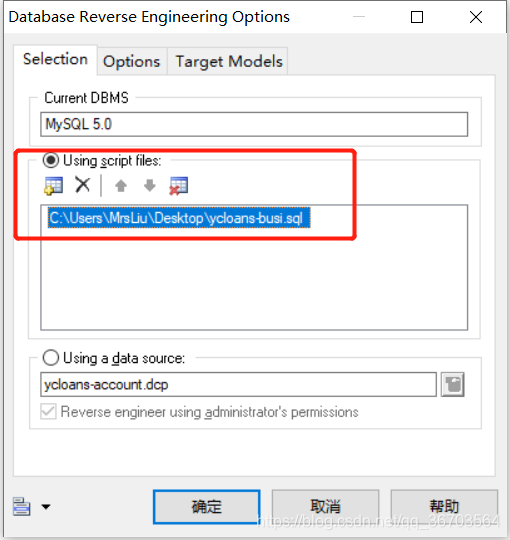

选择sql文件,点击确认即可
在这里插入图片描述

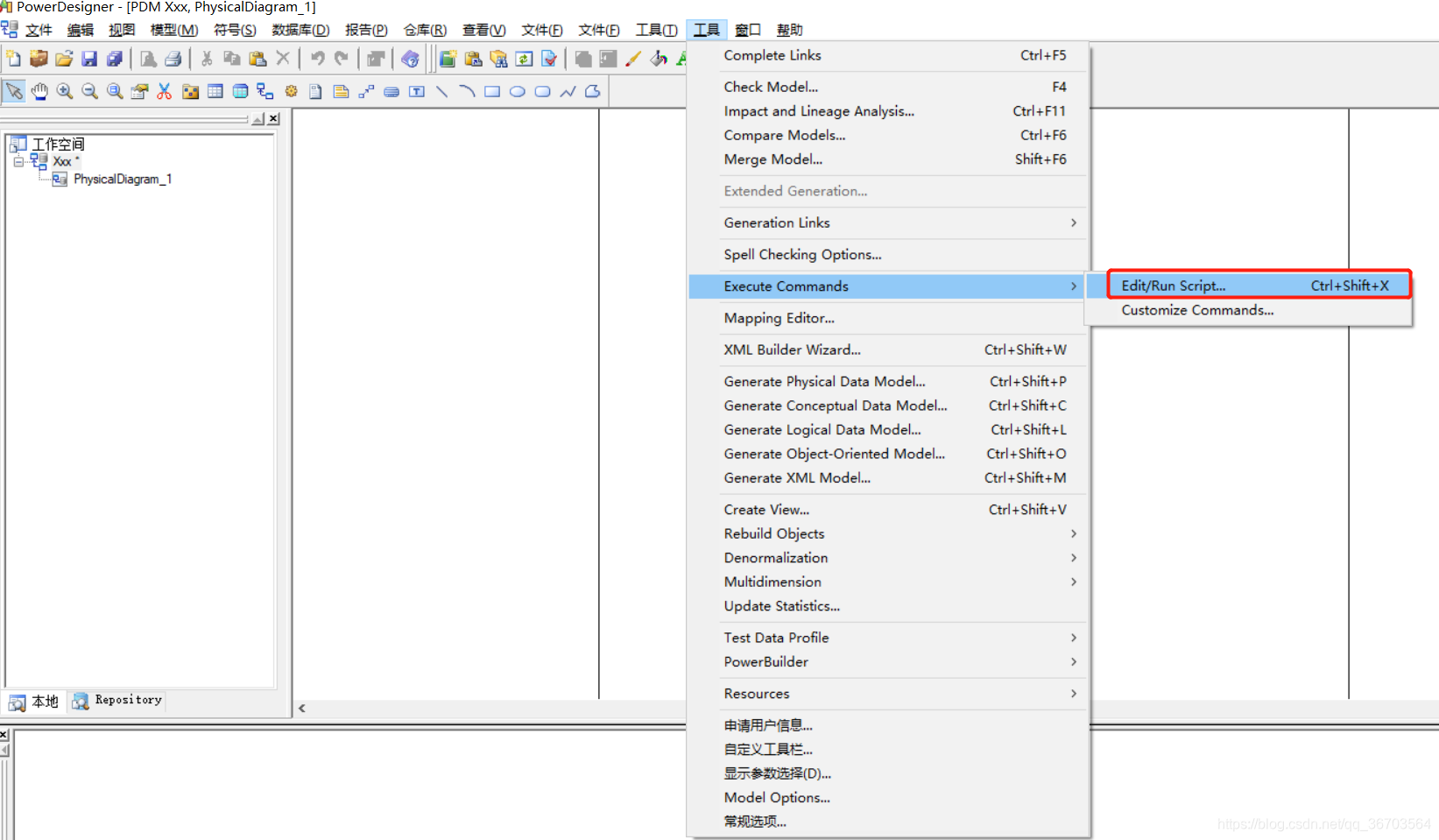

生成逆向工程后将备注内容替换成name
在这里插入图片描述

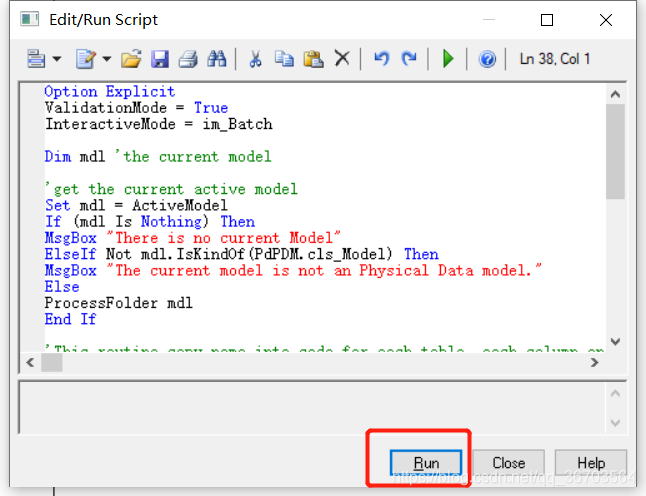

点击run 执行脚本
在这里插入图片描述
脚本内容:

Option Explicit
ValidationMode = True
InteractiveMode = im_Batch

Dim mdl 'the current model

'get the current active model
Set mdl = ActiveModel
If (mdl Is Nothing) Then
MsgBox "There is no current Model"
ElseIf Not mdl.IsKindOf(PdPDM.cls_Model) Then
MsgBox "The current model is not an Physical Data model."
Else
ProcessFolder mdl
End If

'This routine copy name into code for each table, each column and each view
'of the current folder
Private sub ProcessFolder(folder)

Dim Tab 'running table
for each Tab in folder.tables
if not tab.isShortcut then
if len(tab.comment) <> 0 then
tab.name = tab.comment
end if
On Error Resume Next
Dim col 'running column
for each col in tab.columns
if len(col.comment) <>0 then
col.name =col.comment
end if
On Error Resume Next
next
end if
next
end sub
