kafka-streaming偏移量管理

RuozeKafkaProducer.java

先写一个kafka制造数据的东东

package com.ruozedata.bigdata.kafka;


import kafka.javaapi.producer.Producer;
import kafka.producer.KeyedMessage;
import kafka.producer.ProducerConfig;

import java.util.Properties;
import java.util.UUID;

//kafka数据发送，producer
public class RuozeKafkaProducer {

    public static void main(String[] args) {

        Properties properties = new Properties();
        properties.put("serializer.class","kafka.serializer.StringEncoder");
        properties.put("metadata.broker.list","hadoop000:9092,hadoop000:9093,hadoop000:9094");

        ProducerConfig producerConfig = new ProducerConfig(properties);
        Producer<String,String> producer = new Producer<String, String>(producerConfig);

        String topic ="ruozeg5sparkkafka";
        for (int index=0; index<100;index++){
            producer.send(new KeyedMessage<String, String>(topic,index+"",index+"ruozeshuju:"+ UUID.randomUUID()));
        }

        System.out.println("若泽数据Kafka生产者生产数据完毕...");

    }

}

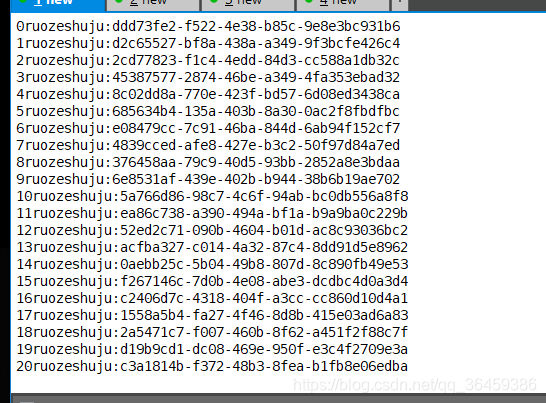

在消费者里可以看到数据

bin/kafka-console-consumer.sh \
--zookeeper 192.168.137.190:2181,192.168.137.190:2182,192.168.137.190:2183/kafka \
--topic ruozeg5sparkkafka --from-beginning

用checkpoint记录偏移量

package com.ruozedata.bigdata.streaming05

import kafka.serializer.StringDecoder
import org.apache.spark.SparkConf
import org.apache.spark.streaming.kafka.KafkaUtils
import org.apache.spark.streaming.{Duration, Seconds, StreamingContext}

object CheckpointOffsetApp {

  def main(args: Array[String]): Unit = {
    val conf = new SparkConf().setMaster("local[2]").setAppName("CheckpointOffsetApp")

    //没有会自动创建
    val checkpointPath = "hdfs://hadoop000:9000/offset_g5/checkpoint"
    val topic="ruozeg5sparkkafka"
    val interval =10
    val kafkaParams = Map[String, String]("metadata.broker.list"->"hadoop000:9092","metadata.broker.list"->"hadoop000:9093","metadata.broker.list"->"hadoop000:9094","auto.offset.reset"->"smallest")
    val topics = topic.split(",").toSet


    def function2CreateStreamingContext()={
      val ssc = new StreamingContext(conf,Seconds(10))
      //[]里是[key class], [value class], [key decoder（解码） class], [value decoder class] ]
      //(streamingContext, [map of Kafka parameters], [set of topics to consume])
      val messages = KafkaUtils.createDirectStream[String,String,StringDecoder,StringDecoder](ssc,kafkaParams, topics)
      ssc.checkpoint(checkpointPath)
      messages.checkpoint(Duration(8*10.toInt*1000))

      messages.foreachRDD(rdd=>{
        if (!rdd.isEmpty()){
          println("------asd------"+rdd.count())
        }
      })
      ssc
    }

    //如果检查点数据存在就根据检查点数据重建context，如果不存在就根据第二个参数构建context
    val ssc =StreamingContext.getOrCreate(checkpointPath,function2CreateStreamingContext)
    ssc.start()
    ssc.awaitTermination()


  }

}

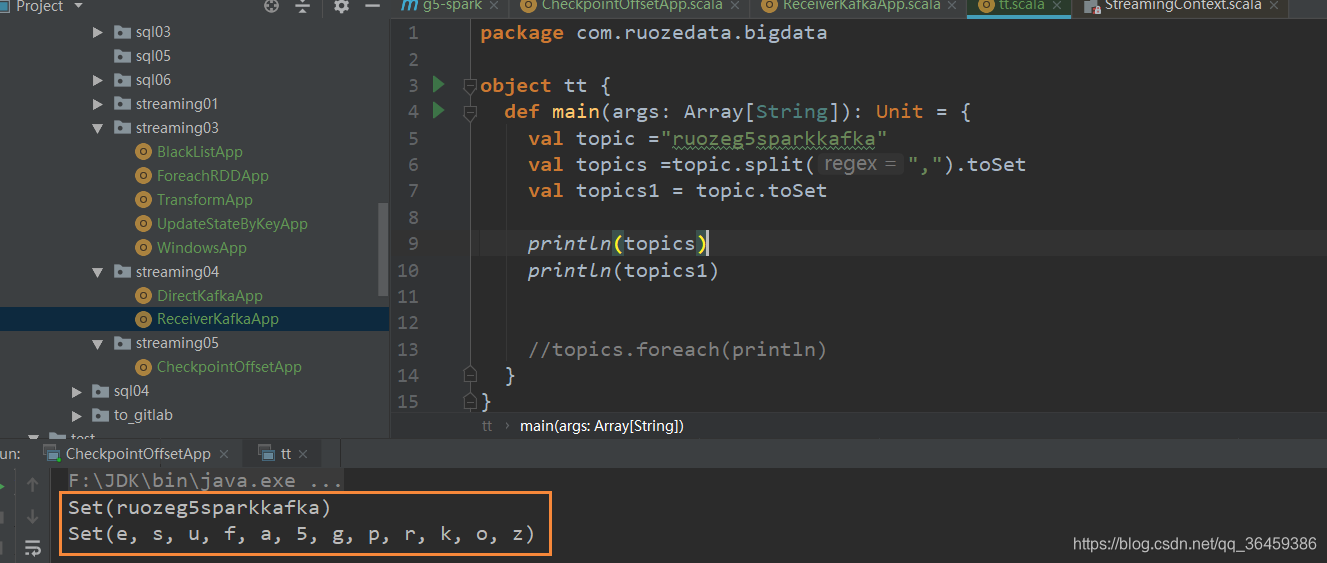

这里之所以要对topic做split，1是因为topic可以不止为1个，而且，就算只有一个不split结果会有问题。

At most once: Each record will be either processed once or not processed at all.
At least once: Each record will be processed one or more times. This is stronger than at-most once as it ensure that no data will be lost. But there may be duplicates.
Exactly once: Each record will be processed exactly once - no data will be lost and no data will be processed multiple times. This is obviously the strongest guarantee of the three.

之所以要split是因为
可以读多个topic，同时

smallest : 自动把offset设为最小的offset；
largest : 自动把offset设为最大的offset；
anything else: 抛出异常；

代码结果
跑100条，得到100条记录
再跑0条，得不到记录，说明偏移量起作用了，没有读所有的数据。

用mysql记录偏移量

scalalikeJDBC

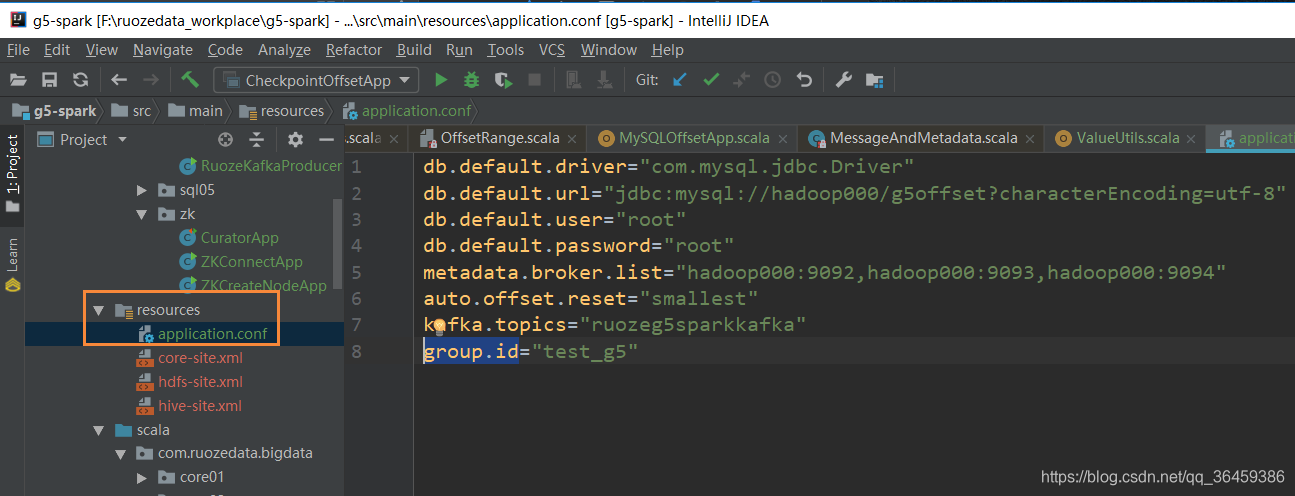

写一个获得配置里参数的object用来读取application.conf的其他参数

 package com.ruozedata.bigdata.streaming05

import com.typesafe.config.ConfigFactory
object ValueUtils {
  //加载application.conf
  val load=ConfigFactory.load()

  def getStringValue(key:String,defaultValue:String="")={
    load.getString(key)
  }

  def main(args: Array[String]): Unit = {
    println(getStringValue("kafka.topics"))
  }

}

创建mysql表和权限

create table if not exists offsets_storage(
topic varchar(50),
groupid varchar(20),
partitions int,
offset bigint,
primary key(topic,groupid,partitions)
);

MysqlOffsetApp

package com.ruozedata.bigdata.streaming05

import kafka.common.TopicAndPartition
import kafka.message.MessageAndMetadata
import kafka.serializer.StringDecoder
import org.apache.spark.SparkConf
import org.apache.spark.streaming.kafka.{HasOffsetRanges, KafkaUtils}
import org.apache.spark.streaming.{Seconds, StreamingContext}
import scalikejdbc._
import scalikejdbc.config.DBs

object MySQLOffsetApp {

  def main(args: Array[String]): Unit = {
    val conf = new SparkConf().setMaster("local[2]").setAppName("MysqlOffsetApp")

    //从application.conf加载配置信息
    DBs.setup()

    //用来构建stream的参数，详情看源码
    val fromOffsets= DB.readOnly(implicit session =>{
      sql"select * from offsets_storage".map(rs => {
        (TopicAndPartition(rs.string("topic"), rs.int("partitions")), rs.long("offset"))
      }).list().apply()
    }).toMap


    val topic = ValueUtils.getStringValue("kafka.topics")
    val interval=10

    val kafkaParams=Map(
      "metadata.broker.list"->ValueUtils.getStringValue("metadata.broker.list"),
      "auto.offset.reset"->ValueUtils.getStringValue("auto.offset.reset"),
      "group.id"->ValueUtils.getStringValue("group.id")
    )
    val topics =topic.split(",").toSet
    val ssc=new StreamingContext(conf,Seconds(10))



    ////TODO... 去MySQL里面获取到topic对应的partition的offset

    //没有offset从头消费
    val messages=if(fromOffsets.size==0){
      KafkaUtils.createDirectStream(ssc,kafkaParams,topics)
      //有offset从指定位置消费
    }else{

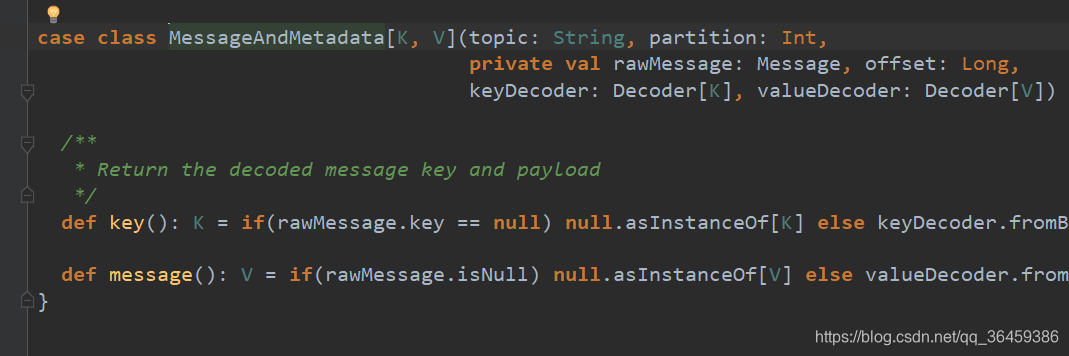

      //把数据和元数据转换成需要的类型，模板
      val messageHandler = (mm:MessageAndMetadata[String,String]) => (mm.key(),mm.message())
      KafkaUtils.createDirectStream[String,String,StringDecoder,StringDecoder,(String,String)](ssc,kafkaParams,fromOffsets,messageHandler)
    }

    messages.foreachRDD(rdd=>{
      if(!rdd.isEmpty()){
        println("---the count---"+rdd.count())

        val offsetRanges=rdd.asInstanceOf[HasOffsetRanges].offsetRanges
        offsetRanges.foreach(x=>{
          println(s"--${x.topic}---${x.partition}---${x.fromOffset}---${x.untilOffset}---")

          //替换到mysql最新的offset
          DB.autoCommit(implicit session =>{
            sql"replace into offsets_storage(topic,groupid,partitions,offset) values(?,?,?,?)"
              .bind(x.topic,ValueUtils.getStringValue("group.id"),x.partition,x.untilOffset)
              .update().apply()
          })
        })
      }
    })

    ssc.start()
    ssc.awaitTermination()
  }

}

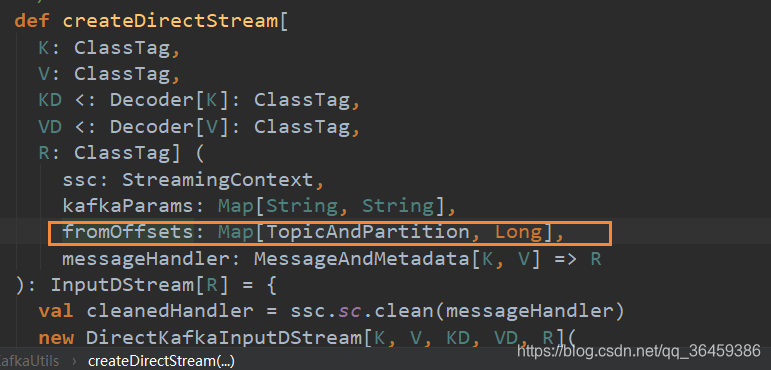

根据TopicAndPartition写fromoffsets

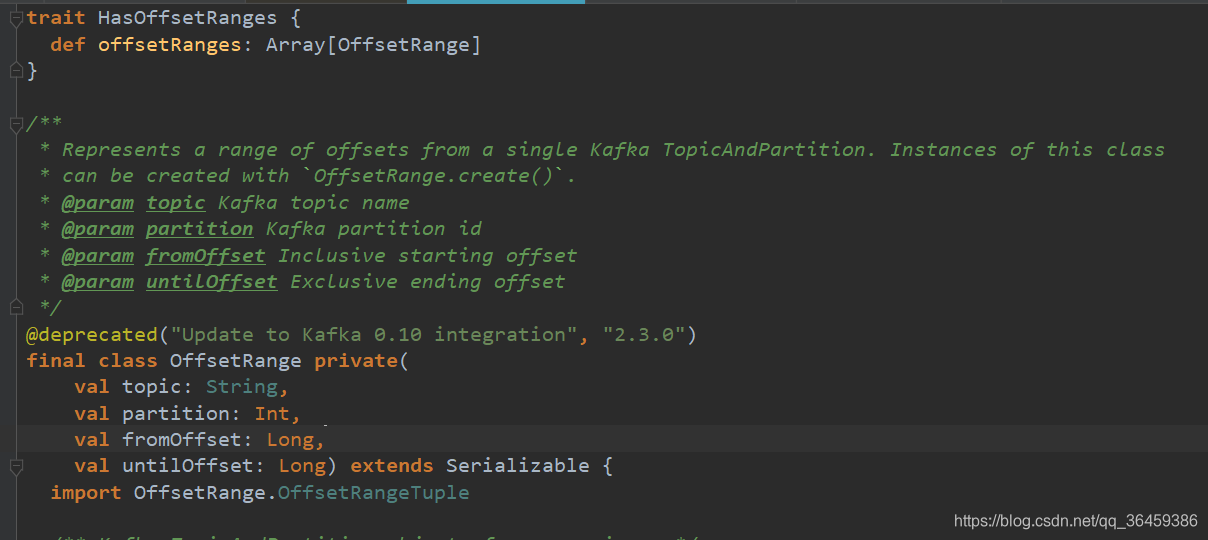

可以通过offsetRange拿到Dstream的offset之类的

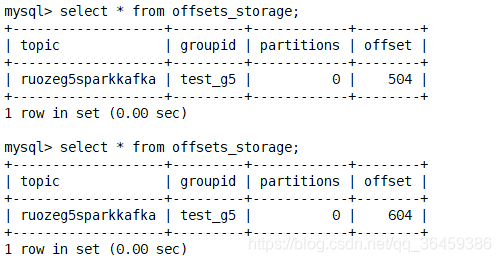

查看mysql结果
