涉及得组件：kubelet kube-apiserver etcd 等

扫描方法：

nmap -sV --script ssl-enum-ciphers -p 10250 192.168.100.100

nmap -sV --script ssl-enum-ciphers -p 2379 192.168.100.100

nmap -sV --script ssl-enum-ciphers -p 6443 192.168.100.100

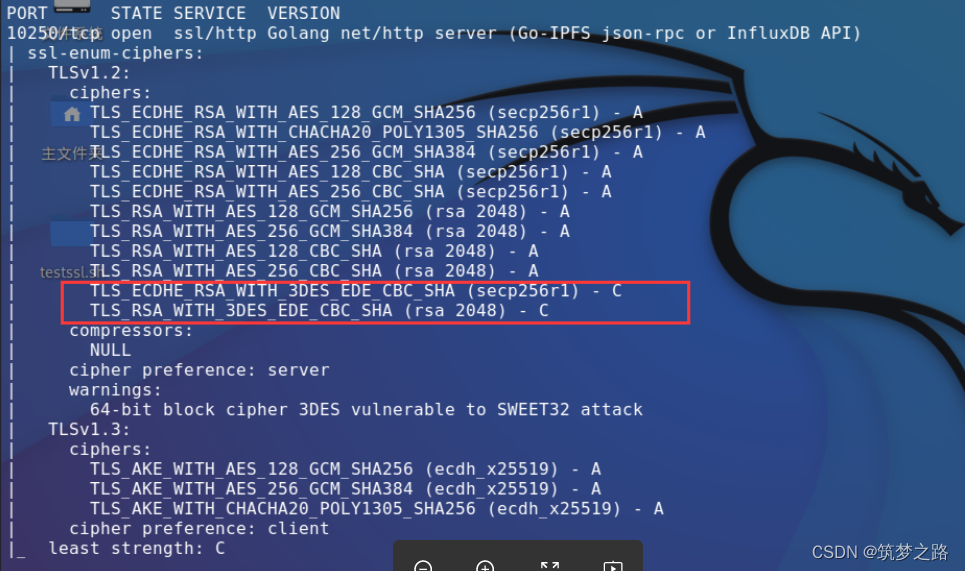

扫描结果示例见截图

解决方案：

去掉3DES弱加密算法，其他加密算法保留

# kubelet组件添加配置

vim  /var/lib/kubelet/config.yaml

tlsCipherSuites:
- TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256
- TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384
- TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305
- TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256
- TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384
- TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305
- TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305_SHA256
- TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA
- TLS_RSA_WITH_AES_128_CBC_SHA
- TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA-TLS_RSA_WITH_AES_128_GCM_SHA256
- TLS_RSA_WITH_AES_256_CBC_SHA-TLS_RSA_WITH_AES_256_GCM_SHA384

# 重启kubelet

systemctl restart kubelet

# kube-apiserver组件
# kube-api 在kube-apiserver.yaml的command参数部分增加tls-cipher-suites
# vim /etc/kubernetes/manifests/kube-apiserver.yaml

- --tls-cipher-suites=TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305,TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305,TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305_SHA256,TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA,TLS_RSA_WITH_AES_128_CBC_SHA,TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA,TLS_RSA_WITH_AES_128_GCM_SHA256,TLS_RSA_WITH_AES_256_CBC_SHA,TLS_RSA_WITH_AES_256_GCM_SHA384

# etcd组件
# etcd 在etcd.yaml的command参数部分增加cipher-suites，注意没有tls前缀
# etcd有提示 unexpected TLS cipher suite "TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305_SHA256"，去除对应加密模式

vim /etc/kubernetes/manifests/etcd.yaml

 - --cipher-suites=TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305,TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305,TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA,TLS_RSA_WITH_AES_128_CBC_SHA,TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA,TLS_RSA_WITH_AES_128_GCM_SHA256,TLS_RSA_WITH_AES_256_CBC_SHA,TLS_RSA_WITH_AES_256_GCM_SHA384


# kube-controller-manager组件
# --tls-cipher-suites strings
供服务器使用的加密包的逗号分隔列表。若忽略此标志，则使用 Go 语言默认的加密包。
可选值包括：TLS_AES_128_GCM_SHA256、TLS_AES_256_GCM_SHA384、TLS_CHACHA20_POLY1305_SHA256、TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA、TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256、TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA、TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384、TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305、TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305_SHA256、TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA、TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256、TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA、TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384、TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305、TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305_SHA256、TLS_RSA_WITH_AES_128_CBC_SHA、TLS_RSA_WITH_AES_128_GCM_SHA256、TLS_RSA_WITH_AES_256_CBC_SHA、TLS_RSA_WITH_AES_256_GCM_SHA384。
不安全的值: TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA256、TLS_ECDHE_ECDSA_WITH_RC4_128_SHA、TLS_ECDHE_RSA_WITH_3DES_EDE_CBC_SHA、TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256、TLS_ECDHE_RSA_WITH_RC4_128_SHA、TLS_RSA_WITH_3DES_EDE_CBC_SHA、TLS_RSA_WITH_AES_128_CBC_SHA256、TLS_RSA_WITH_RC4_128_SHA。

# 添加配置
# vim /etc/systemd/system/kube-controller-manager.service

--tls-cipher-suites=TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305,TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305,TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA,TLS_RSA_WITH_AES_128_CBC_SHA,TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA,TLS_RSA_WITH_AES_128_GCM_SHA256,TLS_RSA_WITH_AES_256_CBC_SHA,TLS_RSA_WITH_AES_256_GCM_SHA384

# 重启服务
systemctl daemon-reload && systemctl restart kube-controller-manager


# kube-scheduler组件
# --tls-cipher-suites strings
服务器的密码套件列表，以逗号分隔。如果省略，将使用默认的 Go 密码套件。 优先考虑的值： TLS_AES_128_GCM_SHA256, TLS_AES_256_GCM_SHA384, TLS_CHACHA20_POLY1305_SHA256, TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA, TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256, TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA, TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384, TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305, TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305_SHA256, TLS_ECDHE_RSA_WITH_3DES_EDE_CBC_SHA, TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA, TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256, TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA, TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384, TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305, TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305_SHA256, TLS_RSA_WITH_3DES_EDE_CBC_SHA, TLS_RSA_WITH_AES_128_CBC_SHA, TLS_RSA_WITH_AES_128_GCM_SHA256, TLS_RSA_WITH_AES_256_CBC_SHA, TLS_RSA_WITH_AES_256_GCM_SHA384.
不安全的值： TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA256, TLS_ECDHE_ECDSA_WITH_RC4_128_SHA, TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256, TLS_ECDHE_RSA_WITH_RC4_128_SHA, TLS_RSA_WITH_AES_128_CBC_SHA256, TLS_RSA_WITH_RC4_128_SHA.

# 添加配置
# vim /etc/systemd/system/kube-scheduler.service
--tls-cipher-suites=TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305,TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305,TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA,TLS_RSA_WITH_AES_128_CBC_SHA,TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA,TLS_RSA_WITH_AES_128_GCM_SHA256,TLS_RSA_WITH_AES_256_CBC_SHA,TLS_RSA_WITH_AES_256_GCM_SHA384

#重启
systemctl daemon-reload
systemctl restart kube-scheduler

----------------

# 再次扫描验证

nmap --script ssl-enum-ciphers -p 10250 192.168.100.100

nmap --script ssl-enum-ciphers -p 6443 192.168.100.100

nmap --script ssl-enum-ciphers -p 2379 192.168.100.100

nmap --script ssl-enum-ciphers -p 10252 192.168.100.100

nmap --script ssl-enum-ciphers -p 10251 192.168.100.100

注意事项：若服务起不来，查看日志有不支持的加密算法，去掉重启即可
