Pytorch|YOWO原理及代码详解(一)

Pytorch|YOWO原理及代码详解（一）

阅前可看：YOWO论文翻译
YOWO很有趣，使用价值很大，最近刚好需要，所以就研究一下。一直认为只有把源码看懂，才知道诸多细节，才算真正了解一个算法。笔者能力有限，博文若有出错，欢迎指正交流。

这次为了方便debug，所以就稍微改动了train.py 文件，修改为myTrain.py，代码分析就从这里开始，但在之前需要完成各项配置。

1.训练之前需要的工作。

1.1 ucf101-24数据集

ucf101-24数据集下载。论文使用了两个数据集，本次代码分析只使用ucf24数据集。

1.2 基础骨干网络预训练模型

有两个，第一个是2d网络yolov2。还有一个是3d网络ResNeXt ve ResNet。本次代码分析使用：“resnext-101-kinetics.pth”。

1.3 YOWO网络预训练模型

作者放百度云了，密码：95mm。

1.4 路径配置

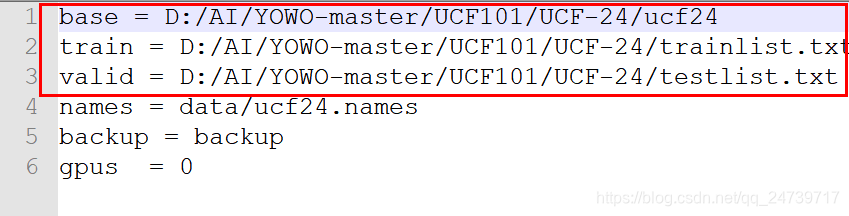

基础骨干网络放到“weight”中，ucf24路径随意，但记得需要在ucf24.data中进行修改，如下：

2. 准备开始训练

首先附上myTrain.py的完整代码：

from __future__ import print_function
import sys
import time
import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim
import torch.backends.cudnn as cudnn
from torchvision import datasets, transforms
import dataset
import random
import math
import os
from opts import parse_opts
from utils import *
from cfg import parse_cfg
from region_loss import RegionLoss
from model import YOWO, get_fine_tuning_parameters
import argparse
if __name__ == "__main__":
    parser = argparse.ArgumentParser()
    parser.add_argument("--dataset", type=str, default="ucf101-24", help="dataset")
    parser.add_argument("--data_cfg", type=str, default="cfg/ucf24.data ", help="data_cfg")
    parser.add_argument("--cfg_file", type=str, default="cfg/ucf24.cfg ", help="cfg_file")
    parser.add_argument("--n_classes", type=int, default=24, help="n_classes")
    parser.add_argument("--backbone_3d", type=str, default="resnext101", help="backbone_3d")
    parser.add_argument("--backbone_3d_weights", type=str, default="weights/resnext-101-kinetics.pth", help="backbone_3d_weights")
    parser.add_argument("--backbone_2d", type=str, default="darknet", help="backbone_3d_weights")
    parser.add_argument("--backbone_2d_weights", type=str, default="weights/yolo.weights", help="backbone_2d_weights")
    parser.add_argument("--freeze_backbone_2d", type=bool, default=True, help="freeze_backbone_2d")
    parser.add_argument("--freeze_backbone_3d", type=bool, default=True, help="freeze_backbone_3d")
    parser.add_argument("--evaluate", type=bool, default=False, help="evaluate")
    parser.add_argument("--begin_epoch", type=int, default=0, help="begin_epoch")
    parser.add_argument("--end_epoch", type=int, default=4, help="evaluate")
    opt = parser.parse_args()
    # opt = parse_opts()
    # which dataset to use
    dataset_use = opt.dataset
    assert dataset_use == 'ucf101-24' or dataset_use == 'jhmdb-21', 'invalid dataset'
    # path for dataset of training and validation
    datacfg = opt.data_cfg
    # path for cfg file
    cfgfile = opt.cfg_file
    data_options = read_data_cfg(datacfg)
    net_options = parse_cfg(cfgfile)[0]
    # obtain list for training and testing
    basepath = data_options['base']
    trainlist = data_options['train']
    testlist = data_options['valid']
    backupdir = data_options['backup']
    # number of training samples
    nsamples = file_lines(trainlist)
    gpus = data_options['gpus']  # e.g. 0,1,2,3
    ngpus = len(gpus.split(','))
    num_workers = int(data_options['num_workers'])
    batch_size = int(net_options['batch'])
    clip_duration = int(net_options['clip_duration'])
    max_batches = int(net_options['max_batches'])
    learning_rate = float(net_options['learning_rate'])
    momentum = float(net_options['momentum'])
    decay = float(net_options['decay'])
    steps = [float(step) for step in net_options['steps'].split(',')]
    scales = [float(scale) for scale in net_options['scales'].split(',')]
    # loss parameters
    loss_options = parse_cfg(cfgfile)[1]
    region_loss = RegionLoss()
    anchors = loss_options['anchors'].split(',')
    region_loss.anchors = [float(i) for i in anchors]
    region_loss.num_classes = int(loss_options['classes'])
    region_loss.num_anchors = int(loss_options['num'])
    region_loss.anchor_step = len(region_loss.anchors) // region_loss.num_anchors
    region_loss.object_scale = float(loss_options['object_scale'])
    region_loss.noobject_scale = float(loss_options['noobject_scale'])
    region_loss.class_scale = float(loss_options['class_scale'])
    region_loss.coord_scale = float(loss_options['coord_scale'])
    region_loss.batch = batch_size
    # Train parameters
    max_epochs = max_batches * batch_size // nsamples + 1
    use_cuda = True
    seed = int(time.time())
    eps = 1e-5
    best_fscore = 0  # initialize best fscore
    # Test parameters
    nms_thresh = 0.4
    iou_thresh = 0.5
    if not os.path.exists(backupdir):
        os.mkdir(backupdir)
    # 设置随机种子
    torch.manual_seed(seed)
    if use_cuda:
        os.environ['CUDA_VISIBLE_DEVICES'] = gpus
        torch.cuda.manual_seed(seed)
    # Create model
    model = YOWO(opt)
    model = model.cuda()
    model = nn.DataParallel(model, device_ids=None)  # in multi-gpu case
    model.seen = 0
    print(model)
    parameters = get_fine_tuning_parameters(model, opt)
    optimizer = optim.SGD(parameters, lr=learning_rate / batch_size, momentum=momentum, dampening=0,
                          weight_decay=decay * batch_size)
    kwargs = {
   'num_workers': num_workers, 'pin_memory': True} if use_cuda else {
   }
    # Load resume path if necessary
    # if opt.resume_path:
    #     print("===================================================================")
    #     print('loading checkpoint {}'.format(opt.resume_path))
    #     checkpoint = torch.load(opt.resume_path)
    #     opt.begin_epoch = checkpoint['epoch']
    #     best_fscore = checkpoint['fscore']
    #     model.load_state_dict(checkpoint['state_dict'])
    #     optimizer.load_state_dict(checkpoint['optimizer'])
    #     model.seen = checkpoint['epoch'] * nsamples
    #     print("Loaded model fscore: ", checkpoint['fscore'])
    #     print("===================================================================")
    region_loss.seen = model.seen
    processed_batches = model.seen // batch_size
    init_width = int(net_options['width'])
    init_height = int(net_options['height'])
    init_epoch = model.seen // nsamples
    def adjust_learning_rate(optimizer, batch):
        lr = learning_rate
        for i in range(len(steps)):
            scale = scales[i] if i < len(scales) else 1
            if batch >= steps[i]:
                lr = lr * scale
                if batch == steps[i]:
                    break
            else:
                break
        for param_group in optimizer.param_groups:
            param_group['lr'] = lr / batch_size
        return lr
    def train(epoch):
        global processed_batches
        t0 = time.time()
        cur_model = model.module
        region_loss.l_x.reset()
        region_loss.l_y.reset()
        region_loss.l_w.reset()
        region_loss.l_h.reset()
        region_loss.l_conf.reset()
        region_loss.l_cls.reset()
        region_loss.l_total.reset()
        train_loader = torch.utils.data.DataLoader(
            dataset.listDataset(basepath, trainlist, dataset_use=dataset_use, shape=(init_width, init_height),
                                shuffle=True,
                                transform=transforms.Compose([
                                    transforms.ToTensor(),
                                ]),
                                train=True,
                                seen=cur_model.seen,
                                batch_size
