利用HTML5的canvas来绘制一个时钟；

编写html文件

index.html

<!DOCTYPE html>
<html lang="zh">
<head>
    <meta charset="UTF-8" />
    <title>Clock</title>
</head>
<body>
    <canvas id="drawClock" width="500" height="500"></canvas>
    <script src="js/file1.js"></script>
</body>
</html>

编写js文件

file1.js

var canvas = document.getElementById("drawClock");
var clock = canvas.getContext("2d");

setInterval(drawClock, 1000);

function drawClock() {
    //清除像素
    clock.clearRect(0, 0, 500, 500);

    //绘制表盘
    clock.lineWidth = 10;
    clock.strokeStyle = "black";
    clock.beginPath();
    clock.arc(250, 250, 200, 0, 2*Math.PI);
    clock.stroke();

    //获得需要显示的时间
    var time = new Date();
    var second = time.getSeconds();
    var minute = time.getMinutes();
    var hour = time.getHours();//返回0~23之间的整数
    hour += minute / 60;
    hour = hour > 12 ? hour - 12 : hour;

    //绘制表盘上的大刻度
    for (var i = 0; i < 12; i++) {
        //保存前一个状态
        clock.save();
        //重新定义画布(0,0)点
        clock.translate(250, 250);
        clock.lineWidth = 7;
        clock.strokeStyle = "black";
        clock.rotate(i * 30 * Math.PI / 180);
        clock.beginPath();
        clock.moveTo(0, -170);
        clock.lineTo(0, -195);
        clock.stroke();
        clock.restore();
    }

    //绘制表盘上的小刻度
    for (var i = 0; i < 60; i++) {
        //保存前一个状态
        clock.save();
        //重新定义画布(0,0)点
        clock.translate(250, 250);
        clock.lineWidth = 5;
        clock.strokeStyle = "black";
        clock.rotate(i * 6 * Math.PI / 180);
        clock.beginPath();
        clock.moveTo(0, -180);
        clock.lineTo(0, -195);
        clock.stroke();
        clock.restore();
    }

    //绘制对应刻度上的数字
    for (var i = 0; i < 12; i++) {
        clock.save();
        clock.translate(250, 250);
        var digit = i == 0 ? 12 : i;
        var len = 160;
        var x = Math.abs(len * Math.sin(i * 30 * Math.PI / 180));
        var y = Math.abs(len * Math.cos(i * 30 * Math.PI / 180));
        x = i > 6 ? x * -1 : x;
        y = i >= 3 && i <= 9 ? y : y * -1;
        clock.font = "normal normal bold 10px arial";
        clock.fillText(digit, x - 5, y, 50);
        clock.restore();
    }

    //绘制时针
    clock.save();
    //重新定义画布(0,0)点
    clock.translate(250, 250);
    clock.lineWidth = 5;
    clock.strokeStyle = "black";
    clock.rotate(hour * 30 * Math.PI / 180);
    clock.beginPath();
    clock.moveTo(0, -100);
    clock.lineTo(0, 10);
    clock.stroke();
    clock.restore();

    //绘制分针
    clock.save();
    clock.translate(250, 250);
    clock.lineWidth = 4;
    clock.strokeStyle = "black";
    clock.rotate(minute * 6 * Math.PI / 180);
    clock.beginPath();
    clock.moveTo(0, -125);
    clock.lineTo(0, 10);
    clock.stroke();
    clock.restore();

    //绘制秒针
    clock.save();
    clock.translate(250, 250);
    clock.lineWidth = 3;
    clock.strokeStyle = "black";
    clock.rotate(second * 6 * Math.PI / 180);
    clock.beginPath();
    clock.moveTo(0, -150);
    clock.lineTo(0, 10);
    clock.stroke();
    clock.restore();
}

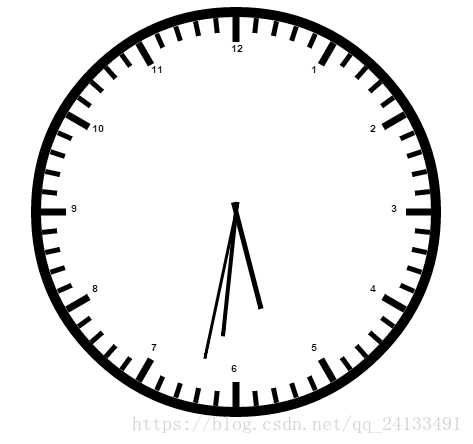

最终效果图

这里写图片描述
