实验四 二维图形的几何变换

#include  <GL/glut.h>
#include  <stdlib.h>
#include  <math.h>
/*  初始化显示窗口大小 */
GLsizei winWidth = 600, winHeight = 600;
/* 设置世界坐标系的显示范围 */
GLfloat xwcMin = 0.0, xwcMax = 225.0;
GLfloat ywcMin = 0.0, ywcMax = 225.0;
/* 定义二维点数据结构 */
class wcPt2D
{
public:
    GLfloat  x, y;
};
typedef GLfloat Matrix3x3[3][3];
Matrix3x3 matComposite;  	//定义复合矩阵
const GLdouble pi = 3.14159;
void init(void)
{
    /* 设置显示窗口的背景颜色为白色 */
    glClearColor(1.0, 1.0, 1.0, 0.0);
}
/* 构建3*3的单位矩阵 */
void matrix3x3SetIdentity(Matrix3x3 matIdent3x3)
{
    GLint row, col;

    for (row = 0; row < 3; row++)
        for (col = 0; col < 3; col++)
            matIdent3x3[row][col] = (row == col);
}
/* 变换矩阵m1前将m1与矩阵m2相乘,并将结果存放到m2中 */
void  matrix3x3PreMultiply(Matrix3x3 m1, Matrix3x3 m2)
{
    GLint  row, col;
    Matrix3x3  matTemp;

    for (row = 0; row < 3; row++)
        for (col = 0; col < 3; col++)
            matTemp[row][col] = m1[row][0] * m2[0][col] + m1[row][1] * m2[1][col] + m1[row][2] * m2[2][col];
    for (row = 0; row < 3; row++)
        for (col = 0; col < 3; col++)
            m2[row][col] = matTemp[row][col];
}

/* 平移变换函数，平移量tx，ty */
void translate2D(GLfloat tx, GLfloat ty)
{
    Matrix3x3  matTransl;
    /* 初始化平移矩阵为单位矩阵 */
    matrix3x3SetIdentity(matTransl);

    matTransl[0][2] = tx;
    matTransl[1][2] = ty;
    /*  将平移矩阵前乘到复合矩阵matComposite中 */
    matrix3x3PreMultiply(matTransl, matComposite);
}

/* 旋转变换函数，参数为中心点pivotPt和旋转角度theta */
void rotate2D(wcPt2D pivotPt, GLfloat theta)
{
    Matrix3x3  matRot;

    /*  初始化旋转矩阵为单位矩阵 */
    matrix3x3SetIdentity(matRot);
    matRot[0][0] = cos(theta);
    matRot[0][1] = -sin(theta);
    matRot[0][2] = pivotPt.x * (1 - cos(theta)) + pivotPt.y * sin(theta);
    matRot[1][0] = sin(theta);
    matRot[1][1] = cos(theta);
    matRot[1][2] = pivotPt.y * (1 - cos(theta)) - pivotPt.x * sin(theta);

    /*  将旋转矩阵前乘到复合矩阵matComposite中 */
    matrix3x3PreMultiply(matRot, matComposite);
}

/* 比例变换函数，参数为基准点fixedPt和缩放比例sx、sy */
void scale2D(GLfloat sx, GLfloat sy, wcPt2D fixedPt)
{
    Matrix3x3  matScale;

    /* 初始化缩放矩阵为单位矩阵  */
    matrix3x3SetIdentity(matScale);

    matScale[0][0] = sx;
    matScale[0][2] = (1 - sx) * fixedPt.x;
    matScale[1][1] = sy;
    matScale[1][2] = (1 - sy) * fixedPt.y;

    /*  将缩放矩阵前乘到复合矩阵matComposite中 */
    matrix3x3PreMultiply(matScale, matComposite);
}

/*  利用复合矩阵计算变换后坐标 */
void  transformVerts2D(GLint nVerts, wcPt2D* verts)
{
    GLint  k;
    GLfloat  temp;
    for (k = 0; k < nVerts; k++)
    {
        temp = matComposite[0][0] * verts[k].x + matComposite[0][1] * verts[k].y + matComposite[0][2];
        verts[k].y = matComposite[1][0] * verts[k].x + matComposite[1][1] * verts[k].y + matComposite[1][2];
        verts[k].x = temp;
    }
}

/*  三角形绘制函数 */
void triangle(wcPt2D* verts)
{
    GLint  k;

    glBegin(GL_TRIANGLES);
    for (k = 0; k < 3; k++)
        glVertex2f(verts[k].x, verts[k].y);
    glEnd();
}

void myDisplay()
{
    /* 定义三角形的初始位置 */
    GLint nVerts = 3;
    wcPt2D verts[3] = { {50.0,25.0},{150.0,25.0},{100.0,100.0} };
    /*  计算三角形中心位置 */
    wcPt2D centroidPt;

    GLint k, xSum = 0, ySum = 0;
    for (k = 0; k < nVerts; k++)
    {
        xSum += verts[k].x;
        ySum += verts[k].y;
    }
    centroidPt.x = GLfloat(xSum) / GLfloat(nVerts);
    centroidPt.y = GLfloat(ySum) / GLfloat(nVerts);

    /*  设置几何变换参数*/
    wcPt2D pivPt, fixedPt;
    pivPt = centroidPt;
    fixedPt = centroidPt;

    GLfloat tx = 0.0, ty = 100.0;
    GLfloat sx = 0.5, sy = 0.5;
    GLdouble theta = pi / 2.0;

    glClear(GL_COLOR_BUFFER_BIT); 	//清空显示窗口

    glColor3f(0.0, 0.0, 1.0); 	//设置前景色为蓝色
    triangle(verts);       	//显示蓝色三角形（变换前）

    /* 初始化复合矩阵为单位矩阵 */
    matrix3x3SetIdentity(matComposite);

    /* 根据变换序列重建复合矩阵  */
    scale2D(sx, sy, fixedPt); 	//变换序列1:缩放变换
    rotate2D(pivPt, theta);	//变换序列2:旋转变换
    translate2D(tx, ty);    	//变换序列3:平移变换

    /* 应用复合矩阵到三角形 */
    transformVerts2D(nVerts, verts);

    glColor3f(1.0, 0.0, 0.0); 	//重新设置前景色为红色
    triangle(verts);       	//显示红色三角形（变换后）

    glFlush();
}

void Reshape(GLint newWidth, GLint newHeight)
{
    glMatrixMode(GL_PROJECTION);
    glLoadIdentity();
    gluOrtho2D(xwcMin, xwcMax, ywcMin, ywcMax);

    glClear(GL_COLOR_BUFFER_BIT);
}
void main(int argc, char** argv)
{
    glutInit(&argc, argv);
    glutInitDisplayMode(GLUT_SINGLE | GLUT_RGB);
    glutInitWindowPosition(50, 50);
    glutInitWindowSize(winWidth, winHeight);

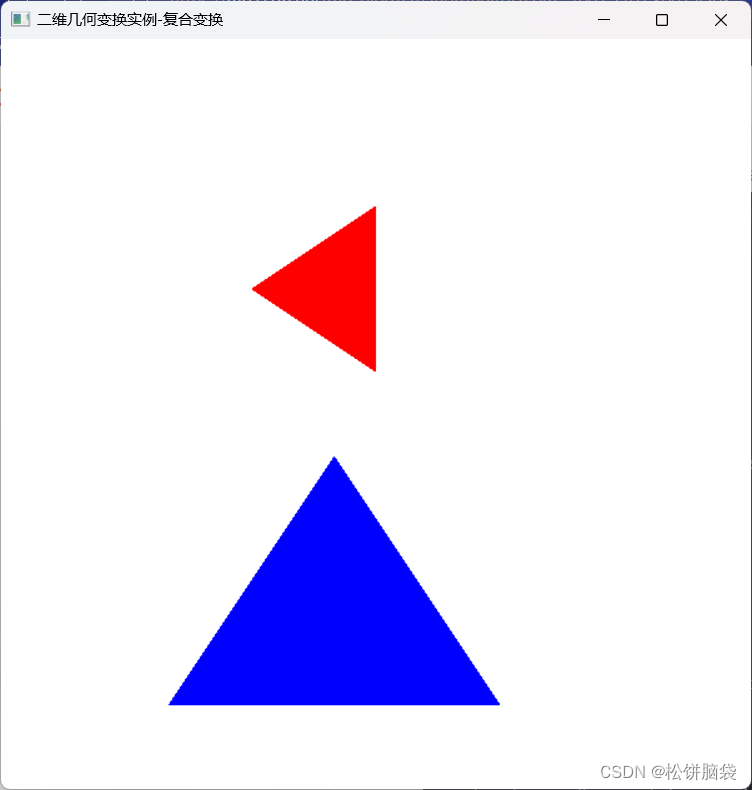

    glutCreateWindow("二维几何变换实例-复合变换");

    init();
    glutDisplayFunc(myDisplay);
    glutReshapeFunc(Reshape);

    glutMainLoop();
}
