#include <windows.h>
#include <GL/glut.h>

void init(int argc, char** argv) {
	glutInit(&argc, argv);
	glutInitDisplayMode(GLUT_SINGLE | GLUT_RGB);
	glutInitWindowPosition(50,100);
	glutInitWindowSize(400,400);
	glutCreateWindow("Bresenham");
	glClearColor(1.0,1.0, 1.0, 0);
	glMatrixMode(GL_PROJECTION);
	gluOrtho2D(0,400,0,400);
}

void Bresenham_Circle(int xc, int yc, int r) {
	int x, y, d;
	x = 0;
	y = r;
	d = 3 - 2 * r;
	glVertex2i(x + xc, y + yc);
	while (x < y)
	{
		if (d < 0)
		{
			d = d + 4 * x + 6;
		}
		else
		{
			d = d + 4 * (x - y) + 10;
			y--;
		}
		x++;
		glVertex2i(x + xc, y + yc);
		glVertex2i(y + xc,x + yc);
		glVertex2i(y + xc, -x + yc);
		glVertex2i(x + xc, -y + yc);
		glVertex2i(-x + xc, - y + yc);
		glVertex2i(-y + xc, - x + yc);
		glVertex2i(-x + xc, y + yc);
		glVertex2i(-y + xc, x + yc);

	}
}

void myDisplay(void) {
	glClear(GL_COLOR_BUFFER_BIT);
	glColor3f(0.0,0.4,0.2);
	glPointSize(2);
	glBegin(GL_POINTS);
	Bresenham_Circle(200,200,50);
	glEnd();
	glFlush();
}

int main(int argc, char** argv) {
	init(argc, argv);
	glutDisplayFunc(myDisplay);
	glutMainLoop();
	return 0;
}

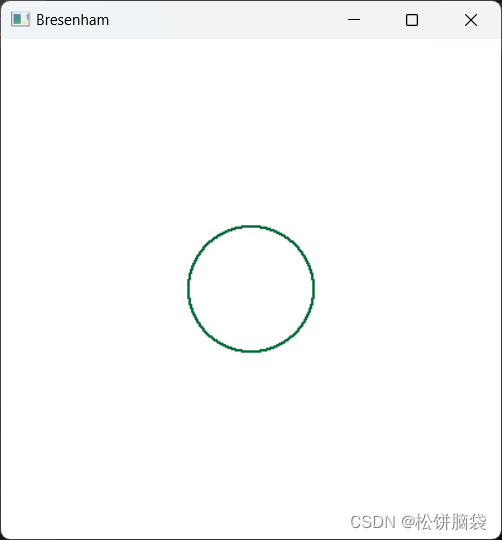

结果图
