Tmporal - Distribution Workflow

Tmporal

• Cost: No extra license cost
  • Temporary is an open source project licensed with MIT License, which means it is free of charge and has no additional license fees. You are free to use, modify and distribute it.

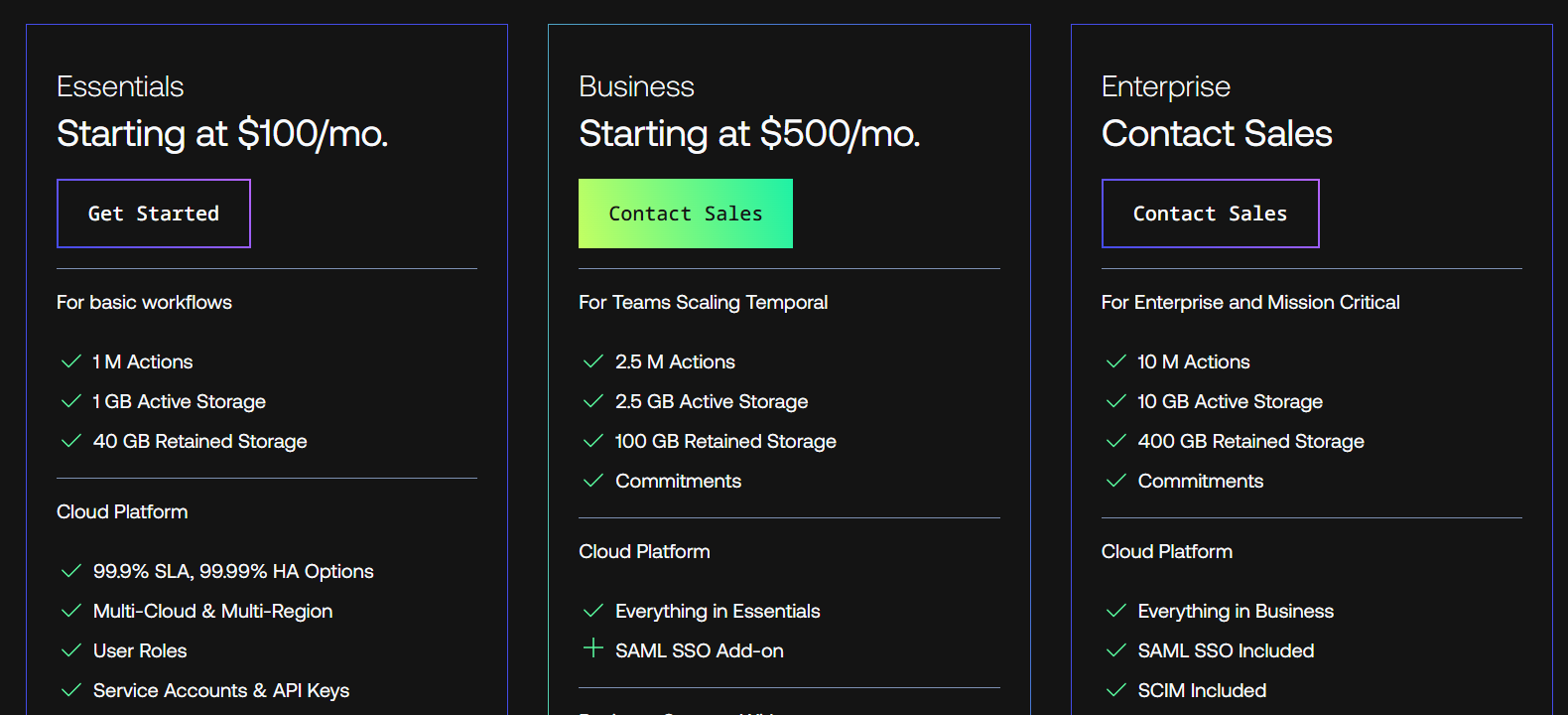

  • Temporary Cloud needs to pay service fees. Durable Execution Solutions | Temporal


• Flexibility: Create a new workflow or add new activity in a workflow
• Reliability: Can support cluster mode and which backend DB can be used
  Temporal support cluster mode and can use the following database.
  Cassandra v3.11 and v4.0
  PostgreSQL 13.18, 14.15, 15.10 and 16.6
  MySQL v5.7 and v8.0 (specifically 8.0.19+ due to a bug)
  SQLite v3.x, but this is only for development and testing

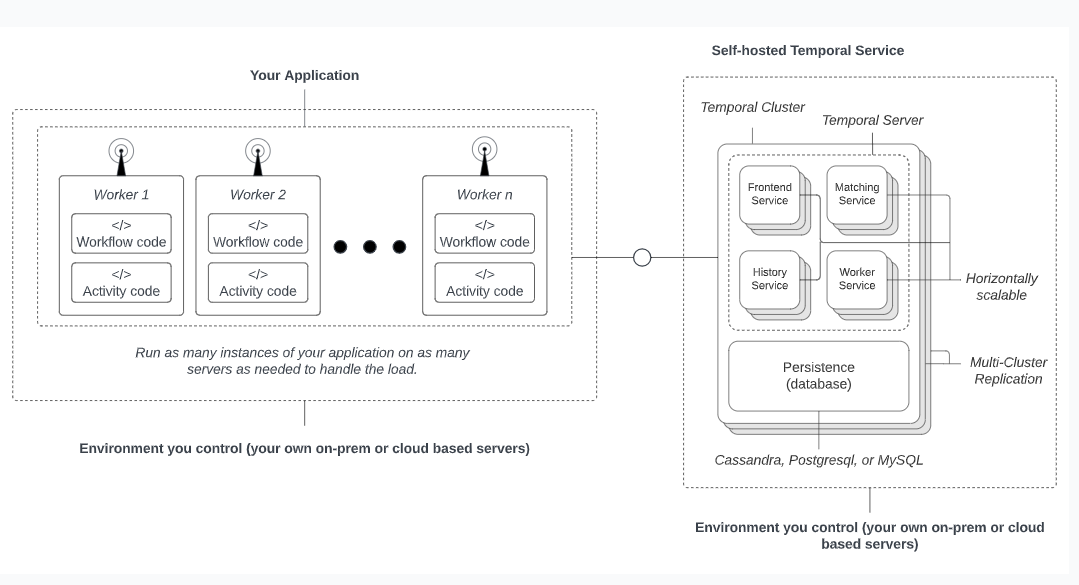

Architecture

The History, Matching, and Worker Services can scale horizontally within a Temporal Service. The Frontend Service scales differently than the others because it has no sharding or partitioning; it is just stateless



Temporal Server | Temporal Platform Documentation

• Frontend gateway: for rate limiting, routing, authorizing.
• History subsystem: maintains data (mutable state, queues, and timers).
• Matching subsystem: hosts Task Queues for dispatching.
• Worker Service: for internal background Workflows.


Deploying a Temporal Service | Temporal Platform Documentation

Workflows, Activities, and Workers form the core parts of a Temporal Application.

Workflows: A Workflow defines the overall flow of the application. You write it in your programming language of choice using the Temporal SDK. Conceptually, a Workflow specifies a sequence of steps and orchestrates the execution of Activities.

Activities: An Activity is a method or function that encapsulates business logic prone to failure (e.g., callin
