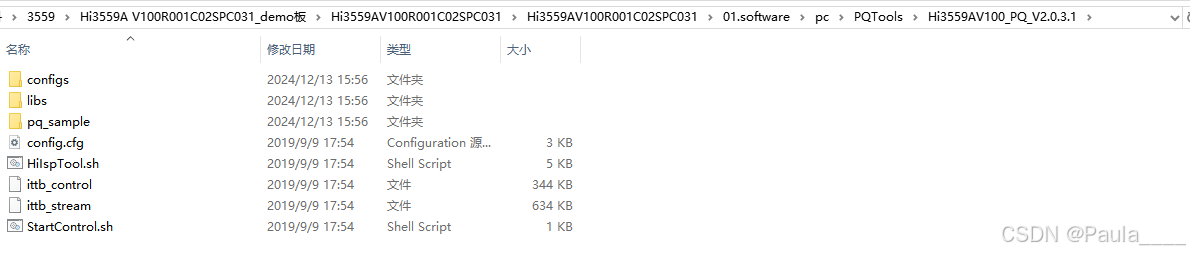

工具所在目录如下：
3559\Hi3559A V100R001C02SPC031_demo板\Hi3559AV100R001C02SPC031\Hi3559AV100R001C02SPC031\01.software\pc\PQTools\Hi3559AV100_PQ_V2.0.3.1

在这里插入图片描述
将编译好的sensor驱动库放在libs目录下

调试使用的摄像头型号是OS08A20

调试指令：

cd ko241216
./load3559av100_multicore -a sensor0 os08a20

cd Hi3559AV100_PQ_V2.0.3.1_mipi0_mipi1/
./HiIspTool.sh -a os08a20 1

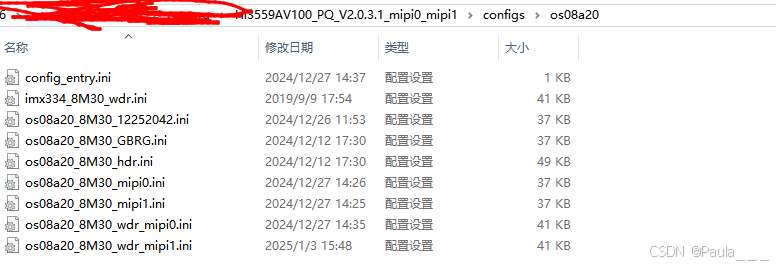

对应的ini文件源码如下：（在imx334基础上修改）
在这里插入图片描述

config_entry.ini

[video_mode]
ModeNum   = 4
UseMode  = 0

[mode.0]
ModeName        = 8M30_mipi0
IniFilename     = os08a20_8M30_mipi0.ini
[mode.1]
ModeName        = 8M30_mipi1
IniFilename     = os08a20_8M30_mipi1.ini

[mode.2]
ModeName        = 8M30_hdr_mipi0
IniFilename     = os08a20_8M30_wdr_mipi0.ini

[mode.3]
ModeName        = 8M30_hdr_mipi1
IniFilename     = os08a20_8M30_wdr_mipi1.ini

os08a20_8M30_mipi0.ini

[isp]
IspNum = 1
IntBotHalf = 0
QuickStart = 0
[isp.0]
DevId = 0
SensorType = stSnsOs08a20Obj
					;sensor name
SensorLibFile = ./libs/libsns_os08a20_mipi0.so
WdrModeNum = 2
UseWdrMode   = 0
                                        ;WDR_MODE_NONE = 0
                                        ;WDR_MODE_BUILT_IN = 1
                                        ;WDR_MODE_QUDRA = 2
                                        ;WDR_MODE_2To1_LINE = 3
                                        ;WDR_MODE_2To1_FRAME = 4
                                        ;WDR_MODE_2To1_FRAME_FULL_RATE = 5
                                        ;WDR_MODE_3To1_LINE = 6
                                        ;WDR_MODE_3To1_FRAME = 7
                                        ;WDR_MODE_3To1_FRAME_FULL_RATE = 8
                                        ;WDR_MODE_4To1_LINE = 9
                                        ;WDR_MODE_4To1_FRAME = 10
                                        ;WDR_MODE_4To1_FRAME_FULL_RATE = 11
WBPosition = 1
										;WDR_WBGAIN_IN_DG1         = 0,
										;WDR_WBGAIN_IN_WB          = 1,
WdrMode0 = 0
UseMipiMode0 = 0
                                        ;WdrMode0 use mipi_mode.0
WdrMode1 = 3
UseMipiMode1 = 1
                                        ;WdrMode1 use mipi_mode.1
Isp_x = 0
Isp_y = 0
Isp_w = 3840
Isp_h = 2160
SensorWidth = 3840
SensorHeight = 2160
Isp_FrameRate = 25
Isp_Bayer = 0
                                        ;BAYER_RGGB=0
                                        ;BAYER_GRBG=1
                                        ;BAYER_GBRG=2
                                        ;BAYER_BGGR=3
SnsMode = 1
SnsType = 2
                                        ;ISP_SNS_I2C_TYPE = 0
                                        ;ISP_SNS_SSP_TYPE =  1
                                        ;ISP_SNS_TYPE_BUTT = 2  /*do not set anything, use default setting*/
I2cDev = -1
SspDev = -1
SspCs = -1
;----------for Isp_Ctrl_Params------------
ProcParam = 30;
StatIntvl = 1;
UpdatePos = 0;
IntTimeOut = 200;
PwmNumber = 3;
PortIntDelay = 0;
LdciTprFltEn = FALSE;
[mipi]
lane_divide_mode = 7
                                        ;LANE_DIVIDE_MODE_0 = 0x0
                                        ;LANE_DIVIDE_MODE_7 = 0x7
										;...etc
										;LANE_DIVIDE_MODE_B = 0xB
MipiModeNum = 2
[mipi_mode.0]
input_mode =0
										;INPUT_MODE_MIPI = 0
                                        ;INPUT_MODE_SUBLVDS = 1
                                        ;INPUT_MODE_LVDS = 2
                                        ;INPUT_MODE_HISPI = 3
                                        ;INPUT_MODE_SLVS = 4
                                        ;INPUT_MODE_CMOS = 5
                                        ;INPUT_MODE_BT601 = 6
                                        ;INPUT_MODE_BT656 = 7
                                        ;INPUT_MODE_BT1120 = 8
                                        ;INPUT_MODE_BYPASS = 9
                                        ;INPUT_MODE_LVDS_EX = 10

phy_clk_share =1
                                        ;PHY_CLK_SHARE_NONE = 0
                                        ;PHY_CLK_SHARE_PHY0 = 1
                                        ;PHY_CLK_SHARE_BUTT = 2
img_rect_x = 0
                                        ;oringnal sensor input image size x
img_rect_y = 0
                                        ;oringnal sensor input image size y
img_rect_w = 3840
                                        ;oringnal sensor input image size W
img_rect_h = 2160
                                        ;oringnal sensor input image size H
data_rate = 0
                                        ;MIPI_DATA_RATE_X1 = 0
                                        ;MIPI_DATA_RATE_X2 = 1
raw_data_type = 2
                                        ;DATA_TYPE_RAW_8BIT = 0
										;DATA_TYPE_RAW_10BIT = 1
										;DATA_TYPE_RAW_12BIT = 2
										;DATA_TYPE_RAW_14BIT = 3
										;DATA_TYPE_RAW_16BIT = 4
										;DATA_TYPE_YUV420_8BIT = 5
										;DATA_TYPE_YUV422_8BIT = 6

;----------only for mipi_dev---------
mipi_wdr_mode =0
                                        ;HI_MIPI_WDR_MODE_NONE =0
                                        ;HI_MIPI_WDR_MODE_VC = 1
                                        ;HI_MIPI_WDR_MODE_DT = 2
                                        ;HI_MIPI_WDR_MODE_DOL =3
mipi_lane_id = 0|1|2|3|-1|-1|-1|-1|
                                        ;lane_id: -1 - disable
;----------only for slvs_dev---------
slvs_lane_rate = 0
sensor_valid_width = 4144
slvs_lane_id = 0|1|2|3|4|5|6|7|
                                        ;lane_id: -1 - disable
;----------only for lvds_dev---------
wdr_mode = 0
                                        ;HI_WDR_MODE_NONE =0
                                        ;HI_WDR_MODE_2F = 1
                                        ;HI_WDR_MODE_3F = 2
                                        ;HI_WDR_MODE_4F =3
                                        ;HI_WDR_MODE_DOL_2F=4
                                        ;HI_WDR_MODE_DOL_3F=5
                                        ;HI_WDR_MODE_DOL_4F=6
sync_mode = 1
                                        ;LVDS_SYNC_MODE_SOF = 0
                                        ;LVDS_SYNC_MODE_SAV = 1
lvds_vsync_type = 0
                                        ;LVDS_VSYNC_NORMAL = 0
                                        ;LVDS_VSYNC_SHARE = 1
                                        ;LVDS_VSYNC_HCONNECT = 2
hblank1 = -1                             ;hconnect vsync blanking len, valid when the sync_type is LVDS_VSYNC_HCONNECT
hblank2 = -1
lvds_fid_type = 0
                                        ;LVDS_FID_NONE = 0
                                        ;LVDS_FID_IN_SAV = 1
                                        ;LVDS_FID_IN_DATA = 2
output_fil = TRUE
data_endian = 1
                                        ;LVDS_ENDIAN_LITTLE = 0
                                        ;LVDS_ENDIAN_BIG = 1
sync_code_endian =1
                                        ;LVDS_ENDIAN_LITTLE = 0
                                        ;LVDS_ENDIAN_BIG = 1
lvds_lane_num = -1                      ;LVDS_LANE_NUM
wdr_vc_num = -1                         ;WDR_VC_NUM
sync_code_num = -1                      ;SYNC_CODE_NUM
lane_id = -1|-1|-1|-1|-1|-1|-1|-1|      ;lane_id: -1 - disable
sync_code_0 = -1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|
sync_code_1 = -1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|
sync_code_2 = -1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|
sync_code_3 = -1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|
sync_code_4 = -1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|
sync_code_5 = -1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|
sync_code_6 = -1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|
sync_code_7 = -1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|-1|

[mipi_mode.1]
input_mode =0
										;INPUT_MODE_MIPI = 0
                                        ;INPUT_MODE_SUBLVDS = 1
                                        ;INPUT_MODE_LVDS = 2
                                        ;INPUT_MODE_HISPI = 3
                                        ;INPUT_MODE_SLVS = 4
                                        ;INPUT_MODE_CMOS = 5
                                        ;INPUT_MODE_BT601 = 6
                                        ;INPUT_MODE_BT656 = 7
                                        ;INPUT_MODE_BT1120 = 8
                                        ;INPUT_MODE_BYPASS = 9
                                        ;INPUT_MODE_LVDS_EX = 10

img_rect_x = 0
                                        ;oringnal sensor input image size x
img_rect_y = 0
                                        ;oringnal sensor input image size y
img_rect_w = 3840
                                        ;oringnal sensor input image size W
img_rect_h = 2160
                                        ;oringnal sensor input image size H
data_rate = 0
                                        ;MIPI_DATA_RATE_X1 = 0
                                        ;MIPI_DATA_RATE_X2 = 1
raw_data_type = 1
                                        ;DATA_TYPE_RAW_8BIT = 0
										;DATA_TYPE_RAW_10BIT = 1
										;DATA_TYPE_RAW_12BIT = 2
										;DATA_TYPE_RAW_14BIT = 3
										;DATA_TYPE_RAW_16BIT = 4
										;DATA_TYPE_YUV420_8BIT = 5
										;DATA_TYPE_YUV422_8BIT = 6

;----------only for mipi_dev---------
mipi_wdr_mode =1
                                        ;HI_MIPI_WDR_MODE_NONE =0
                                        ;HI_MIPI_WDR_MODE_VC = 1
                                        ;HI_MIPI_WDR_MODE_DT = 2
                                        ;HI_MIPI_WDR_MODE_DOL =3
mipi_lane_id = 0|1|2|3|-1|-1|-1|-1|
                                        ;lane_id: -1 - disable
;----------only for slvs_dev---------
slvs_lane_rate = 0
sensor_valid_width = 4144
slvs_lane_id = 0|1|2|3|4|5|6|7|
                                        ;lane_id: -1 - disable
;----------only for lvds_dev---------
wdr_mode = 0
                                        ;HI_WDR_MODE_NONE =0
                                        ;HI_WDR_MODE_2F = 1
                                        ;HI_WDR_MODE_3F = 2
                                        ;HI_WDR_MODE_4F =3
                                        ;HI_WDR_MODE_DOL_2F=4
                                        ;HI_WDR_MODE_DOL_3F=5
                                        ;HI_WDR_MODE_DOL_4F=6
sync_mode = 1
                                        ;LVDS_SYNC_MODE_SOF = 0
                                        ;LVDS_SYNC_MODE_SAV = 1
lvds_vsync_type = 0
                                        ;LVDS_VSYNC_NORMAL = 0
                                        ;LVDS_VSYNC_SHARE = 1
                                        ;LVDS_VSYNC_HCONNECT = 2
hblank1 = 0
                                        ;hconnect vsync blanking len, valid when the sync_type is LVDS_VSYNC_HCONNECT
hblank2 = 0
lvds_fid_type = 0
                                        ;LVDS_FID_NONE = 0
                                        ;LVDS_FID_IN_SAV = 1
                                        ;LVDS_FID_IN_DATA = 2
output_fil = TRUE
data_endian = 1
                                        ;LVDS_ENDIAN_LITTLE = 0
                                        ;LVDS_ENDIAN_BIG = 1
sync_code_endian =1
                                        ;LVDS_ENDIAN_LITTLE = 0
                                        ;LVDS_ENDIAN_BIG = 1
lvds_lane_num = 12
                                        ;LVDS_LANE_NUM
wdr_vc_num    = 4
                                        ;WDR_VC_NUM
sync_code_num = 4
                                        ;SYNC_CODE_NUM
lane_id = 0|1|2|-1|3|4|-1|5|6|7|-1|-1|
                                        ;lane_id: -1 - disable
sync_code_0 = 0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|
sync_code_1 = 0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|
sync_code_2 = 0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|
sync_code_3 = 0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|
sync_code_4 = 0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|
sync_code_5 = 0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|
sync_code_6 = 0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|
sync_code_7 = 0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|0xab0|0xb60|0x800|0x9d0|
sync_code_8 = 0|0|0|0|0|0|0|0|0|0|0|0|0|0|0|0|
sync_code_9 = 0|0|0|0|0|0|0|0|0|0|0|0|0|0|0|0|
sync_code_10 = 0|0|0|0|0|0|0|0|0|0|0|0|0|0|0|0|
sync_code_11 = 0|0|0|0|0|0|0|0|0|0|0|0|0|0|0|0|

[vi]
StitchGrpNum = 0
DevNum = 1
PipeNum = 1
[vi_dev.0]
DevId = 0
ViMipi = 0
BindPipeNum = 1
BindPipeId = 0
IntfMode = 6
									;VI_MODE_BT656 = 0
									;VI_MODE_BT656_PACKED_YUV = 1
                                    ;VI_MODE_BT601 = 2
                                    ;VI_MODE_DIGITAL_CAMERA = 3
                                    ;VI_MODE_BT1120_STANDARD = 4
                                    ;VI_MODE_BT1120_INTERLEAVED = 5
                                    ;VI_MODE_MIPI = 6
									;VI_MODE_MIPI_YUV420_NORMAL = 7     /* MIPI YUV420 normal mode */
									;VI_MODE_MIPI_YUV420_LEGACY = 8     /* MIPI YUV420 legacy mode */
									;VI_MODE_MIPI_YUV422 = 9            /* MIPI YUV422 mode */
                                    ;VI_MODE_LVDS = 10
                                    ;VI_MODE_HISPI = 11
                                    ;VI_MODE_SLVS = 12
WorkMode = 0
                                    ;VI_WORK_MODE_1Multiplex = 0
                                    ;VI_WORK_MODE_2Multiplex = 1
                                    ;VI_WORK_MODE_3Multiplex = 2
                                    ;VI_WORK_MODE_4Multiplex = 3
CompMask0   = 0xfff00000
CompMask1   = 0x0
ScanMode    = 1
                                    ;VI_SCAN_INTERLACED = 0
                                    ;VI_SCAN_PROGRESSIVE = 1
AdChnId     = -1|-1|-1|-1
DataSeq     = 4
                                    ;The input sequence of the second component(only contains u and v) in BT.1120 mode
                                    ;VI_DATA_SEQ_VUVU = 0
                                    ;VI_DATA_SEQ_UVUV = 1
                                    ;The input sequence for yuv
                                    ;VI_DATA_SEQ_UYVY = 2
                                    ;VI_DATA_SEQ_VYUY = 3
                                    ;VI_DATA_SEQ_YUYV = 4
                                    ;VI_DATA_SEQ_YVYU = 5
Vsync   = 1
                                    ;vertical synchronization signal
                                    ;VI_VSYNC_FIELD = 0
                                    ;VI_VSYNC_PULSE = 1
VsyncNeg = 0
                                    ;Polarity of the vertical synchronization signal
                                    ;VI_VSYNC_NEG_HIGH = 0
                                    ;VI_VSYNC_NEG_LOW = 1
Hsync   =0
                                    ;Attribute of the horizontal synchronization signal
                                    ;VI_HSYNC_VALID_SINGNAL = 0
                                    ;VI_HSYNC_PULSE = 1
HsyncNeg =0
                                    ;Polarity of the horizontal synchronization signal
                                    ;VI_HSYNC_NEG_HIGH = 0
                                    ;VI_HSYNC_NEG_LOW = 1
VsyncValid =1
                                    ;Attribute of the valid vertical synchronization signal
                                    ;VI_VSYNC_NORM_PULSE = 0
                                    ;VI_VSYNC_VALID_SINGAL = 1
VsyncValidNeg =0
                                    ;Polarity of the valid vertical synchronization signal
                                    ;VI_VSYNC_VALID_NEG_HIGH = 0
                                    ;VI_VSYNC_VALID_NEG_LOW = 1
Timingblank_HsyncHfb  =0
                                    ;Horizontal front blanking width
Timingblank_HsyncAct  =1280
                                    ;Horizontal effetive width
Timingblank_HsyncHbb  =0
                                    ;Horizontal back blanking width
Timingblank_VsyncVfb  =0
                                    ;Vertical front blanking height
Timingblank_VsyncVact =720
                                    ;Vertical effetive width
Timingblank_VsyncVbb  =0
                                    ;Vertical back blanking height
Timingblank_VsyncVbfb =0
                                    ;Even-field vertical front blanking height(interlace, invalid progressive)
Timingblank_VsyncVbact=0
                                    ;Even-field vertical effetive width(interlace, invalid progressive)
Timingblank_VsyncVbbb =0
                                    ;Even-field vertical back blanking height(interlace, invalid progressive)

InputDataType = 1
                                    ;VI_DATA_TYPE_YUV = 0
                                    ;VI_DATA_TYPE_RGB = 1
DataReverse = FALSE
Width = 3840
Height = 2160
BasWidth = 3840
BasHeight = 2160
HRephaseMode=0
                                    ;VI_REPHASE_MODE_NONE       = 0
                                    ;VI_REPHASE_MODE_SKIP_1_2   = 1        /*skip 1/2*/
                                    ;VI_REPHASE_MODE_SKIP_1_3   = 2        /* skip 1/3 */
                                    ;VI_REPHASE_MODE_BINNING_1_2= 3        /* binning 1/2*/
                                    ;VI_REPHASE_MODE_BINNING_1_3= 4        /* binning 1/3*/
VRephaseMode=0
                                    ;VI_REPHASE_MODE_NONE       = 0
                                    ;VI_REPHASE_MODE_SKIP_1_2   = 1        /*skip 1/2*/
                                    ;VI_REPHASE_MODE_SKIP_1_3   = 2        /* skip 1/3 */
                                    ;VI_REPHASE_MODE_BINNING_1_2= 3        /* binning 1/2*/
                                    ;VI_REPHASE_MODE_BINNING_1_3= 4        /* binning 1/3*/
WDRMode = 0
                                    ;WDR_MODE_NONE = 0
                                    ;WDR_MODE_BUILT_IN = 1
				    ;WDR_MODE_QUDRA = 2
                                    ;WDR_MODE_2To1_LINE = 3
                                    ;WDR_MODE_2To1_FRAME = 4
                                    ;WDR_MODE_2To1_FRAME_FULL_RATE = 5
                                    ;WDR_MODE_3To1_LINE = 6
                                    ;WDR_MODE_3To1_FRAME = 7
                                    ;WDR_MODE_3To1_FRAME_FULL_RATE = 8
                                    ;WDR_MODE_4To1_LINE = 9
                                    ;WDR_MODE_4To1_FRAME = 10
                                    ;WDR_MODE_4To1_FRAME_FULL_RATE = 11
CacheLine = 2160
DataRate = 0
									;DATA_RATE_X1 = 0,         /* RW; output 1 pixel per clock */
									;DATA_RATE_X2 = 1,         /* RW; output 2 pixel per clock */
[vi_timing.0]
TimingEnable = FALSE
TimingFrmRate = 25
[vi_pipe.0]
PipeId = 0
PipeBypassMode = 0
									;VI_PIPE_BYPASS_NONE = 0
									;VI_PIPE_BYPASS_FE = 1
									;VI_PIPE_BYPASS_BE = 2
									;VI_PIPE_BYPASS_BUTT = 3
YuvSkip = FALSE
IspBypass = FALSE
MaxW = 3840
MaxH = 2160
PixFmt = 19
                                    ;PIXEL_FORMAT_RGB_BAYER_8BPP = 17
                                    ;PIXEL_FORMAT_RGB_BAYER_10BPP = 18
                                    ;PIXEL_FORMAT_RGB_BAYER_12BPP = 19
                                    ;PIXEL_FORMAT_RGB_BAYER_14BPP = 20
                                    ;PIXEL_FORMAT_RGB_BAYER_16BPP = 21
CompressMode = 0
									;COMPRESS_MODE_NONE = 0        /* no compress */
                                    ;COMPRESS_MODE_SEG = 1             /* compress unit is 256x1 bytes as a segment.*/
                                    ;COMPRESS_MODE_TILE = 2            /* compress unit is a tile.*/
                                    ;COMPRESS_MODE_LINE = 3            /* compress unit is the whole line.  raw for VI  */
                                    ;COMPRESS_MODE_FRAME = 4           /* compress unit is the whole frame. YUV for VI(3DNR), RGB for TDE(write)/VO(read) */
BitWidth = 2
                                    ;DATA_BITWIDTH_8 = 0
                                    ;DATA_BITWIDTH_10 = 1
                                    ;DATA_BITWIDTH_12 = 2
                                    ;DATA_BITWIDTH_14 = 3
                                    ;DATA_BITWIDTH_16 = 4
NrEn = TRUE
NrPixFmt = 26
                                    ;PIXEL_FORMAT_YVU_SEMIPLANAR_422 = 25
                                    ;PIXEL_FORMAT_YVU_SEMIPLANAR_420 = 26

NrBitWidth = 1
                                    ;DATA_BITWIDTH_8 = 0
                                    ;DATA_BITWIDTH_10 = 1
                                    ;DATA_BITWIDTH_12 = 2
                                    ;DATA_BITWIDTH_14 = 3
                                    ;DATA_BITWIDTH_16 = 4
NrRefSource = 0
                                    ;VI_NR_REF_FROM_RFR = 0
                                    ;VI_NR_REF_FROM_CHN0 = 1
NrCompressMode = 0
                                    ;COMPRESS_MODE_NONE = 0        /* no compress */
                                    ;COMPRESS_MODE_SEG = 1             /* compress unit is 256x1 bytes as a segment.*/
                                    ;COMPRESS_MODE_TILE = 2            /* compress unit is a tile.*/
                                    ;COMPRESS_MODE_LINE = 3            /* compress unit is the whole line.  raw for VI  */
                                    ;COMPRESS_MODE_FRAME = 4           /* compress unit is the whole frame. YUV for VI(3DNR), RGB for TDE(write)/VO(read) */
SrcFrameRate = -1
DstFrameRate = -1
DiscardProPic = FALSE

RepeatMode = 2
									;VI_PIPE_REPEAT_NONE  = 0
									;VI_PIPE_REPEAT_ONCE  = 1
									;VI_PIPE_REPEAT_BUTT = 2
IntType = 0
									;FRAME_INTERRUPT_START = 0
									;FRAME_INTERRUPT_EARLY = 1
									;FRAME_INTERRUPT_EARLY_END = 2
EarlyLine = 128

ChnNum = 1
[vi_snap.0]
SnapType = 2
									;SNAP_TYPE_NORMAL = 0
									;SNAP_TYPE_PRO = 1
									;SNAP_TYPE_BUTT = 2
LoadCCM = TRUE
FrameCnt = 1
RepeatSendTimes = 1
;-------------for SNAP_TYPE_NORMAL------
ZSL = FALSE
FrameDepth = 1
RollbackMs = 0
Interval = 0
;-------------for SNAP_TYPE_PRO---------
OperationMode = 2
									;OPERATION_MODE_AUTO = 0
									;OPERATION_MODE_MANUAL = 1
									;OPERATION_MODE_BUTT = 2
ProExpStep = 0|0|0|0|0|0|0|0|
ManExpTime = 0|0|0|0|0|0|0|0|
ManSysgain = 0|0|0|0|0|0|0|0|
[vi_fisheye.0]
Fisheye = FALSE
LMFCoef = 0x0|0x12|0x24|0x38|0x49|0x5C|0x6F|0x83|0x96|0xA8|0xB9|0xCB|0xDF|0xF2|0x105|0x118|0x12A|0x13B|0x14D|0x15E|0x170|0x182|0x193|0x1A5|0x1B7|0x1CC|0x1DD|0x1EF|0x201|0x211|0x222|0x233|0x246|0x256|0x267|0x278|0x28A|0x29C|0x2AC|0x2BA|0x2C8|0x2D6|0x2E6|0x2F6|0x305|0x316|0x327|0x337|0x343|0x350|0x35E|0x36E|0x37B|0x386|0x391|0x39D|0x3A9|0x3B6|0x3C2|0x3CC|0x3D6|0x3E0|0x3EA|0x3F5|0x400|0x40B|0x416|0x421|0x42C|0x437|0x442|0x44D|0x458|0x463|0x46E|0x479|0x484|0x48F|0x49A|0x4A5|0x4B0|0x4BB|0x4C6|0x4D1|0x4DC|0x4E7|0x4F2|0x4FD|0x508|0x513|0x51E|0x529|0x534|0x53F|0x54A|0x555|0x560|0x56B|0x576|0x581|0x58C|0x597|0x5A2|0x5AD|0x5B8|0x5C3|0x5CE|0x5D9|0x5E4|0x5EF|0x5FA|0x605|0x610|0x61B|0x626|0x631|0x63C|0x647|0x652|0x65D|0x668|0x673|0x67E|0x689|0x694|0x69F|0x6AA|0x6B5|
[vi_chn.0.0]
ChnId = 0
Width = 3840
Height = 2160
PixelFormat = 26
                                    ;PIXEL_FORMAT_YVU_SEMIPLANAR_422 = 25
                                    ;PIXEL_FORMAT_YVU_SEMIPLANAR_420 = 26
DynamicRange = 0
                                    ;DYNAMIC_RANGE_SDR8 = 0
                                    ;DYNAMIC_RANGE_SDR10 = 1
                                    ;DYNAMIC_RANGE_HDR10 = 2
                                    ;DYNAMIC_RANGE_HLG = 3
                                    ;DYNAMIC_RANGE_SLF = 4
                                    ;DYNAMIC_RANGE_XDR = 5
VideoFormat = 0
                                    ;VIDEO_FORMAT_LINEAR = 0           /* nature video line */
                                    ;VIDEO_FORMAT_TILE_64x16 = 1       /* tile cell: 64pixel x 16line */
                                    ;VIDEO_FORMAT_TILE_16x8 = 2        /* tile cell: 16pixel x 8line */
                                    ;VIDEO_FORMAT_LINEAR_DISCRETE    /* The data bits are aligned in bytes */
CompressMode = 0
                                    ;COMPRESS_MODE_NONE = 0               /* no compress */
                                    ;COMPRESS_MODE_SEG = 1             /* compress unit is 256x1 bytes as a segment.*/
                                    ;COMPRESS_MODE_TILE = 2            /* compress unit is a tile.*/
                                    ;COMPRESS_MODE_LINE = 3            /* compress unit is the whole line.  raw for VI  */
                                    ;COMPRESS_MODE_FRAME = 4           /* compress unit is the whole frame. YUV for VI(3DNR), RGB for TDE(write)/VO(read) */
Mirror = FALSE
Flip = FALSE
SrcFrameRate = -1
DstFrameRate = -1
BindChn = -1 ;only for extchn
[vi_dis.0.0]
DIS_Enable = FALSE
DIS_GdcBypass = FALSE
DIS_MovingSubjectLevel=0
DIS_RollingShutterCoef=0
DIS_TimeLag=0
DIS_ViewAngle=410
DIS_HorizontalLimit=512
DIS_VerticalLimit=512
DIS_bStillCrop=FALSE
DIS_Strength=0


DIS_Mode =0
									;DIS_MODE_4_DOF_GME = 0,    /* Only use with GME in 4 dof  */
									;DIS_MODE_6_DOF_GME = 1     /* Only use with GME in 6 dof  */
									;DIS_MODE_GYRO = 2          /* Only use with gryo in 6 dof  */
									;DIS_MODE_HYBRID = 3        /* Both use with GME and gyro in 6 dof */
									;DIS_MODE_DOF_BUTT
DIS_MotionLevel =1
                                    ;DIS_MOTION_LEVEL_LOW = 0
                                    ;DIS_MOTION_LEVEL_NORMAL = 1
                                    ;DIS_MOTION_LEVEL_HIGH = 2

DIS_PdtType =0
                                    ;DIS_PDT_TYPE_IPC = 0
                                    ;DIS_PDT_TYPE_DV = 1
                                    ;DIS_PDT_TYPE_DRONE = 2


DIS_BufNum=5
DIS_CropRatio=80
DIS_FrameRate=30
DIS_RotationMatrix=0|0|0|0|0|0|0|0|0|
DIS_GyroOutputRange=0
DIS_GyroDataBitWidth=0
DIS_CameraSteady=FALSE
DIS_bScale=FALSE
[vi_spread.0.0]
Spread_Enable = FALSE
Spread_Coef = 0
Spread_Width = 3840
Spread_Height = 2160
[vi_ldc.0.0]
LDC_Enable = FALSE
LDC_Aspect = FALSE
LDC_XRatio = 0
LDC_YRatio = 0
LDC_XYRatio = 0
LDC_CenterXOffset = 0
LDC_CenterYOffset = 0
LDC_DistortionRatio = 0
[vpss_group]
VpssGrpNum = 1
[vpss_group.0]
VpssGrp = 0
VpssChnNum = 1
MaxW = 3840
MaxH = 2160
PixelFormat = 26
                                    ;PIXEL_FORMAT_YVU_SEMIPLANAR_422 = 25
                                    ;PIXEL_FORMAT_YVU_SEMIPLANAR_420 = 26
DynamicRange = 0
                                    ;DYNAMIC_RANGE_SDR8 = 0
                                    ;DYNAMIC_RANGE_SDR10 = 1
                                    ;DYNAMIC_RANGE_HDR10 = 2
                                    ;DYNAMIC_RANGE_HLG = 3
                                    ;DYNAMIC_RANGE_SLF = 4
                                    ;DYNAMIC_RANGE_XDR = 5
SrcFrameRate = -1
DstFrameRate = -1
NrEn = TRUE
NrType = 0
									;<
最低0.47元/天 解锁文章
海思SD3403/SS928V100开发（4）sys_cfg驱动配置流程分析
jzwjzw19900922的博客
02-06 1118
包括sys、clk、sensor、vo显示、i2c/uart/spi/gpio、vi/mipi等视频相关模块。SDK默认是配置一般是针对开发板的，如果需要做产品或开发定制化载板，因为此驱动是系统启动加载的前提条件，很多外围接口都依赖此配置，就需要根据实际的硬件接口进行增减配置，避免IO接口出现冲突。为什么需要分析sys_cfg驱动流程？
海思35系列平台Tsensor驱动开发（1）驱动编写
jzwjzw19900922的博客
04-16 1226
1. 前言 3559平台芯片内部内置了温度传感器，可用于实时检测芯片内部温度； 温度的检测范围为-40~125℃，支持设置温度上下限阈值报警输出。内部温度传感器提供了单次采集模式和循环采集模式两种选择。 软件开发分为驱动和用户态软件开发。 2. 查看芯片datasheet 3. 驱动软件编写 这里使用混杂设备进行驱动编写； misc_register(&hitsensor_dev)； 以下就是具体功能实现，主要根据芯片datasheet转化过来； （1）设置温度采集模式 copy_from_use
海思平台ISP系列从零开始：一、PQTools工具的使用总结
热门推荐
斟茶兵的博客
08-18 1万+
海思平台 ISP 系列： 一. PQTools 工具使用方法 正所谓工欲善其事必先利其器，磨刀不误砍柴工， 想要在海思平台开始IQ, 就得利用海思SDK中提供的PQTools工具，这个工具作的很好的，里边有很多图像分析的工具，下面就开始介绍： 工具入式如何使用： 在海思的SDK开发包中，包含了PQTools 使用的软件，以我使用的Hi33516DV300为例，PQTools工具包的目录如下： Hi3516CV500R001C02SPC020\01.software\...
海思3559a_如何使用mipi0和mipi1（使用PQ板端运行程序版）
最新发布
panaohan的博客
12-27 510
前情提要：硬件连接i2c0,对应的mipi总线是mipi1；硬件连接i2c1,对应的mipi总线是mipi0；Sensor代码中s8I2cDev指定i2c是使用 0 or 1。
海思Hi3516dv300屏幕调试MIPI TX接口LCD屏幕（京东方JD9366）
nswcszmdfj的博客
04-19 6510
一、操作环境 板子：DopiHi3516DV300开发板 +京东方JD9366屏幕 +IMX307摄像头 电脑：Ubuntu18.04 SDK版本：Hi3516CV500_SDK_V2.0.1.1 二、调试简述 一般常见的彩色LCD屏幕的接口模式有：MCU模式，RGB模式，SPI模式，VSYNC模式，DSI模式。第一种模式顾名思义，主要是用于单片机领域，主要的特点就是廉价，以Intel的8080总线协议标准通讯，没有时钟以及同步信号，主要由数据总线和控制总线构成，这种LCD驱...
海思HI3516 MIPI屏幕调试笔记
嵌入式人工智能相关
07-27 5632
海思HI3516 DV300 配置mipi屏幕的相关配置过程以及知识点
海思3559万能平台搭建：添加一个新的sensor
快跑Bug来啦！
10-17 7089
海思对摄像头的支持是只有固定的，如果我们想更换新的相机，让fpga接入通过lvds接口给3559提供视频源的话，除了相关配置，还需要添加新的sensor库，编译新的isp库，而且，如果移植不善，还可能对第三方库（SDL,FreeType，SDL_TTF等）造成影响，需要进一步修改。
海思Hi3516新增sensor imx214 笔记
嵌入式人工智能相关
10-25 3601
海思Hi3516新增sensor imx214 笔记
海思3519v101双sensor调试
banxia92的博客
08-29 5277
      最近使用HI3519V101+OV4689做双路图像拼接，现记录一下调试过程。双路图像使用MIPI接口，在硬件上工程师将海思MIPI1-3都引出用做调试。        调试中发现，当采用双路sensor同时输入时，LINK0和LINK1接第一路sensor，LINK2接第二路sensor。所以第一路sensor最大支持2Link/8LaneMIPI 输入或 2Link/8Lane ...
PQ_FAQ_cn_repin.pdf
12-08
- **裁剪与分辨率切换**：Hi3518Ev200和Hi3516A支持在多个模块（如Sensor、MIPI Rx、VI DEV、ISP和VI CHN）进行裁剪。分辨率切换通常涉及sensor的重新初始化，但可以通过修改驱动来避免。 2. 亮度与对比度调整 - ...
海思摄像机芯片 sensor 调试指南
10-12
海思摄像机芯片 sensor 调试指南
海思sensor驱动 编译调试方法
yueyuezhuce的博客
12-16 410
编译驱动 按照其他驱动进行仿写，直接在当前目录下进行make 电路板上调试方法 1.拷贝KO文件 ，到电路板总 运行命令 ./load3559av100_multicore -a -sensor0 os08a20 2.拷贝PQtool工具到电路板中 （1）将编译出来的sensor驱动so，放到pq的libs目录下，再仿造例如configs/imx334的ini文件，新建一个os08a20的文件夹，新建一个config_entry.ini，os08a20.ini里面的内容就先参考imx334的配置 （2）o
海思Hi3518EV200（5）图像sensor驱动开发
weixin_34389926的博客
09-09 1454
1. sensor开发框图2. 设备驱动加载及硬件系统配置cdmpp/ko #defaultonline ./load3518e-a-sensorxxxx-osmem32-total64 #vi_vpssoffline ./load3518e-a-sensorxxxx-osmem32-total64-offlineload3518e脚本...
海思系列HiPQTools工具ISP图像调试-黑白校定
a812417530的博客
06-07 2964
海思系列HiPQTools工具图像调试-黑白校定获取 sensor 的黑电平参数将设备的光圈完全关闭，或者使用镜头盖将镜头输入遮挡，确保无光线进入；通过 HiPQ 的 ExposureAttr 标签， 手动设置整个系统的增益为 1x。HiPQ Capture Tool 抓取一个 Raw 文件导入 Raw 文件，点击 Black Level Calibration 按钮点击Black Level Settings获取结果把数字input到HiPQTools中(搞定) 获取 sensor 的黑电平参数 将设备的
全志平台移植sensor驱动详解
weixin_45349811的博客
09-06 1580
前面一篇文章里面大概介绍了一下快起上面的驱动移植，提及了自己手动移植驱动时，需要修改的一些地方，如果顺利的话可以初步点亮sensor出图，但具体不是太详细，所以想着重新写一篇专门说sensor驱动修改方面的文，这篇也算是驱动移植了，可以实际套用在全志平台（我也没接触过过全志很多其他平台，具体是不是都一样也不晓得），如果不适用，那你再瞅瞅其他人的文章，我这个做个了解好了。本文讲一下整体的sensor移植过程，重点在驱动修改方面，然后用 ov02b10 这个驱动做例子分析。
【HISI系列】海思芯片驱动使用方法
优快云明星博主，认证博客专家，视频、Matlab领域优质创作者。
02-23 6319
DATE: 2019-2-22 前言     在调试不同海思芯片的编码器时，遇到了需要加载和卸载驱动的情况，并且调试过程中出现不同硬件层面和编码的错误，特将问题定位方法记录一下以供后续参考。
海思平台ISP与图像的IQ调试(2)
小嵌同学的博客
02-23 7213
目录一、IQ调试相关的概念1、黑电平2、镜头阴影矫正3、坏点矫正4、自动曝光5、DRC与WDR6、噪声抑制7、颜色插值8、自动白平衡9、颜色矫正10、伽马矫正11、自动增益控制12、颜色空间转换13、色度矫正14、图像锐化15、感知色16、图像增强二、PQTool工具的安装和使用1、PQTool的2部分介绍2、准备工作3、PQTool使用4、分析gamma和sharpen的源码三、模拟图像参数调整试验1、gamma参数试验 一、IQ调试相关的概念 1、黑电平 (1)暗电流 物理器件不可能是理想的， 由于杂质
详细记录海思相机适配新的sensor（IMX585）（二）——Hi3519DV500
HI_DMXB的博客
07-02 4715
声明：工作进行到最后遇到了问题没有调出来，但是适配sensor的流程应该没问题，仅供参考和交流，主要是自我记录和交流解决问题详细记录海思相机适配新的sensor（IMX585）（一）——Hi3519DV500上期做了底层驱动的修改，一切的修改都是基于同一厂商的驱动修改，并且最好两款sensor的手册中的数据相差不大。此次进行适配工作。
评论 4
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
