C#源码分析：上位机SECS协议的进制转换在半导体行业的应用 S5F1报警/取消报警上传 C#与SECS集成资料大全

C# SECS/GEM通信 S5F1报警/取消报警上传 WinForm集成SECS/GEM通信协议 C#与SECS集成资料大全 C#对接SECS资料明细实战例子 半导体行业-SECS/GEM协议

前面一篇文章介绍了C#和secs集成的例子

C#与SECS/GEM基础通信

S10F3 终端单个显示例子

C#与SECS/GEM通信 S10F3 终端单个显示例子

最新例子下载-----> 需要源代码下载

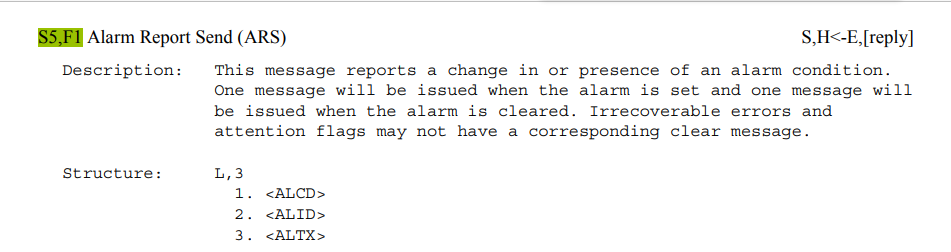

 public async static void S5F1(byte ALCD, ushort ALID, string ALTX)
        {
            bool EventID_IsEnabled = true;
            if (EventID_IsEnabled == false)
            {
                return;
            }
            SecsMessage sentMsg = new SecsMessage(5, 1, "S5F1",
                        Item.L(
                                Item.B(ALCD),
                                Item.U2(ALID),
                                Item.A(ALTX)
                            )
                    );
            SecsMessage reply = await SecsBase.secsGem.SendAsync(sentMsg);
            byte yymm = reply.SecsItem.GetValue<byte>();
        }

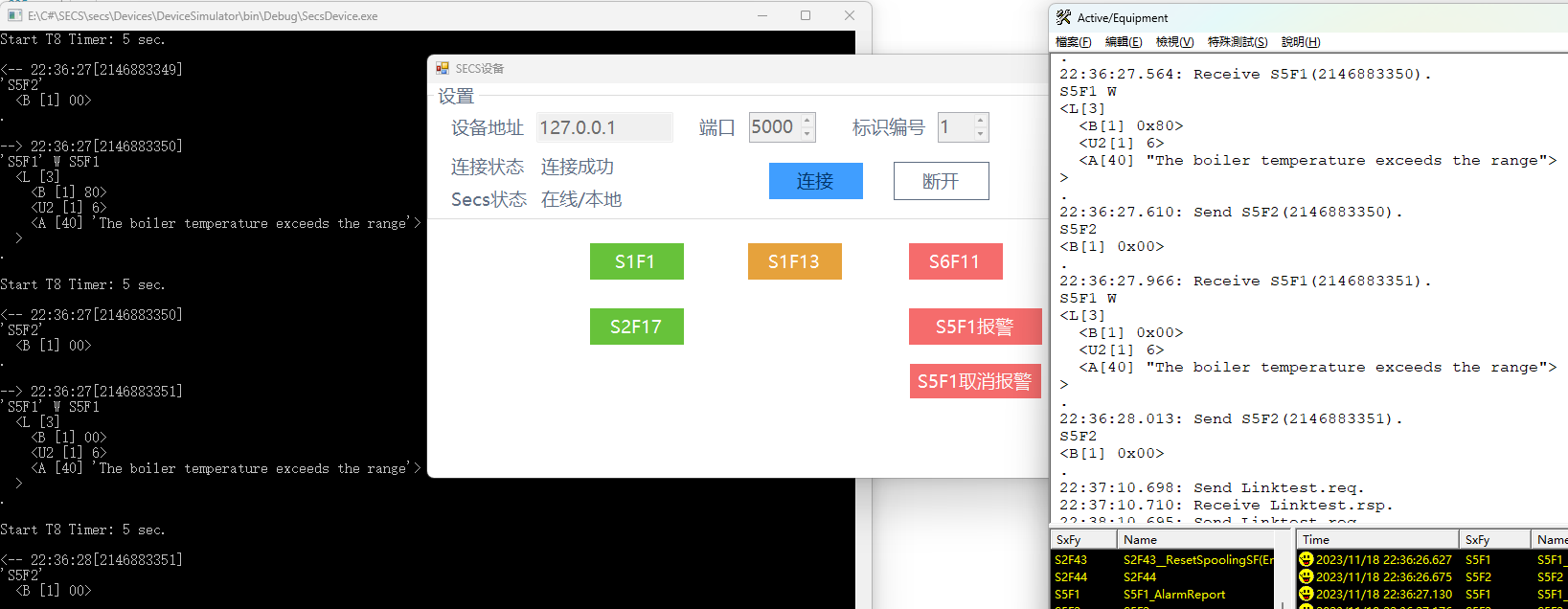

 private void button5_Click(object sender, EventArgs e)
        {
            S5Fx.S5F1(0x80, 6, "The boiler temperature exceeds the range");
        }

        private void button6_Click(object sender, EventArgs e)
        {
            S5Fx.S5F1(0x00, 6, "The boiler temperature exceeds the range");
        }
