【显著图】基于多尺度图结构实现显著图计算附matlab源码

1 简介

In the fifield of saliency detection, many graph-based algorithms use boundary pixels as background seeds to estimate the background and foreground saliency,which leads to signifificant errors in some of pictures. In addition, local context with high contrast will mislead the algorithms. In this paper, we propose a novel multilevel bottom-up saliency detection

approach that accurately utilizes the boundary information and takes advantage of both region based features and local image details. To provide more accurate saliency estimations, we build a three-level graph model to capture both region-based features and local image details. By

using superpixels of all four boundaries, we fifirst roughly fifigure out the foreground superpixels.After calculating the RGB distances between the average of foreground superpixels and every boundary superpixel, we discard the boundary superpixels with the longest distance to get a set of accurate background boundary queries. Finally, we propose the regularized random walks ranking to formulate pixel-wise saliency maps. Experiment results on two public datasets indicate the signifificantly promoted accuracy and robustness of our proposed algorithm in comparison with

7 state-of-the-art saliency detection approaches.

2 部分代码

​clear allclcclose all%% Initializationaddpath(genpath('./support/'));IMG_DIR = './TestData/data/';% Original image pathSAL_DIR='./TestData/solution/' ;% Output path of the saliency mapif ~exist(SAL_DIR, 'dir')    mkdir(SAL_DIR);endimglist=dir([IMG_DIR '*' 'jpg']);​%% Algorithm startfor imgno=1:length(imglist)        % Load input image    disp(imgno);    disp(imglist(imgno).name);    % Calculate saliency    imgnamein=imglist(imgno).name;    spn = 200;    spnb = 24;    itheta = 10;    alpha = 0.99;    % Step 1 & 2: Saliency Estimation    imgname = [IMG_DIR, imgnamein(1:end-4) '.jpg'];    imgbmpname = strcat(imgname(1:(end-4)), '.bmp');    [img, wid] = removeframe(imgname);    img = uint8(img*255);    w=fspecial('gaussian',[5,5],15);    img2=imfilter(img,w);%%%%%%%%%%%1st gaussian    w=fspecial('gaussian',[55,55],15);    img3=imfilter(img,w);%%%%%%%%%%%2st gaussian​    [m, n, ~] = size(img);    comm = ['SLIC_SUPPORT' ' ' imgbmpname ' ' int2str(2) ' ' int2str(spn) ' '];    evalc('system(comm)');    spname = [imgbmpname(1:end-4)  '.dat'];    superpixels = ReadDAT([m,n], spname);    spno = max(superpixels(:));    [salest,W] = Msalestimation(img, superpixels, spno, itheta, alpha,img2,img3);    salest= (salest-min(salest))/(max(salest)-min(salest));        map=superpixels;    for i=1:spno        map(map==i)=salest(i);    end    map1=reshape(map',n*m,1);​    % Step 3: regularized random walk ranking    salest=salest(1:spno,1);    th1 = (mean(salest) + max(salest)) / 2;    th2 = mean(salest);    mu = (1-alpha) / alpha;    [seeds, label] = seed4rw(salest, th1, th2);    [P] = myrrwr(m,n,img,itheta,superpixels,seeds,label,salest,spno,mu);    sal = P(:,1);​    salmean = (sal+map1)/2;​    sal = (salmean-min(salmean(:)))/(max(salmean(:))-min(salmean(:)));    sal=reshape(sal,n,m)';    saloutput = zeros(wid(1),wid(2));  saloutput(wid(3):wid(4),wid(5):wid(6)) = sal;  saloutput = uint8(saloutput*255);    saliency=saloutput;    %     Output saliency map to file    imwrite(saliency, [SAL_DIR, imglist(imgno).name(1:end-4), '_Saliency.png']);​    salest=salest(1:spno,1);    th1 = (mean(salest) + max(salest)) / 2;  th2 = mean(salest);  mu = (1-alpha) / alpha;  [seeds, label] = seed4rw(salest, th1, th2);  [~, probabilities] = rrwr(img, superpixels, salest, seeds, label, mu);  sal = probabilities(:,:,1);  sal = (sal-min(sal(:)))/(max(sal(:))-min(sal(:)));    saloutput = zeros(wid(1),wid(2));  saloutput(wid(3):wid(4),wid(5):wid(6)) = sal;  saloutput = uint8(saloutput*255);​    saliency=saloutput;    %     Output saliency map to file    figure    subplot(121);    imshow(img);    title('原图')        subplot(122);    imshow(saliency) ; title('显著图')    imwrite(saliency, [SAL_DIR, imglist(imgno).name(1:end-4), '_SaliencyOld.png']);   % imwrite(map, [SAL_DIR, imglist(imgno).name(1:end-4), '_sal锟洁级BB.png']);    clearvars -except IMG_DIR SAL_DIR imglist imgnoend​​

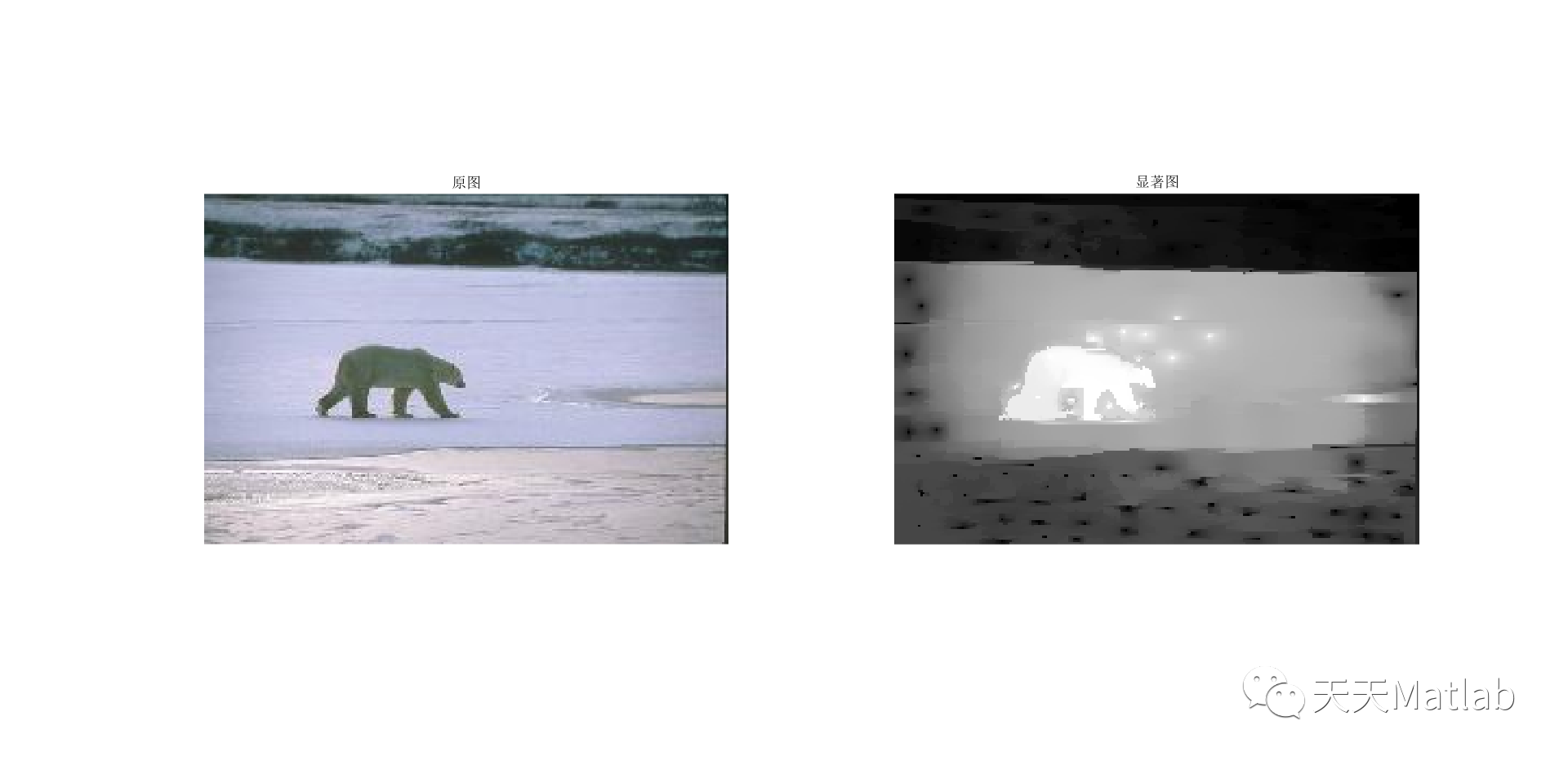

3 仿真结果

4 参考文献

[1]Hao, Aimin, Shuai, et al. Structure-Sensitive Saliency Detection via Multilevel Rank Analysis in Intrinsic Feature Space[J]. IEEE Transactions on Image Processing, 2015, 24(8):2303-2316.​
